Hydraulic Valve Manufacturer

Méthode de contrôle:Électro-hydraulique

Distributeur:2 tiroirs

Débit nominal:40 L/min (10,5 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G1/2

Orifice de sortie:G1/2

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P40 Vanne directionnelle monobloc

Taille de l'emballage:31*18*17

Poids brut:11.00 kg

Disponibilité: En stock

1260 personnes consultent ce produit

Hydraulic Valve Manufacturer

Hydraulic Valve Manufacturer

Hydraulic Valve Manufacturer drawing image

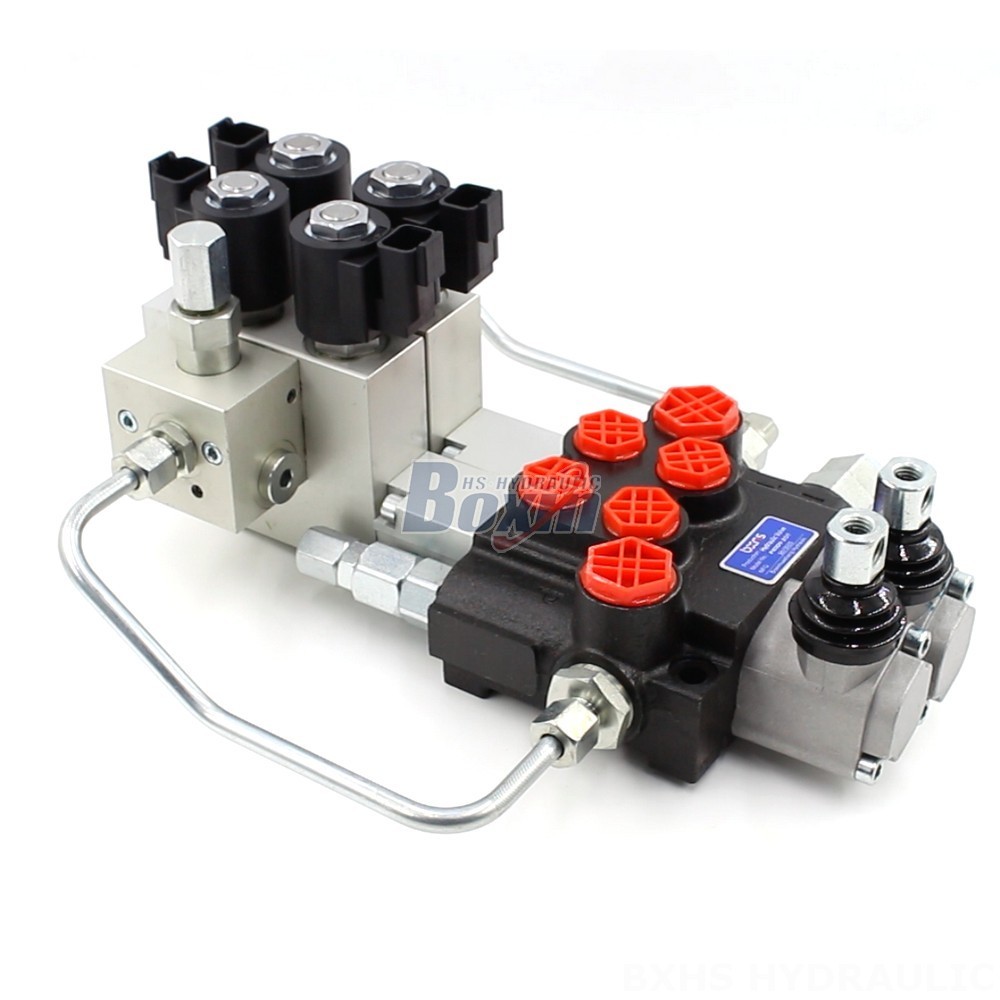

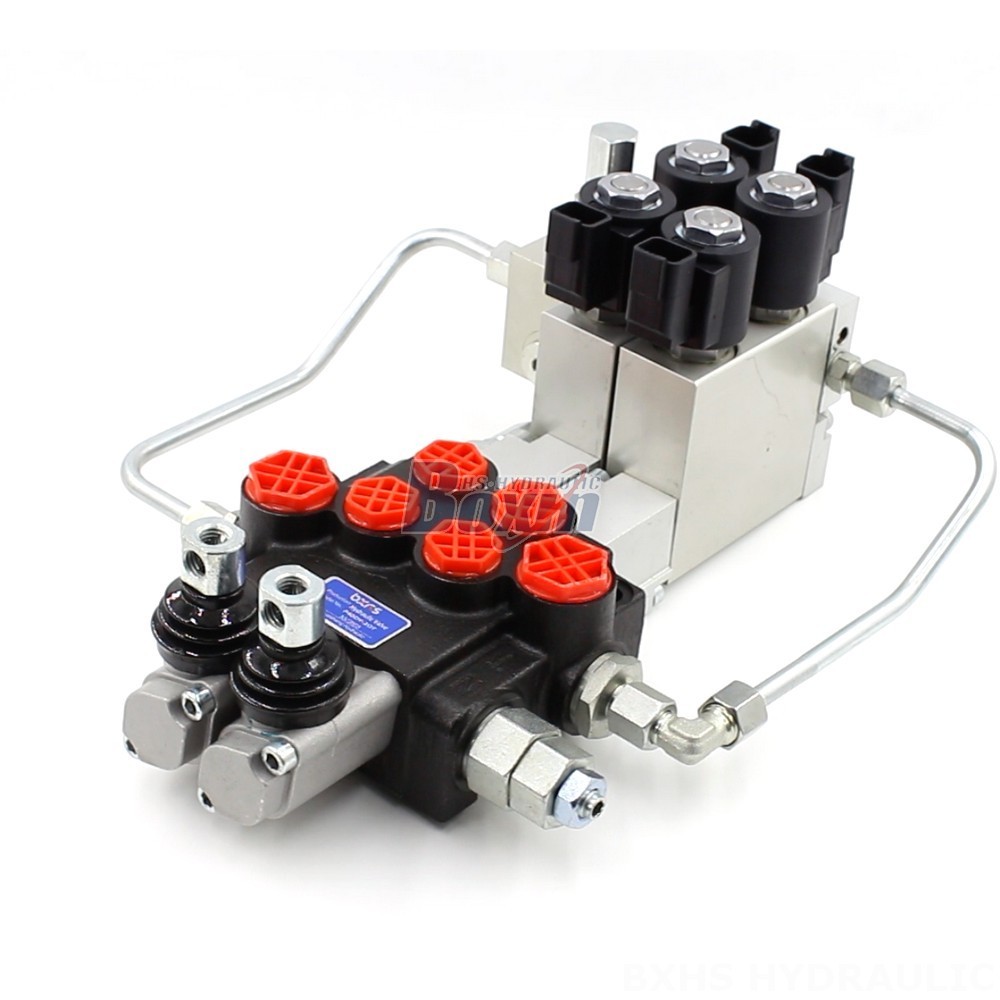

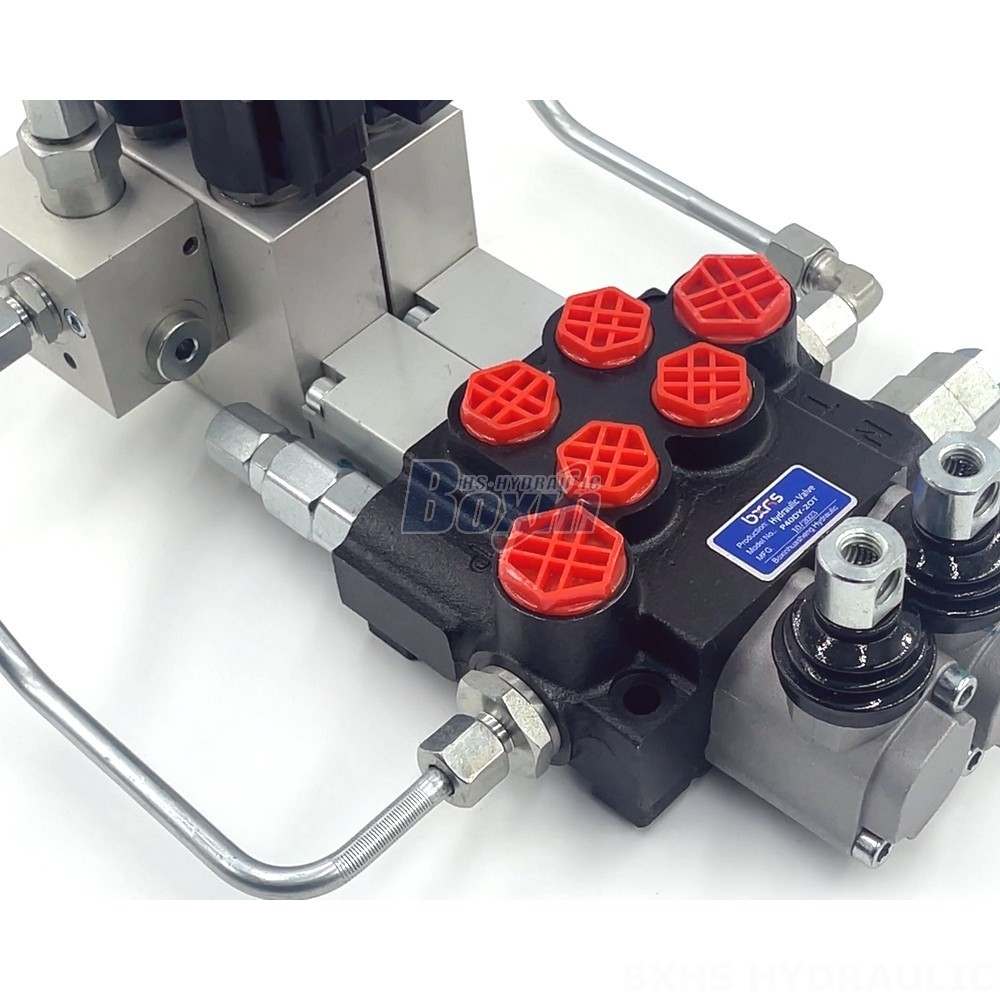

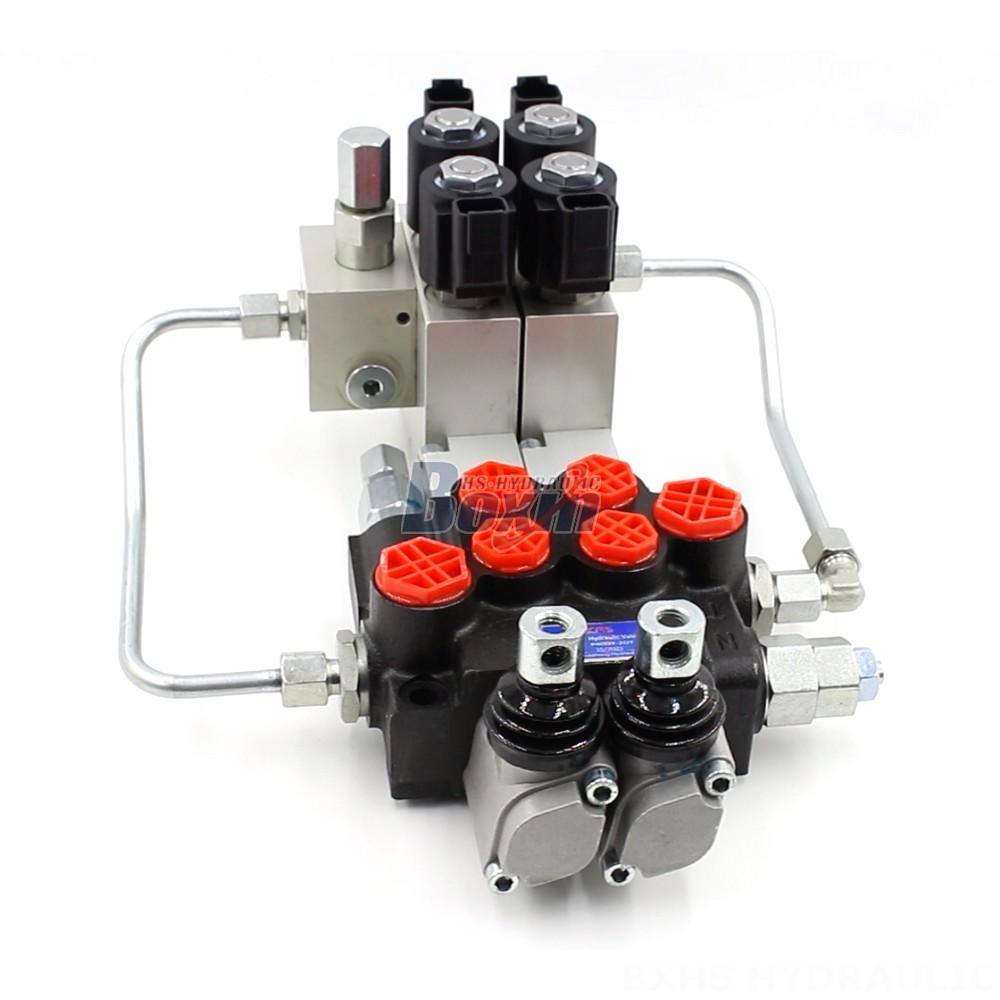

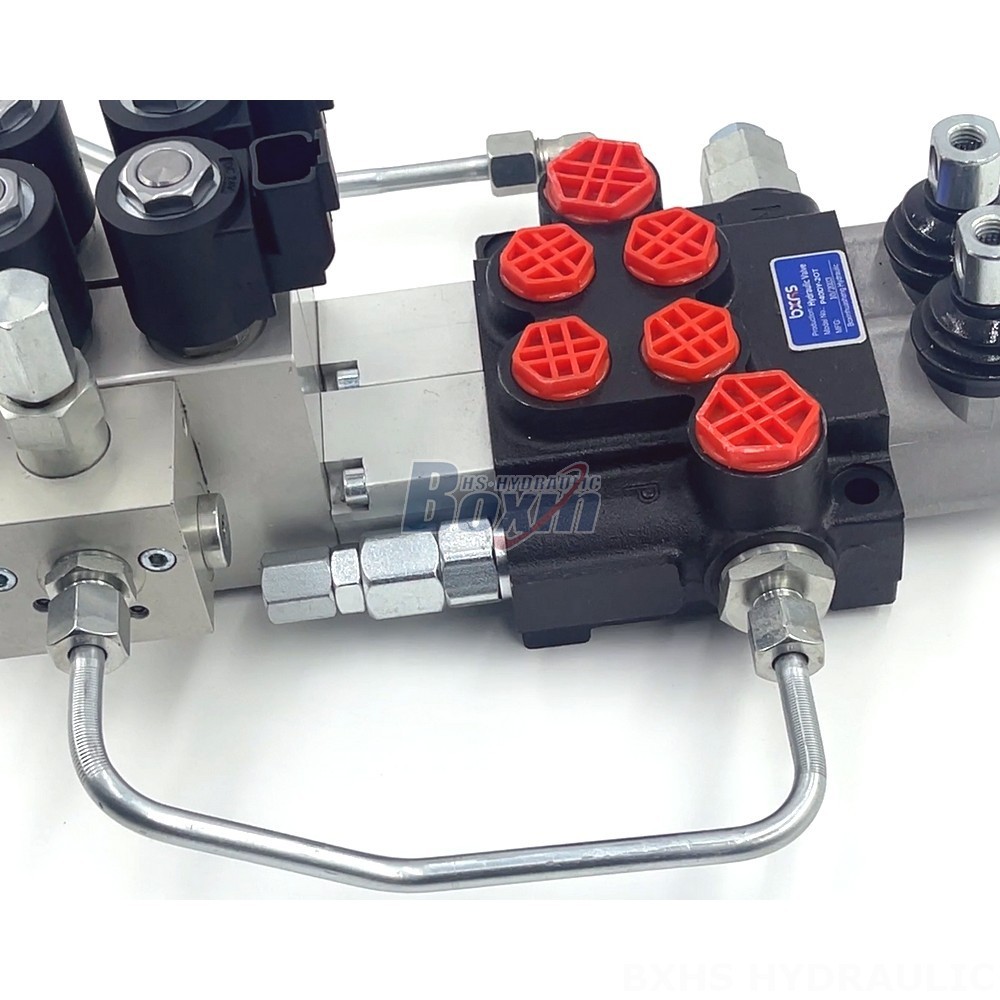

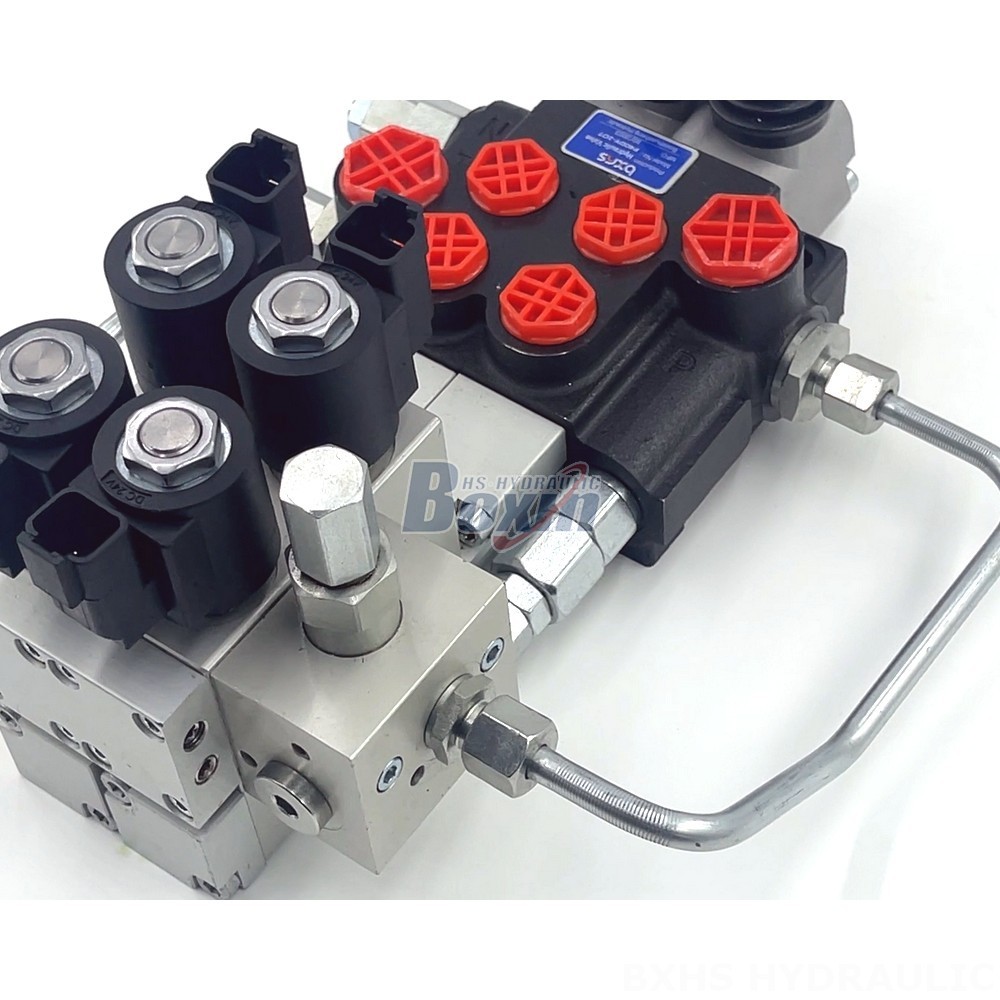

This high-quality manual reducing valve, part of the P40 series, features electro-hydraulic control and monoblock construction. Ideal for construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, and excavators.

Série P40 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Orifice de sortie G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimension du raccord G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-quality manual reducing valve, part of the P40 series, is engineered for superior performance and reliability. It features electro-hydraulic control for precise operation and a monoblock valve construction for durability. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it's suitable for a wide range of applications. This valve is designed for use in demanding environments, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). It's ideal for applications in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
