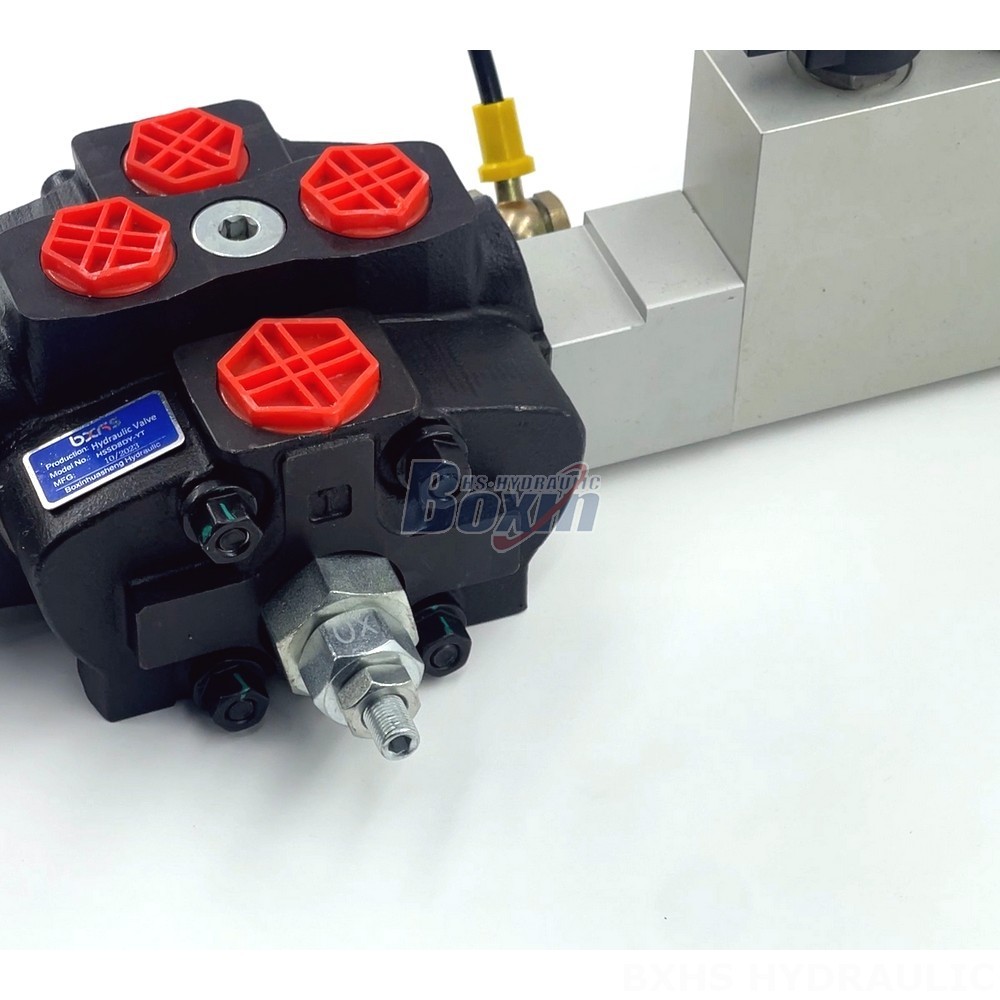

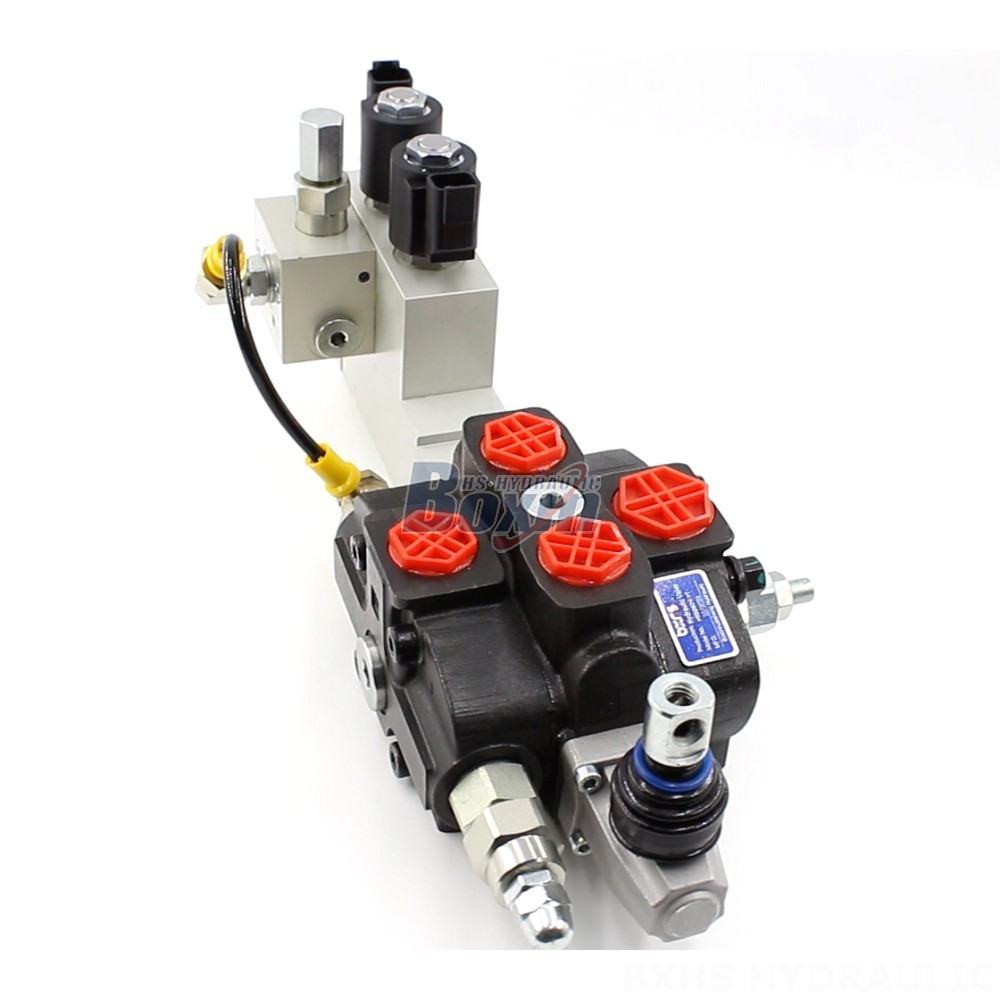

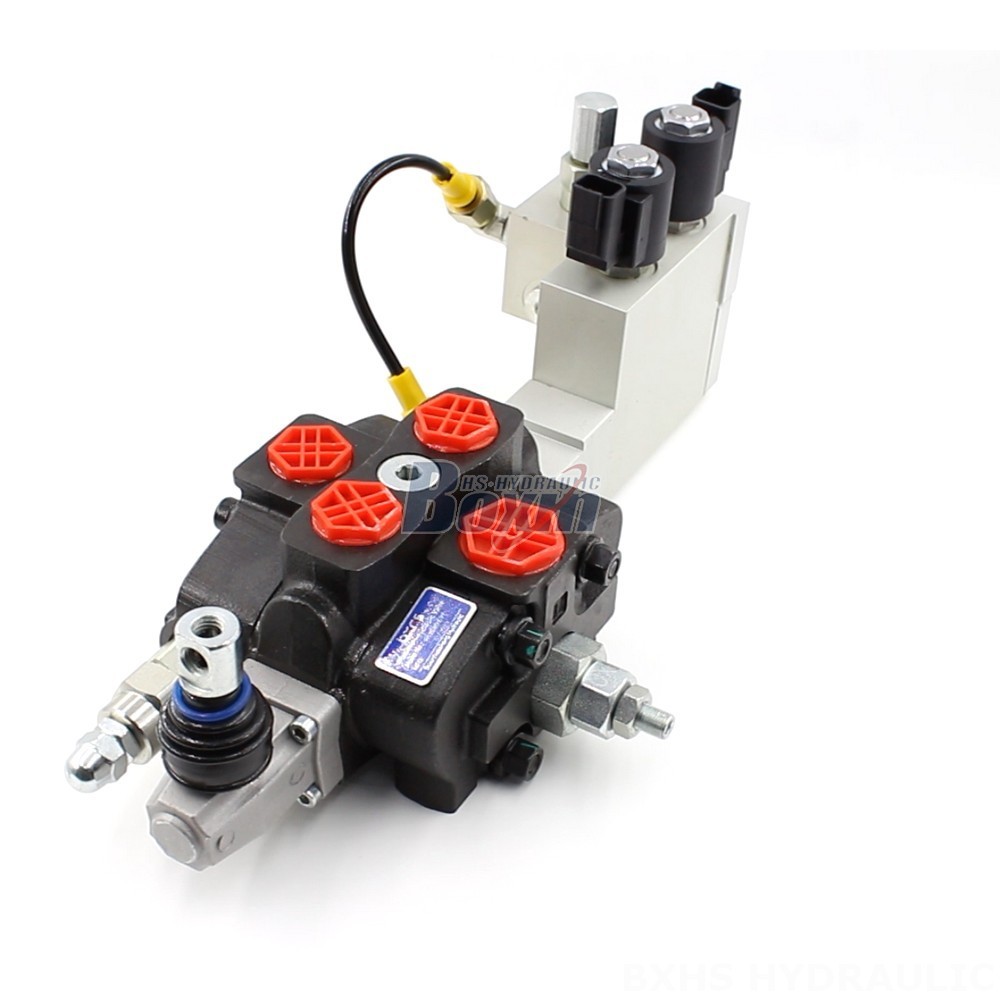

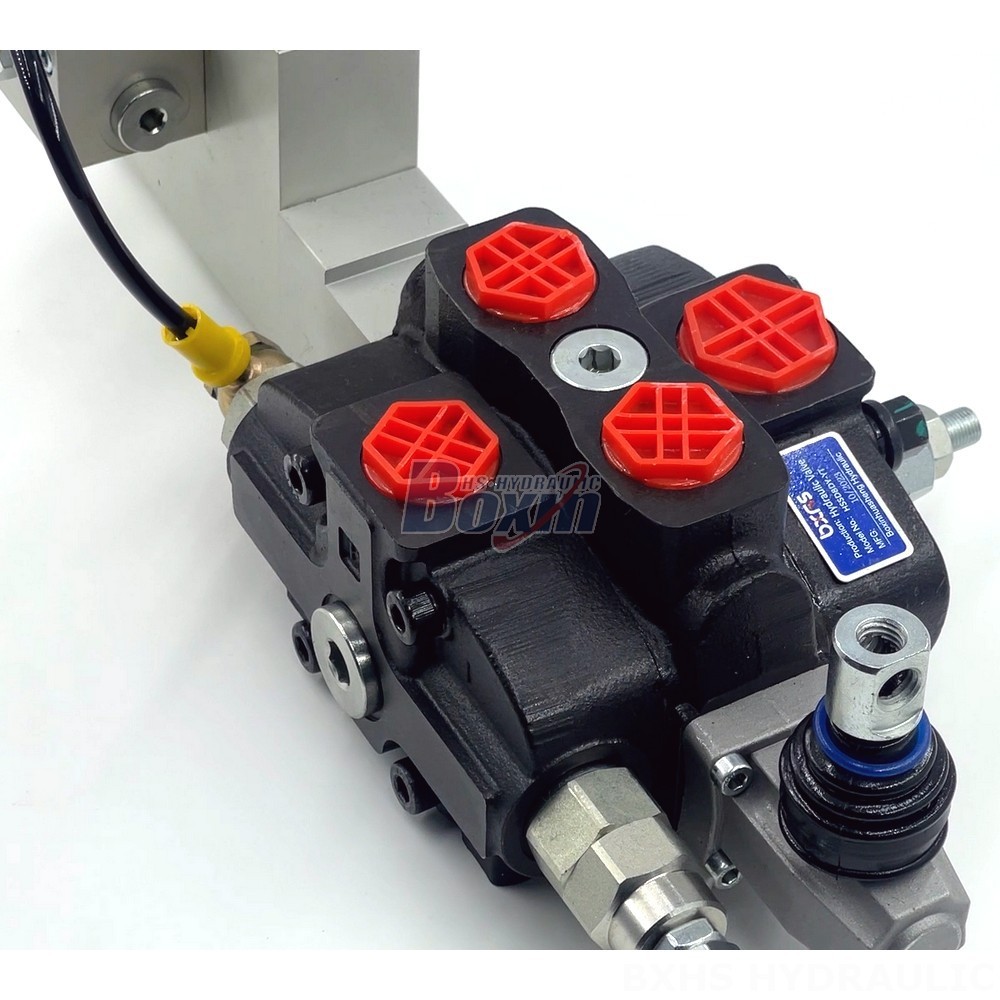

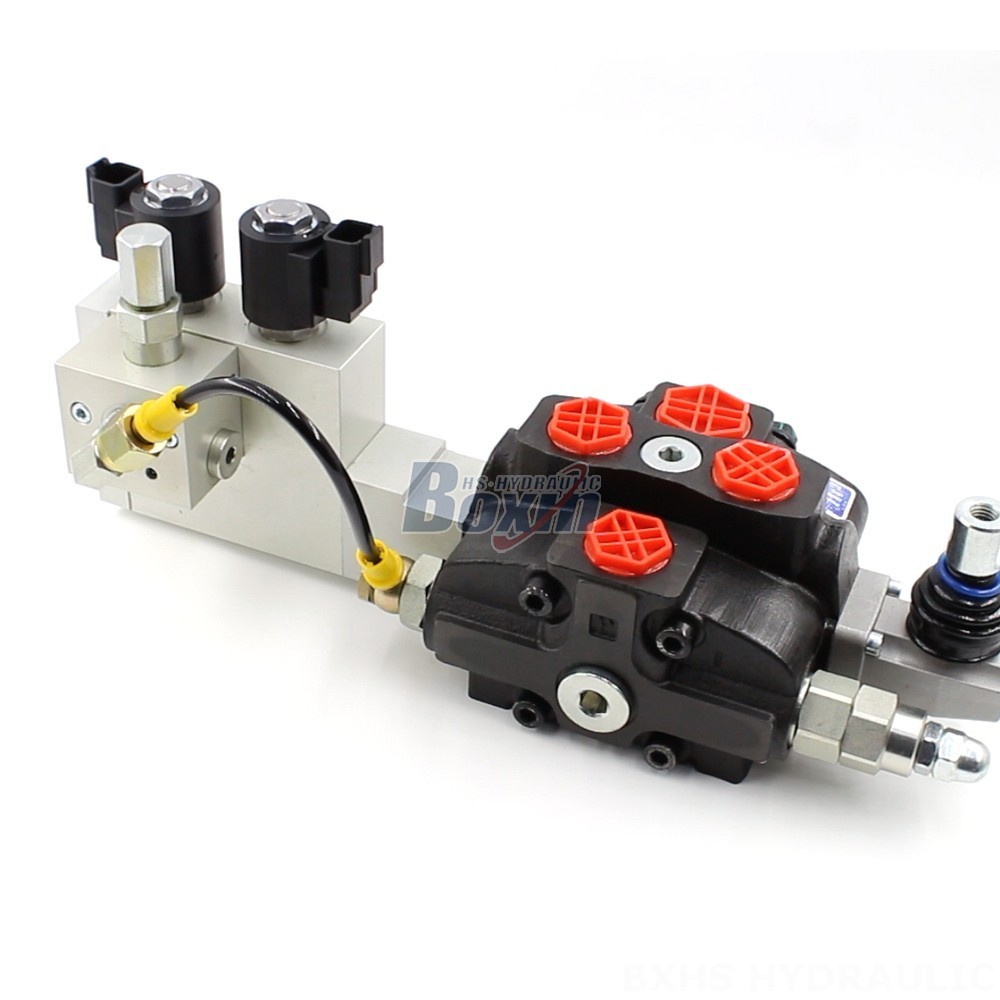

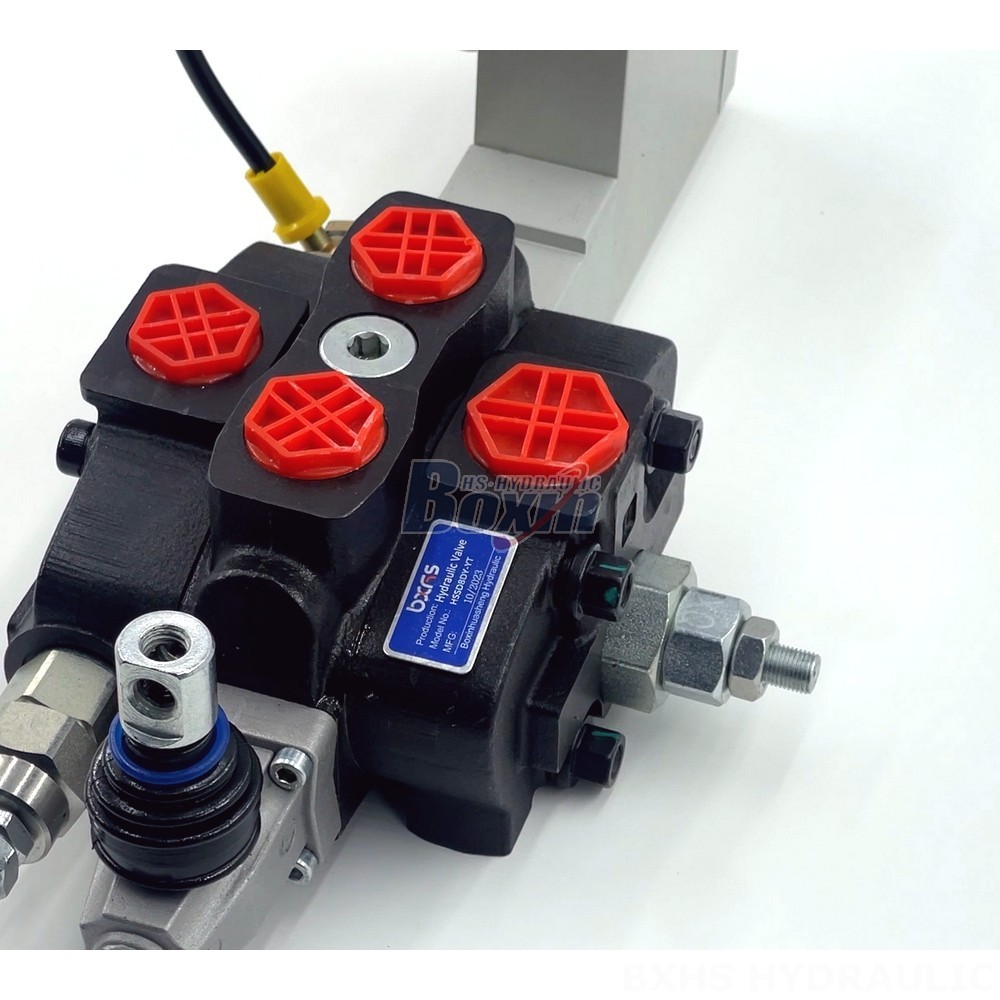

The SD8 Electro-hydraulic Directional Valve is a 1-section, 1-spool valve designed for controlling hydraulic systems in a variety of applications, including material handling, construction, and agriculture. It offers a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for heavy-duty machinery.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |
The SD8 Series Electro-hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its sectional valve structure provides precise and efficient control, while its electro-hydraulic actuation ensures quick response times. The valve features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for demanding applications. It operates within a wide viscosity range and ambient temperature range, ensuring optimal performance in diverse environments.
