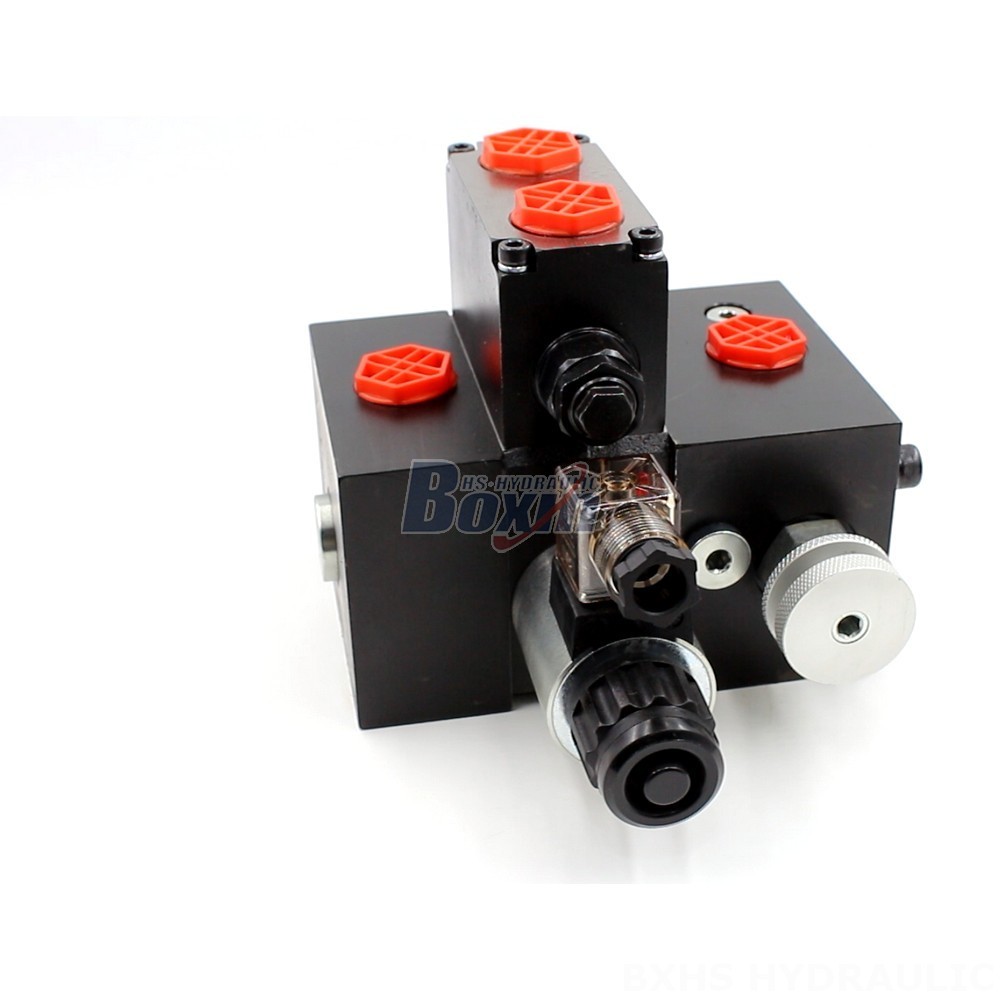

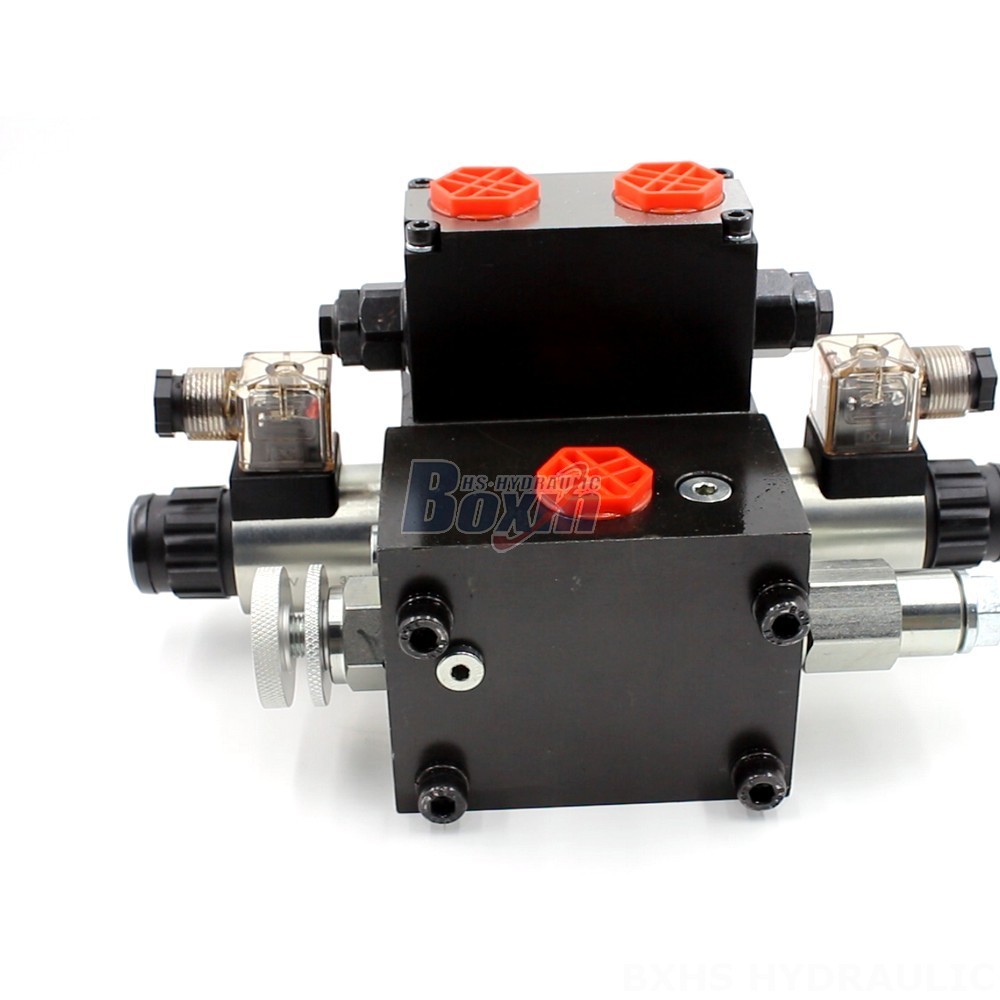

The DCV58F Series Hydraulic Directional Control Valve is a 12v solenoid-operated valve designed for heavy-duty applications in construction, agriculture, and material handling equipment. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for controlling hydraulic actuators in various machinery, including telehandlers, forklifts, excavators, and loaders.
| Série DCV58F Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Débit nominal | 60 L/min (15,8 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Type de structure | Distributeur à clapets |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
This 1-section sectional valve features a single spool and operates with a control method of solenoid. It is designed for high-performance applications, offering a flow rate of 60 L/min and a maximum pressure rating of 350 bar. Its robust construction allows for reliable operation across a wide range of ambient temperatures, from -40°C to +80°C. The DCV58F Series valve is specifically designed for demanding applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers.
