Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1515 personnes consultent ce produit

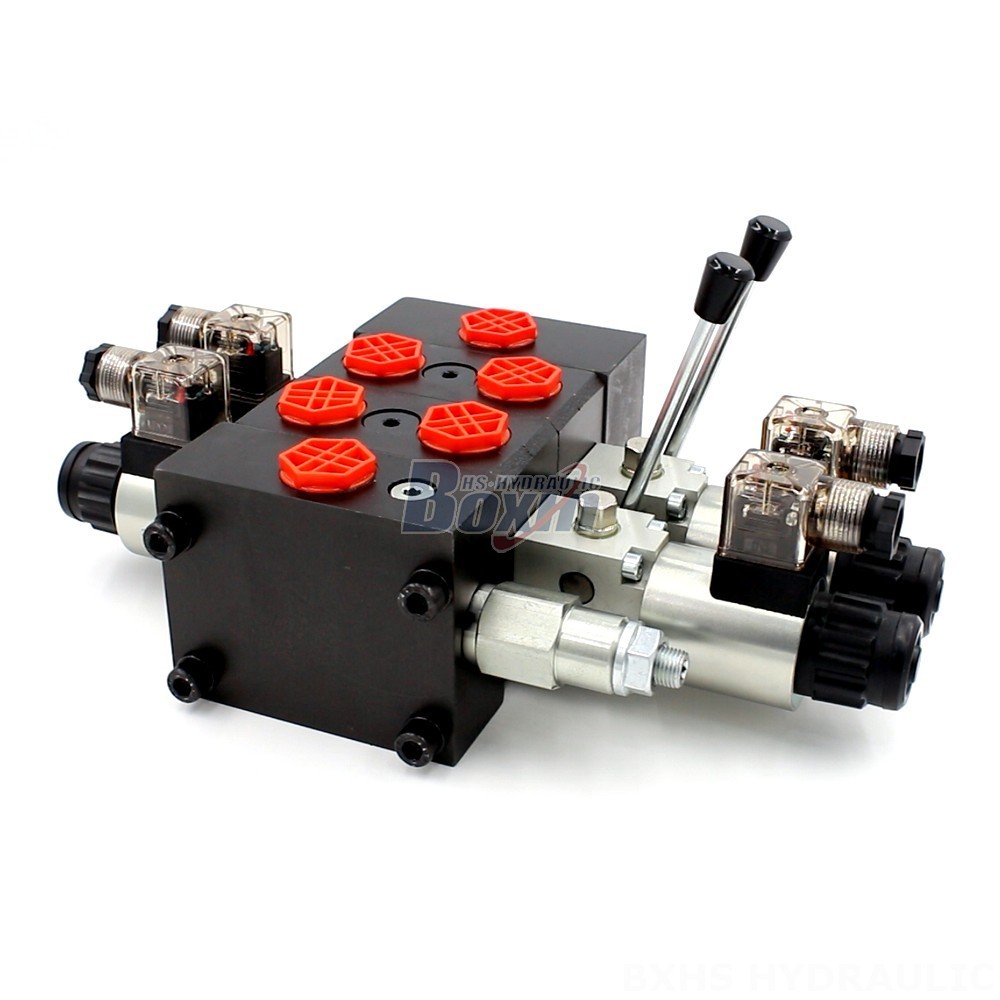

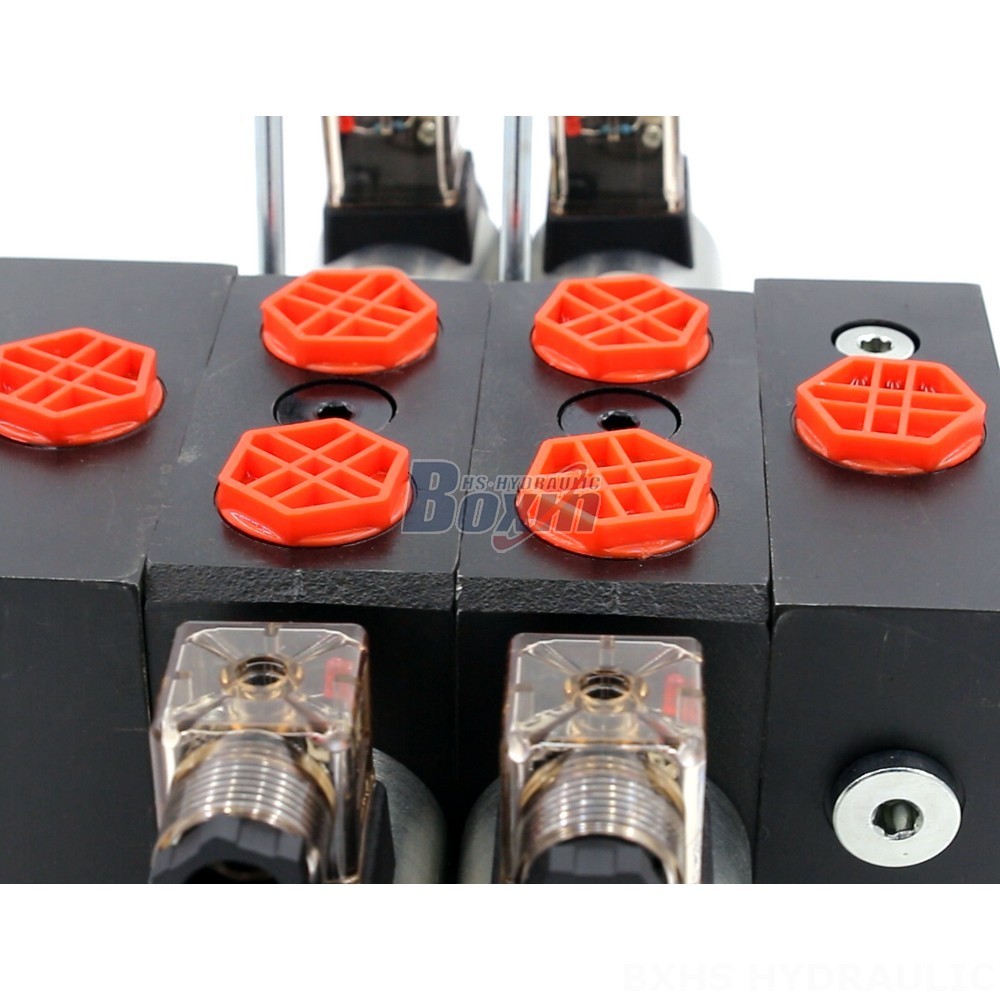

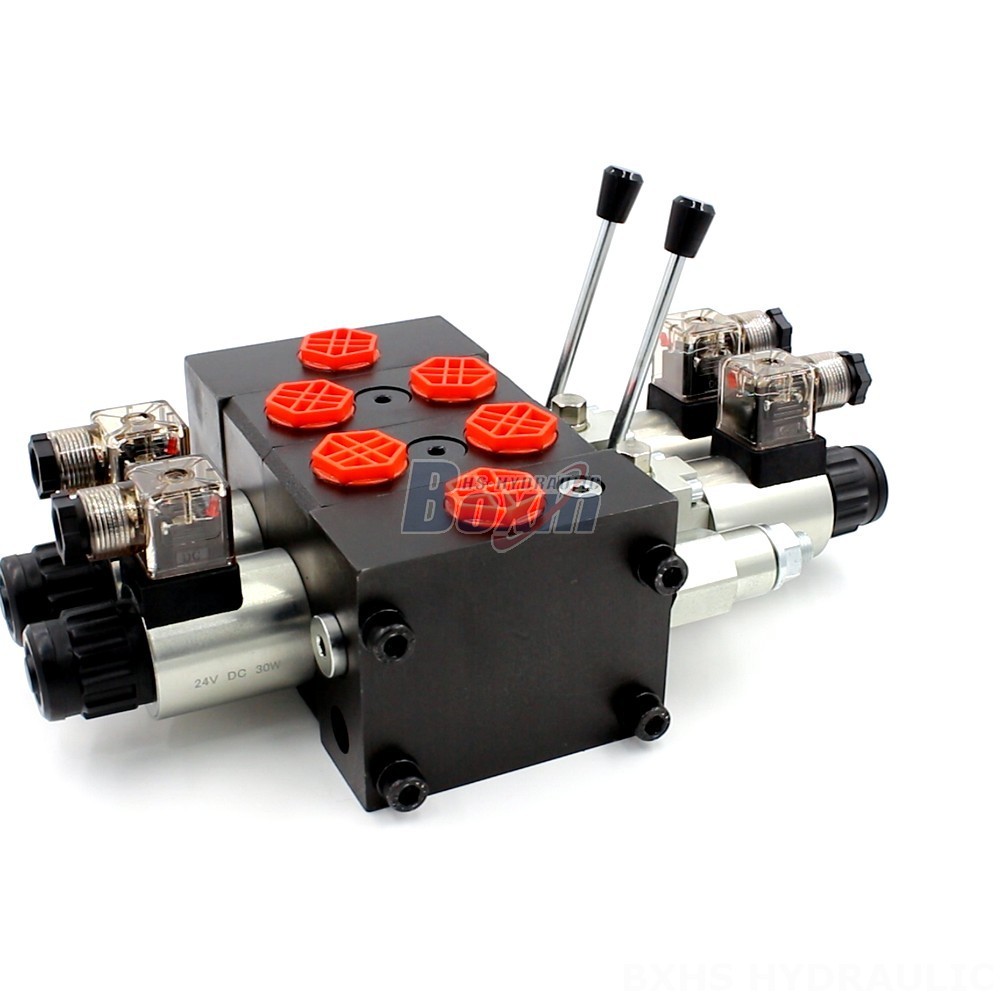

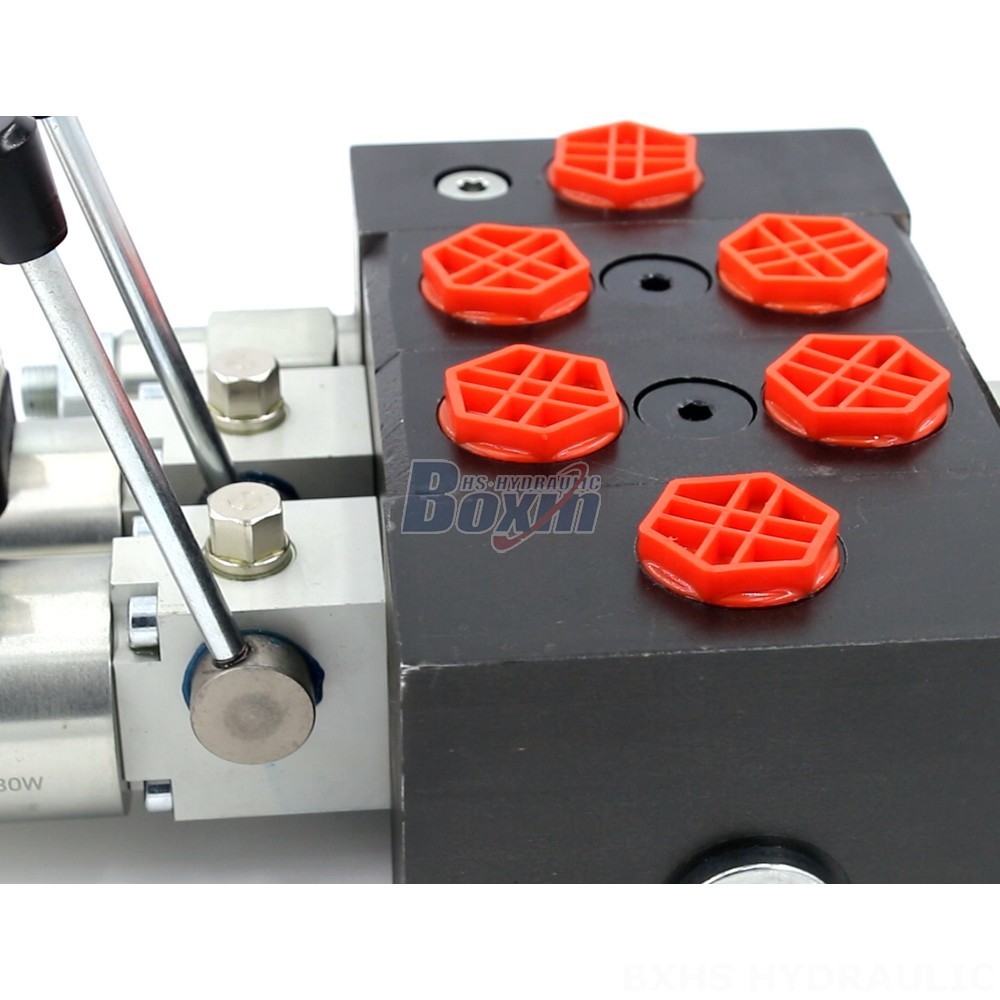

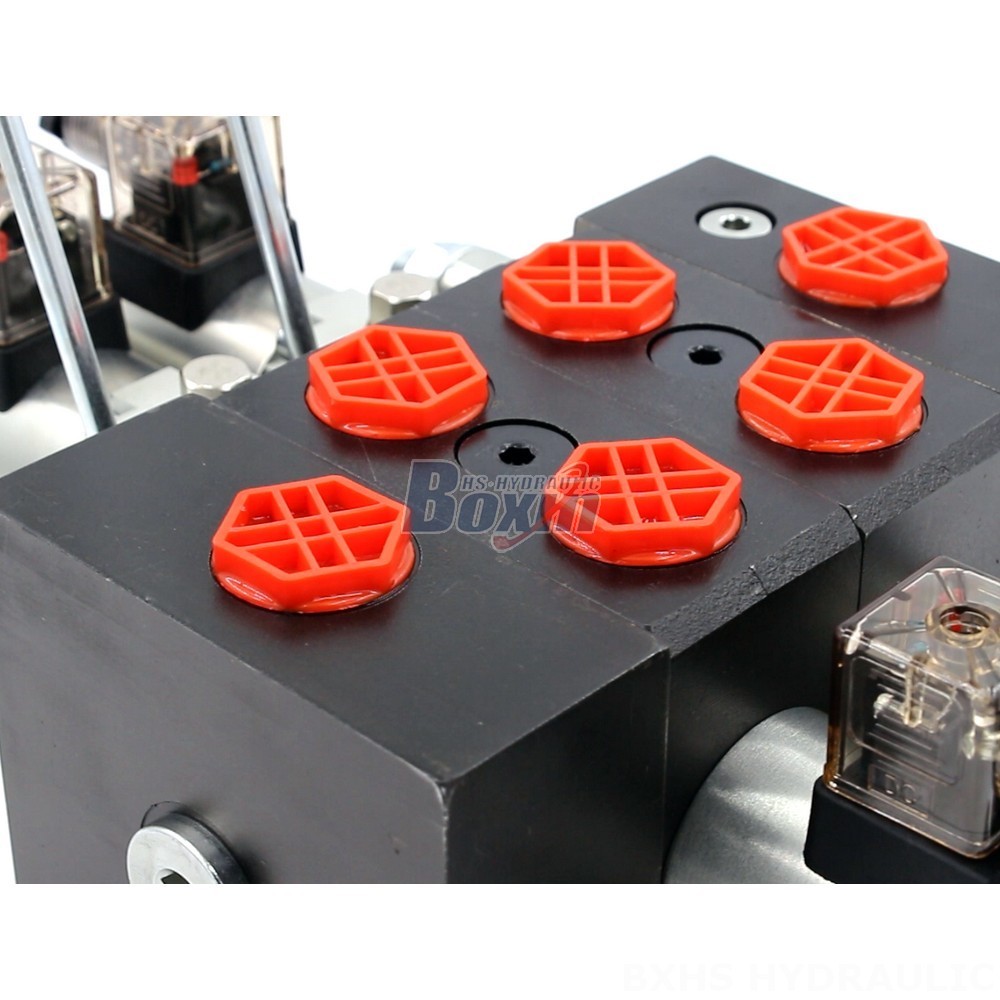

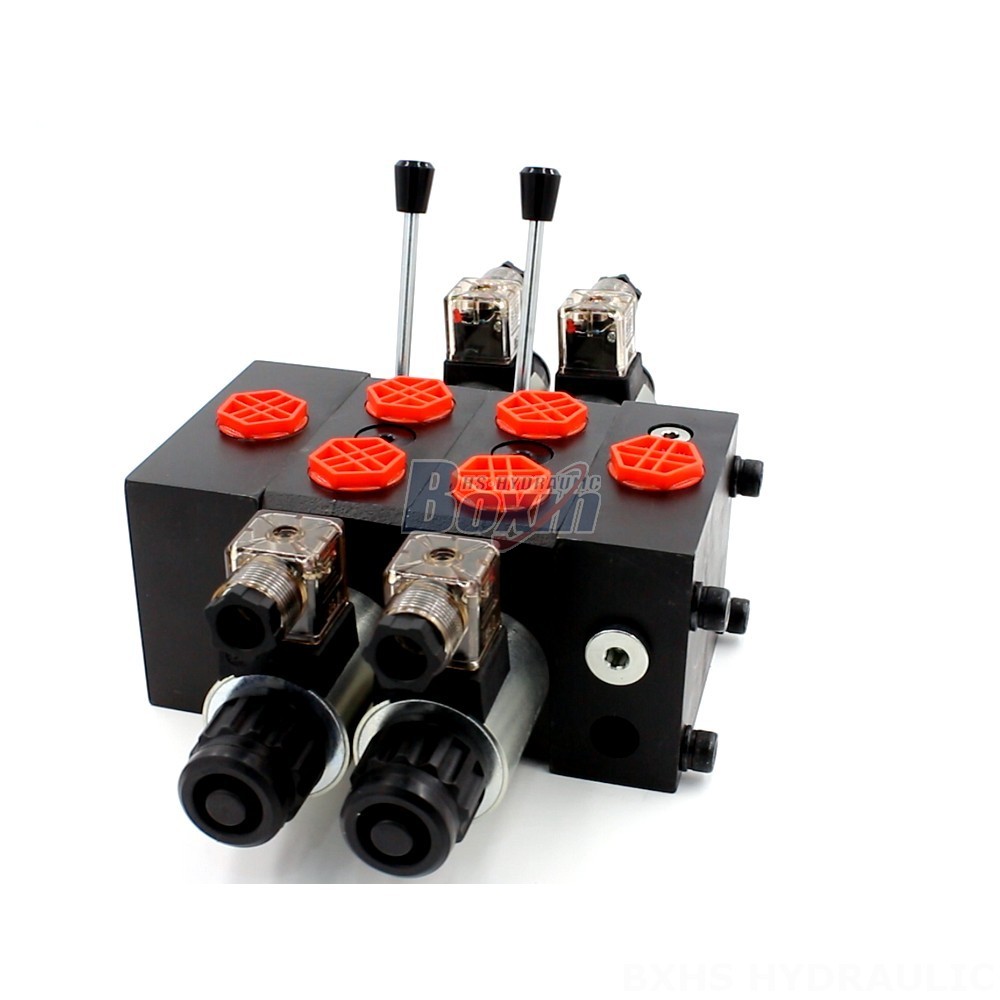

The DCV58 Series Hydraulic Directional Control Valve is a high-performance, 2-section solenoid valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 60 L/min and a max pressure of 350 bar, this valve is ideal for controlling hydraulic systems in a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Series Hydraulic Directional Control Valve is a cutting-edge sectional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This valve features a 2-section design and solenoid control method, making it a reliable and efficient solution for controlling hydraulic systems. With a rated flow of 60 L/min (15.8 US gpm) and a max pressure of 350 bar (5100 psi), the DCV58 Series is capable of handling a wide range of hydraulic applications. The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for various working environments. The DCV58 Series is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
