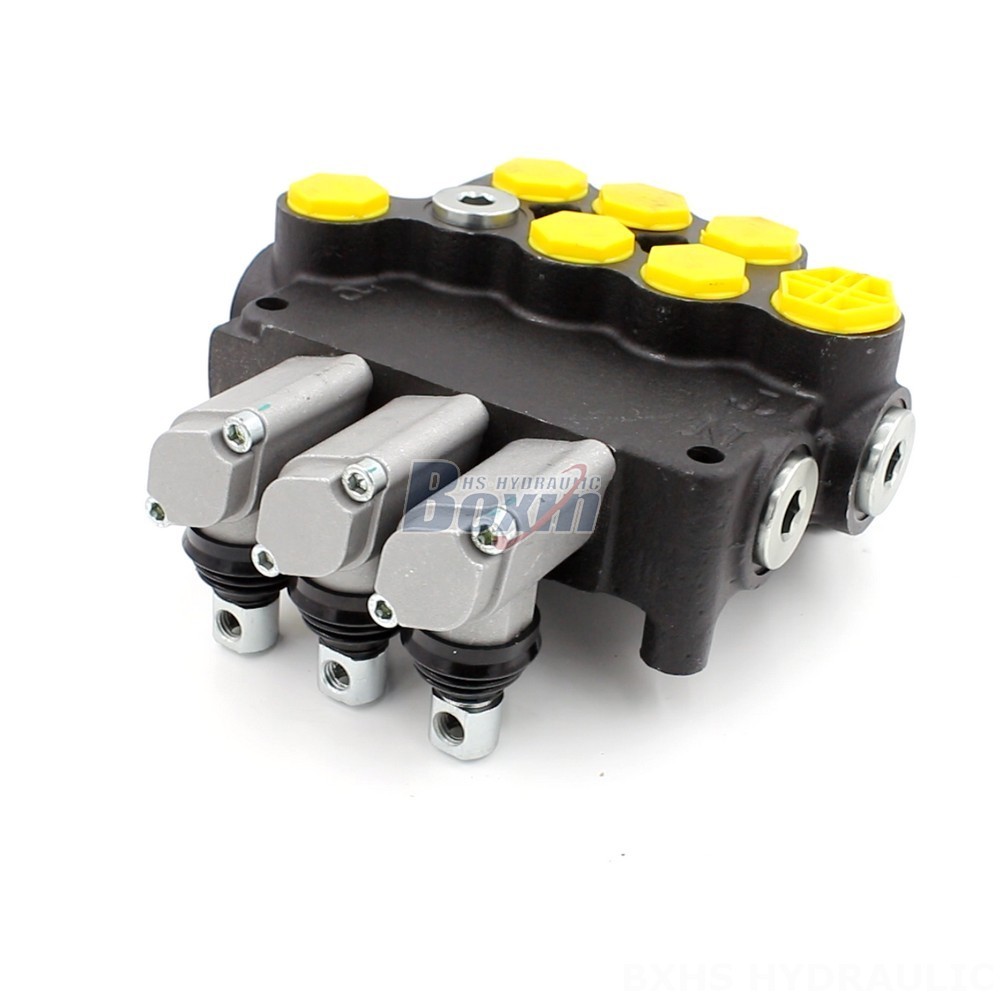

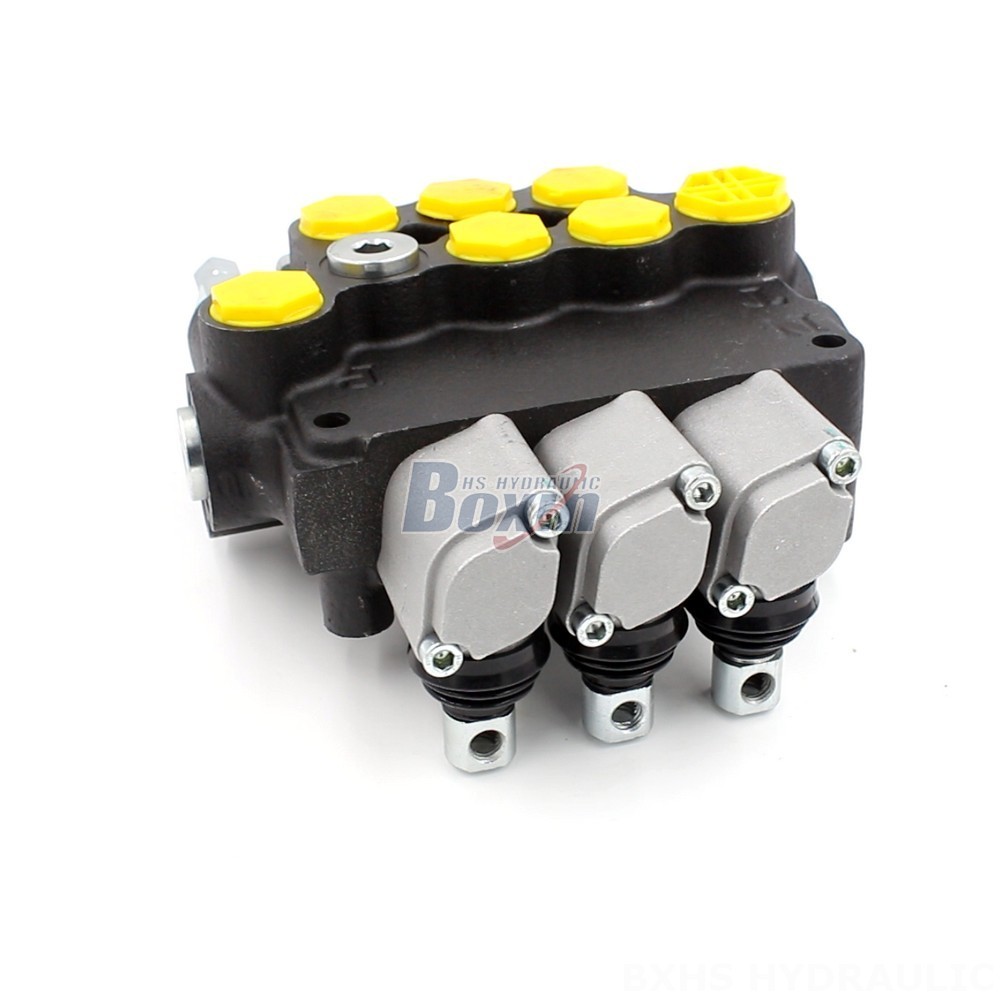

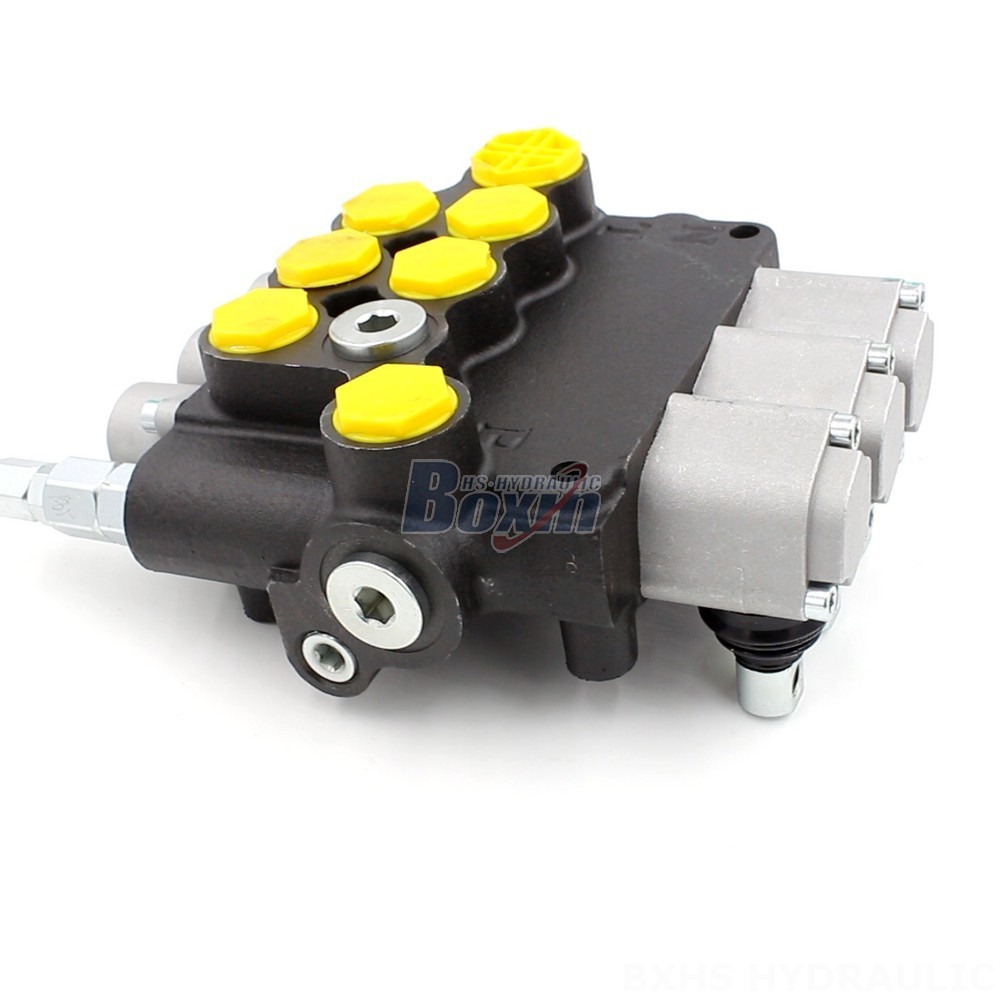

The P80 Series 3 Section Hydraulic Proportional Valve is a high-performance, reliable valve designed for use in a wide range of material handling, construction, agricultural, and industrial vehicle applications. It features a monoblock construction, rated flow of 80 L/min, and maximum pressure of 250 bar.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 3 Section Hydraulic Proportional Valve from the P80 Series is a high-quality, durable valve designed for demanding applications. It is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve operates within a viscosity range of 15 to 75 mm²/s and can handle ambient temperatures from -40°C to +80°C. Its 3 spool design provides precise control over hydraulic systems. The valve is ideal for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
