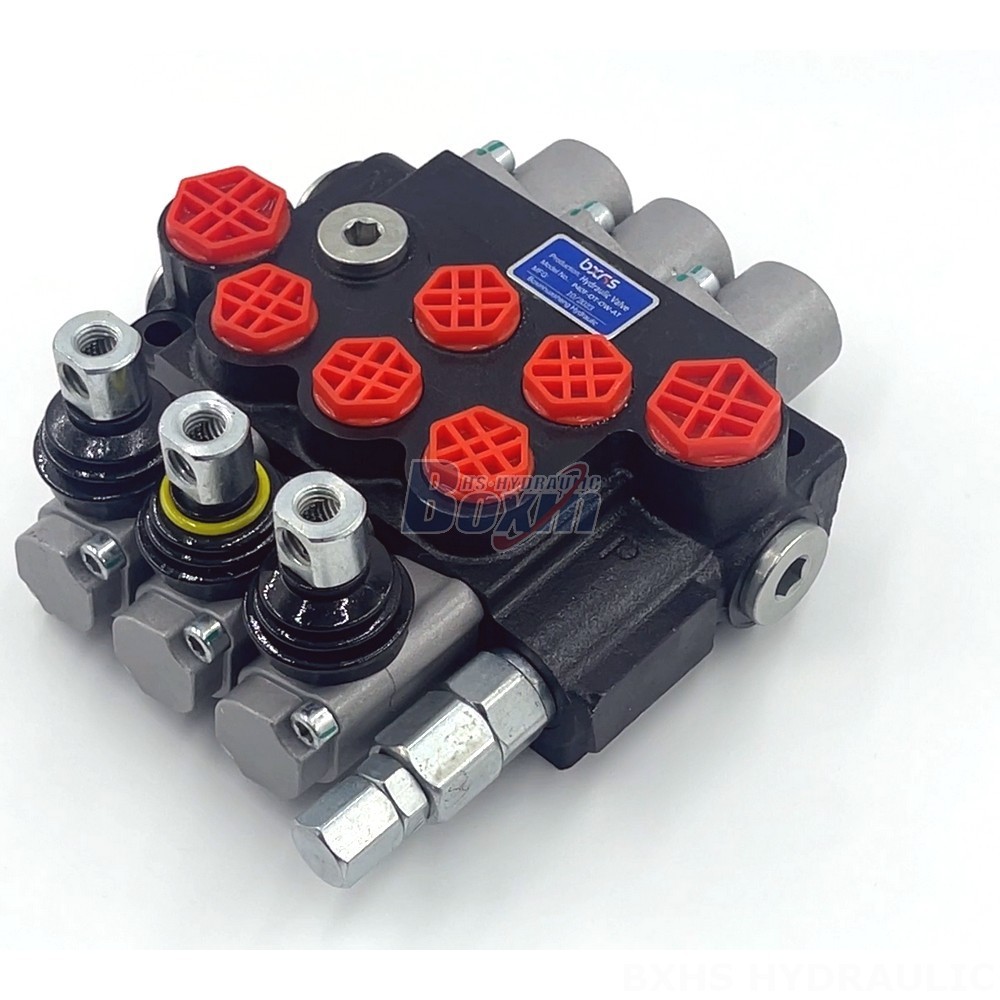

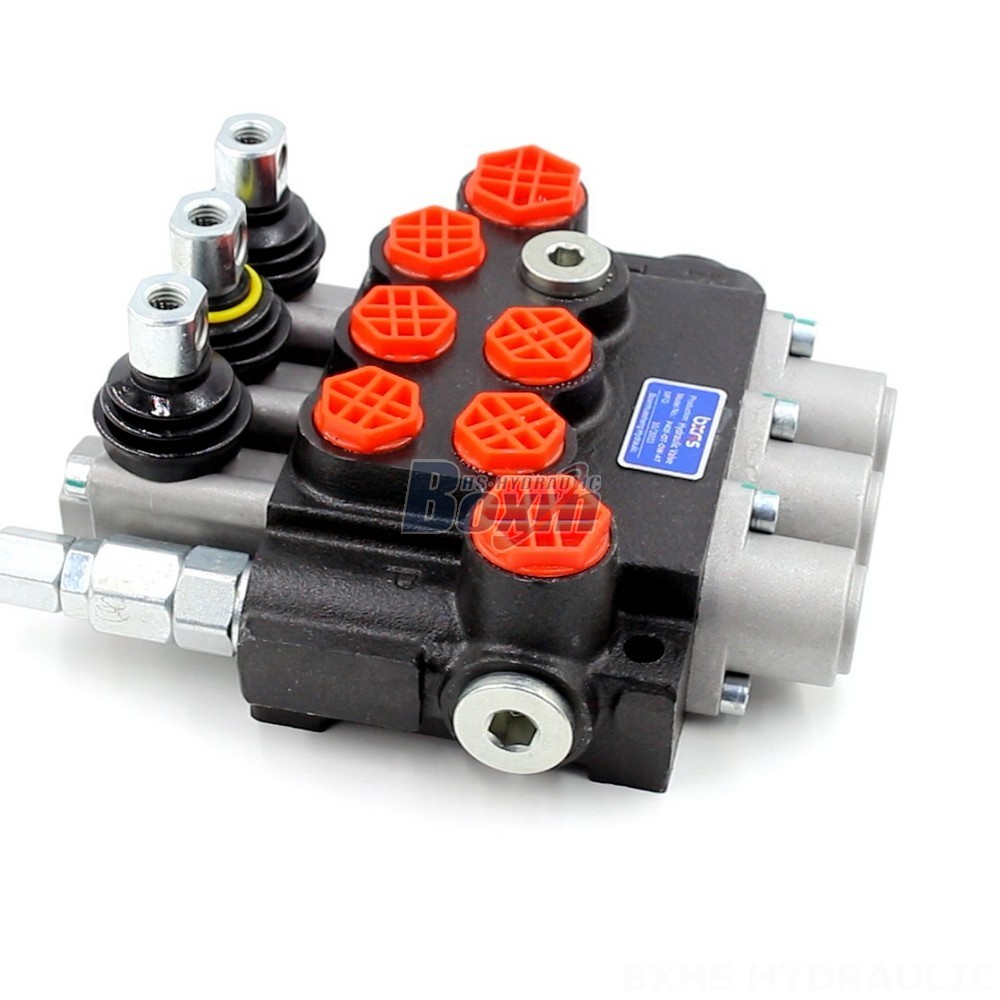

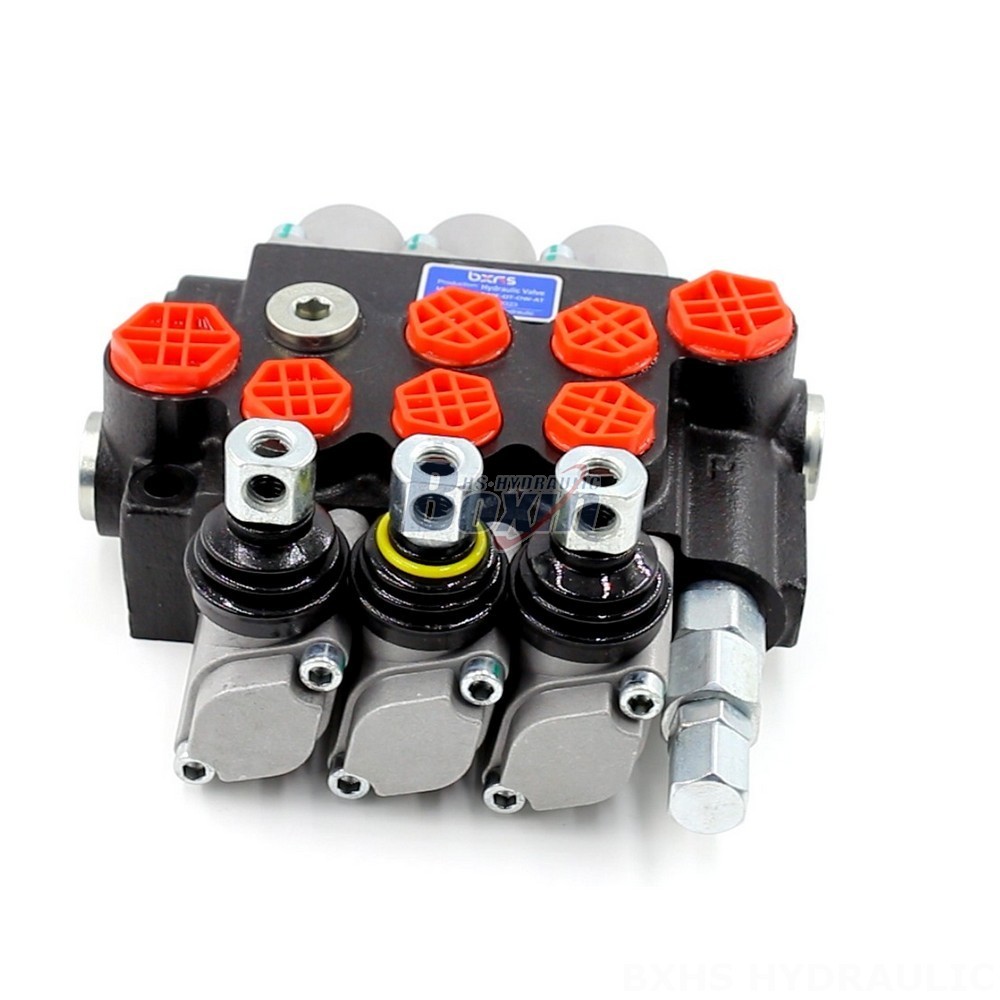

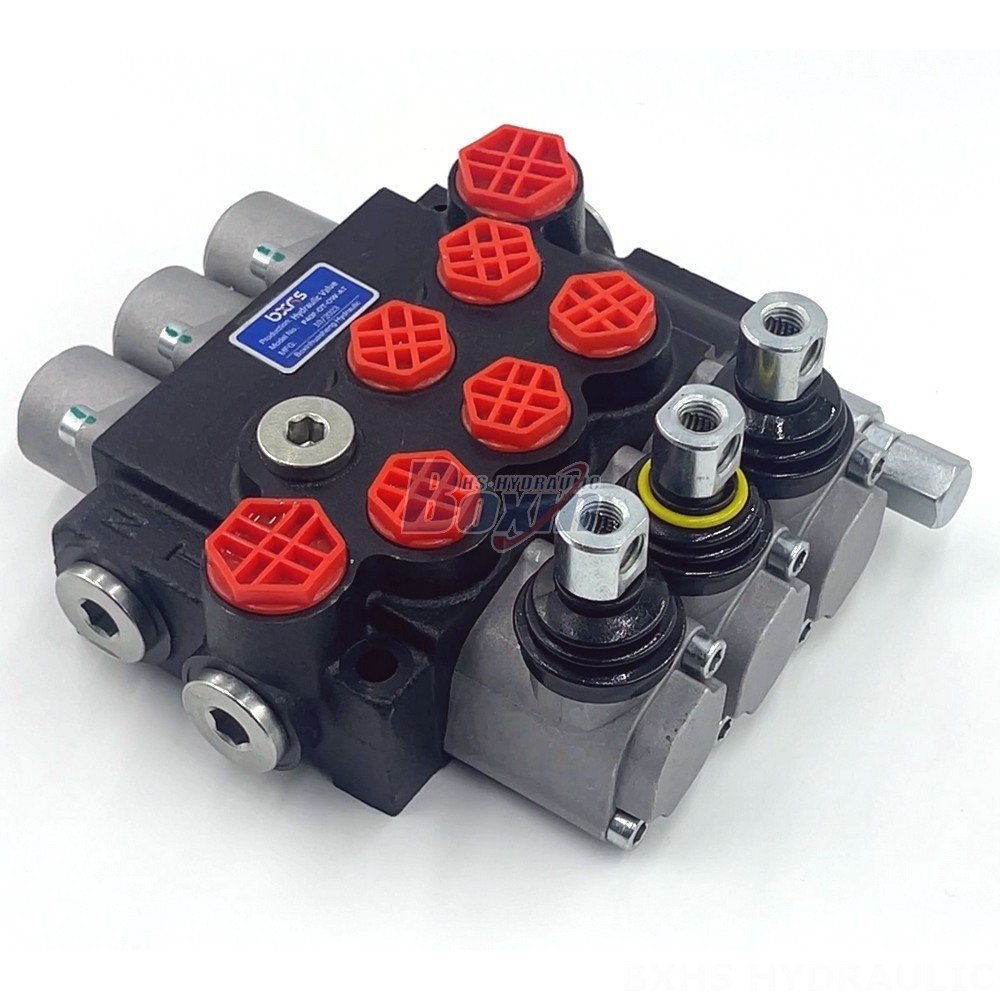

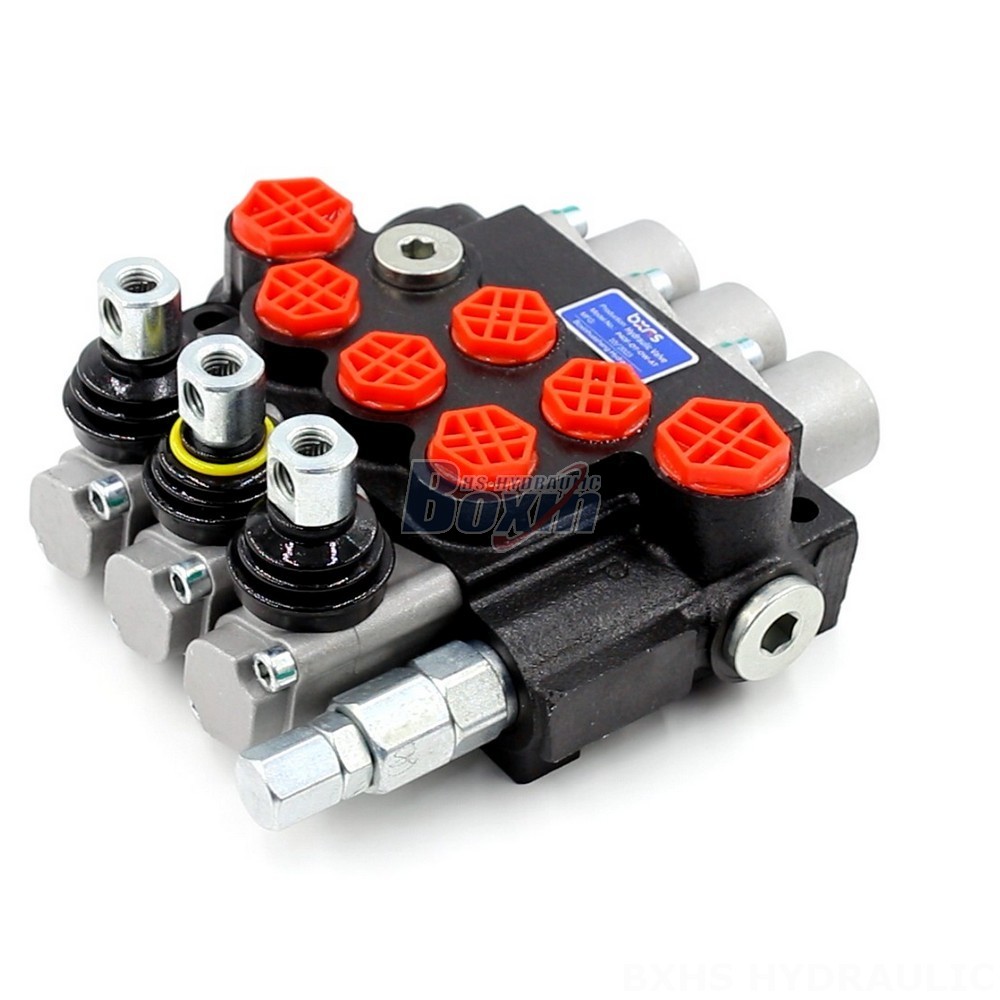

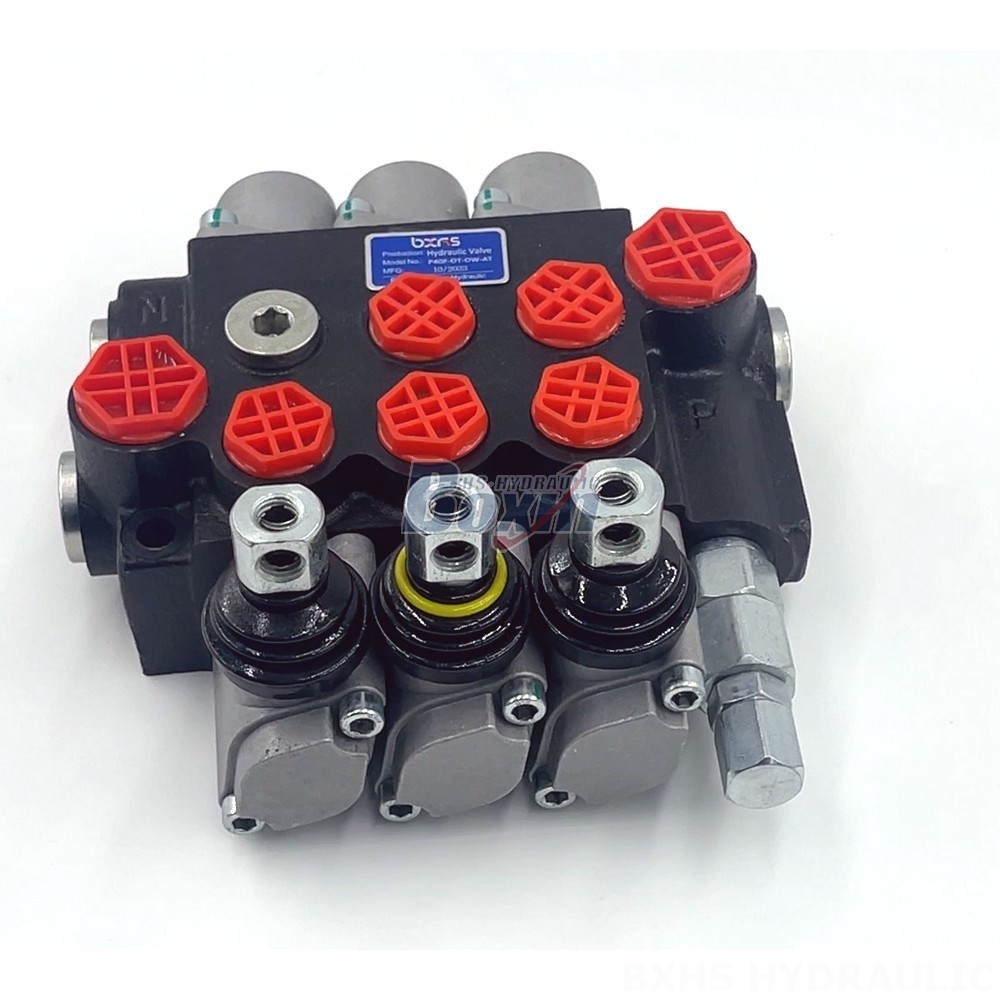

This P40 Series manual flow control valve is designed for hydraulic systems in construction, material handling, and agricultural equipment. It features a 3-section monoblock construction with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for various applications, including telehandlers, forklifts, cranes, and compact loaders.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series flow control valve is a manual, 3-section monoblock valve designed for use in hydraulic systems. It has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a 3-spool design and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It is suitable for a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). The valve is commonly used in construction equipment, material handling equipment, agricultural equipment, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini- excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
