As a hydraulic product manufacturer, we offer the SD5 Electro-hydraulic 2 Spool Monoblock Valve, designed for diverse mobile and industrial applications. This robust valve provides precise electro-hydraulic control, supporting flows up to 45 L/min and pressures up to 315 bar. We provide comprehensive manufacturing, OEM, ODM, private label, and wholesale services for this and other hydraulic components.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a specialized hydraulic product manufacturer with global reach, we proudly offer the advanced SD5 Electro-hydraulic 2 Spool Monoblock Valve. This high-performance hydraulic control valve is engineered for precision and durability across demanding applications.

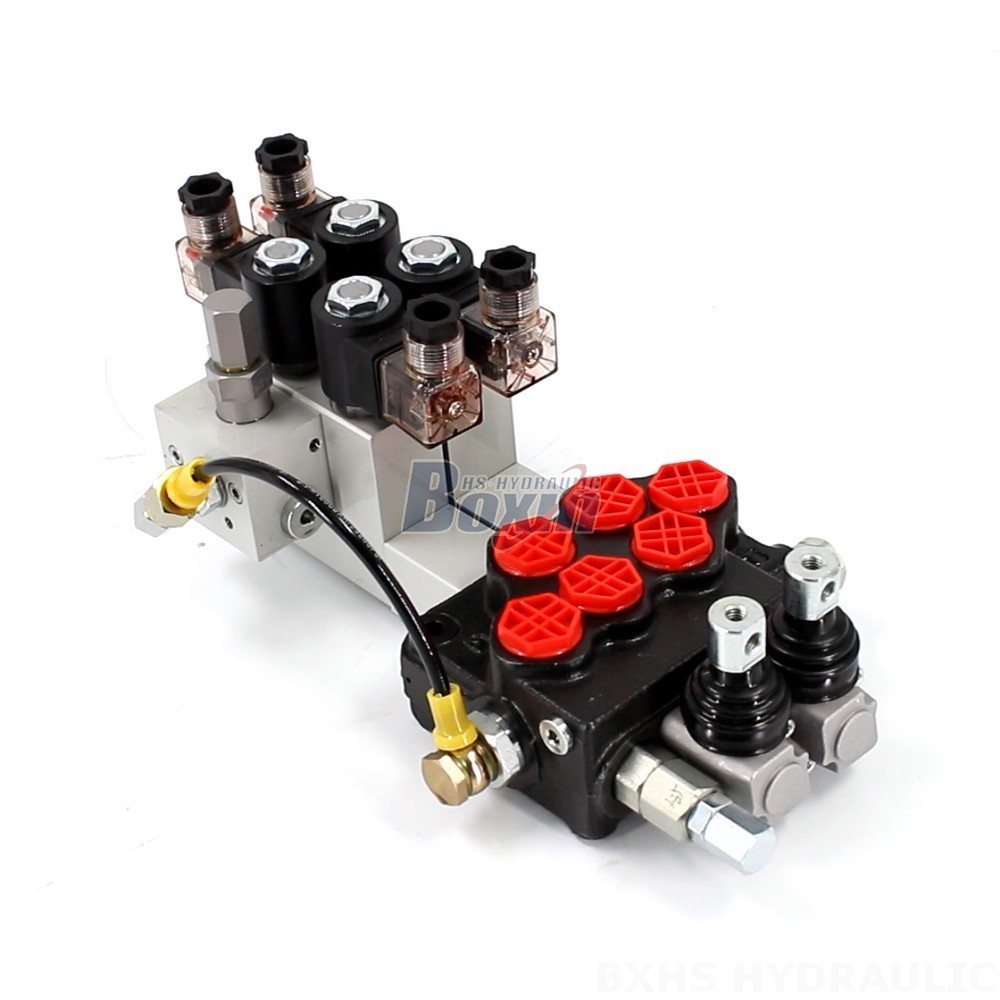

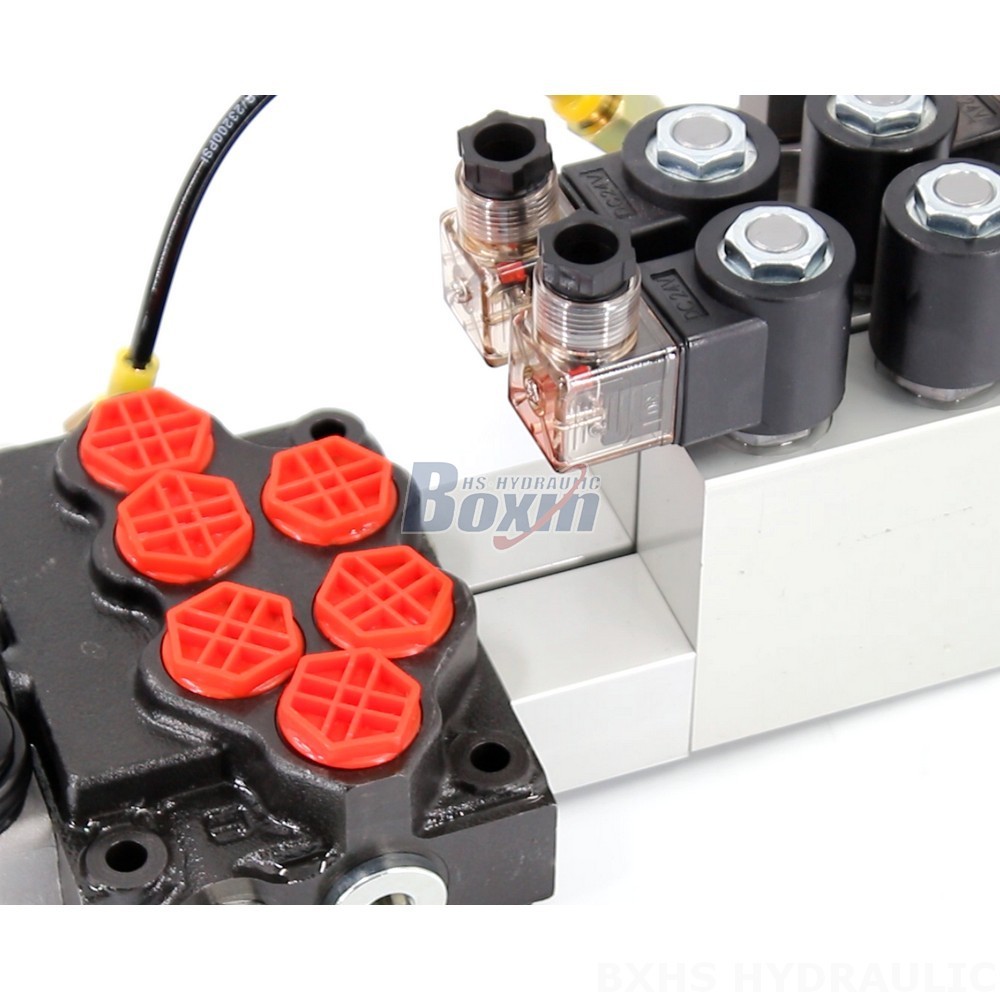

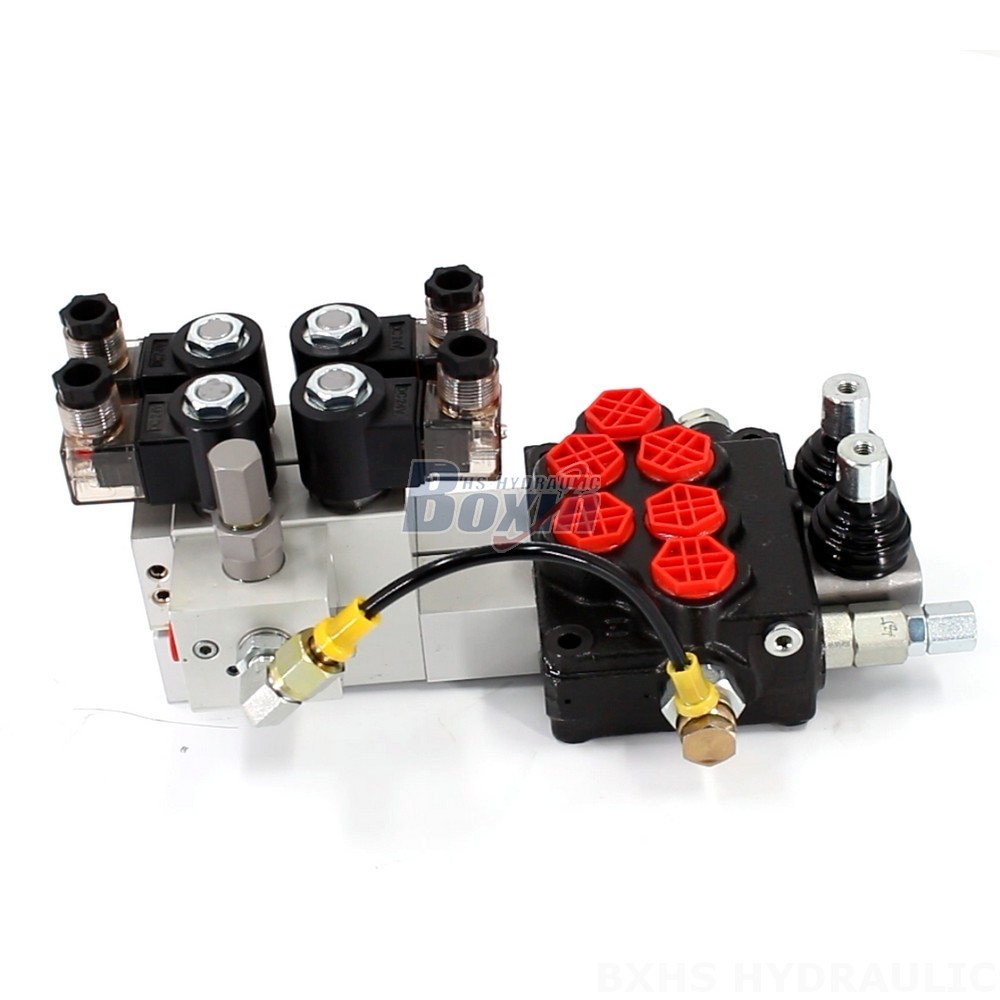

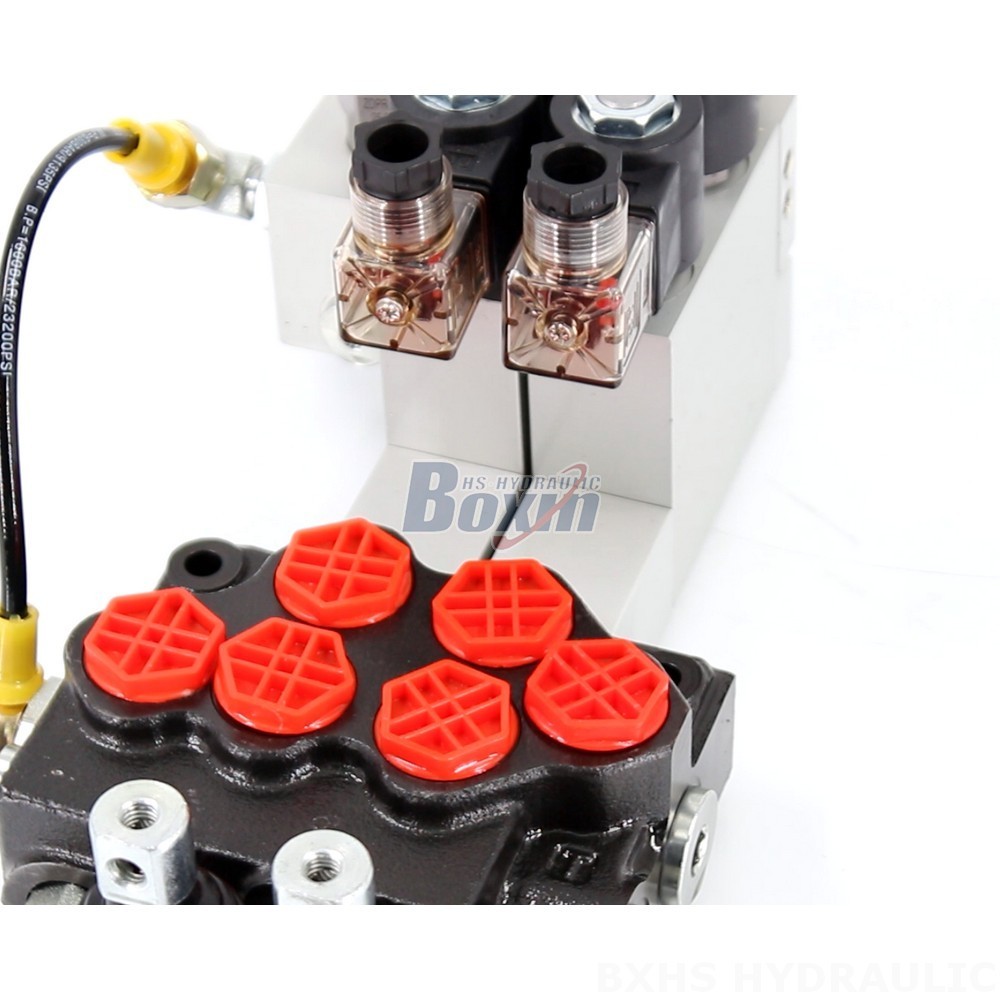

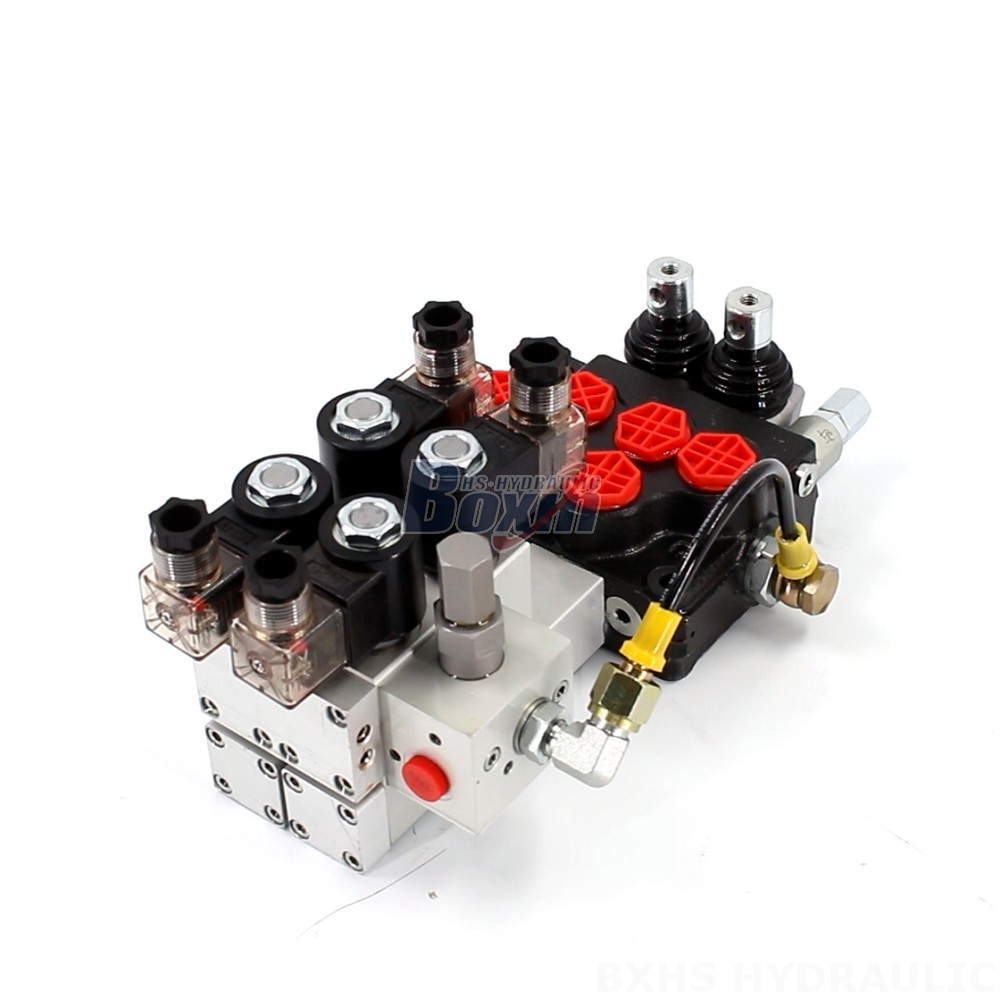

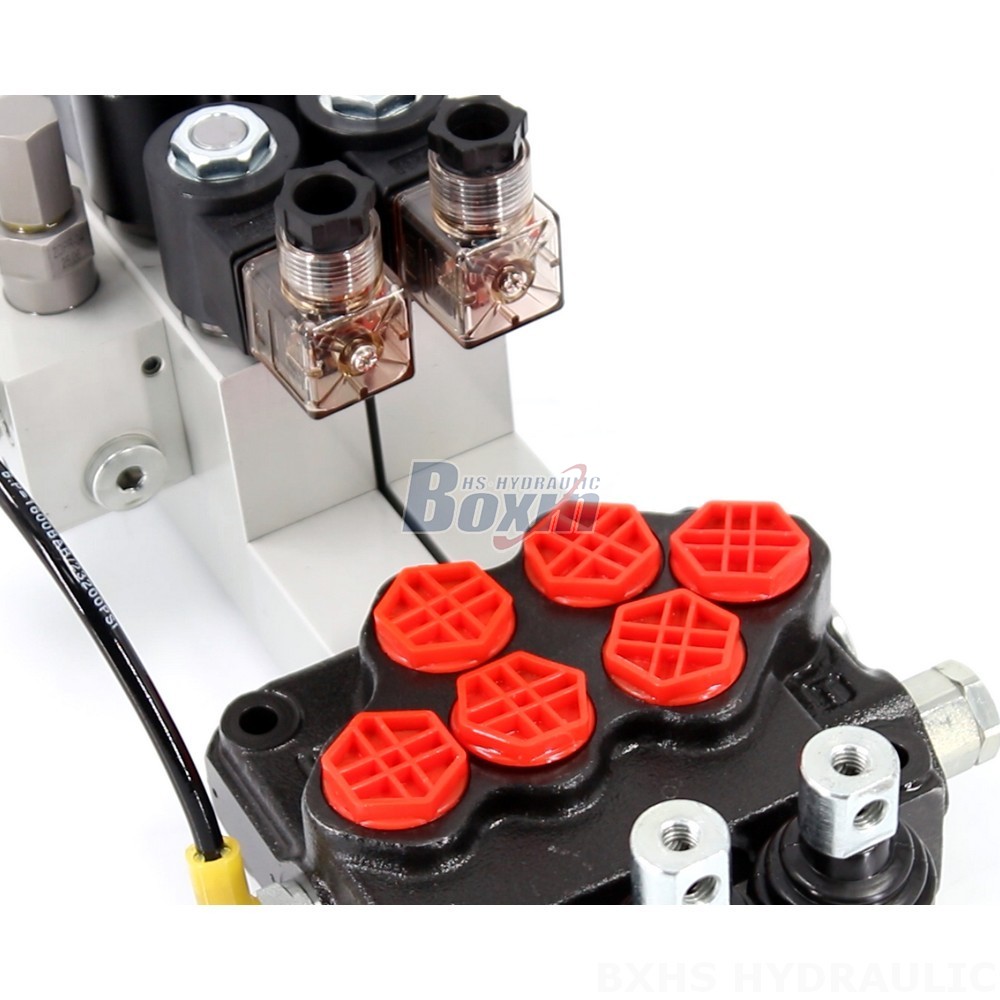

Our SD5 series valve features sophisticated electro-hydraulic control, enabling smooth and accurate operation for various hydraulic systems. It is a 2 spool monoblock valve designed to manage rated flows up to 45 L/min (11.8 US gpm) and handle maximum pressures of 315 bar (4600 psi). With an operating viscosity range of 12 - 400 mm²/s and an ambient temperature range of -20°C to +80°C, this mobile hydraulic valve performs reliably in diverse environments. Standard inlet ports are G1/2 and G3/8, with G1/2 for the outlet, offering versatility for integration.
This hydraulic directional valve finds wide application in sectors such as material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for a range of machinery including telehandlers, forklifts, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, aerial platforms, and dumpers.
As your trusted hydraulic valve manufacturer, we provide comprehensive services beyond standard supply. We specialize in OEM hydraulic valve production, ODM solutions, private label manufacturing, and custom hydraulic valve design tailored to specific requirements. Our capabilities ensure consistent quality and timely delivery for factory wholesale orders. We are committed to being your direct factory supplier for premium hydraulic components.
We are actively expanding our global network and seeking reliable distributors, wholesalers, agents, and trade partners to collaborate with. By partnering with us, you gain access to high-quality, competitively priced hydraulic products directly from the manufacturer. We aim to build long-term relationships for mutual growth. Contact us to discuss partnership opportunities and our extensive range of hydraulic system components.
