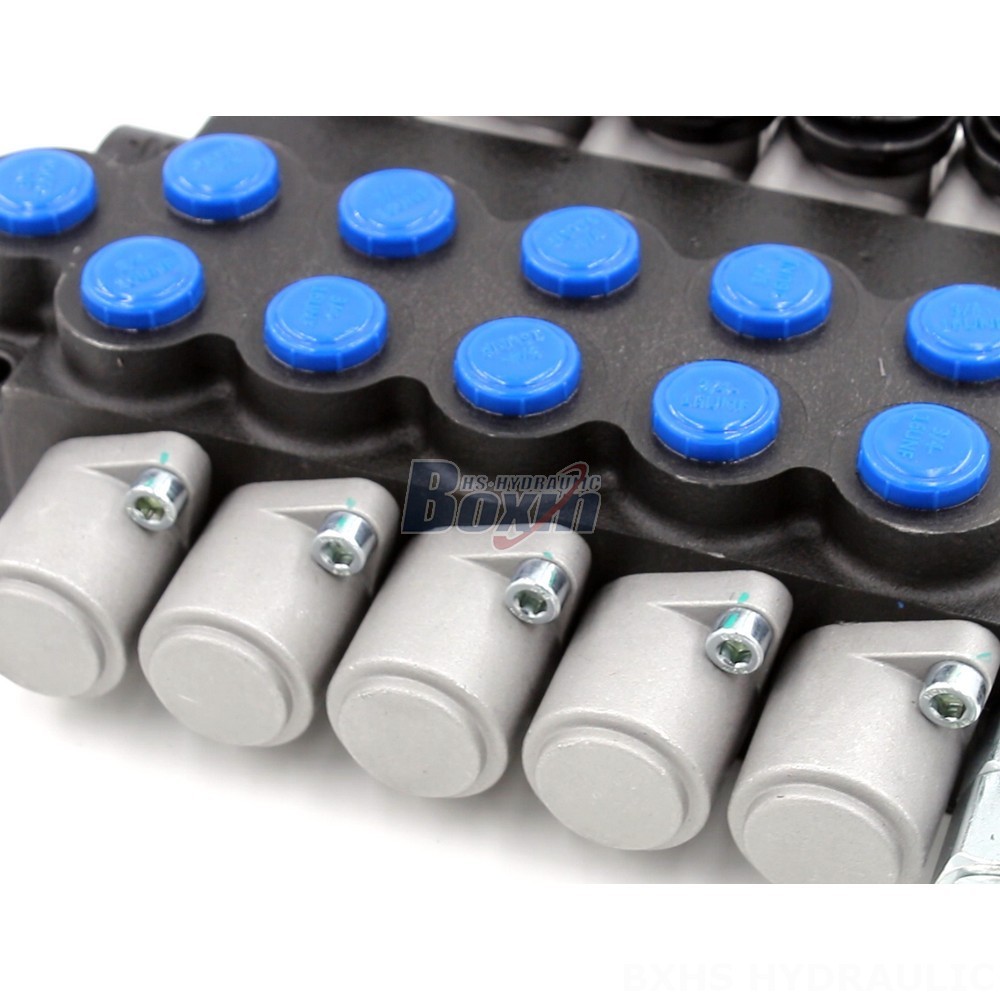

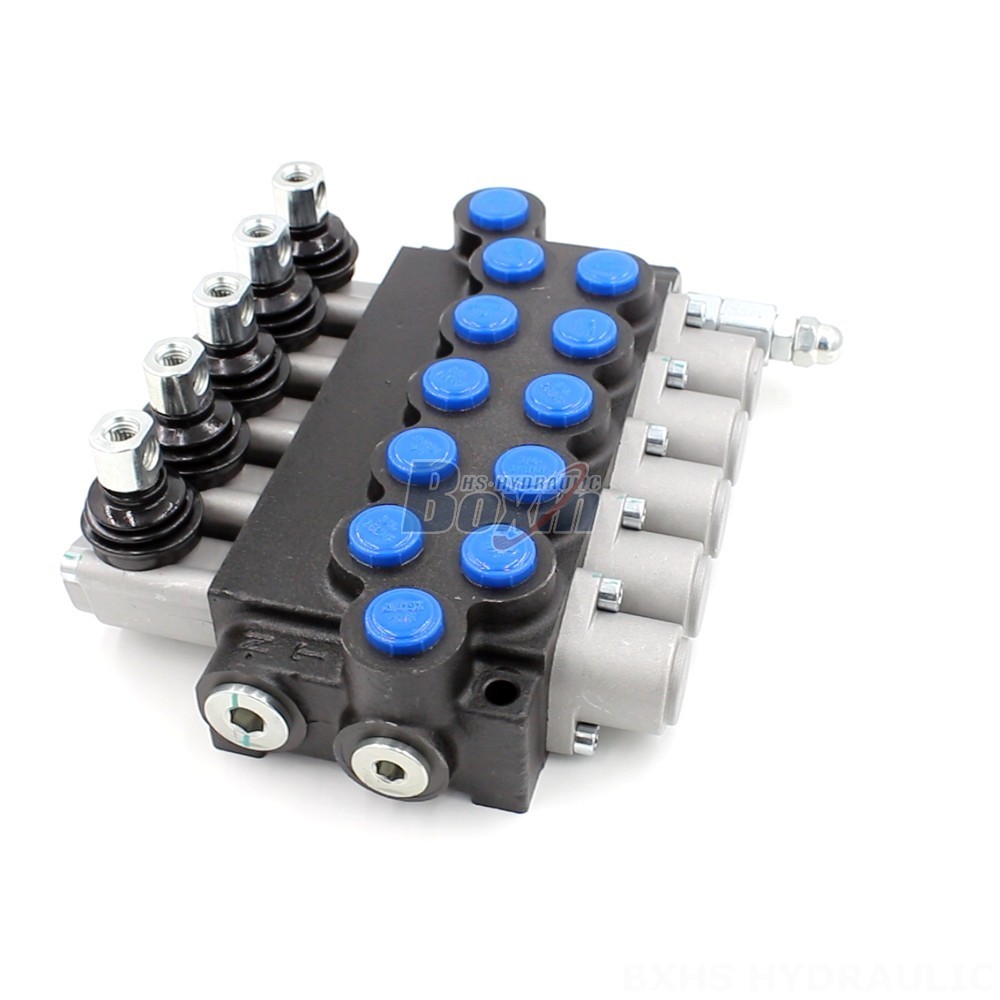

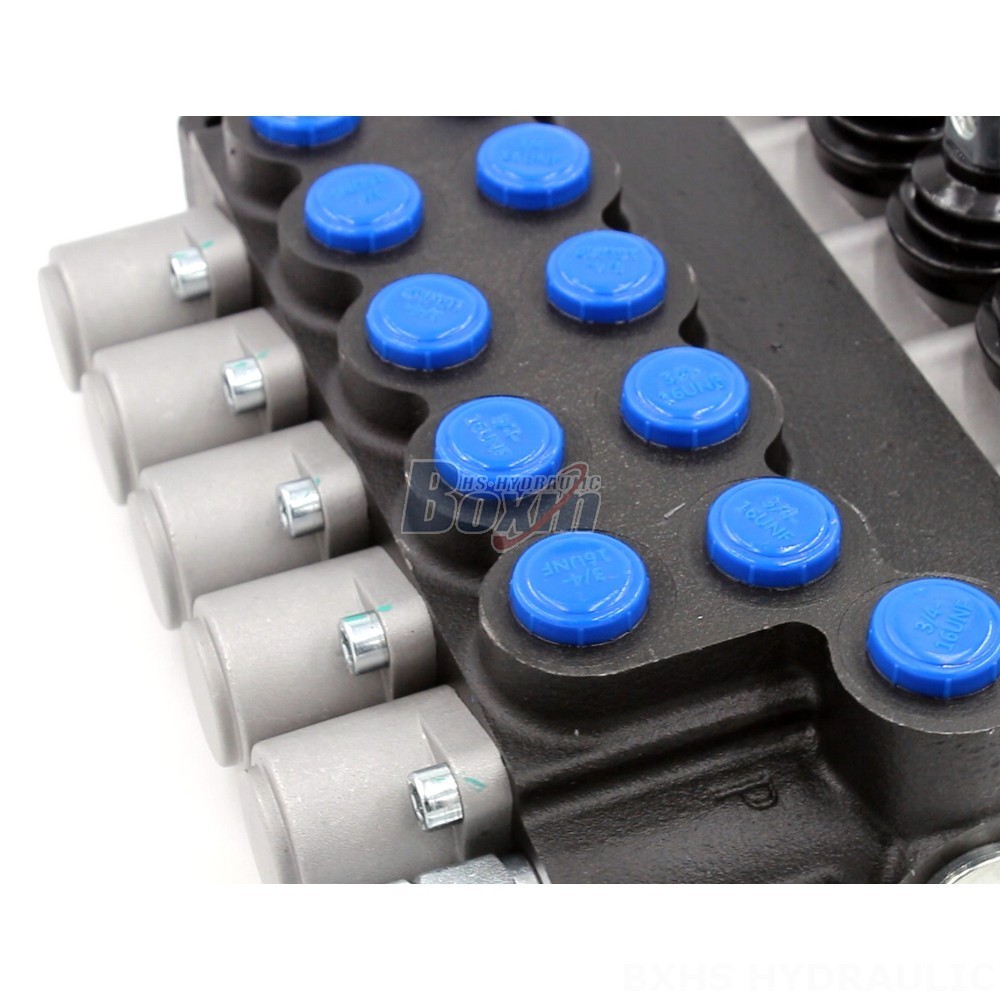

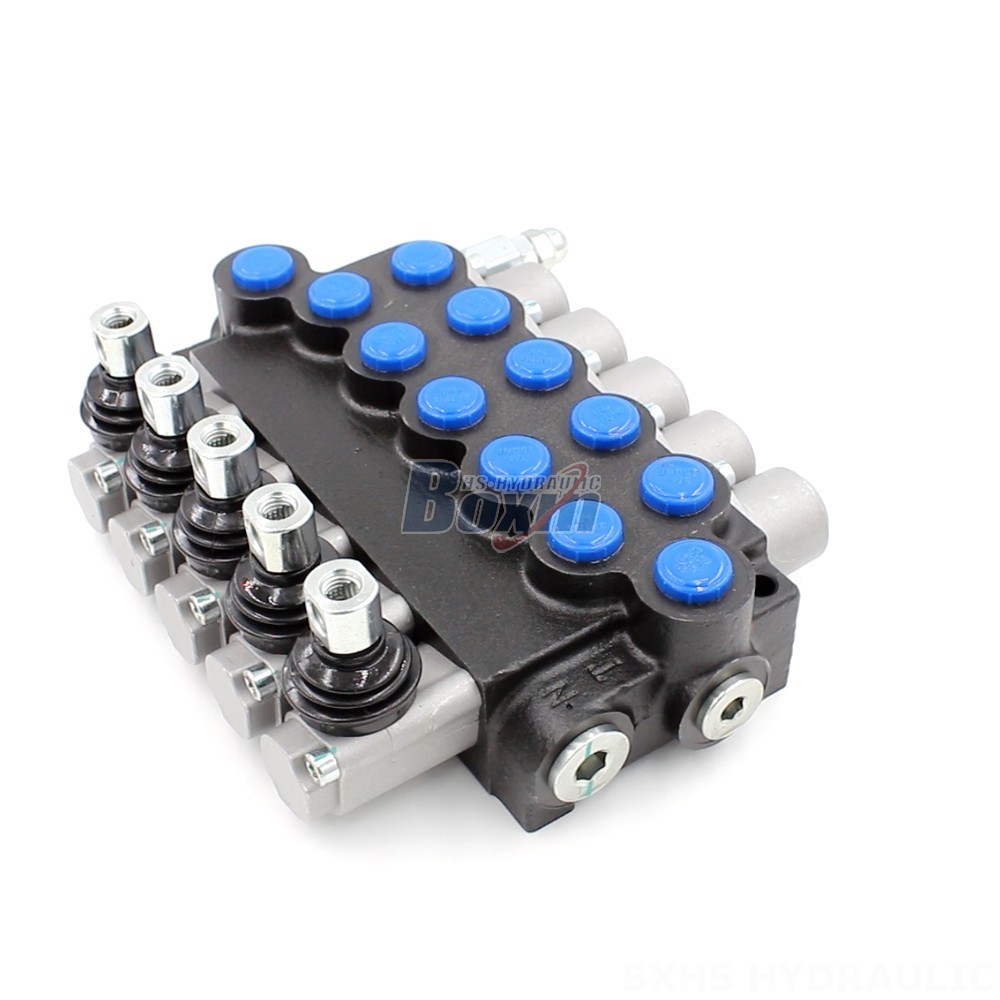

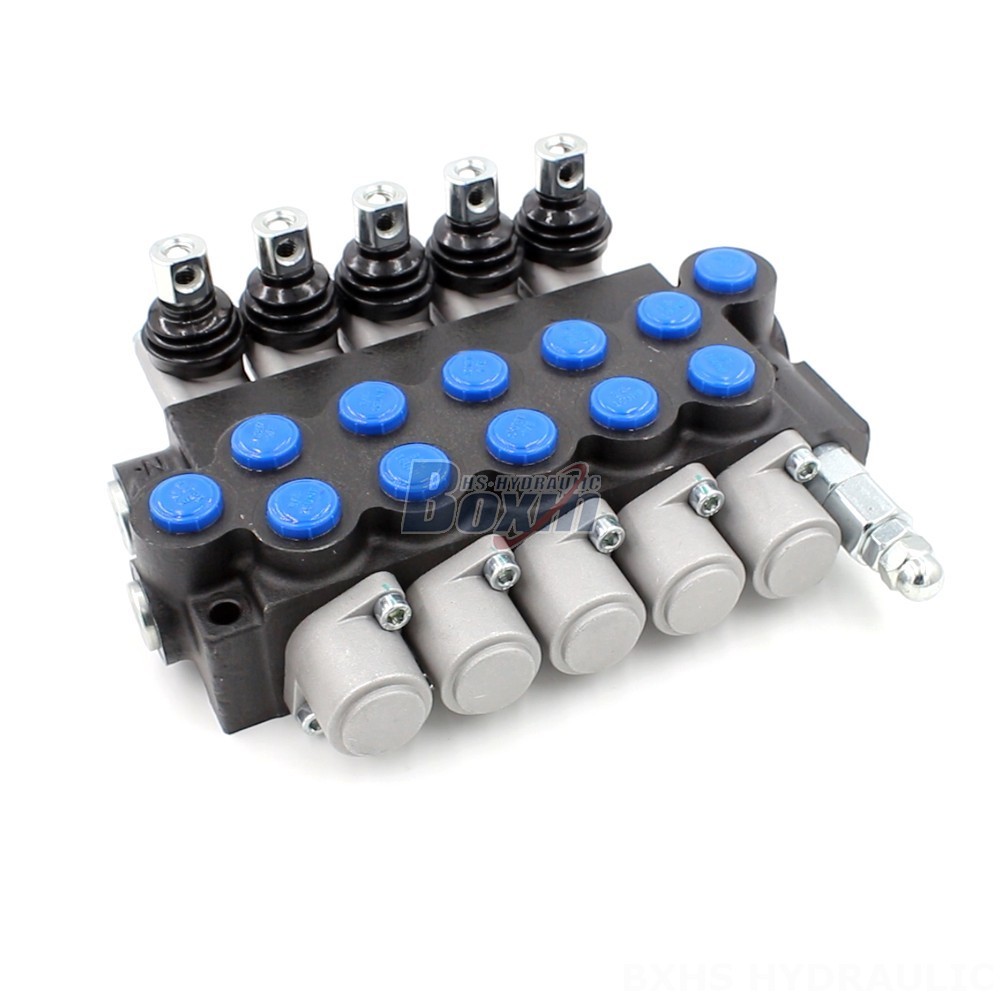

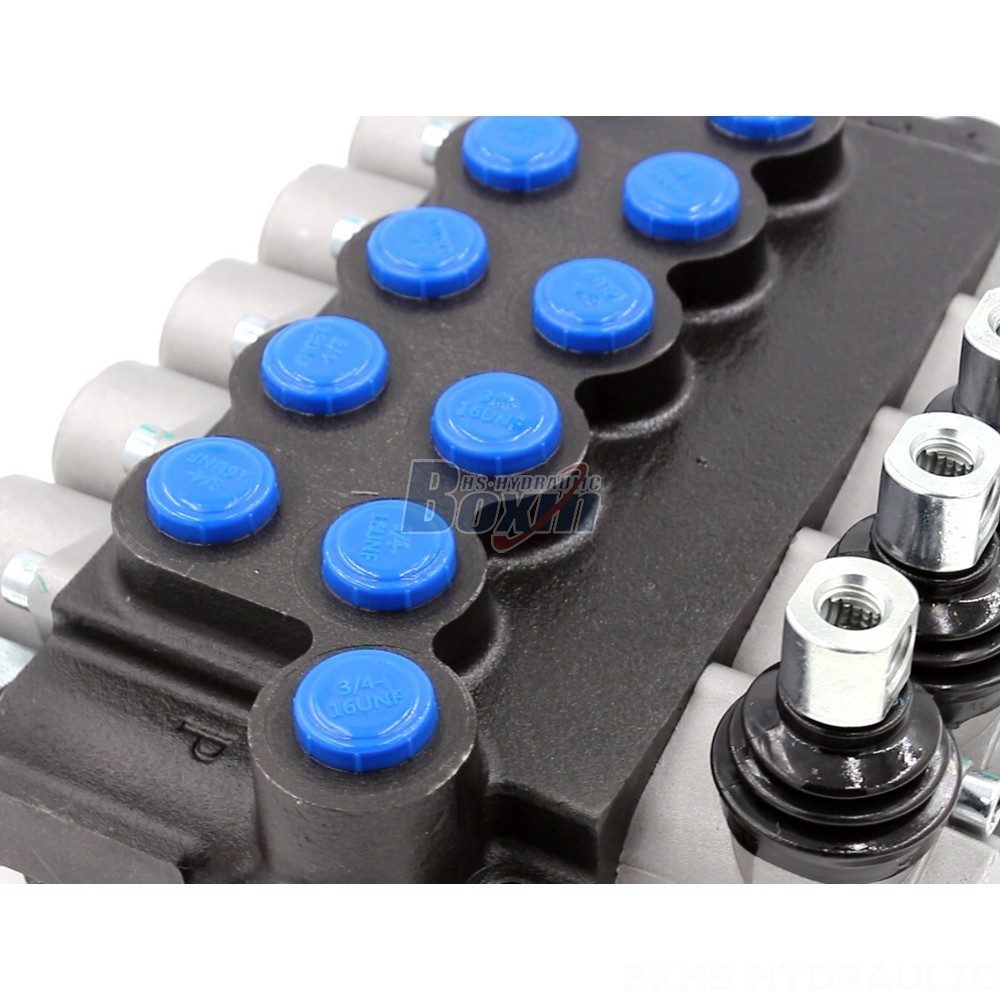

The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a high-performance, 5-section monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles, this valve is ideal for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a robust and reliable valve designed for demanding applications in a variety of industries. Its 5-section, monoblock construction ensures high flow rates and maximum pressure handling, while the manual control method offers precise operation. The valve's rated flow of 40 L/min and maximum pressure of 250 bar make it suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators. The valve features a robust design, a compact footprint, and a wide operating temperature range (-40°C to +80°C), making it ideal for use in diverse environments. The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a high-quality, durable, and reliable solution for your hydraulic system needs.
