Production & Delivery
15-30 Days Production Lead Time
L'innovation favorise le développement ; la technologie forge l'avenir
1373 personnes consultent ce produit
The P40 Series Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With its manual and joystick control options, 4 section design, and robust monoblock construction, the P40 valve provides precise and reliable control of hydraulic systems. Its 40 L/min rated flow and 250 bar maximum pressure ensure efficient operation even in demanding applications.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

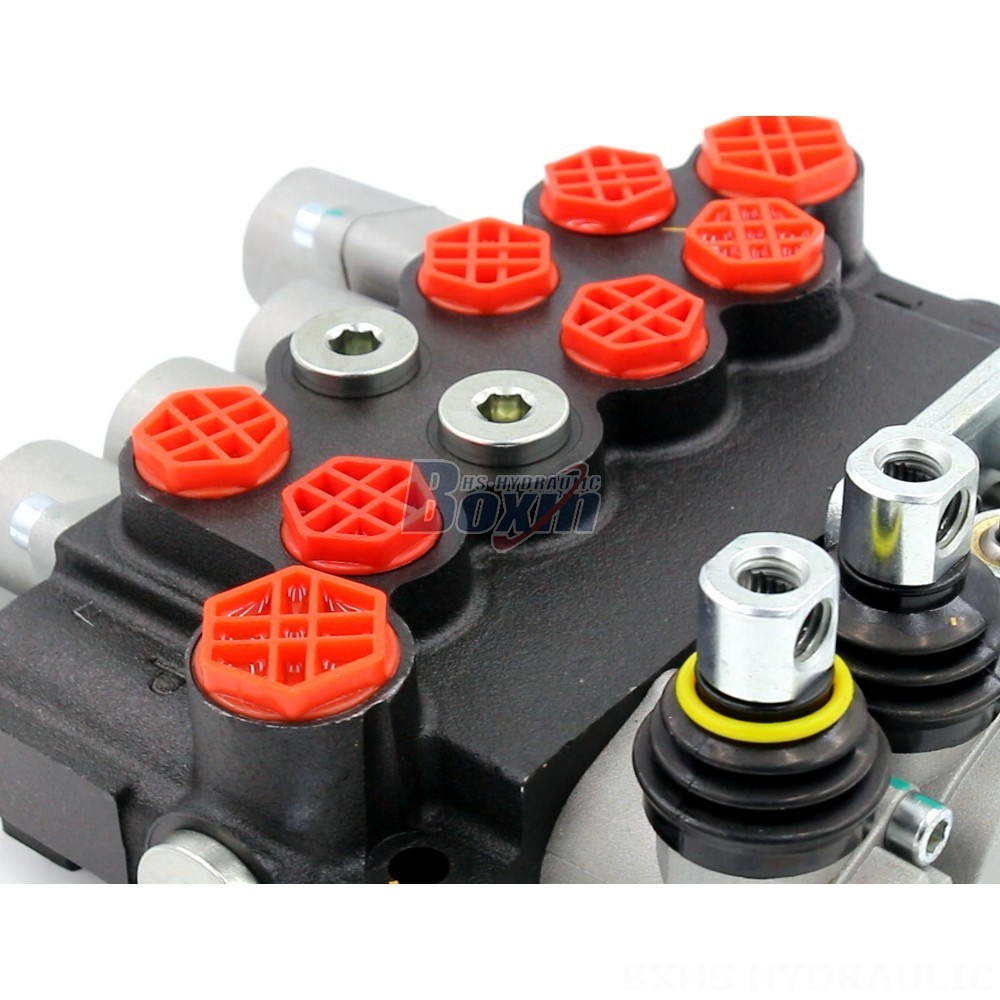

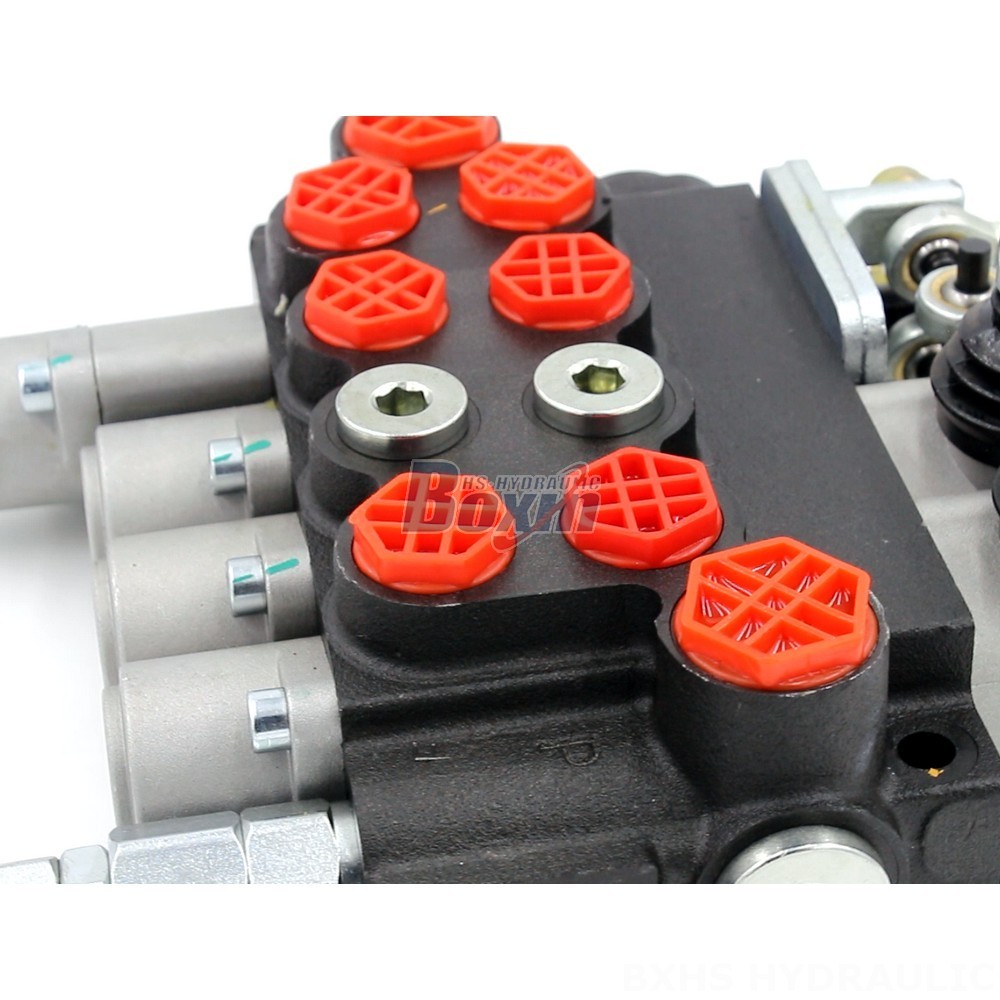

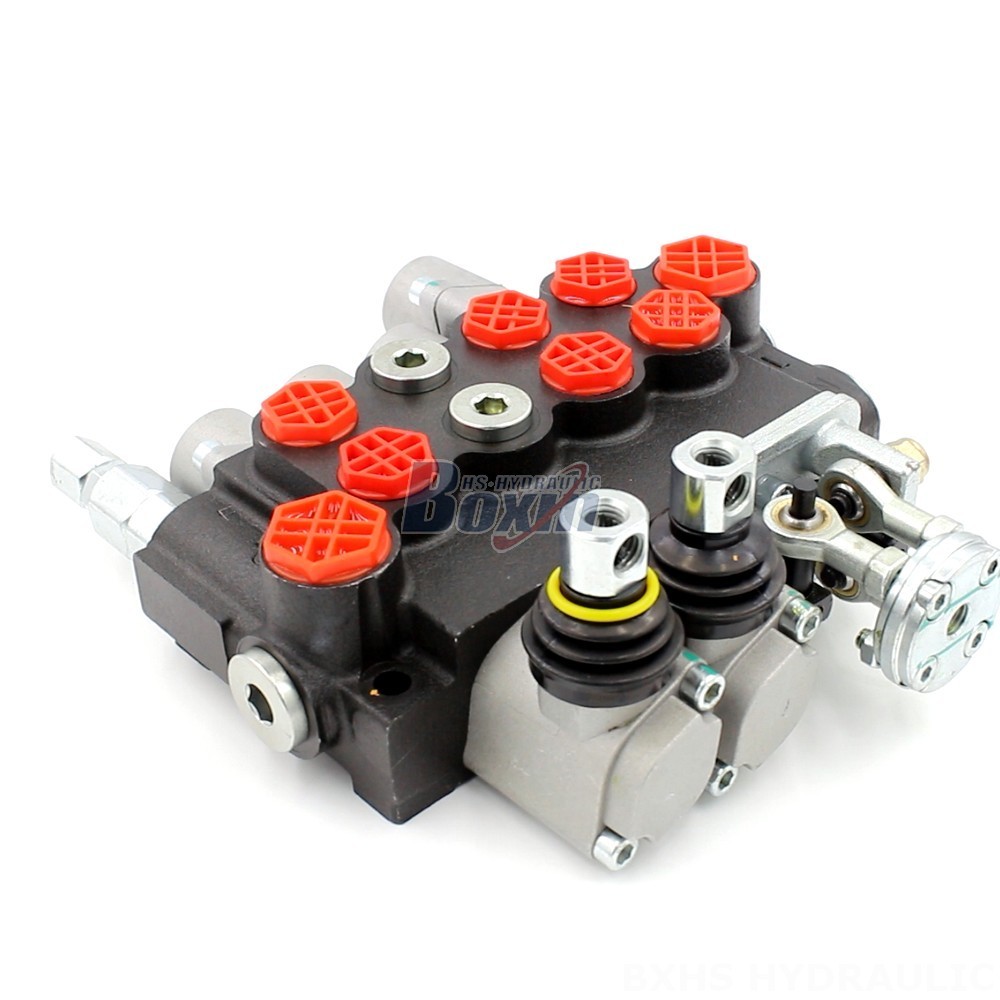

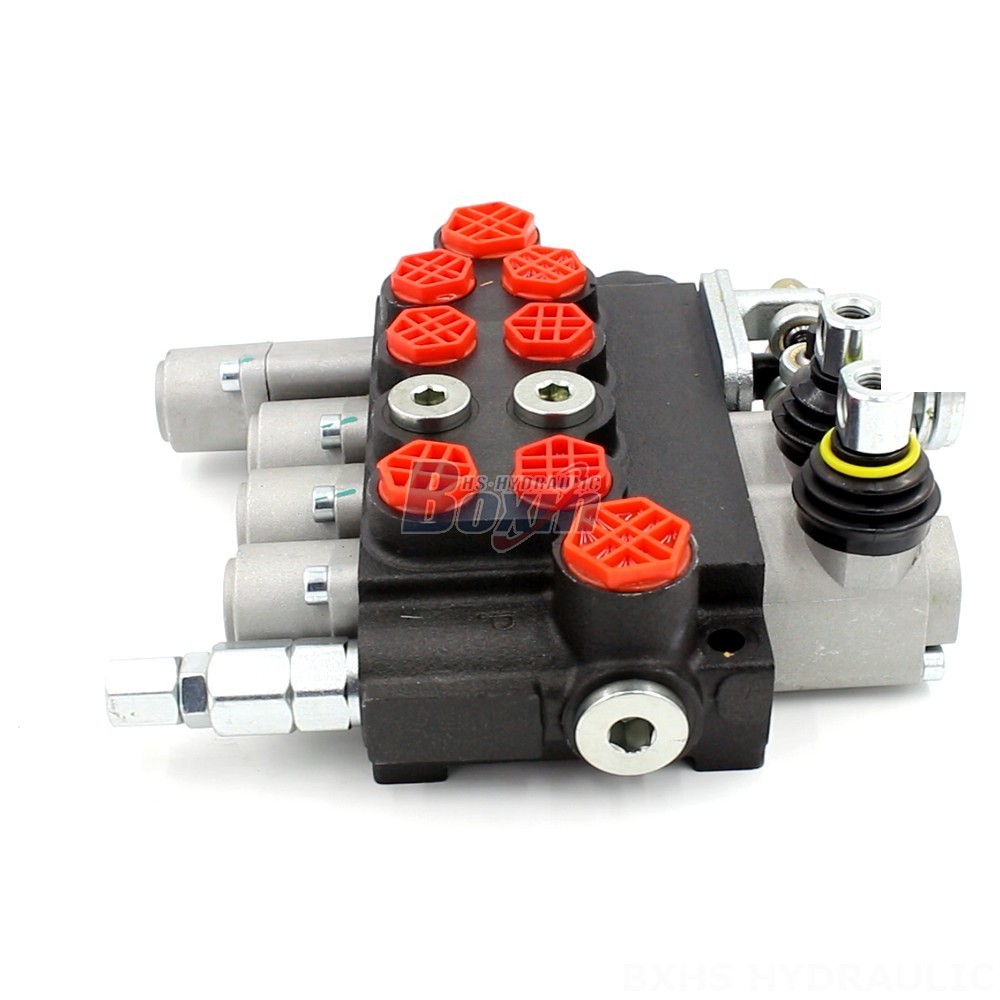

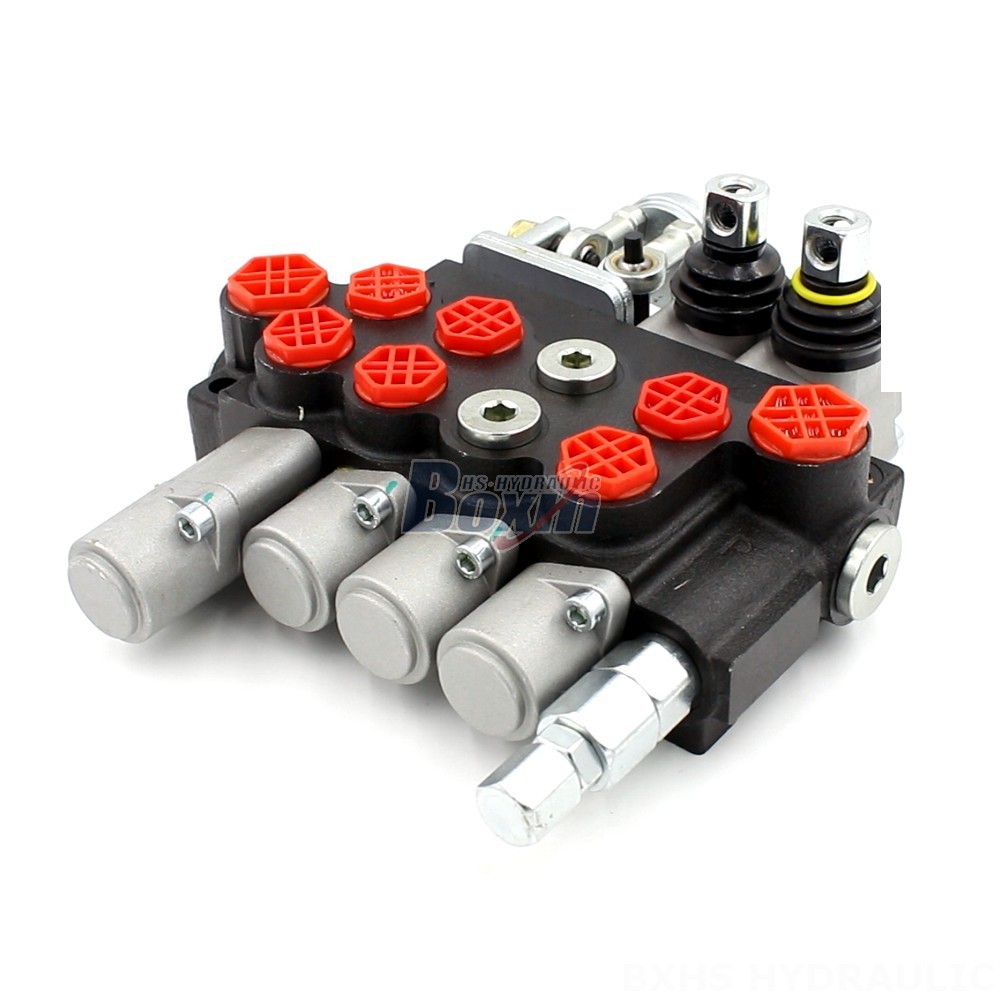

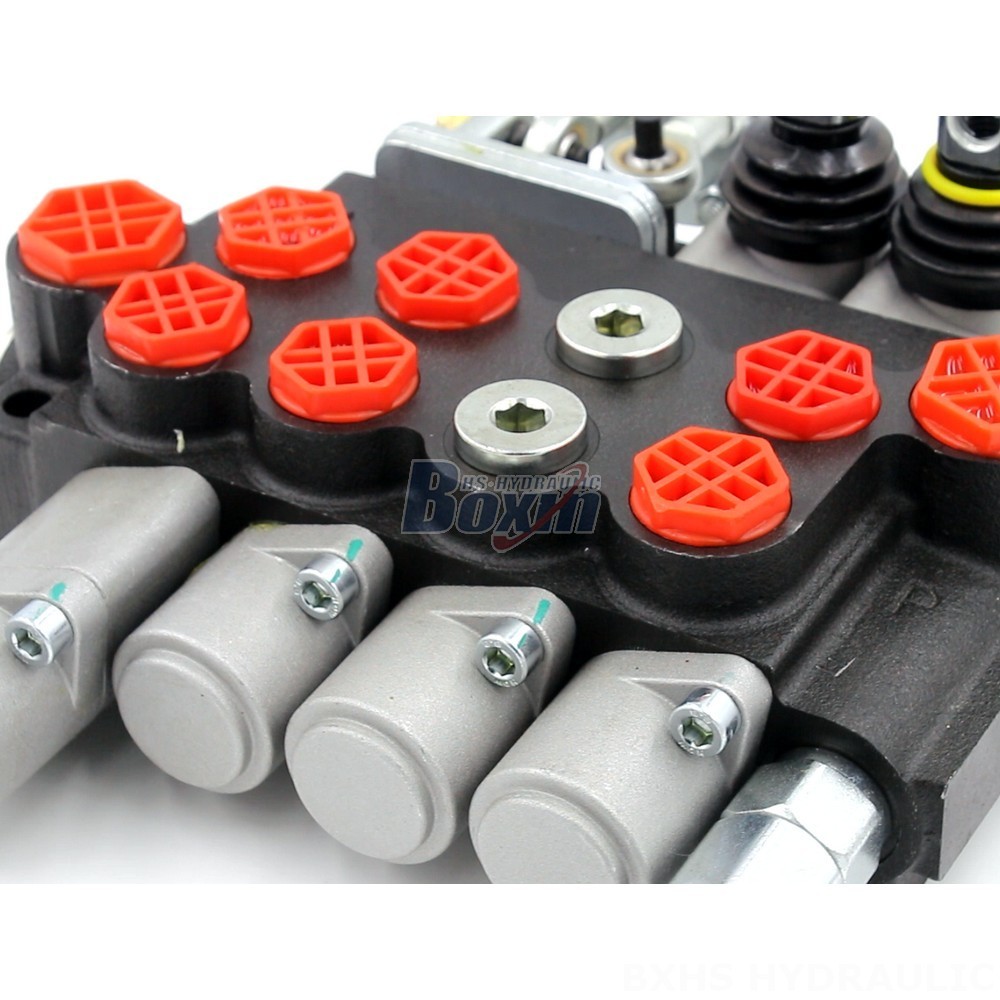

**P40 Series Hydraulic Directional Valve**
The P40 Series Hydraulic Directional Valve is a versatile and durable valve that offers exceptional performance in various hydraulic systems. Here are its key features and specifications:
**Control Method:** Manual and Joystick
**Section:** 4 Section
**Structure Type:** Monoblock Valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P40 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Telehandler, Midi-Excavator, Mini-Excavator
With its robust construction, precise control, and wide range of applications, the P40 Series Hydraulic Directional Valve is an ideal choice for demanding hydraulic systems in various industries.
