Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:SAE 10

Orifice de sortie:SAE 10

Dimension du raccord:SAE 10

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*27*11

Poids brut:13.40 kg

Disponibilité: En stock

1253 personnes consultent ce produit

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT drawing image

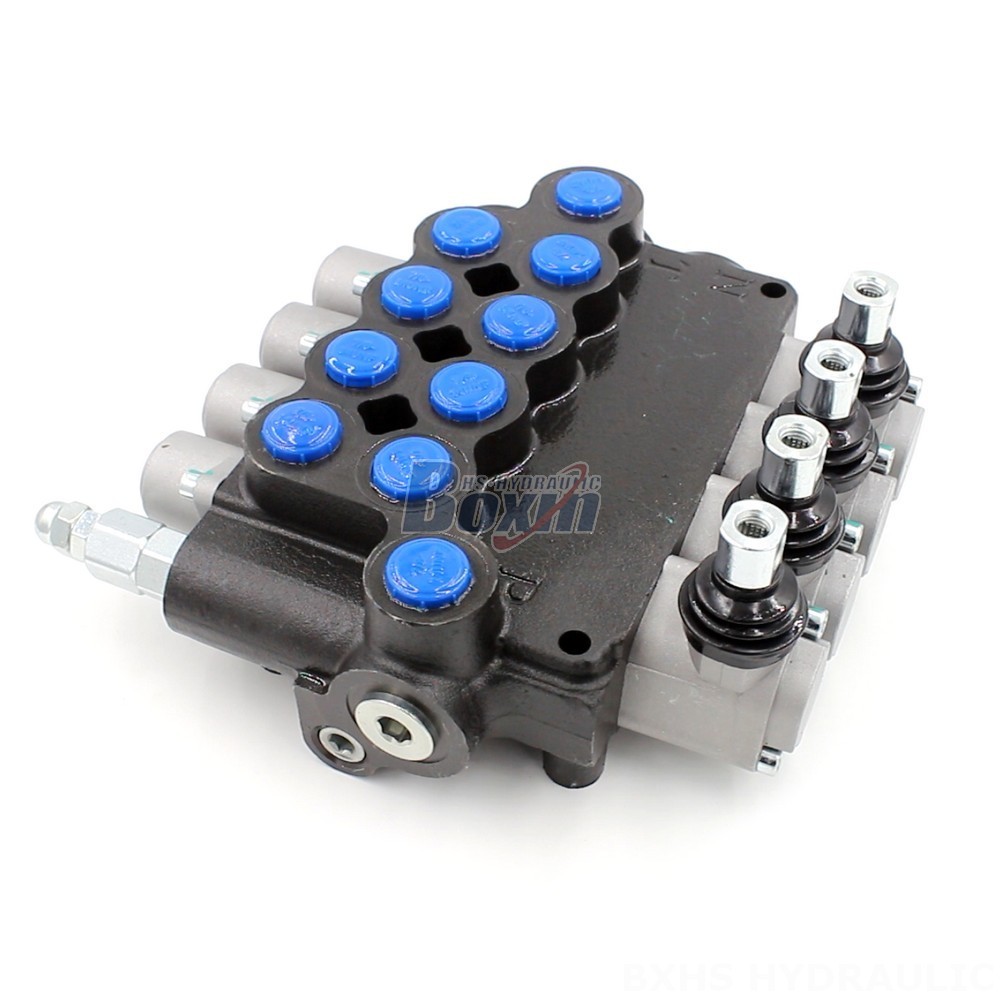

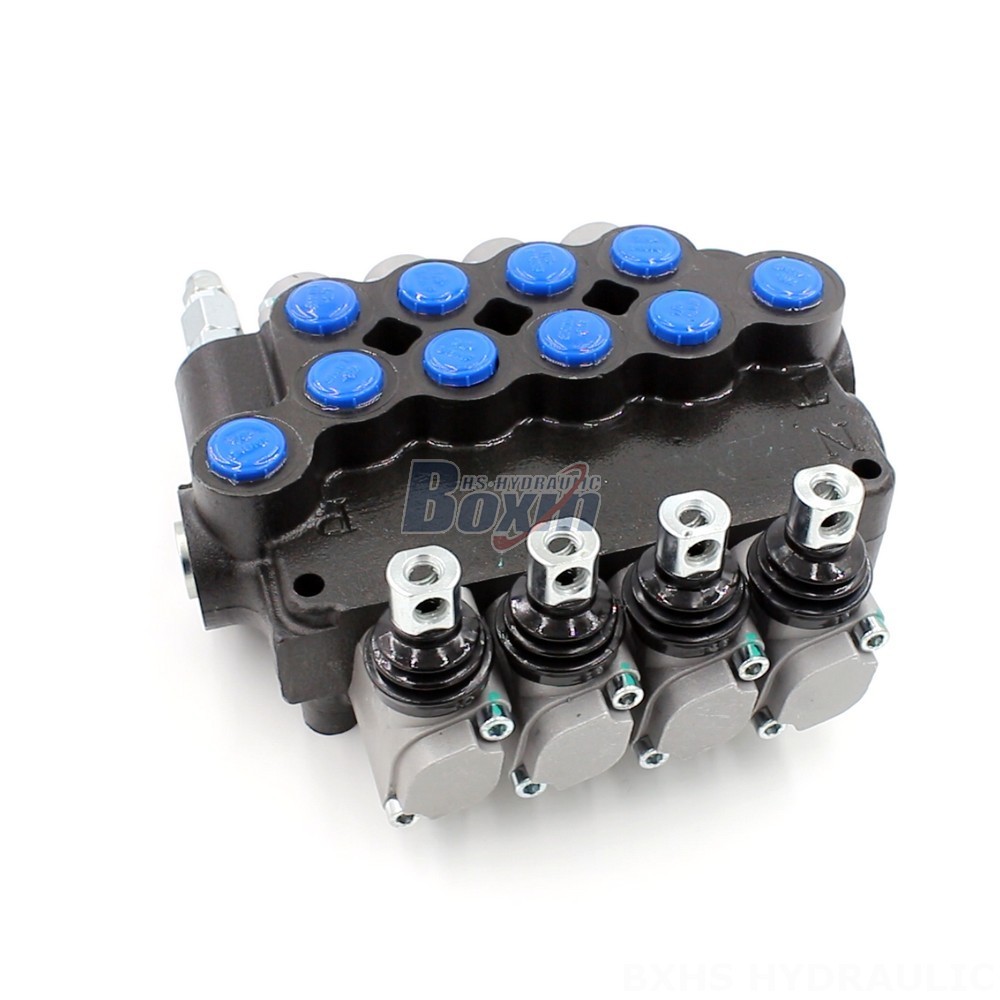

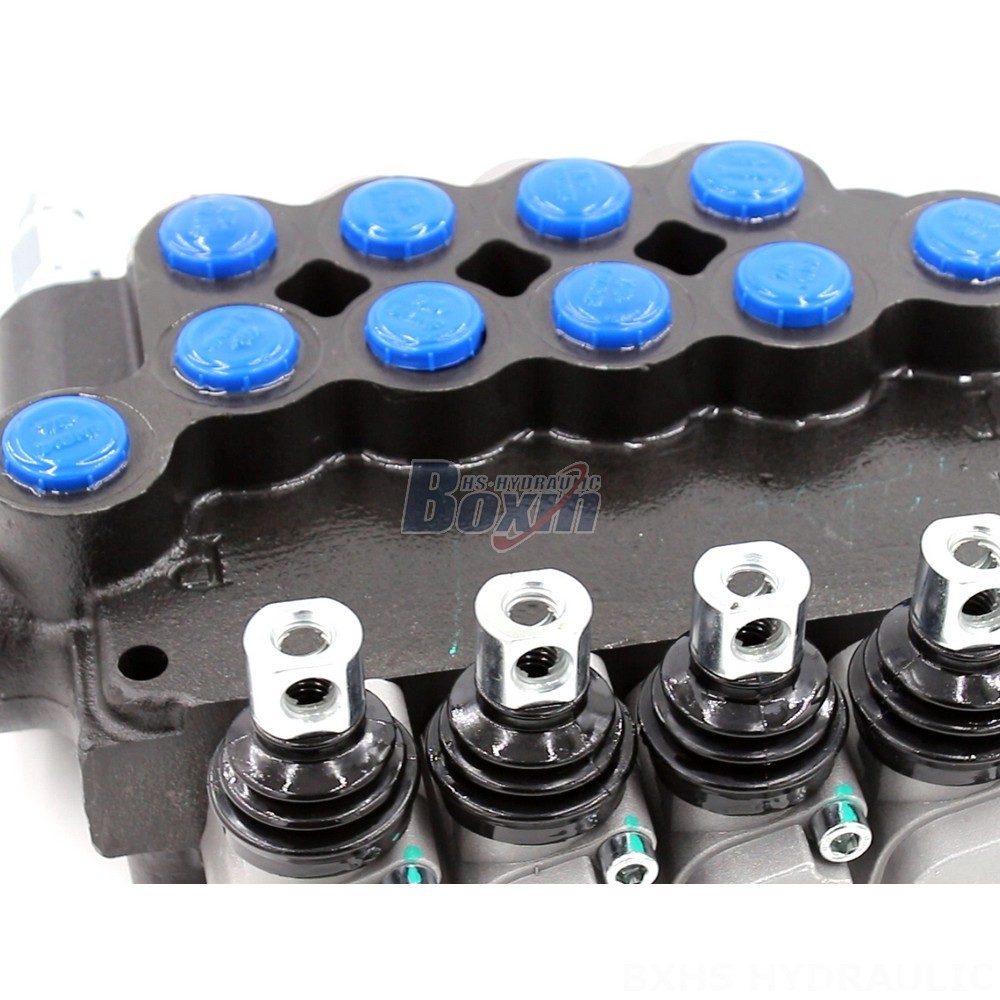

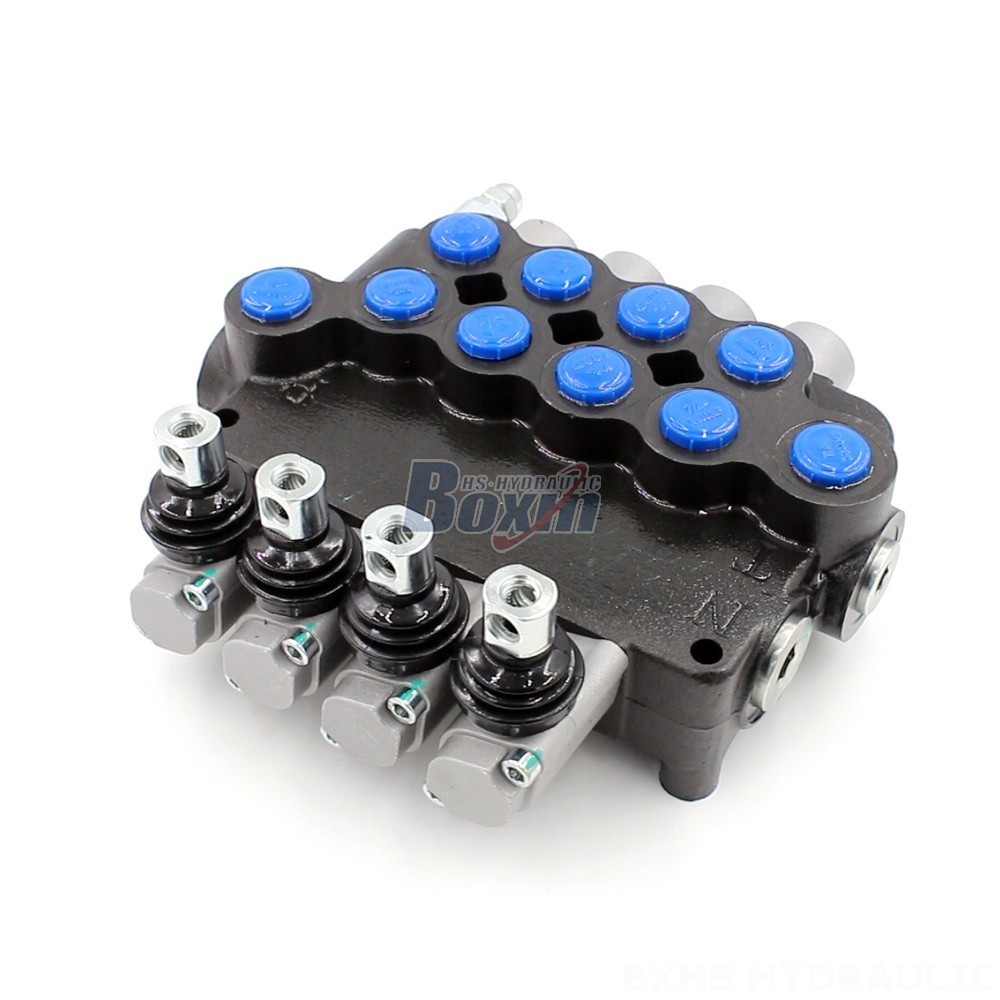

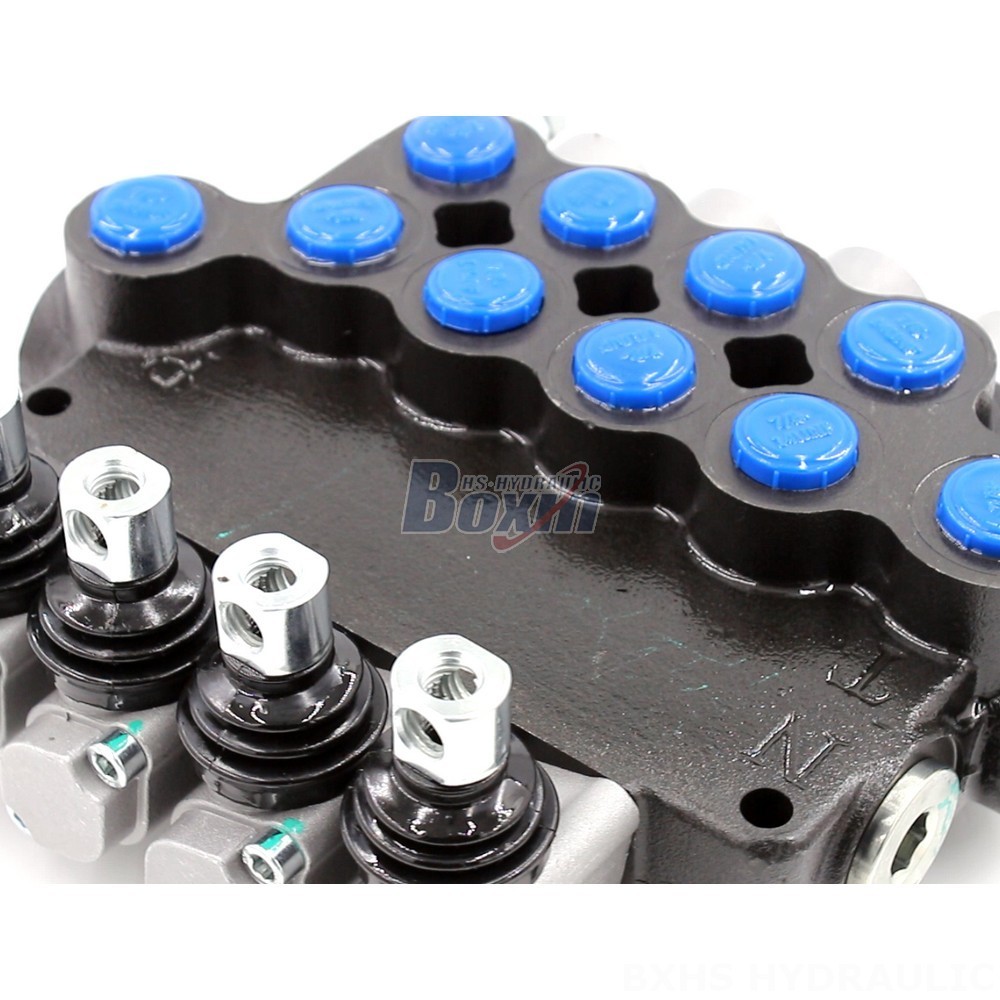

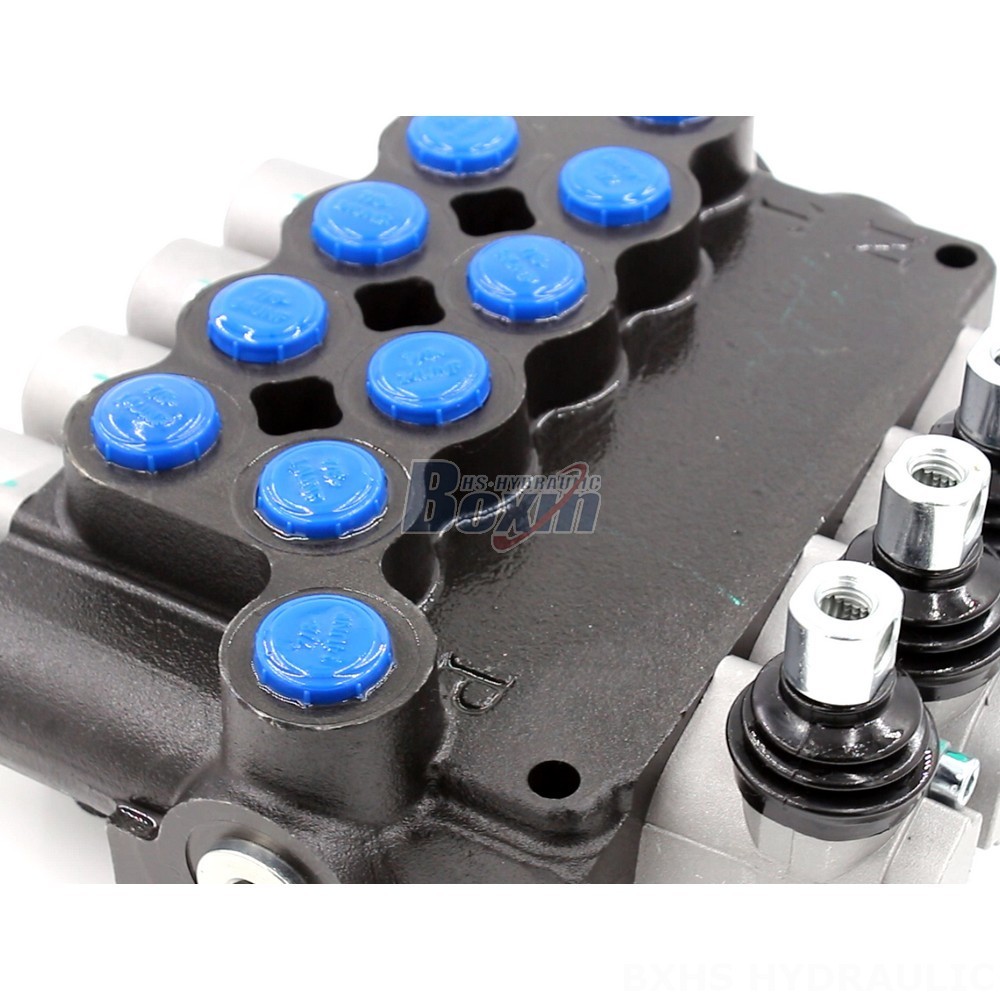

The P80-U78-4OT Hydraulic Control Panel is a 4-spool, monoblock directional valve designed for material handling, construction, agriculture, and industrial vehicle applications. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for various equipment like telehandlers, forklifts, and mini-excavators.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80-U78-4OT Hydraulic Control Panel features a 4-spool, monoblock design, providing a compact and reliable solution for hydraulic systems. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. The control method is manual, offering straightforward operation. The valve is designed for an operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This durable and efficient valve is specifically designed for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
