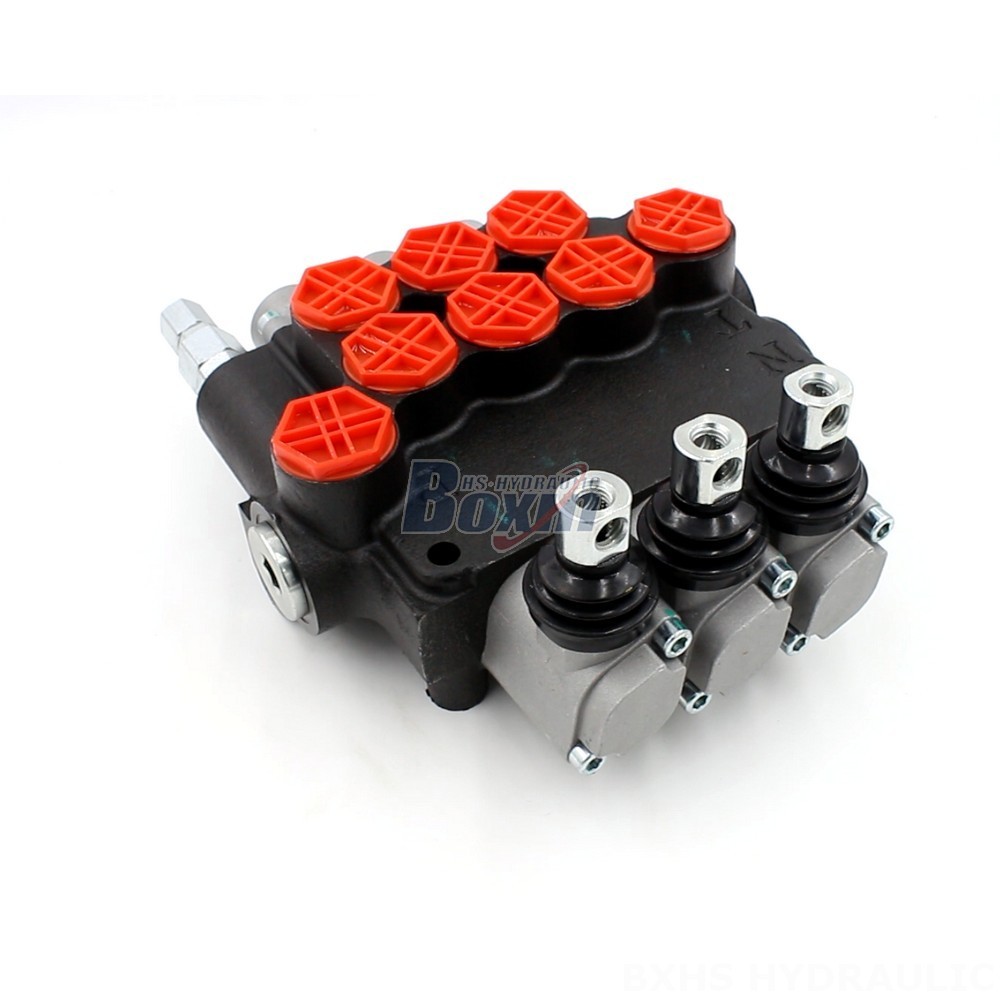

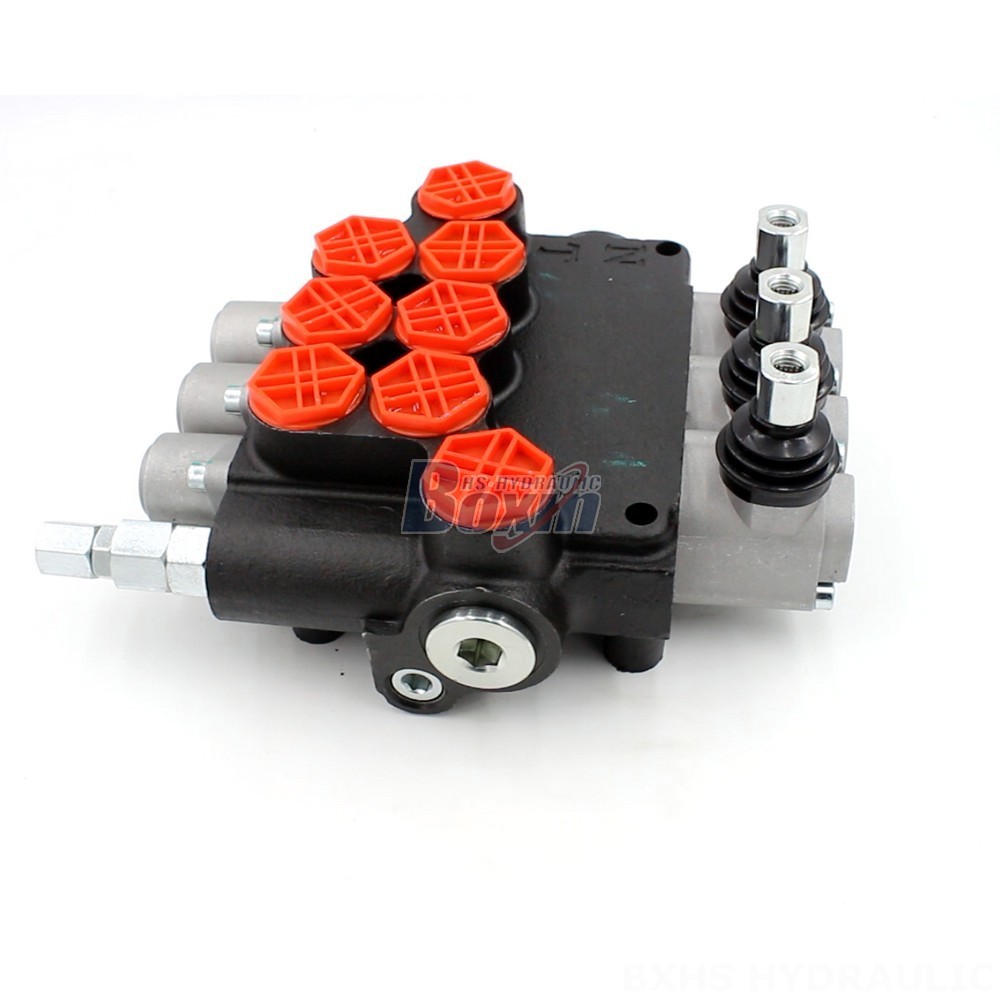

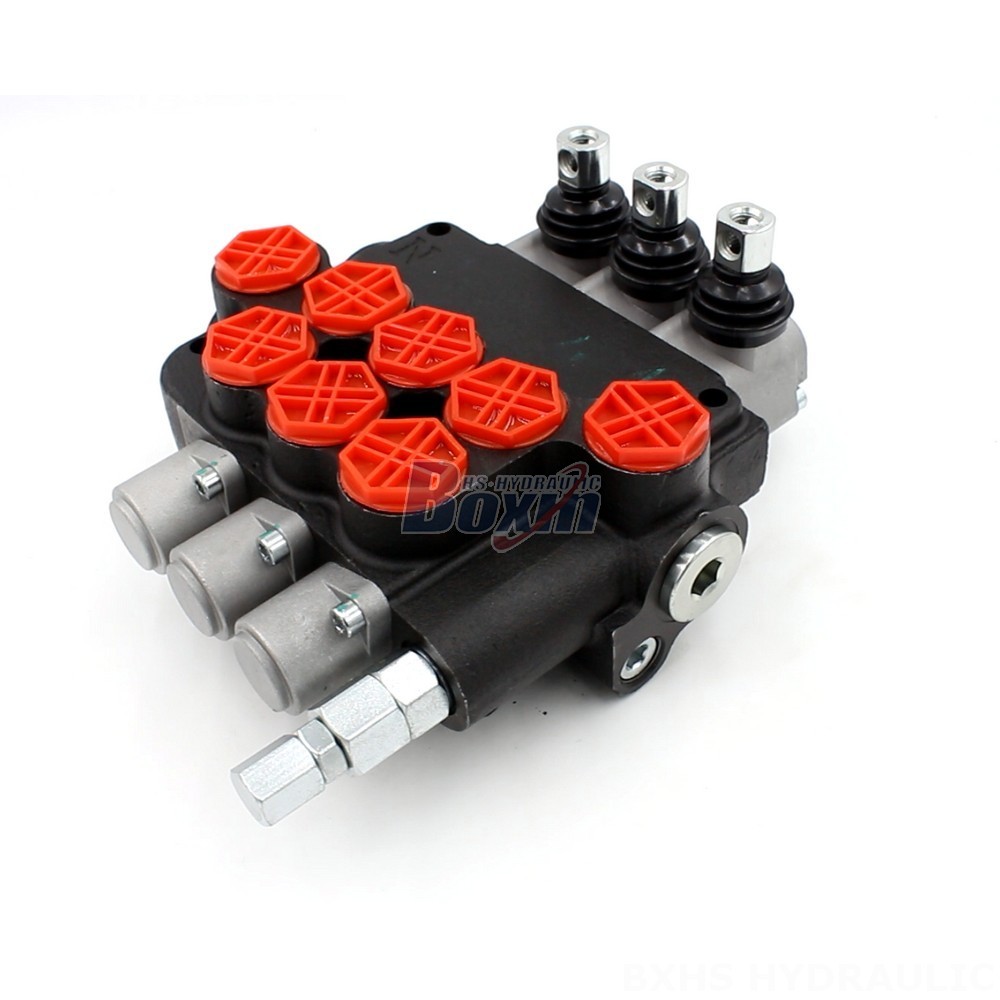

Hydraulic Directional Control Valve

Méthode de contrôle:Manuel

Distributeur:3 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G3/4

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*23*11

Poids brut:10.70 kg

Disponibilité: En stock

1101 personnes consultent ce produit

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
