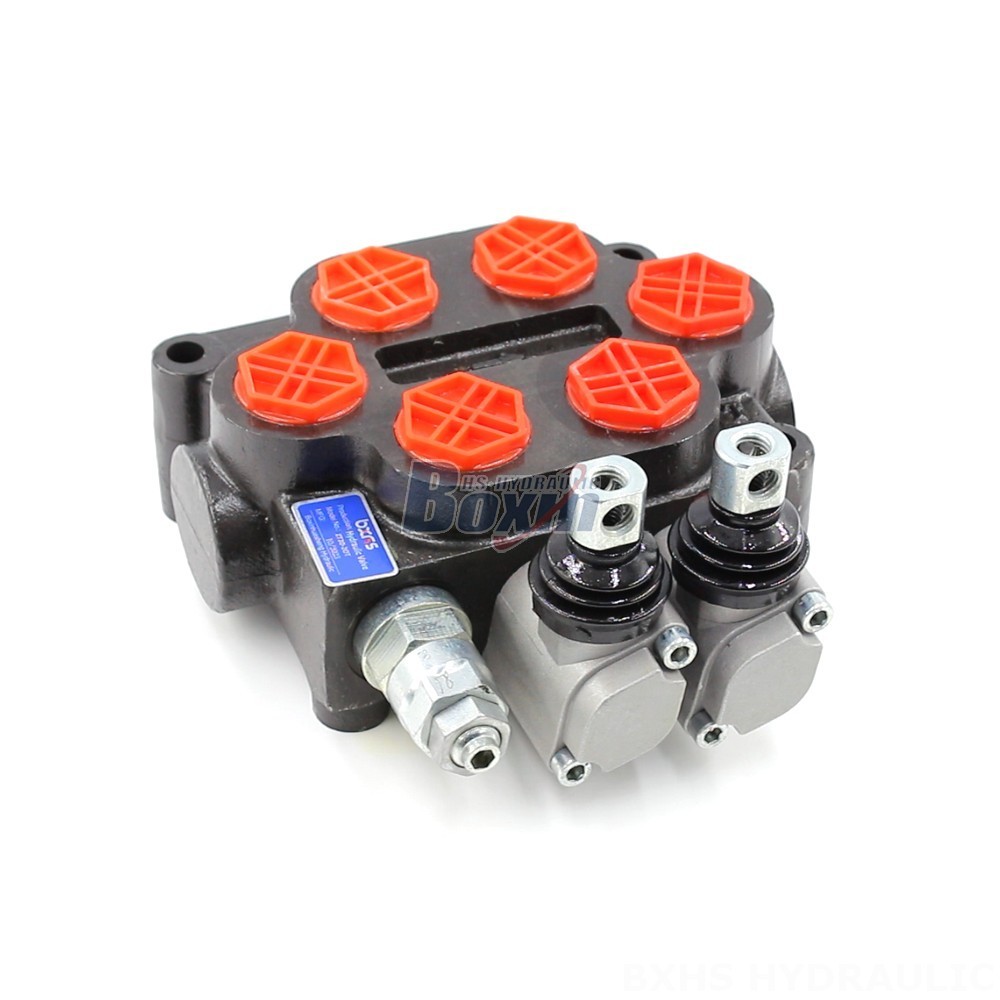

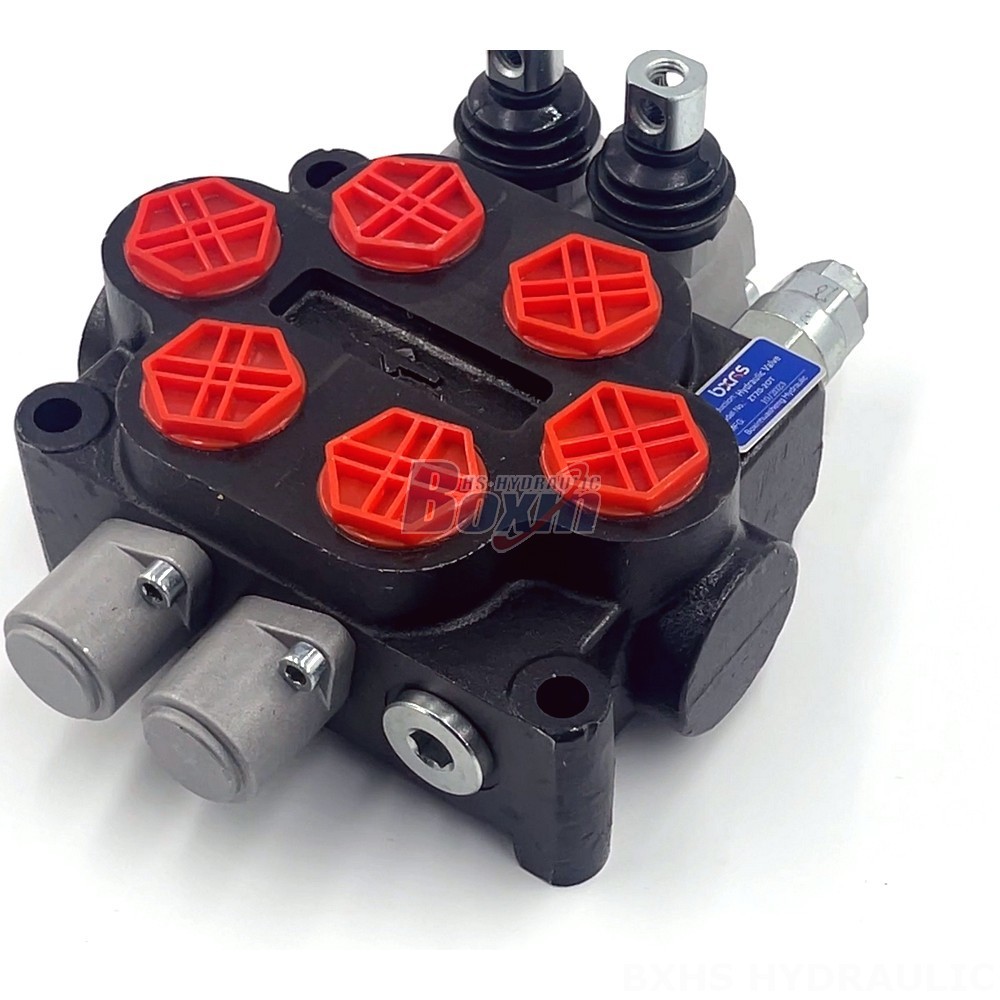

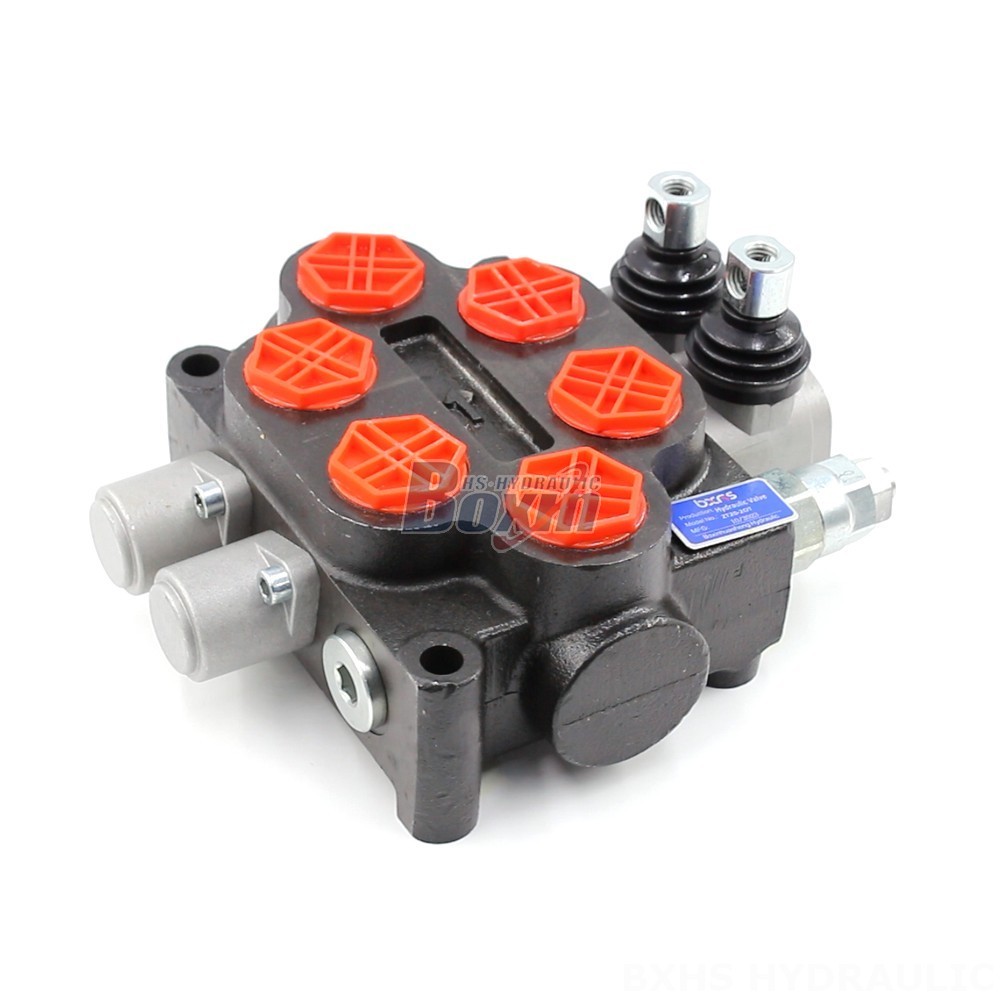

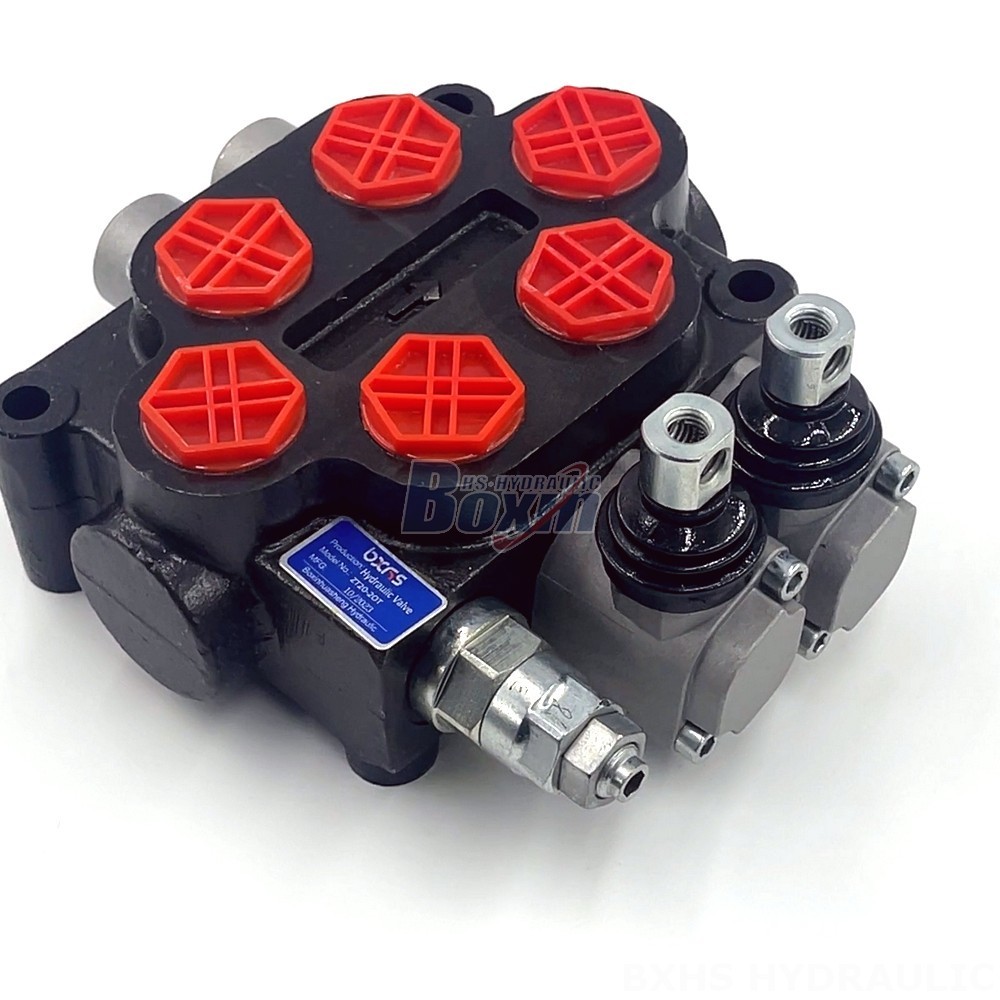

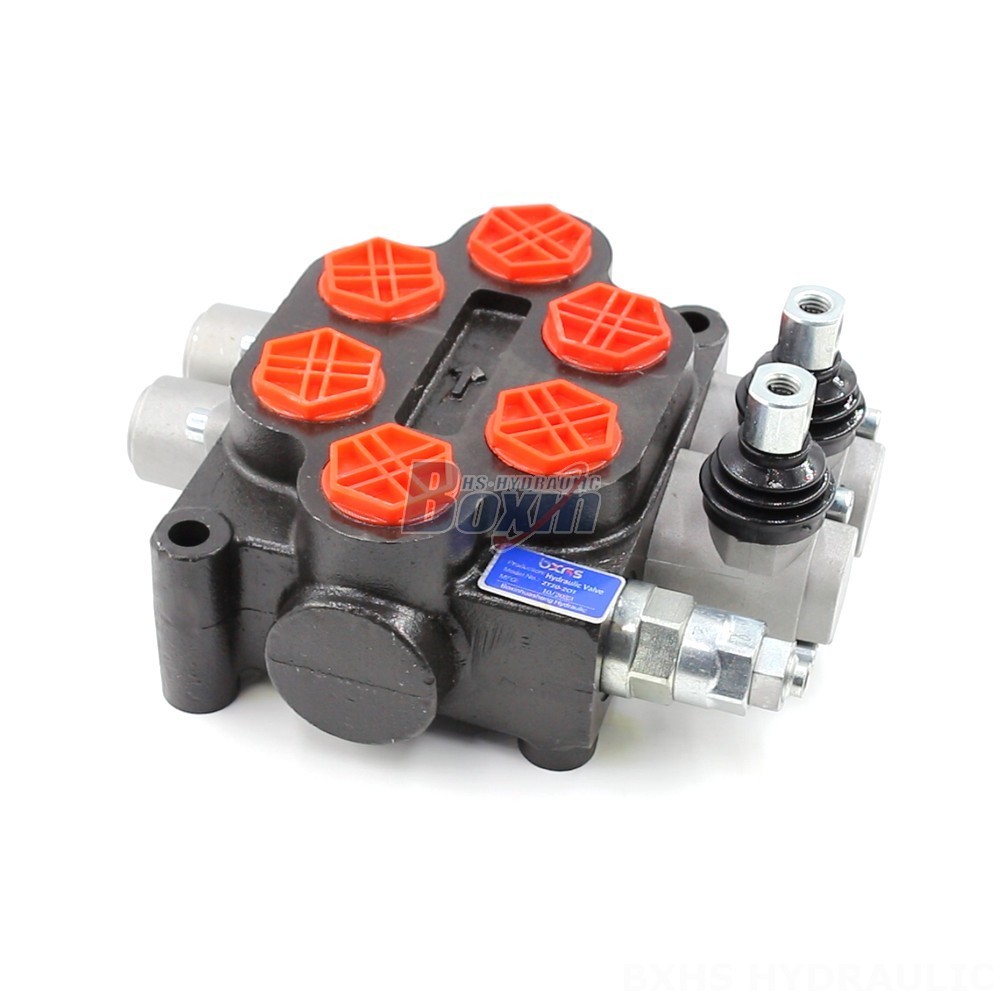

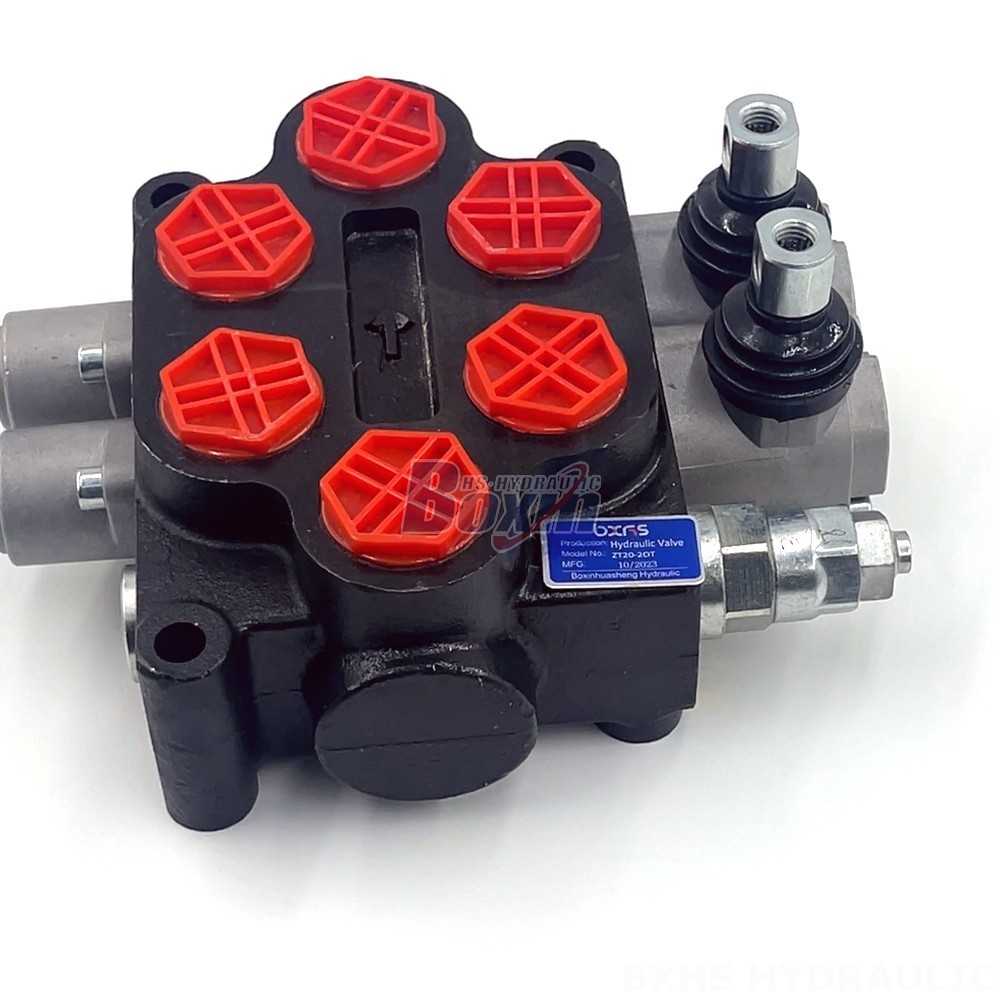

ZT20 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its manual control and 2-section design provide precise flow control, while its monoblock structure ensures durability and compactness.
| Série ZT20 Vanne de commande hydraulique Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs |
| Débit nominal | 100 L/min (26,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
**ZT20 Series Hydraulic Directional Control Valve**
**Key Features:**
* Manual Control
* 2 Section
* Monoblock Valve
* Rated Flow: 100 L/min (26.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
