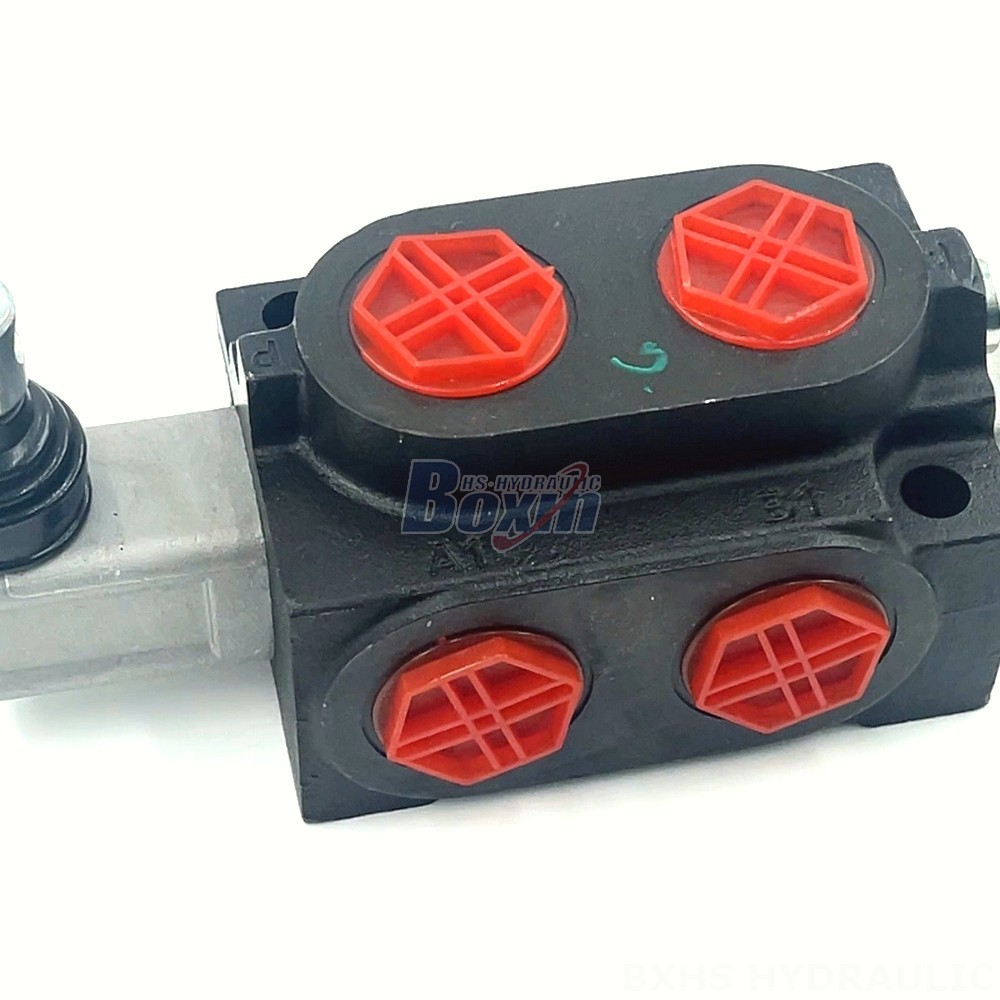

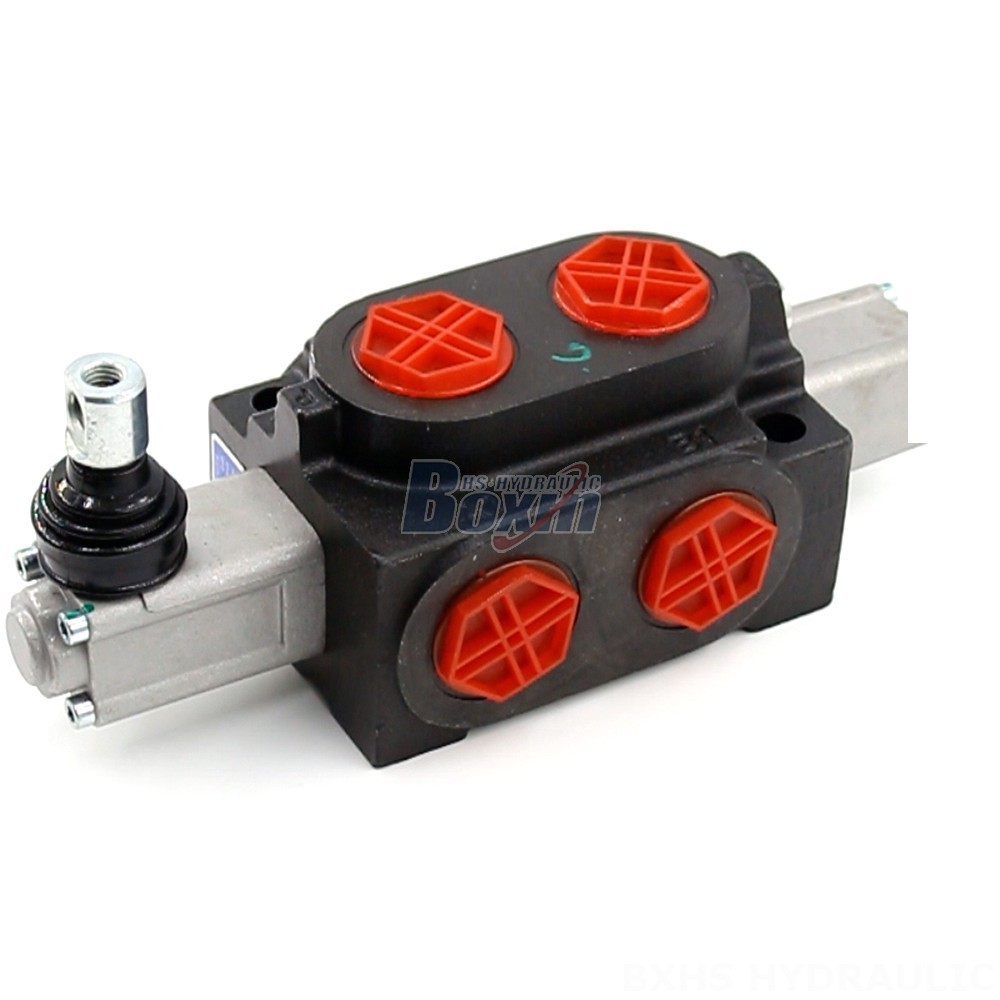

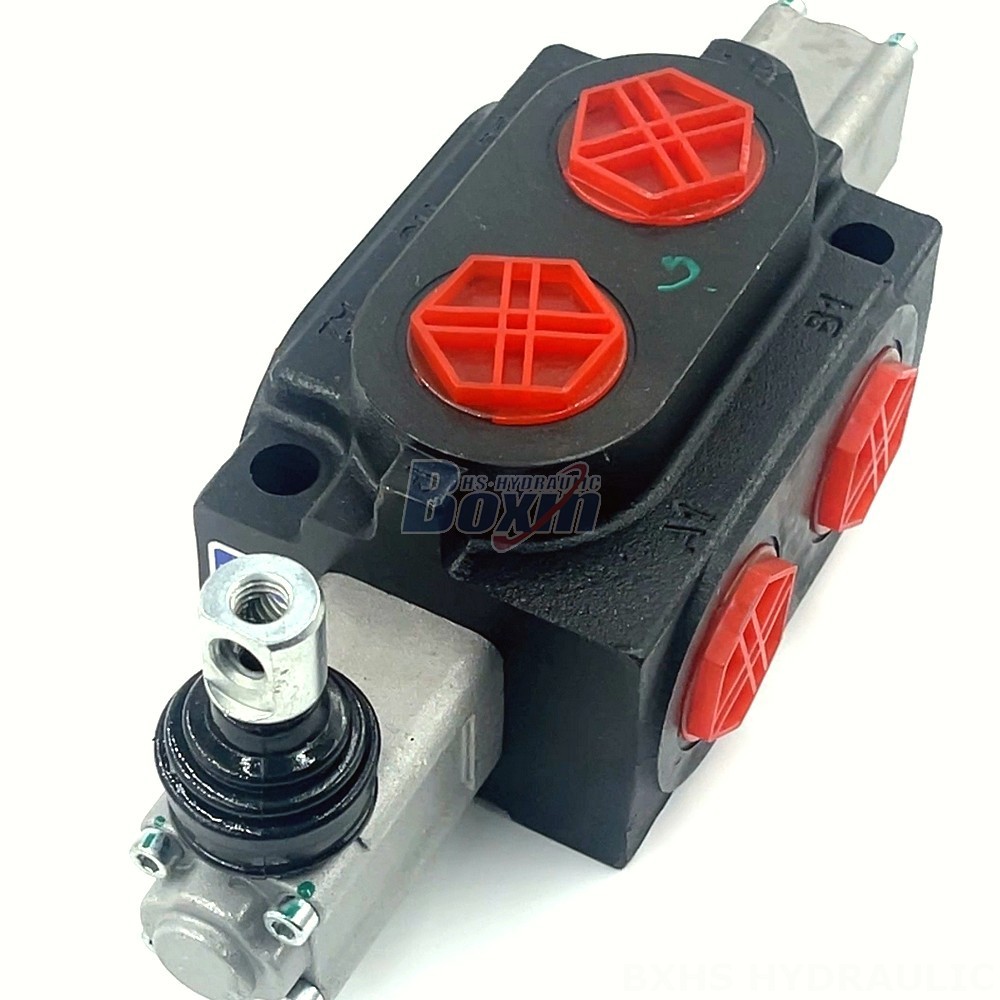

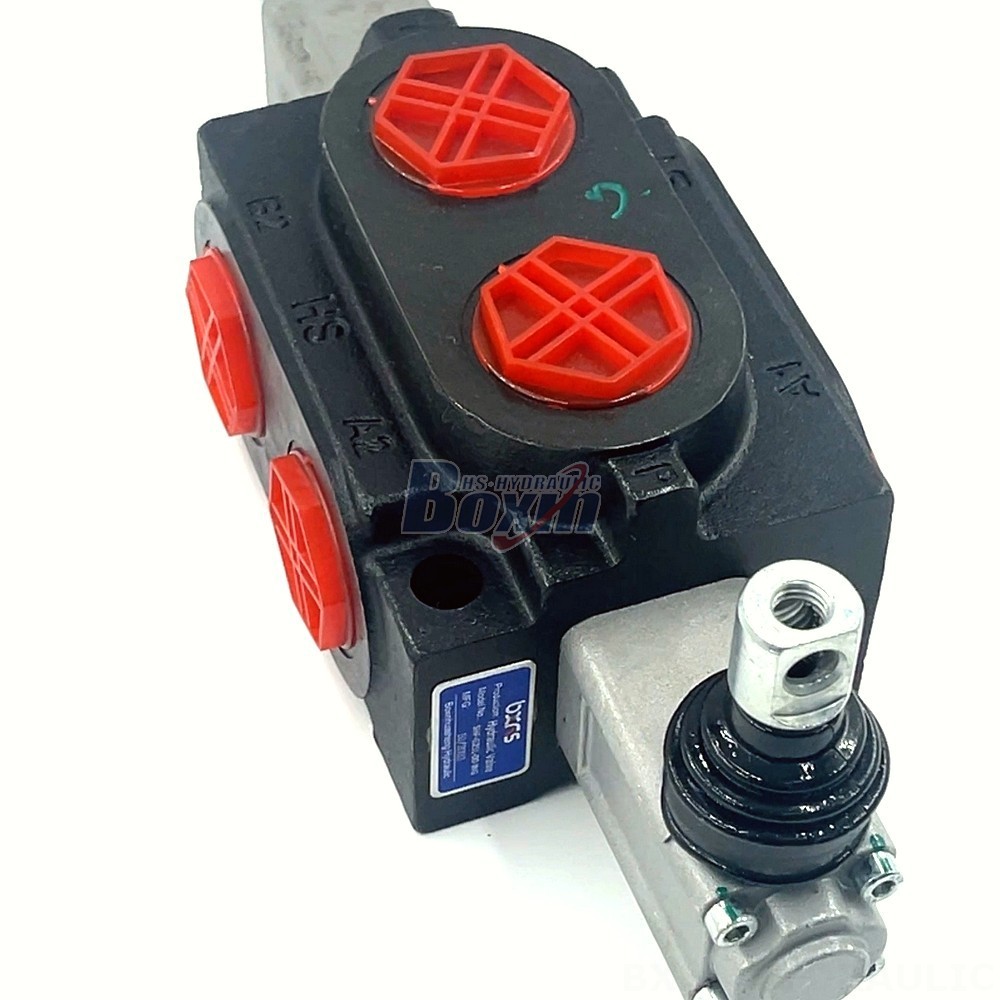

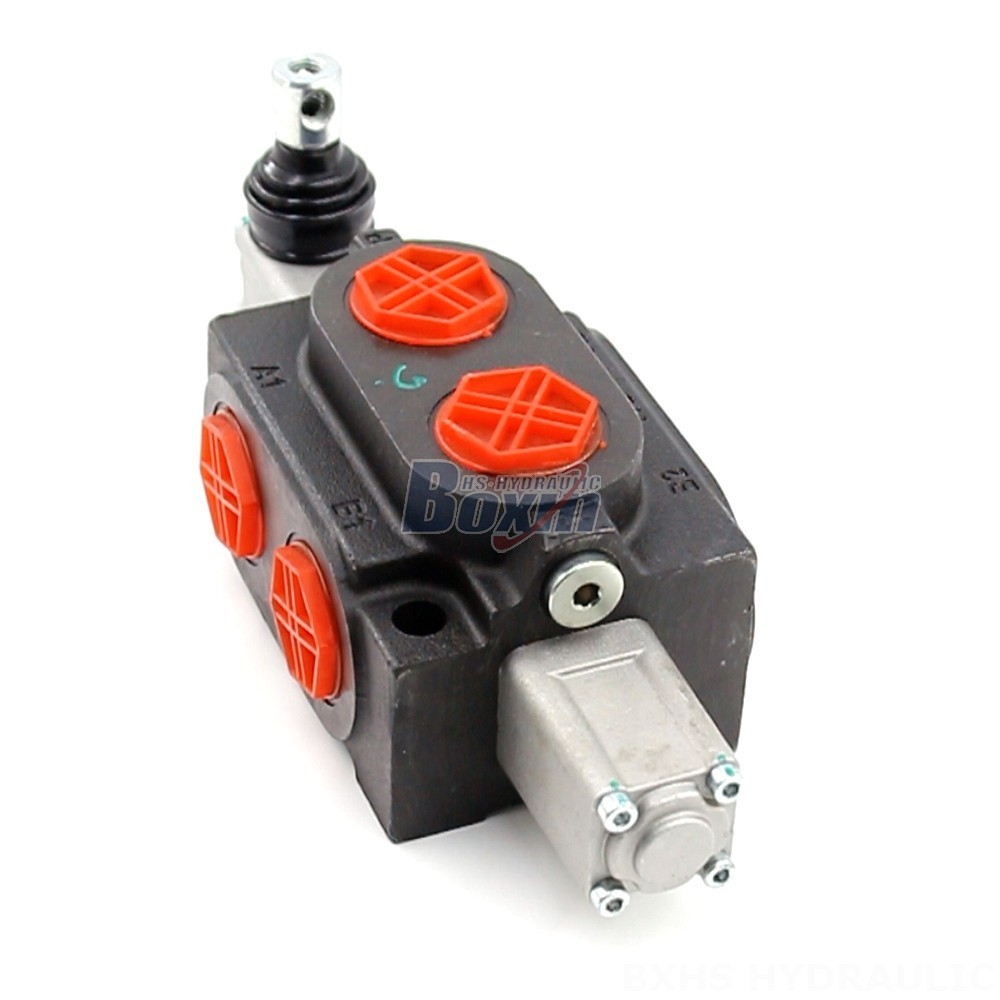

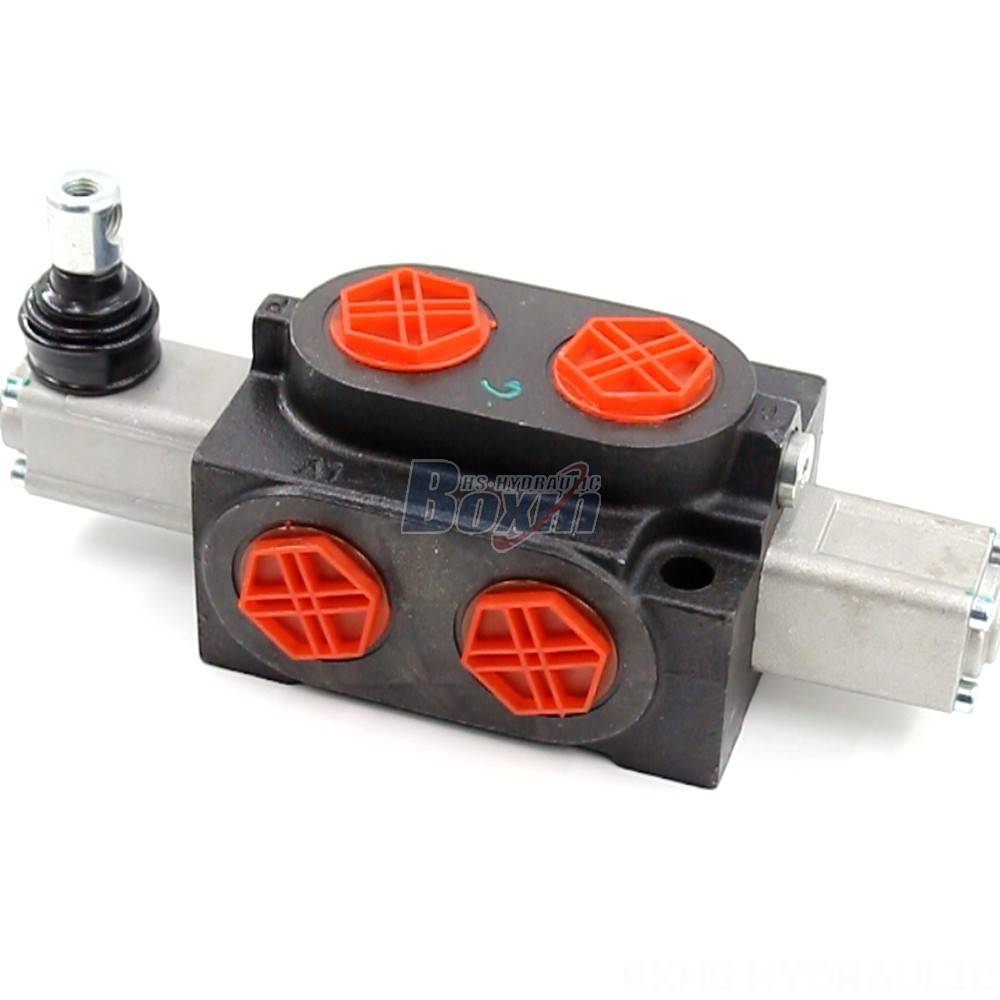

The SHFY-G25L-00 Hydraulic Directional Control Valve is a 1-section, manually controlled sectional valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 200 L/min and a maximum pressure of 315 bar, this valve provides precise control of hydraulic systems.
| Série SHFY-G25L-00 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Hydraulique |
| Distributeur | 1 tiroir |
| Débit nominal | 200 L/min (52 US gal/min) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | M33×2.0 |
| Orifice de sortie | M33×2.0 |
| Dimension du raccord | M33×2.0 |
| Section | 1 section |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
**Product Name:** Hydraulic Directional Control Valve | SHFY-G25L-00
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 200 L/min (52 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SHFY-G25L-00 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BALER
