Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1556 personnes consultent ce produit

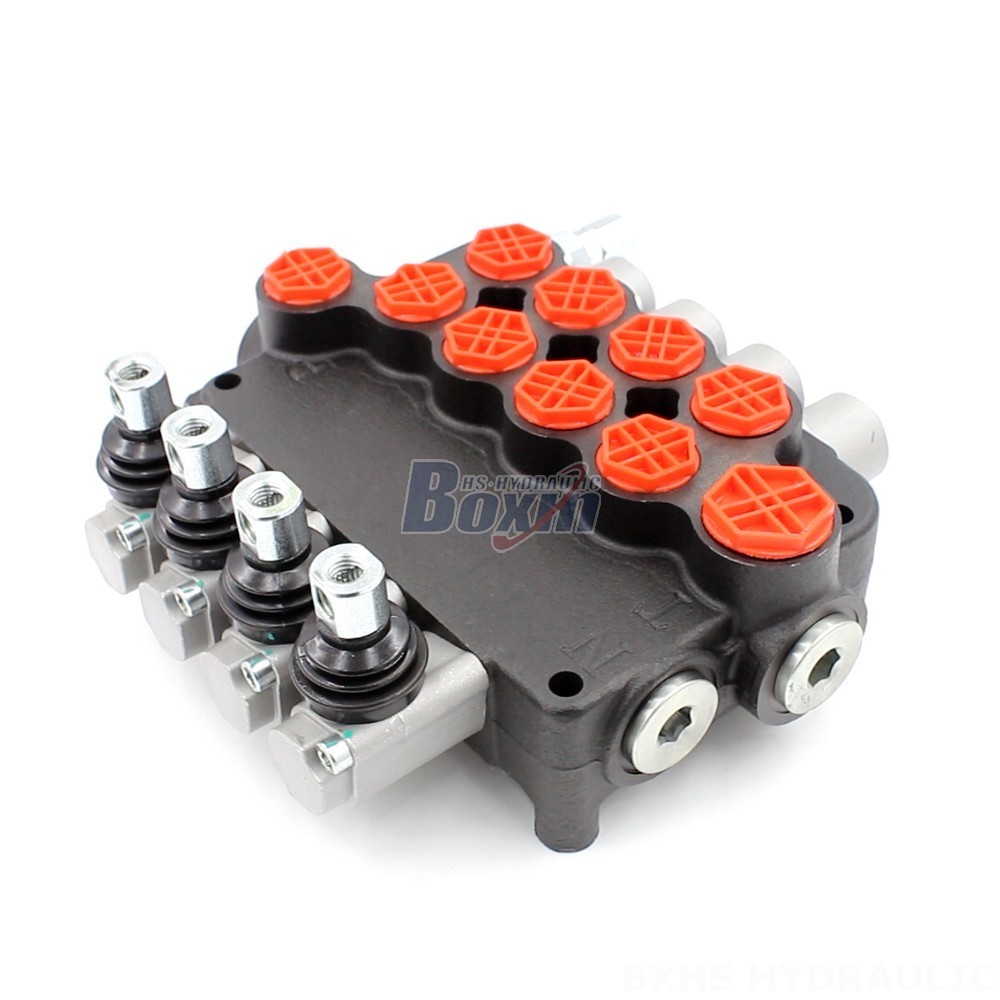

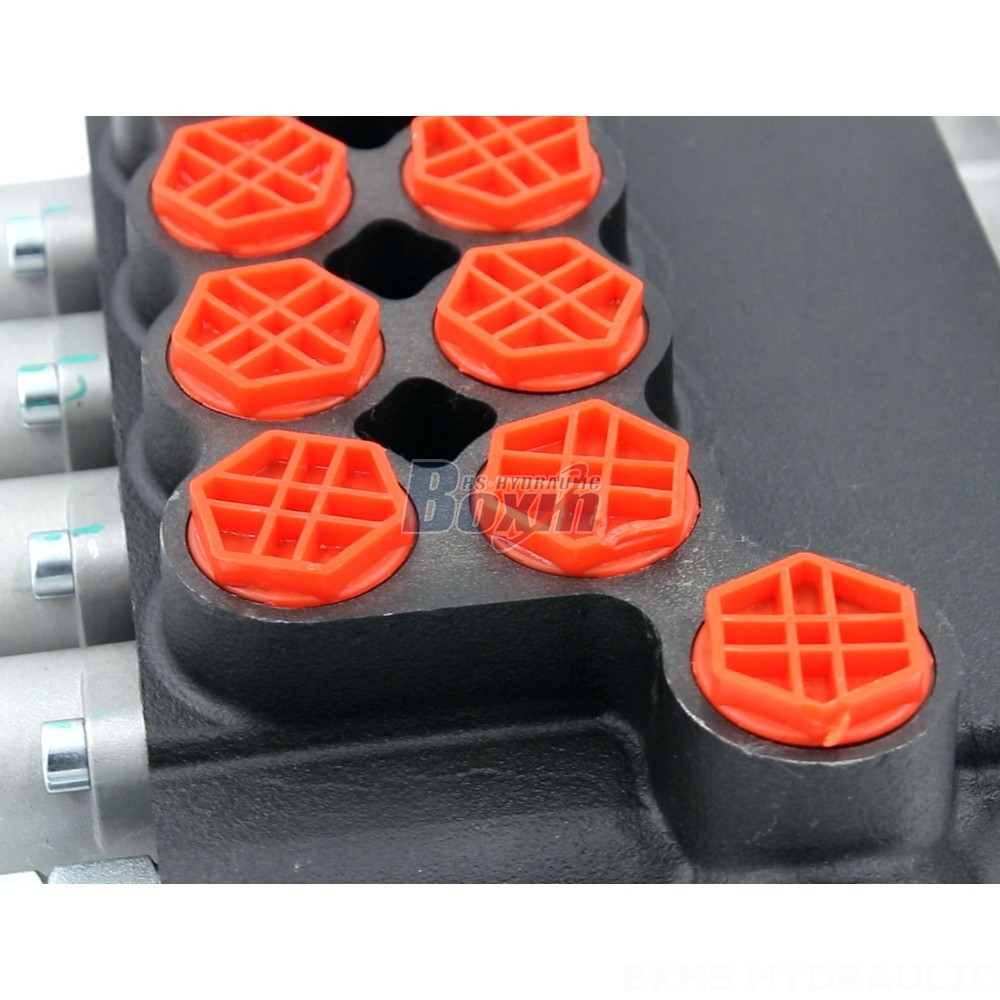

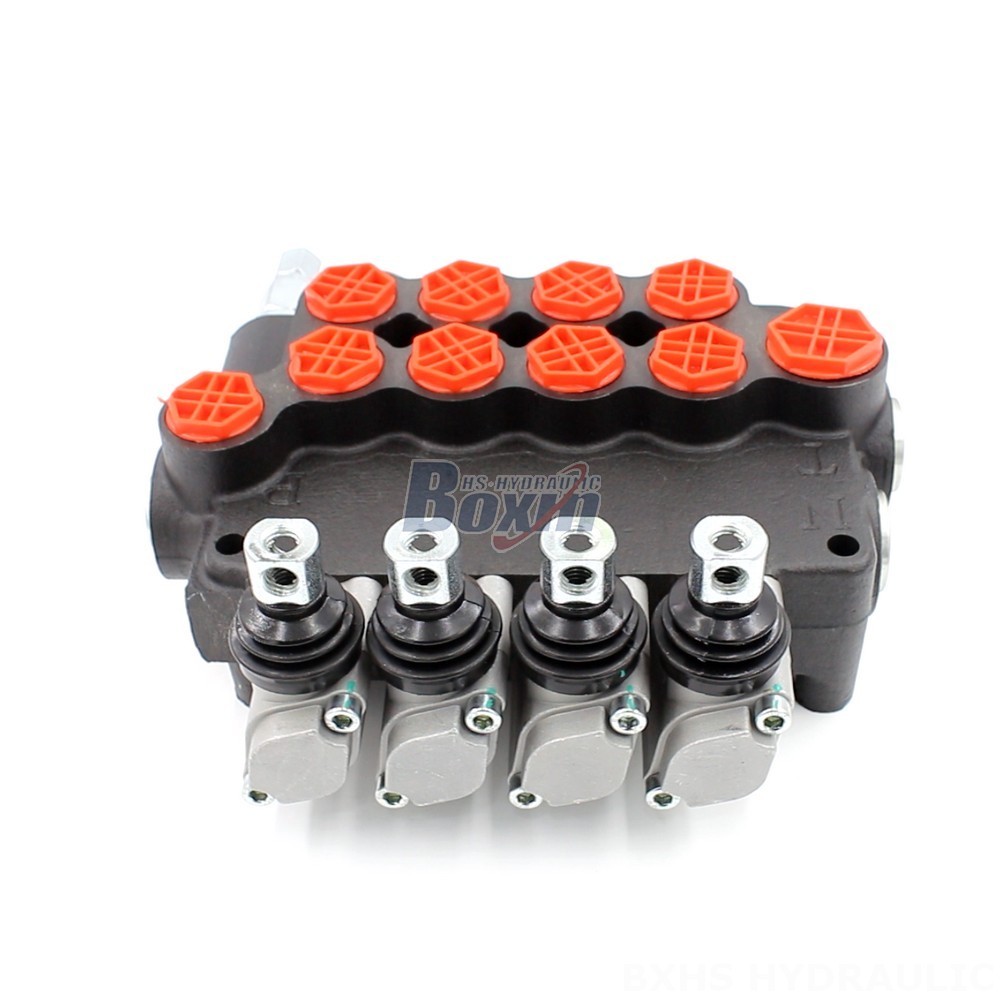

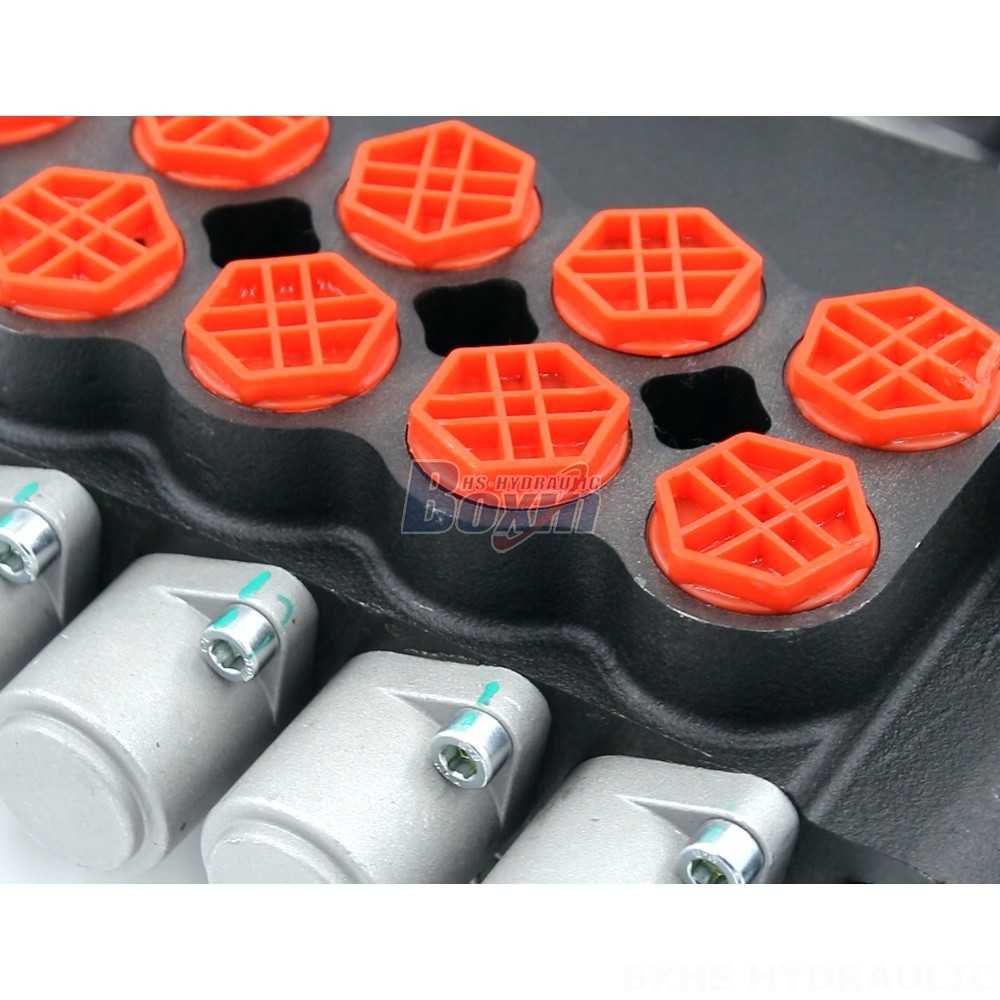

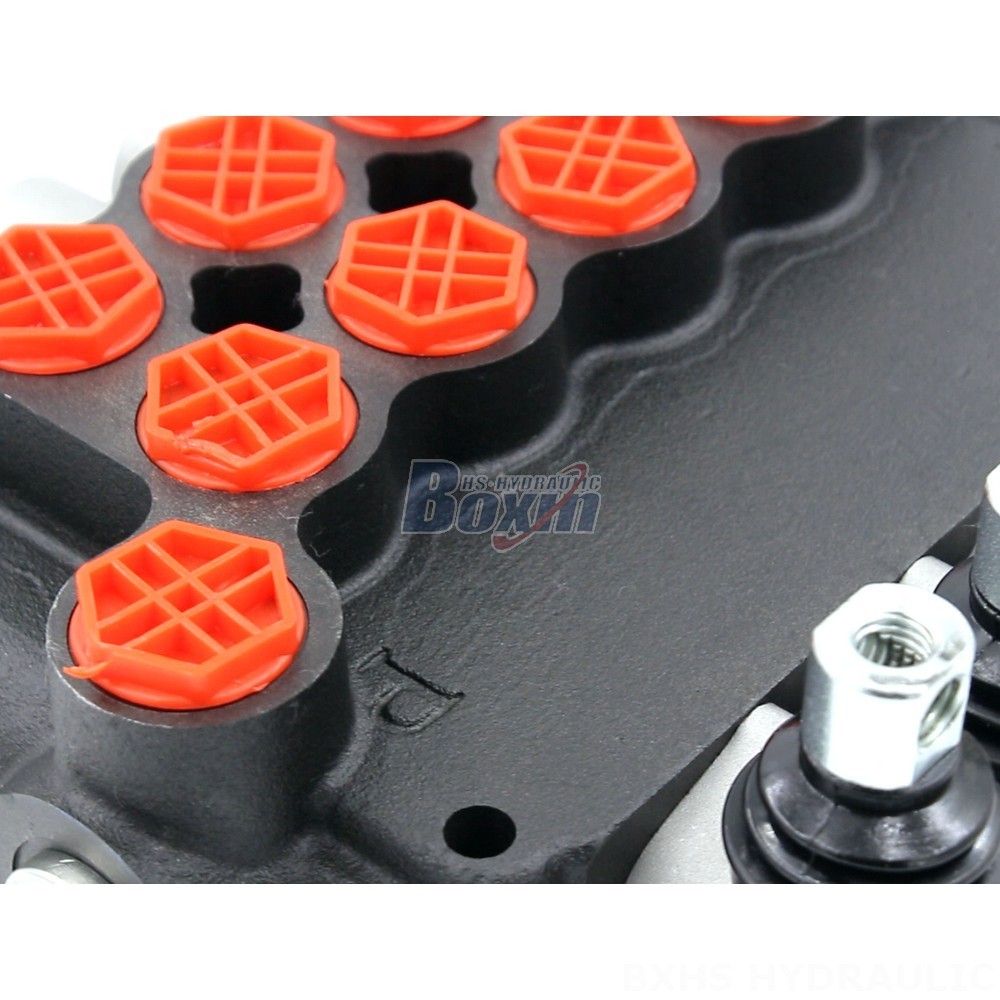

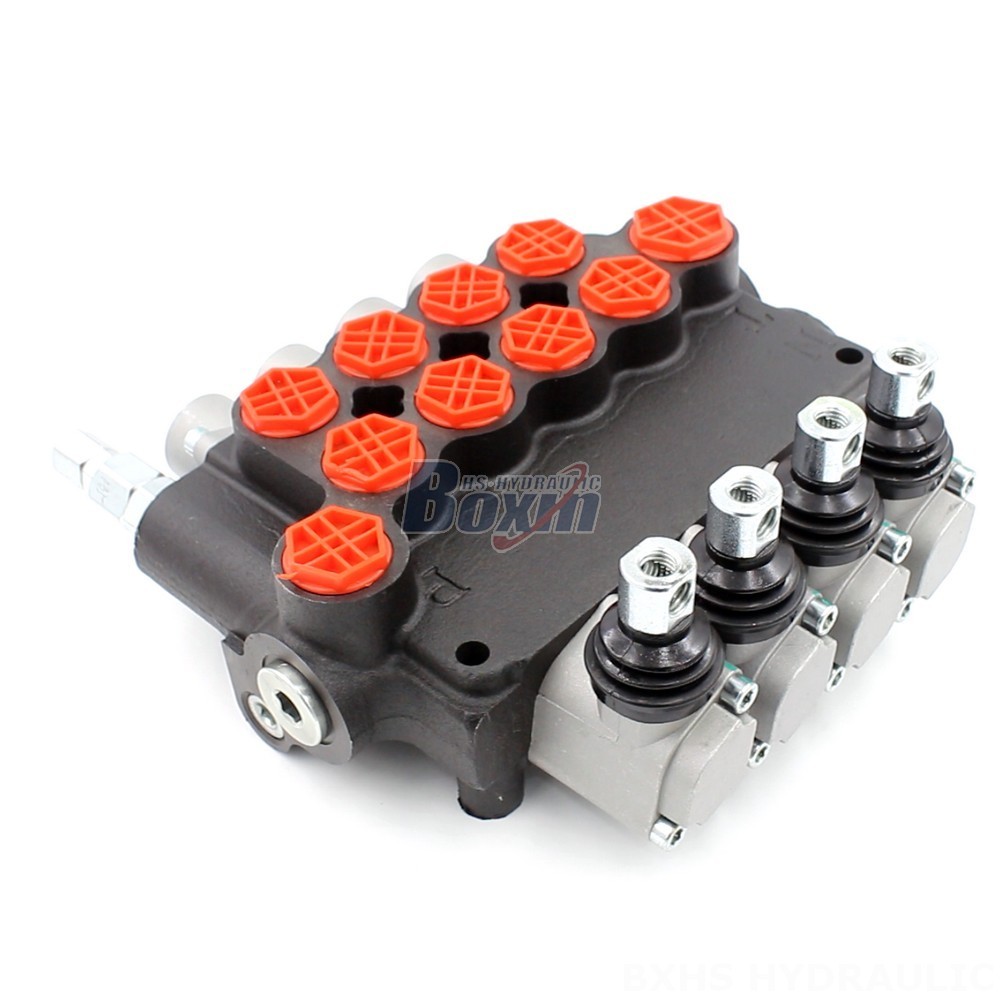

This P80-G34-G12-4OT hydraulic directional control valve is designed for heavy duty applications in construction, material handling and industrial vehicles. It features a robust monoblock construction with 4 sections and a rated flow of 80 L/min. This valve is ideal for tipper dump trucks, telehandlers, forklifts, excavators, and other heavy equipment.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-G12-4OT is a 4 section, manual control hydraulic directional control valve designed for demanding applications in construction, material handling, and industrial vehicles. This robust monoblock valve boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for operating tipper dump trucks, telehandlers, forklifts, excavators, loaders, and other heavy duty equipment. It is specifically engineered for reliable performance in demanding environments, featuring an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C.
