The Hydraulic Directional Control Valve P80-G12-G38-QW is designed to enhance system efficiency in various applications. It features a manual control method, a monoblock valve structure, and a rated flow of 80 L/min. With a maximum pressure of 250 bar, it is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

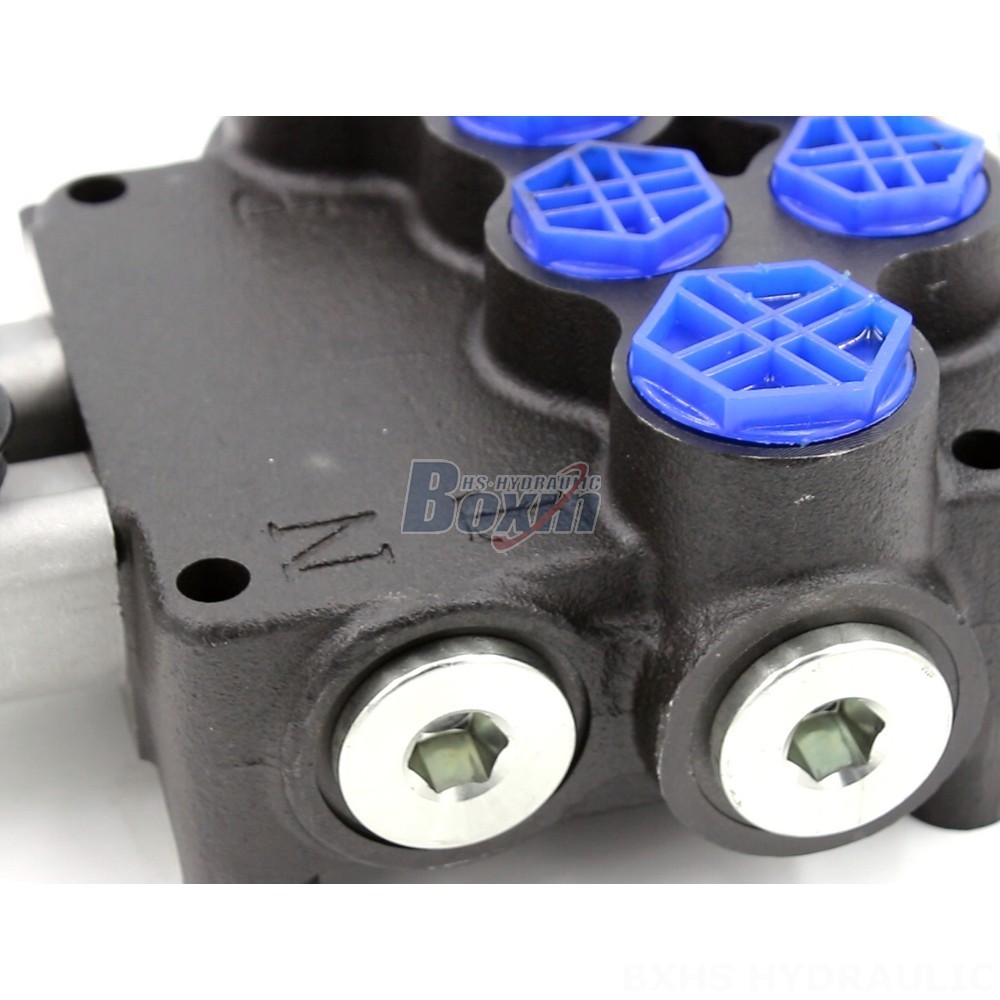

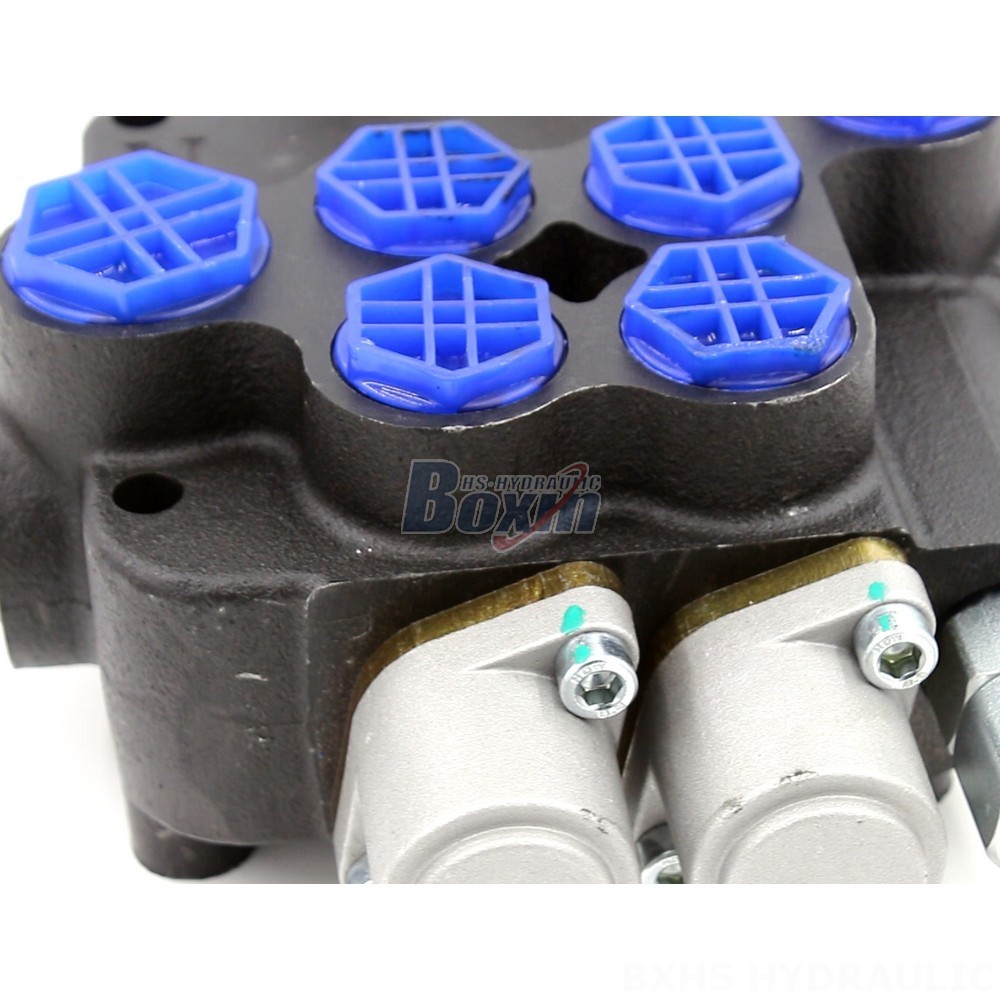

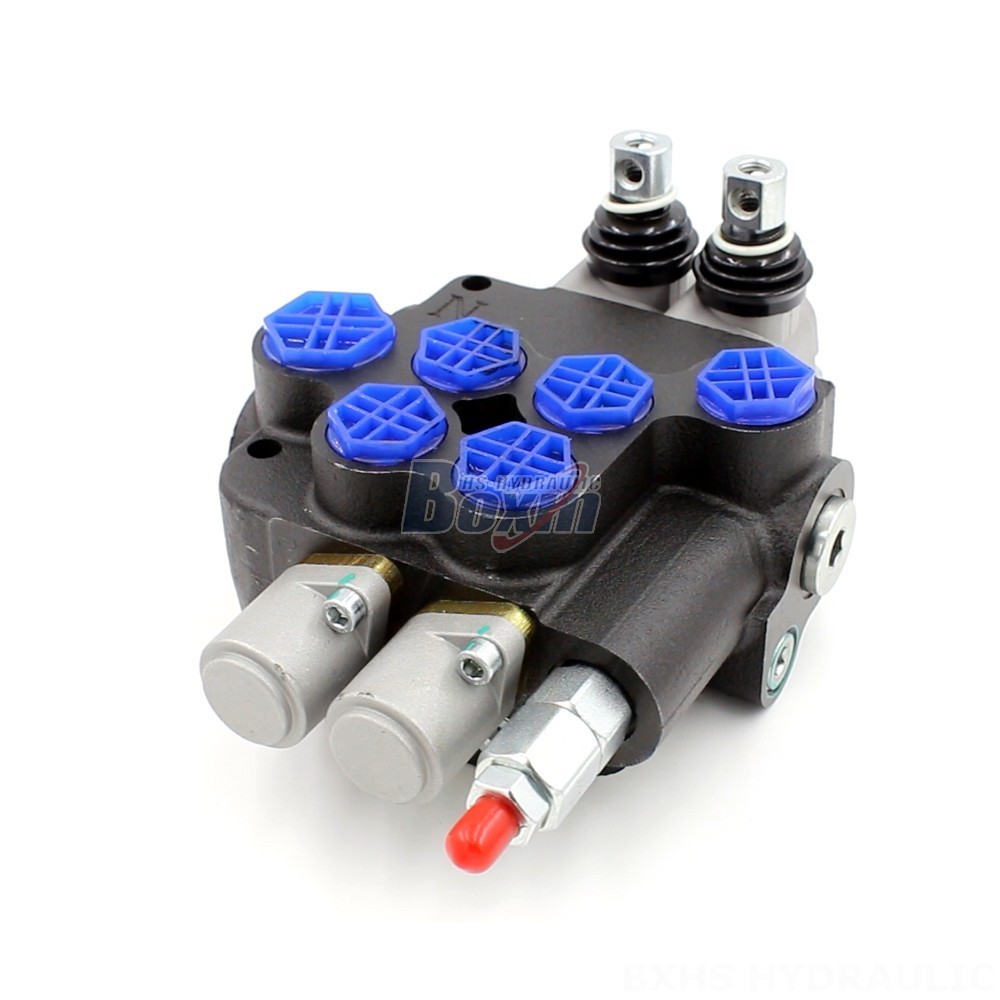

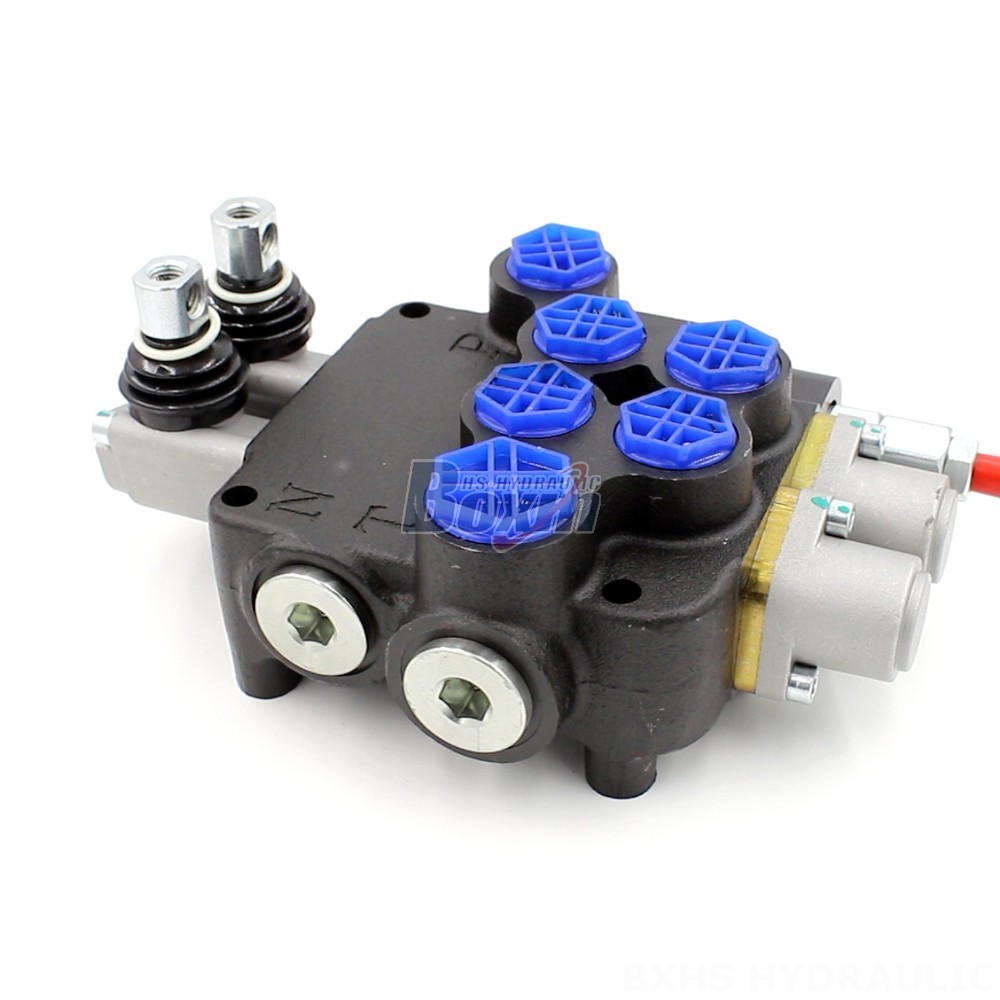

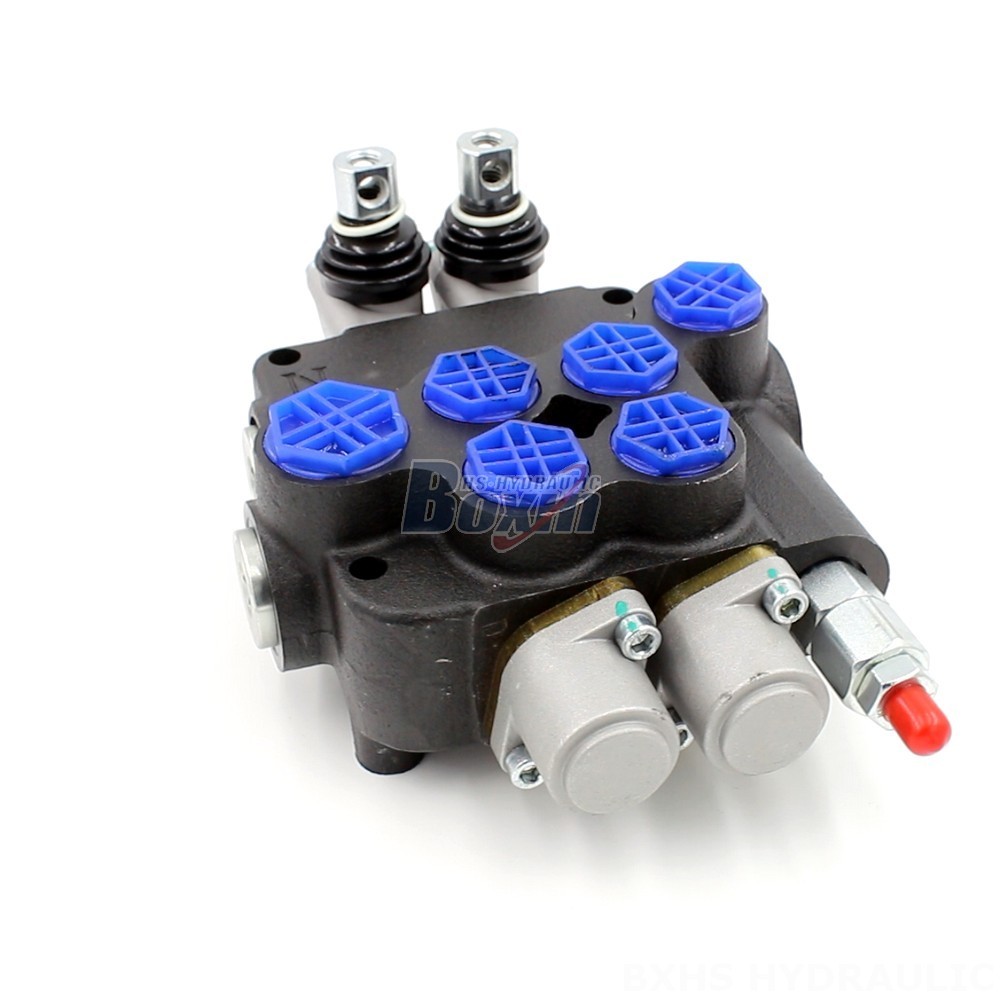

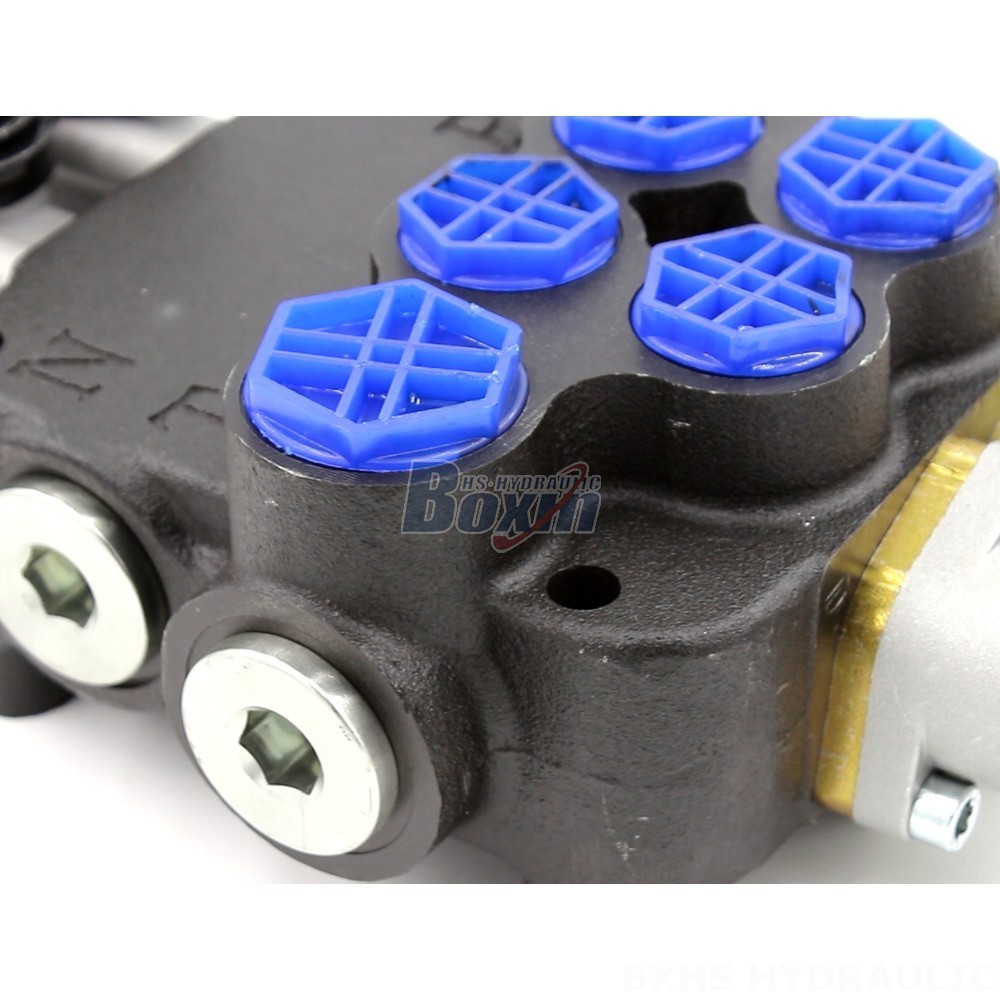

**Hydraulic Directional Control Valve P80-G12-G38-QW**
**Key Features:**
* Manual control method for precise operation
* Monoblock valve structure for compact and reliable design
* Enhanced system efficiency for improved performance
* Rated flow of 80 L/min (21.2 US gpm) for high flow applications
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme conditions
* 2 spool design for versatile control options
* P80 Series for compatibility with other P80 valves
* Applications: Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* Applicable Models: Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Midi-Excavator, Mini-Excavator, Backhoe Loader, Skip Loader
