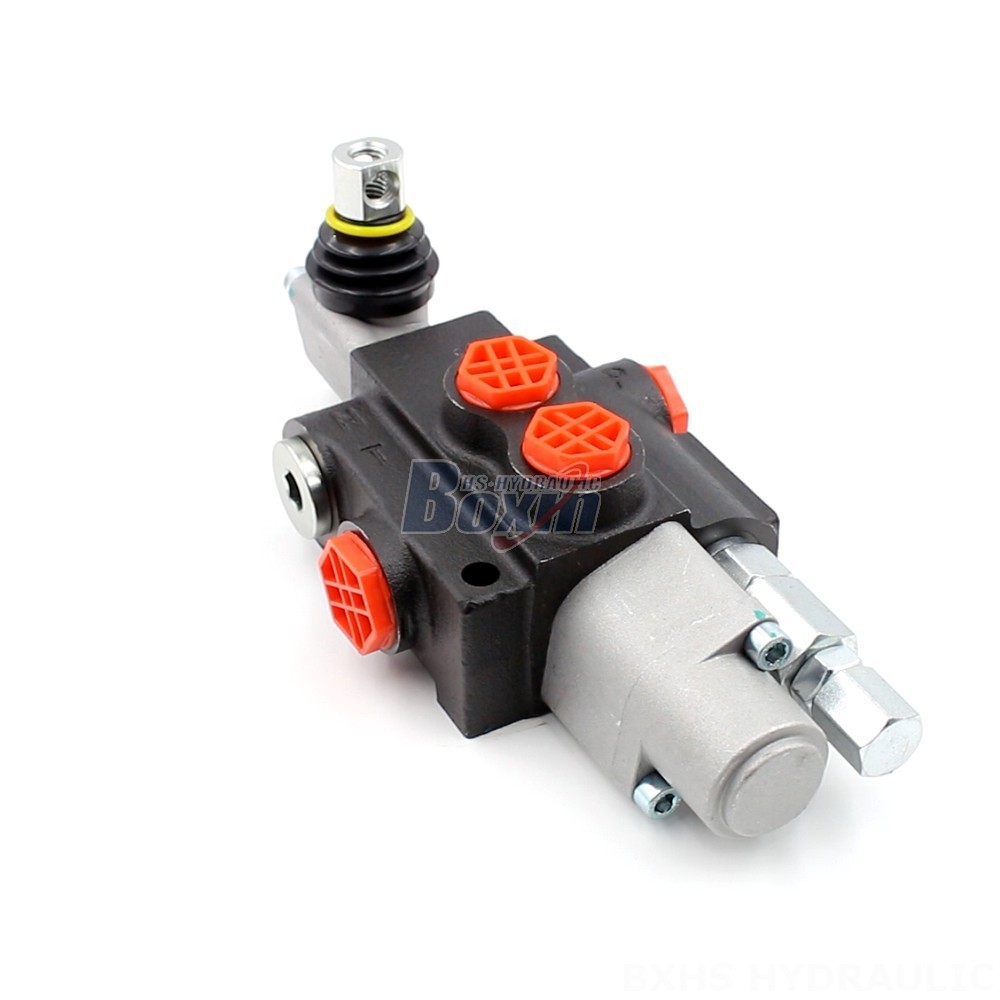

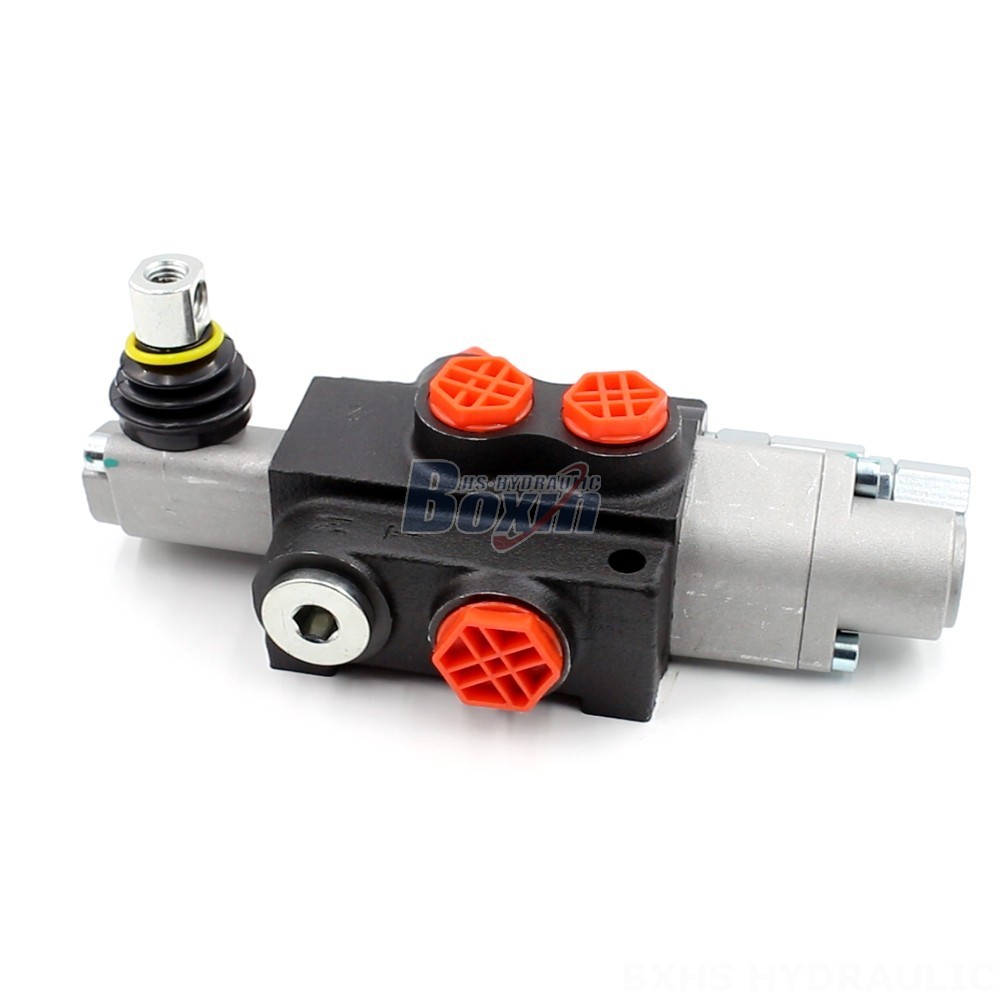

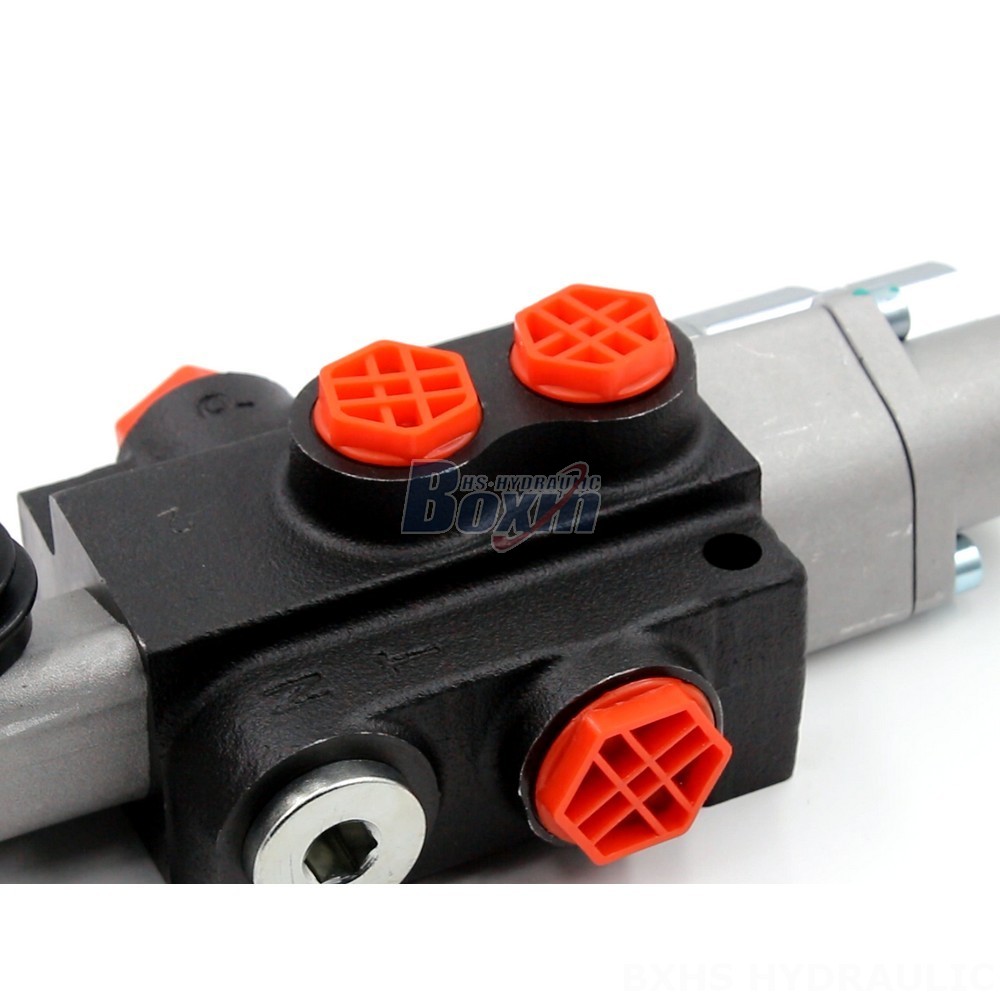

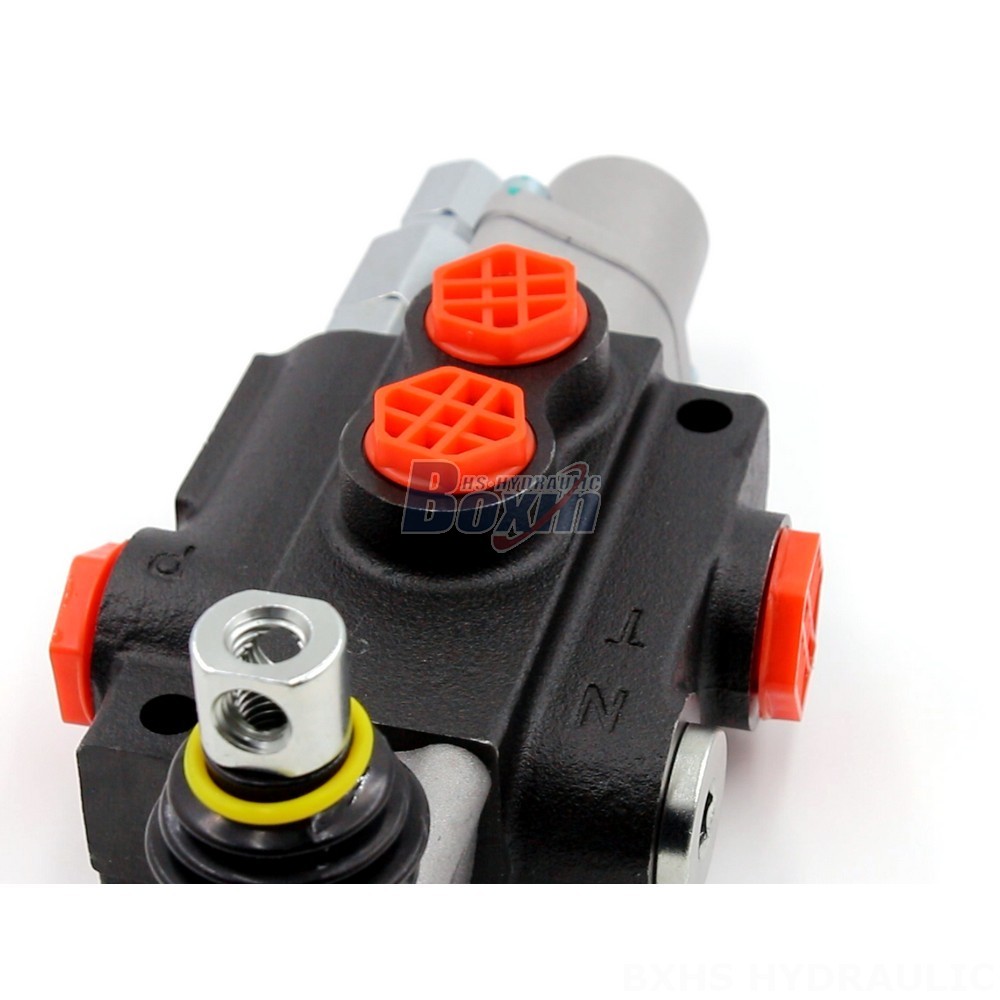

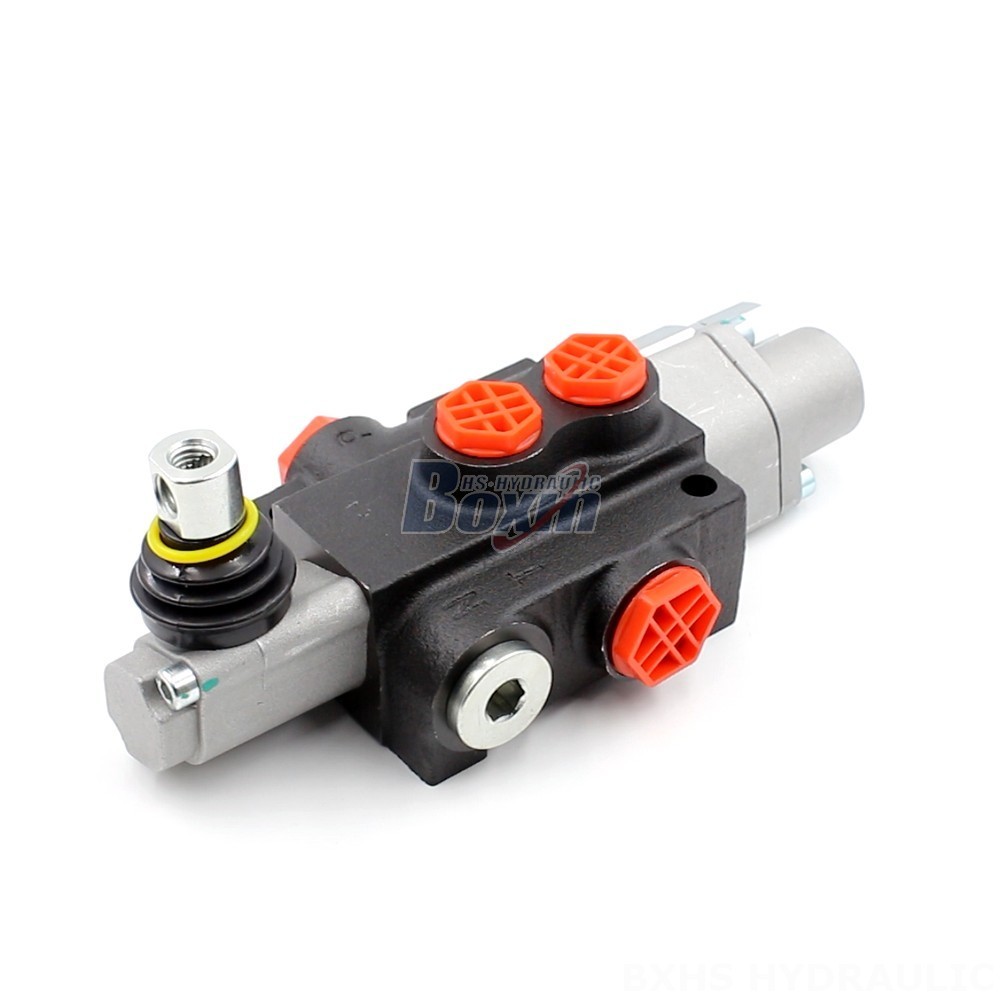

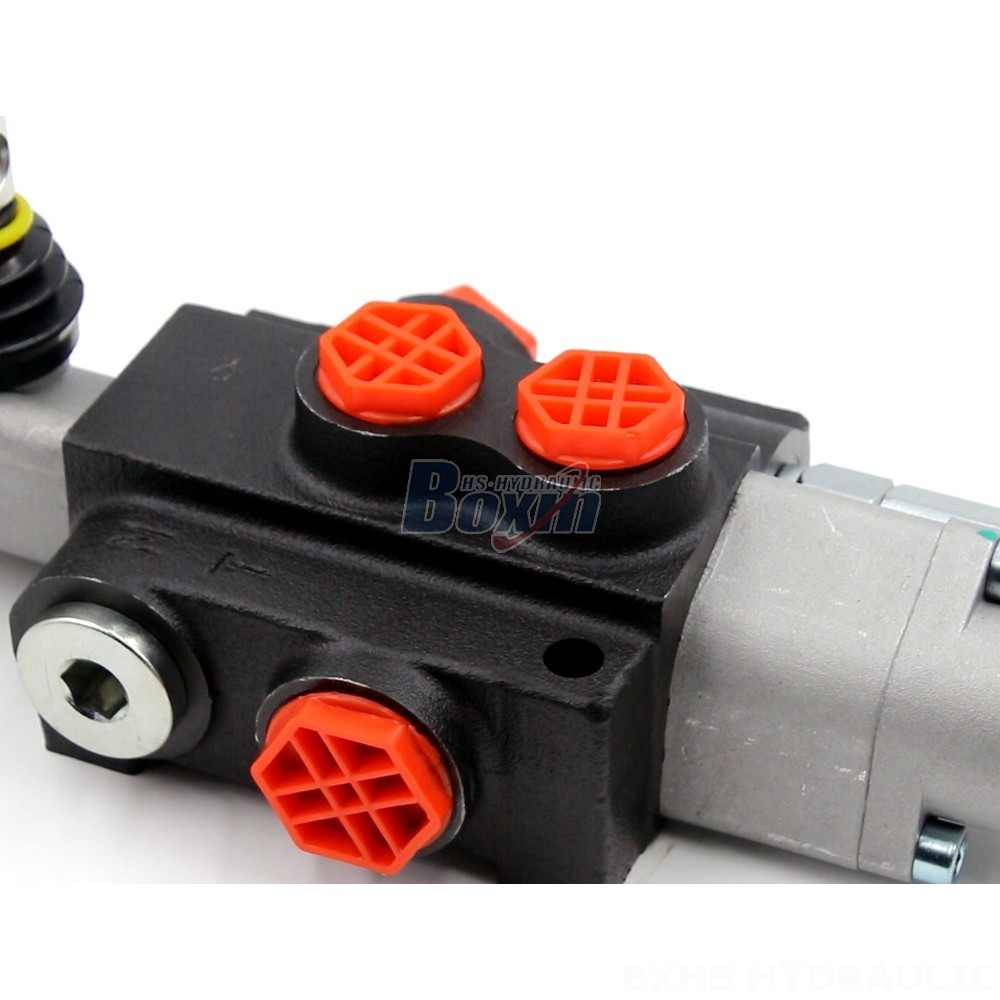

The P40 Series Auxiliary Valve is a high-performance hydraulic valve designed for directional control in tractors and other heavy-duty applications. This manual, monoblock valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating temperature range. It is ideal for use in material handling, construction, agriculture, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Auxiliary Valve is a robust and reliable hydraulic valve designed for directional control in various applications, including tractors, telehandlers, forklifts, all-terrain cranes, stackers, and aerial platforms. It features a manual control method, a monoblock valve structure, and a single spool. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers excellent performance in demanding environments. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation across a wide range of hydraulic fluids. The P40 Series is designed for a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for use in diverse climates. We offer wholesale and OEM options to meet your specific needs. Contact us for more information.
