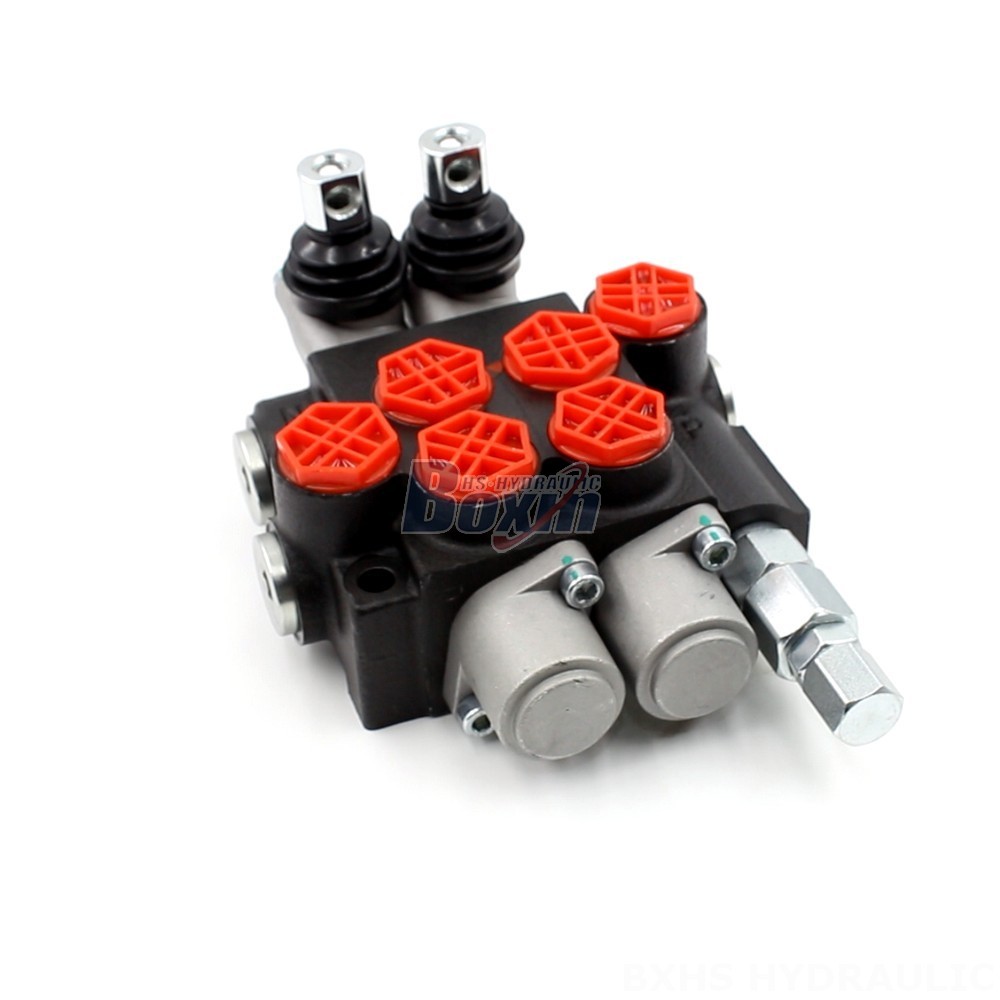

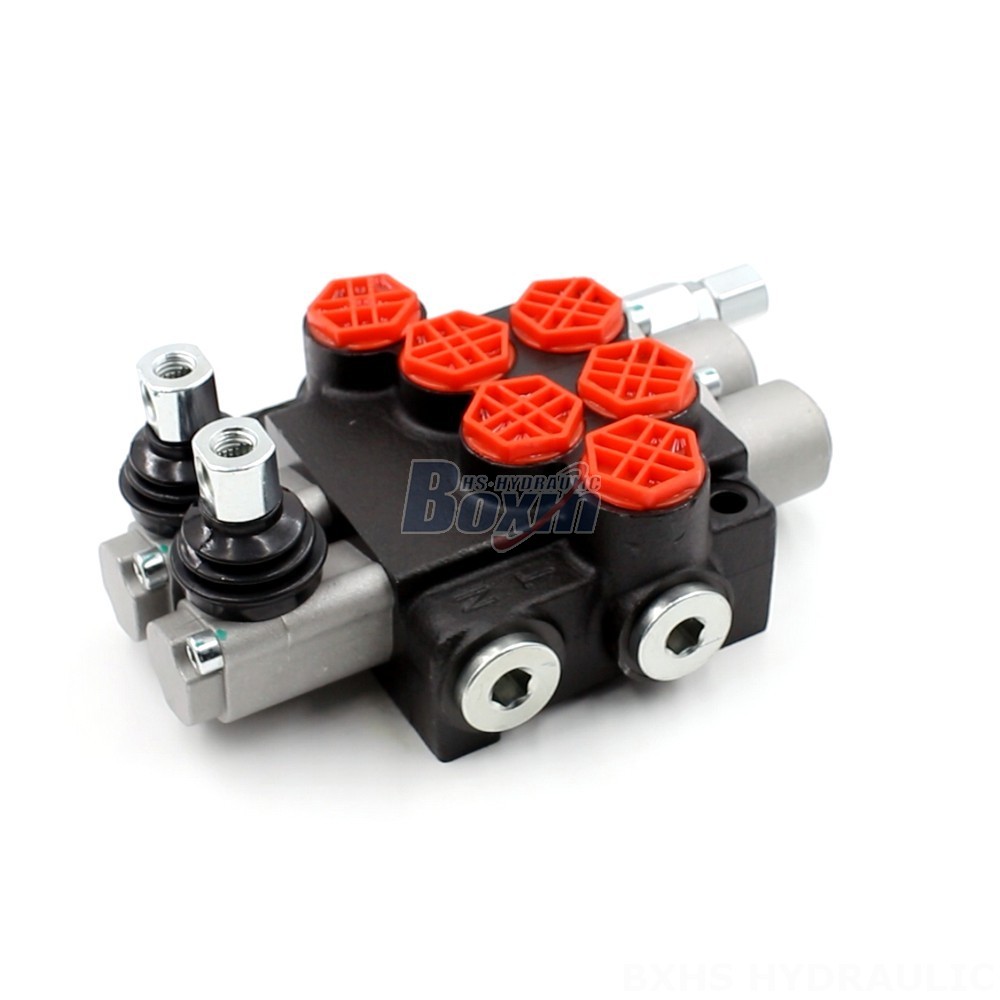

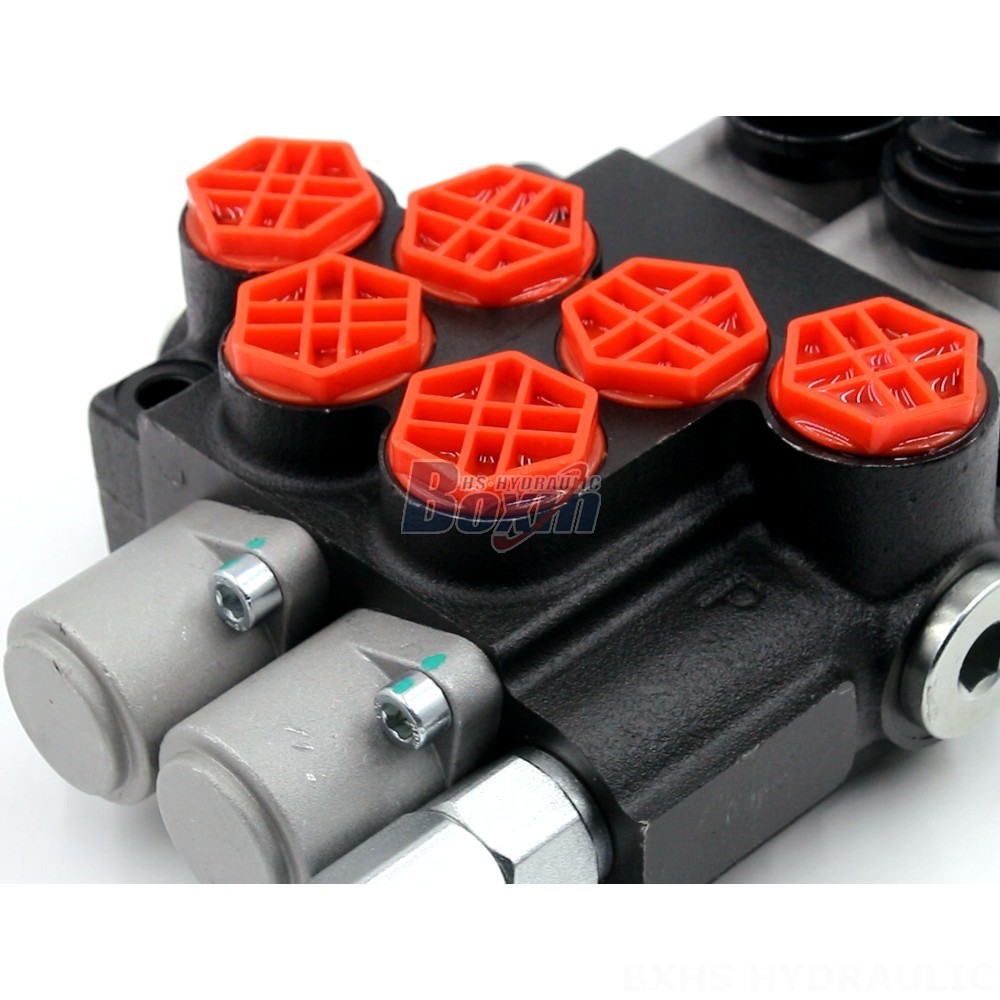

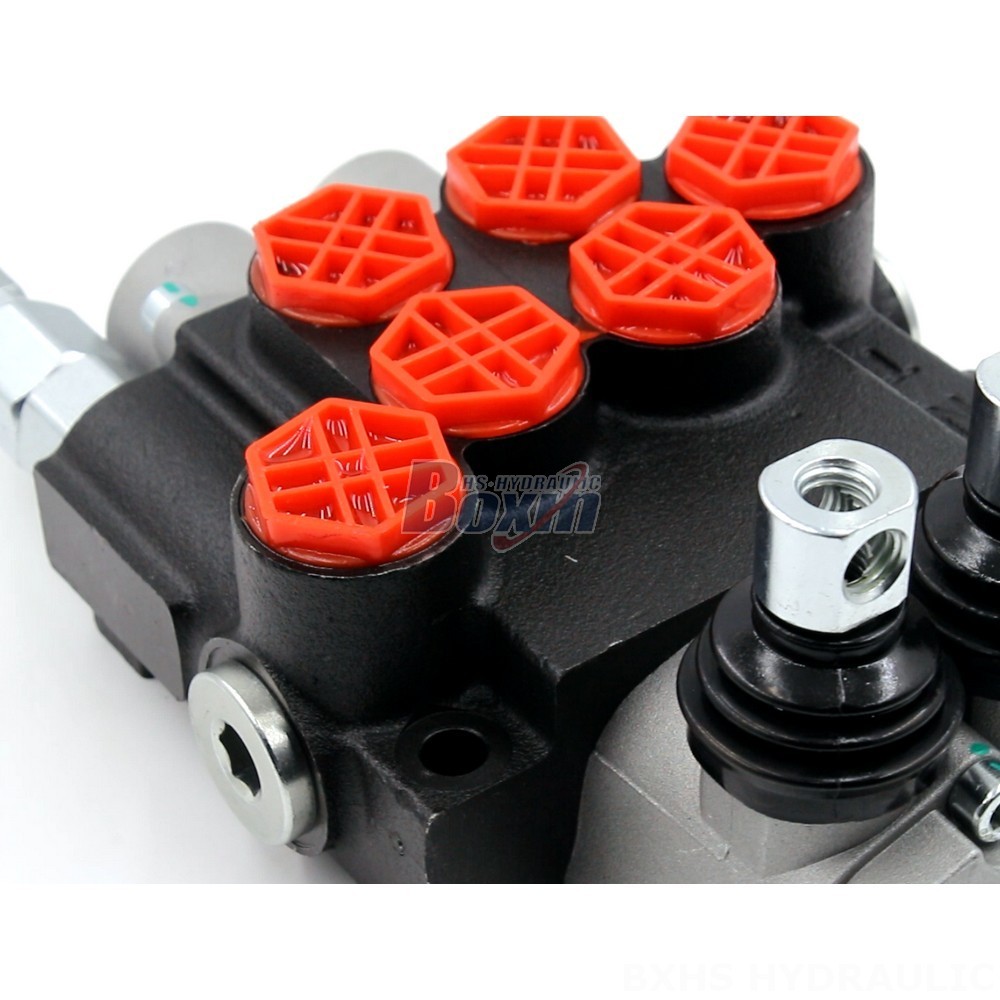

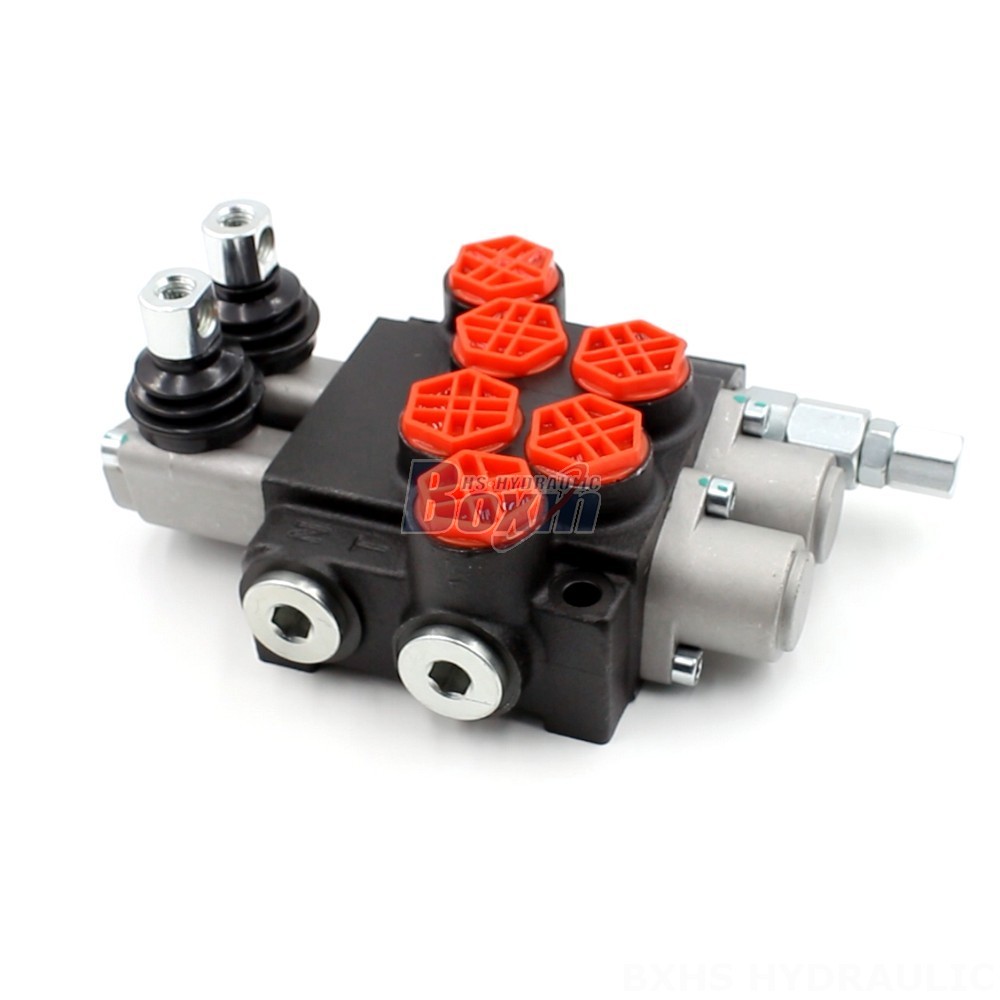

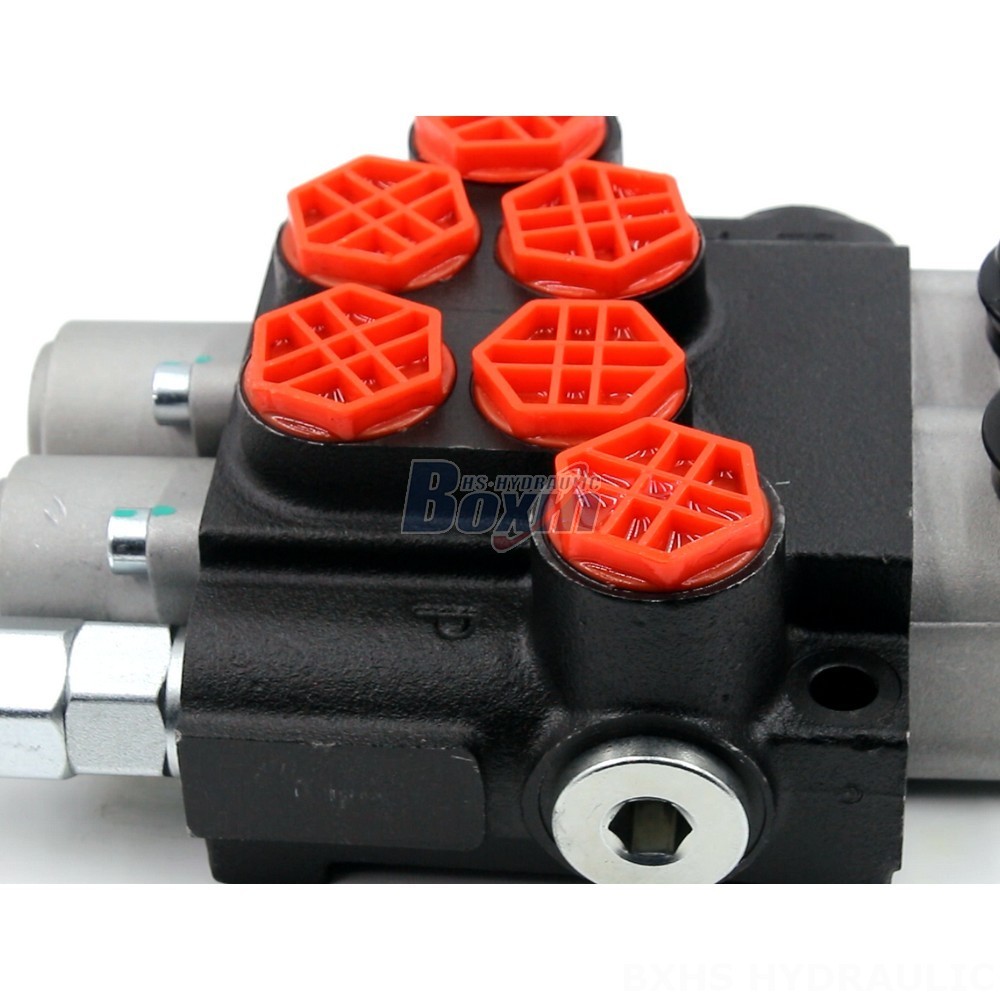

The P40-G12 series hydraulic directional control valve is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features manual control and is ideal for various applications in material handling, construction, agriculture, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-G12 series hydraulic directional control valve is designed for demanding applications requiring precise and reliable operation. Its monoblock construction ensures durability and high performance. The valve features 2 sections and a rated flow of 40 L/min, making it suitable for a wide range of equipment. With a maximum pressure rating of 250 bar, it can handle high-pressure systems. The manual control method offers straightforward operation. The P40-G12 is widely applicable in industries such as material handling, construction, agriculture, and industrial vehicles. This versatile valve is compatible with a variety of equipment, including telehandlers, forklifts, mini excavators, skid steer loaders, and more.
