The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its manual control, monoblock valve design, 40 L/min rated flow, 250 bar max pressure, and 15 - 75 mm²/s operating viscosity range, this valve offers reliable and efficient control of hydraulic systems.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

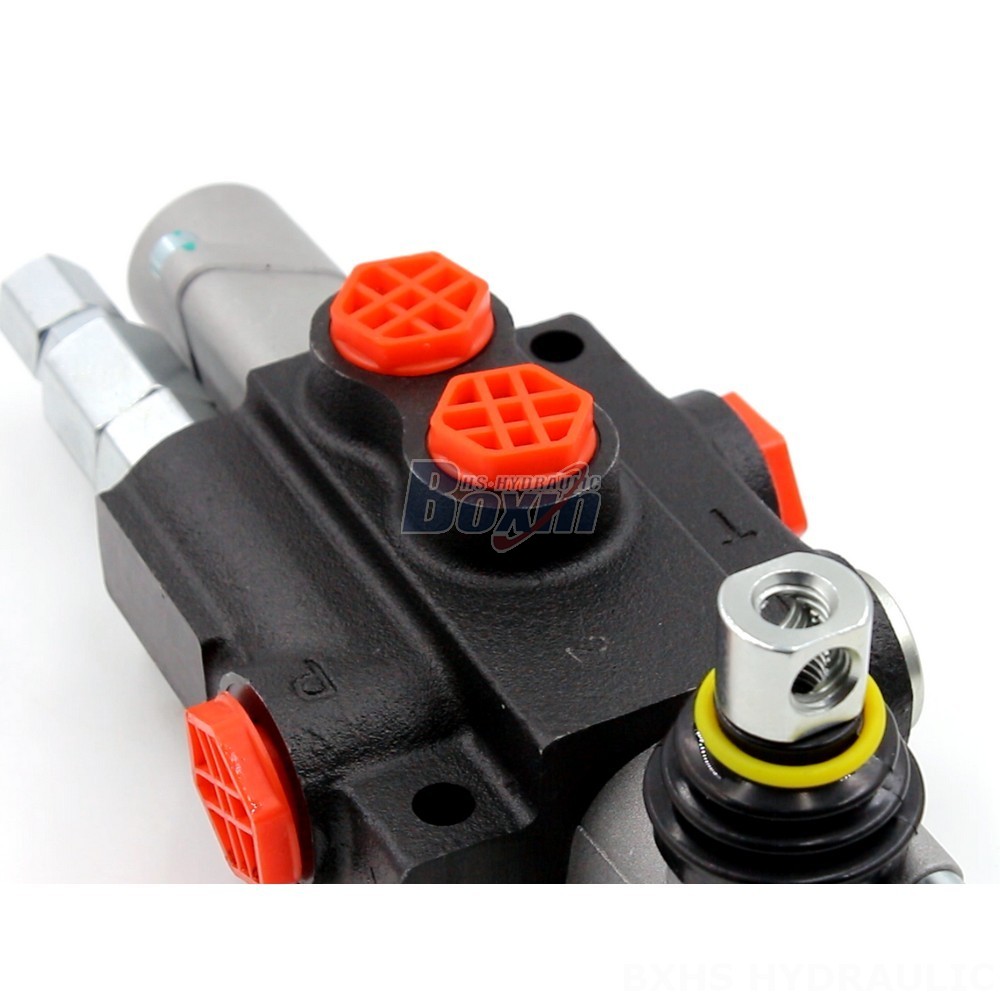

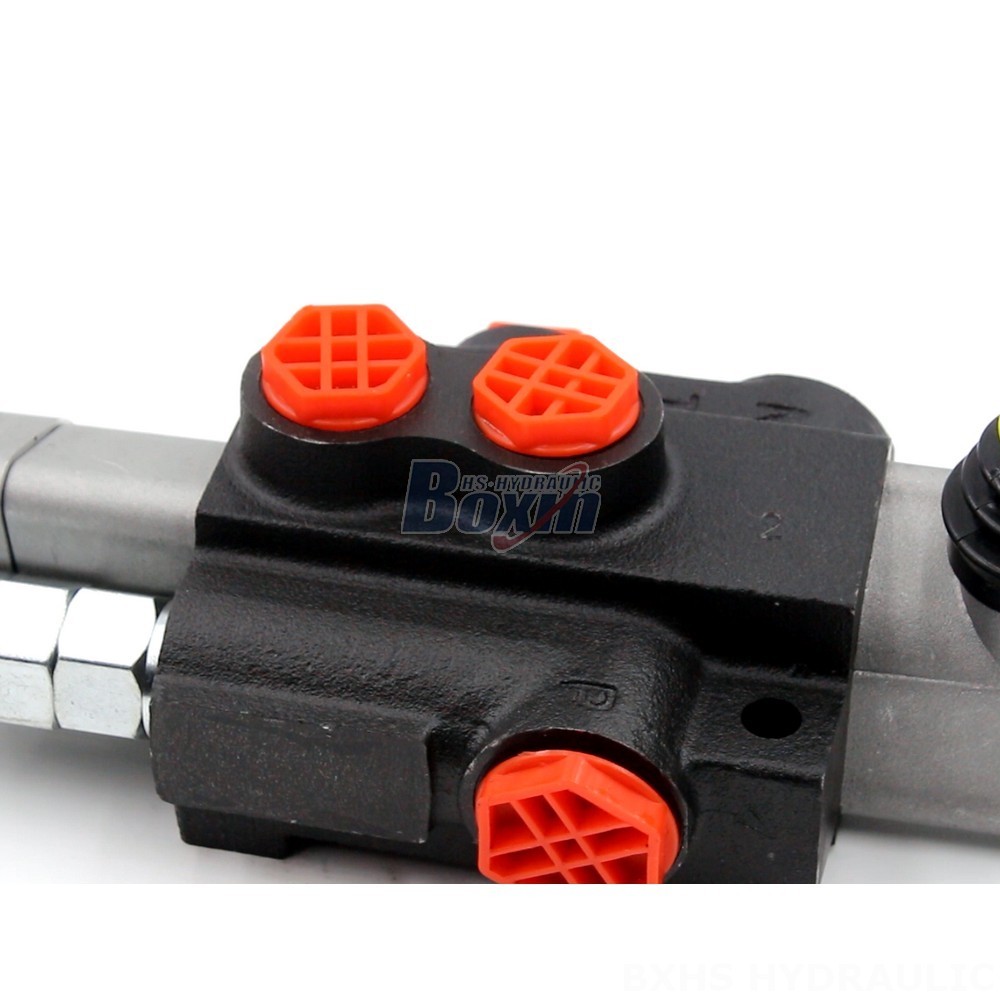

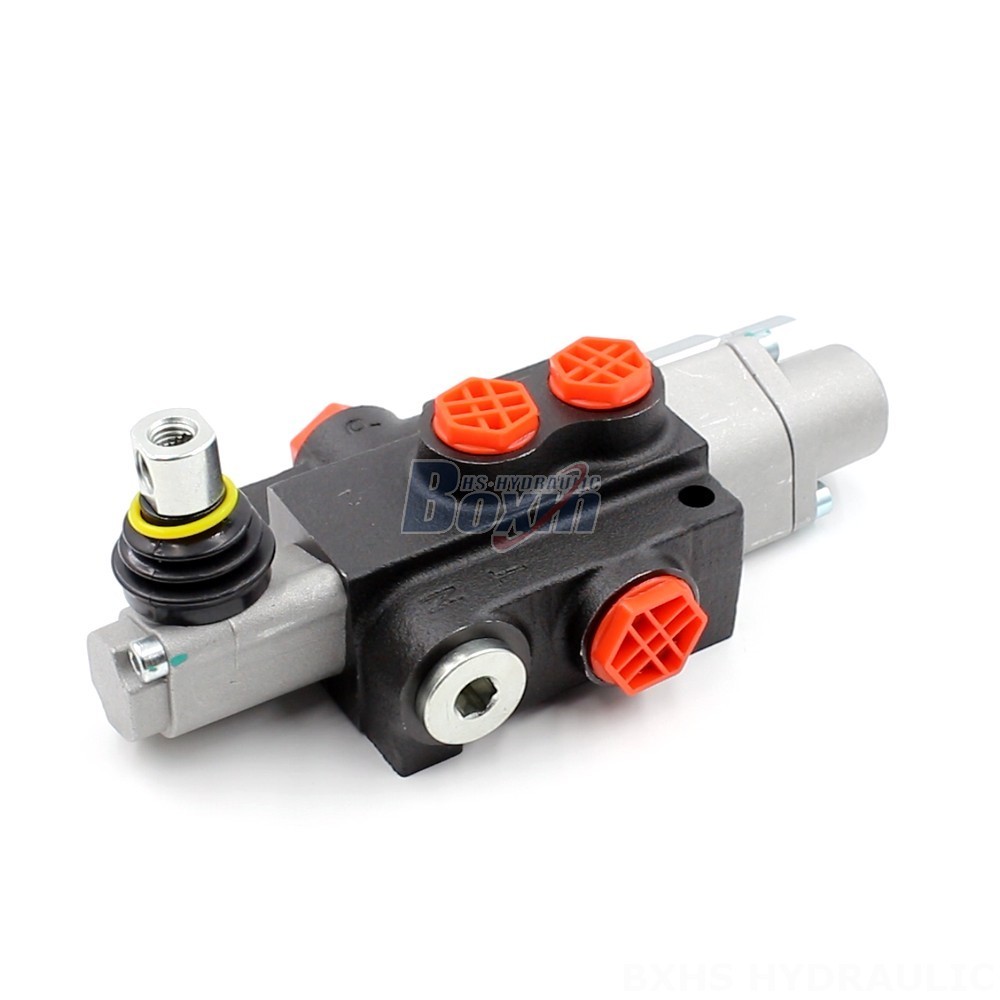

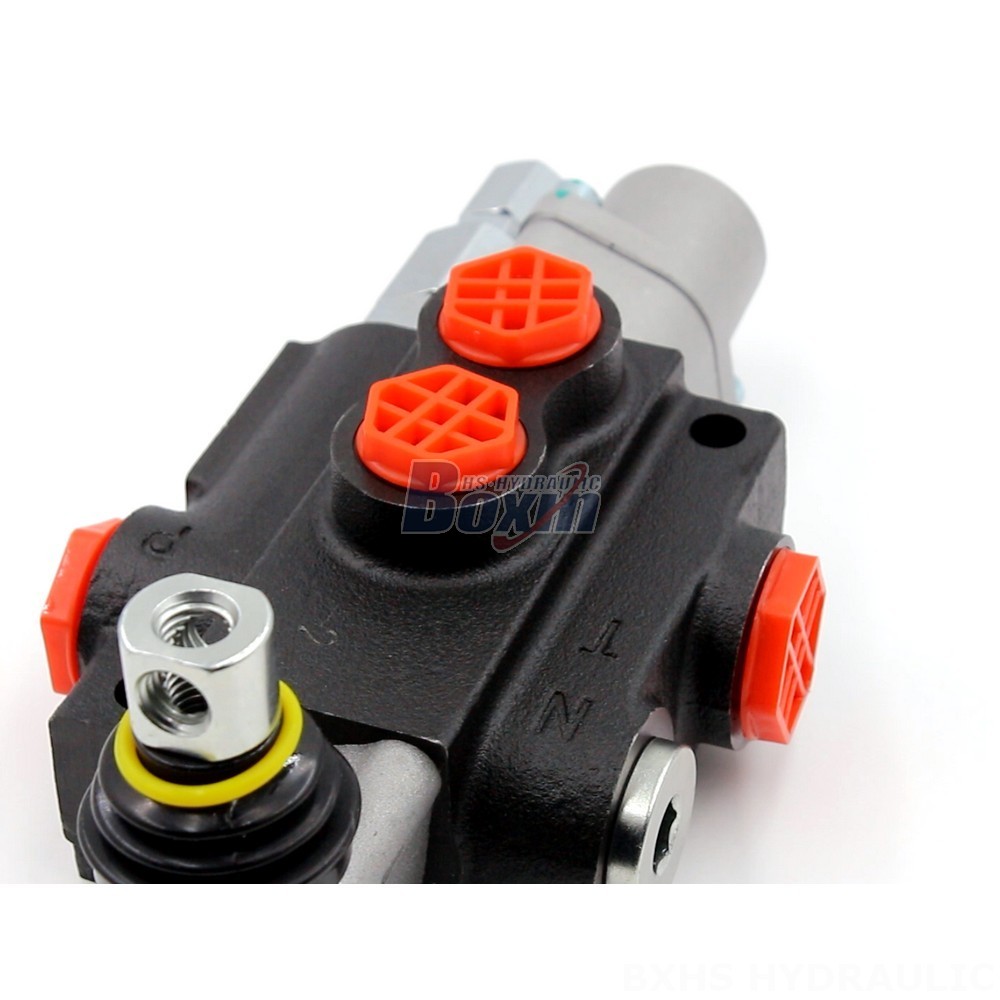

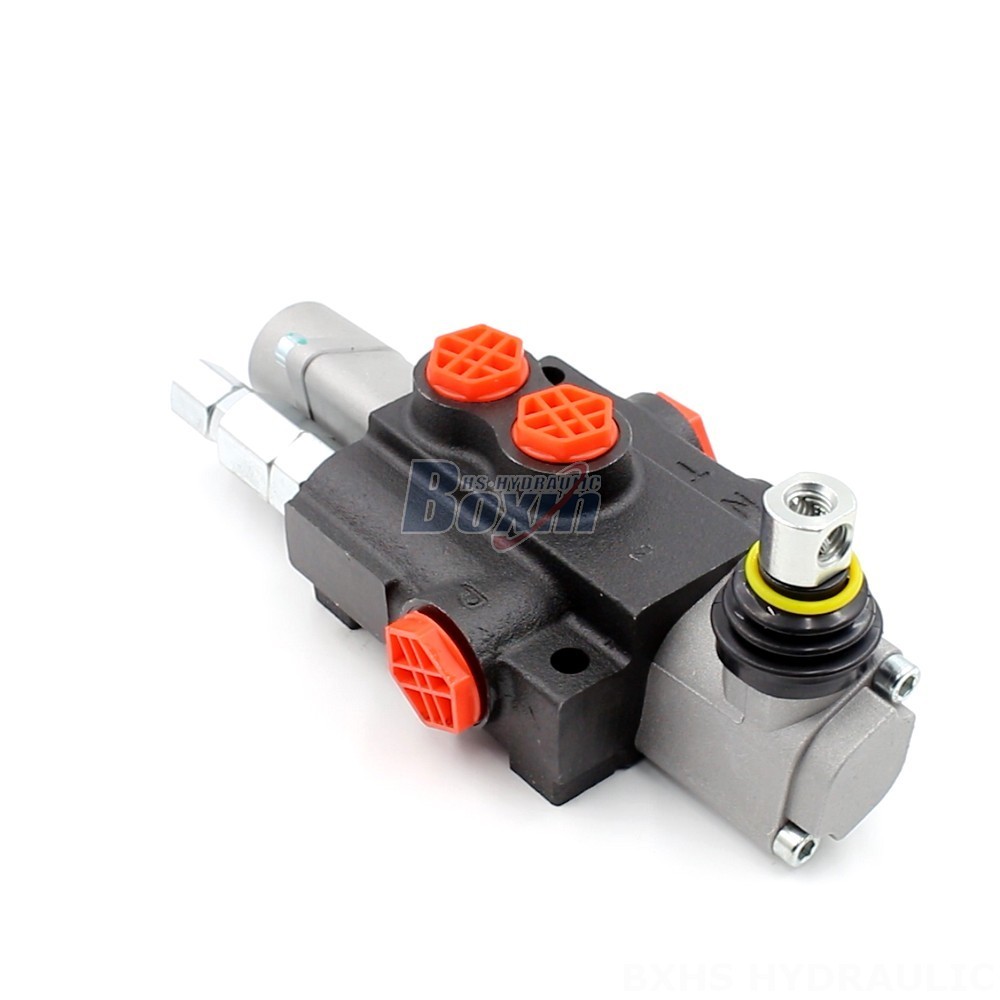

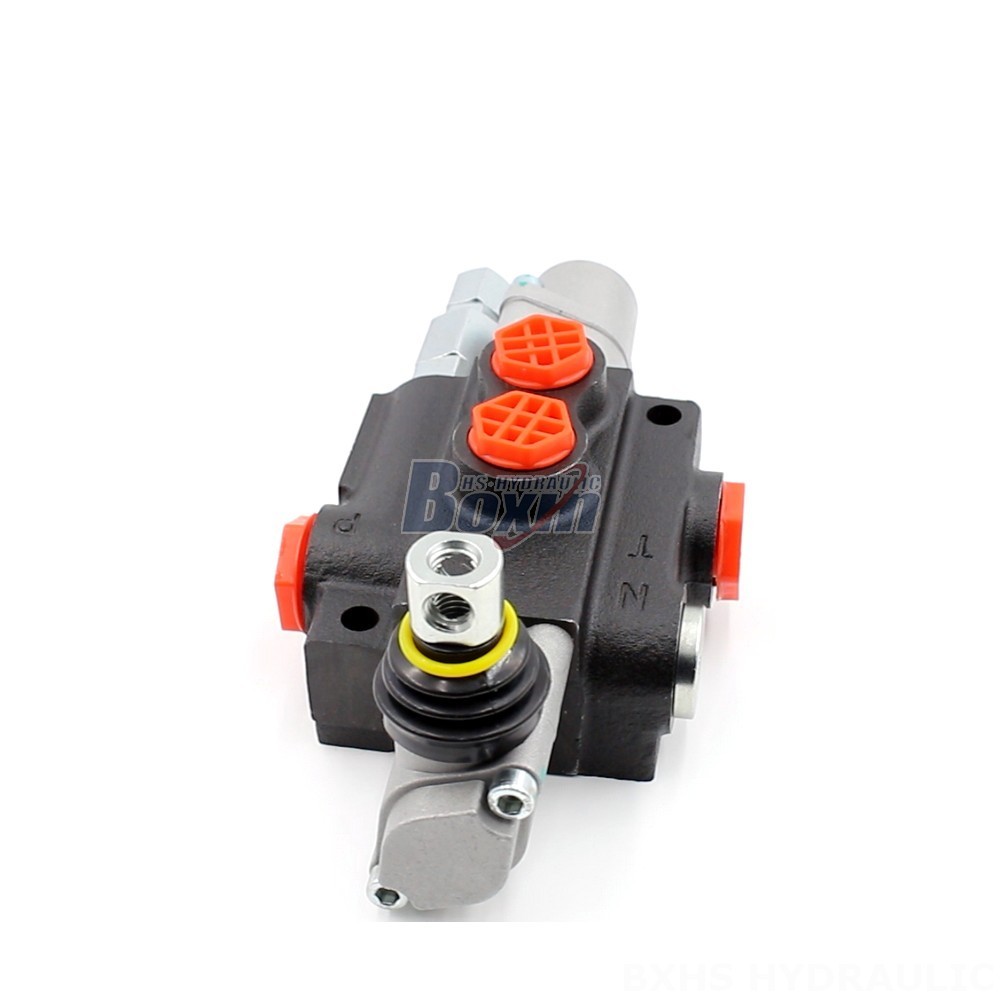

**P40-G12-G38-OTW Series Hydraulic Directional Control Valve**
The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a monoblock valve with manual control. It has a rated flow of 40 L/min, a max pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve has an ambient temperature range of -40°C to +80°C and is available with 1 spool. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Key Features:**
* Manual control
* Monoblock valve design
* 40 L/min rated flow
* 250 bar max pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
* 1 spool
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
