Méthode de contrôle:Manuel

Distributeur:5 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G3/4

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80F Vanne directionnelle monobloc

Taille de l'emballage:26*30*11

Poids brut:16.00 kg

Disponibilité: En stock

1266 personnes consultent ce produit

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier drawing image

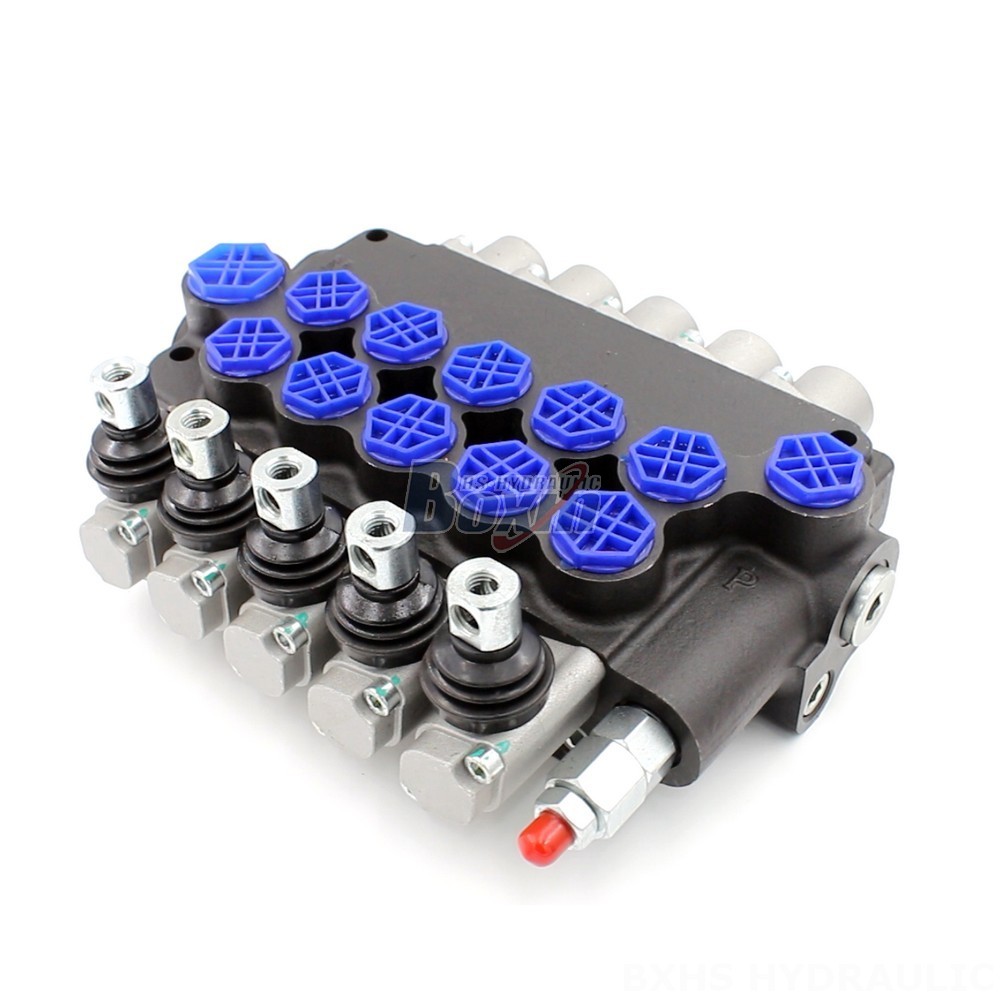

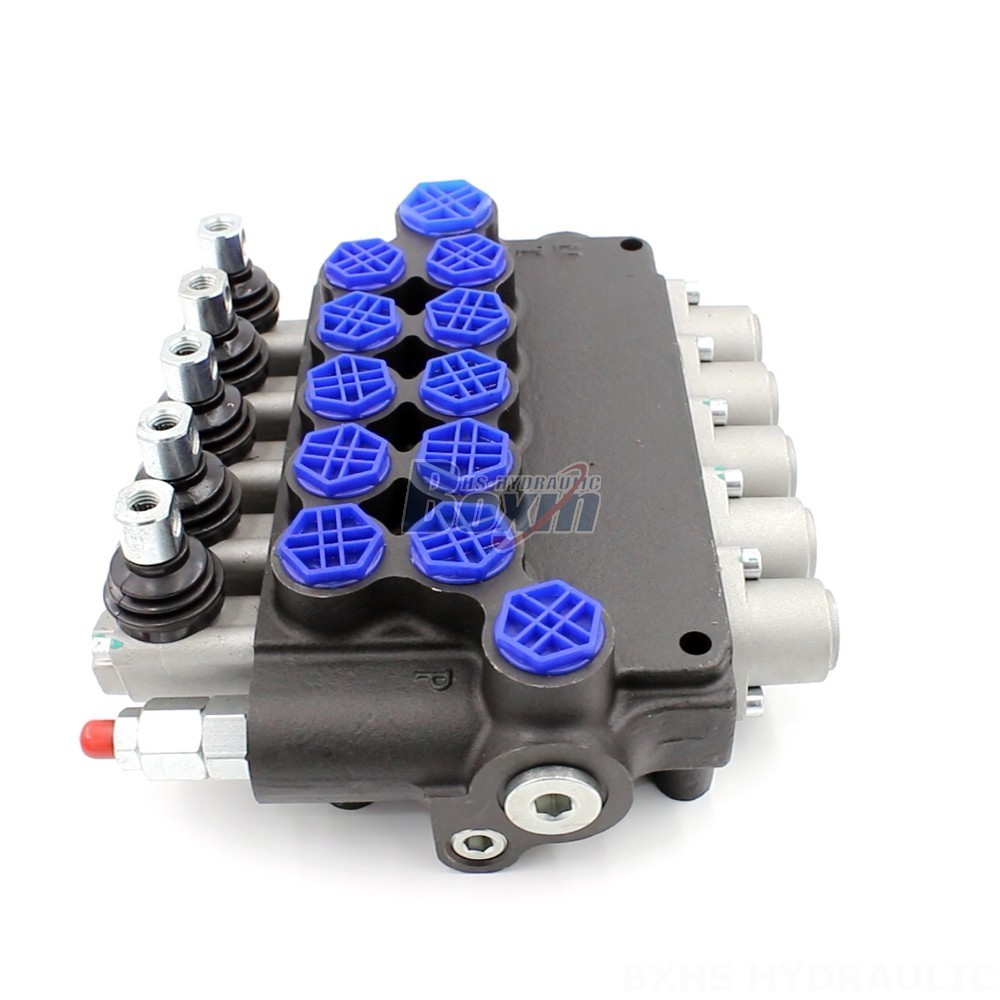

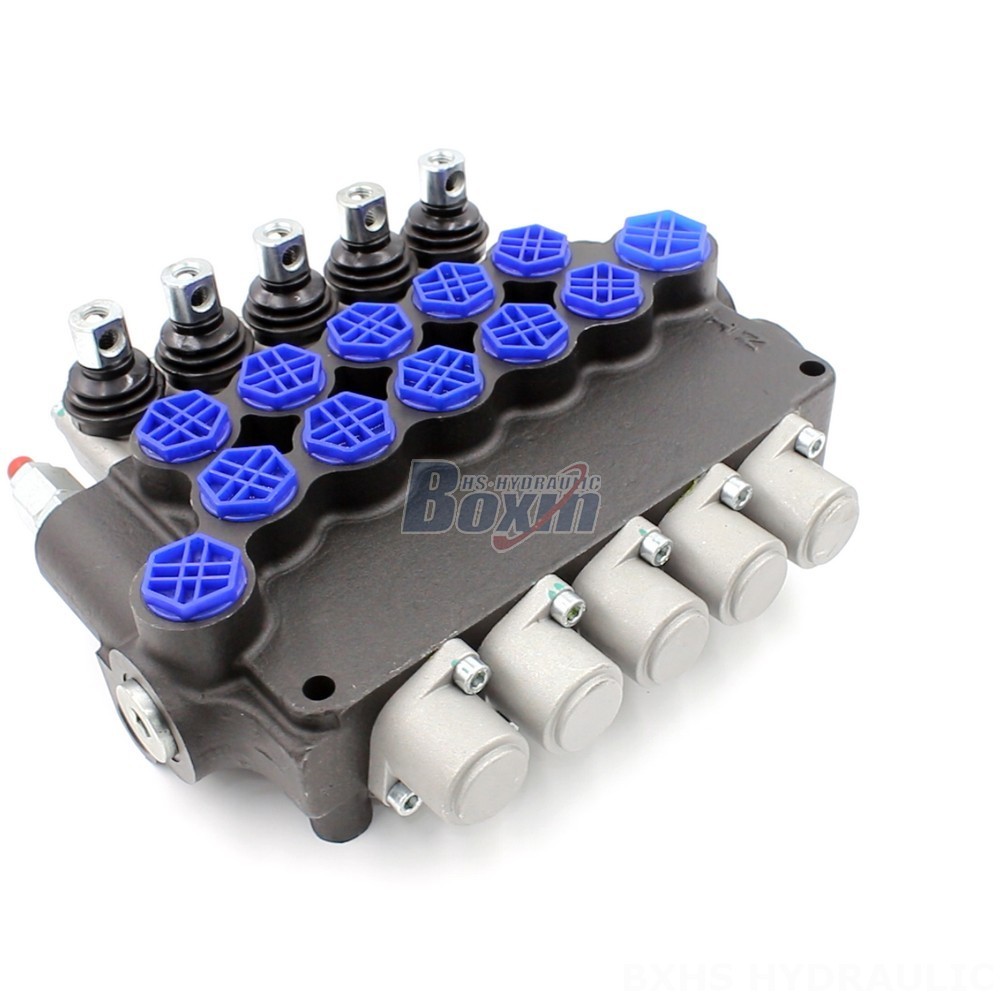

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.

Série P80F Vanne directionnelle monobloc Paramètres
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Dimension du raccord G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Pression maximale 315 bar (4 600 psi)
Débit nominal 80 L/min (21,2 US gpm)
Type de structure Distributeur monobloc
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
