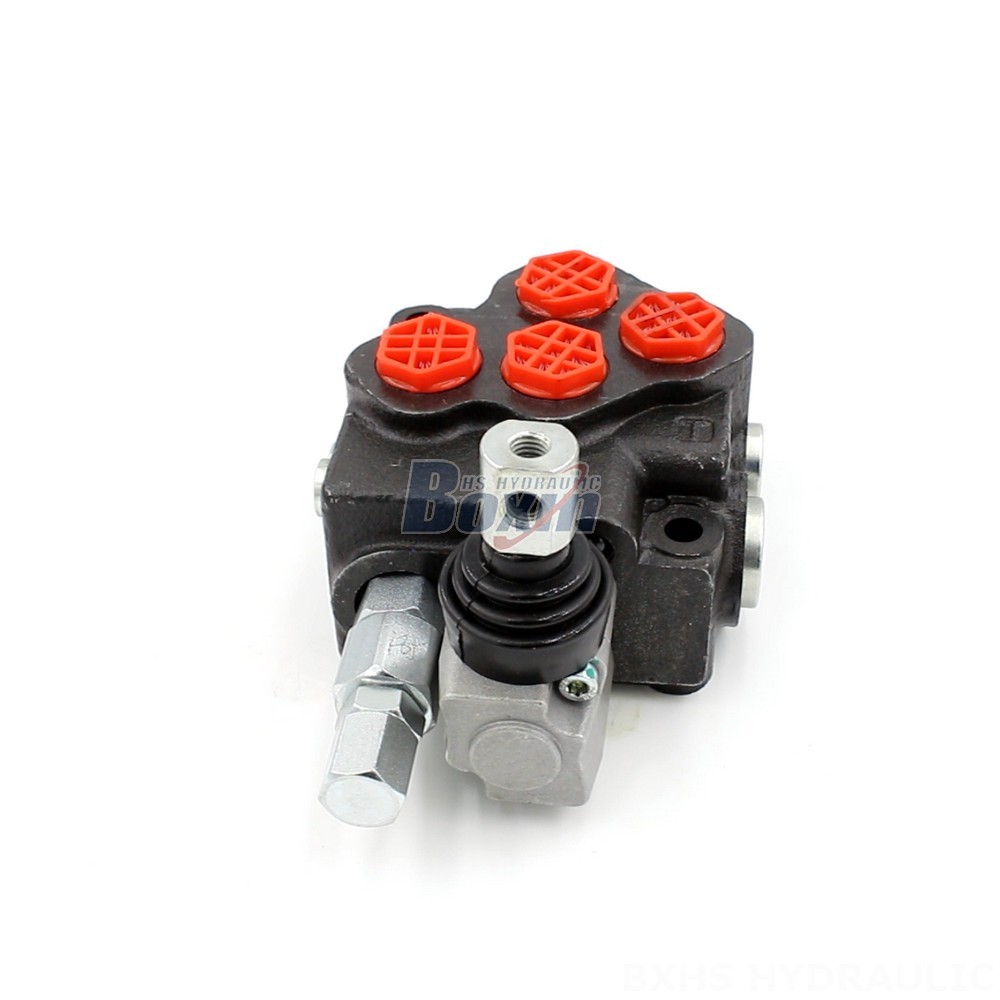

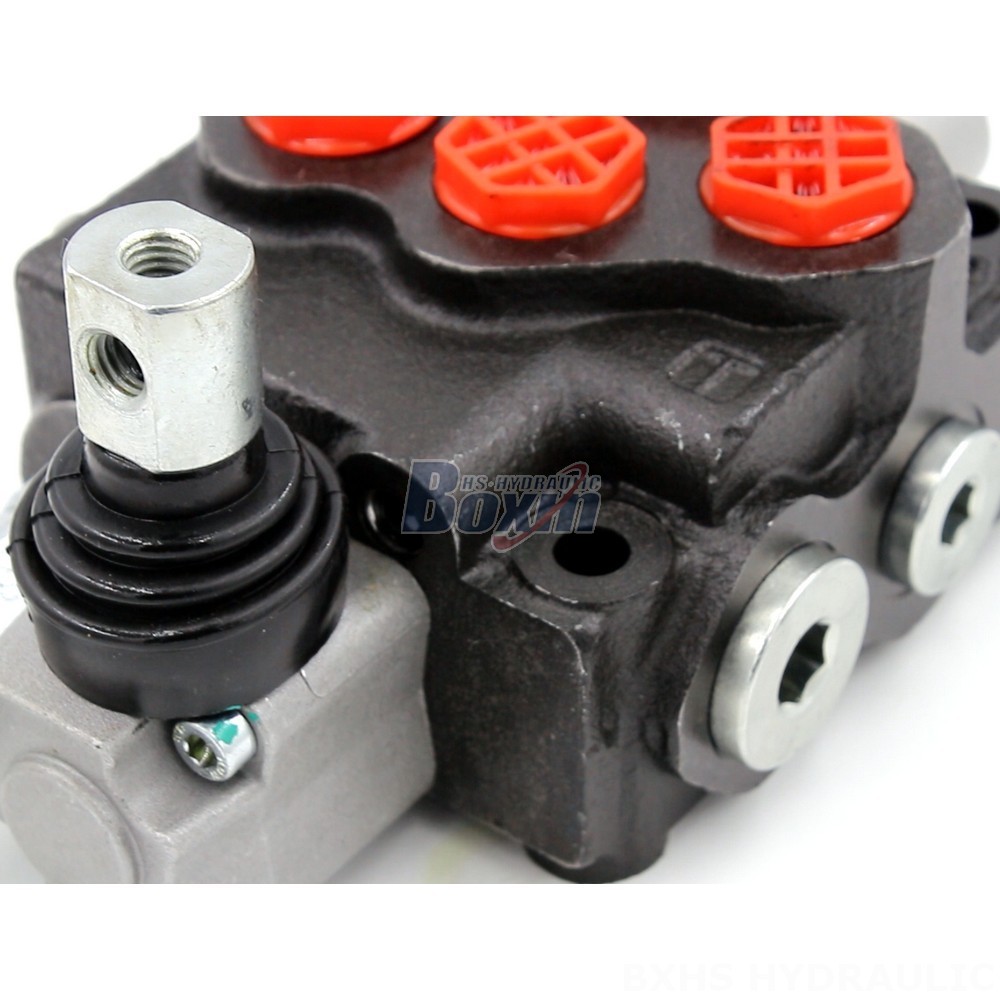

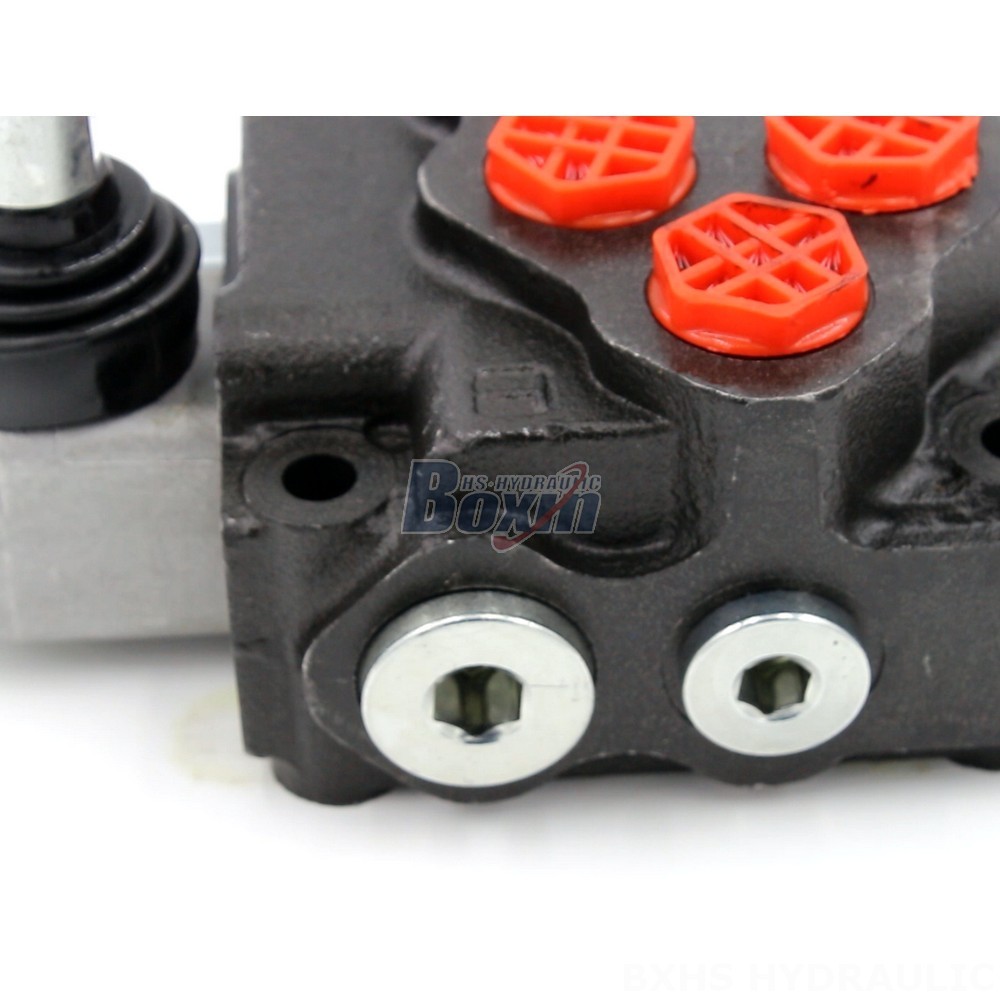

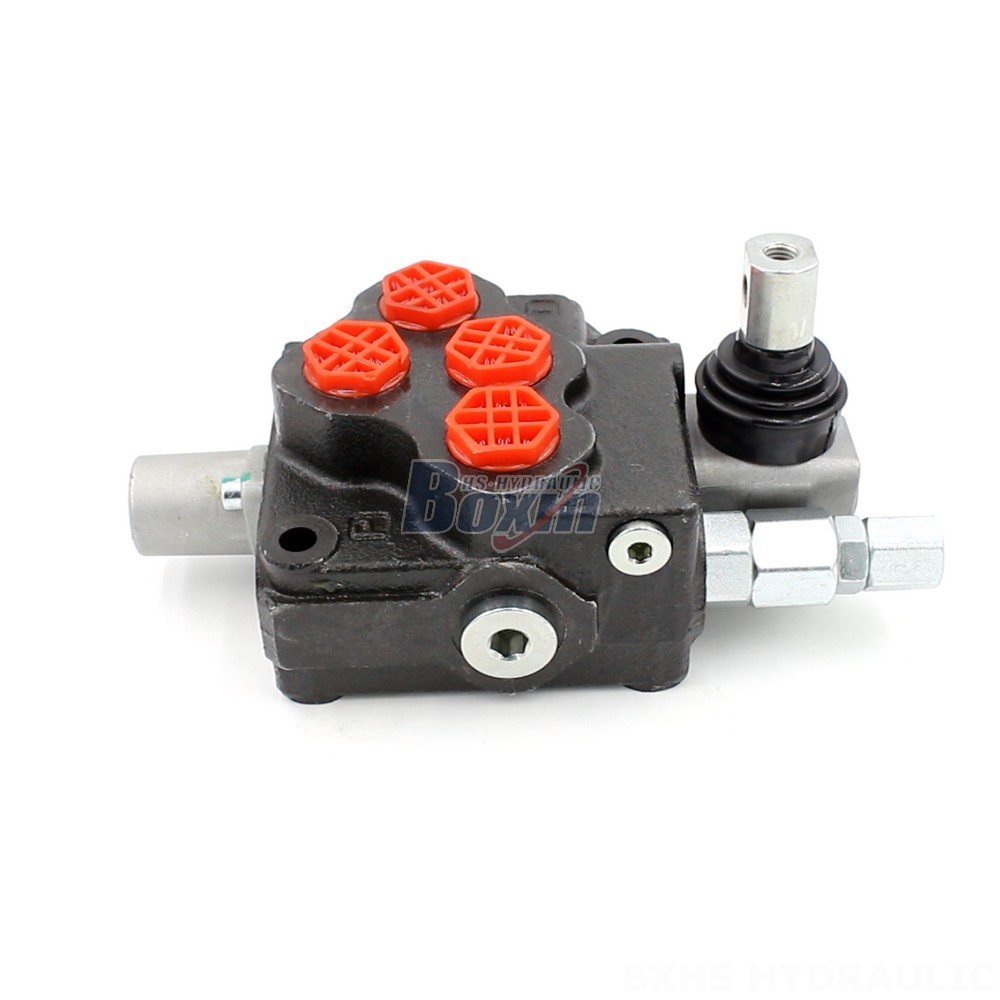

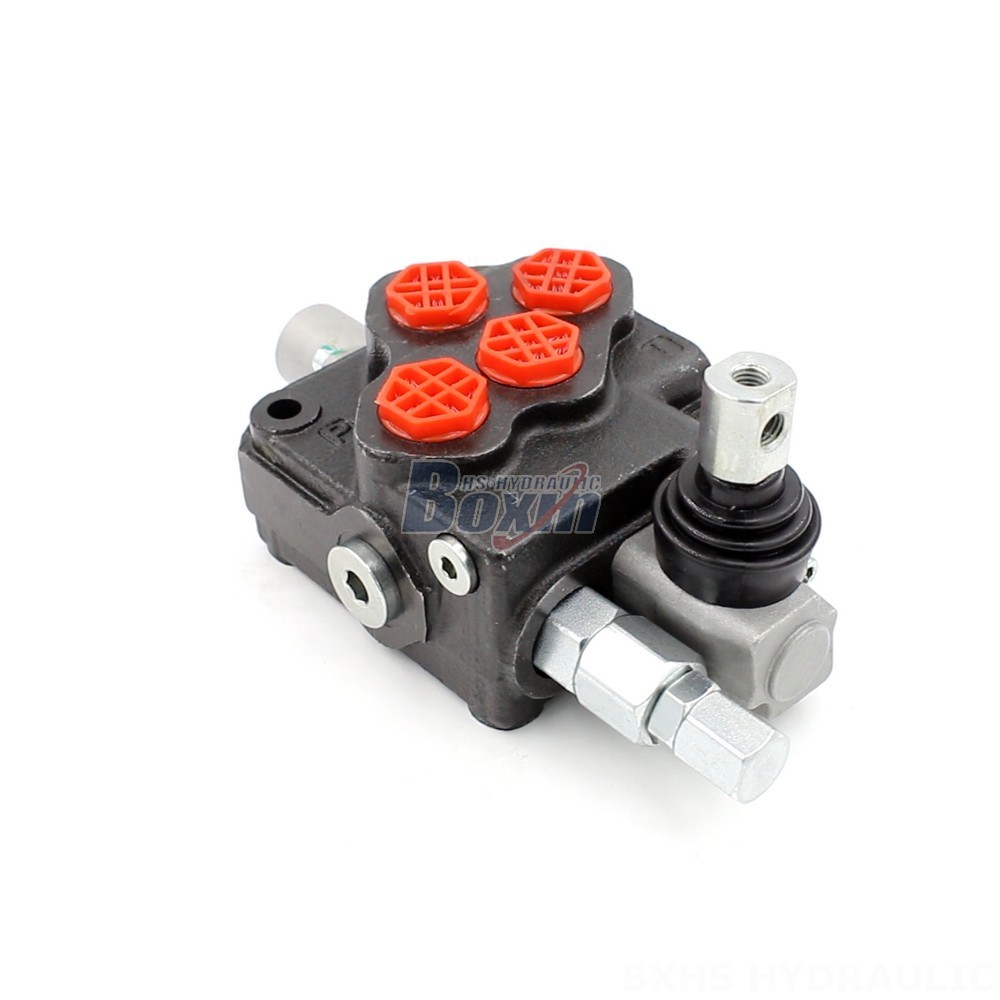

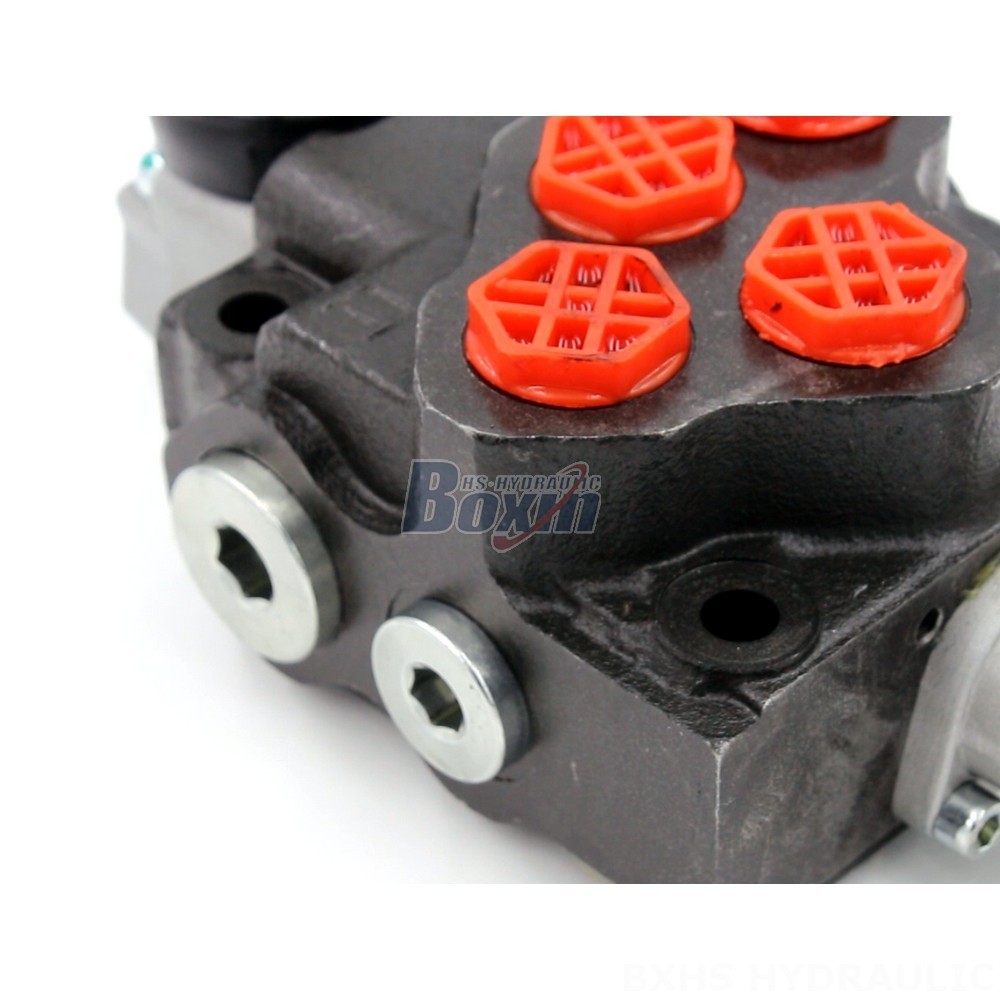

The SD5-G38 is a manual, 1-section, monoblock hydraulic directional control valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 305 bar, it is a reliable and durable solution for controlling hydraulic systems in diverse equipment like telehandlers, forklifts, mini-excavators, and more.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This manual, 1-section, monoblock valve, part of the SD5 series, offers reliable directional control for a wide range of applications. It features a single spool with a rated flow of 40 L/min and a maximum pressure rating of 305 bar, ensuring smooth and efficient operation. The valve is designed to handle a viscosity range of 15 - 75 mm²/s, operating effectively in temperatures ranging from -40°C to +60°C. Its compact and durable design makes it ideal for use in material handling equipment, construction machinery, agricultural implements, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, and various other applications.
