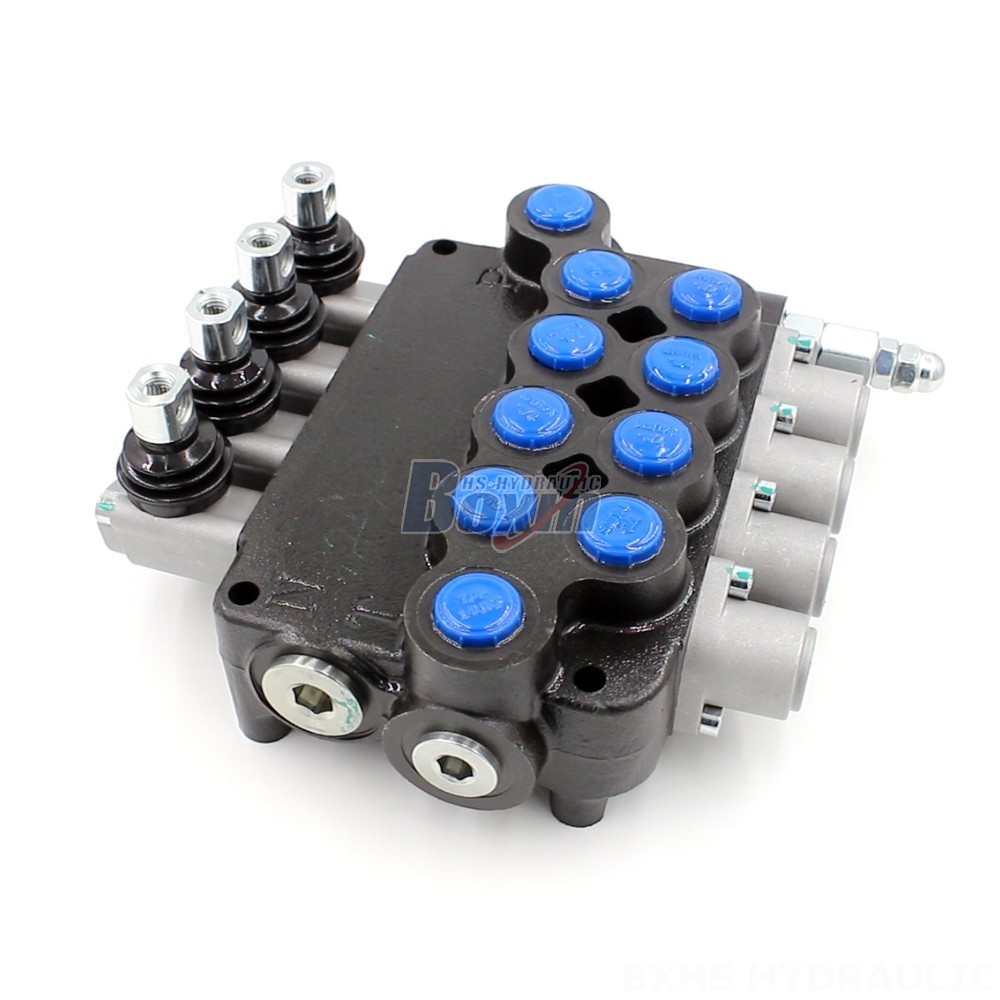

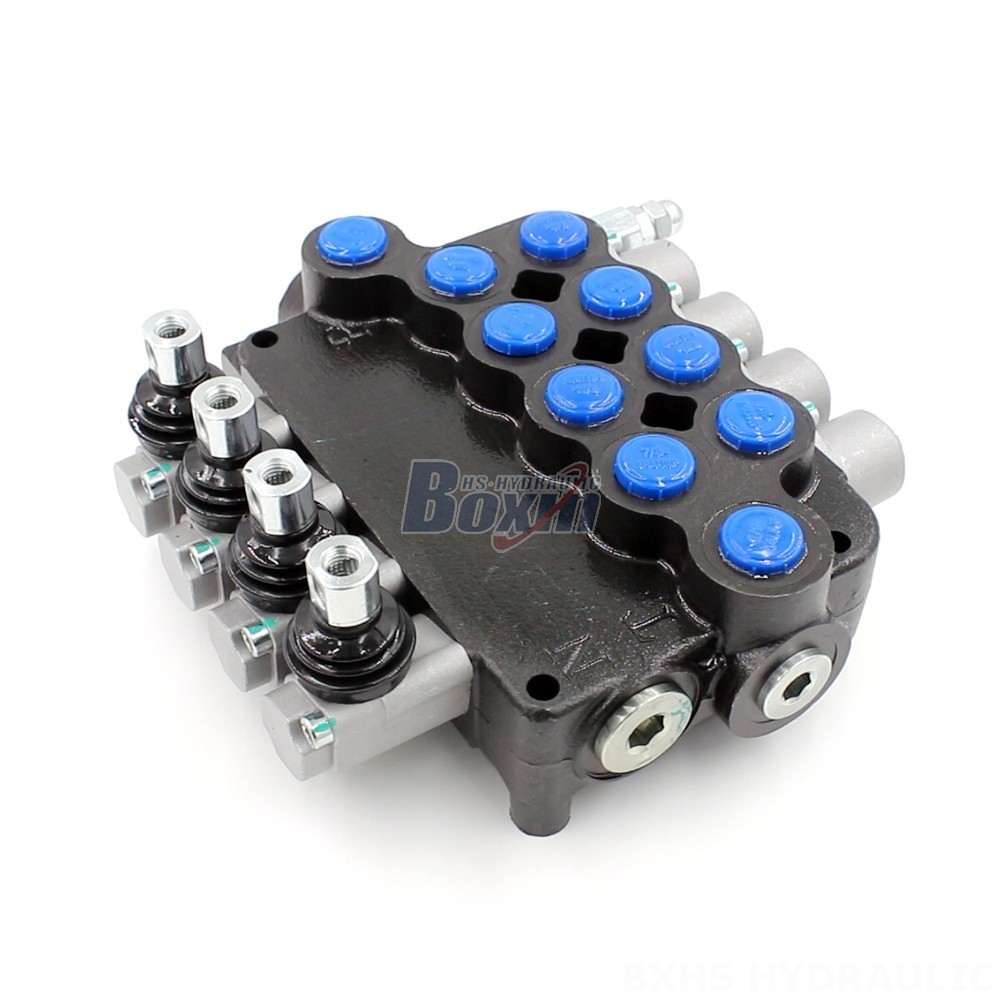

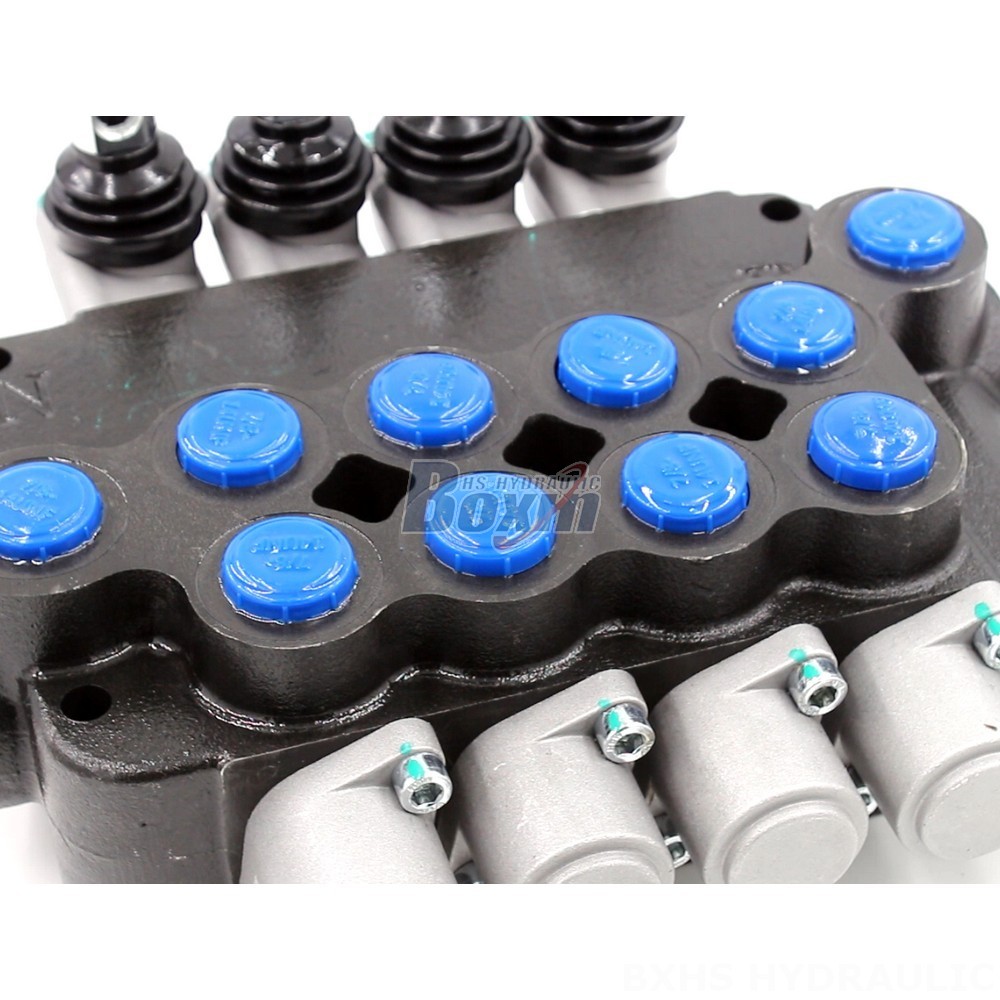

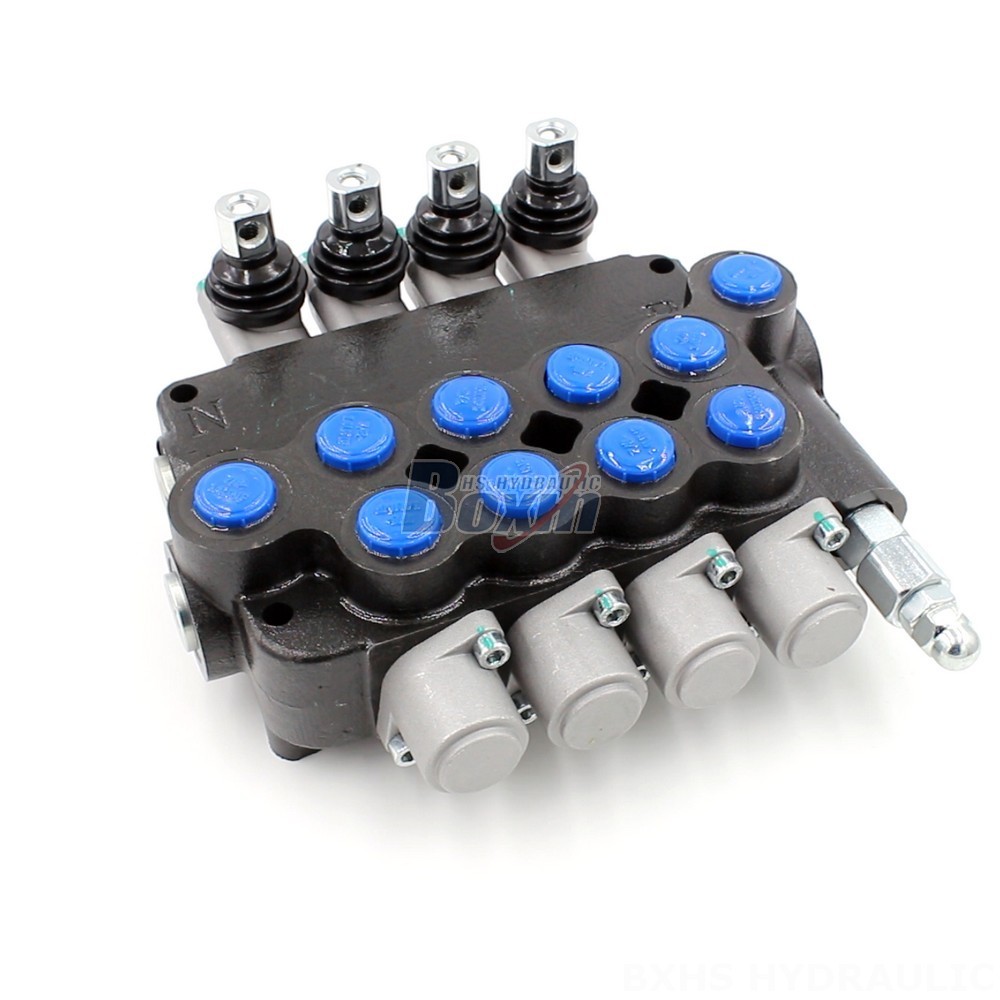

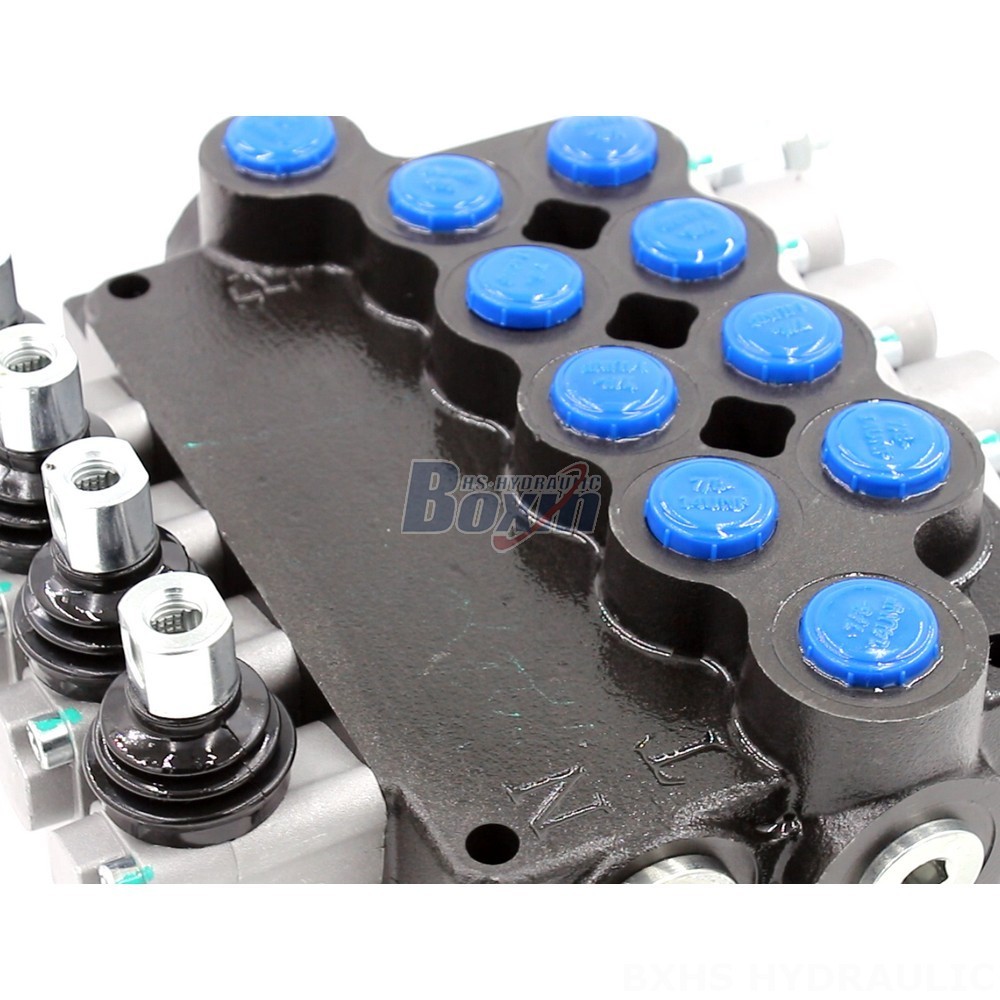

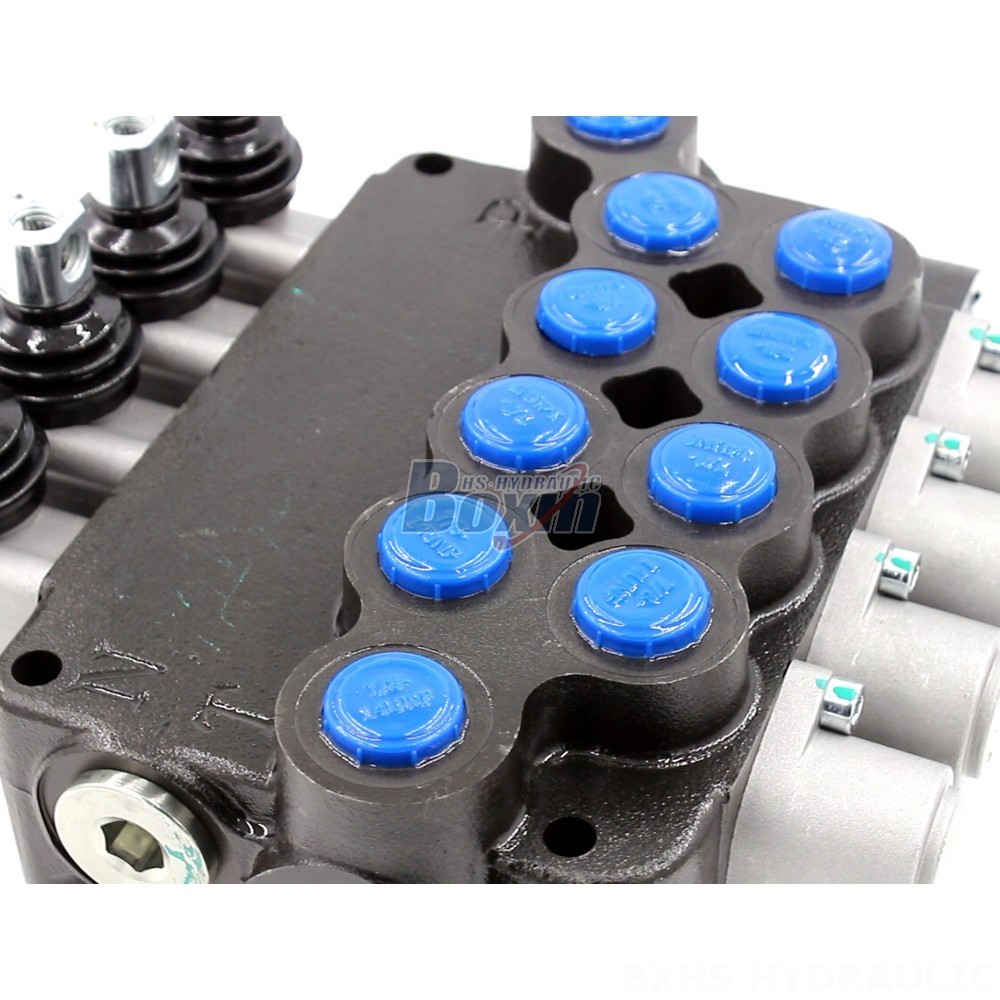

Hydraulic Control Valve, 4-Spool, Manual Operation - P80-U78-4OT

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:SAE 10

Orifice de sortie:SAE 10

Dimension du raccord:SAE 10

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*27*11

Poids brut:13.40 kg

Disponibilité: En stock

1062 personnes consultent ce produit

Hydraulic Control Valve, 4-Spool, Manual Operation - P80-U78-4OT

Hydraulic Control Valve, 4-Spool, Manual Operation - P80-U78-4OT

Hydraulic Control Valve, 4-Spool, Manual Operation - P80-U78-4OT drawing image

The Hydro Control P80-U78-4OT is a 4-spool, manually operated hydraulic control valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for use in a wide range of industrial vehicles including telehandlers, forklifts, cranes, and excavators.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The Hydro Control P80-U78-4OT is a robust and reliable hydraulic control valve designed for demanding applications. Its 4-spool, monoblock construction provides a compact and efficient design, while its manual operation allows for precise control of hydraulic functions. The valve is rated for a flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for use in a wide range of industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures optimal performance in various operating conditions. It can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it suitable for use in a variety of climates. The P80-U78-4OT is a reliable and durable solution for controlling hydraulic systems in a variety of demanding applications.
