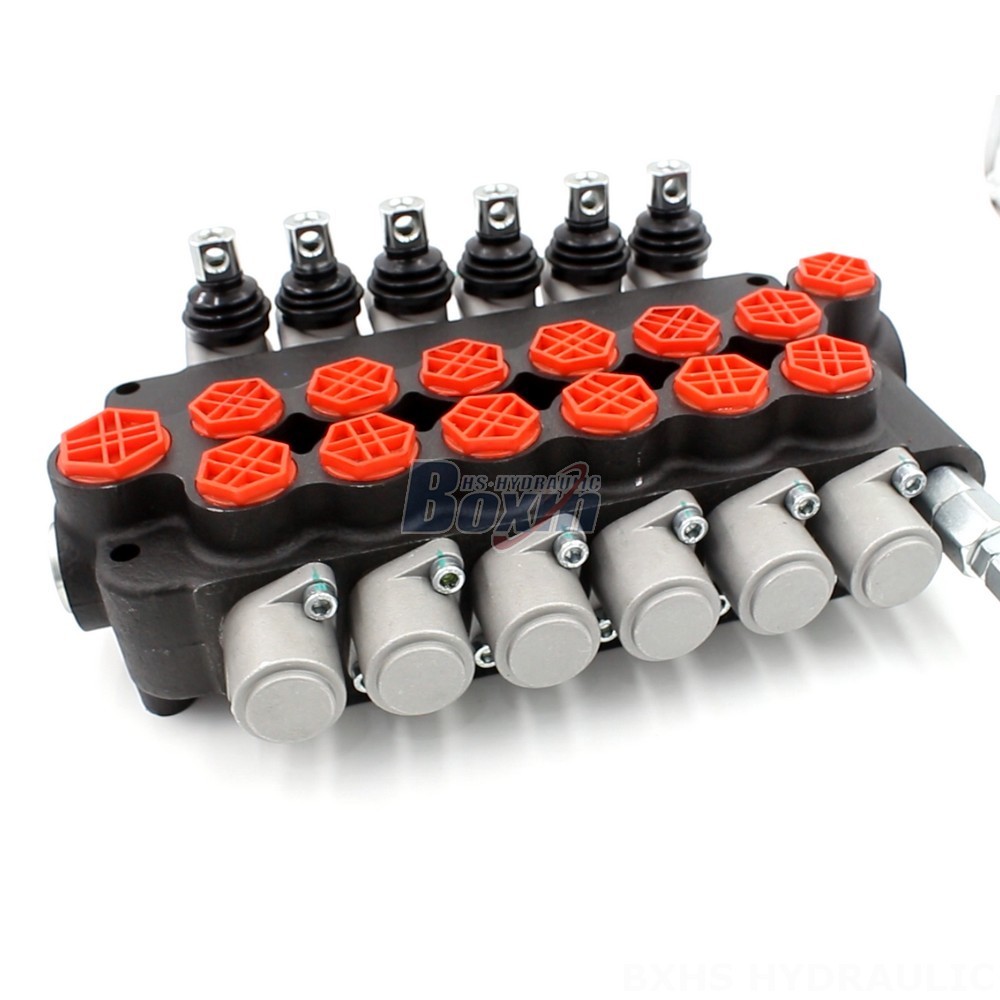

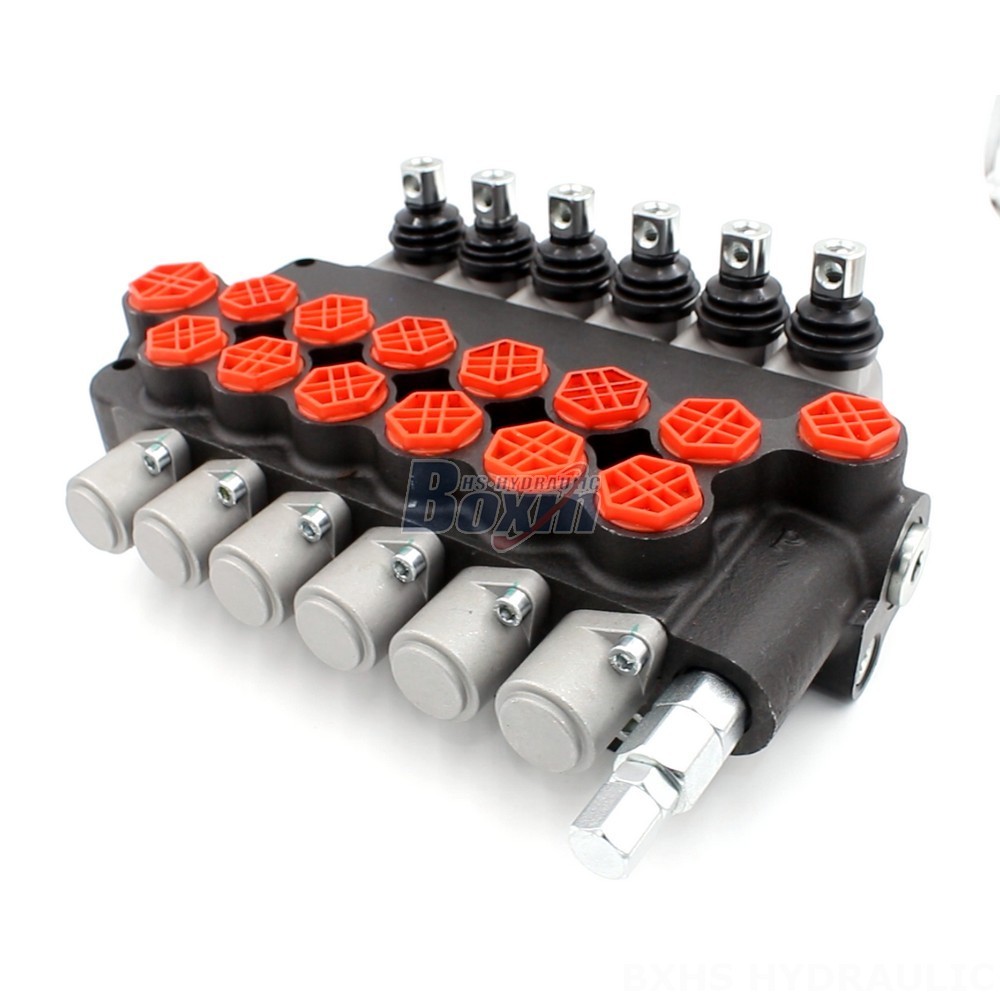

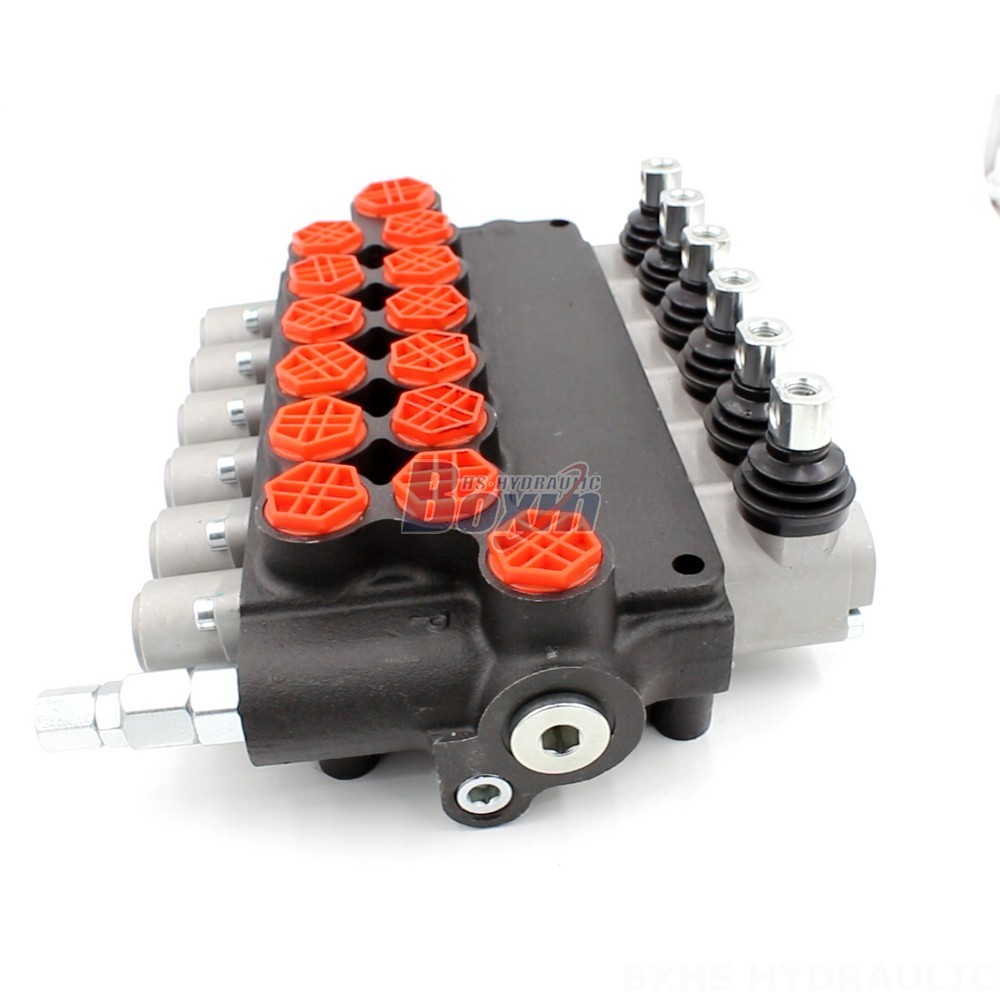

The P80-G12-G34-OT is a high-performance 6-spool hydraulic directional control valve designed for demanding applications in material handling, construction, and agriculture. Featuring a robust monoblock design, it offers high flow rates and pressure capabilities for efficient operation.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 6-section, manually controlled directional control valve from the P80 series is a powerful solution for various mobile equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for applications in telehandlers, forklifts, motor graders, excavators, skid steers, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve's robust monoblock construction ensures high reliability and durability even in challenging environments. It is designed for operating temperatures ranging from -40°C to +80°C, making it suitable for diverse climates. Its efficient design and high performance make it an ideal choice for demanding hydraulic applications.
