HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

Méthode de contrôle:Manuel

Distributeur:1 tiroir

Débit nominal:90 L/min (23,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G1

Orifice de sortie:G1

Dimension du raccord:G1

Marque:BXHS

Type de produit:Vanne de dérivation de débit

Série de produits:Série HSJLZF Vanne de dérivation de débit

Taille de l'emballage:22*14*11

Poids brut:7.20 kg

Disponibilité: En stock

90 personnes consultent ce produit

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type drawing image

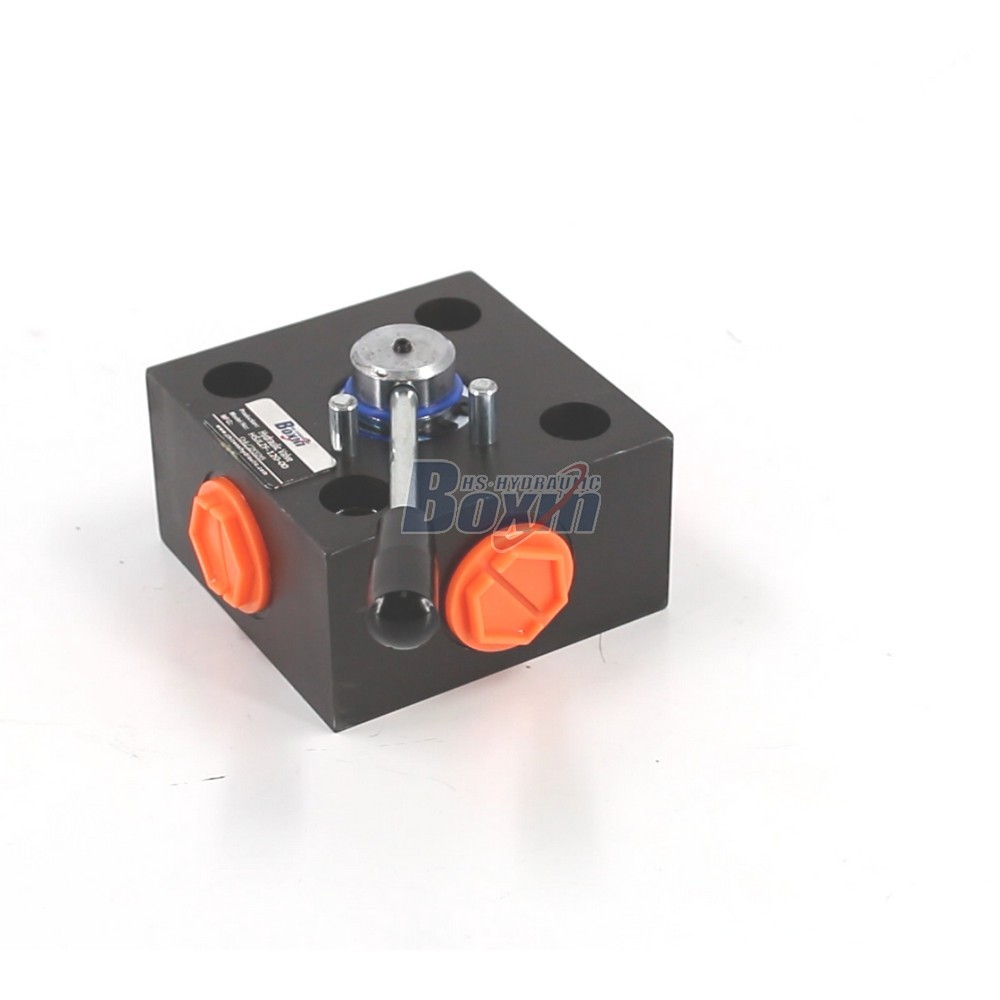

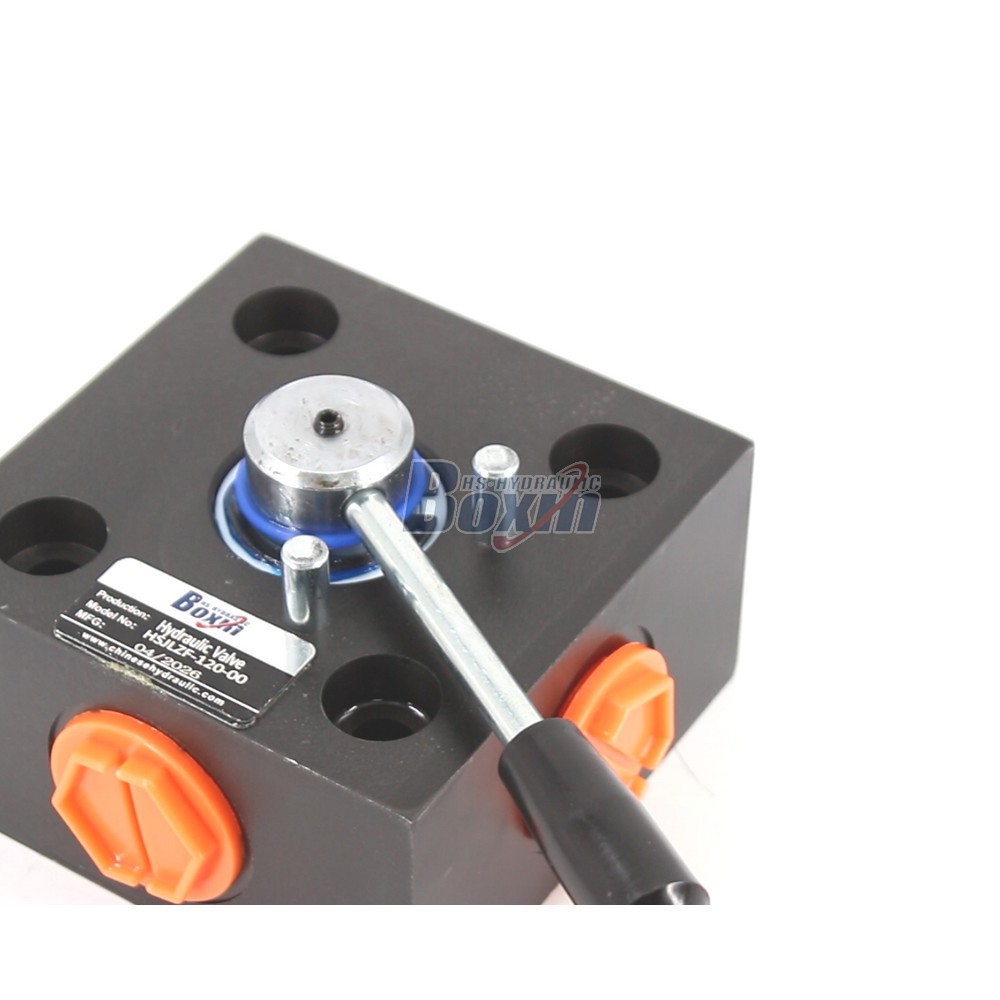

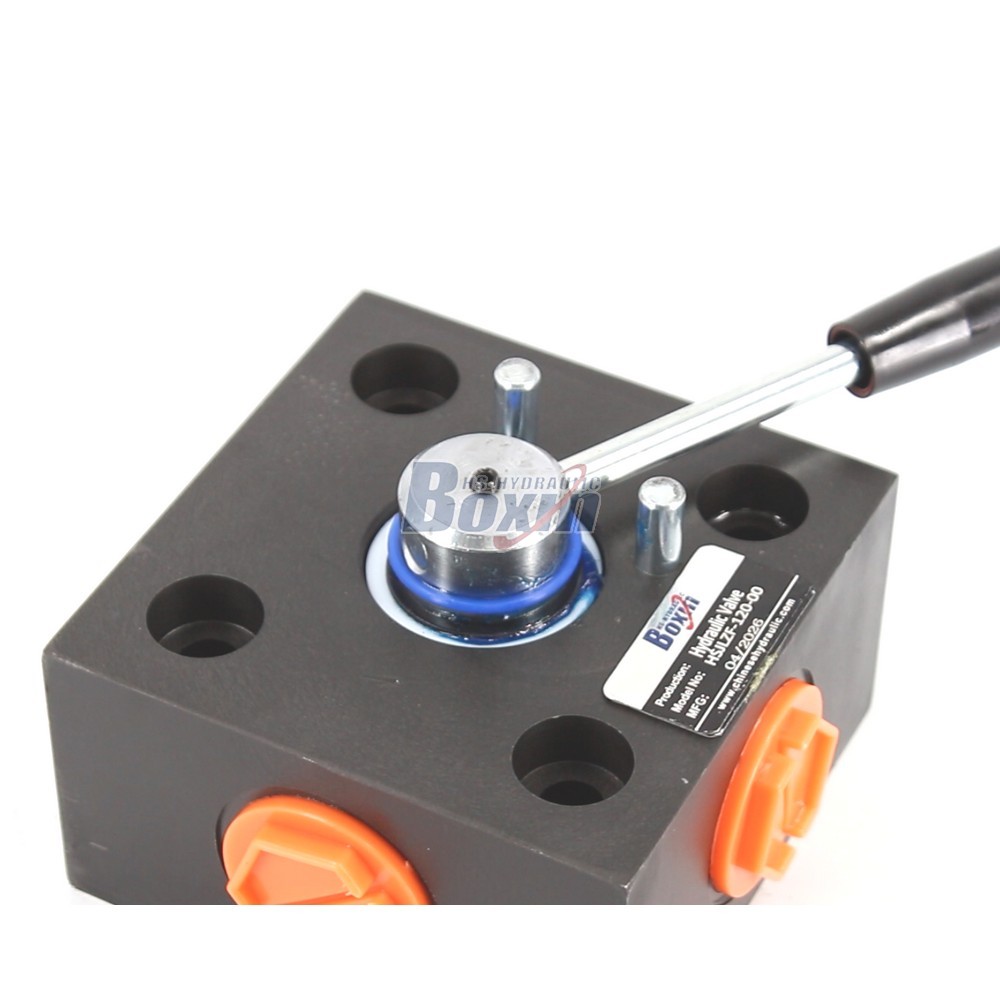

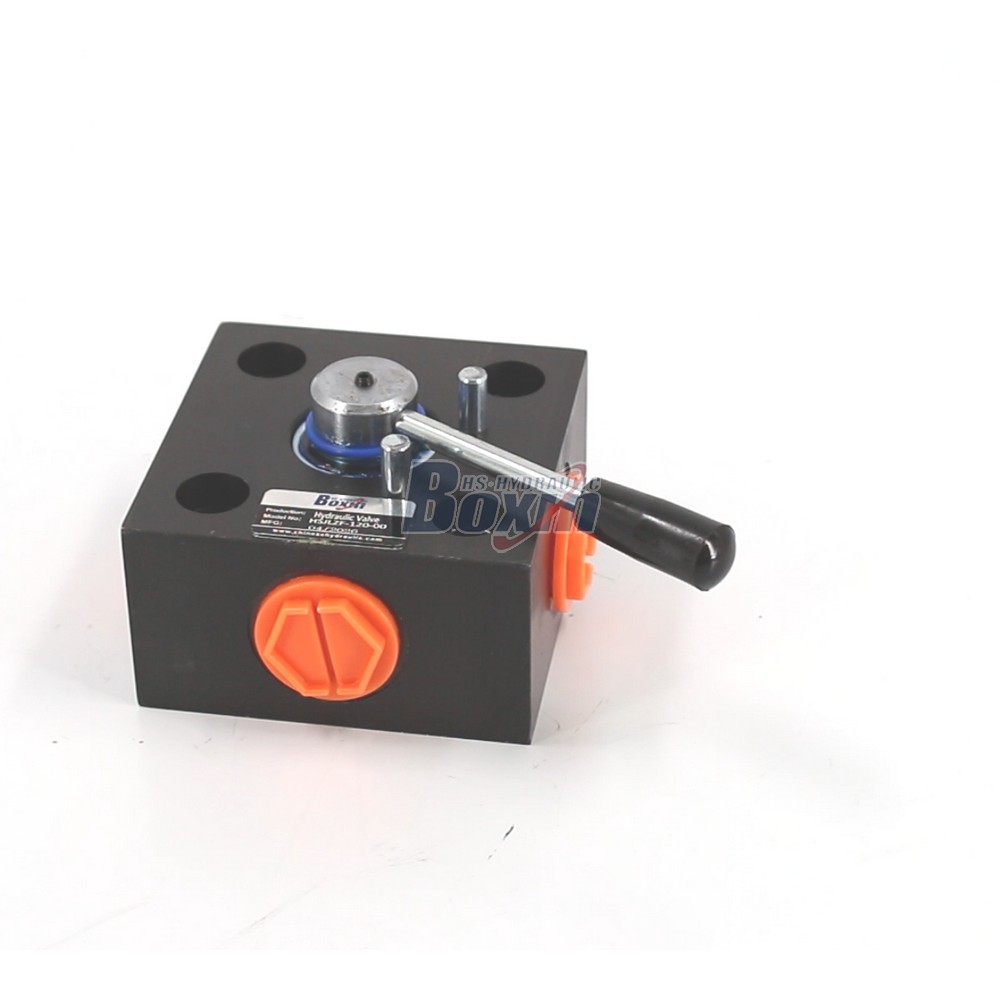

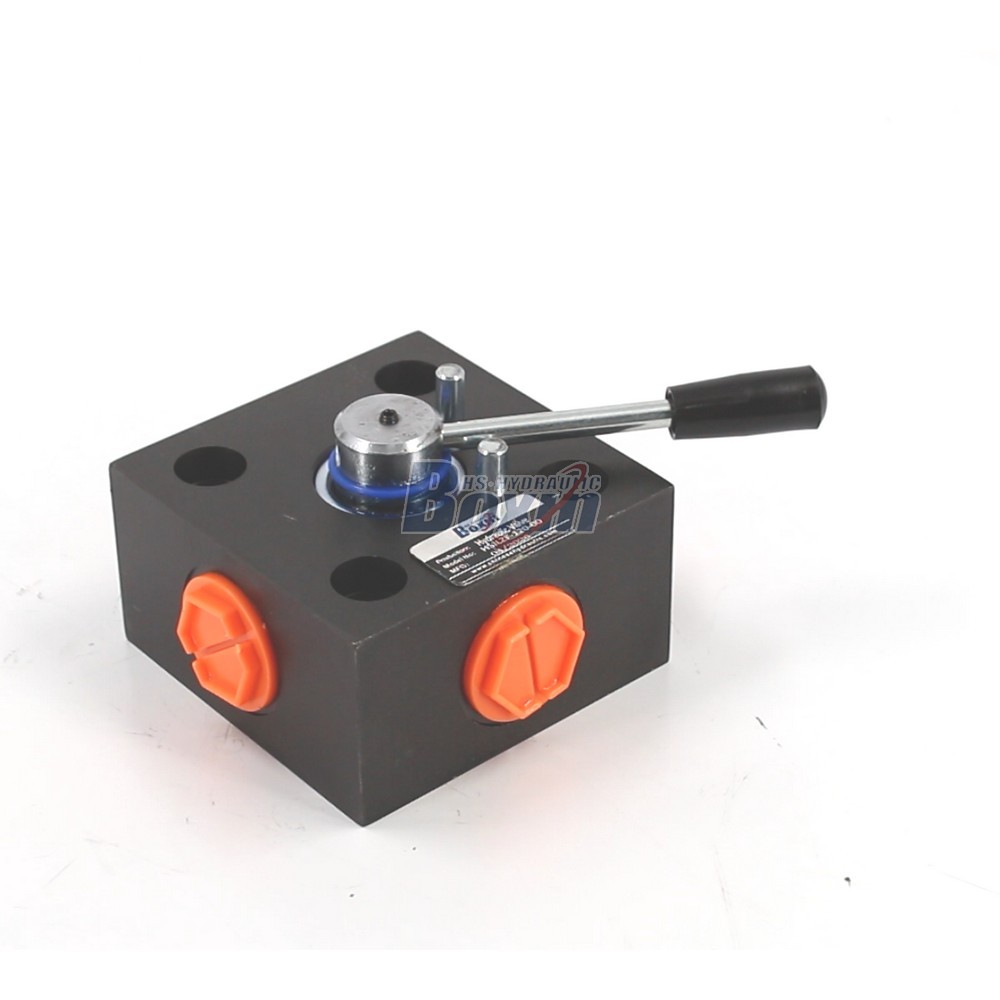

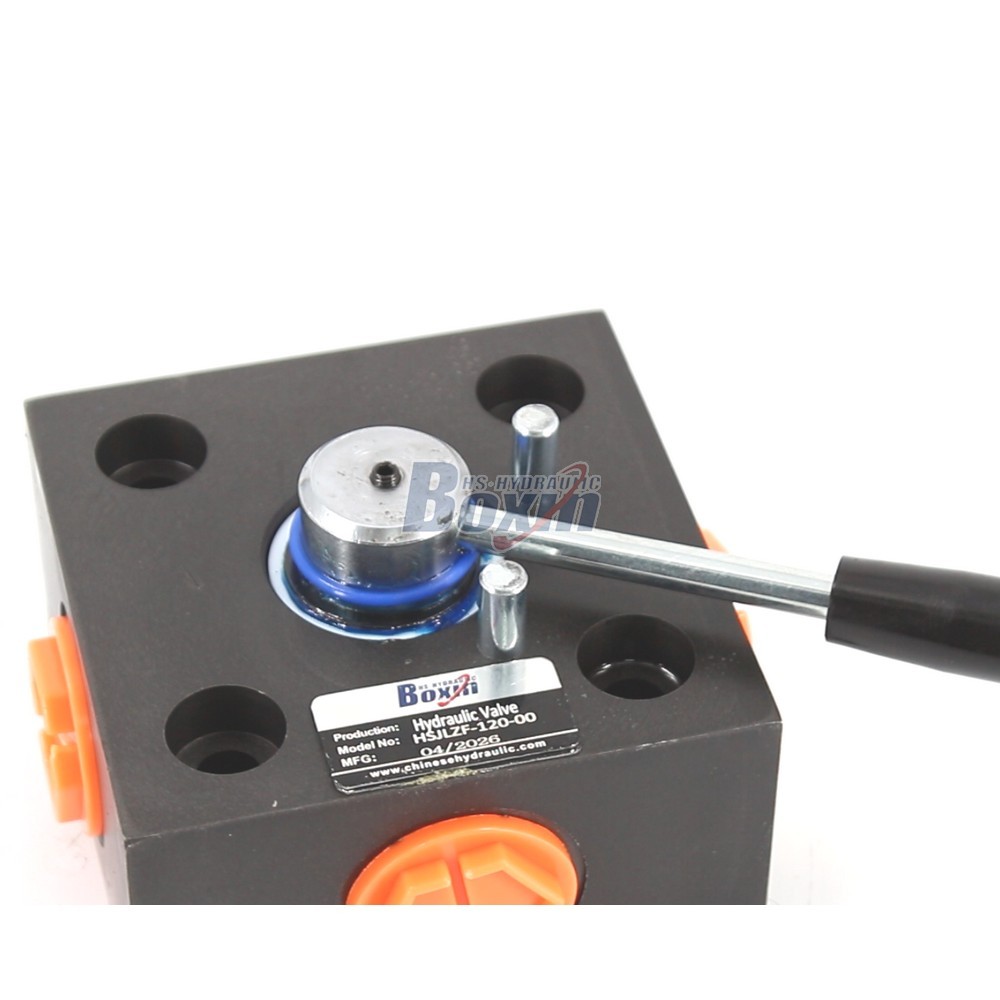

The HSJLZF-120 Series is a high-performance 1-spool manual monoblock directional control valve designed for heavy-duty applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this G1-ported valve provides precise fluid control for construction, agriculture, and industrial machinery.

Série HSJLZF Vanne de dérivation de débit Paramètres
Méthode de contrôle Manuel
Distributeur 1 tiroir
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 90 L/min (23,8 US gpm)
Pression maximale 200 bar (2 900 psi)
Orifice d'entrée G1
Orifice de sortie G1
Dimension du raccord G1

As a leading manufacturer of hydraulic solutions, we offer the HSJLZF-120 Series Monoblock Directional Control Valve, engineered for demanding environments. This 1-spool manual valve supports a high flow rate of 120 L/min (31.7 US gpm) and handles operating pressures up to 315 bar (4600 psi). It features G1 inlet and outlet ports, making it suitable for a wide range of machinery including mini-excavators, telehandlers, forklifts, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding tailored to your technical requirements. Our factory-direct supply ensures competitive wholesale pricing for large-scale orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders to expand our international market presence. Whether you need reliable components for wood splitters, loaders, or sweepers, our factory provides stable supply and professional technical support to grow your business.
