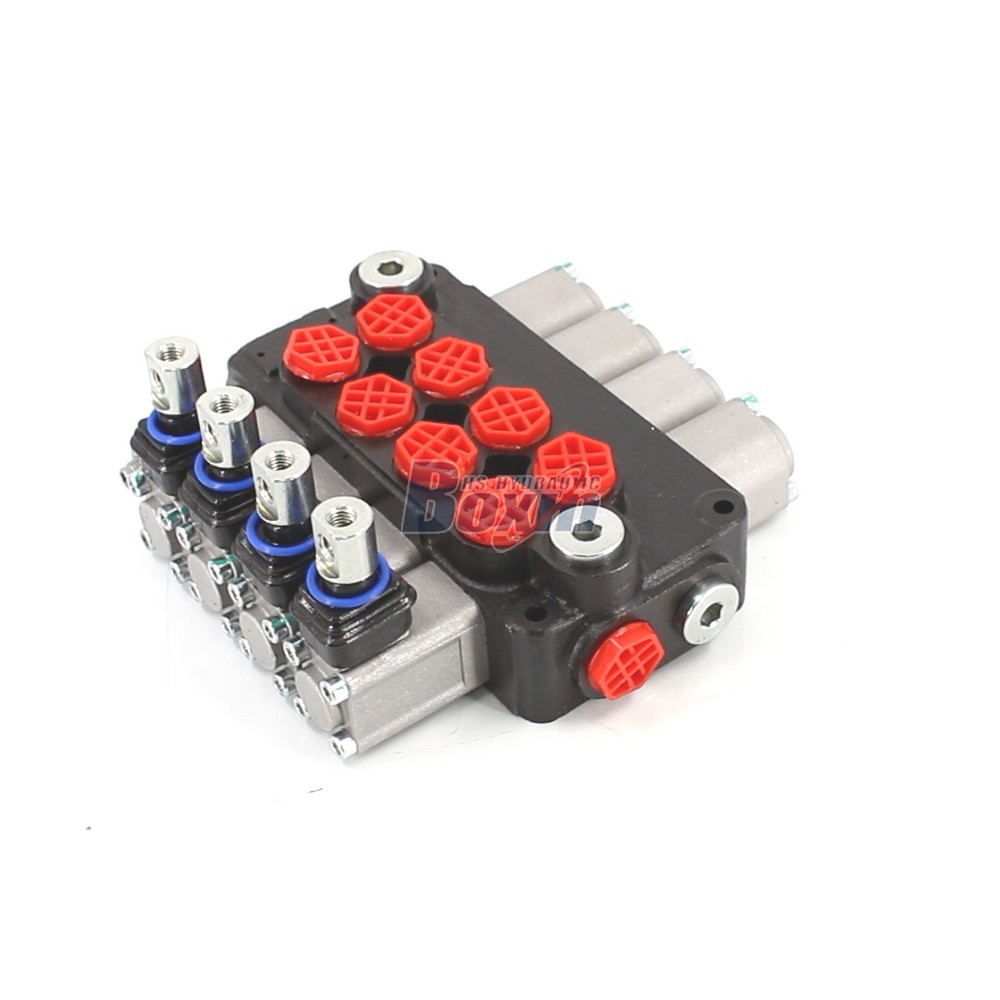

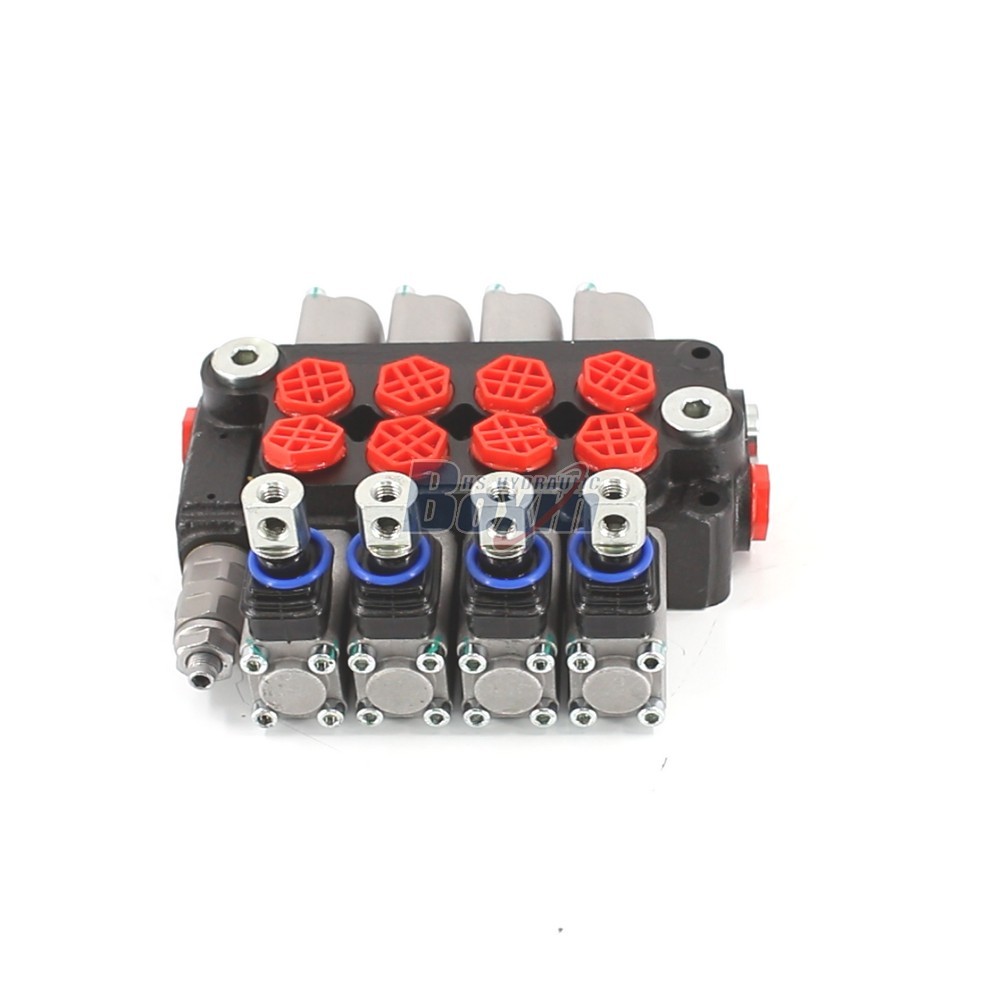

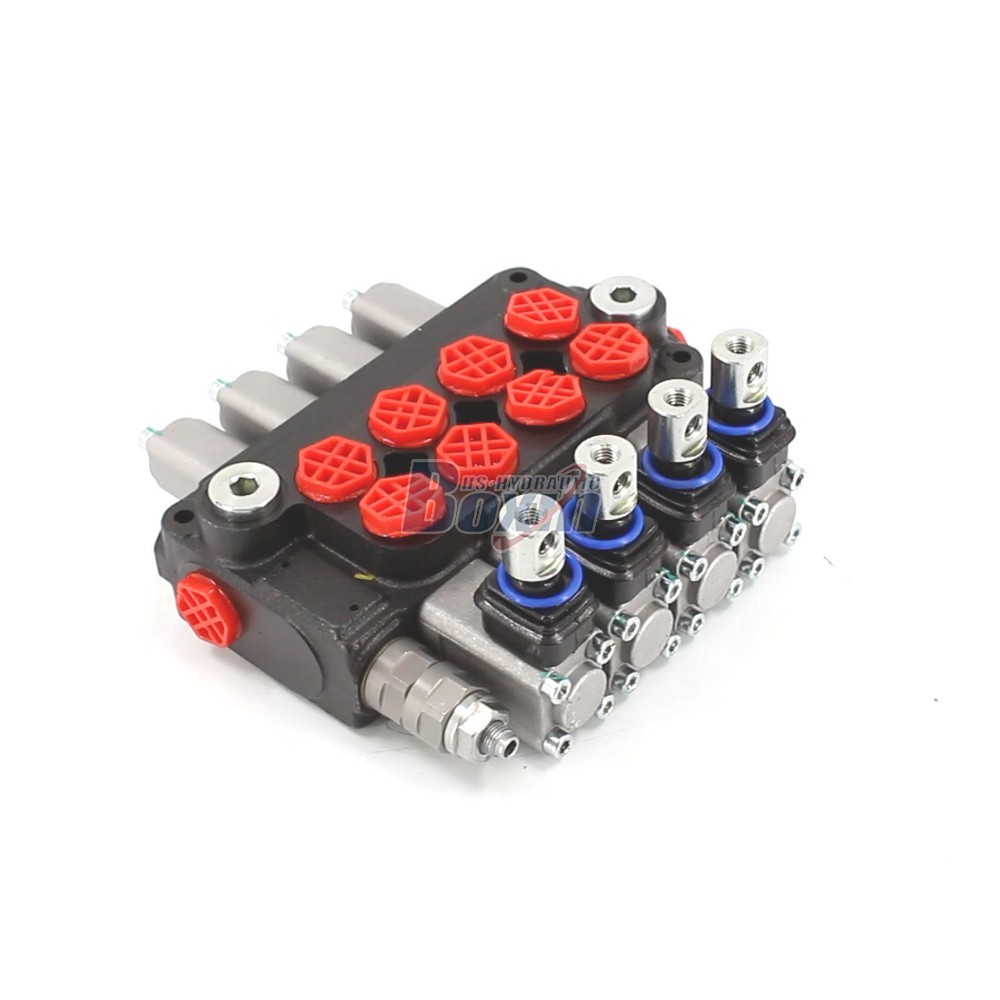

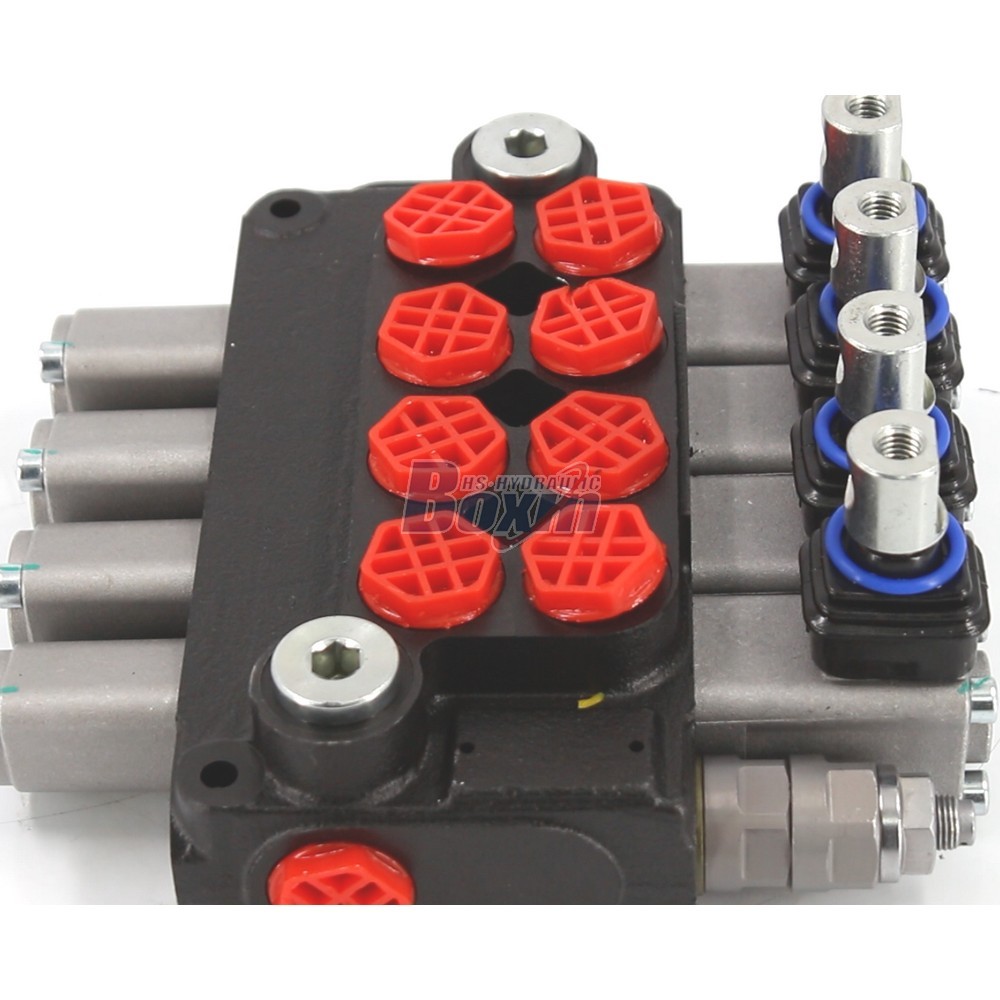

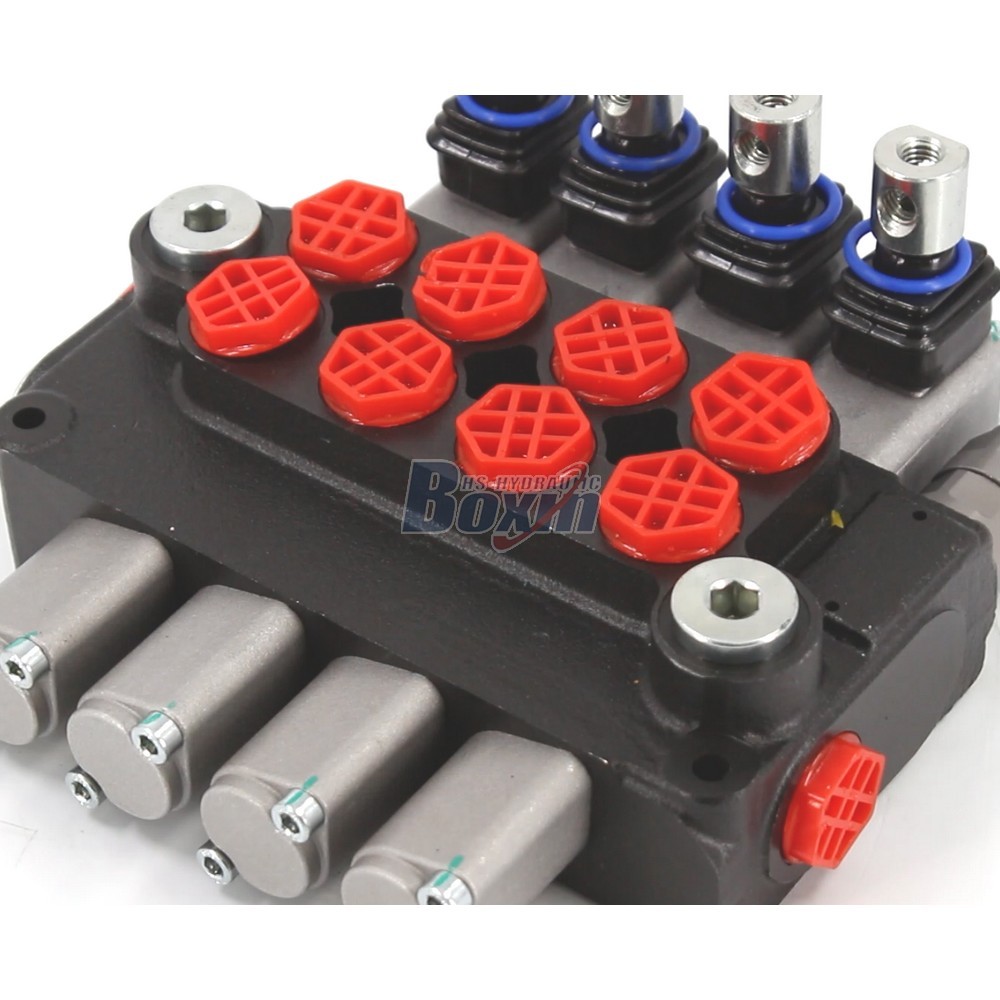

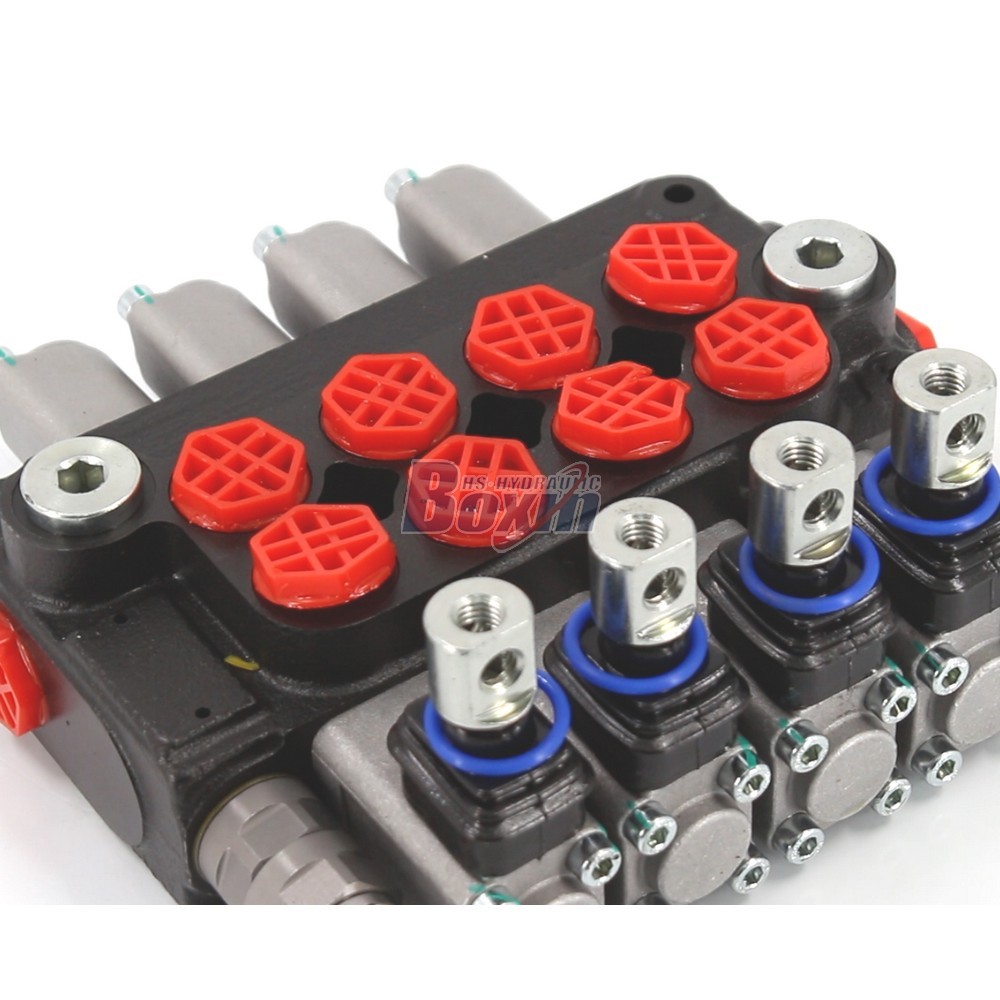

High Pressure DCV20 Series 4 Spool Hydraulic Control Valve

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:20 L/min (5,2 US gal/min)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série DCV20 Vanne directionnelle monobloc

Taille de l'emballage:23*21*11

Poids brut:6.20 kg

Disponibilité: En stock

106 personnes consultent ce produit

High Pressure DCV20 Series 4 Spool Hydraulic Control Valve

High Pressure DCV20 Series 4 Spool Hydraulic Control Valve

High Pressure DCV20 Series 4 Spool Hydraulic Control Valve drawing image

The DCV20 Series is a high-pressure 4-spool manual hydraulic directional control valve designed for compact applications, offering a rated flow of 20 L/min and operating capability up to 350 bar. It is ideal for material handling, agriculture, and construction machinery requiring precise manual control.

Série DCV20 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Électro-hydraulique, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 20 L/min (5,2 US gal/min)
Pression maximale 350 bar (5 100 psi)
Orifice d'entrée G3/8, M18×1.5, SAE 8, 3/8 NPT
Orifice de sortie G3/8, M18×1.5, SAE 8, 3/8 NPT
Dimension du raccord G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading large-scale manufacturer of hydraulic components, we proudly present the DCV20 Series 4 Spool Hydraulic Control Valve. Engineered for high-pressure environments (up to 5100 psi), this manual valve provides exceptional reliability and responsive control for equipment such as forklifts, mini-excavators, and tractors. Our factory offers comprehensive manufacturing services including OEM, private labeling (ODM), and custom design to meet specific technical requirements. We specialize in factory-wholesale supplies, ensuring competitive pricing and consistent quality for the global market. We are actively seeking long-term cooperation with distributors, wholesalers, regional agents, and international traders. Whether you need bulk wholesale orders or customized hydraulic solutions for wood splitters, sweepers, or aerial platforms, our factory production lines are equipped to support your business growth with robust logistics and technical support.
