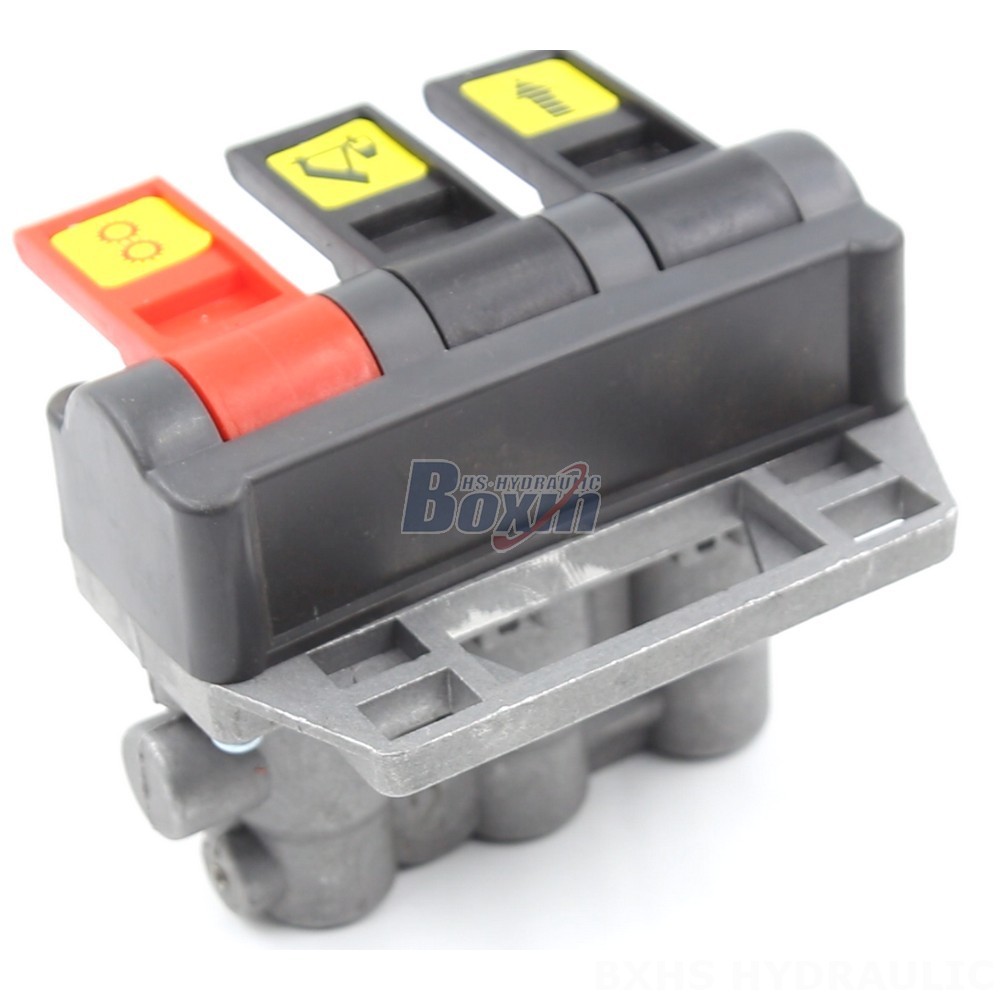

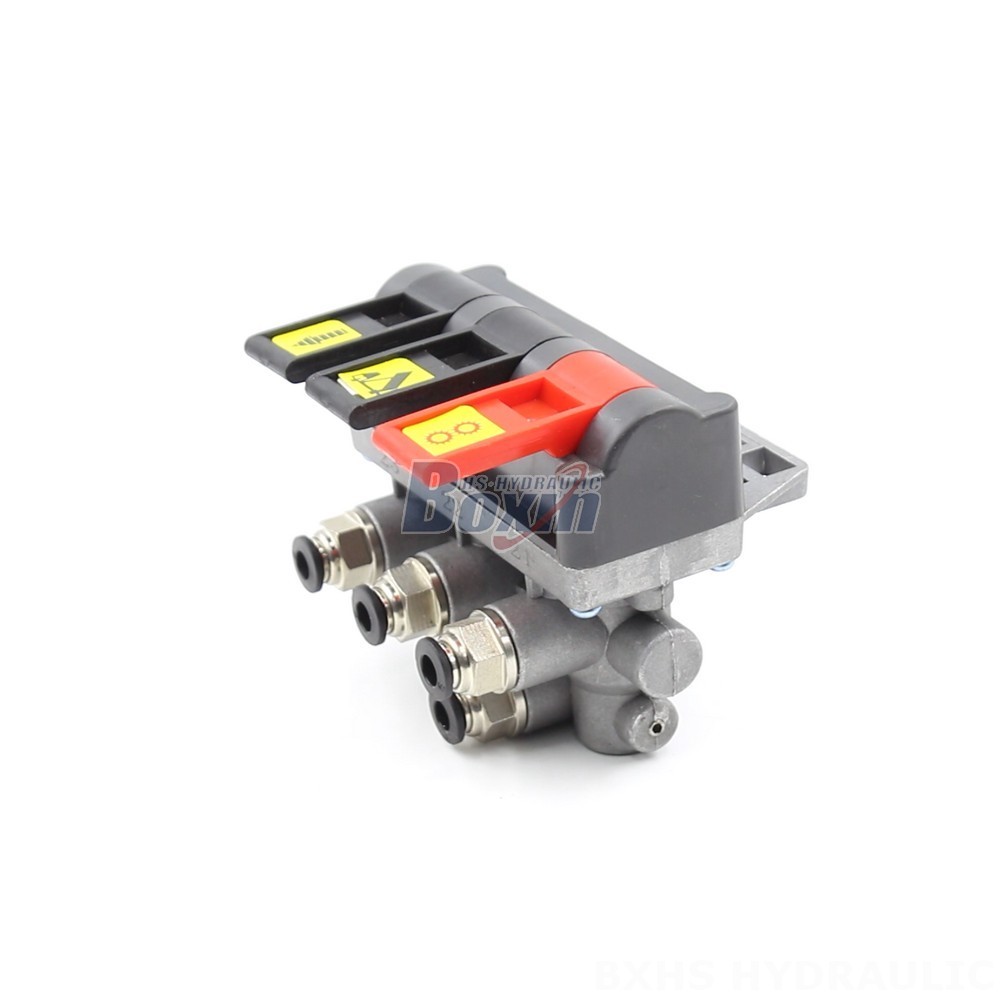

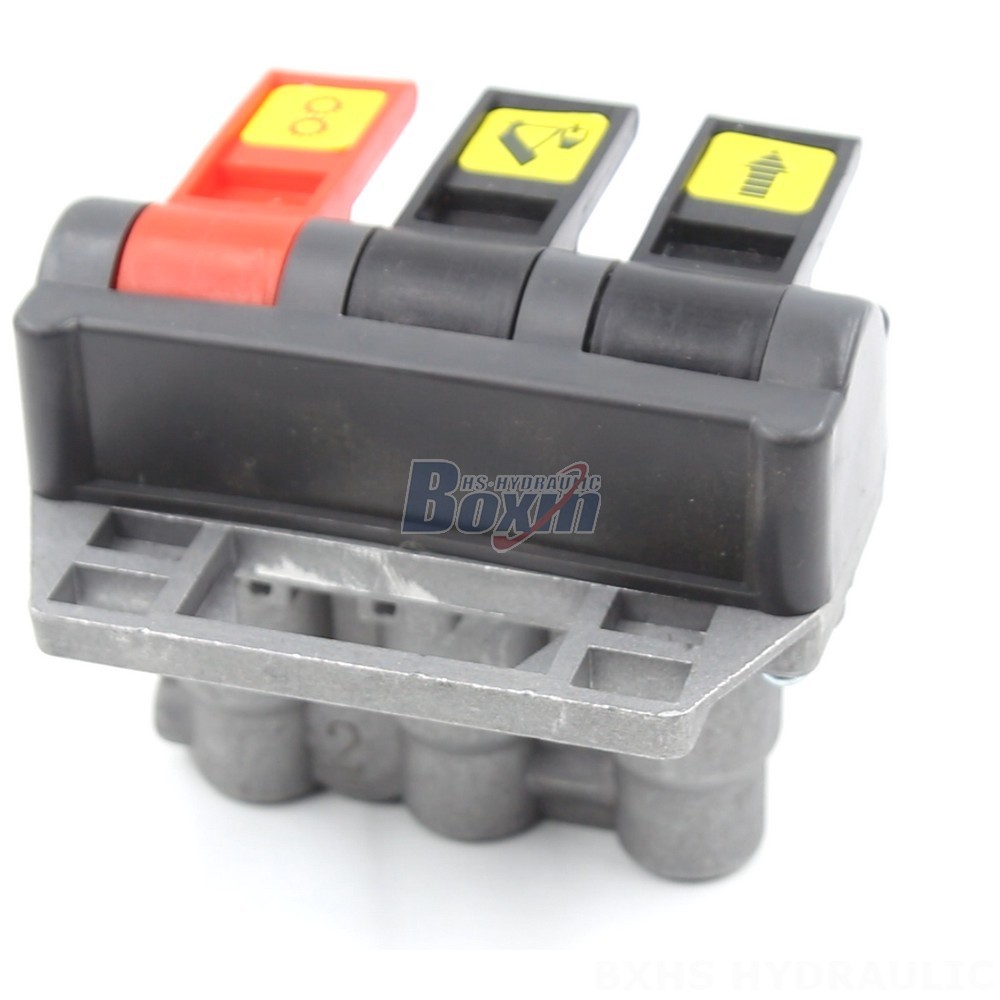

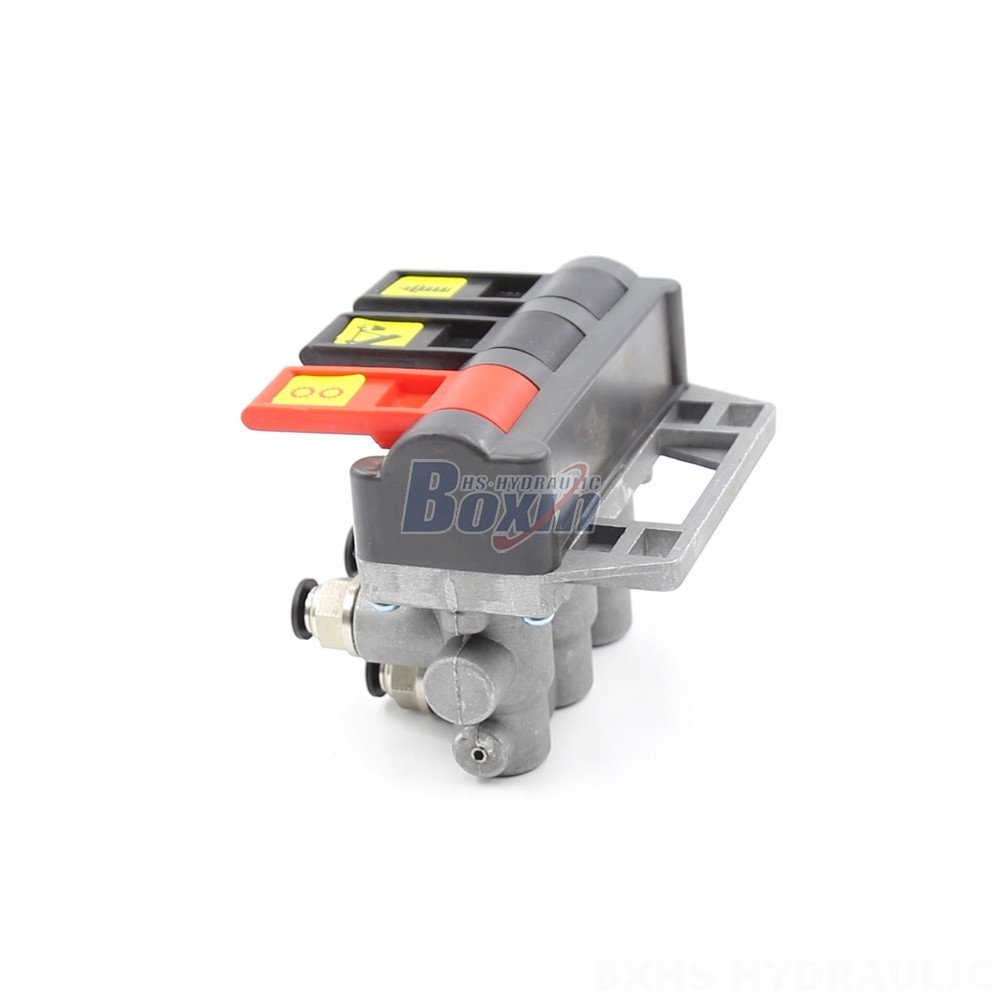

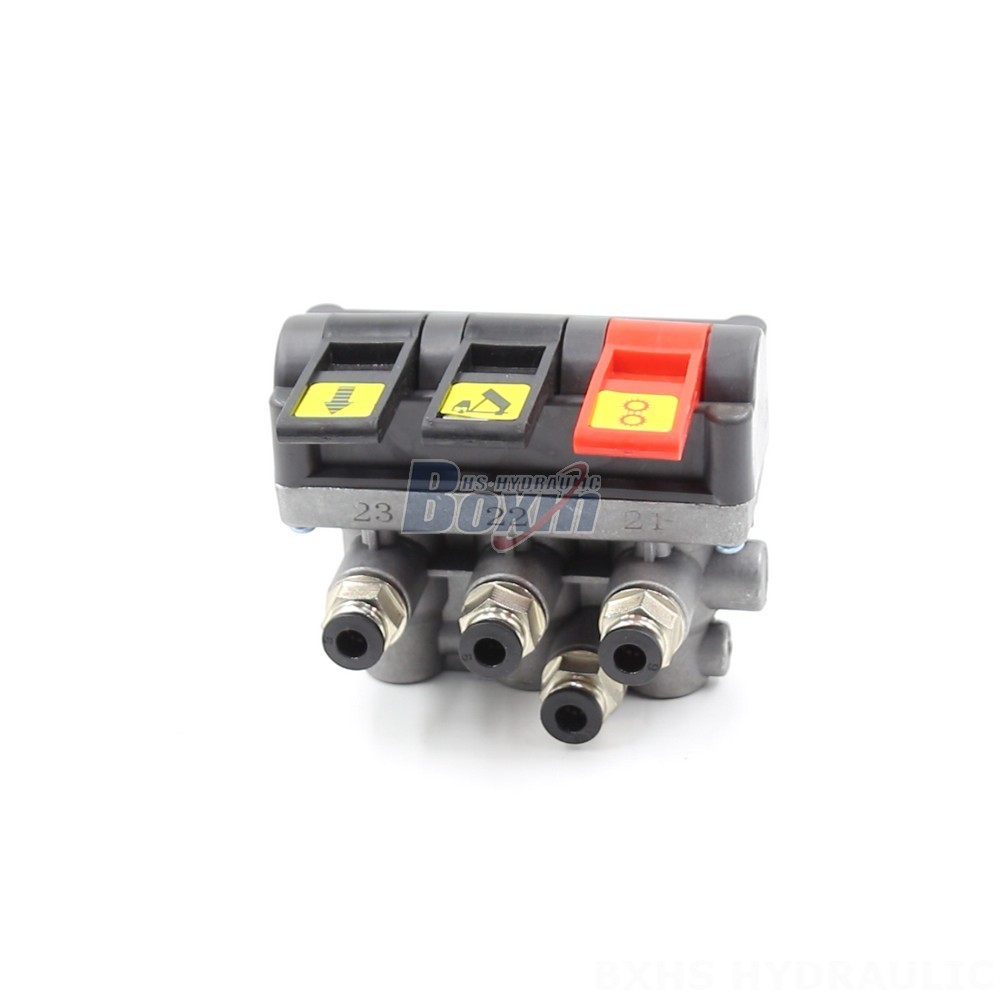

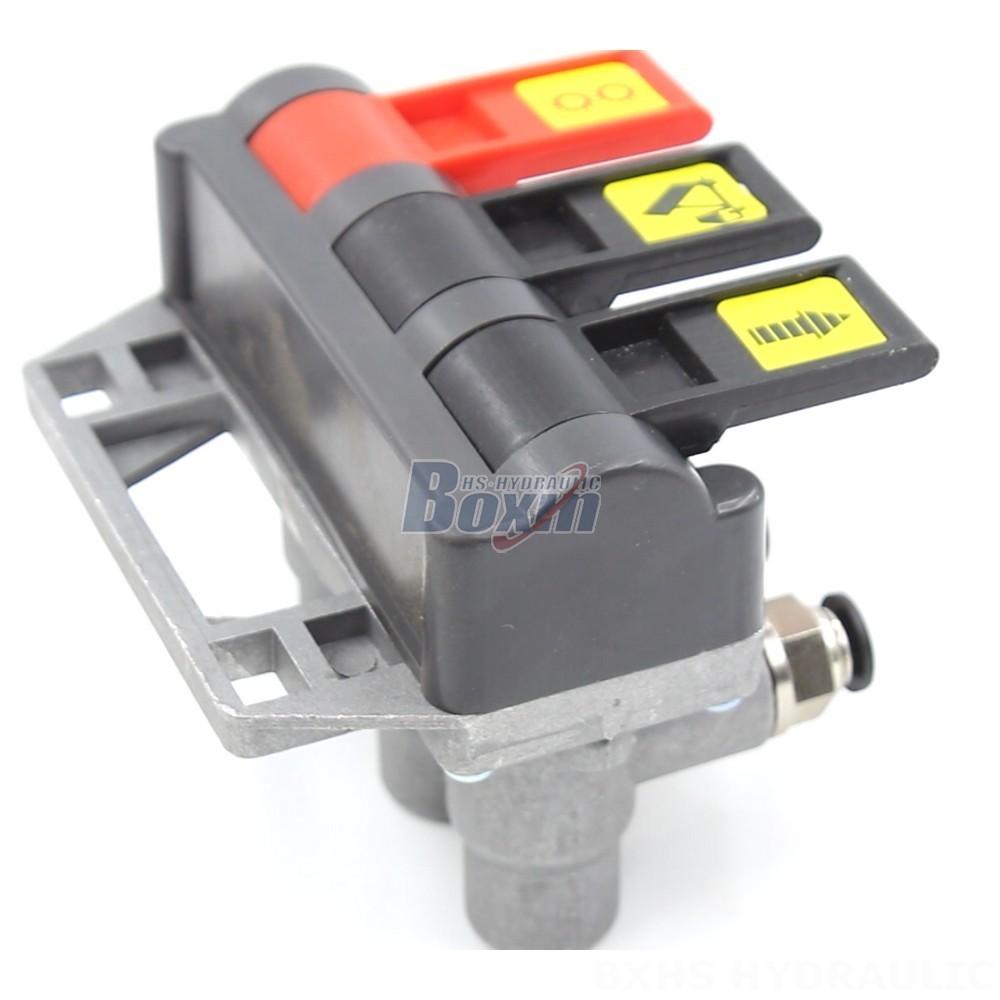

This high-performance pneumatic 1-spool hydraulic control valve is designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. The TC-4 series valve offers reliable performance, durability, and a compact design.
| Série TC-4 Vanne de commande hydraulique Paramètres | |
|---|---|
| Méthode de contrôle | Pneumatique |
| Distributeur | 1 tiroir |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 16 L/min (4,2 US gpm) |
| Pression maximale | Pression |
| Orifice d'entrée | G1/4 |
| Orifice de sortie | G1/4 |
| Dimension du raccord | G1/4 |
This high-performance 1-spool hydraulic control valve features pneumatic control, a monoblock structure, and a rated flow of 40 L/min. It is suitable for a wide range of applications, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, and harvesters. The valve operates at a maximum pressure of 160 bar and is designed for a viscosity range of 15 - 75 mm²/s. Its robust design and high-quality materials ensure long-lasting performance in demanding environments. The TC-4 series valve is available for OEM, ODM, and private label applications, making it a versatile solution for diverse needs.
