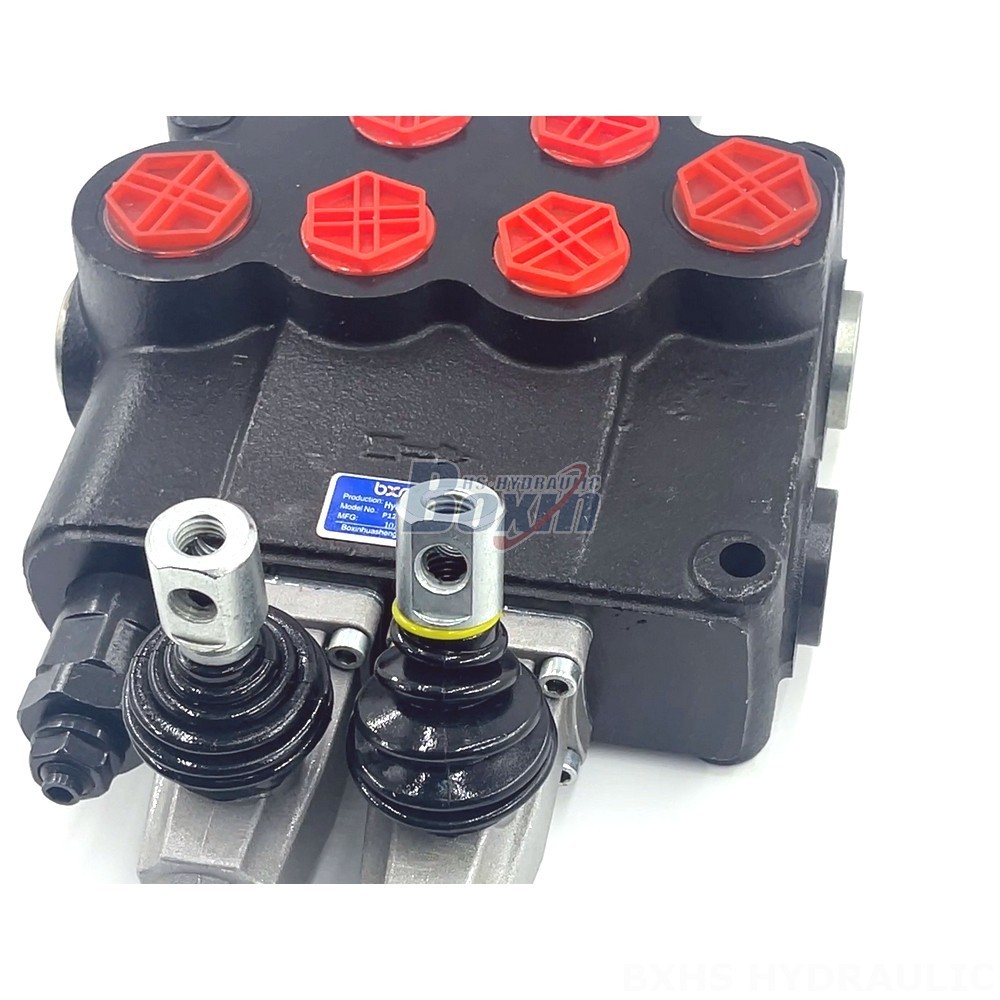

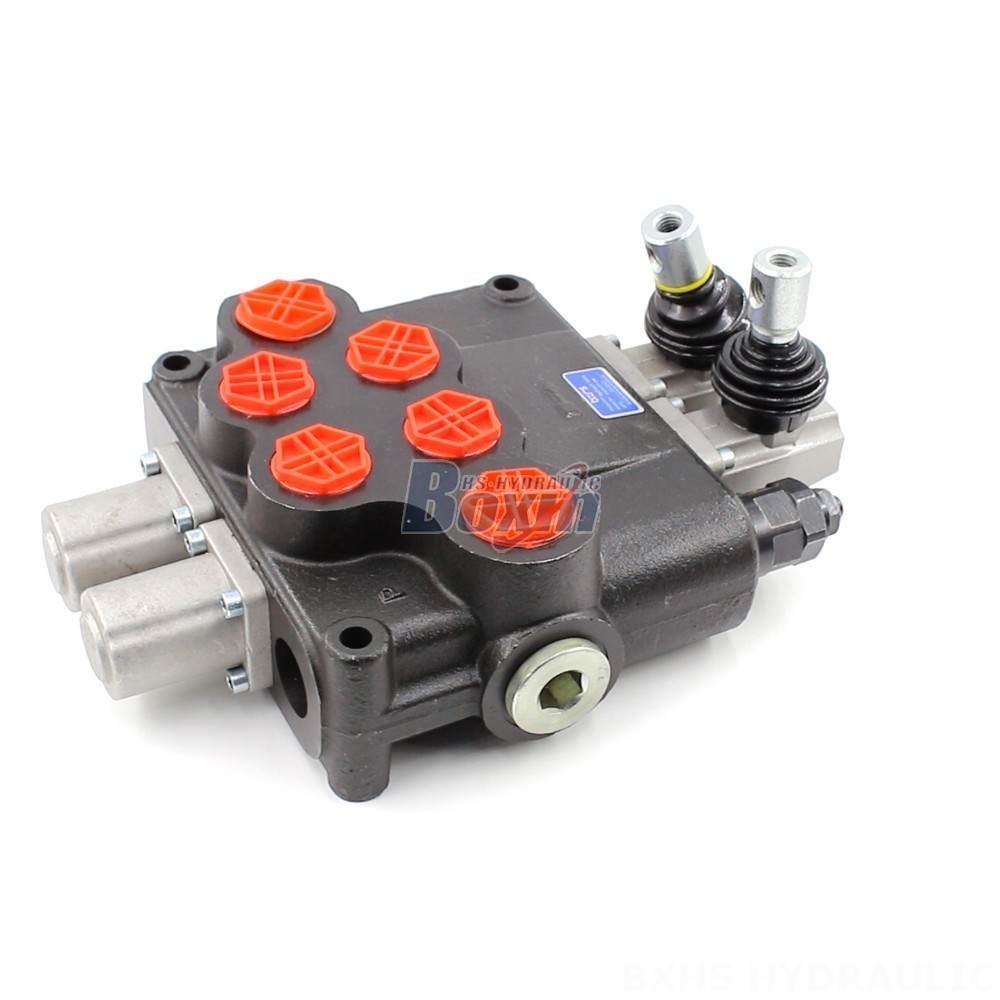

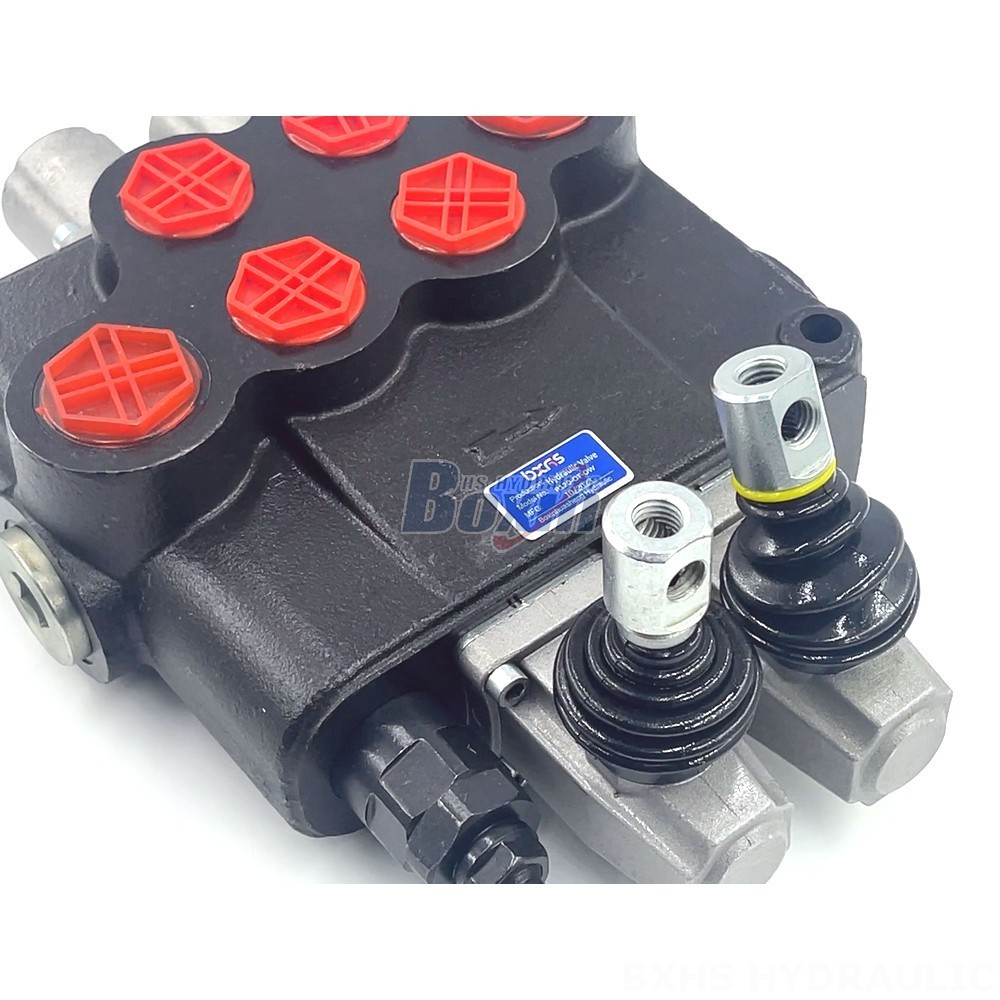

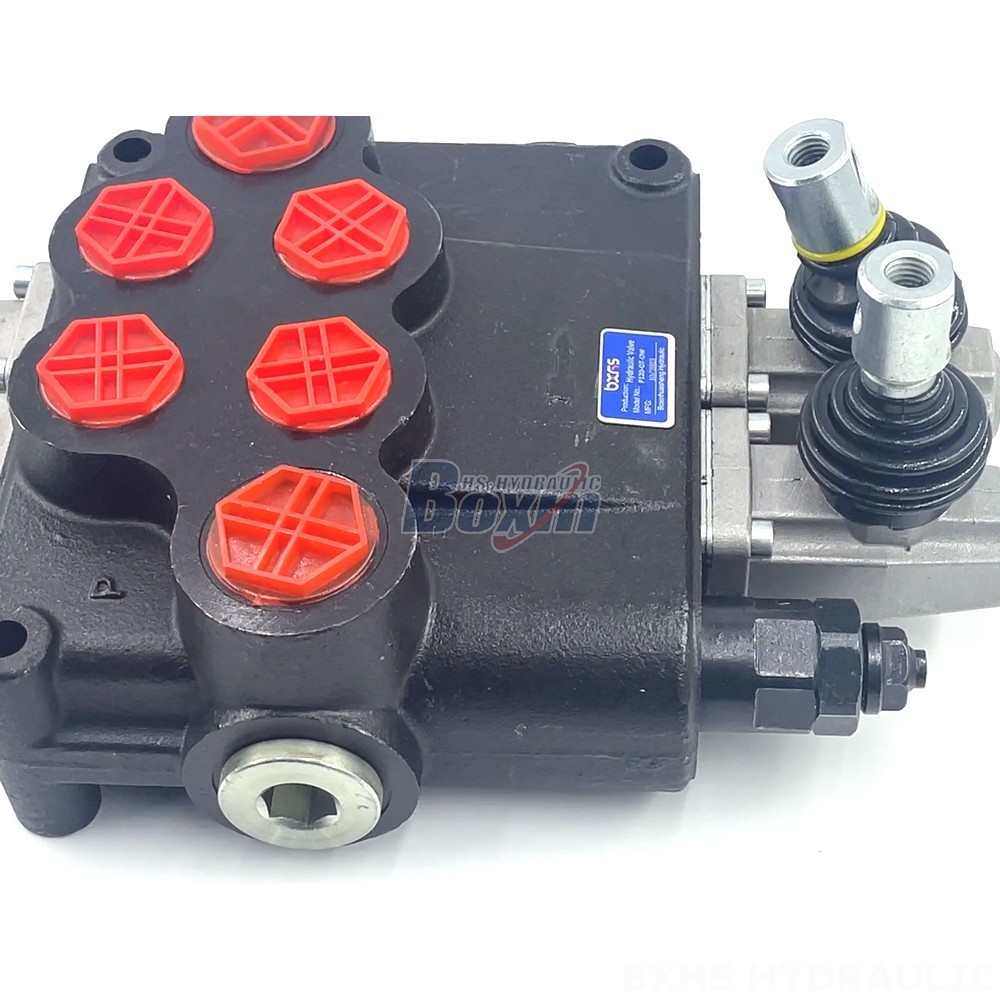

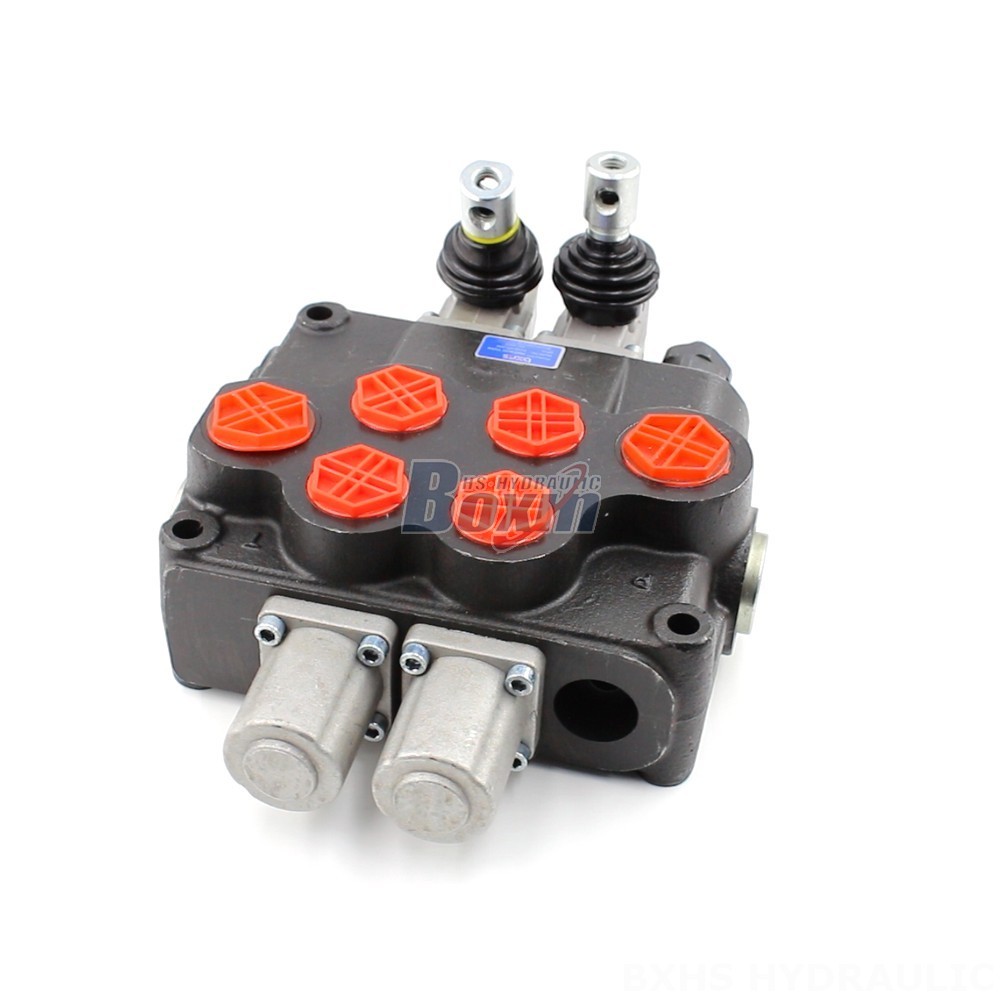

The Rexroth P120 Directional Spool Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section monoblock valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar.
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The Rexroth P120 Directional Spool Valve is a robust and reliable hydraulic valve ideal for a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This high-performance valve features a manual control method, a 2-section design, and a monoblock structure for increased durability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, the P120 valve is designed to handle demanding hydraulic applications. The valve also features a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of climates and environments.
