Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1097 personnes consultent ce produit

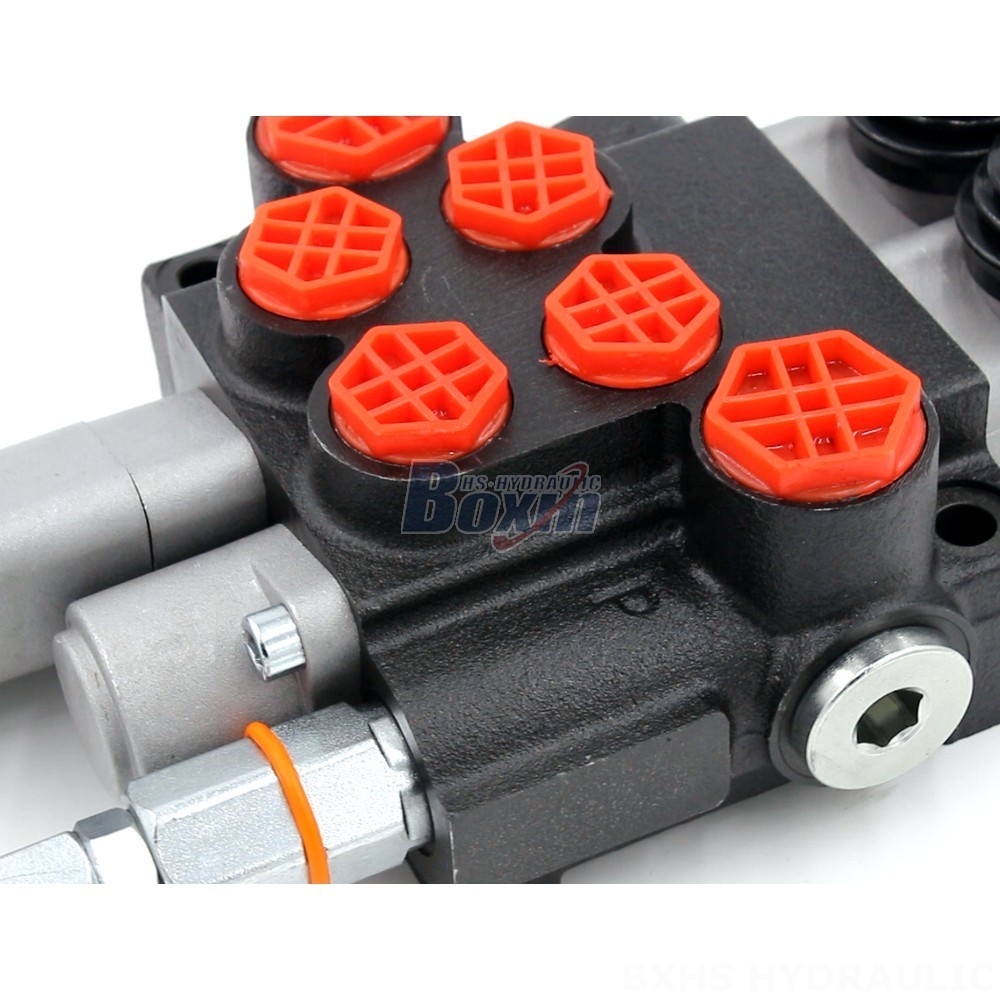

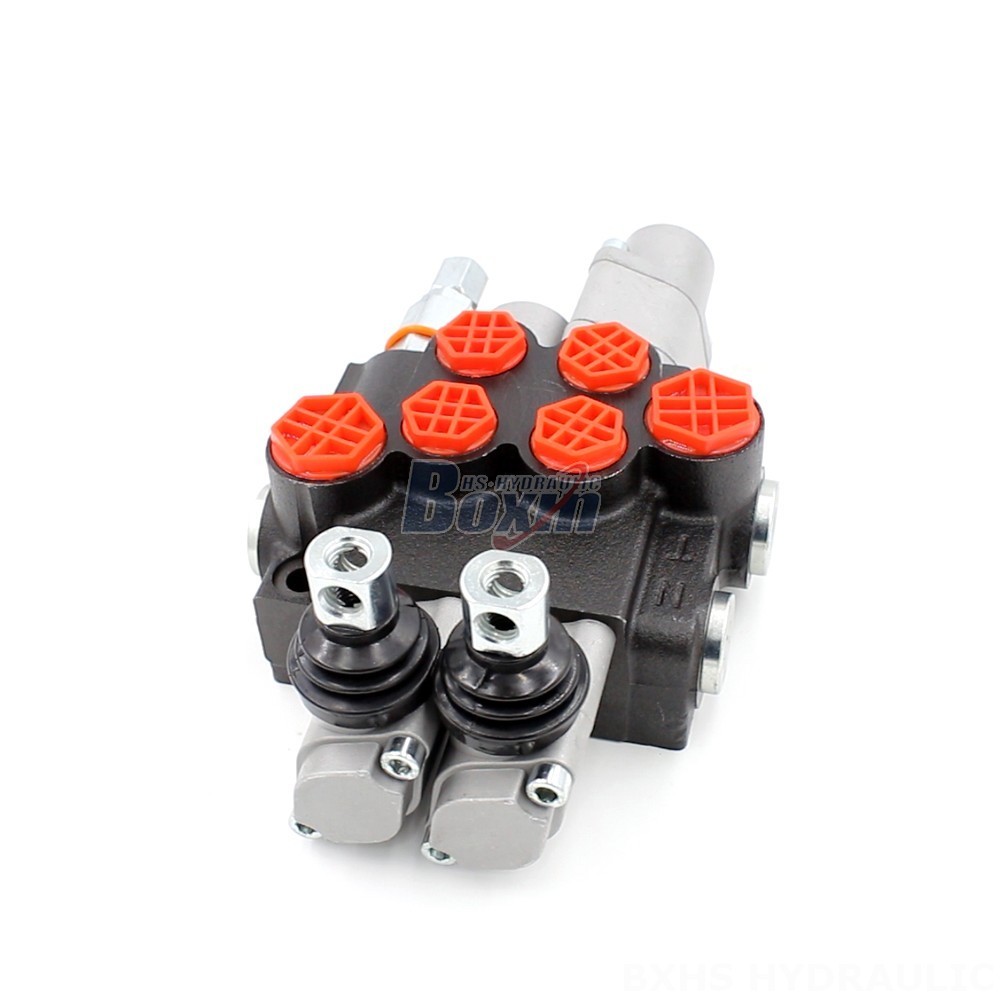

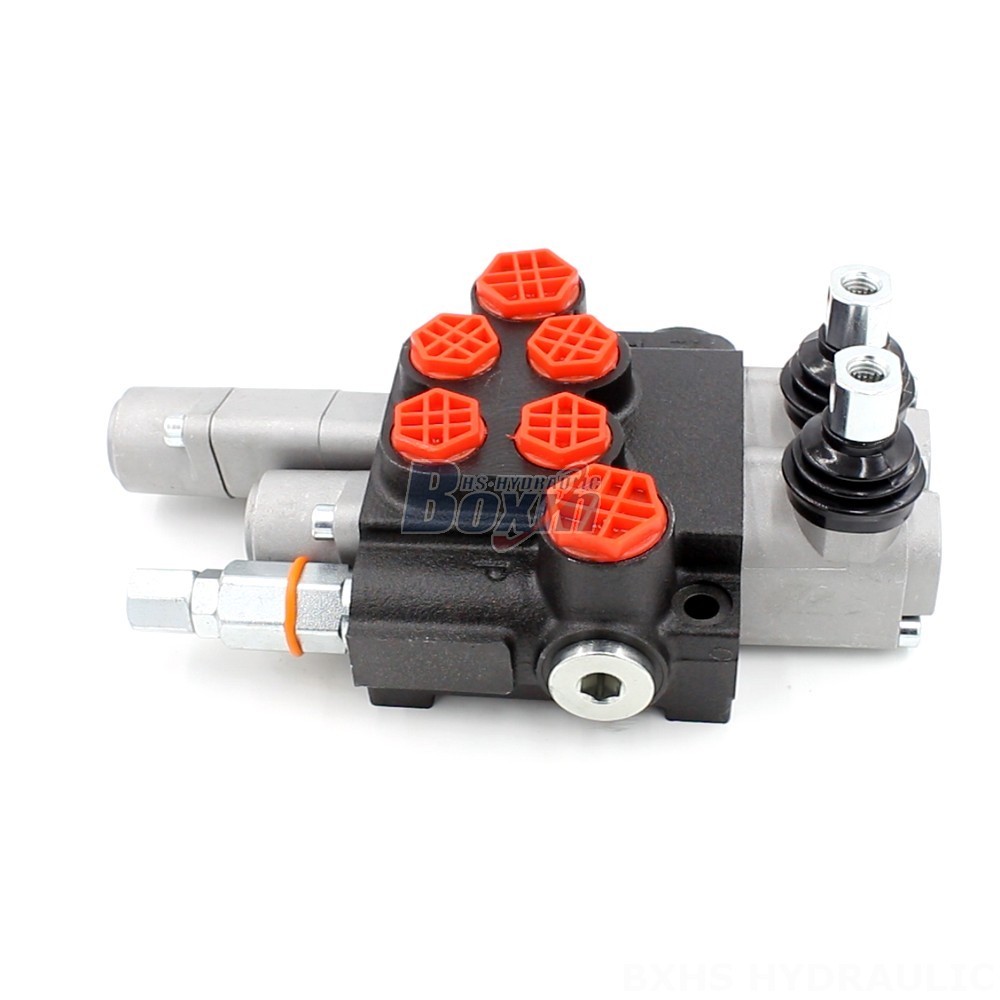

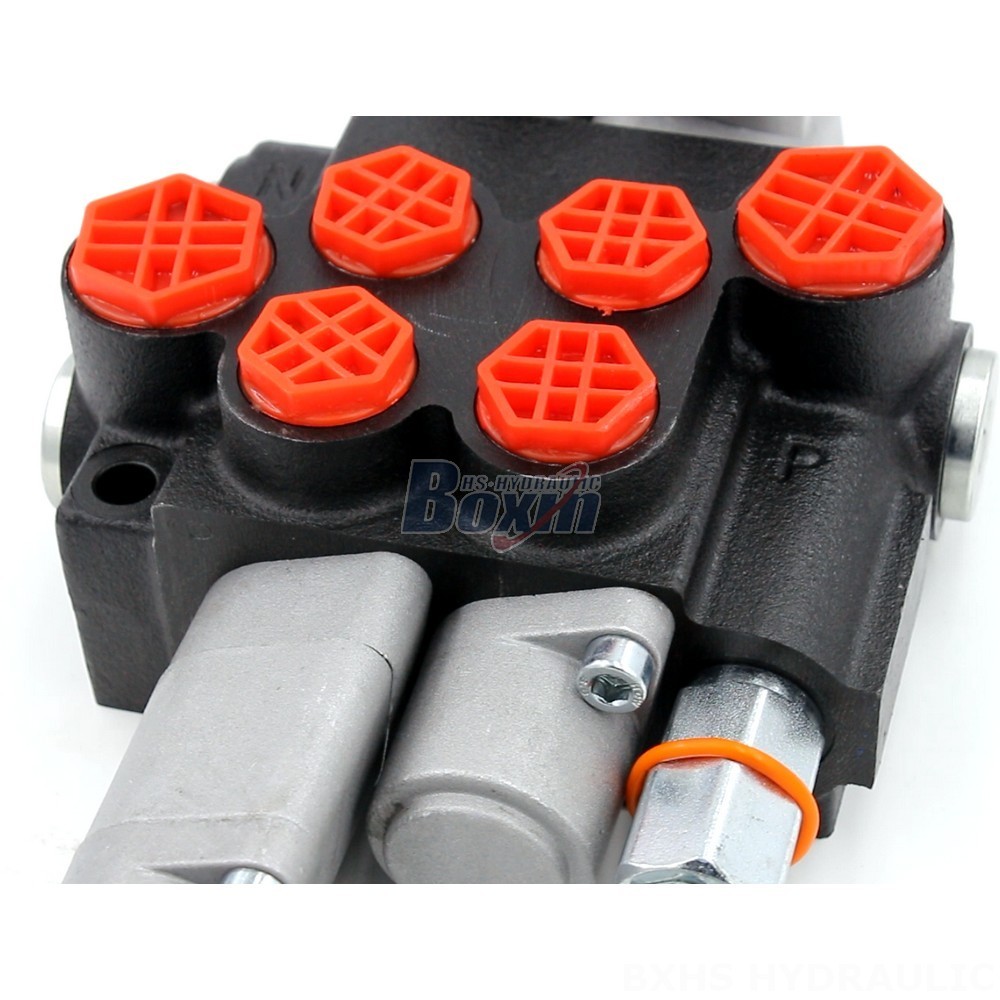

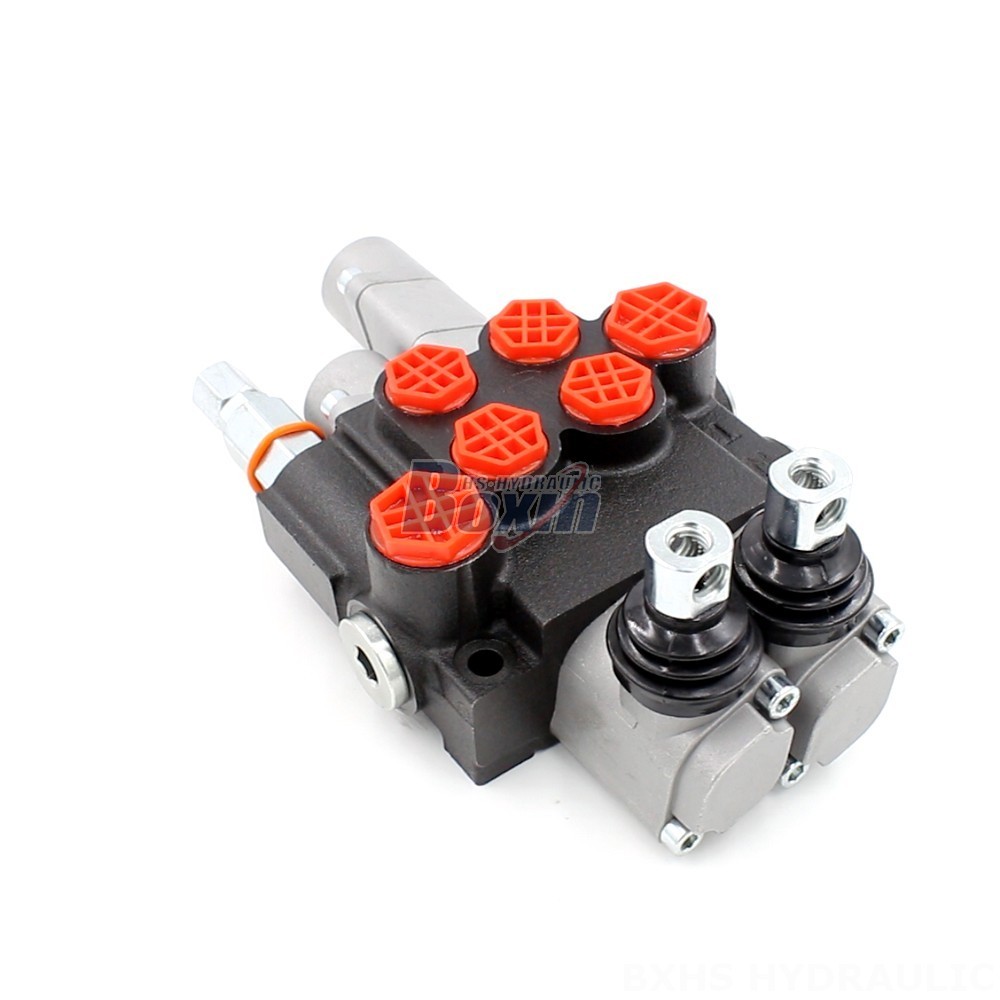

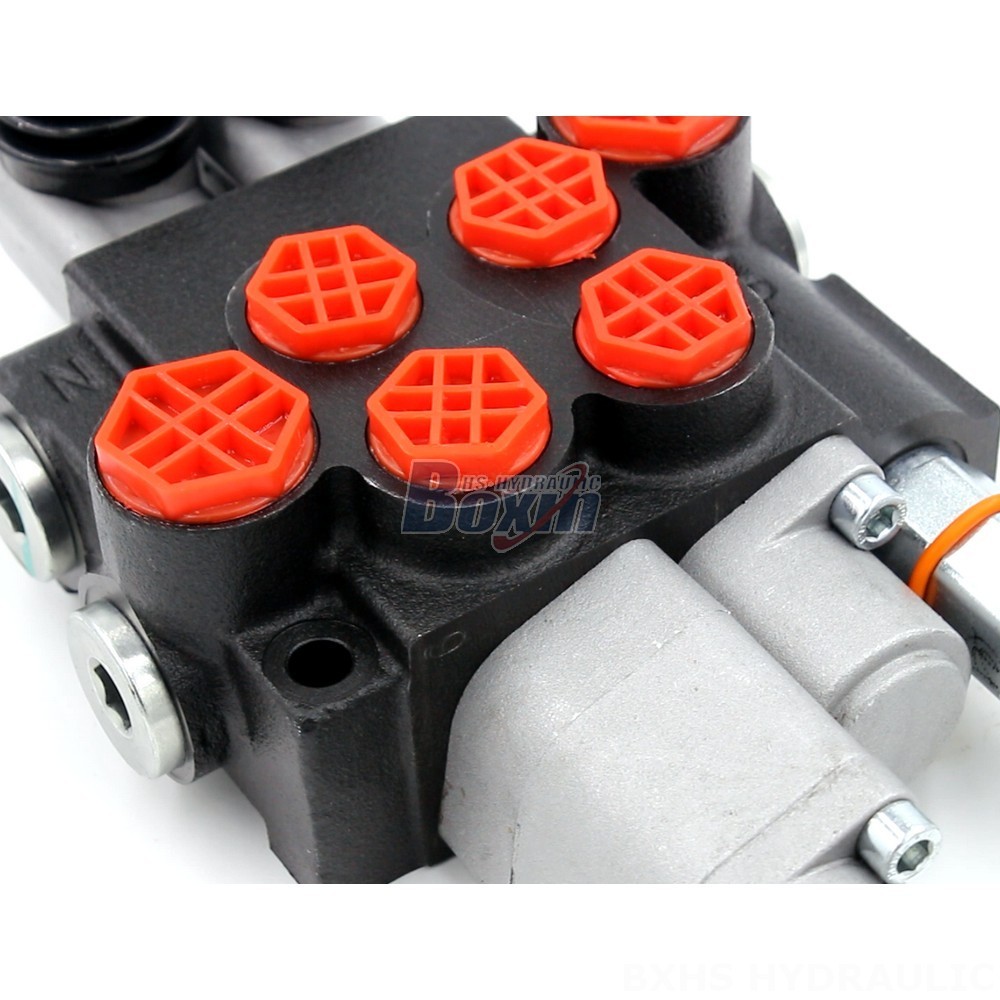

The P40-AQF-G38-G12 is a high-performance, 4-way hydraulic diverter valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, 2-spool valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of machinery.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic diverter valve is a manual, 2-spool, monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It features an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). Designed for heavy duty applications, this valve is commonly used in construction and earthmoving equipment, agriculture, and industrial vehicles. Typical applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and backhoe loaders.
