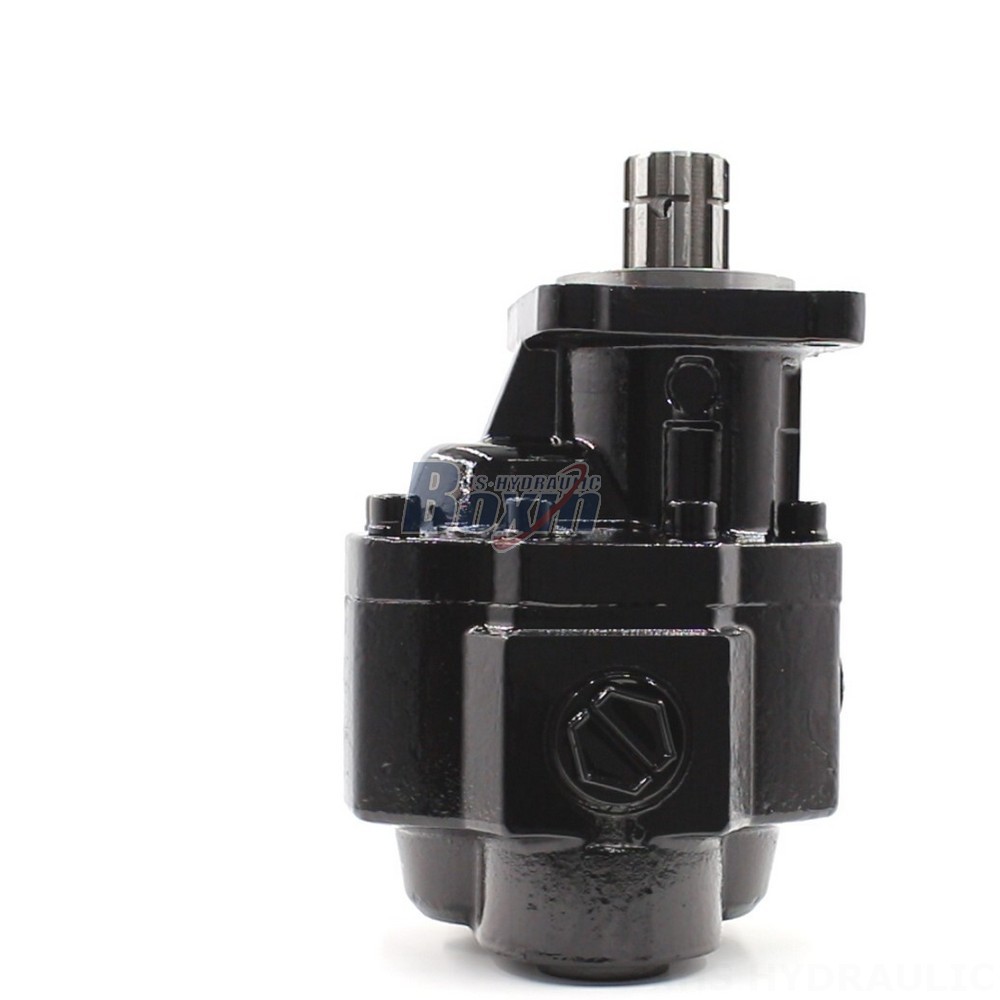

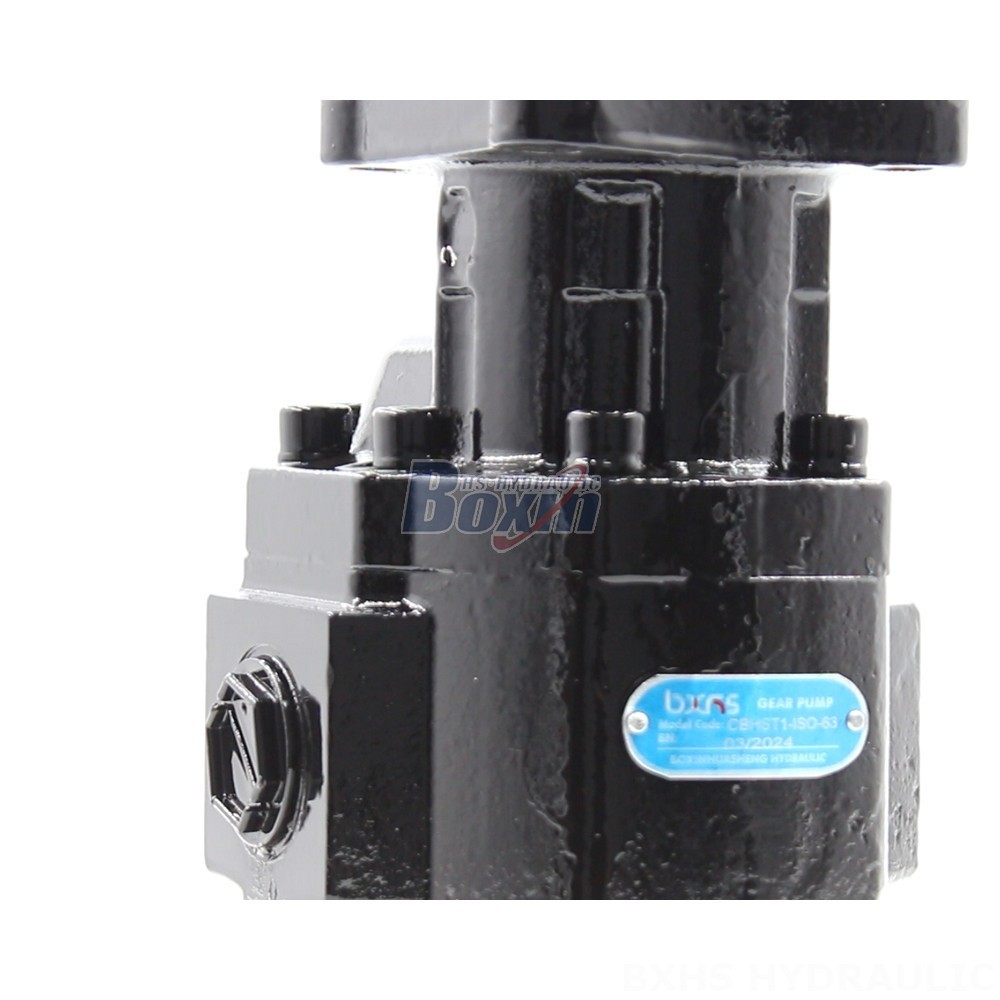

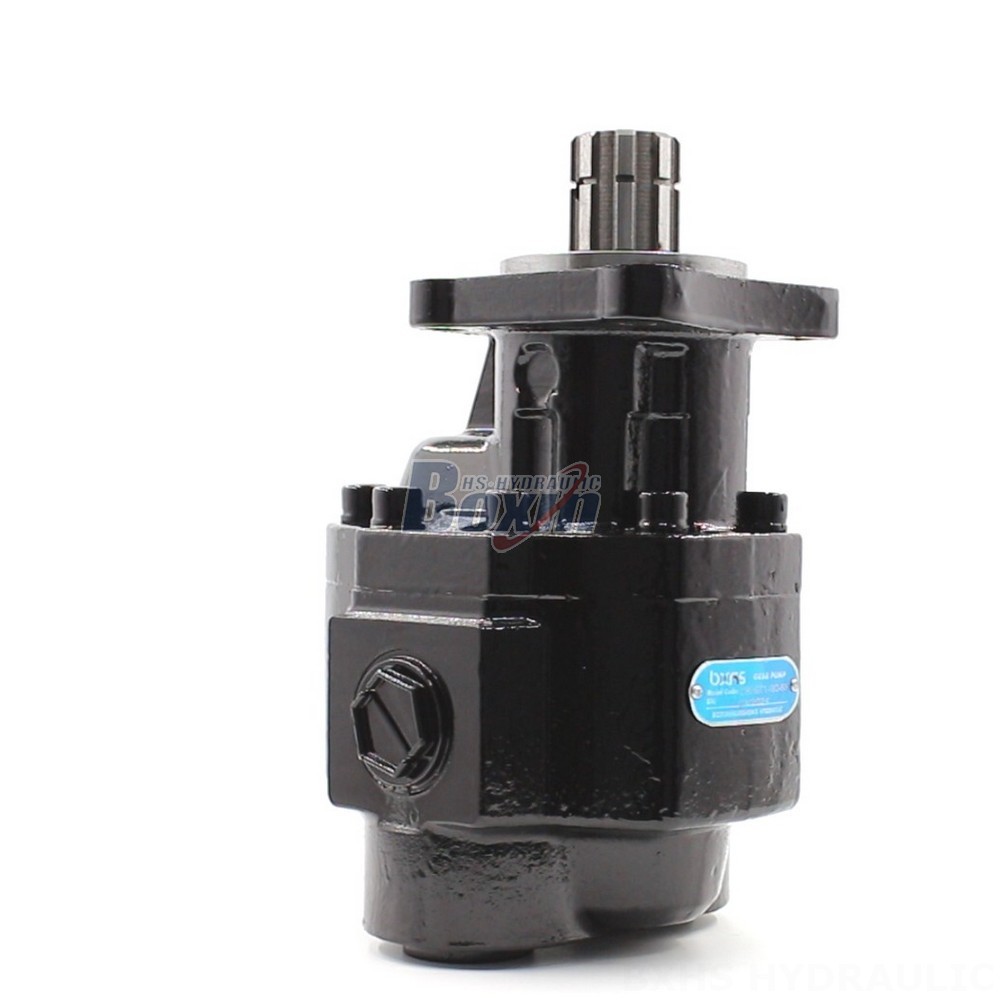

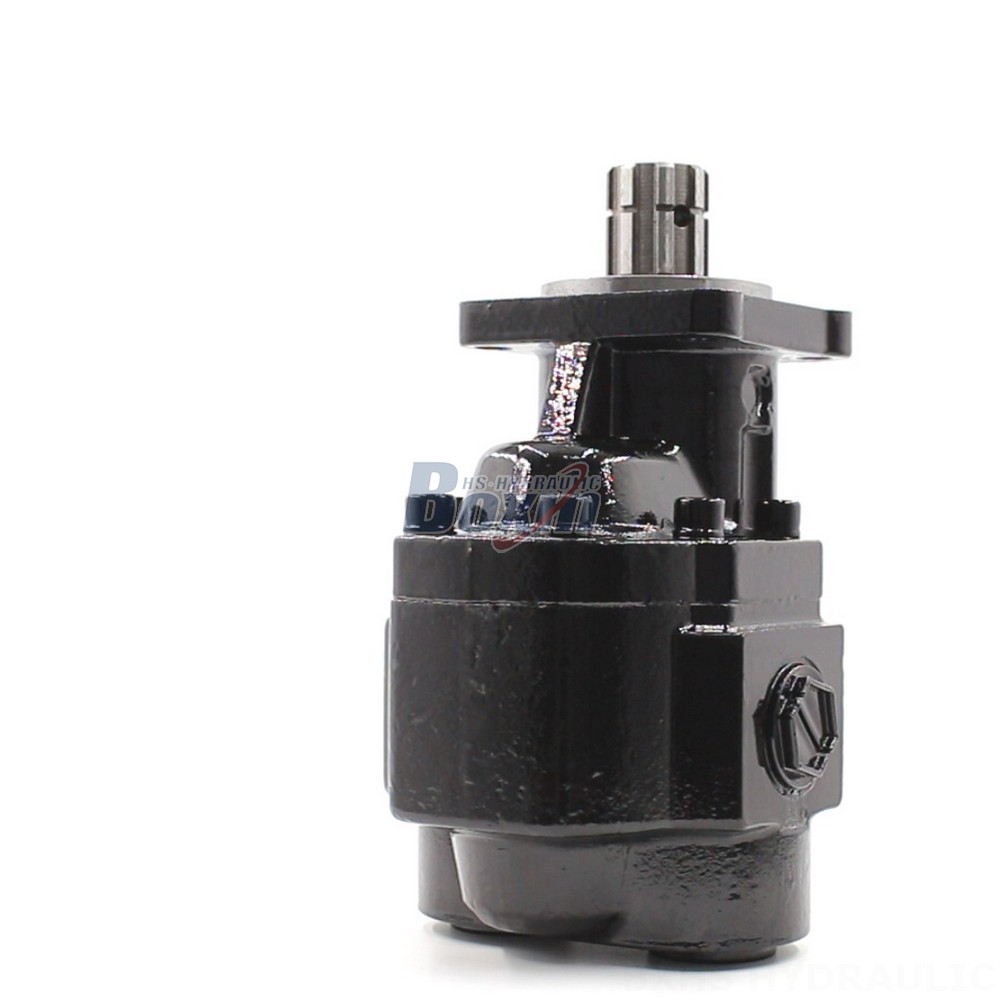

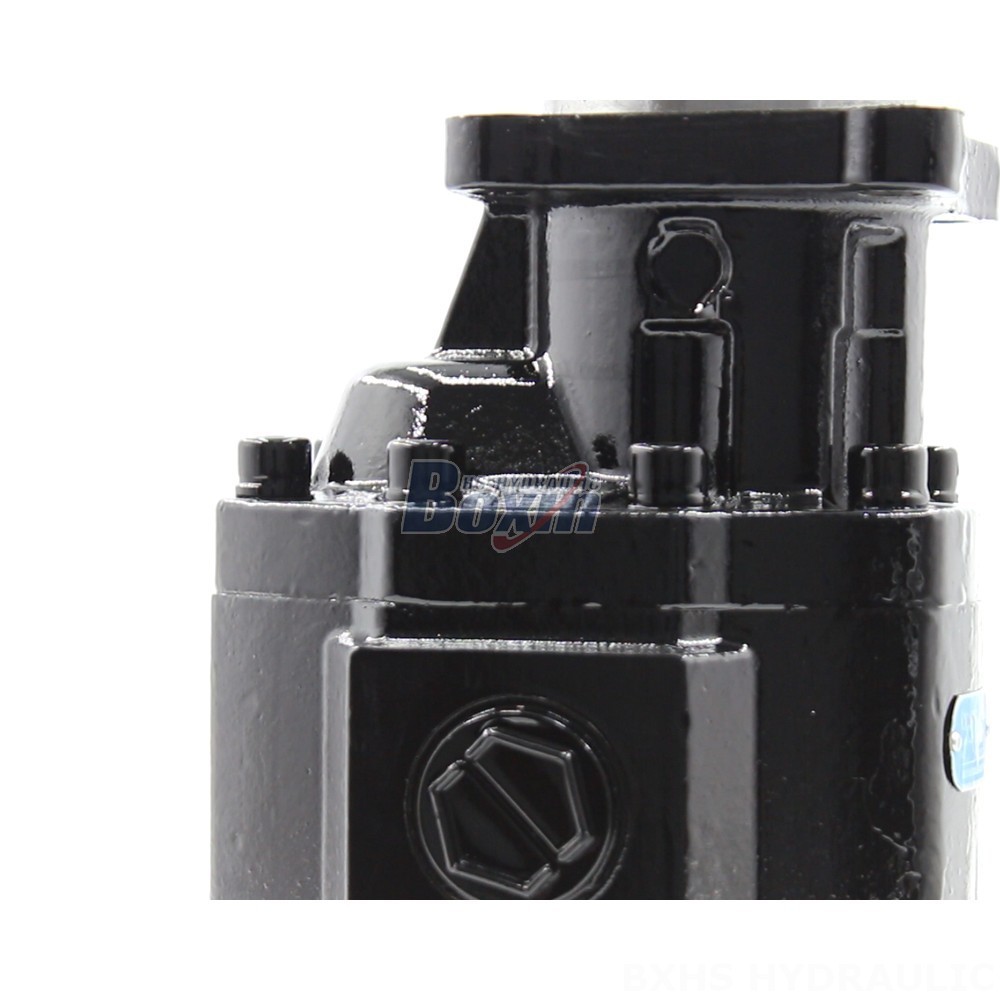

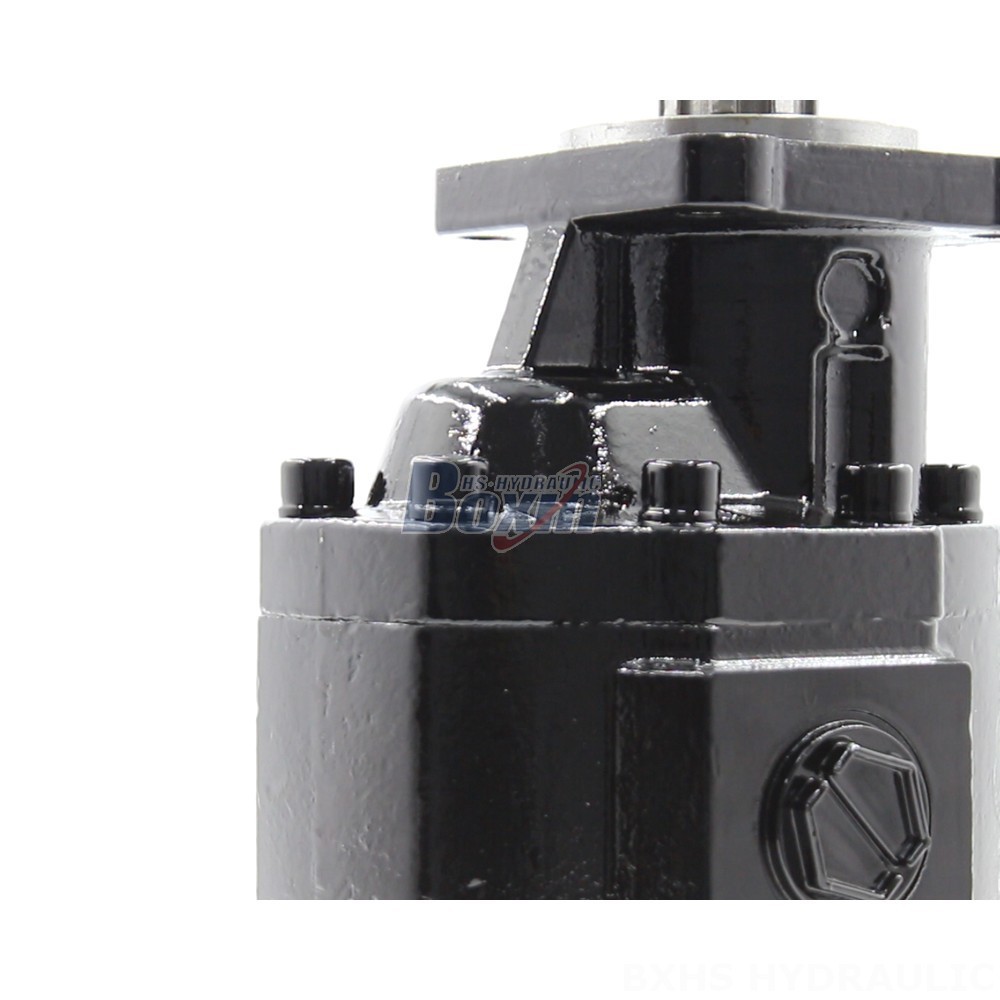

The High-Performance Hydraulic Gear Pumps are designed to optimize power and efficiency in a wide range of applications. With displacement options ranging from 32 cc/rev to 110 cc/rev and a rated pressure of 23 MPa, these pumps can handle demanding hydraulic systems in industries like construction, agriculture, and industrial vehicles.
| Série CBHST1-ISO Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 50 cc/tr, 63 cc/tr, 80 cc/tr, 100 cc/tr, 110 cc/tr, 34 cc/tr, 43 cc/tr, 90 cc/tr, 120 cc/tr, 82 cc/tr |
| Pression nominale | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Pression maximale | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | /: (Bidirectionnel) |
| Matériau | Fonte |
| Structure | Pompe à engrenages externes |
| Version de la bride | Trous de montage ISO-4 |
| Type d'arbre | H : Cannelures droites |
The pumps feature a robust cast iron construction and a versatile ISO-4 mounting flange for easy installation. The swashplate structure provides smooth and reliable operation, while the bidirectional rotation allows for flexibility in system design. The H-type rectangle spline shaft ensures compatibility with various hydraulic motors and components. Key applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini and midi-excavators, skid steer loaders, and compact wheel loaders.
