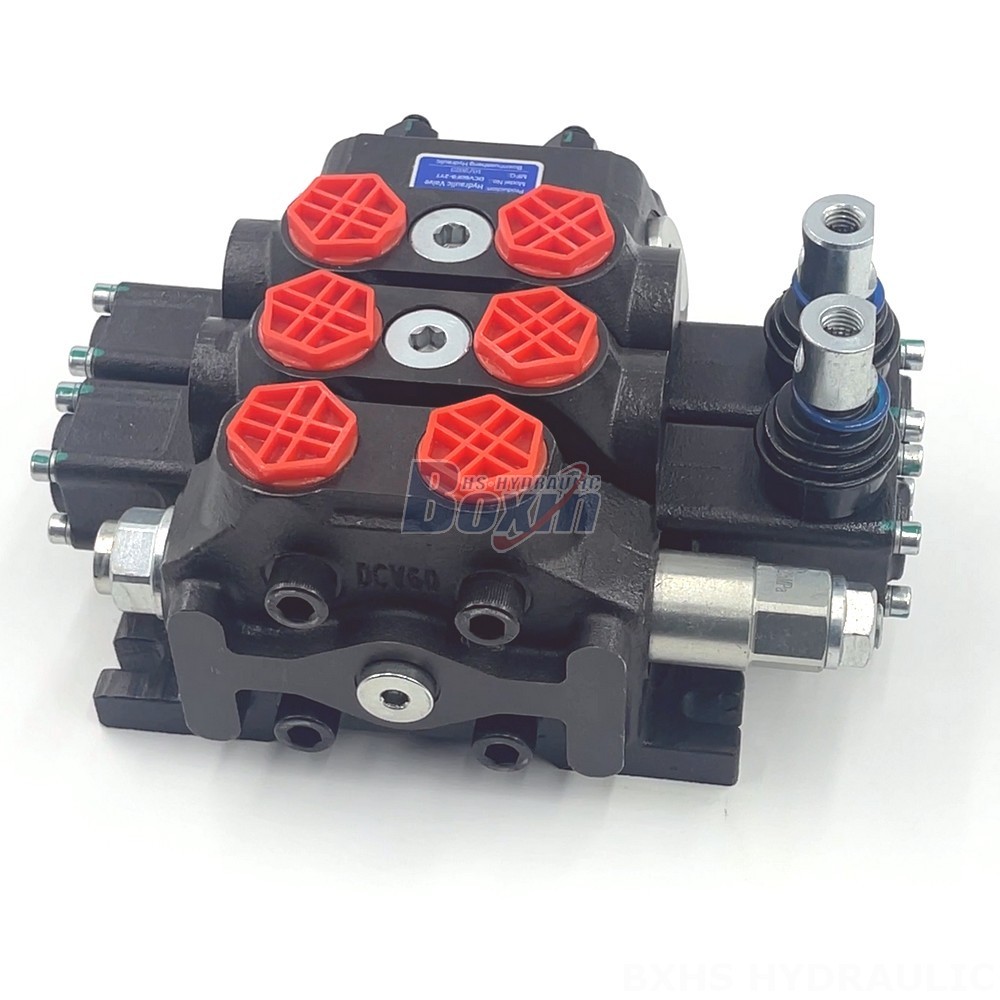

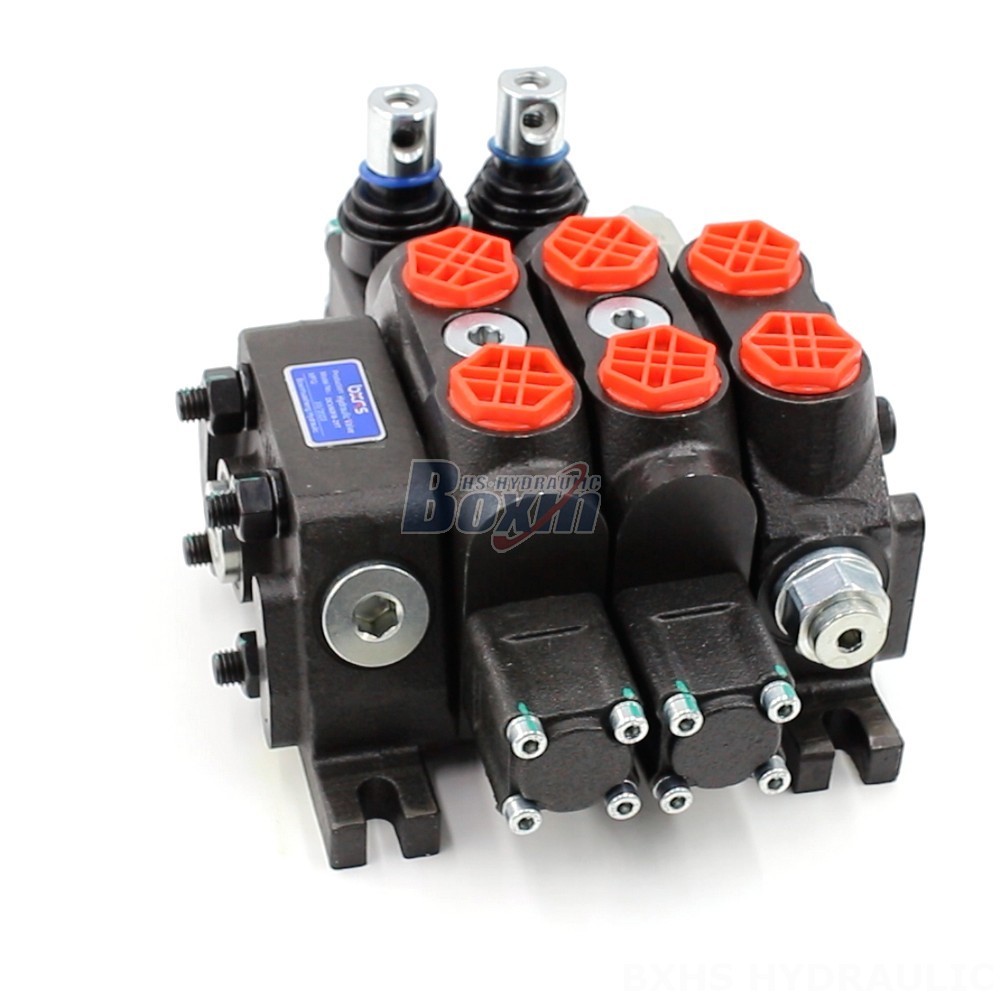

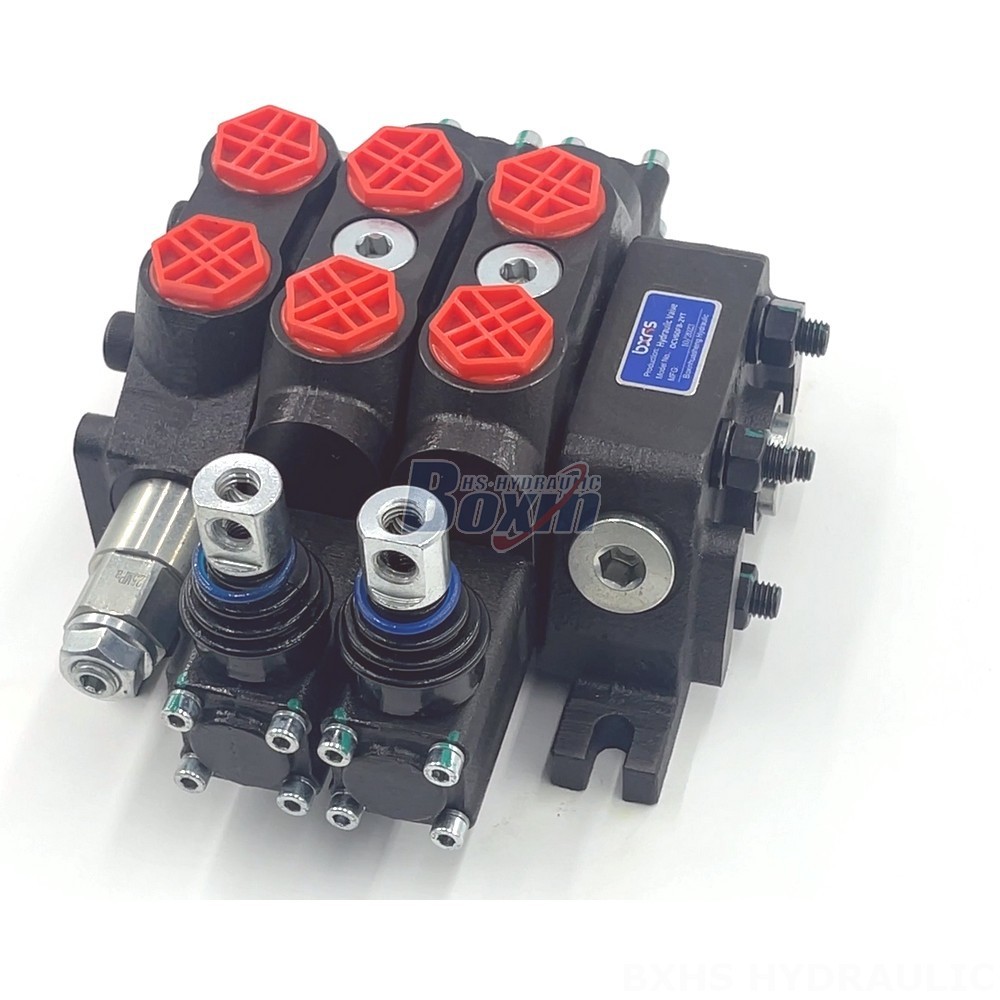

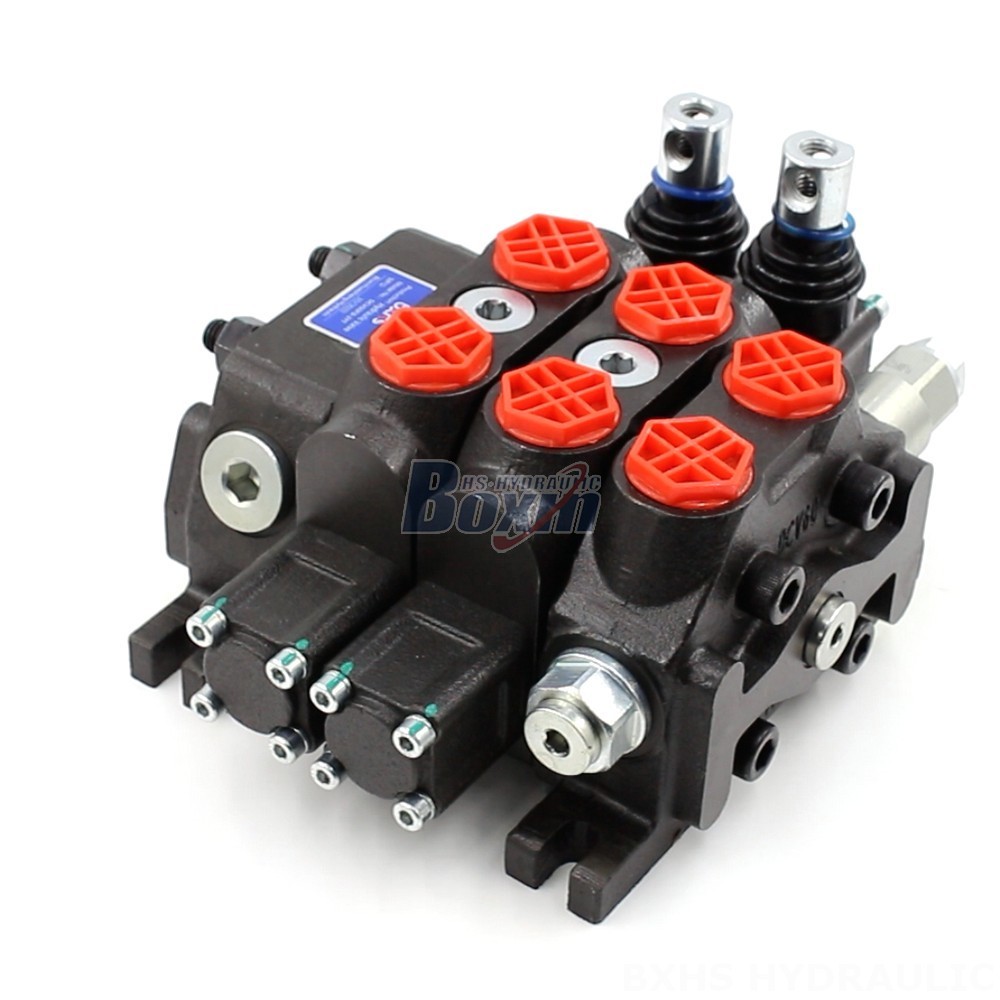

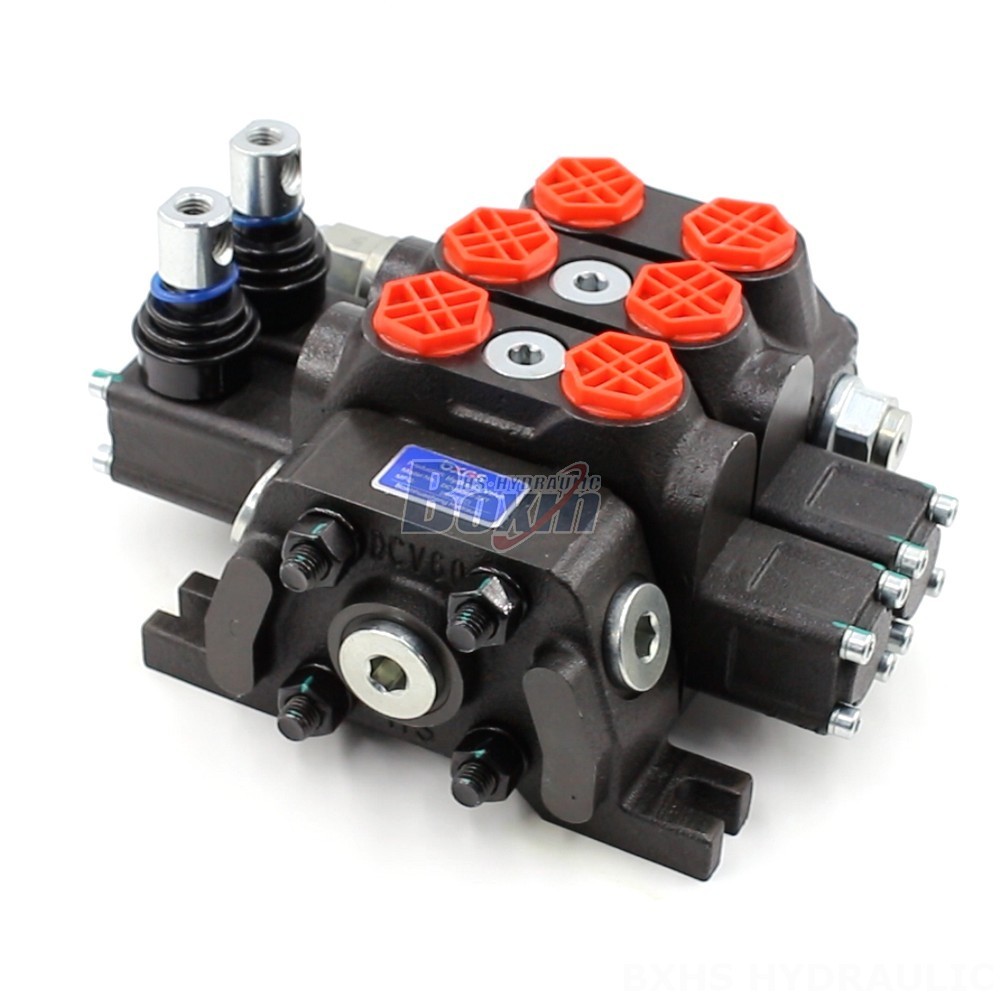

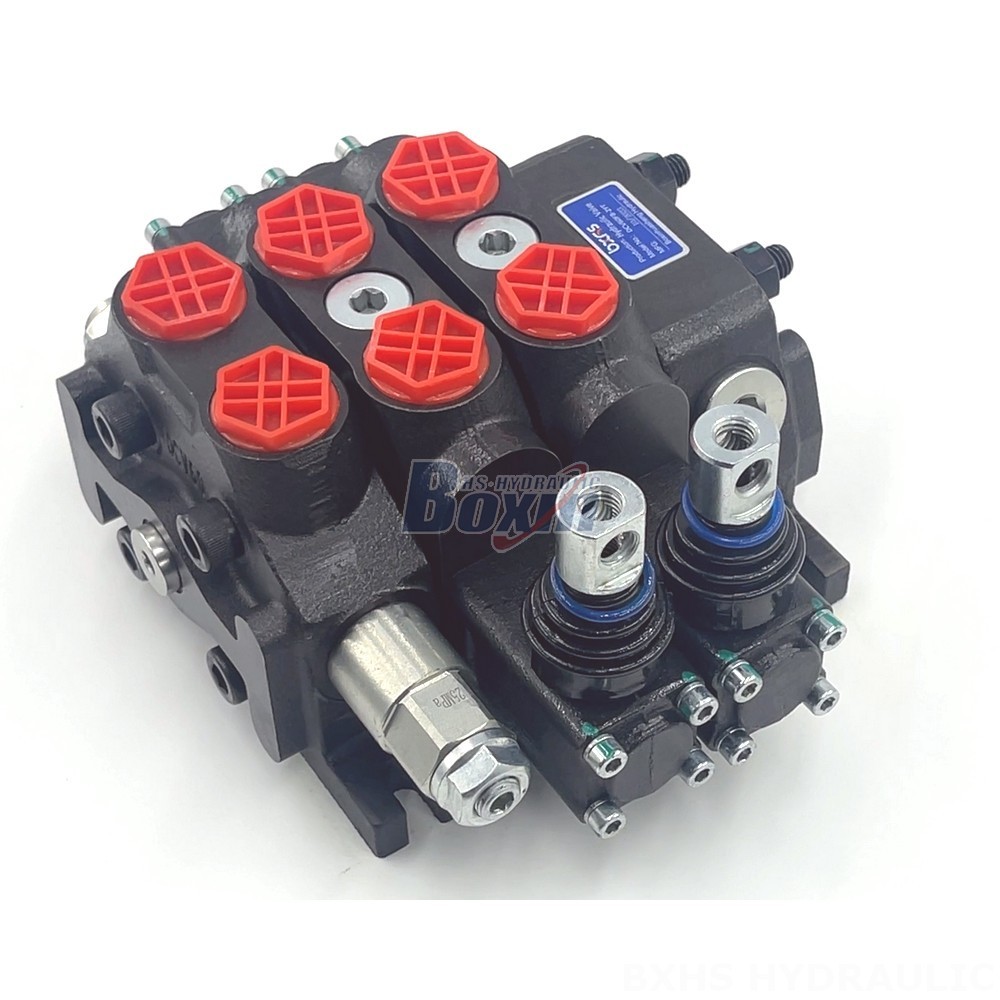

The DCV60 Series High-Performance Hydraulic Fluid Control Valve is a robust and reliable sectional valve designed for demanding hydraulic applications. Offering a rated flow of 60 L/min and maximum pressure of 350 bar, it is ideal for use in material handling, construction, and agricultural equipment.
| Série DCV60 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manuel, Solénoïde et manette, Manuel et manette, Moteur électrique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 60 L/min (15,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi), 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60 Series Hydraulic Fluid Control Valve is a high-performance, manually controlled sectional valve with a rated flow of 60 L/min and a maximum pressure of 350 bar. This valve features a 2-section design and is suitable for a wide range of operating viscosities, from 15 to 75 mm²/s. The DCV60 valve is designed for demanding hydraulic applications in various industries including material handling, construction, and agriculture. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve's robust construction and high-quality materials ensure reliable performance even in harsh operating conditions. Operating temperature range of -40°C to +80°C (-40°F to +176°F) further enhances its versatility for various applications.
