Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1414 personnes consultent ce produit

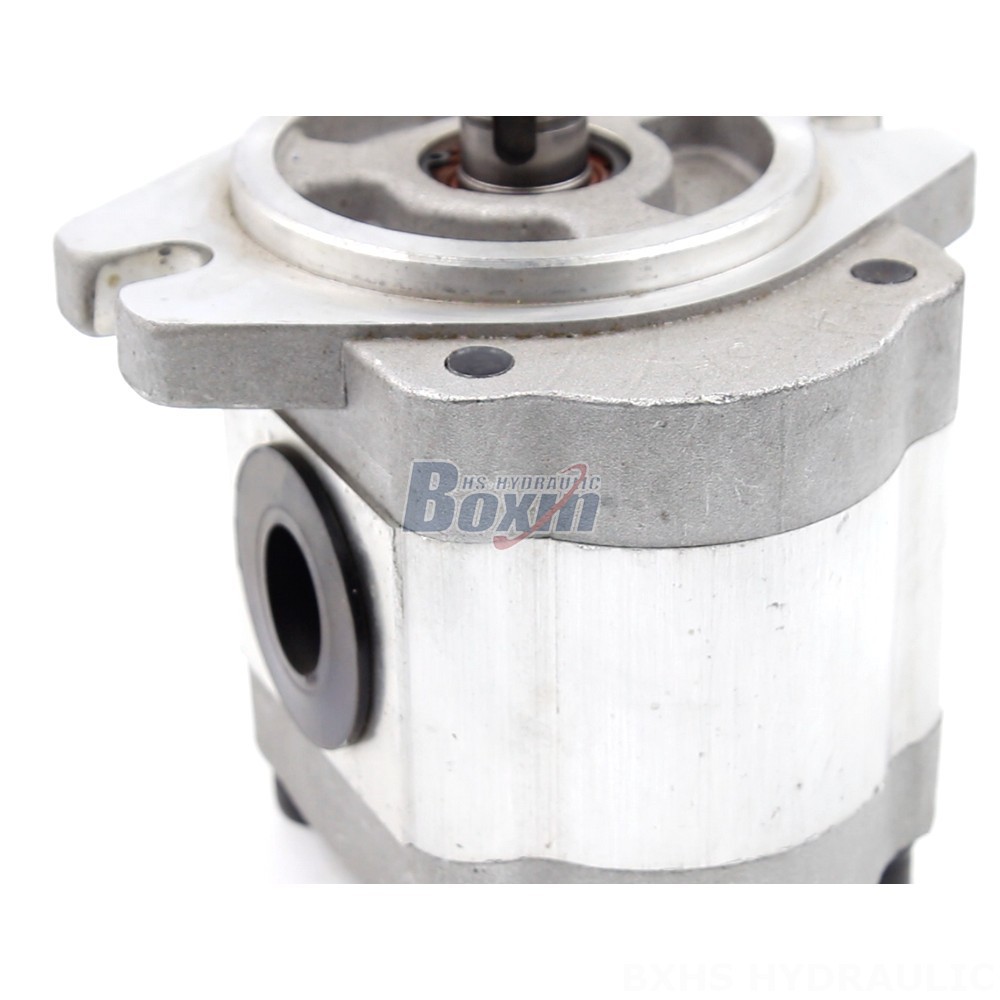

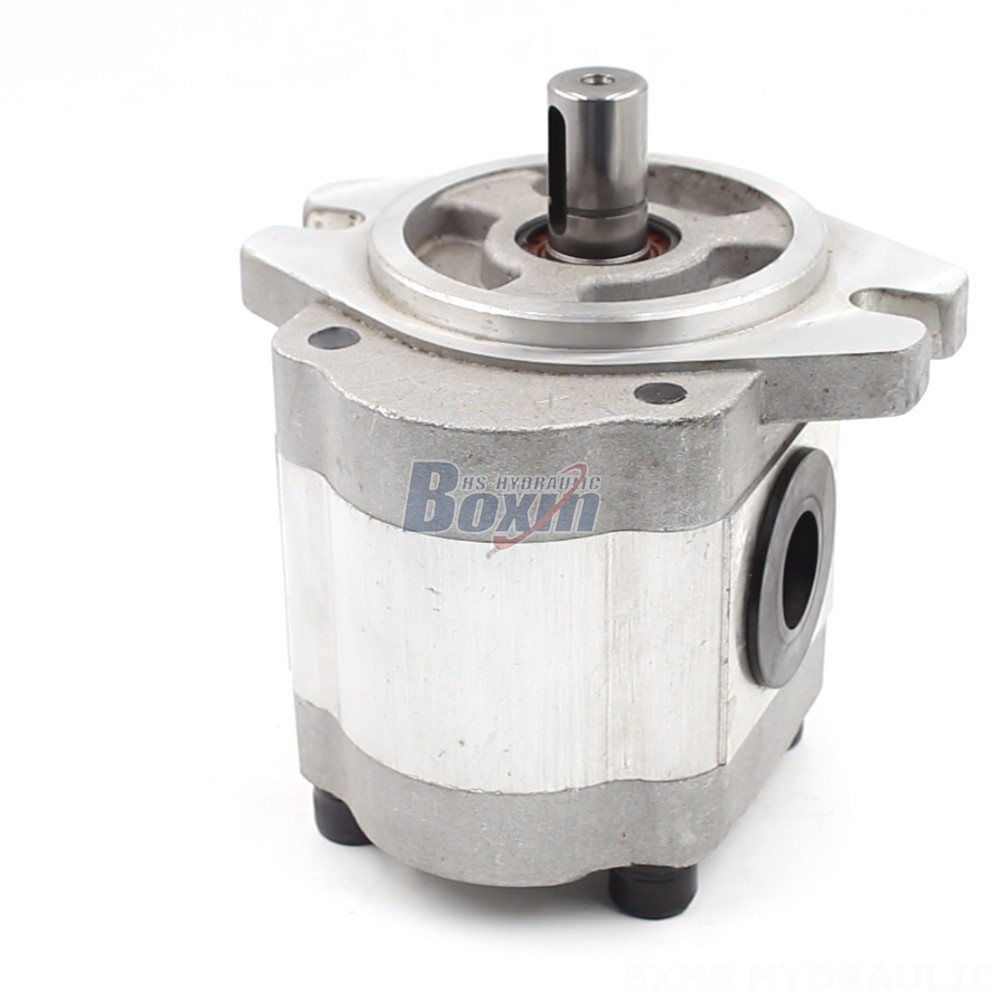

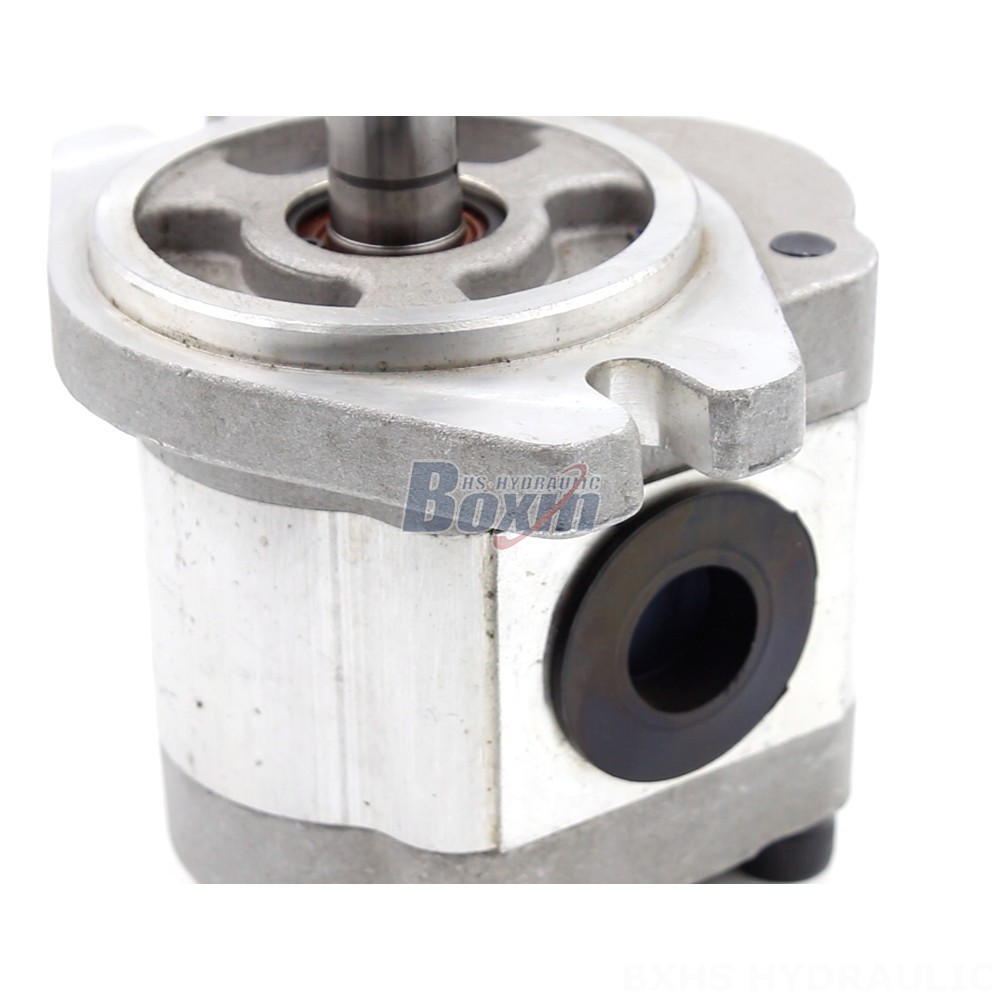

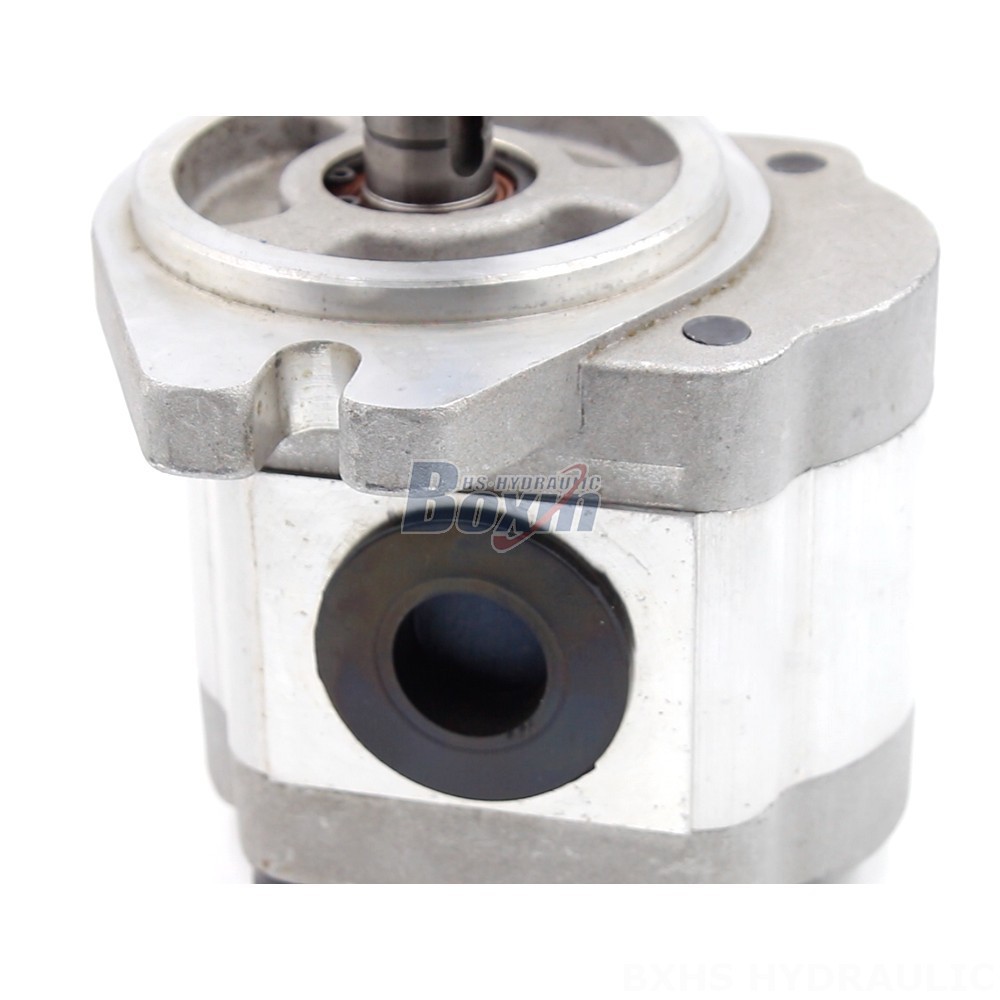

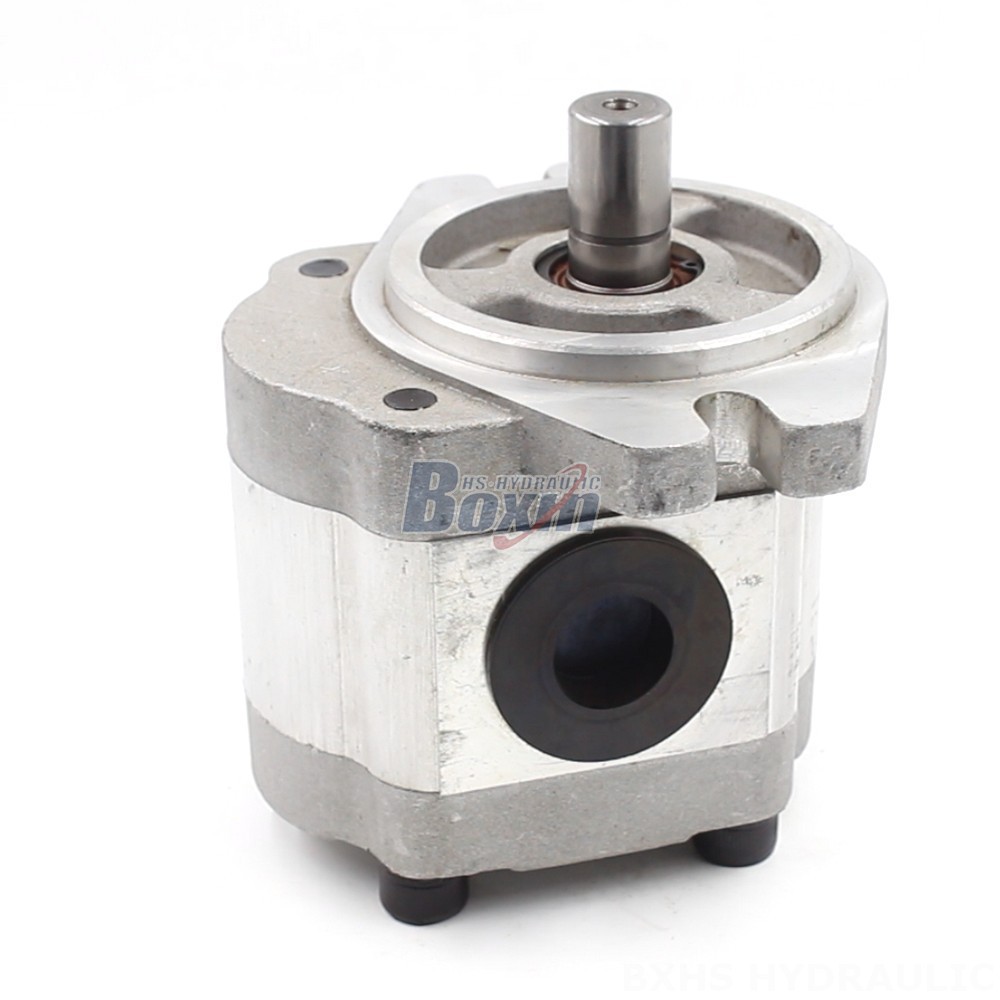

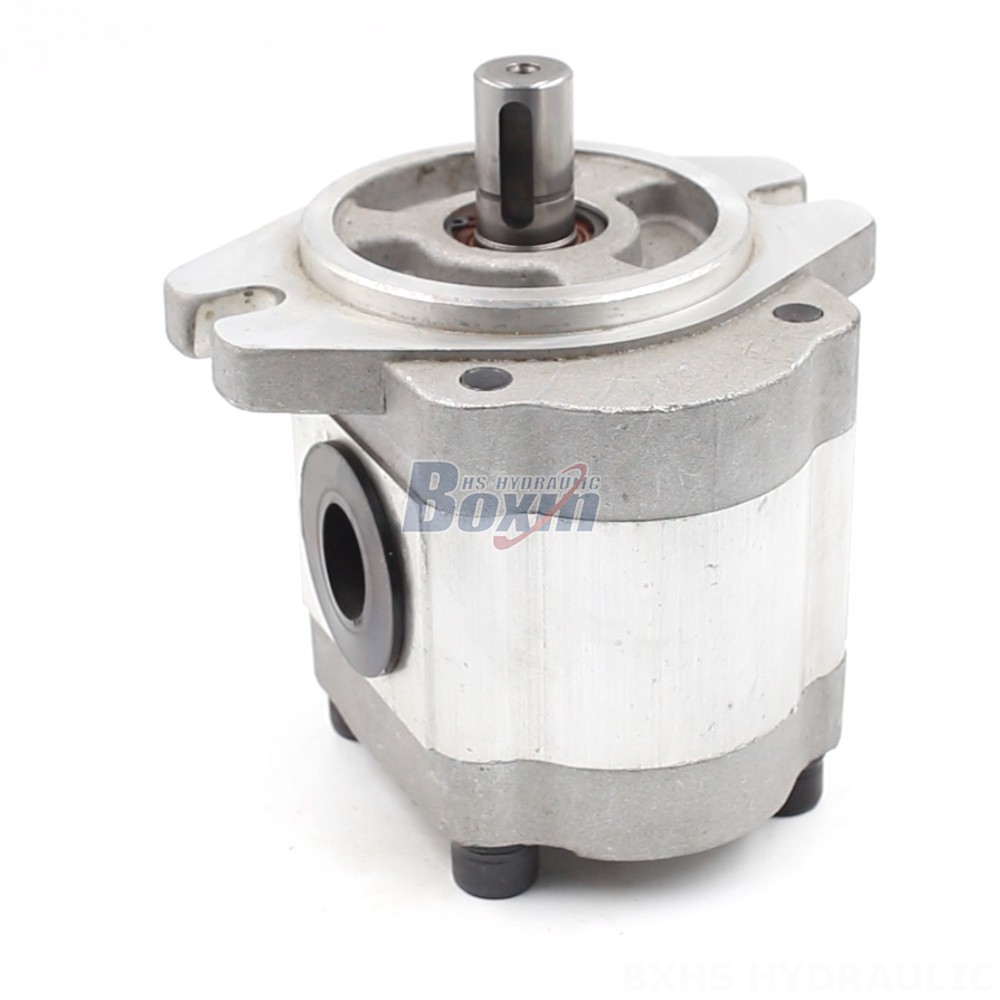

This is a high-performance 6 cc/rev hydraulic gear pump designed for various applications including construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa rated pressure, and 2000 r/min rated speed, making it suitable for demanding tasks.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
This high-performance 6 cc/rev hydraulic gear pump is a robust and reliable solution for various applications. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed. The pump can withstand a maximum speed of 3000 r/min. It's available in both left (counter-clockwise) and right (clockwise) rotations. The pump features an internal gear design, is constructed from aluminium, and comes with an A-Oval flange and a plain key shaft. This pump is part of the CBHS-FL3 Series, making it ideal for applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers.
