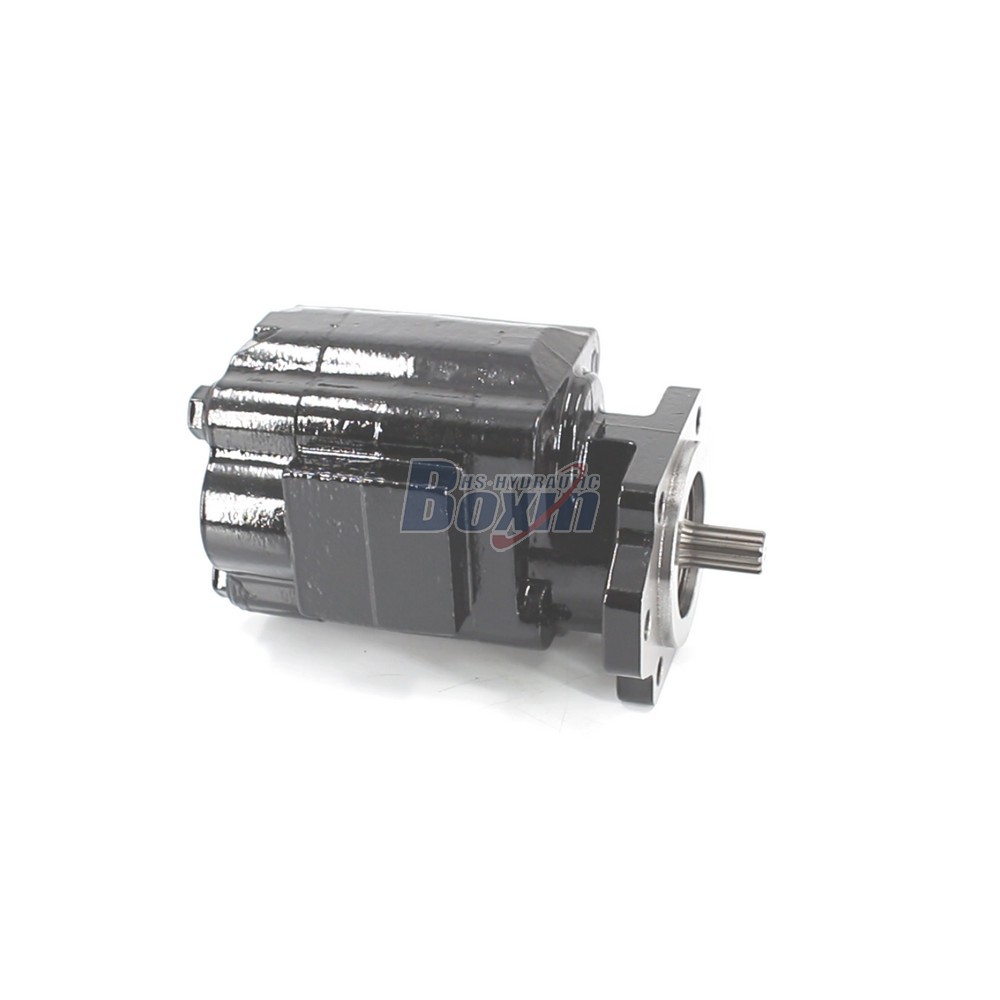

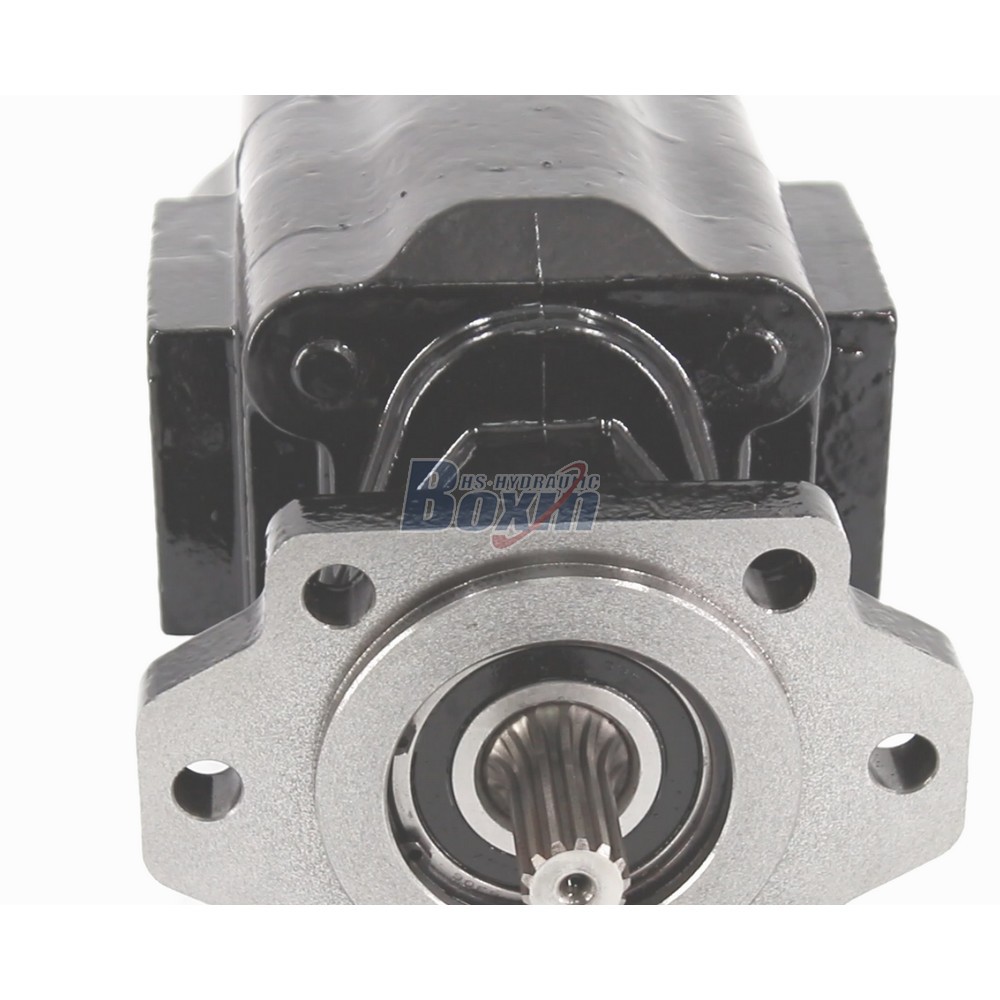

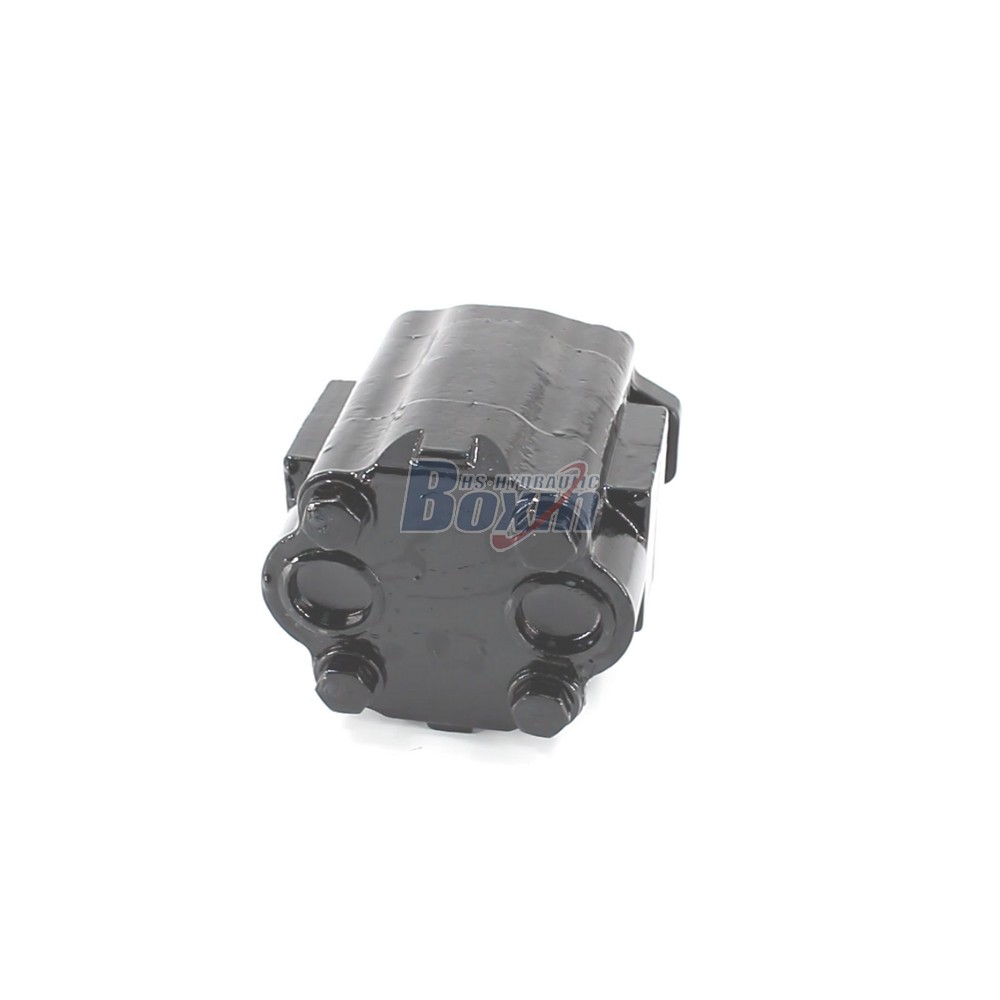

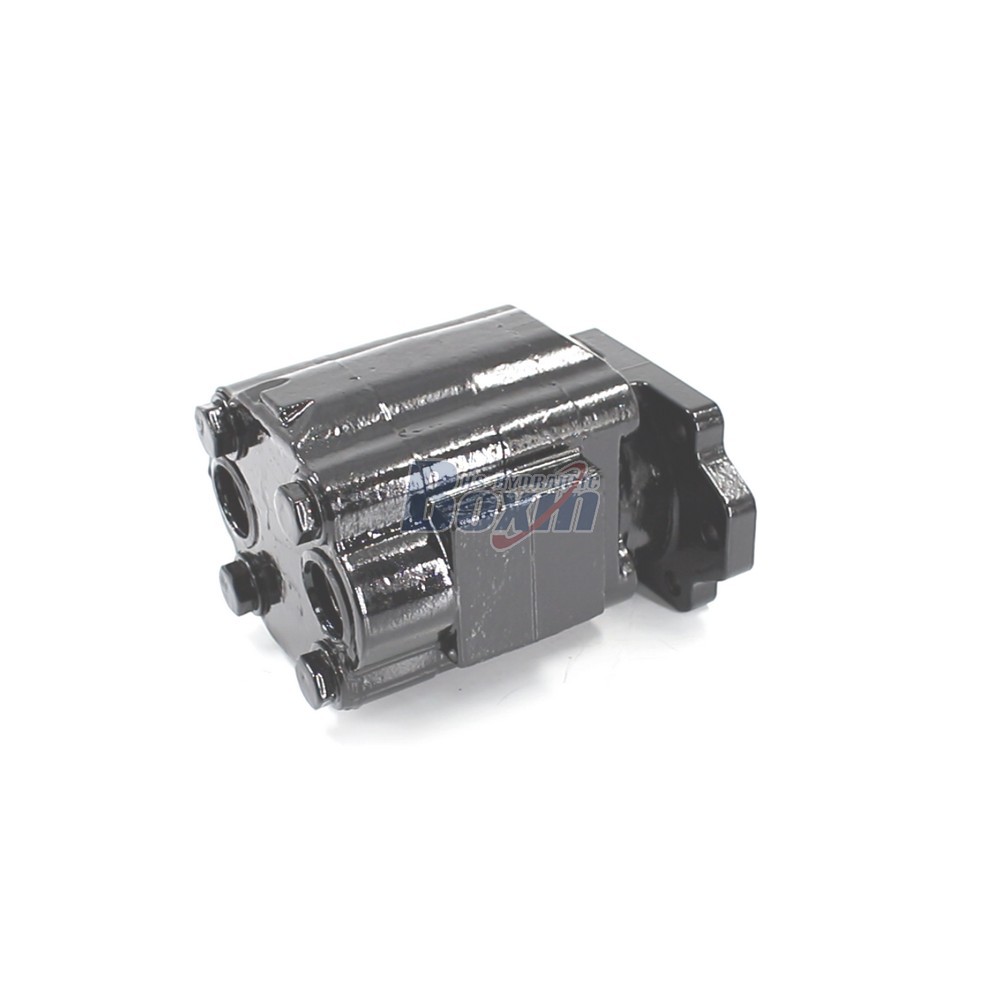

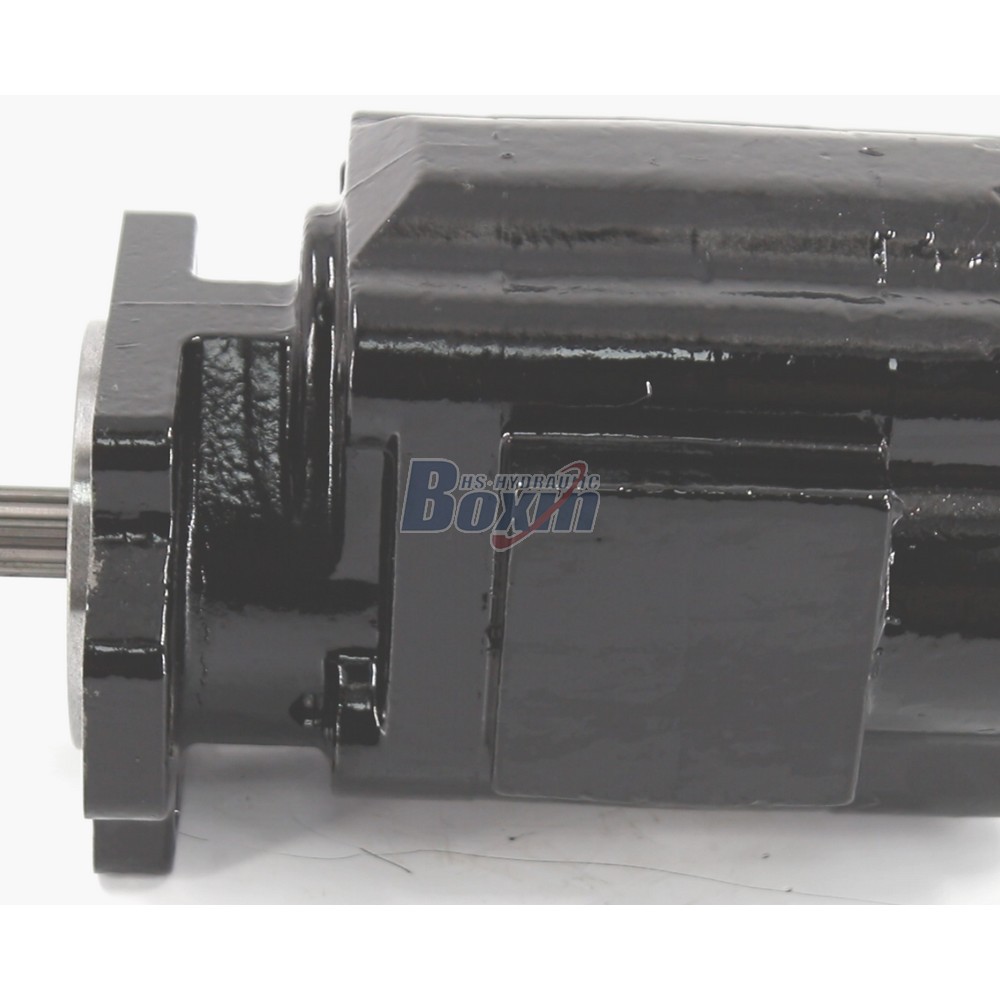

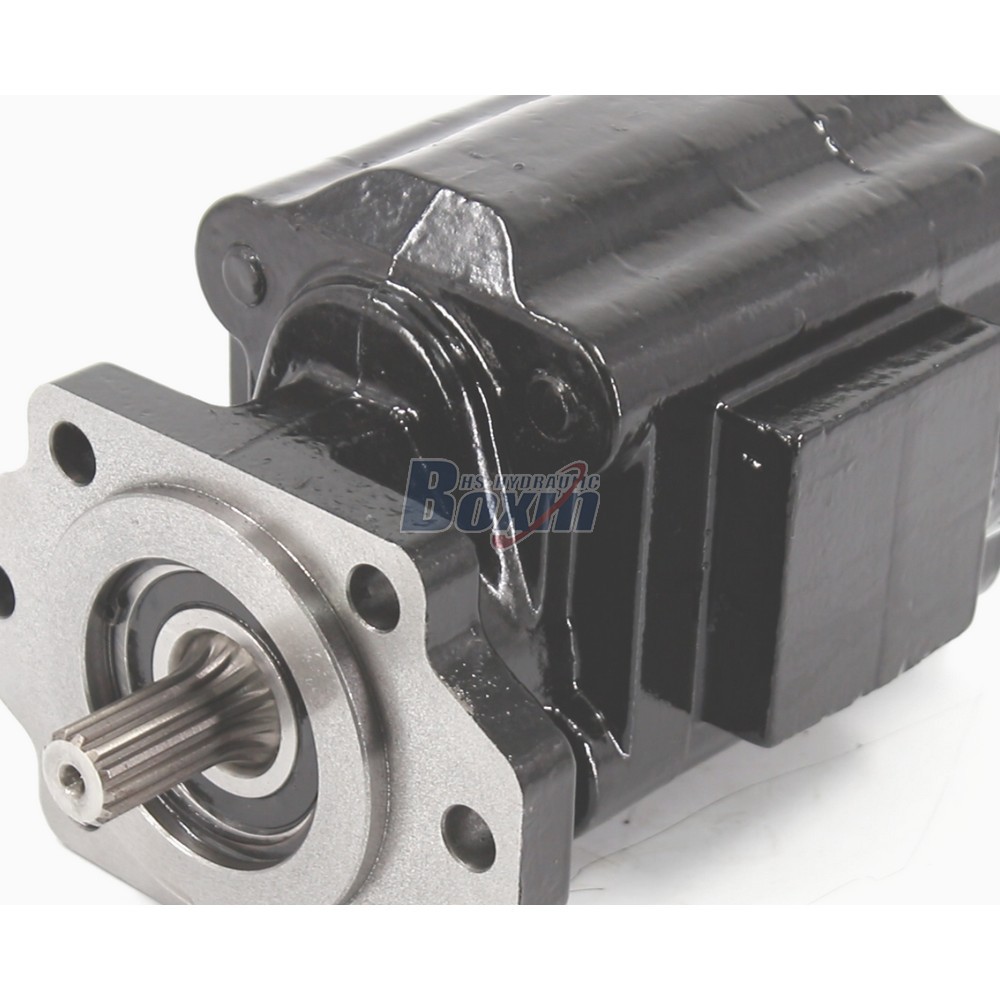

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Cylindrée:104,5 cm³/tr

Pression nominale:16 MPa (2320 psi)

Pression maximale:17 MPa (2465 psi)

Vitesse maximale:2 400 tr/min

Rotation:/: (Bidirectionnel)

Marque:BXHS

Type de produit:Pompe hydraulique à engrenages

Série de produits:Série P51 Pompe hydraulique à engrenages

Taille de l'emballage:34*17*17

Poids brut:24.00 kg

Disponibilité: En stock

149 personnes consultent ce produit

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump drawing image

As a leading manufacturer of large-scale hydraulic solutions, we offer the high-performance P51A646TEYR25-25 Hydraulic External Gear Pump. This heavy-duty series features a 104.5 cc/rev displacement and bidirectional rotation, designed for stable power transmission in demanding industrial and mobile applications.

Série P51 Pompe hydraulique à engrenages Paramètres
Cylindrée 104,5 cm³/tr, 21 cm³/tr, 41,8 cm³/tr, 52,3 cm³/tr, 62,7 cm³/tr, 64,6 cm³/tr
Pression nominale 16 MPa (2320 psi)
Pression maximale 17 MPa (2465 psi)
Vitesse nominale 2 200 tr/min
Vitesse maximale 2 400 tr/min
Rotation /: (Bidirectionnel)
Matériau Fonte
Structure Pompe à engrenages externes
Version de la bride A - Bride ovale, Trous de montage ISO-4, Bride SAE
Type d'arbre X : Cannelures hélicoïdales

Our factory specializes in the mass production of the P51A646TEYR25-25 Heavy Duty Hydraulic External Gear Pump, delivering 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi). Engineered for versatility, this bidirectional model supports speeds ranging from 600 to 2400 r/min, making it suitable for a wide variety of construction, agricultural, and industrial machinery. As a global manufacturing partner, we provide comprehensive services including OEM, private labeling, and custom engineering to meet specific technical requirements. We are currently expanding our international network and actively seeking long-term cooperation with distributors, wholesalers, agents, and professional traders. By sourcing directly from our facility, partners benefit from reliable factory supply, competitive wholesale pricing, and rigorous quality control. Whether you need bulk orders for retail or specialized units for large-scale equipment, our manufacturing expertise ensures performance and durability in every pump.
