Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1238 personnes consultent ce produit

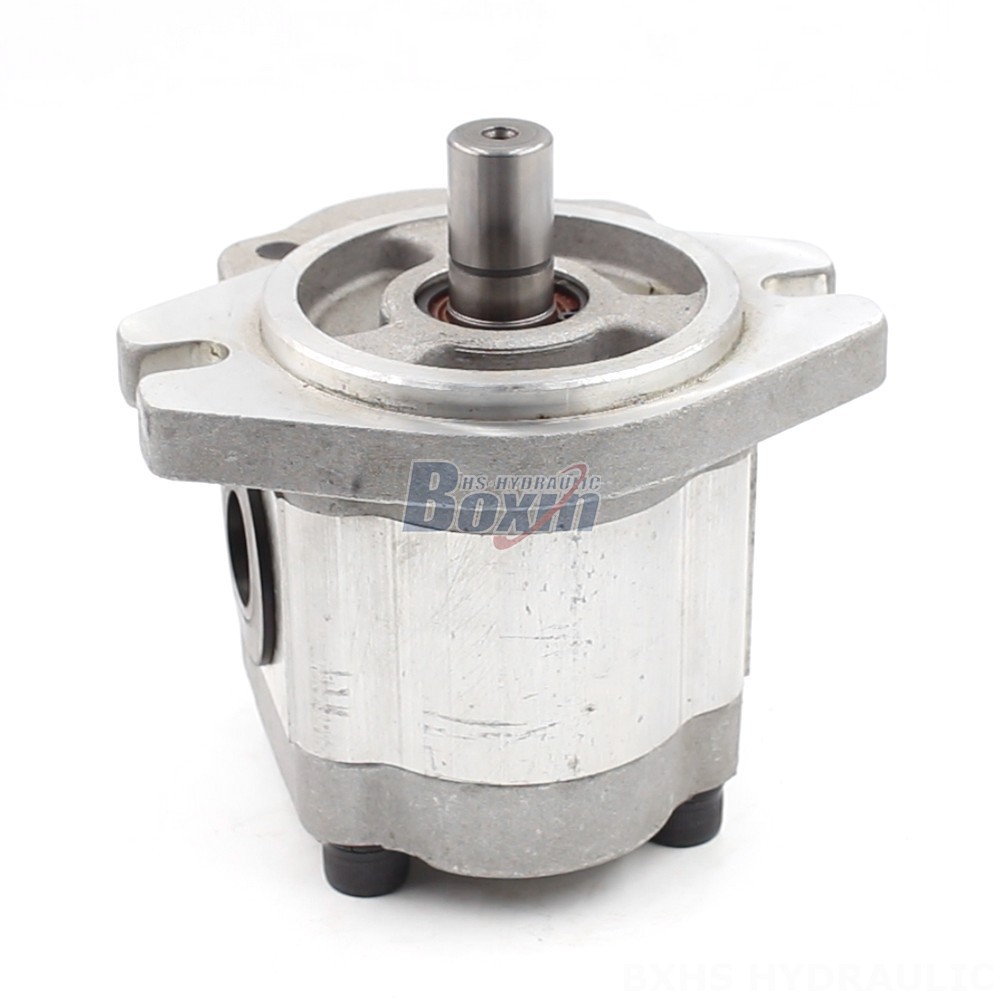

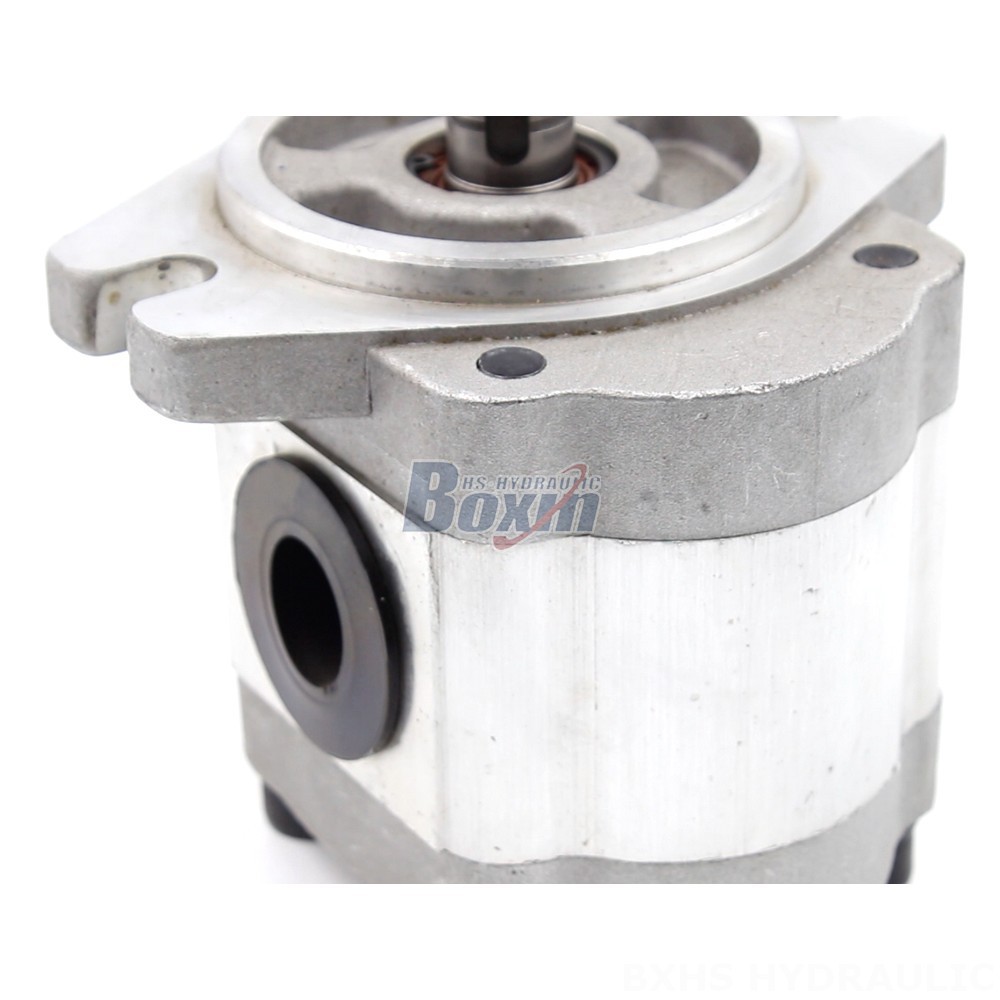

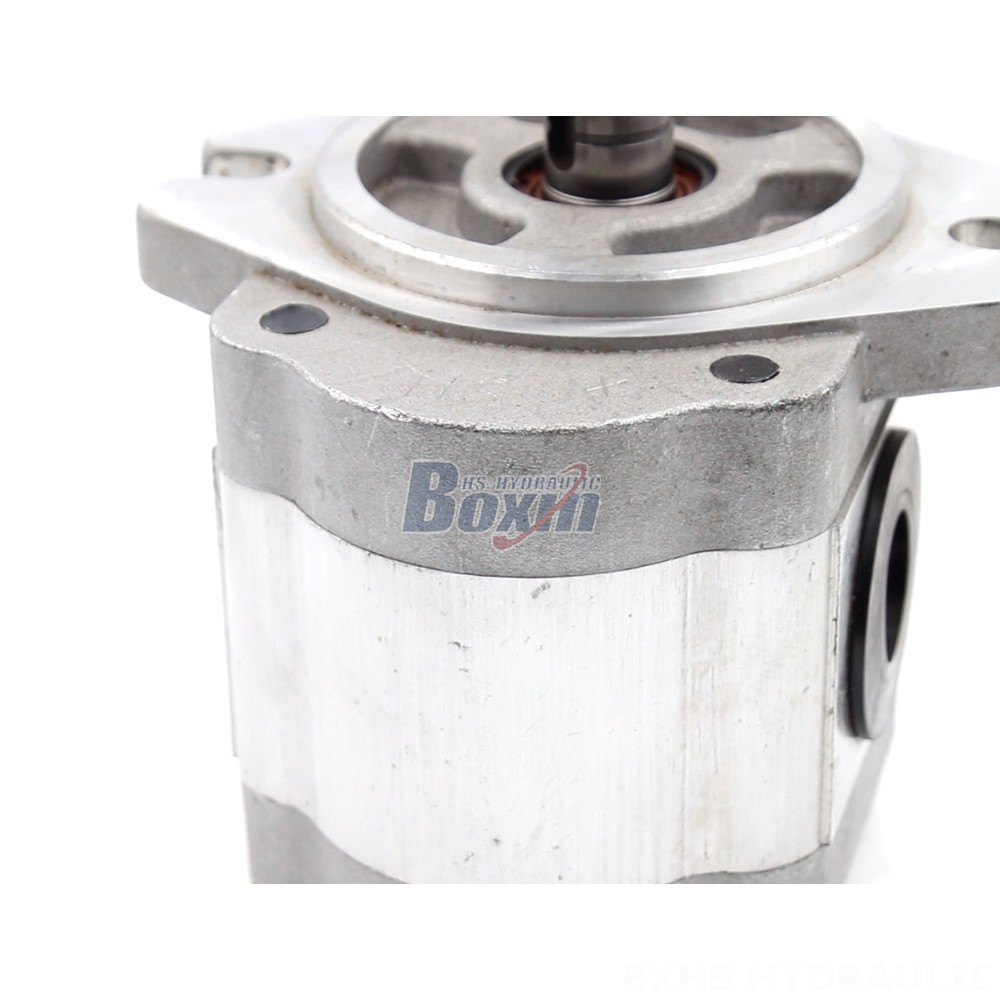

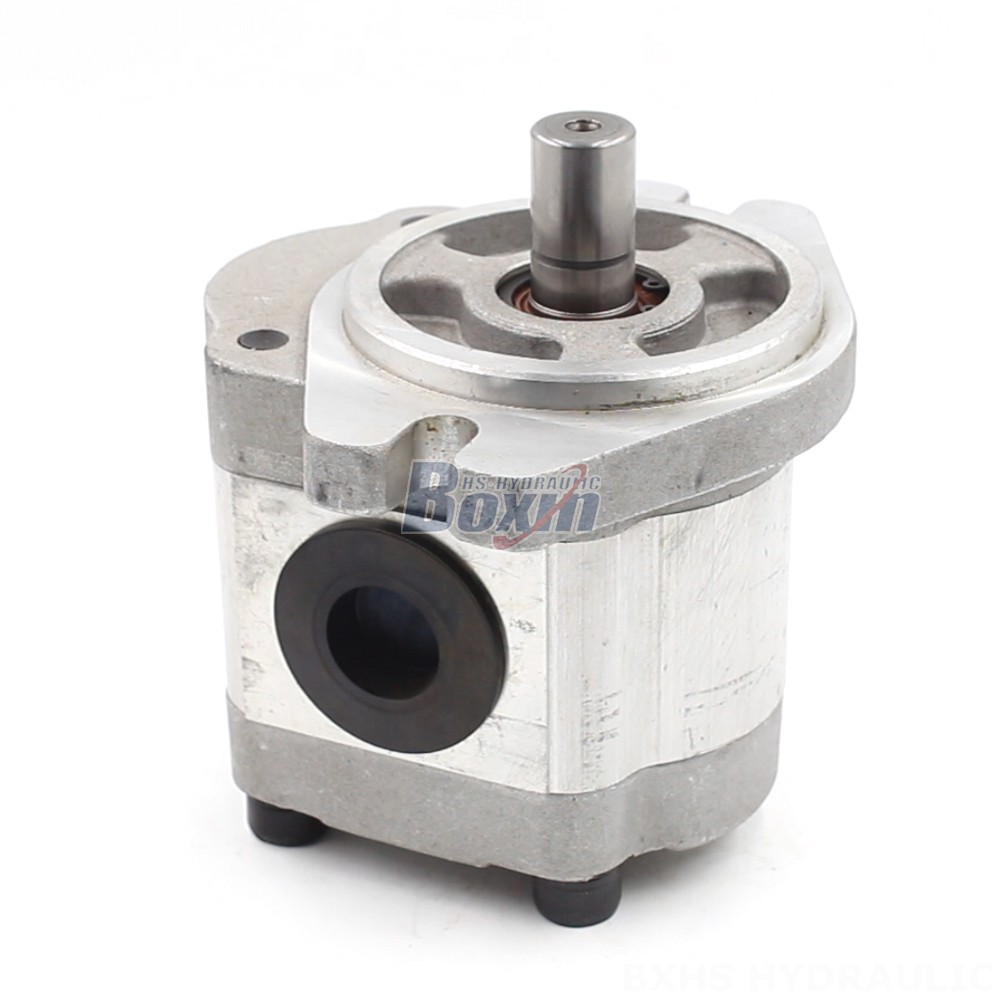

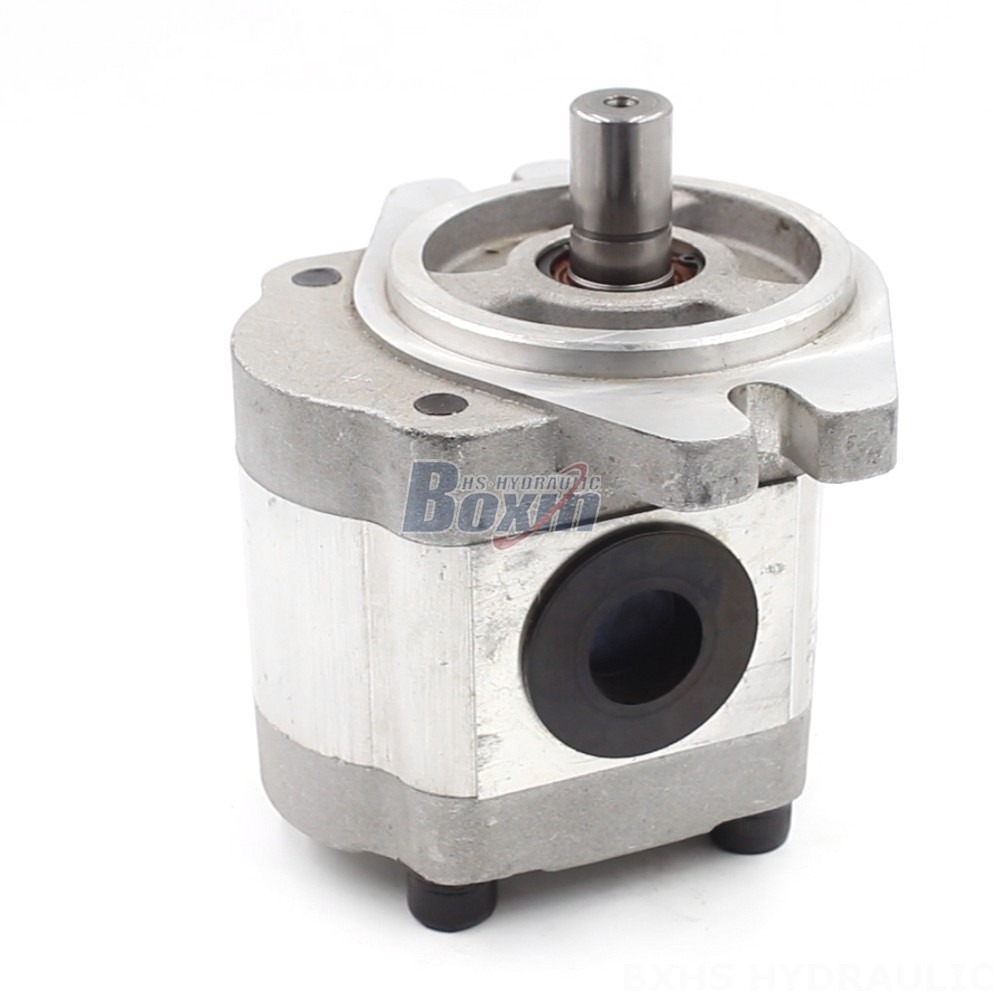

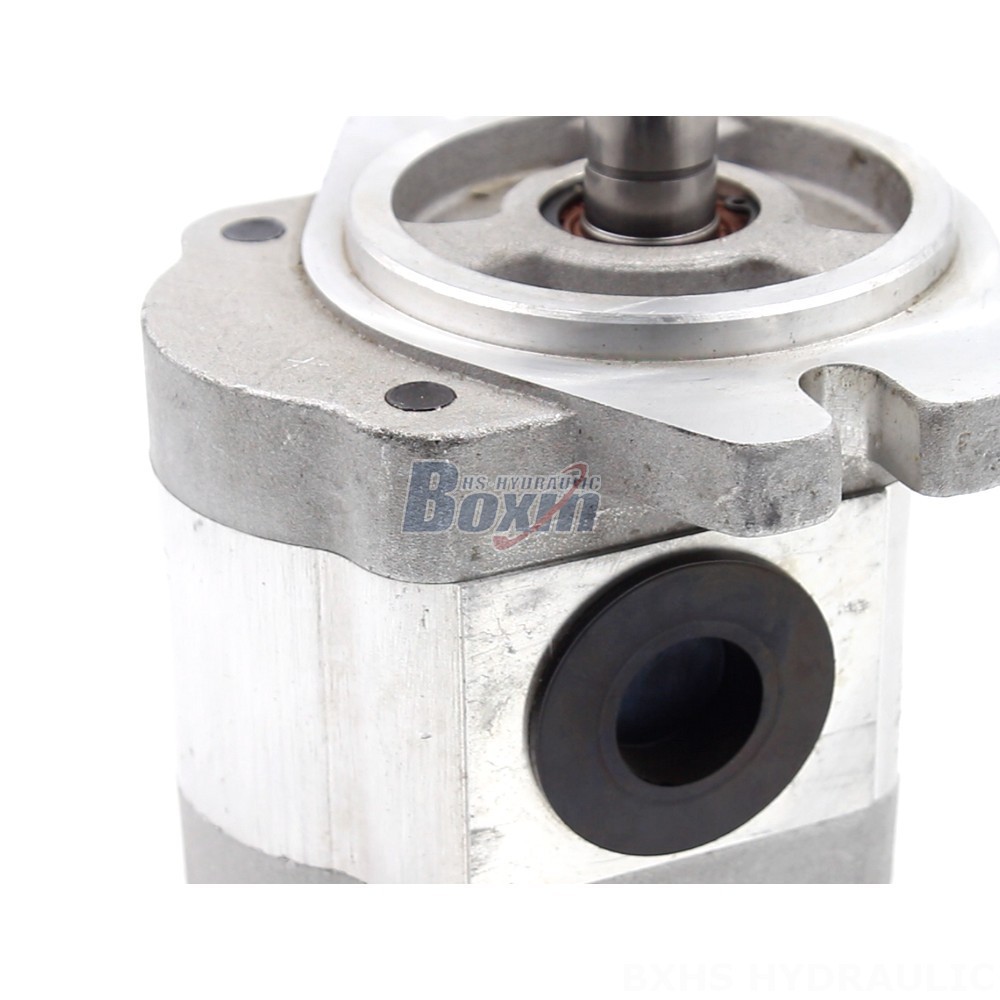

This heavy-duty 6 cc/rev hydraulic gear pump, manufactured in China, is designed for high-performance applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, 20 MPa rated pressure, and 2000 r/min rated speed, it delivers reliable power and efficiency.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
The CBHS-FL3 Series hydraulic gear pump features a robust internal gear design and is constructed from durable aluminum. It offers a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available with left or right rotation options and comes with an A-oval flange and plain key shaft. Its versatility makes it suitable for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers.
