Production et livraison
Délai de production de 15 à 30 jours

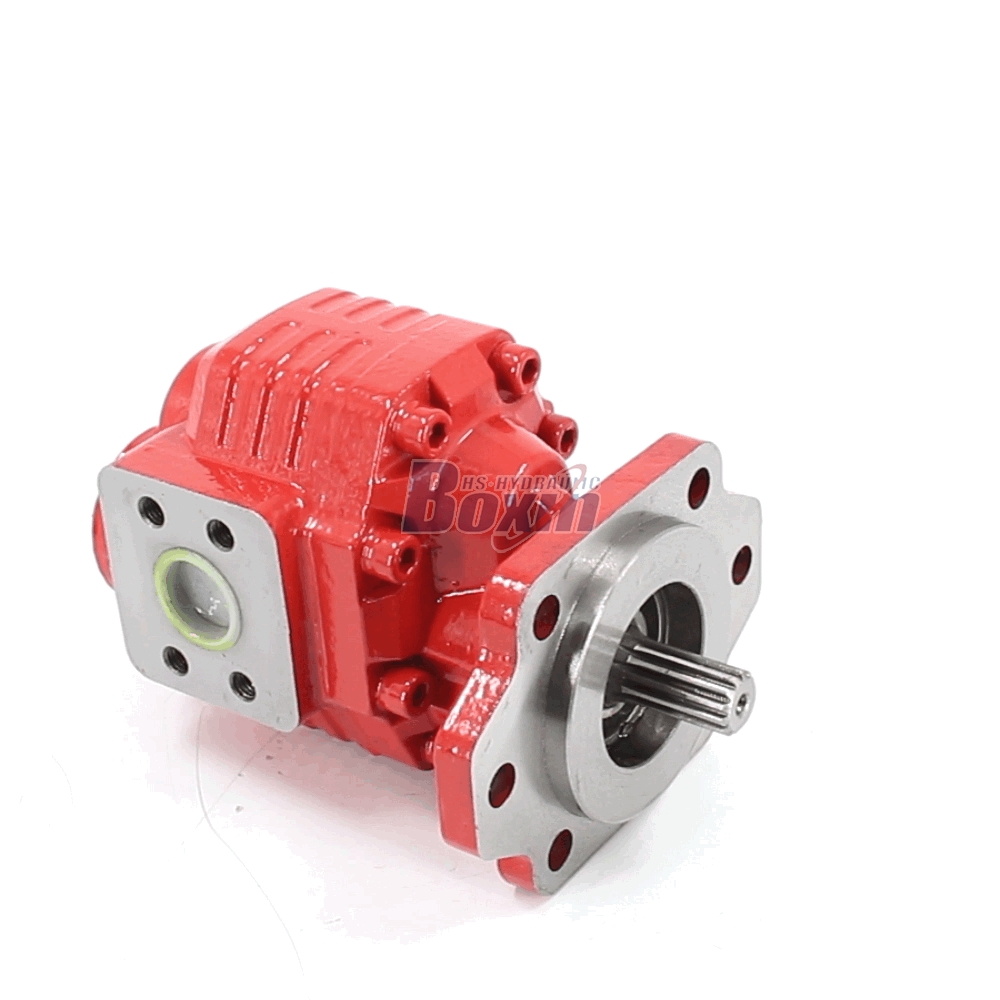

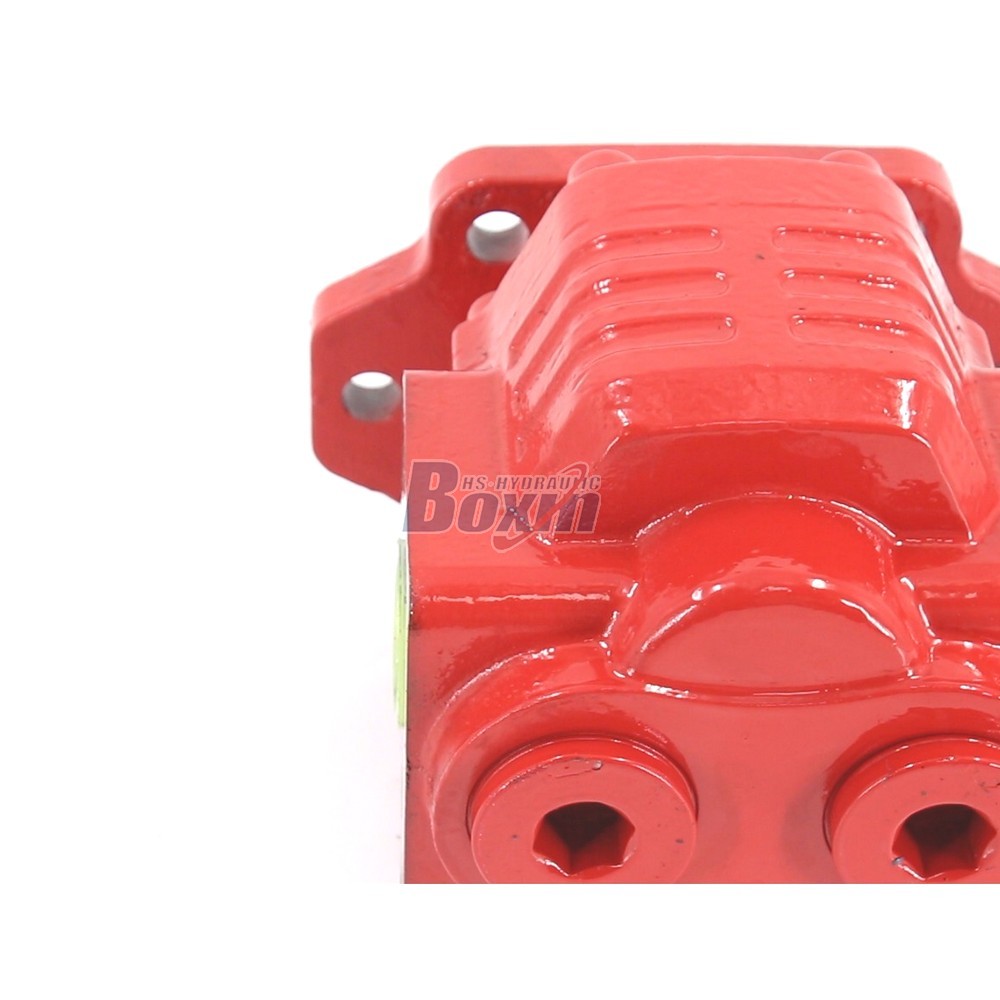

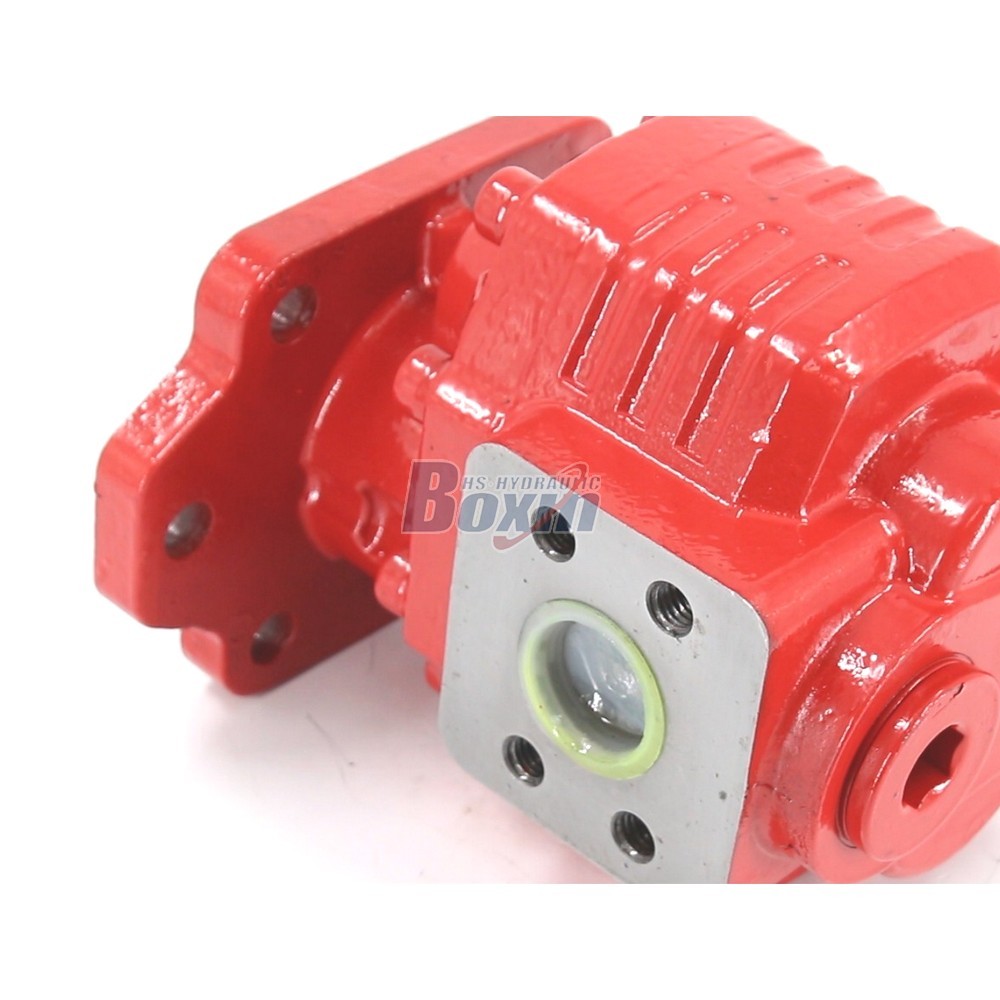

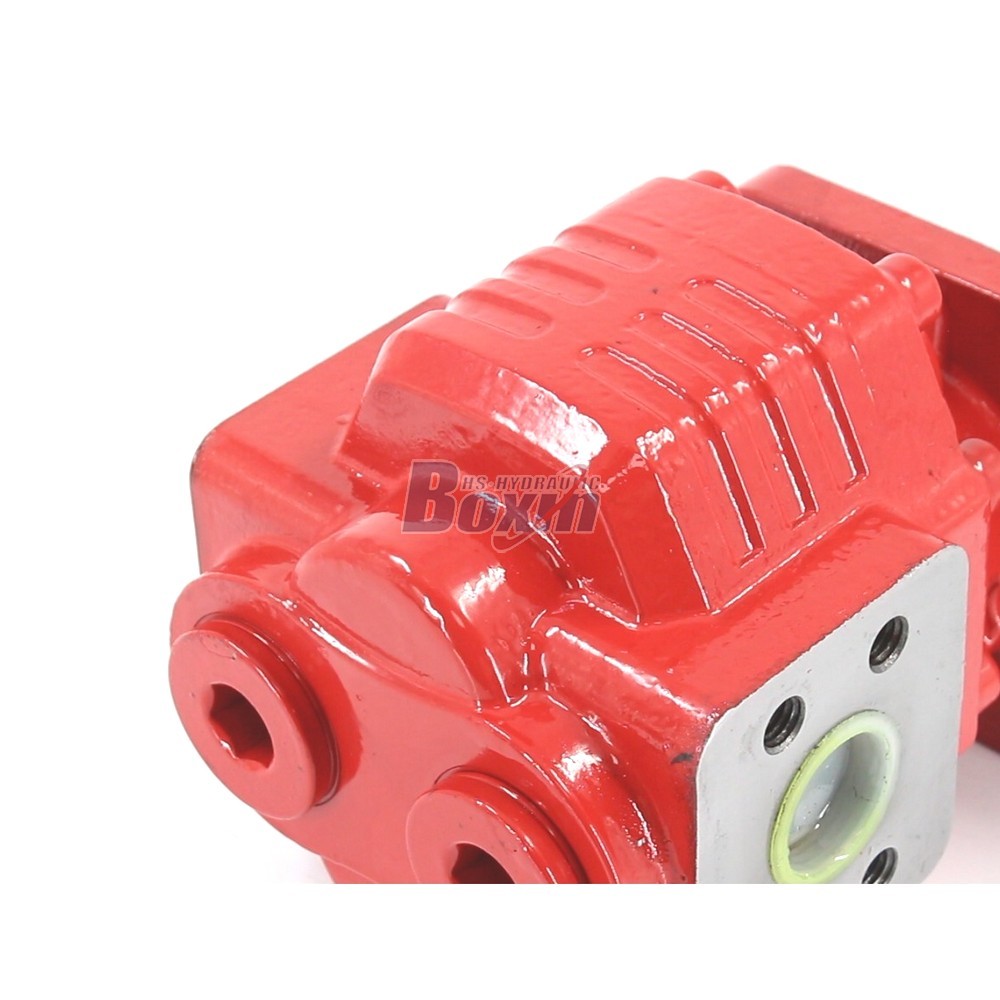

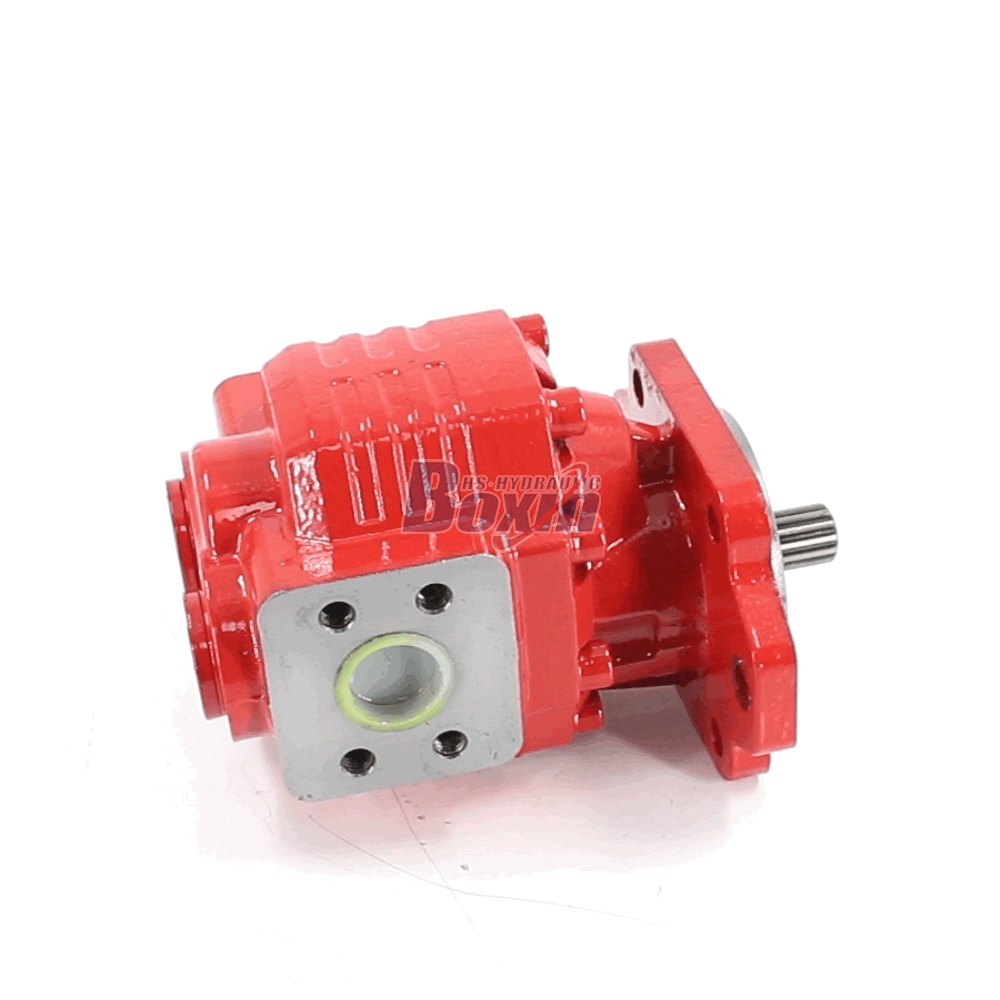

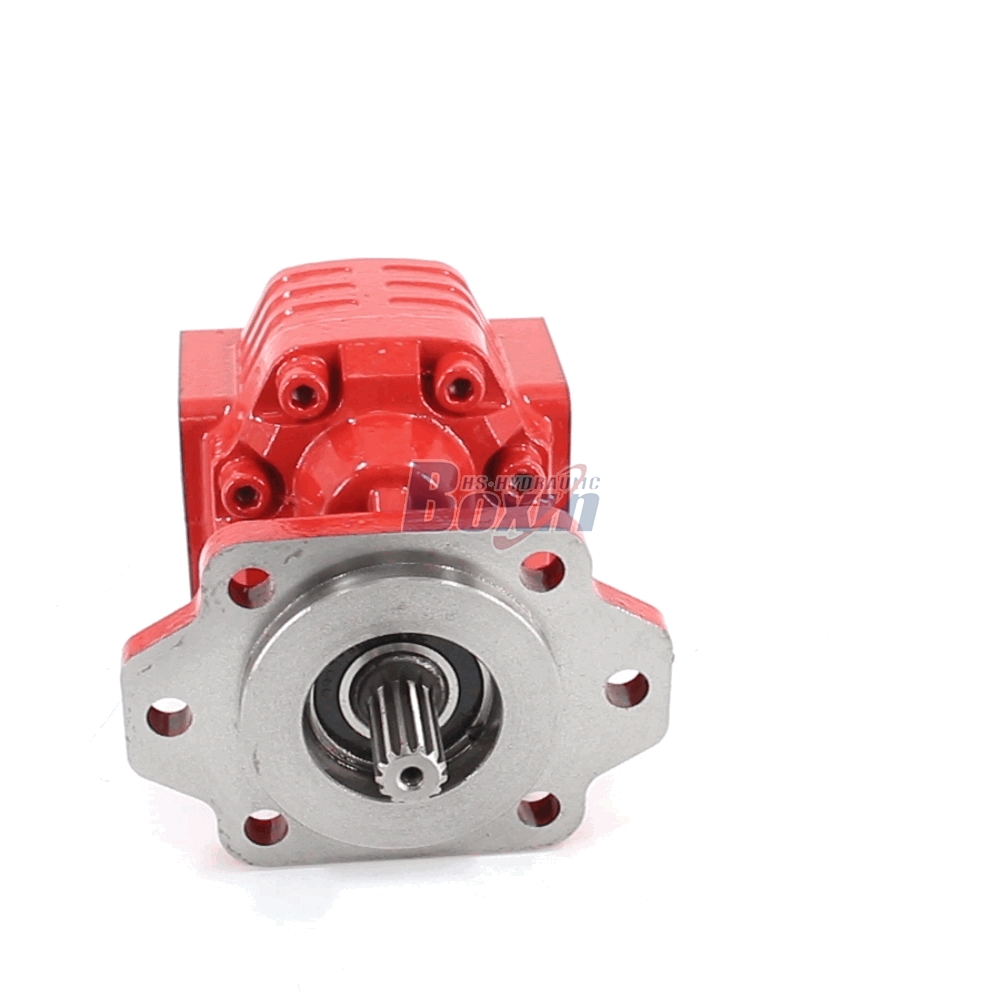

This CBHC-2063 Hydraulic Gear Pump features 63 cc/rev displacement, 20 MPa rated pressure, and bidirectional rotation, ideal for forklifts and loaders. Backed by a Professional Manufacturer with 25+ years of experience and IATF 16949 certification, it ensures reliable performance for heavy-duty applications.
| Série CBHC Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 32 cc/tr, 40 cc/tr, 50 cc/tr, 63 cc/tr, 80 cc/tr, 100 cc/tr, 25 cc/tr, 110 cc/tr |
| Pression nominale | 20 MPa (2900 psi), 22 MPa (3190 psi) |
| Pression maximale | 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Vitesse nominale | 2 200 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire), /: (Bidirectionnel) |
| Matériau | Fonte |
| Structure | Pompe à engrenages externes |
| Version de la bride | Bride SAE |
| Type d'arbre | H : Cannelures droites |
**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers consistent flow with 63 cc/rev displacement, operating at rated pressure of 20 MPa (2900 psi) and max pressure of 25 MPa.
- Supports bidirectional rotation with max speed up to 2500 r/min, ensuring versatile integration into complex hydraulic systems.
**2. Versatile CBHC Series Gear Pump Applications**
- Engineered for Material Handling and Construction sectors, perfectly compatible with Forklifts, Telehandlers, Skid Steer Loaders, and Mini-Excavators.
- Designed as a direct replacement for international brands, offering seamless fitment for Wheel Loaders and Backhoe Loaders without system modification.
**3. Reliable 63cc Hydraulic Pump Quality Control**
- Manufactured in our 68,000㎡ facility with 260+ CNC machines, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Certified under IATF 16949 and CE standards, with SGS detection and 25+ patents guaranteeing zero-defect delivery for critical industrial vehicles.
**4. Customizable OEM Hydraulic Gear Pump Solutions**
- Supported by 35+ senior engineers, we offer full OEM/ODM services including custom castings, logo laser marking, and private label packaging.
- Flexible customization allows distributors to create unique product lines while maintaining the high durability expected from a Wholesale China Factory.
**5. Factory Direct Sales & Global Logistics**
- Benefit from Factory Direct Sales pricing with an annual capacity of 1,500,000 units, ensuring stable supply for large-scale wholesale orders.
- Products are secured with anti-rust treatment and heavy-duty wooden crates, supporting Exported Worldwide logistics with fast lead times for urgent projects.
