Fluid Power

Méthode de contrôle:Solénoïde

Distributeur:5 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:200 bar (2 900 psi)

Orifice d'entrée:G1/2

Orifice de sortie:G3/4

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:33*44*11

Poids brut:19.50 kg

Disponibilité: En stock

1161 personnes consultent ce produit

Fluid Power

Fluid Power

Fluid Power drawing image

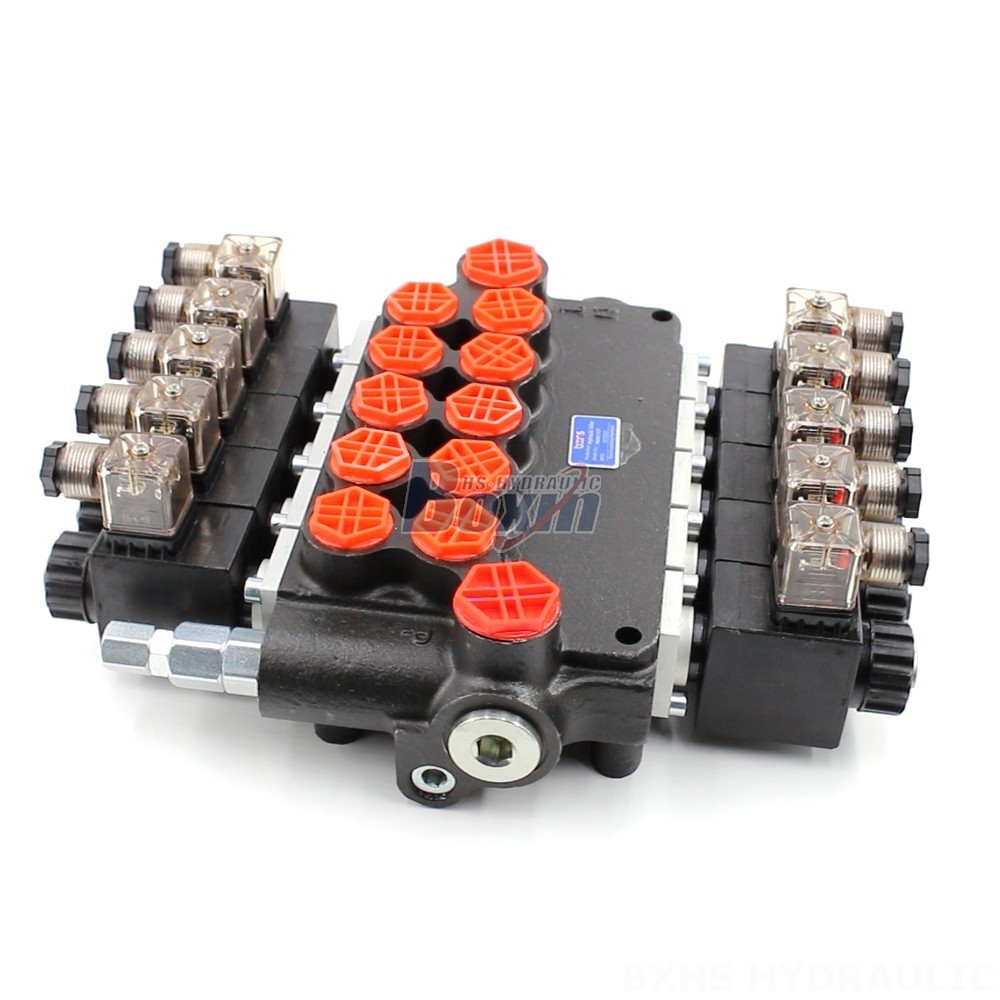

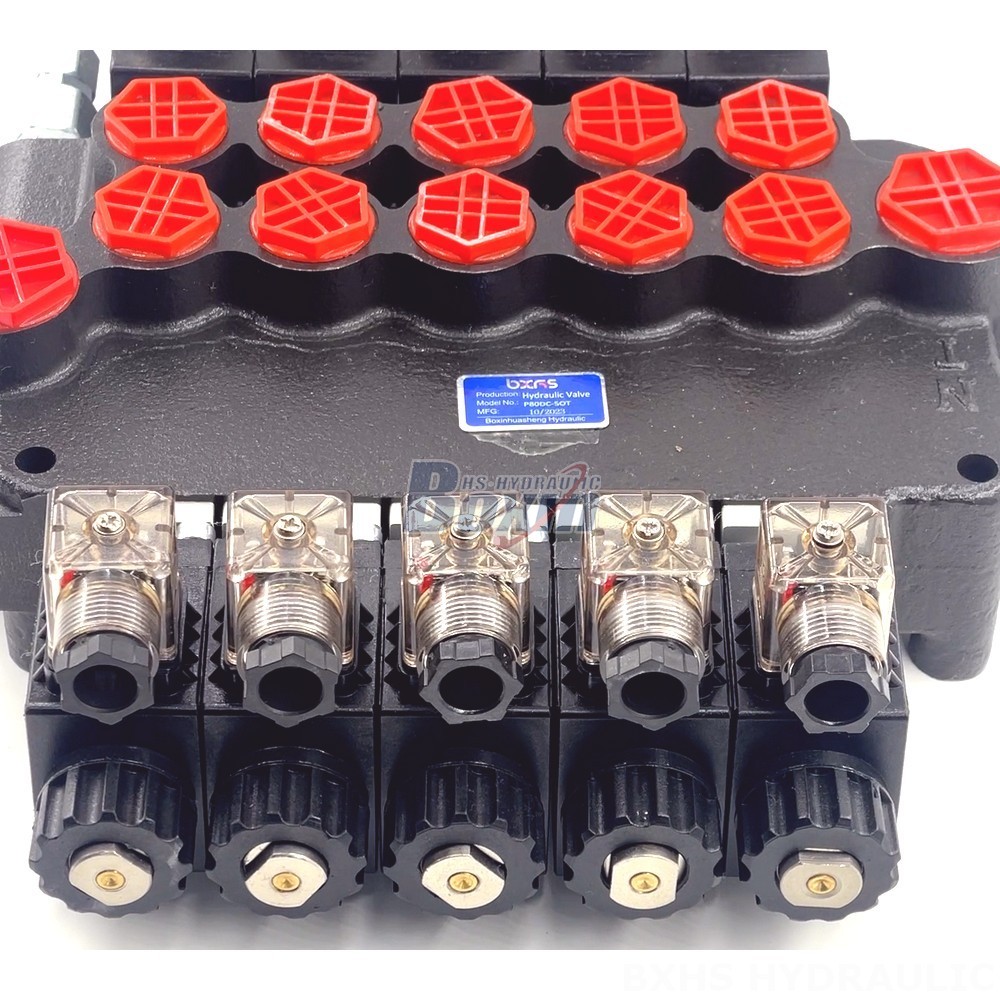

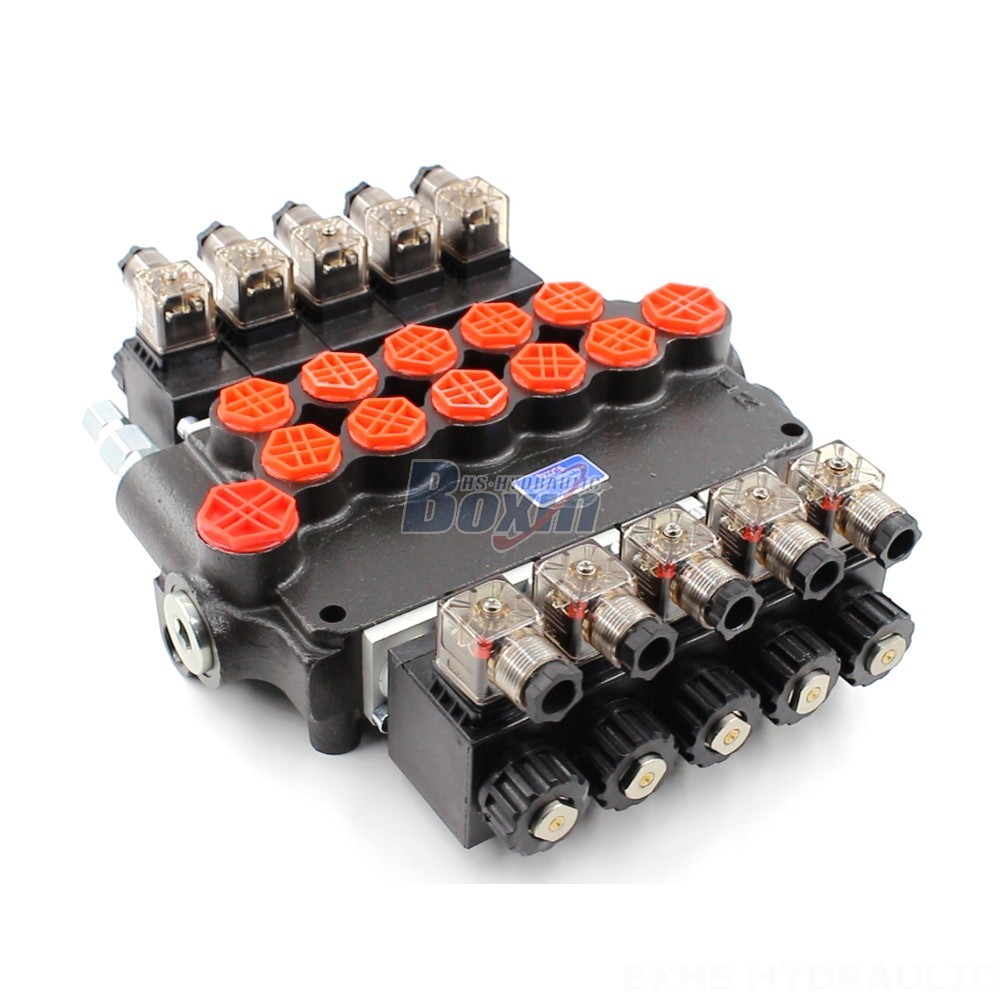

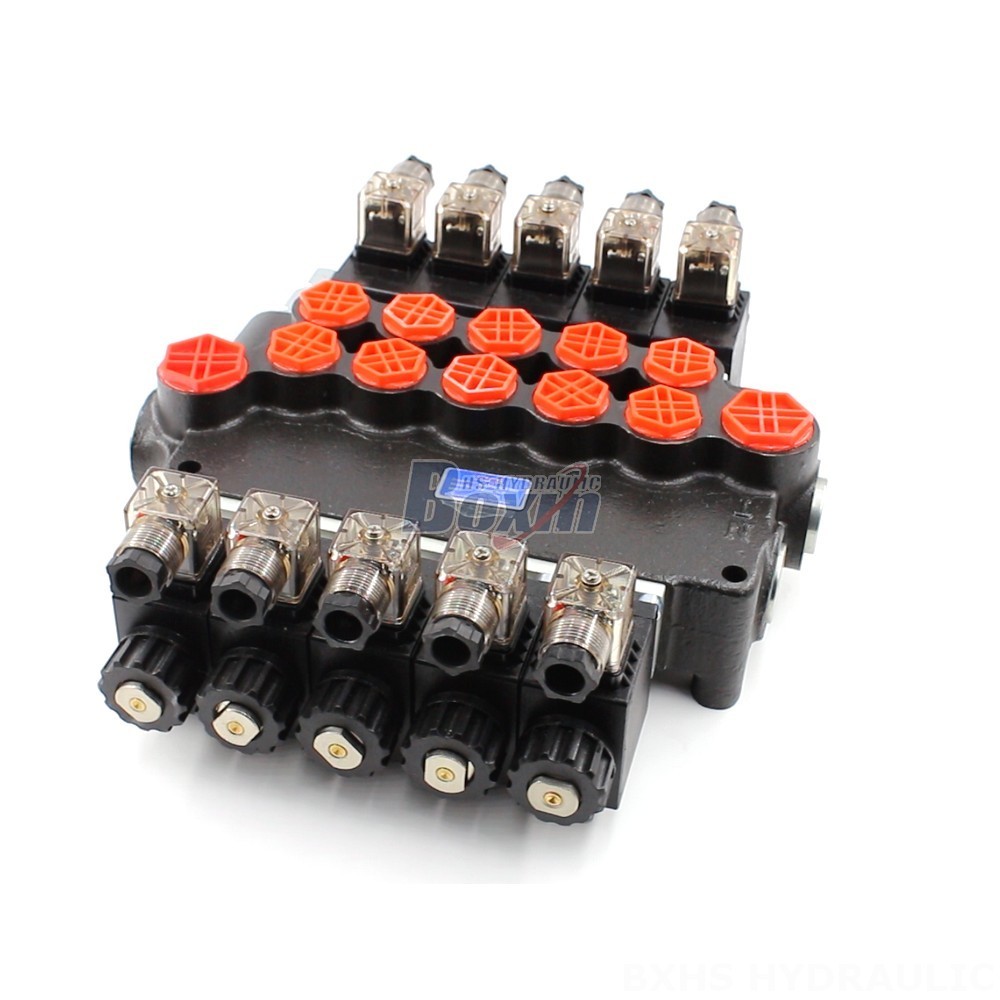

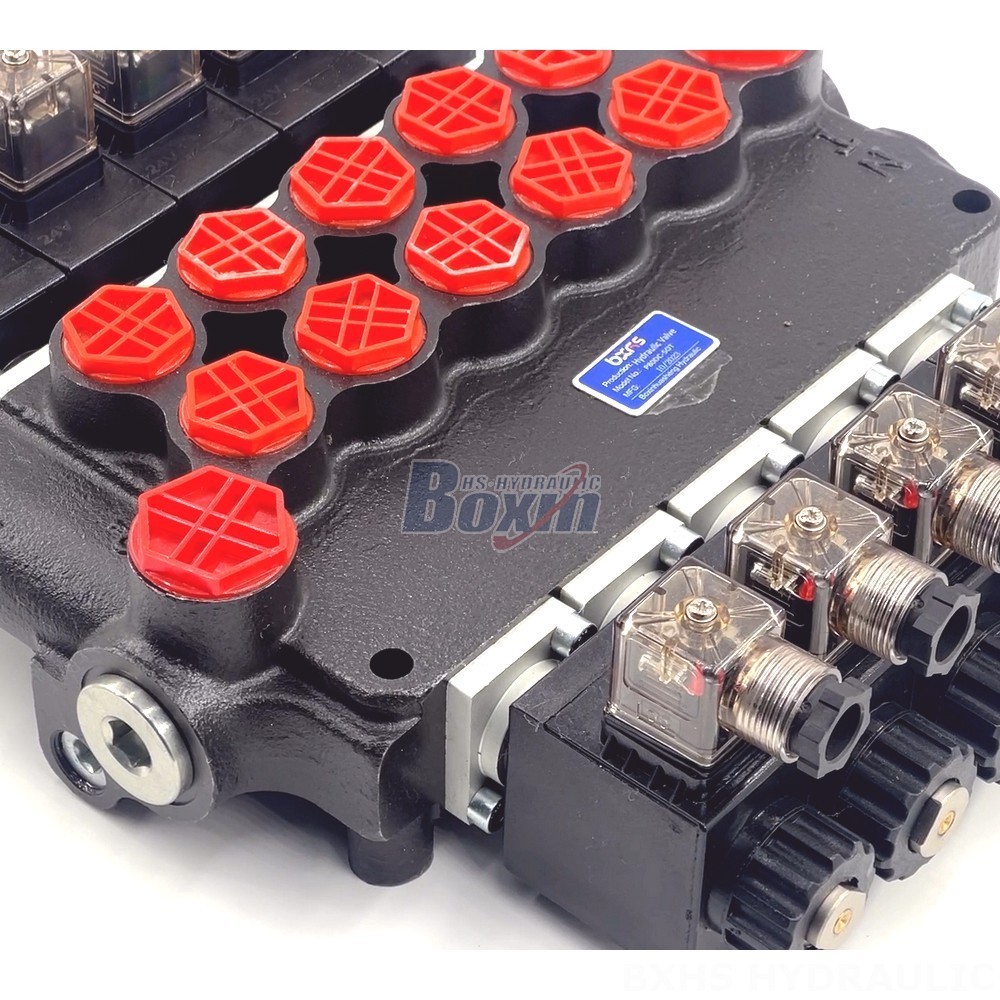

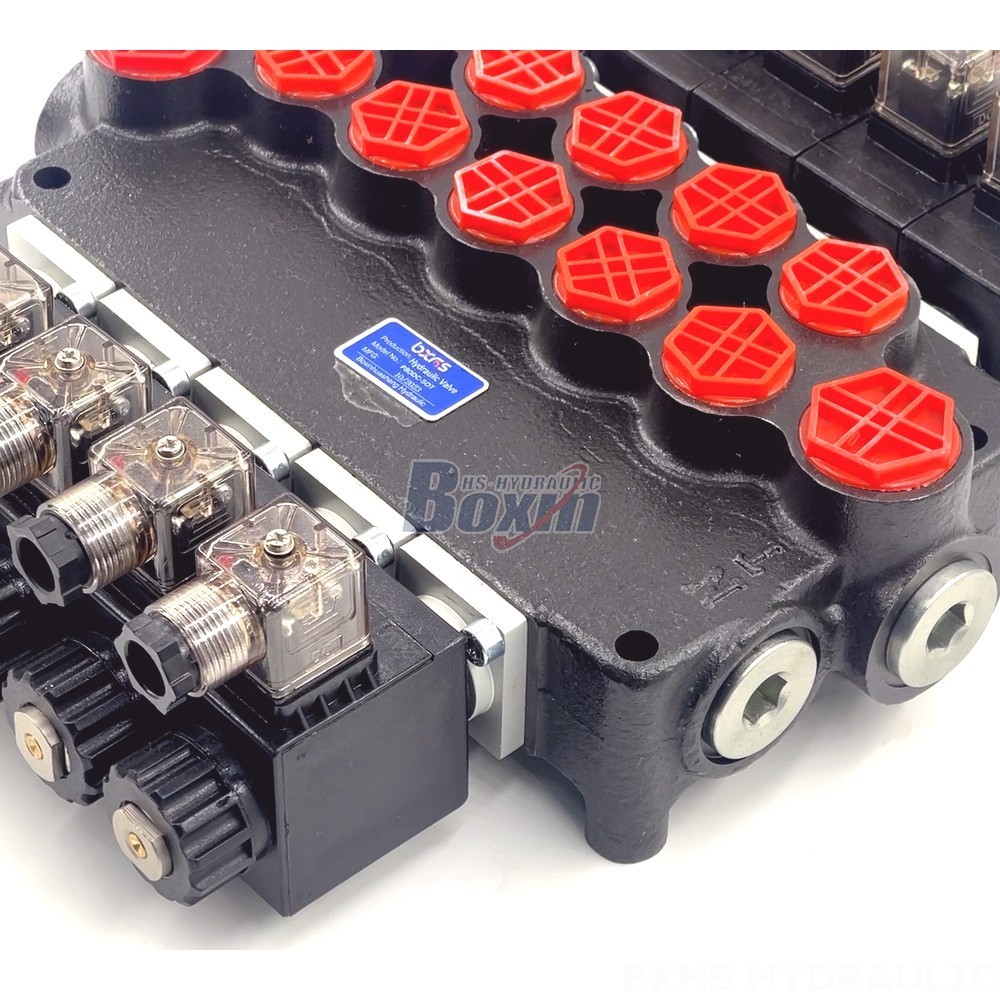

This hydraulic spool control valve is designed for electric remote control of fluid power systems in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, 5 sections, and a rated flow of 80 L/min, it operates at pressures up to 250 bar.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic spool valve is engineered for demanding applications in material handling, construction, and industrial vehicles. It features an electric remote control method with a solenoid for precise actuation. The monoblock structure provides durability and reliability, while the 5-section design allows for versatile control configurations. The valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its wide operating viscosity range (15 - 75 mm²/s) ensures consistent performance across various operating conditions. The valve is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it suitable for diverse environments. This valve is ideal for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
