The Factory Wholesale Supply: P80-U116-U78 Hydraulic Valves from the Manufacturer are designed for use in a variety of applications including material handling, construction, agriculture, and industrial vehicles. These valves are manufactured to the highest standards and are available at competitive prices.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

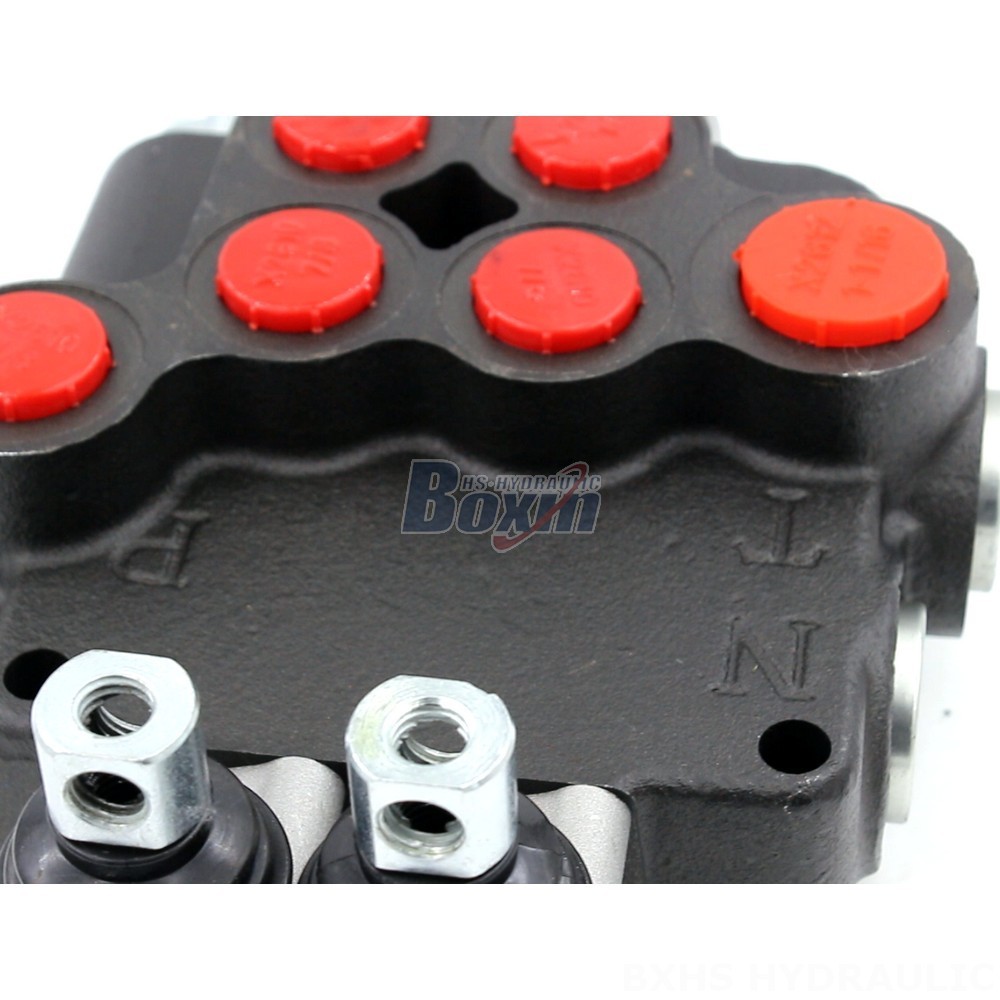

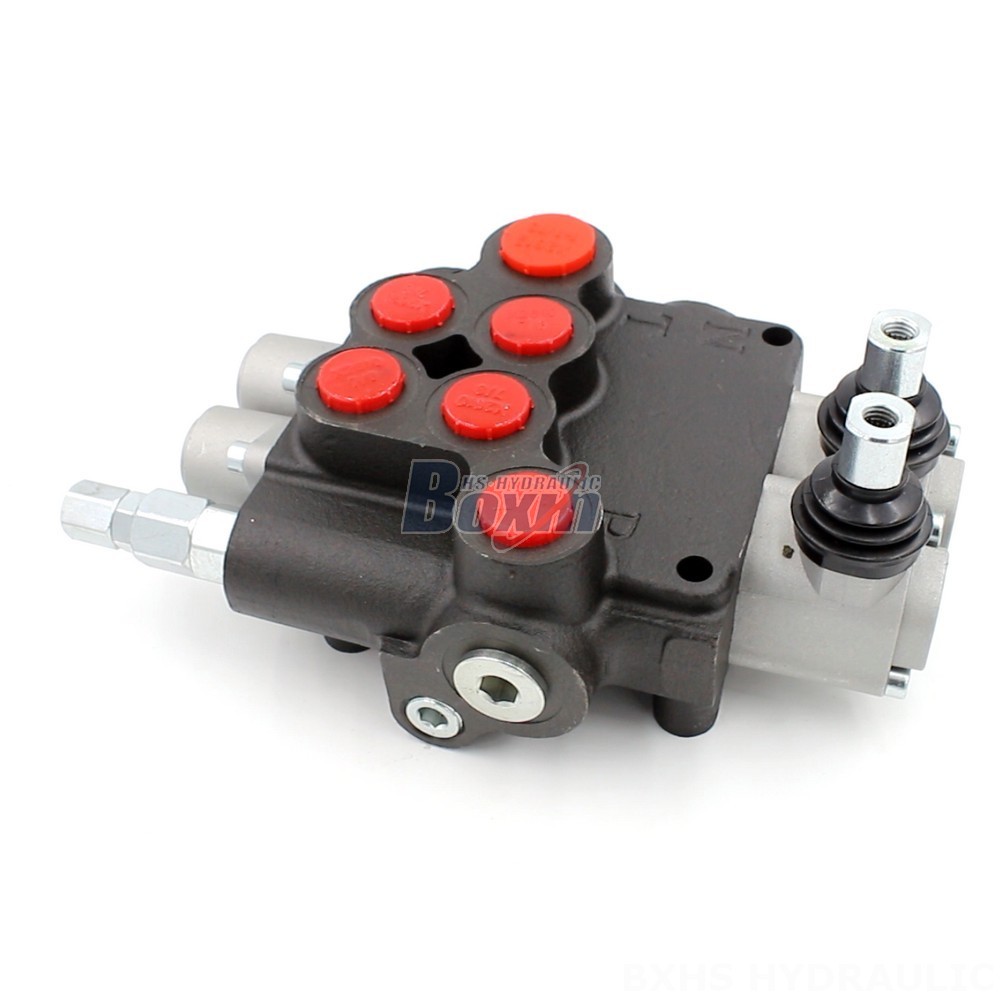

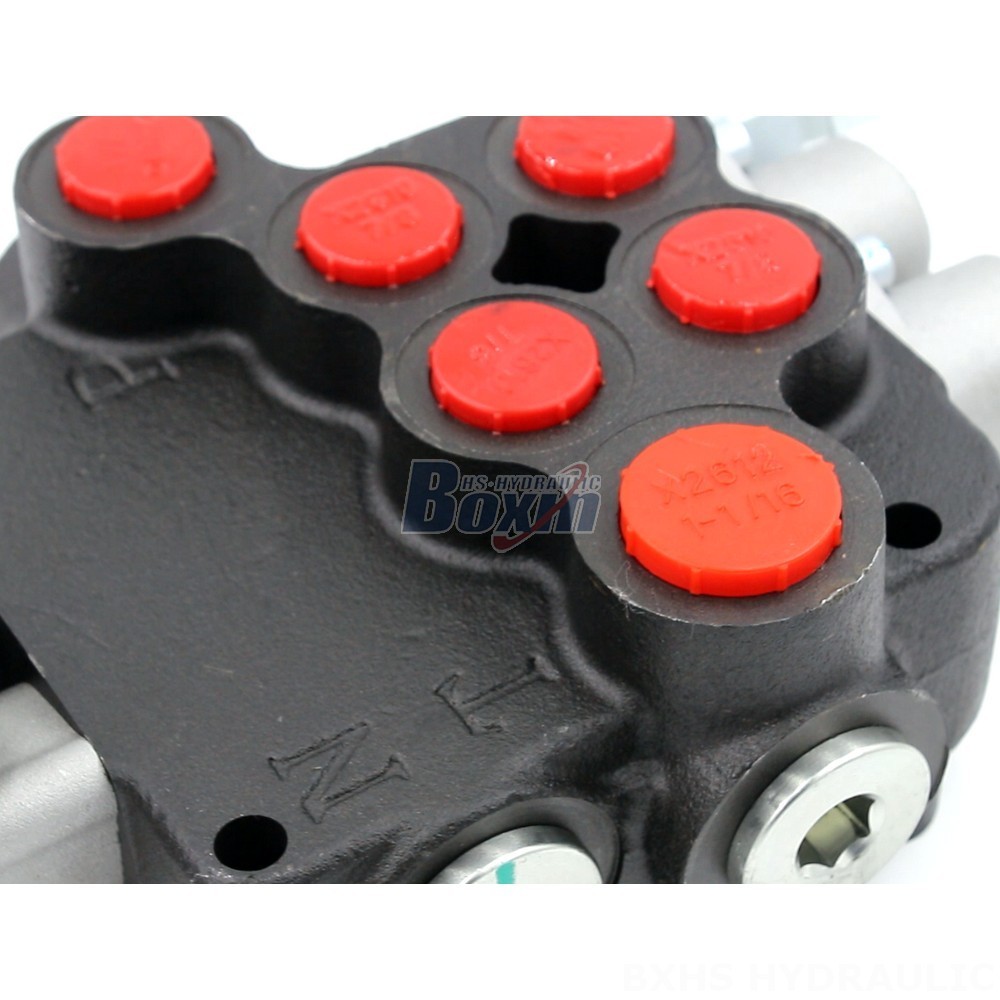

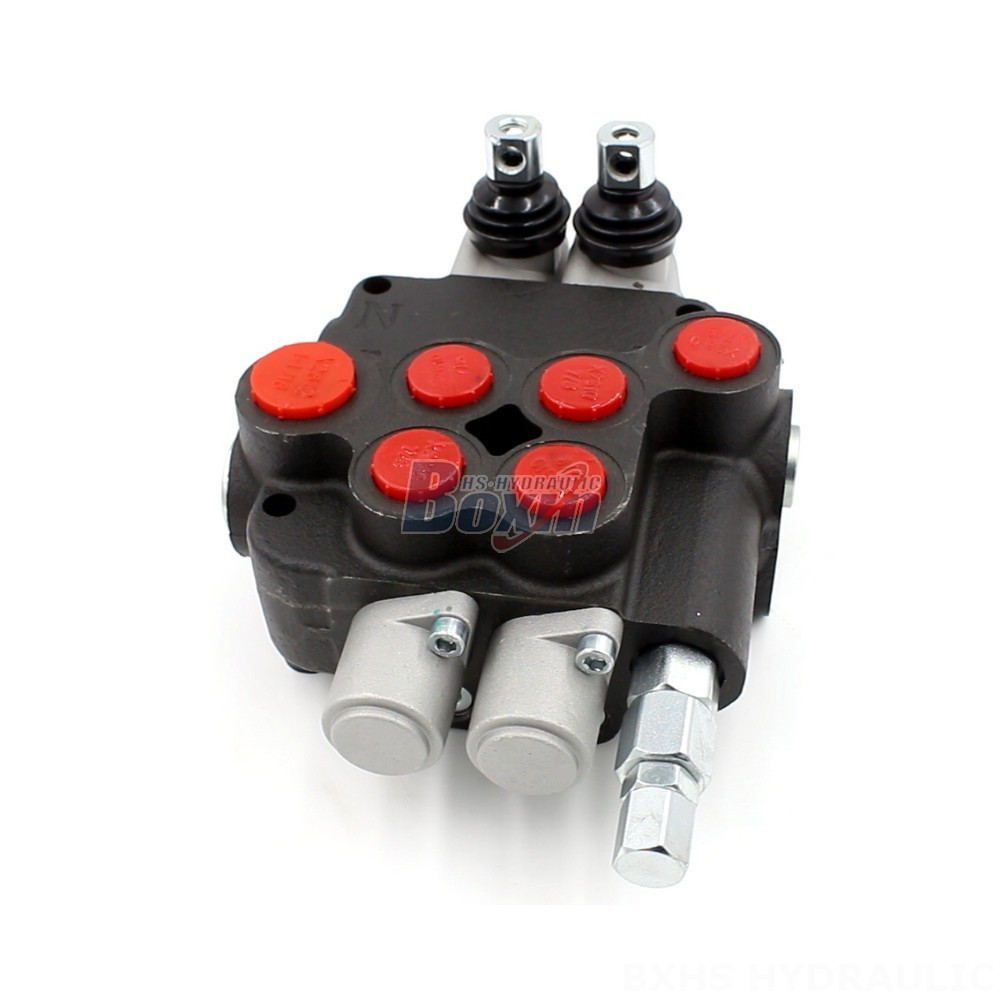

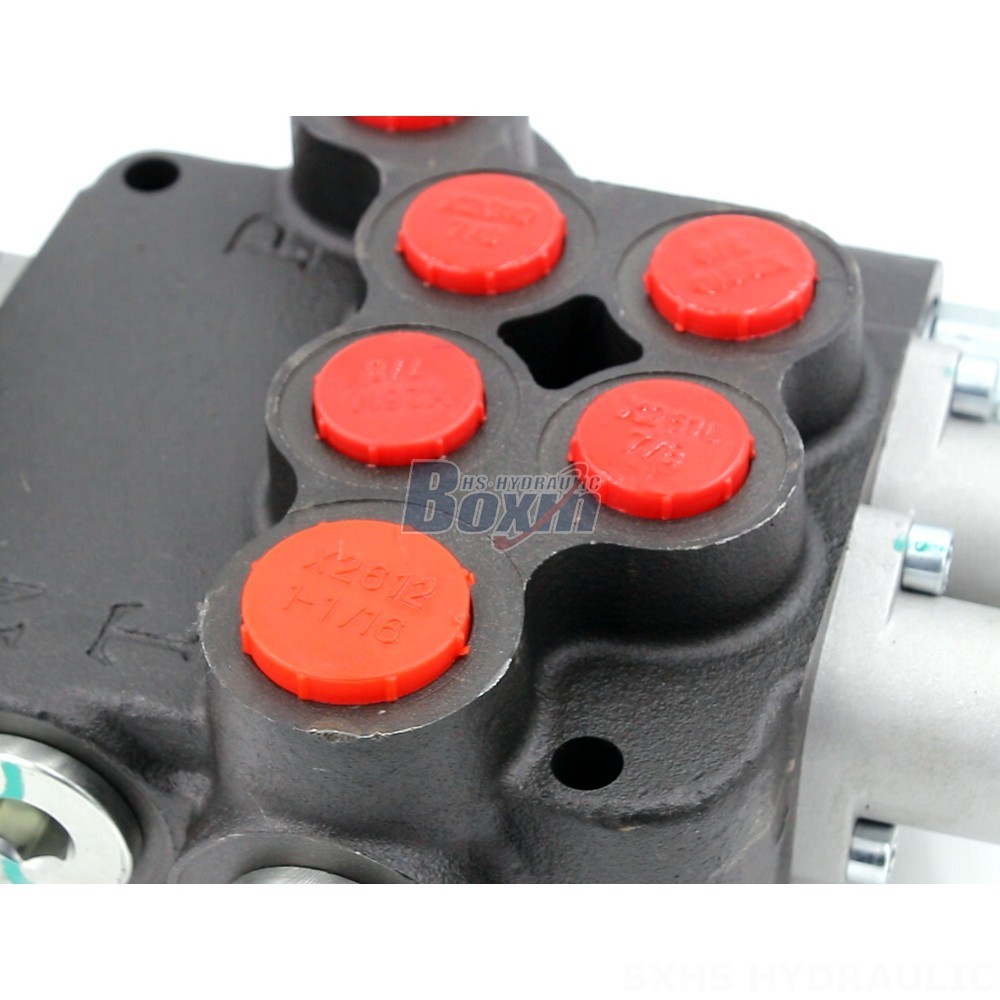

The P80-U116-U78 Hydraulic Valve is a monoblock valve with a manual control. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a wide range of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C. The P80-U116-U78 Hydraulic Valve is available from the manufacturer at competitive prices. The valve is also available with a variety of options, including different spool types and port configurations.
