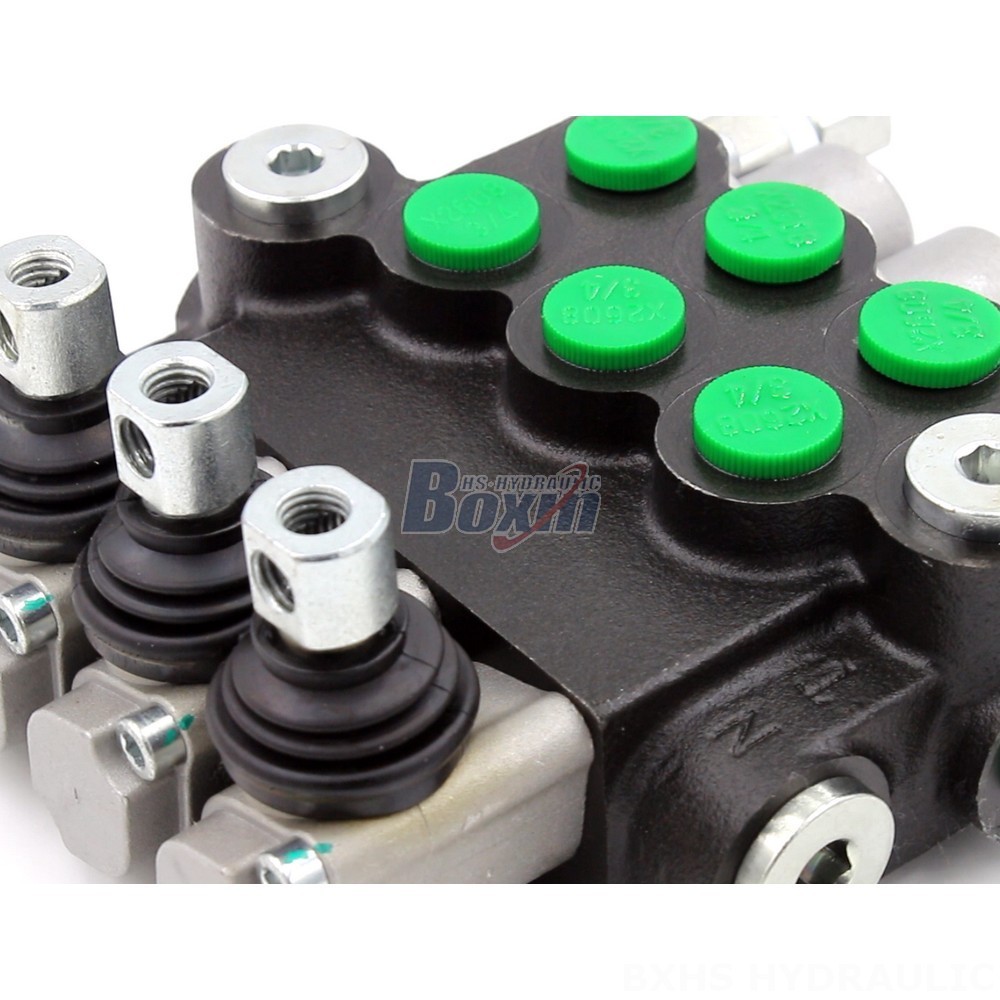

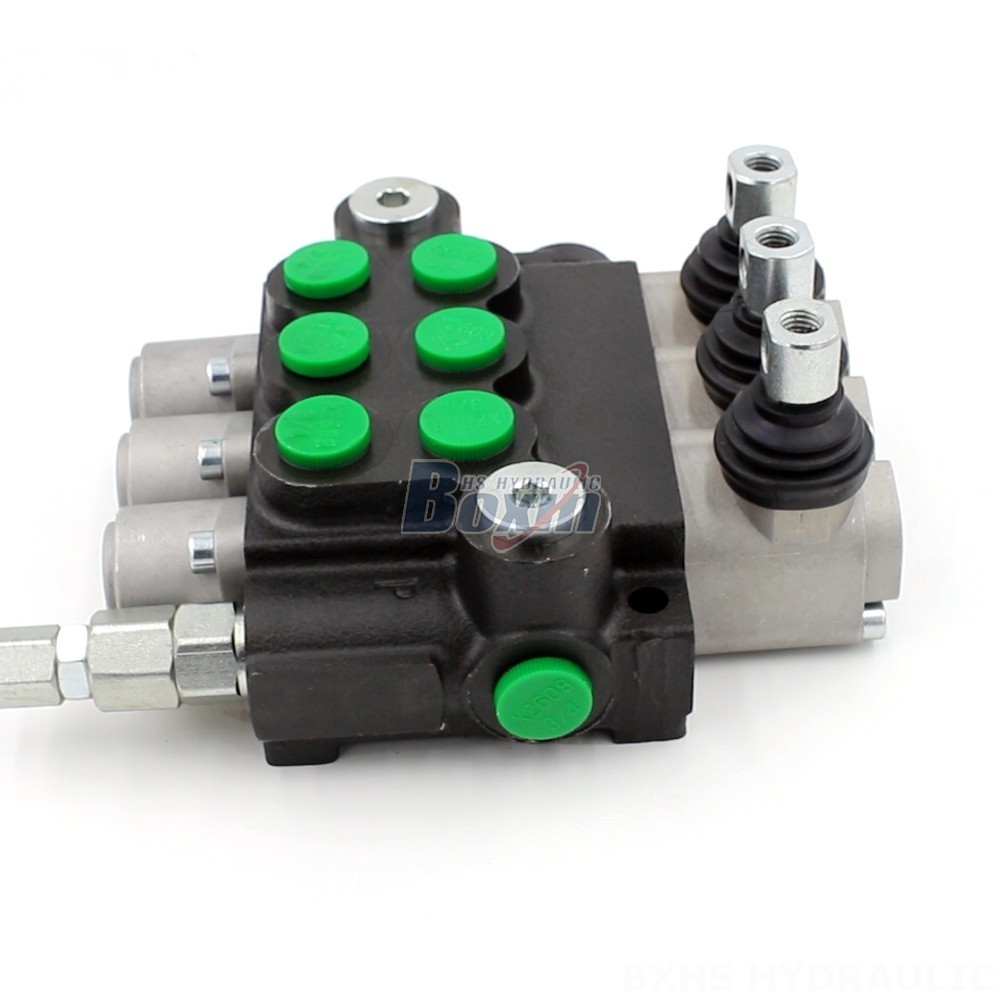

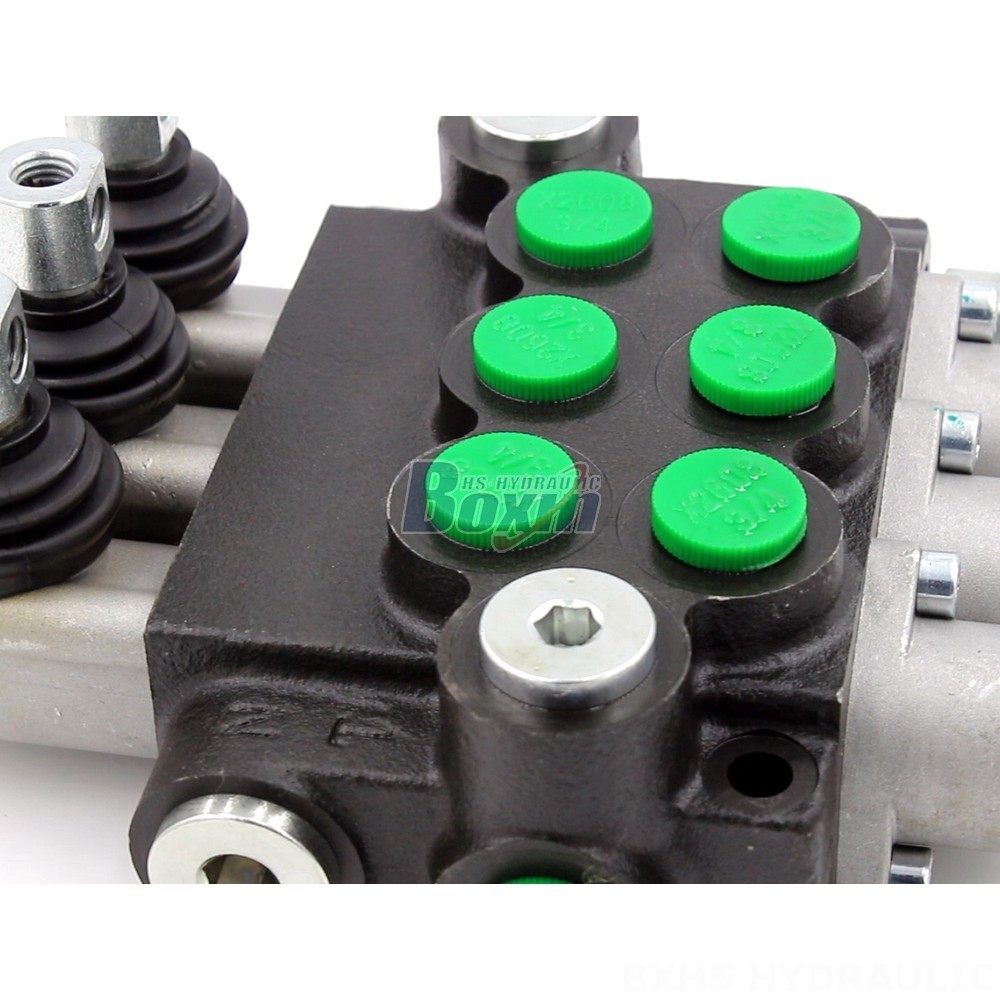

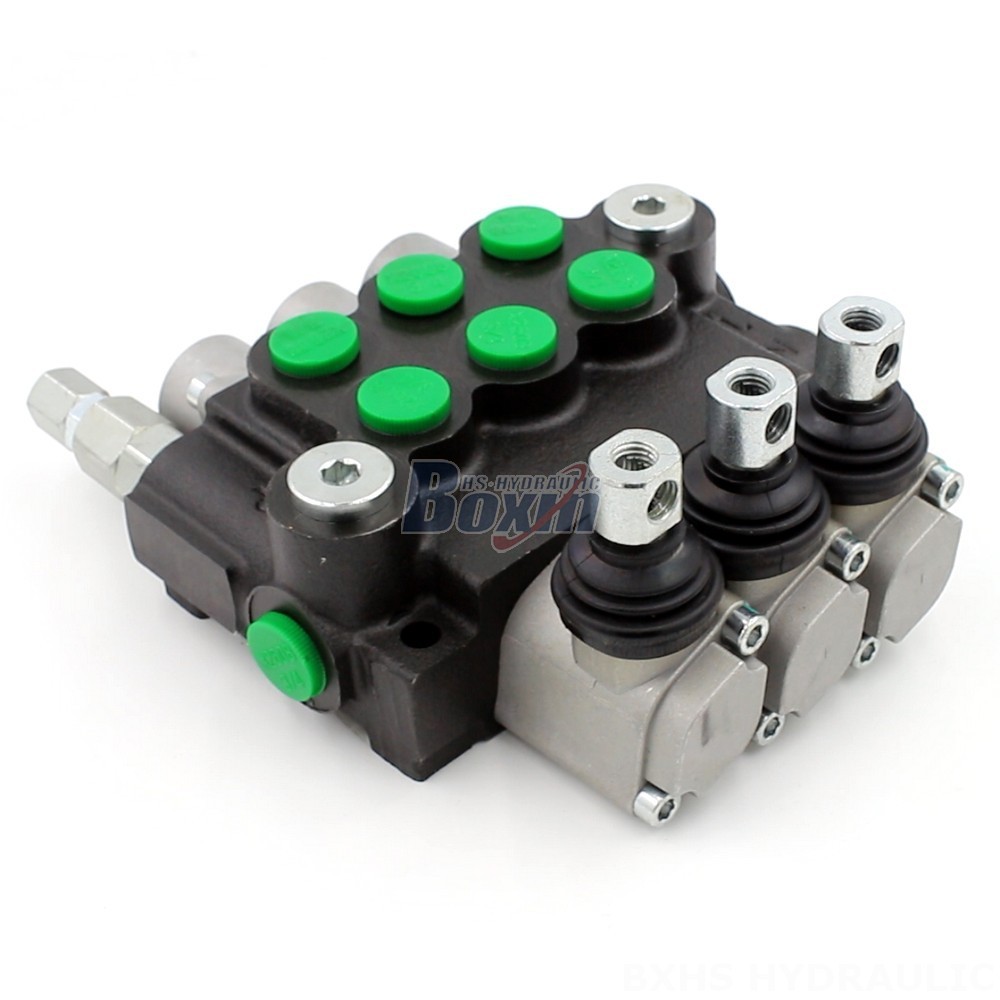

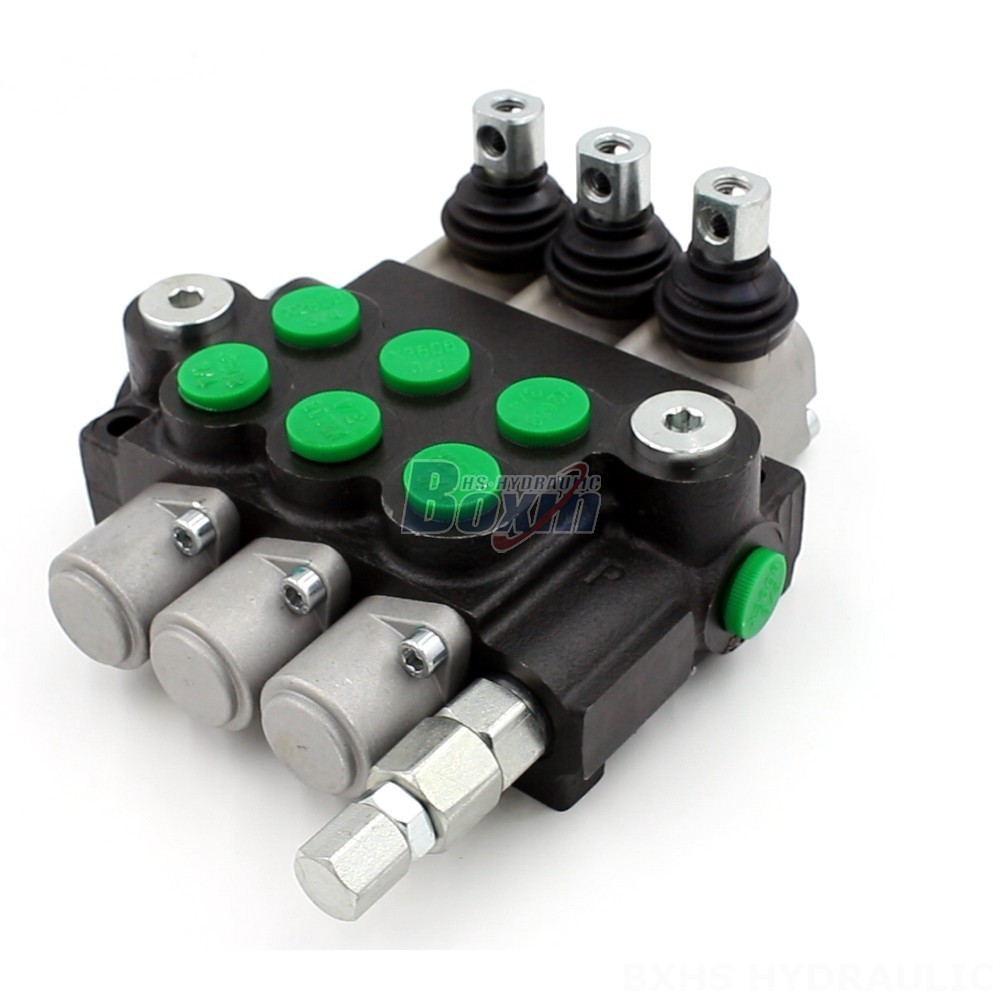

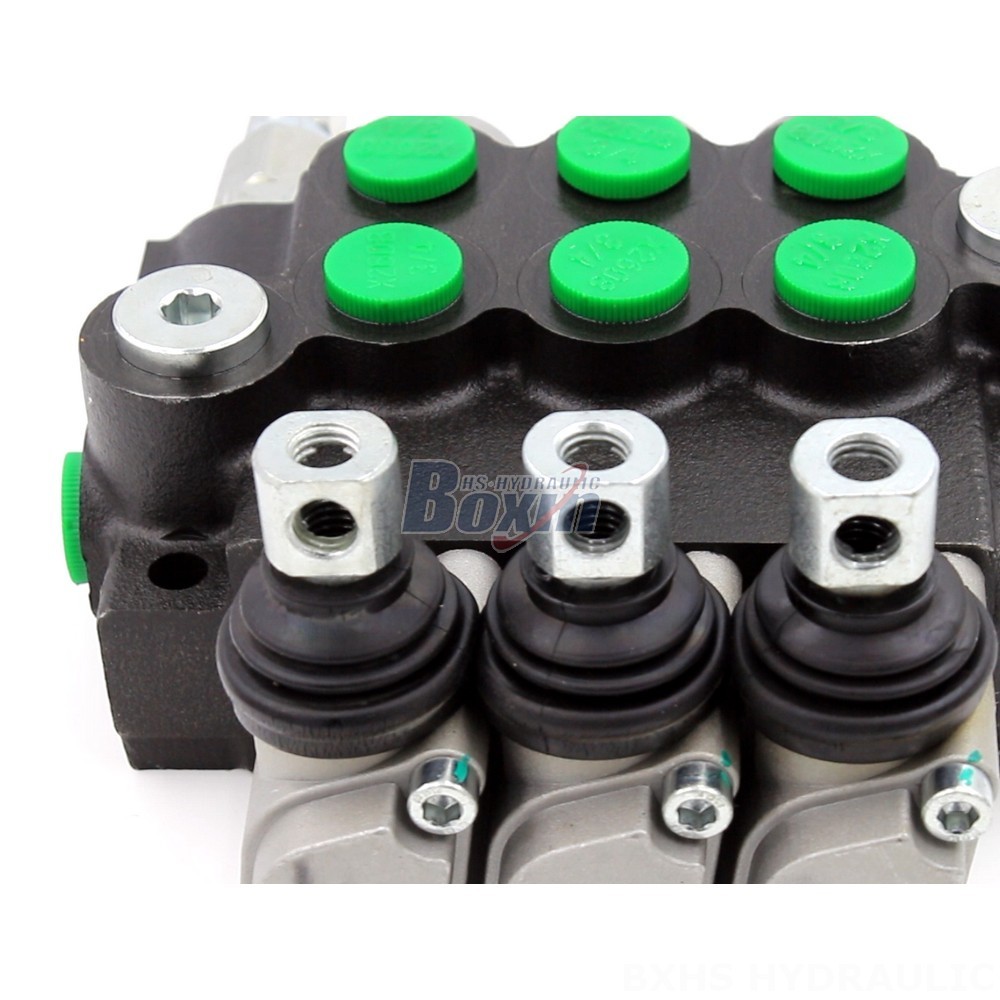

The P40-U34-OT hydraulic valve is a high-performance, manually controlled monoblock valve designed for use in a wide range of demanding applications. With a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, this valve is capable of handling even the most challenging hydraulic systems. The valve's robust construction and durable components ensure long-lasting performance and reliability.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Factory Wholesale Supply: P40-U34-OT Hydraulic Valves from the Manufacturer**
**Product Description:**
The P40-U34-OT hydraulic valve is a 3-spool, monoblock valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve is manufactured by a leading hydraulic component manufacturer and is available for factory wholesale supply.
**Key Features:**
* Manual control
* 3-section design
* Rated flow: 40 L/min (10.5 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 3 spool
* P40 Series
**Applications:**
The P40-U34-OT hydraulic valve is suitable for use in a wide range of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
**Benefits:**
* High performance and reliability
* Durable construction
* Factory wholesale pricing
* Fast delivery
* Excellent customer service
If you are looking for a high-quality hydraulic valve for your application, the P40-U34-OT is an excellent choice. Contact us today to learn more about this product and to get a quote.
