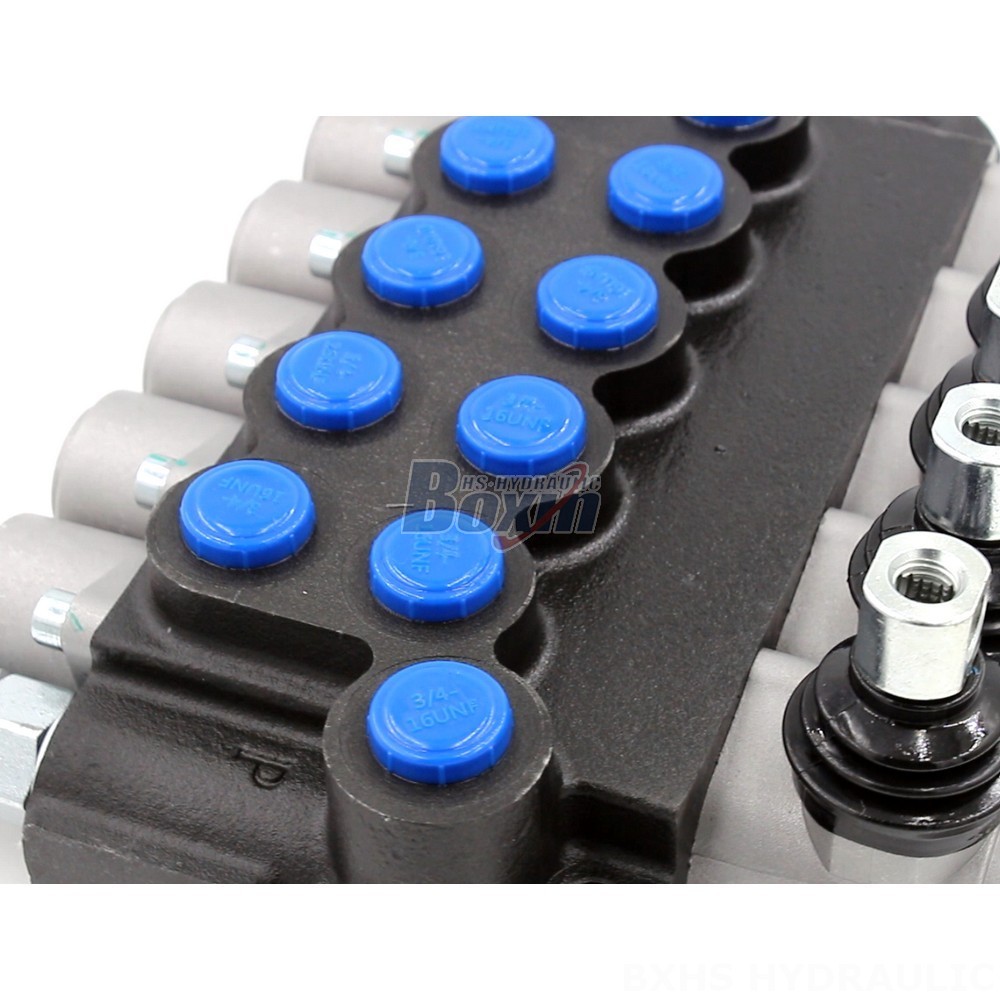

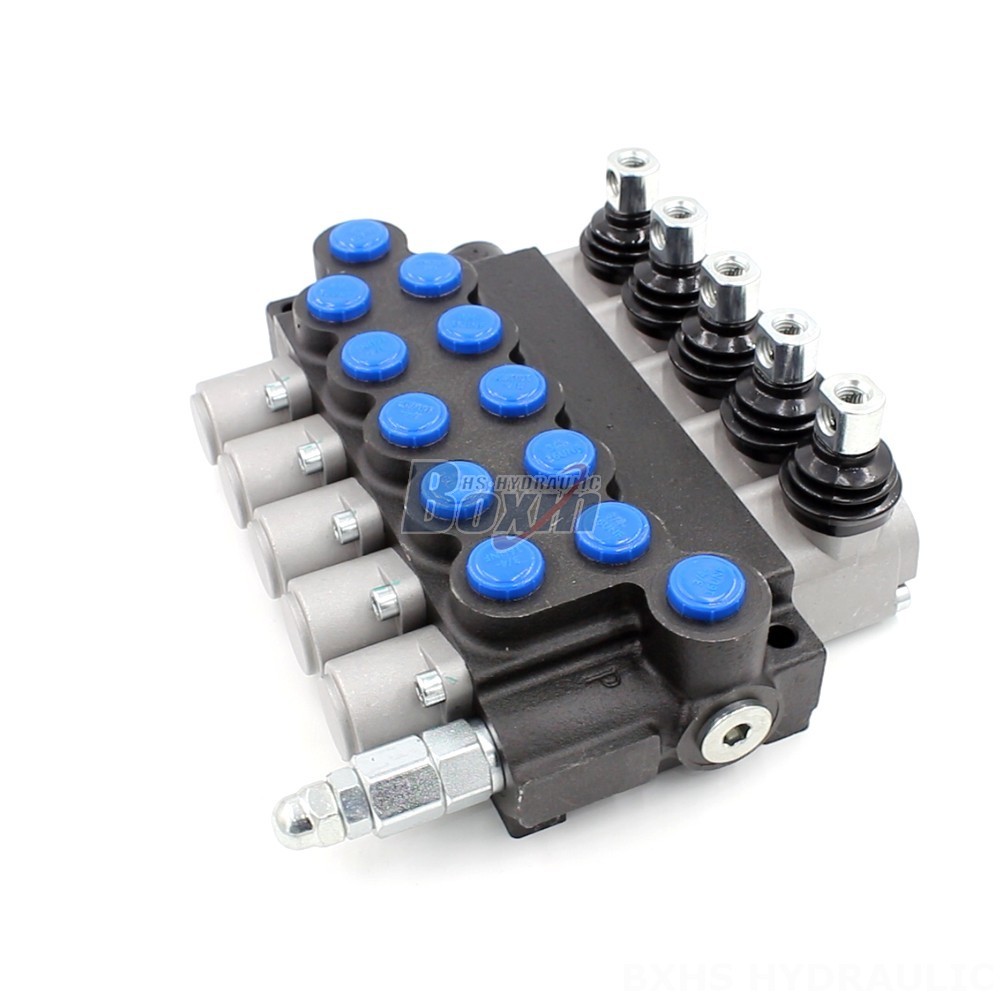

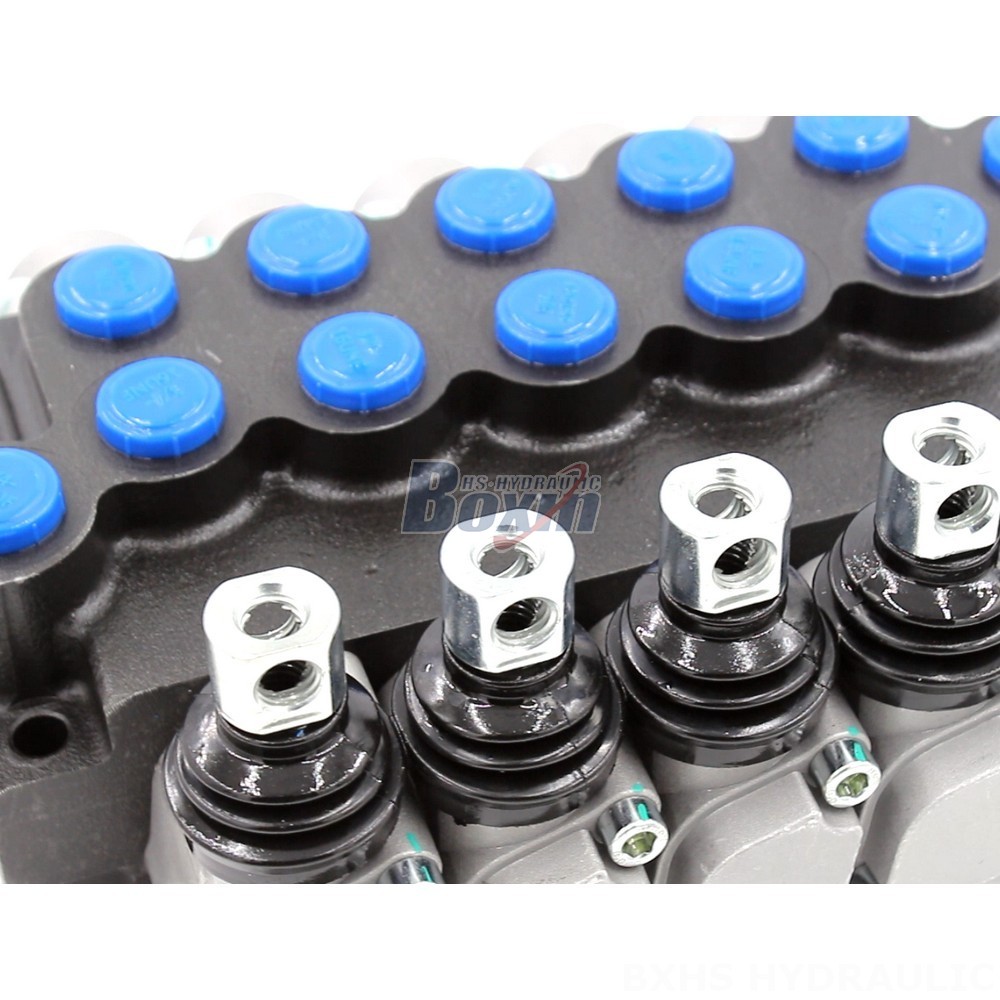

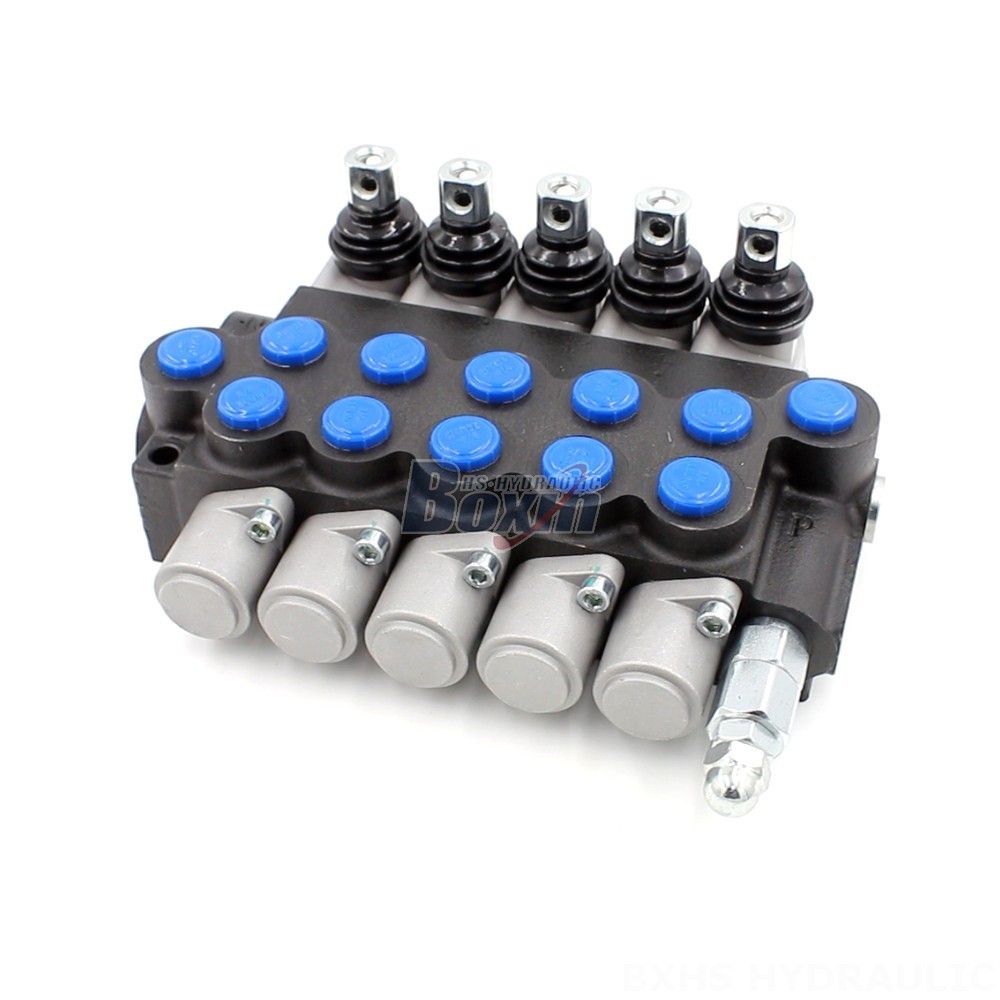

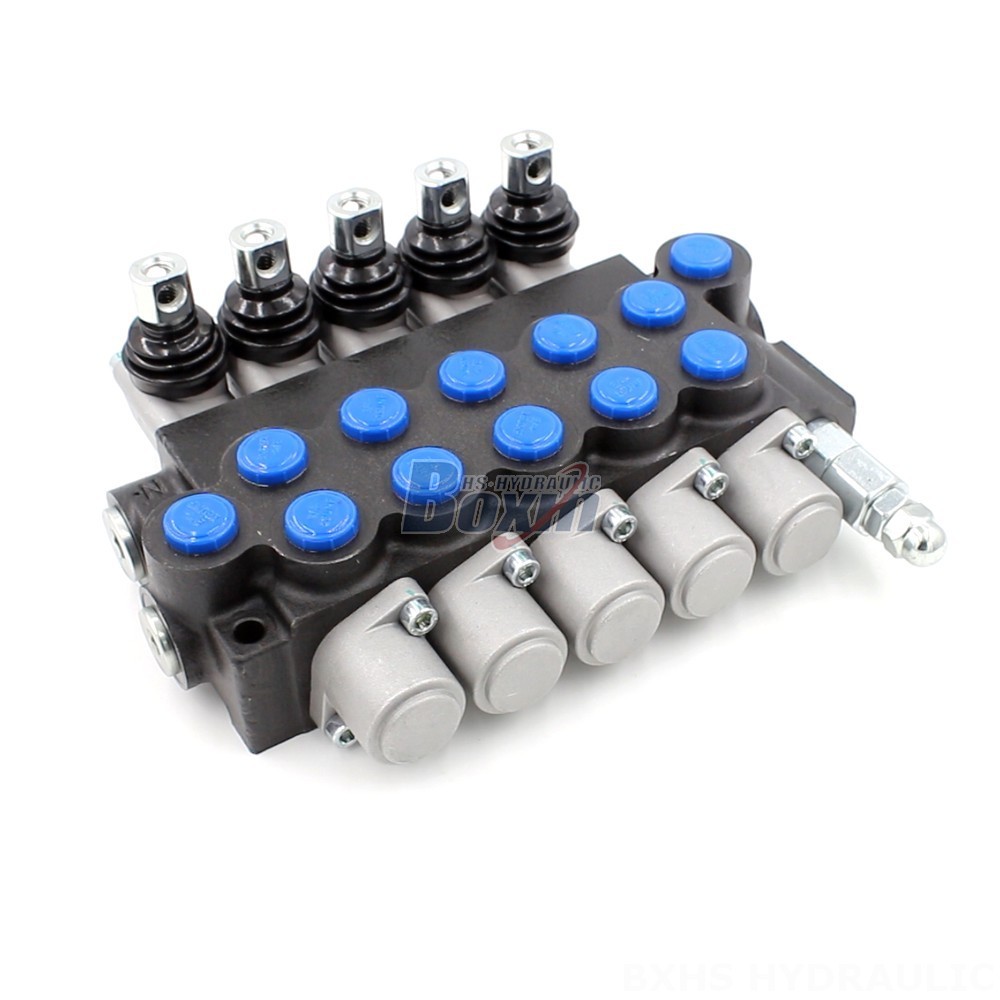

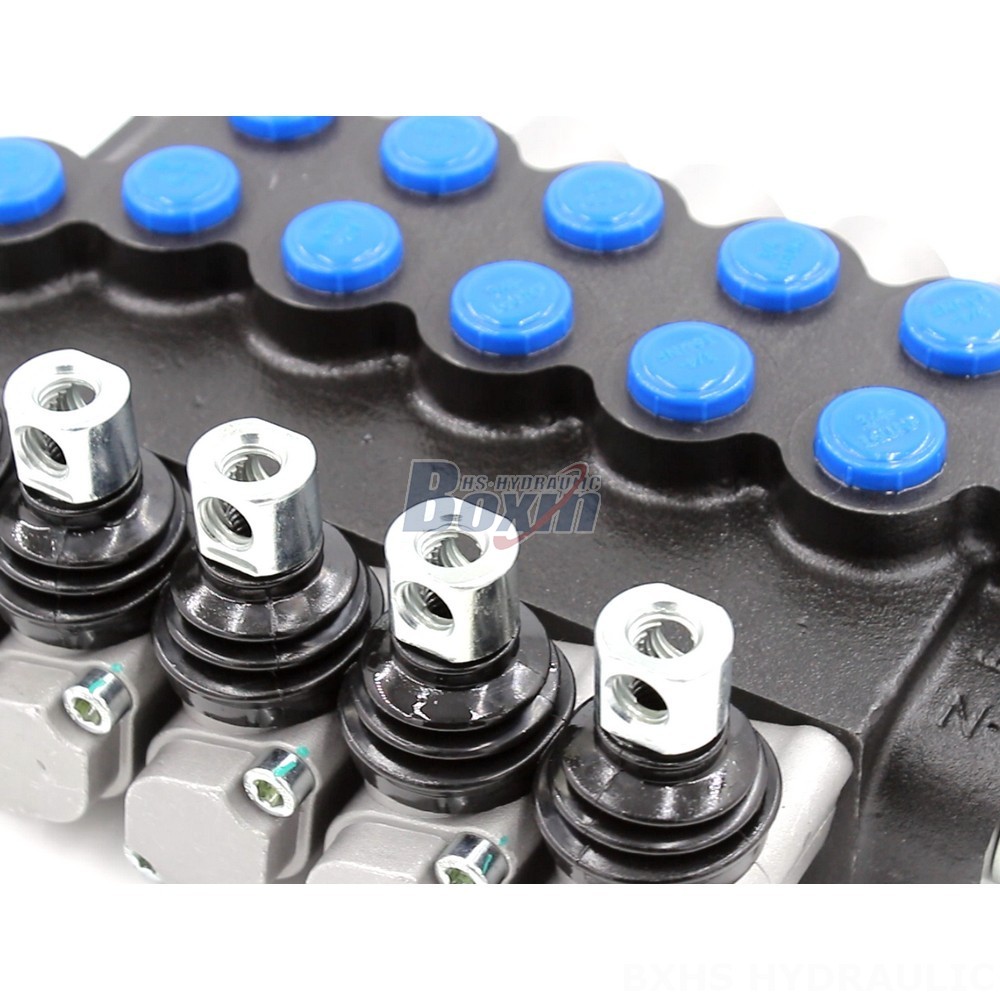

The P40-U78 hydraulic directional valve is a high-quality, 5-section, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It offers reliable performance with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is available directly from the manufacturer, providing competitive prices and factory wholesale options.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-U78 hydraulic directional valve is a robust and efficient solution for controlling hydraulic systems in a variety of applications. It features manual control for easy operation, a 5-section design for versatility, and a compact monoblock structure for durability. The valve is rated for a flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks. Manufactured with high-quality materials and precision engineering, this valve ensures reliability and long-lasting performance. As a manufacturer, we offer factory direct prices and wholesale options to distributors, wholesalers, and dealers. Contact us today to learn more about this high-performance hydraulic directional valve.
