Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
903 personnes consultent ce produit

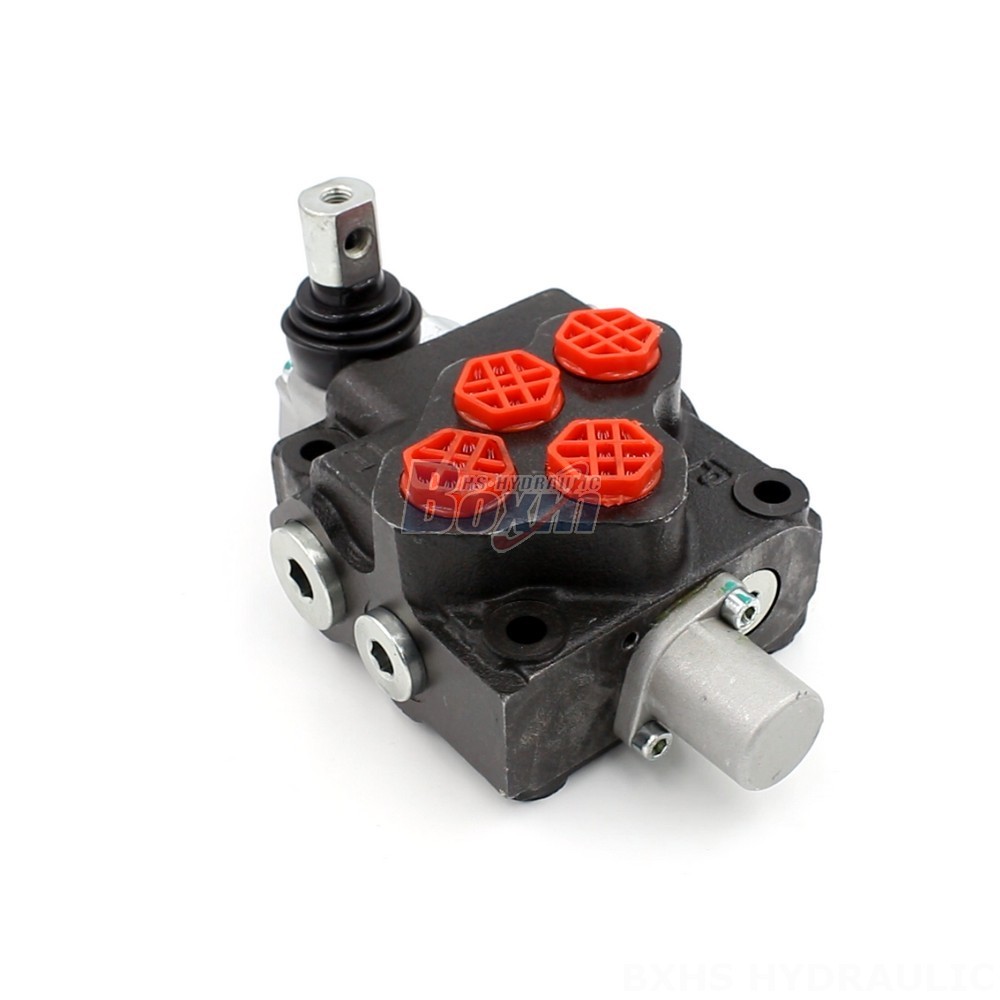

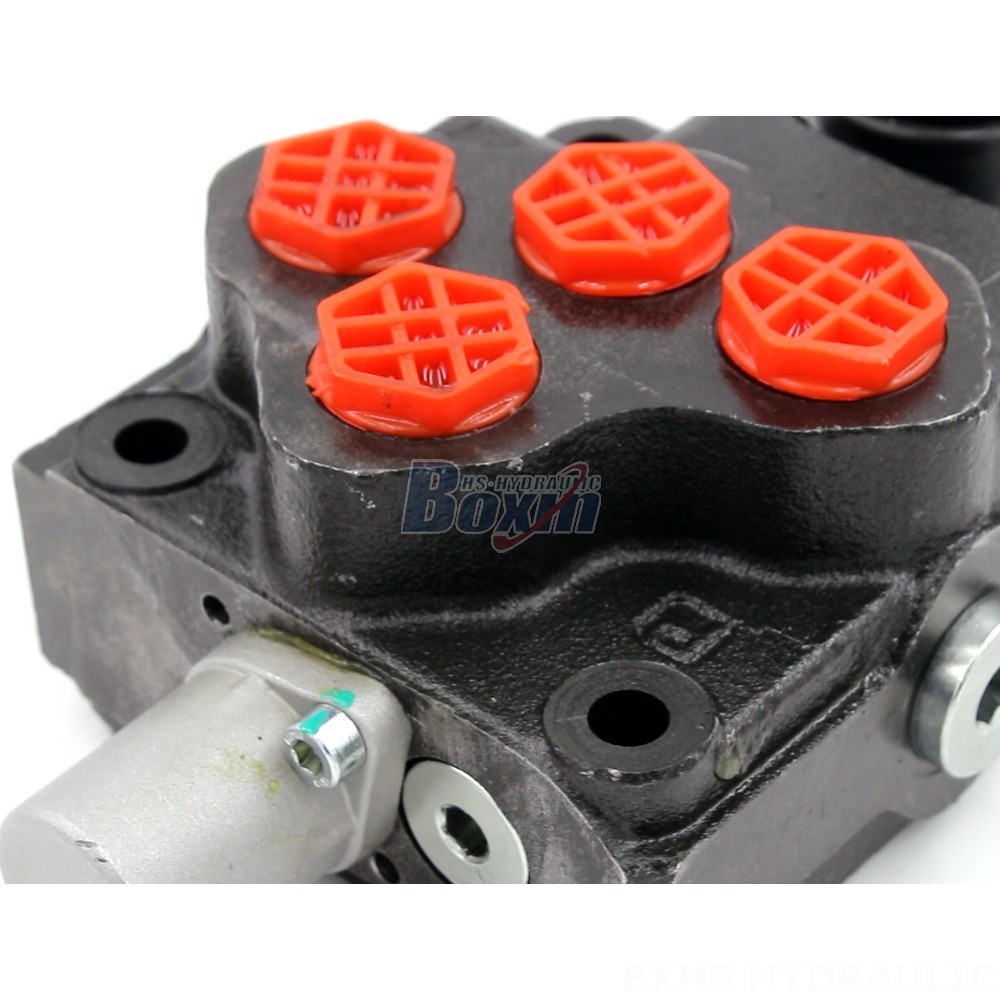

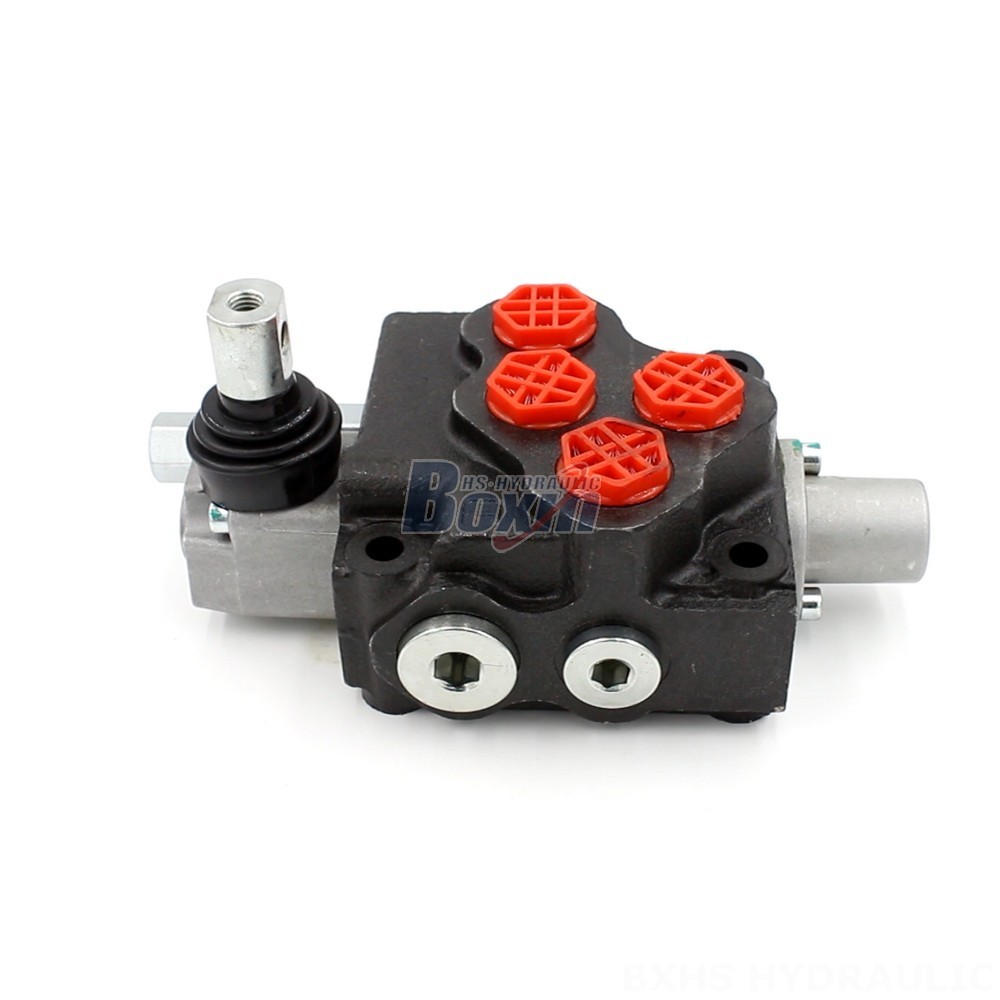

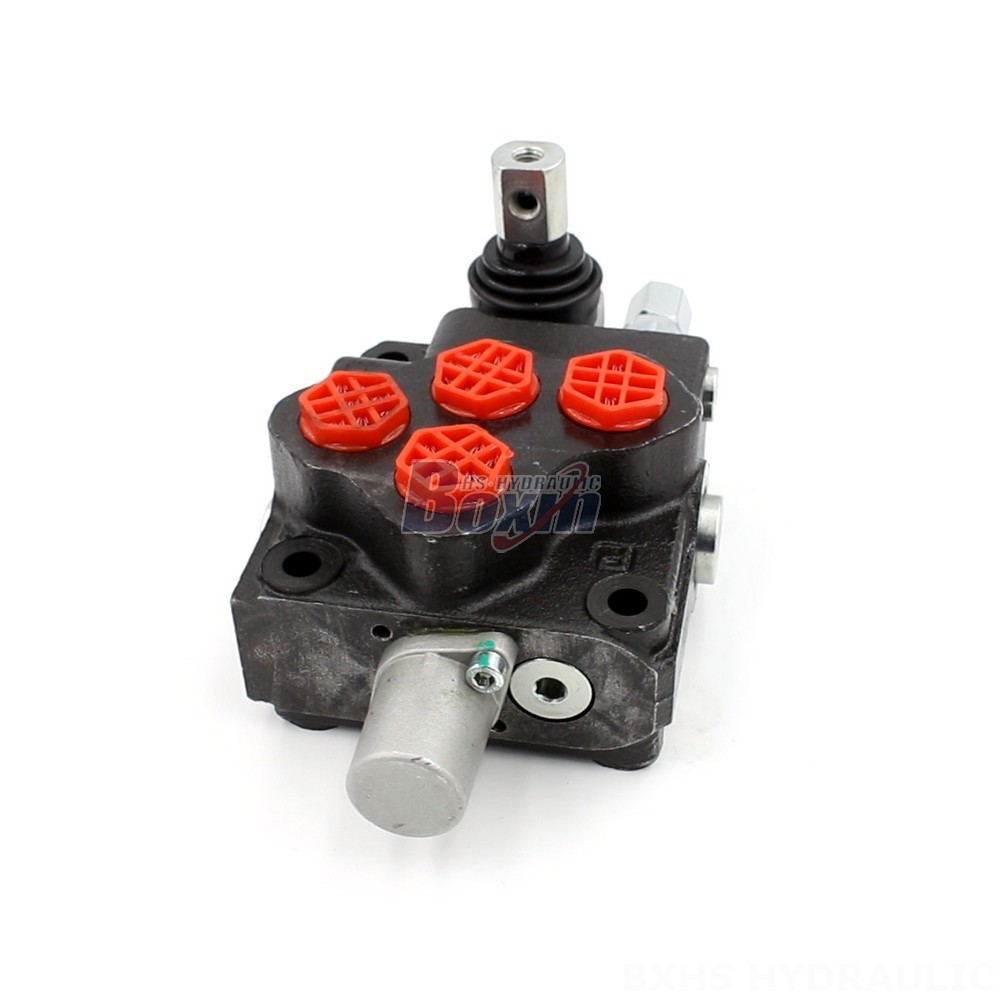

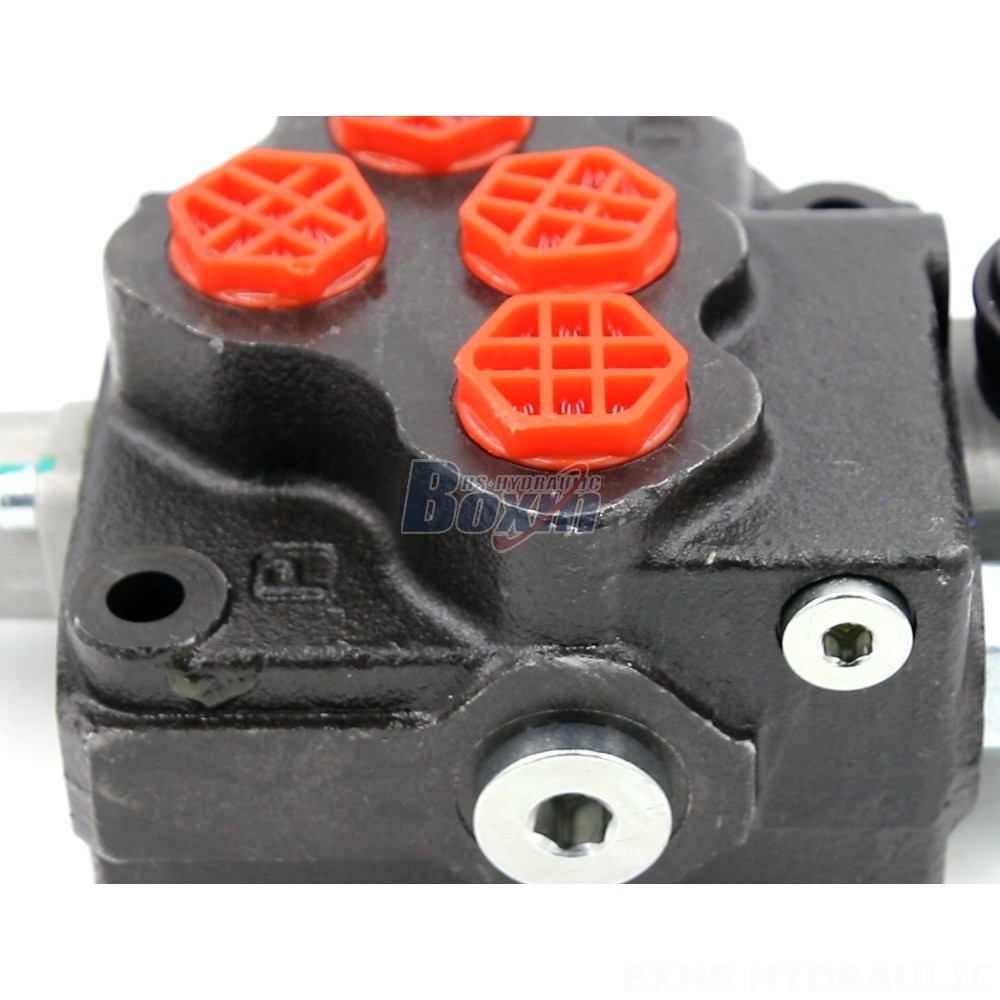

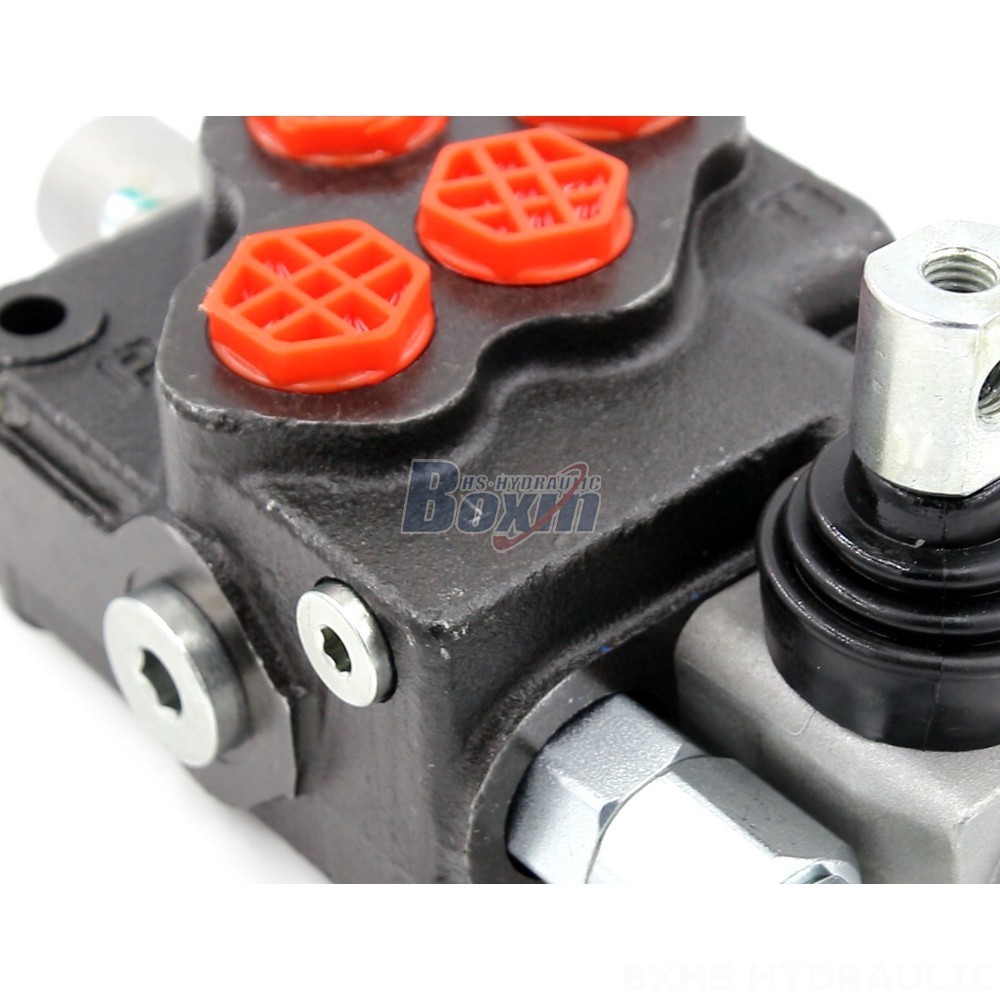

Introducing the Factory-Direct Distribution: SD5-G38 Monoblock Valve! Our state-of-the-art valve offers exceptional performance with a rated flow capacity of 40 L/min and a maximum pressure of 305 bar. Designed to meet the demands of various industries, including material handling, construction, agriculture, and industrial vehicles.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
Experience the benefits of direct factory distribution:
**Cut Out the Middleman:** Get your hands on high-quality products straight from the source, eliminating unnecessary markups and ensuring competitive pricing.
**Unmatched Quality:** As the manufacturer, we maintain strict quality control standards, ensuring the reliability and longevity of our valves.
**Customization Options:** Whether you need OEM, ODM, or custom solutions, we have the expertise and capabilities to meet your specific requirements.
**Excellent Customer Support:** Our dedicated team is here to provide technical assistance, product support, and personalized service throughout the partnership.
**Global Reach:** We cater to customers worldwide, ensuring timely and efficient order fulfillment regardless of your location.
The SD5-G38 Monoblock Valve is ideal for a wide range of applications, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
Choose Factory-Direct Distribution and elevate your business with the superior quality, cost-effectiveness, and personalized service we offer.
