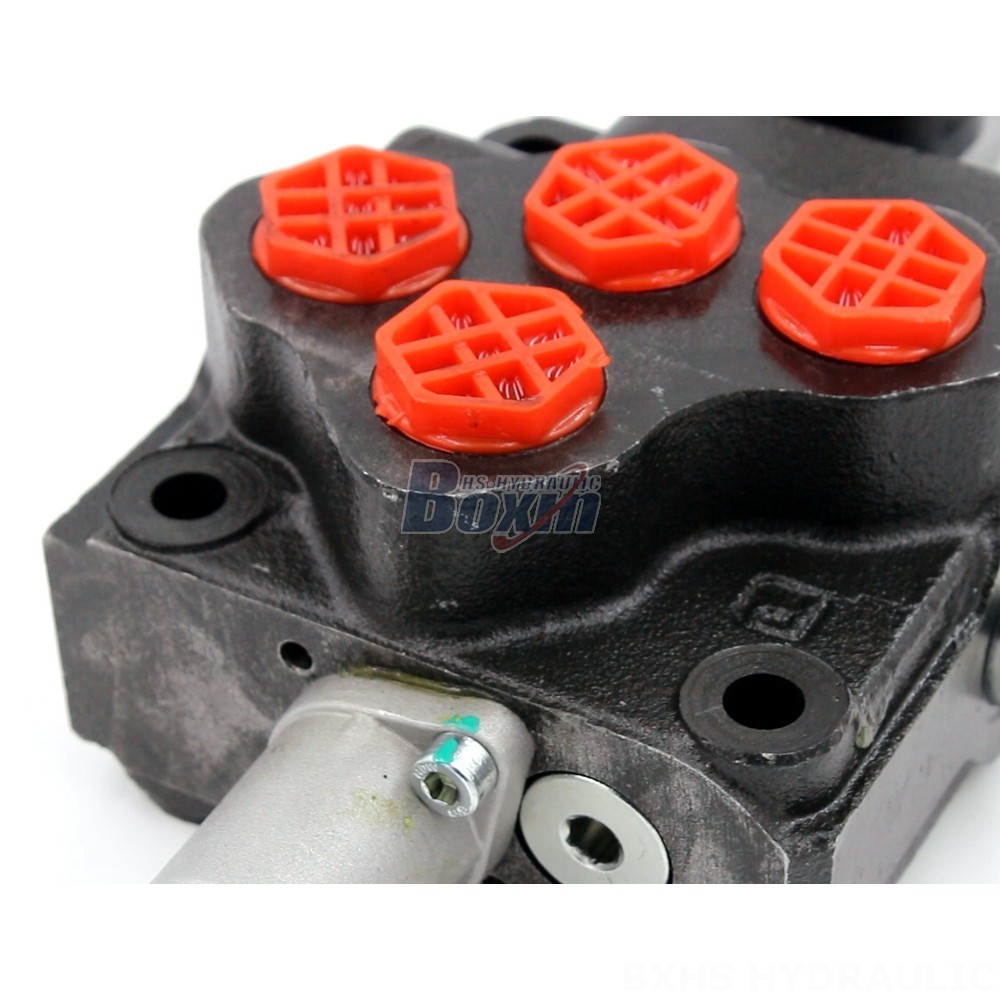

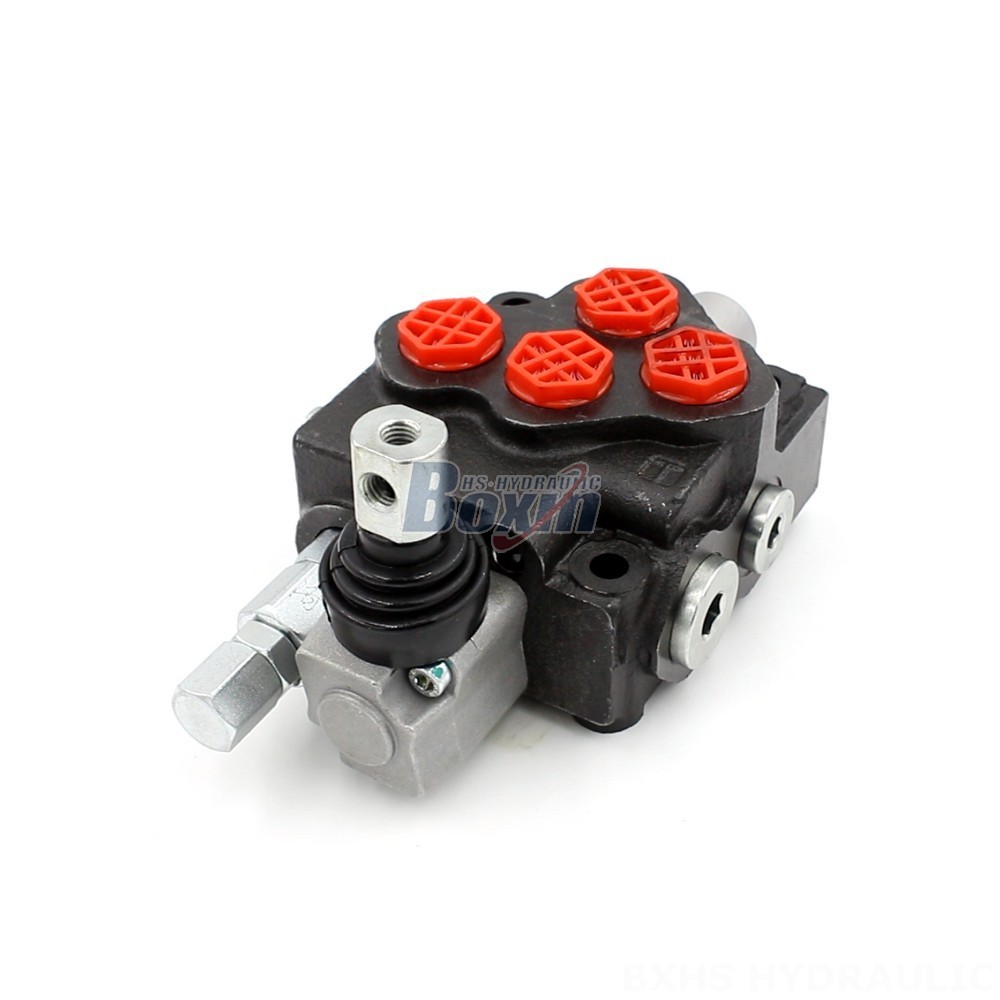

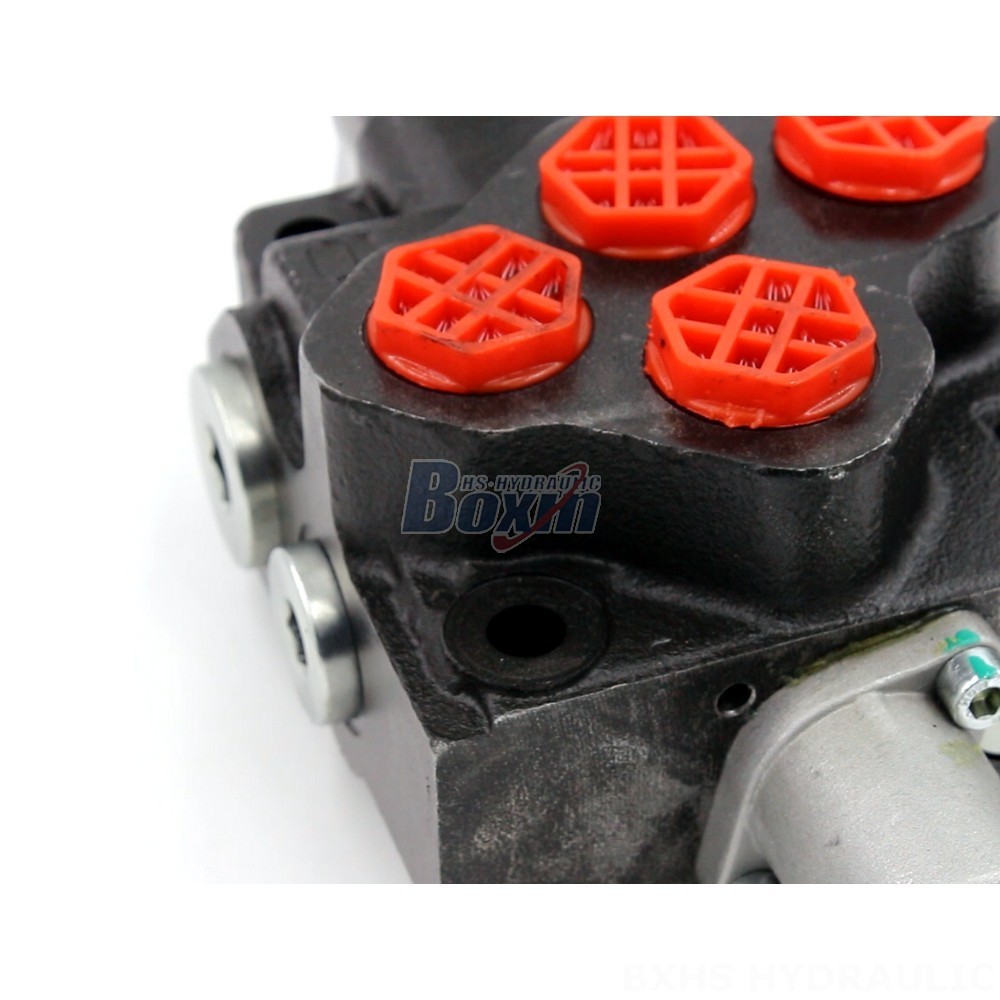

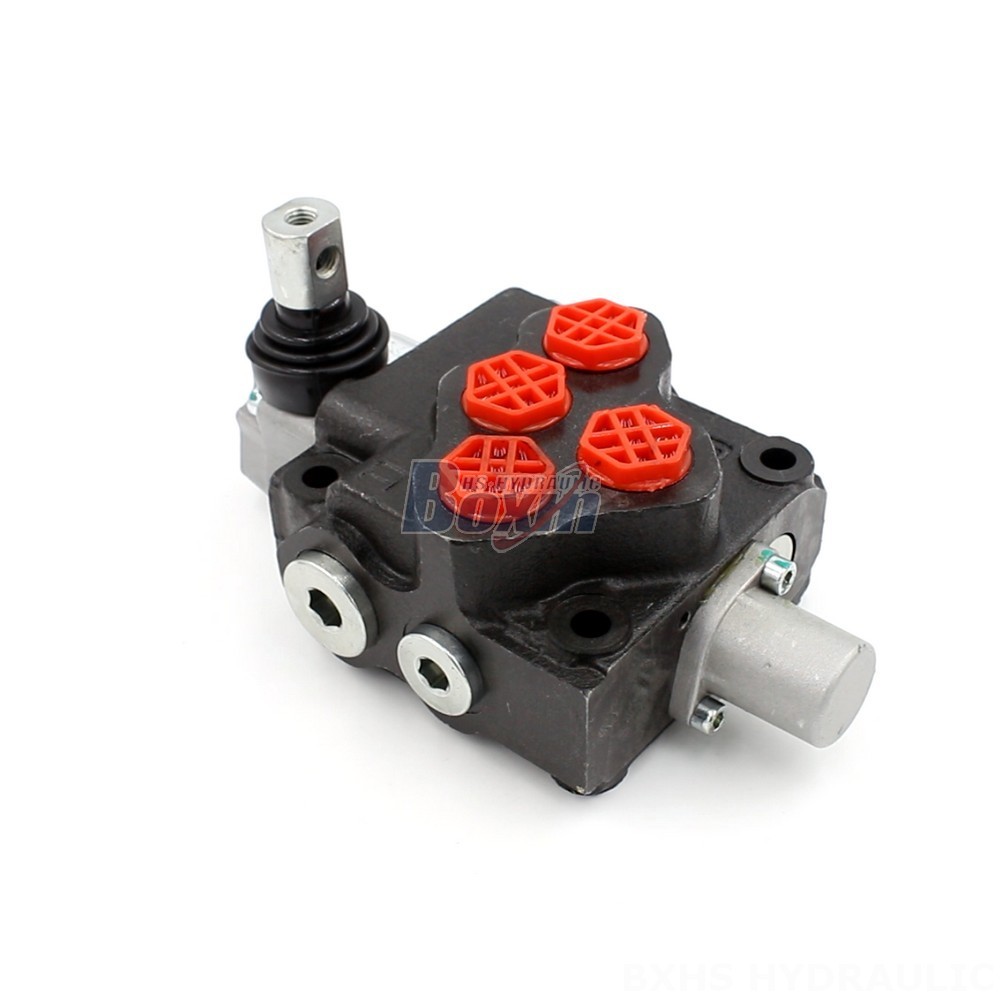

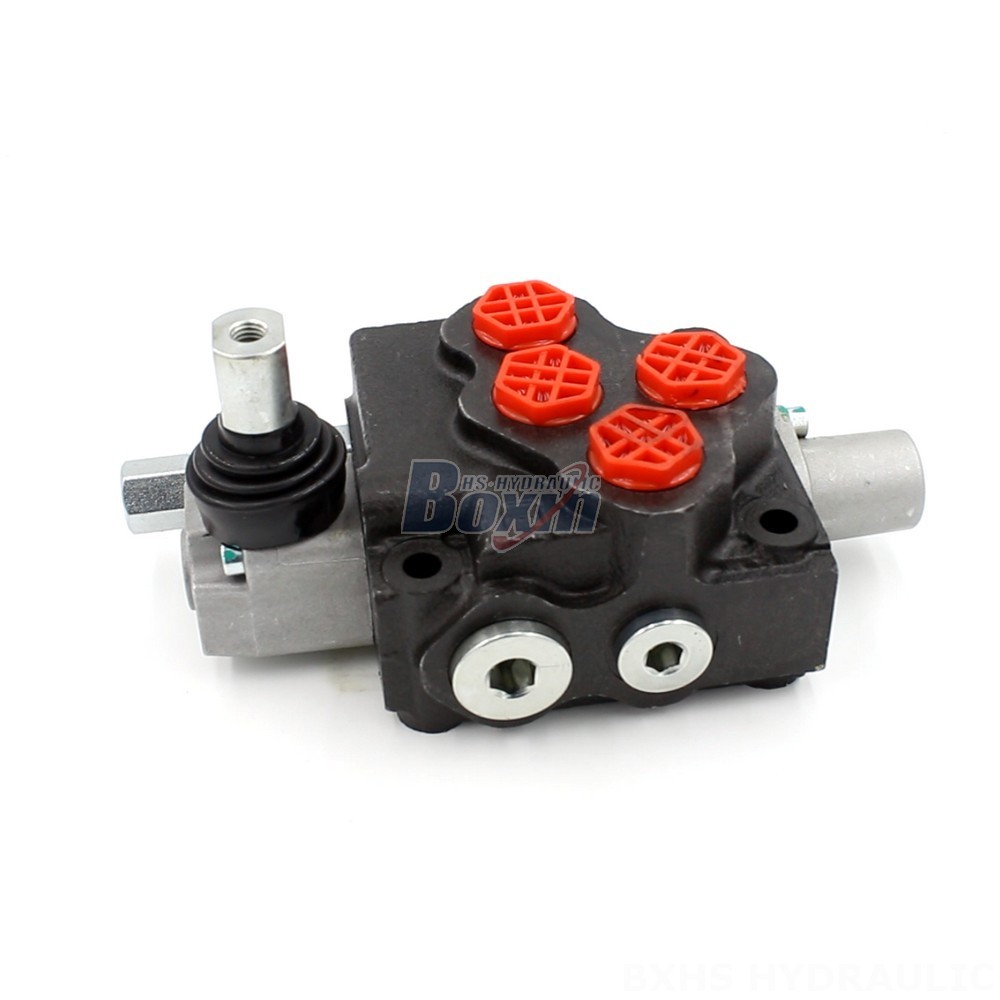

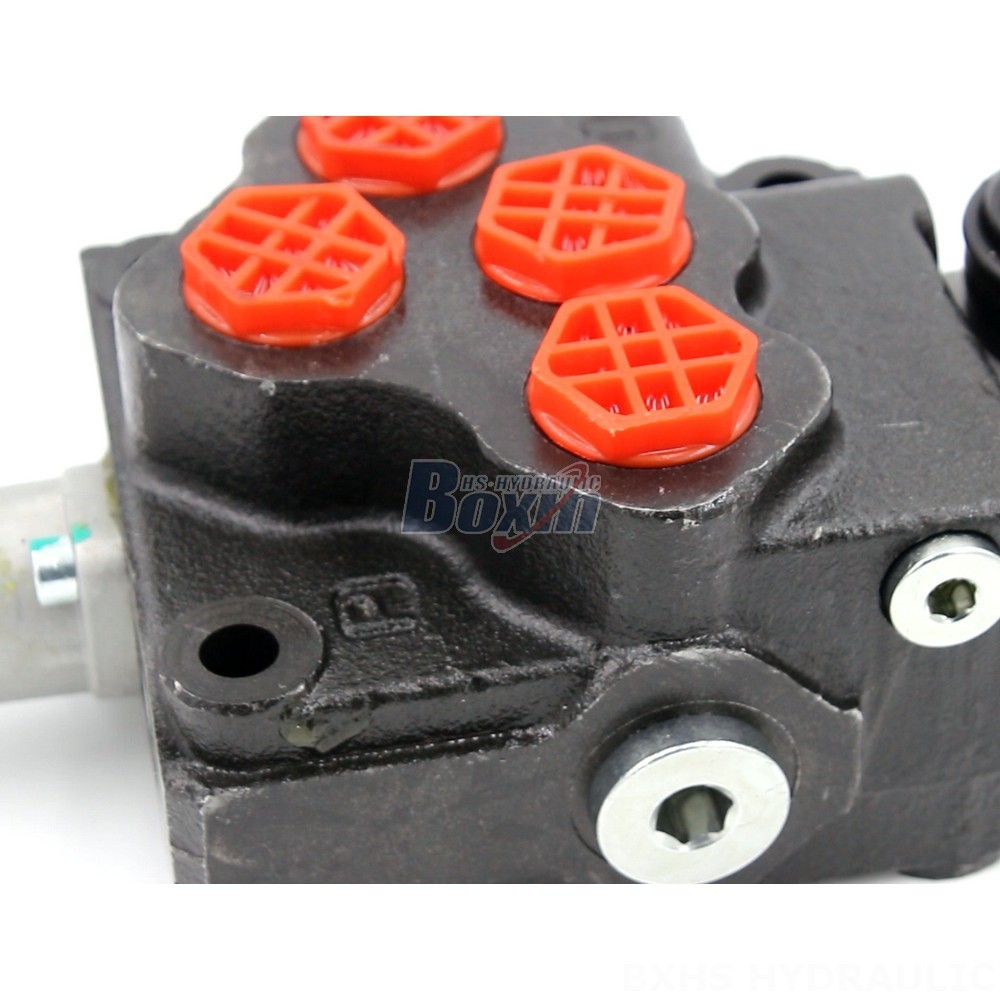

The SD5-G38 Manual Valve is a robust and reliable remote control hydraulic valve block designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a 40 L/min flow rate and 305 bar maximum pressure, making it ideal for demanding operations.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Manual Valve is a single-section monoblock valve with a 1 spool design. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve is designed for operating viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). The SD5-G38 is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
