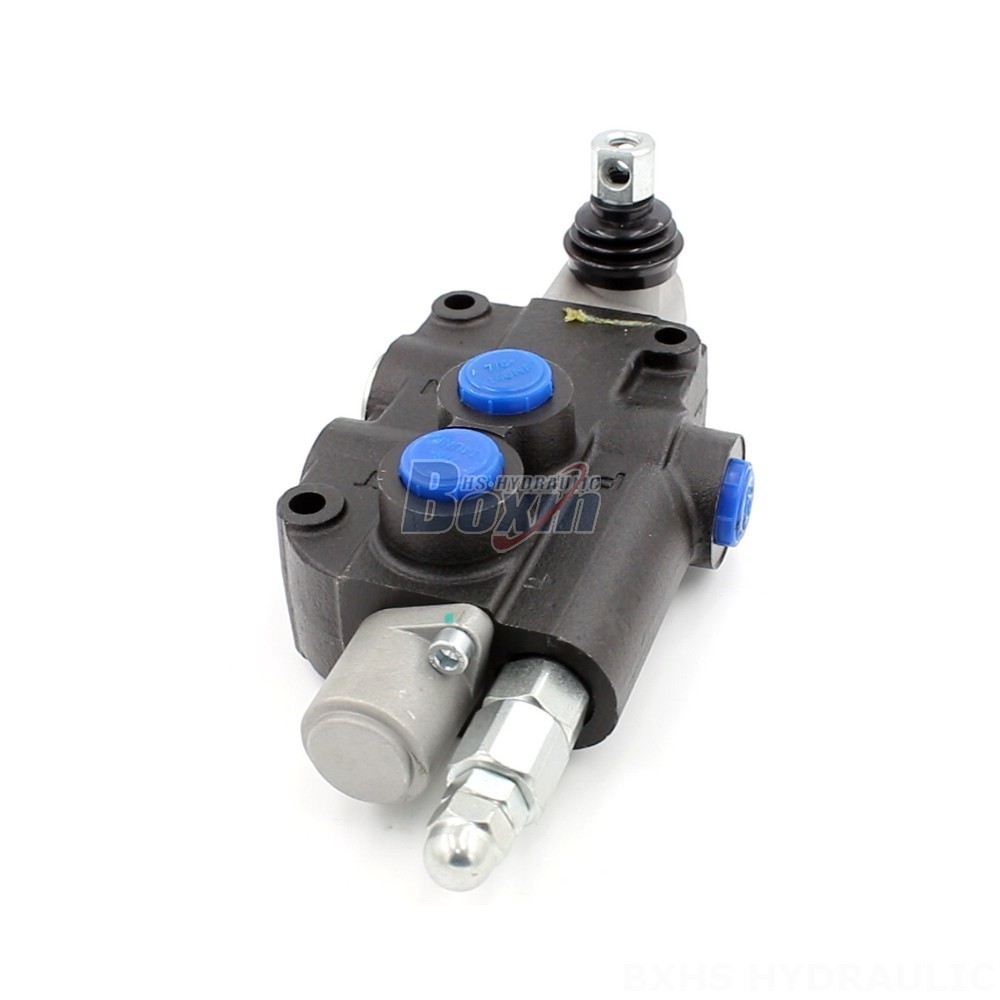

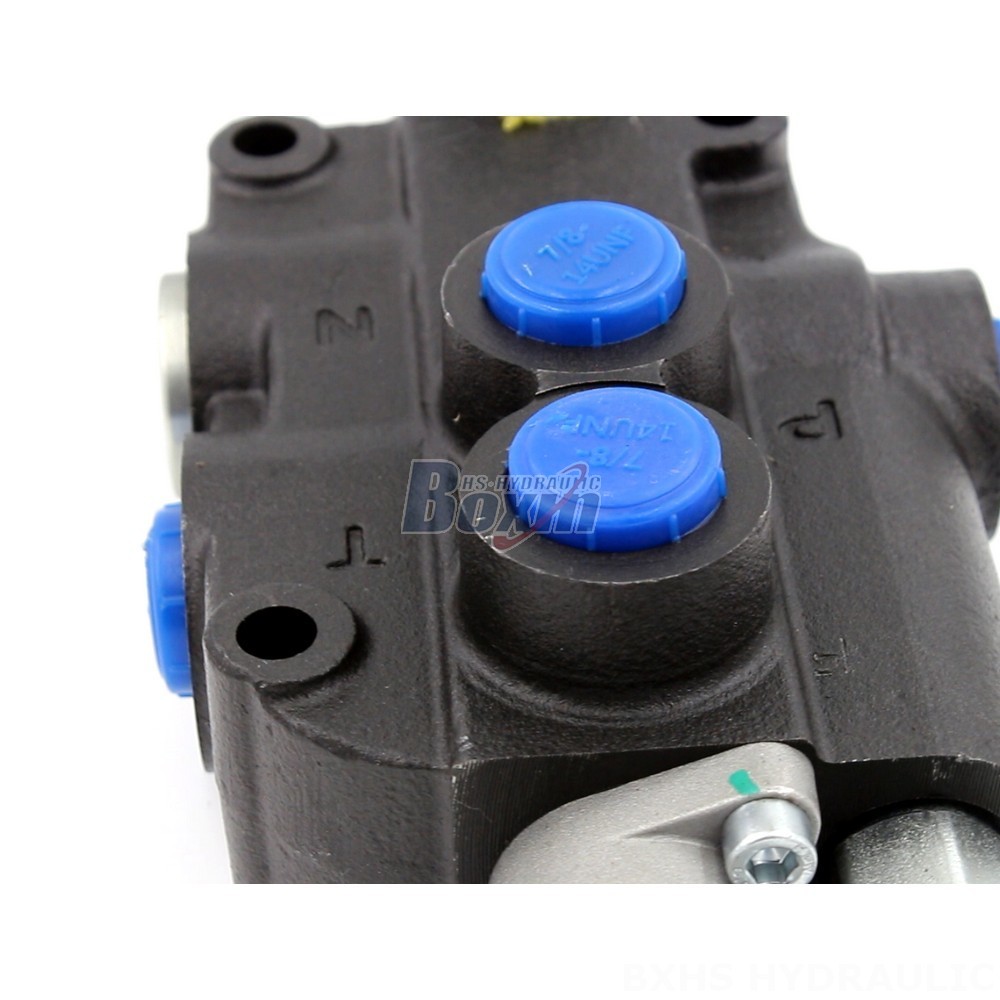

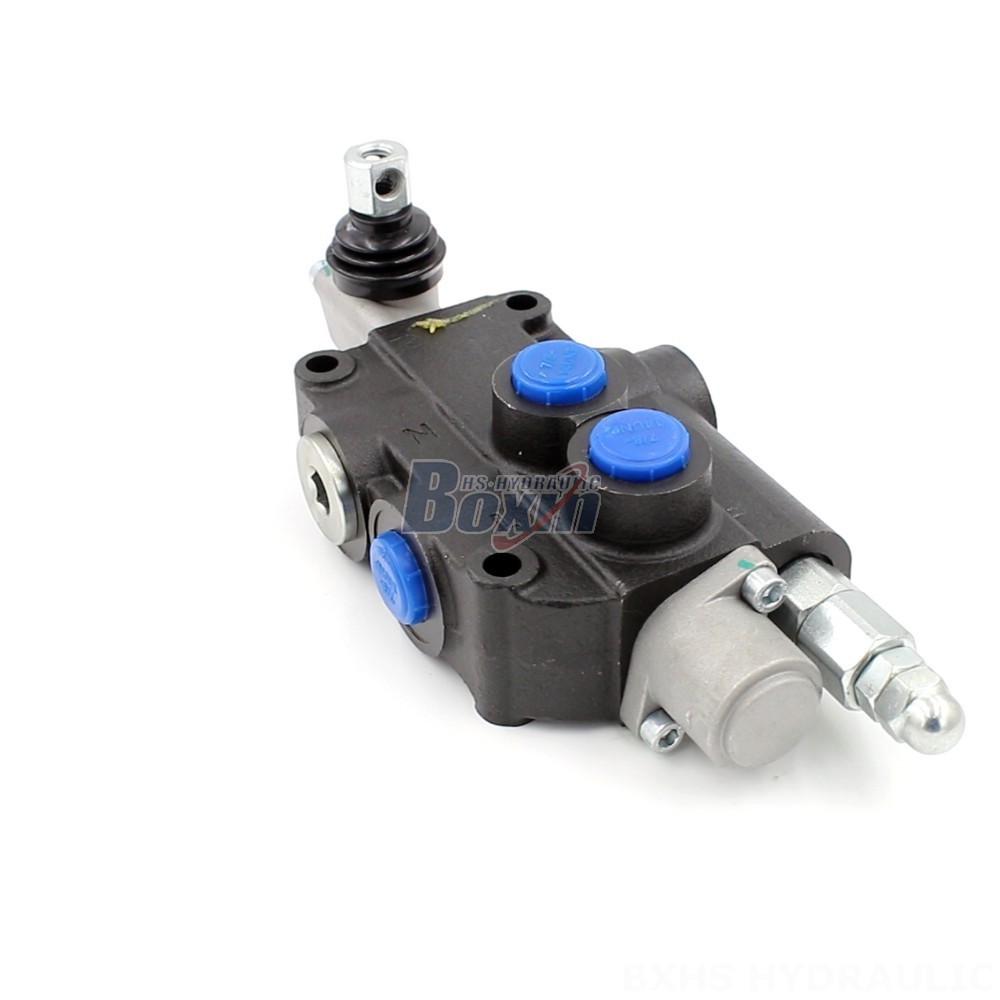

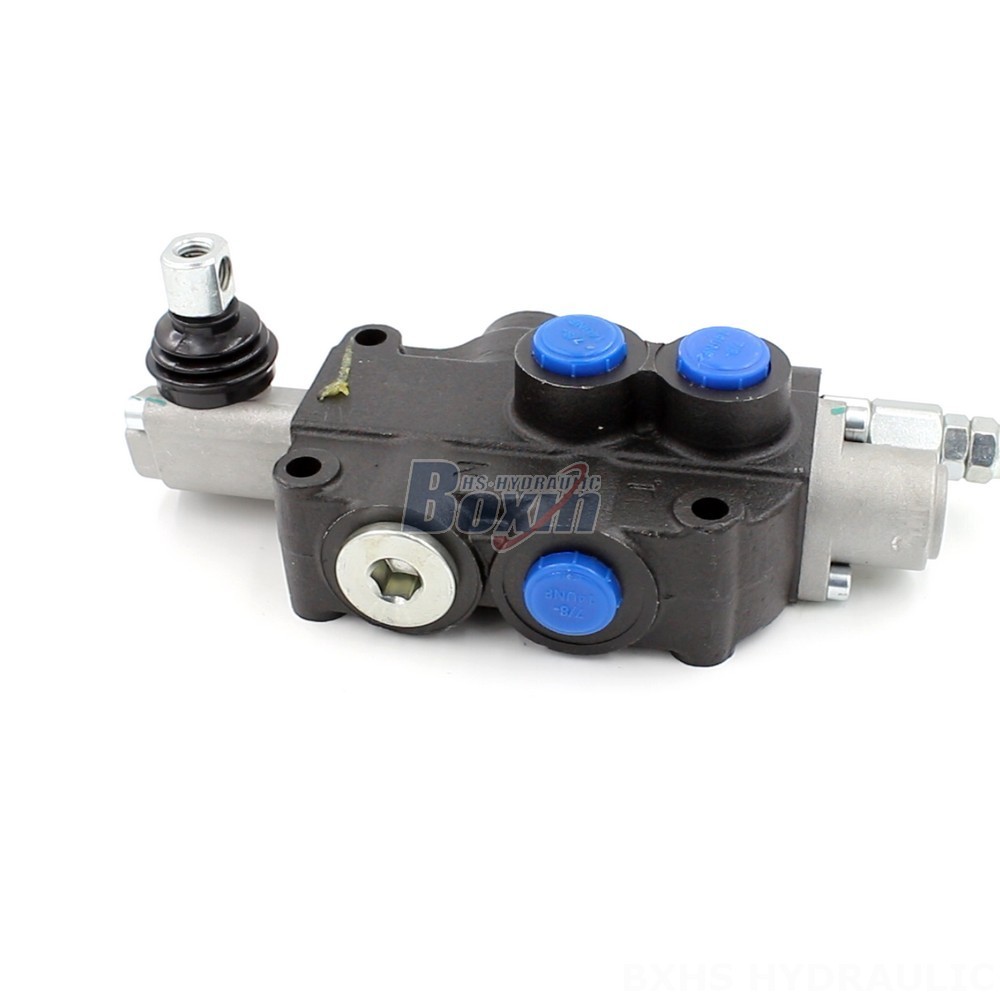

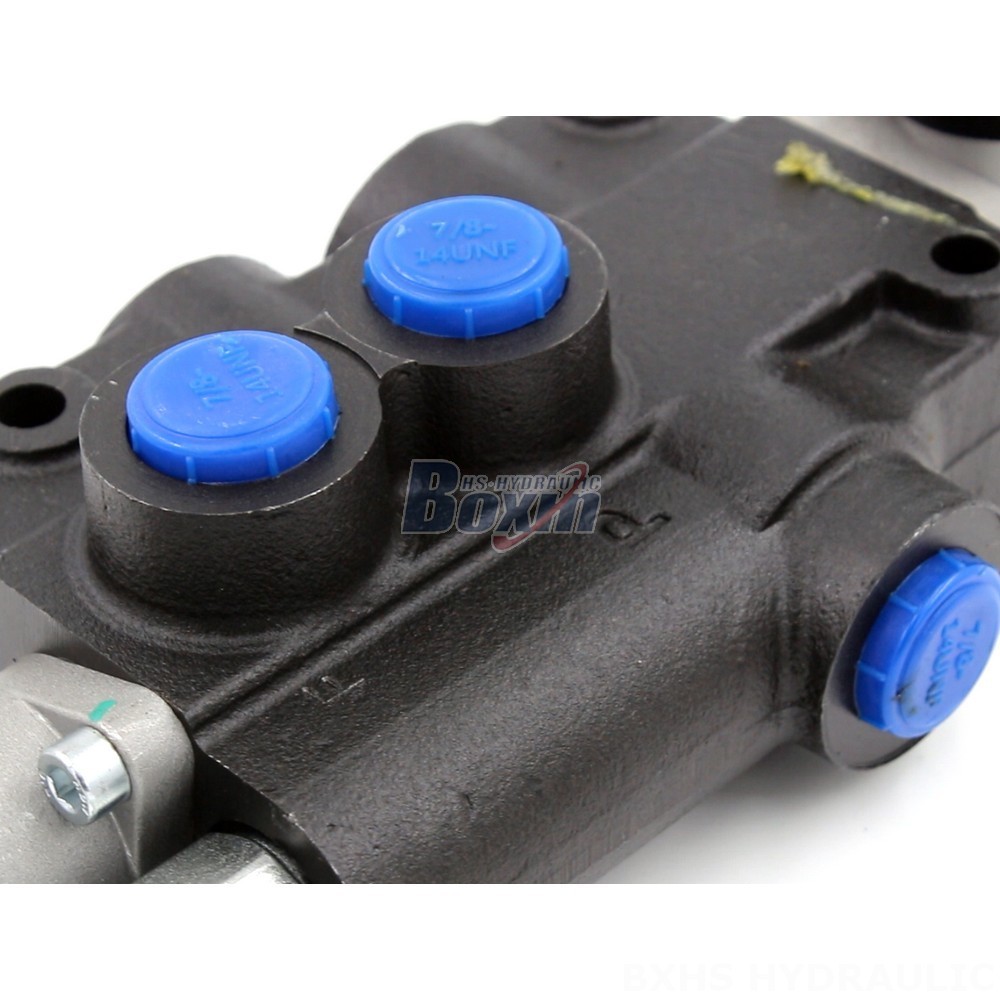

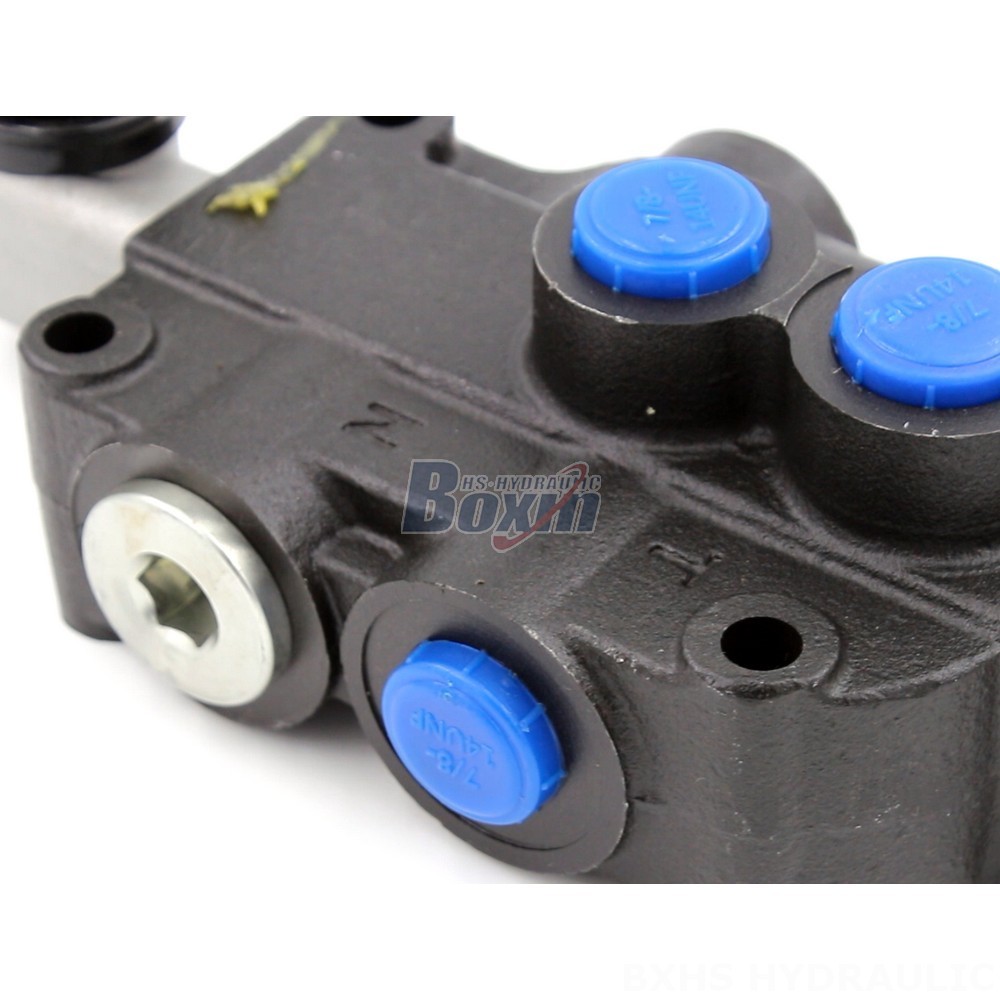

Introducing our exclusive factory-priced P80-U78-1OT Hydraulic Directional Valve, the ultimate solution for your hydraulic system needs. Manufactured with the highest standards of precision and reliability, this valve features a robust monoblock design, manual control, and exceptional performance capabilities.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80-U78-1OT Hydraulic Directional Valve is meticulously engineered to deliver exceptional performance in demanding applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient and reliable operation in a wide range of hydraulic systems. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) make it suitable for diverse operating conditions.
As a leading hydraulic products manufacturer, we offer exclusive factory pricing on our P80-U78-1OT Hydraulic Directional Valve. By sourcing directly from our state-of-the-art production facilities, you can enjoy significant cost savings while ensuring the highest quality standards. Our commitment to excellence extends beyond manufacturing; we also provide comprehensive support, including technical assistance and after-sales services, to ensure your complete satisfaction.
