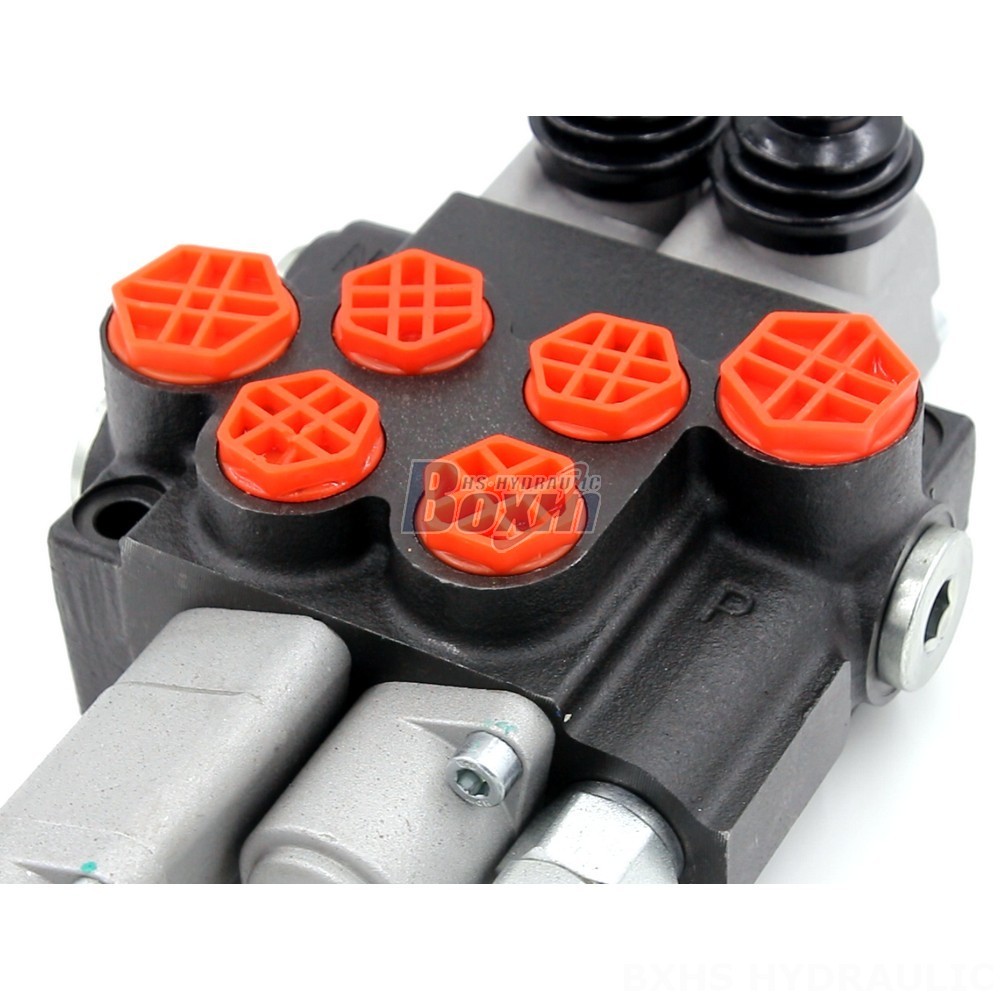

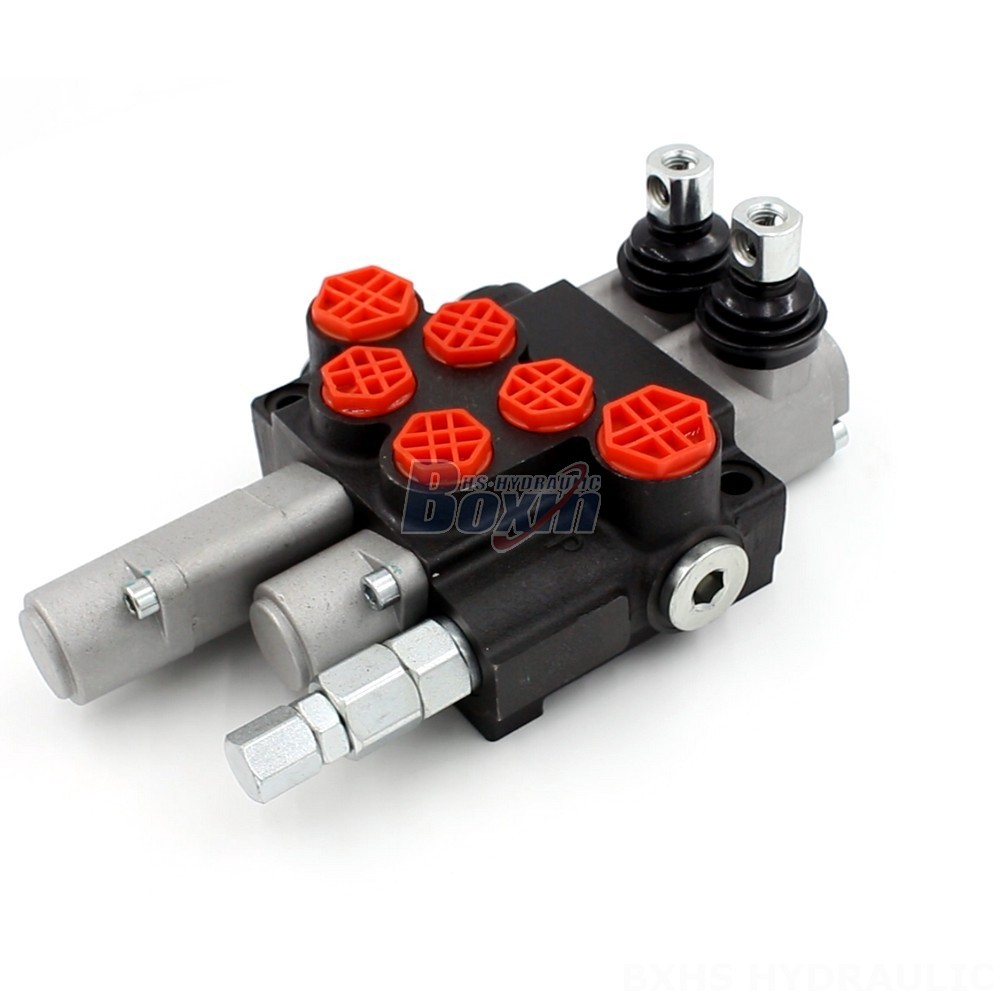

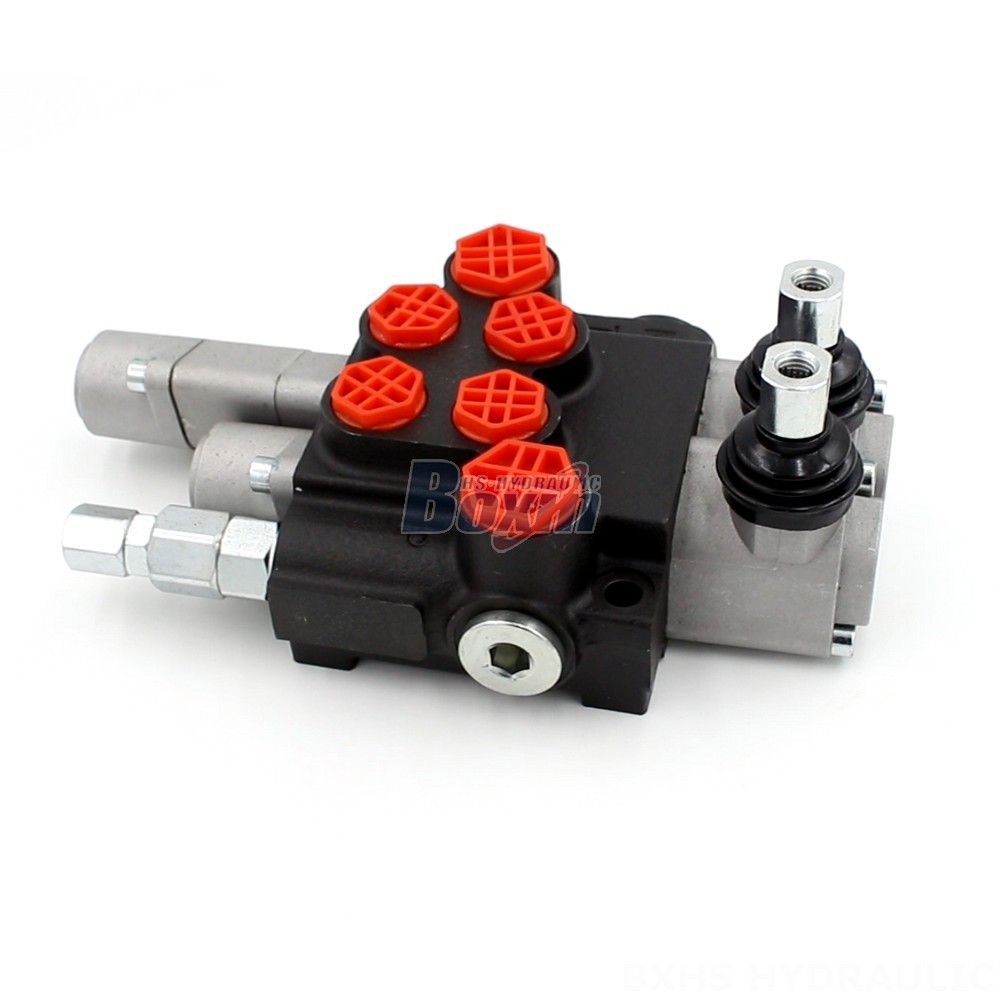

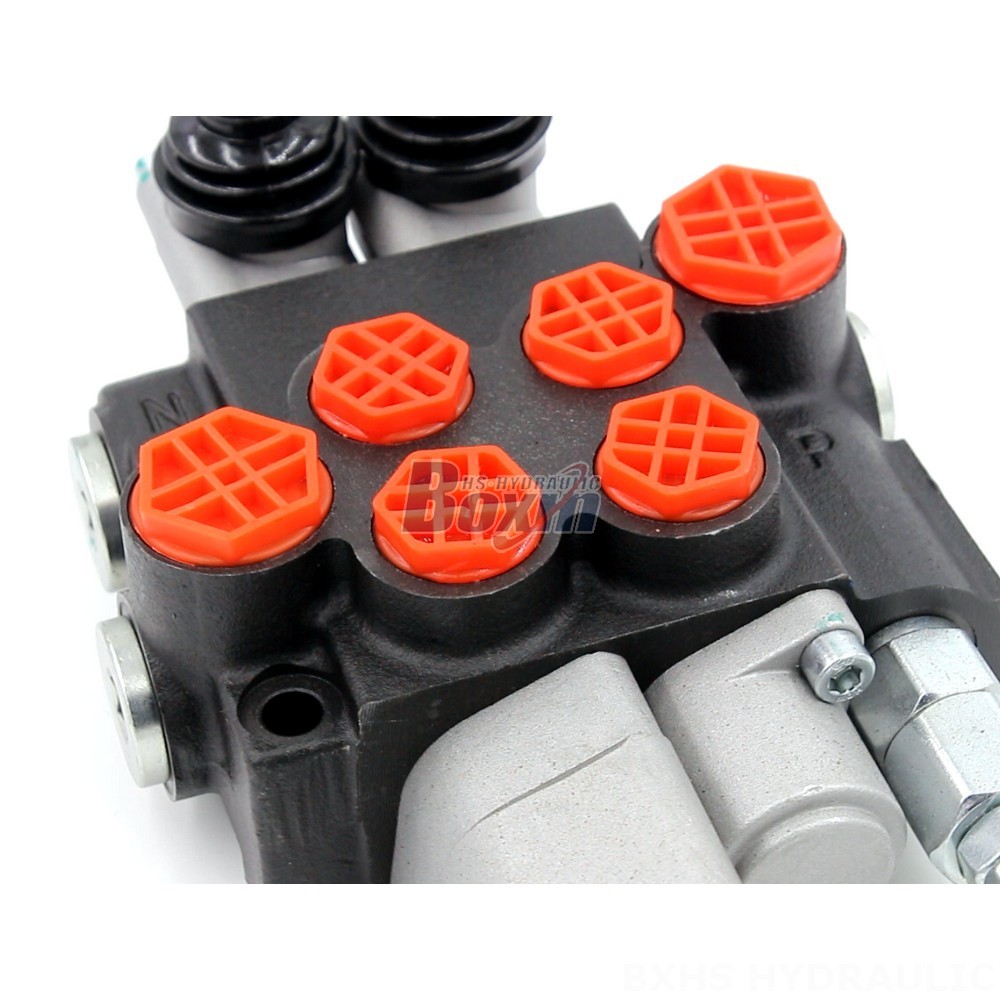

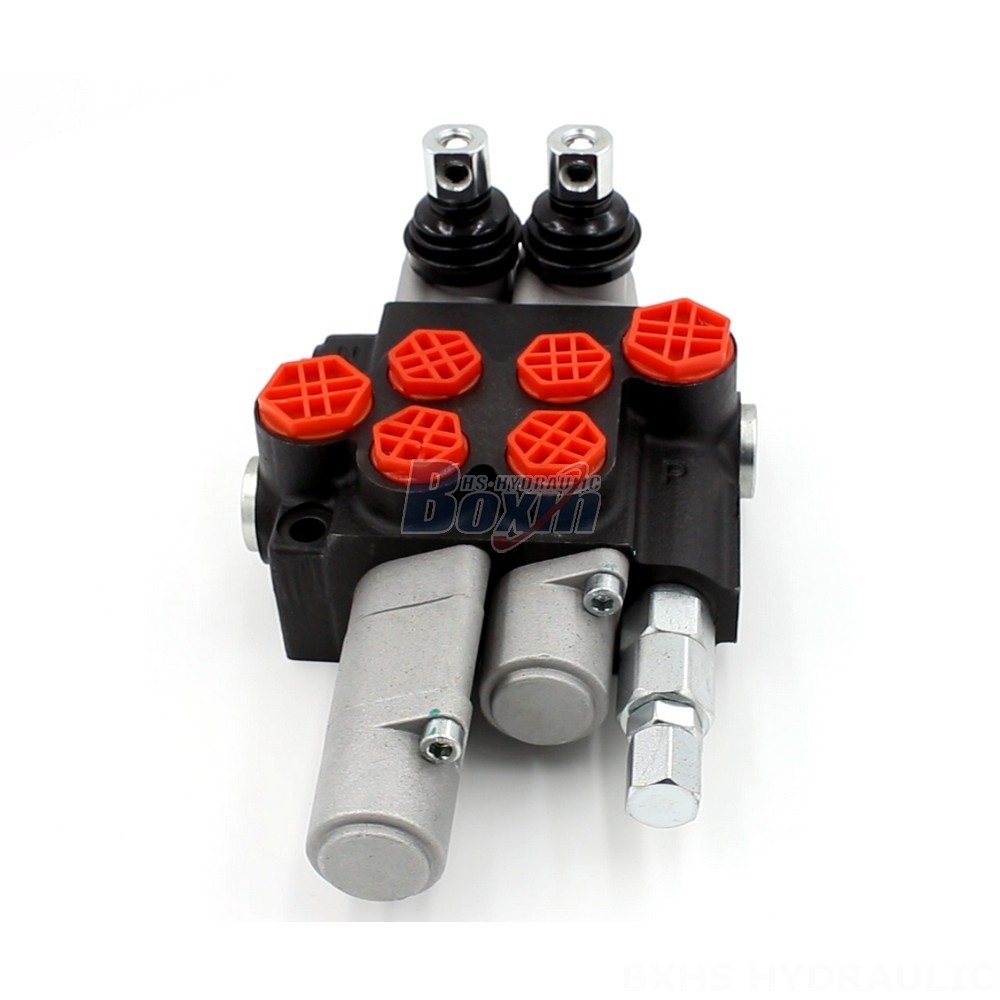

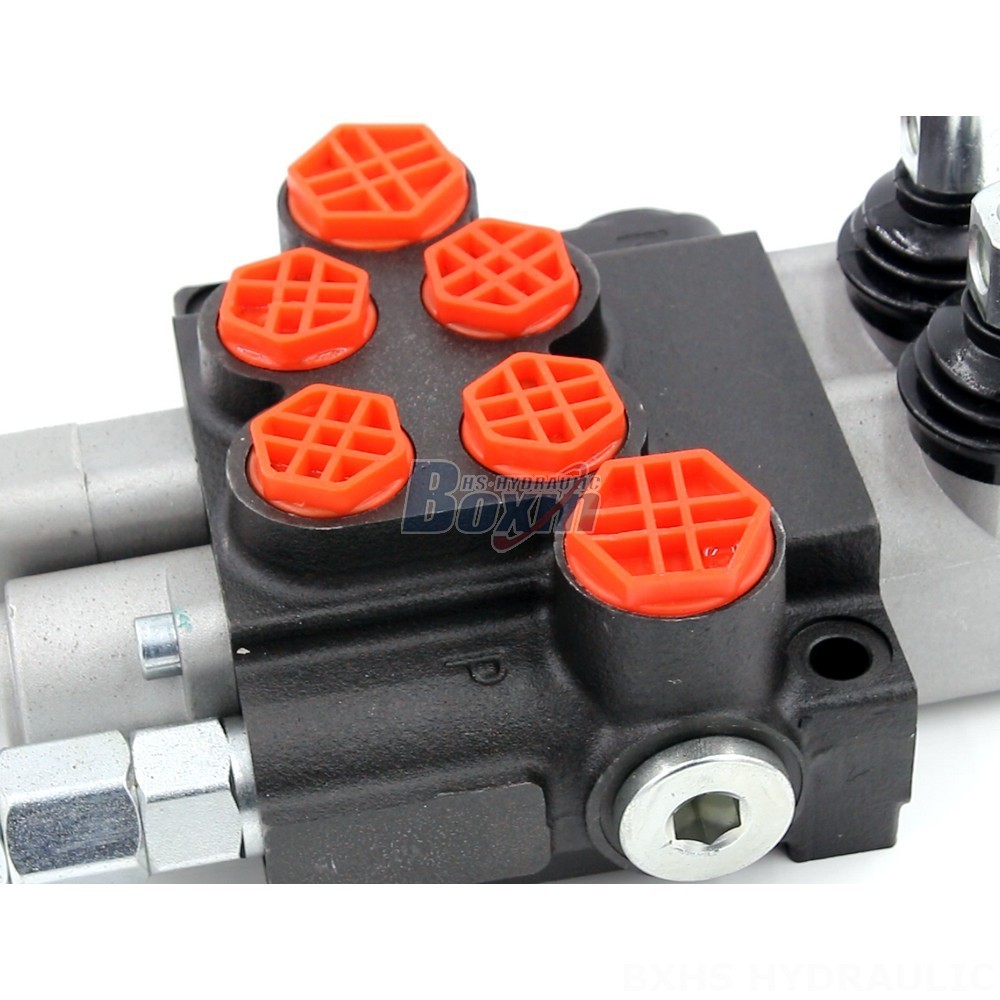

The P40-G12-G38-OT-QTW1 is a 2-section, monoblock valve with manual control. It has a rated flow of 40 L/min and a maximum pressure of 250 bar. The operating viscosity range is 15 - 75 mm²/s and the ambient temperature range is -40°C to +80°C. The valve is suitable for use in material handling, construction, agriculture, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT-QTW1 is a high-quality valve that is manufactured to the highest standards. It is made from durable materials and is designed to withstand even the most demanding applications. The valve is easy to install and maintain, and it comes with a comprehensive warranty.
As a leading manufacturer of hydraulic products, we offer a wide range of valves to choose from. We can also provide custom solutions to meet your specific needs. Contact us today to learn more about our products and services.
