Production & Delivery
15-30 Days Production Lead Time
L'innovation favorise le développement ; la technologie forge l'avenir
877 personnes consultent ce produit

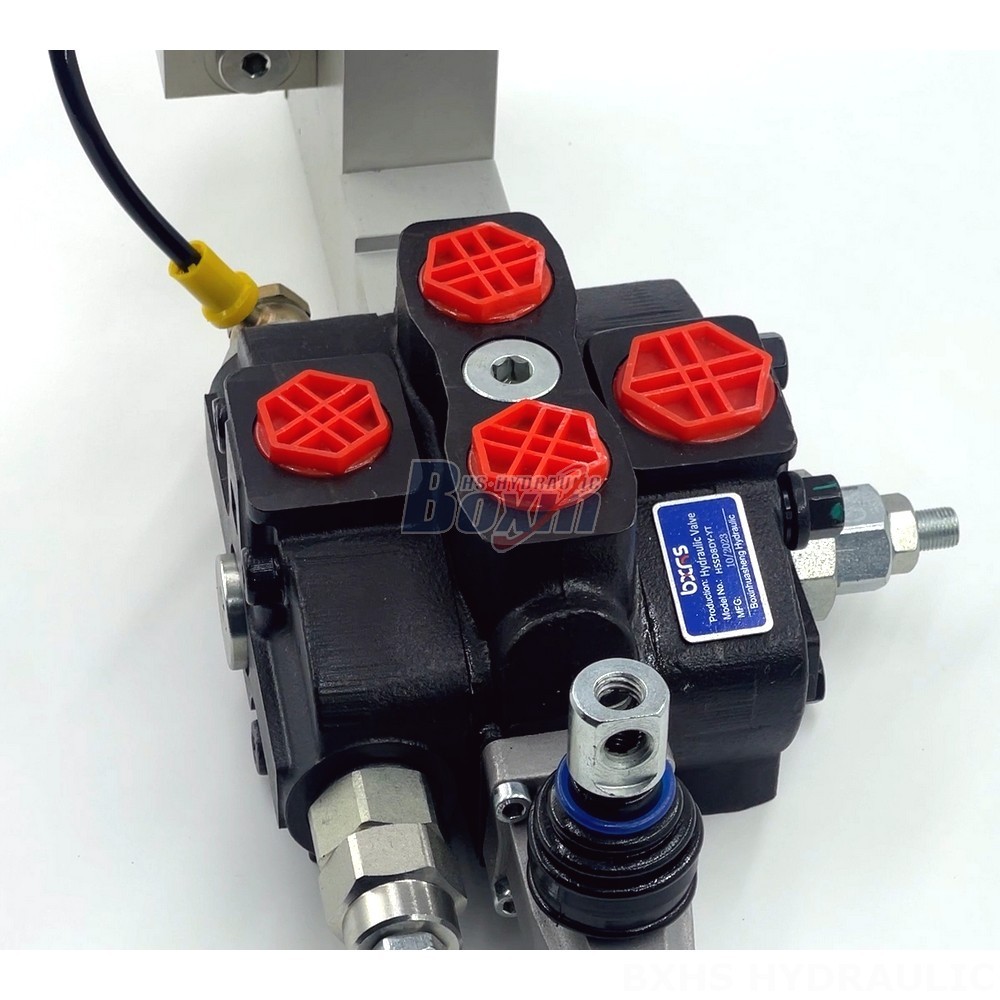

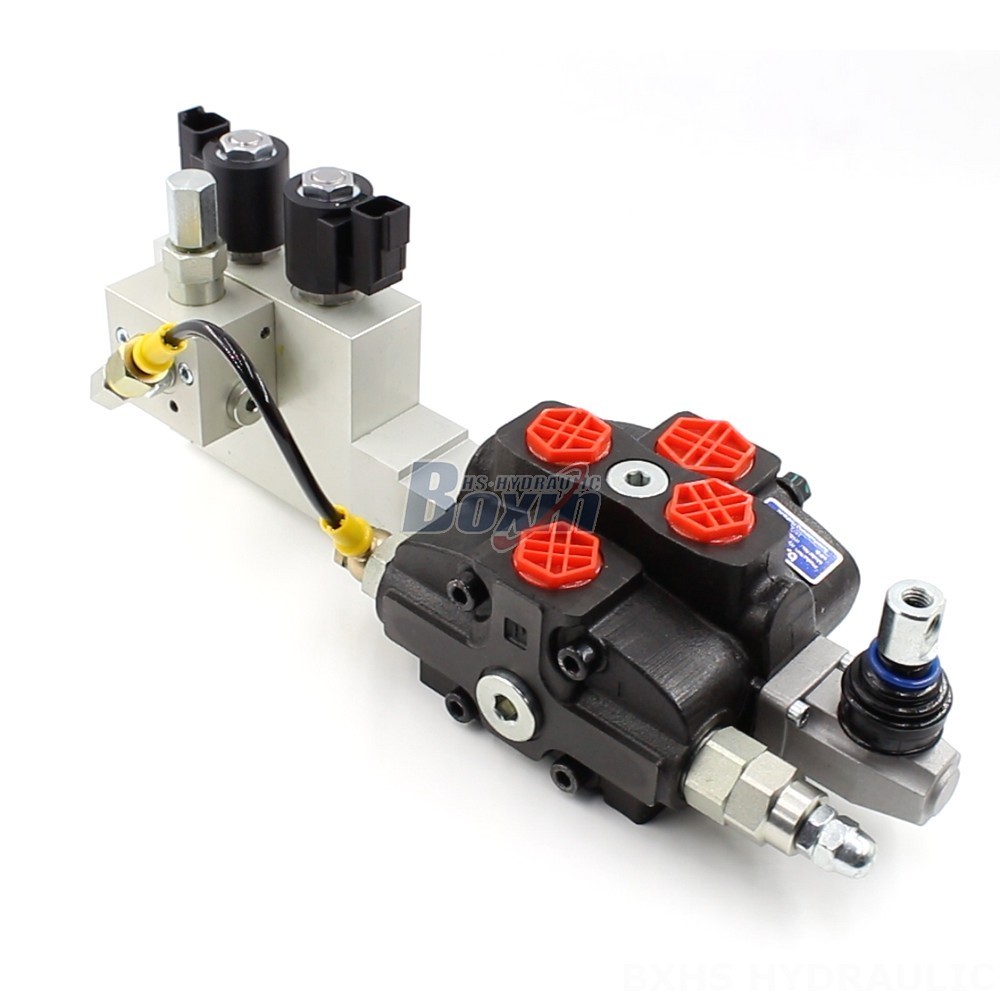

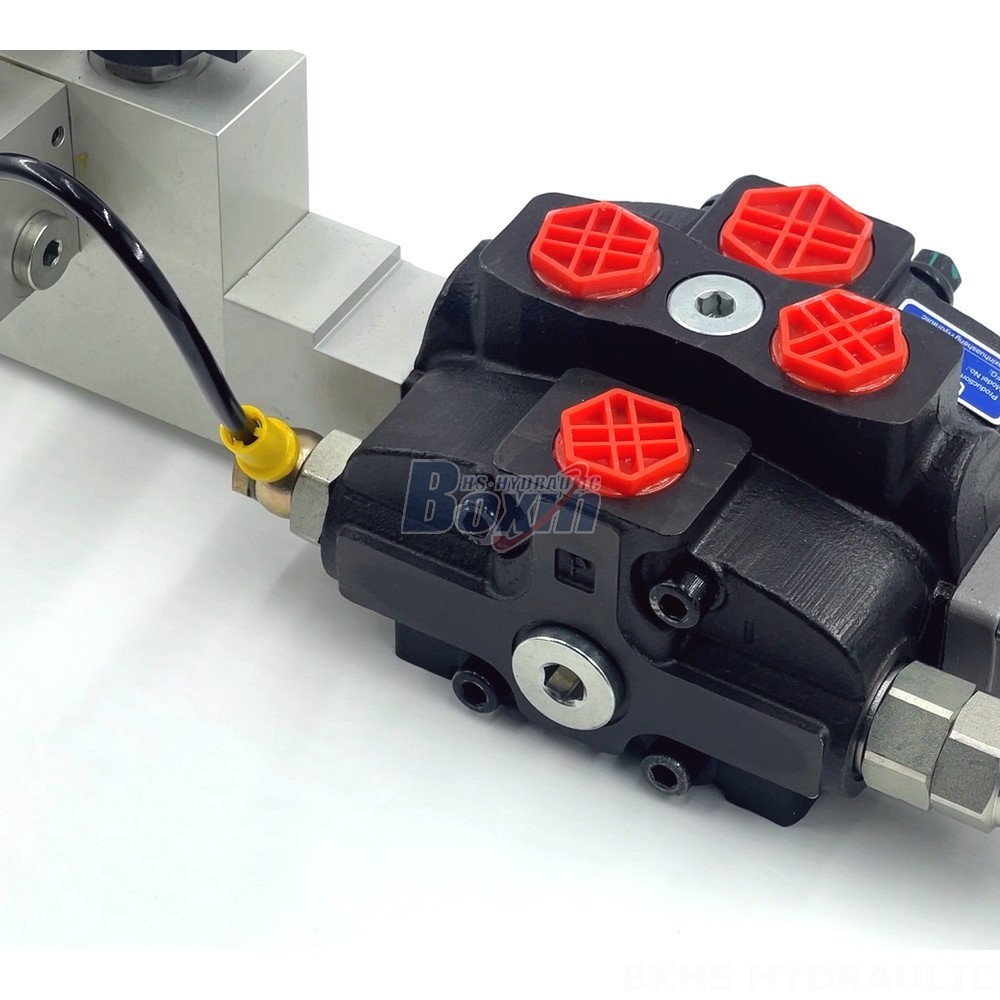

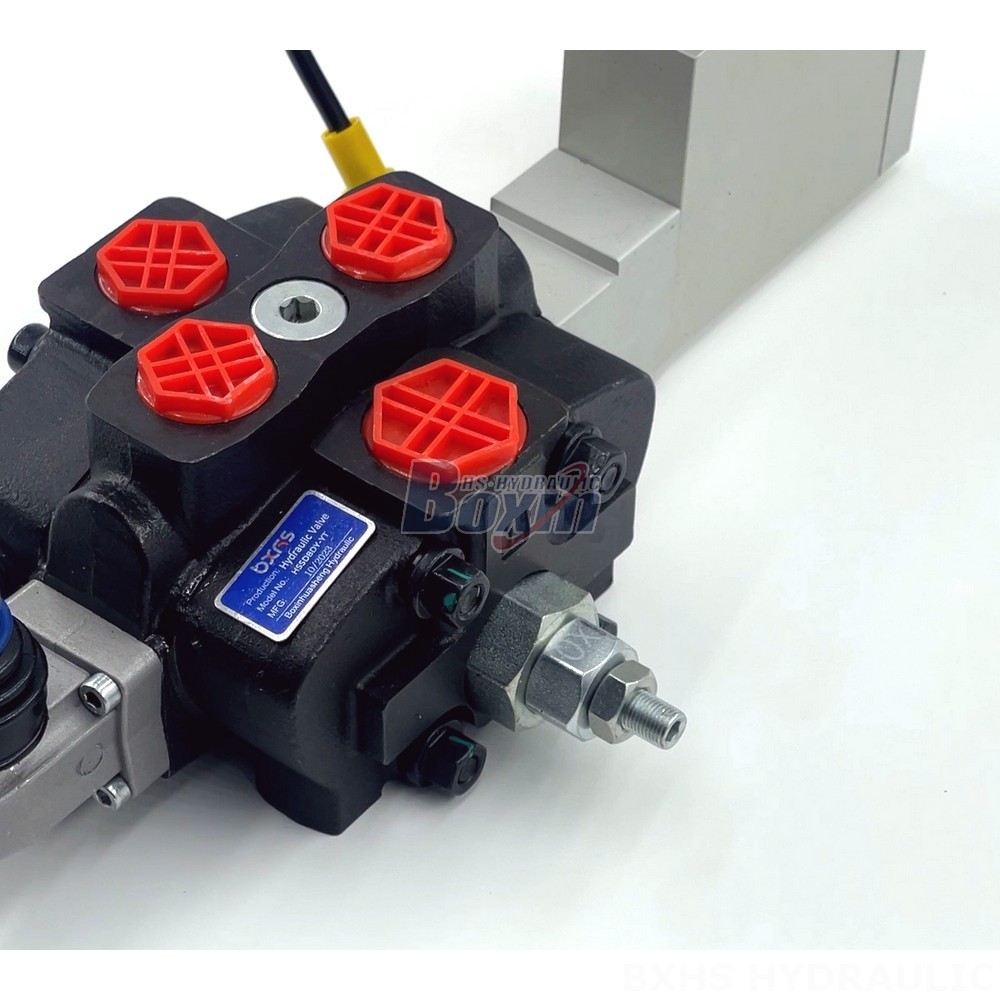

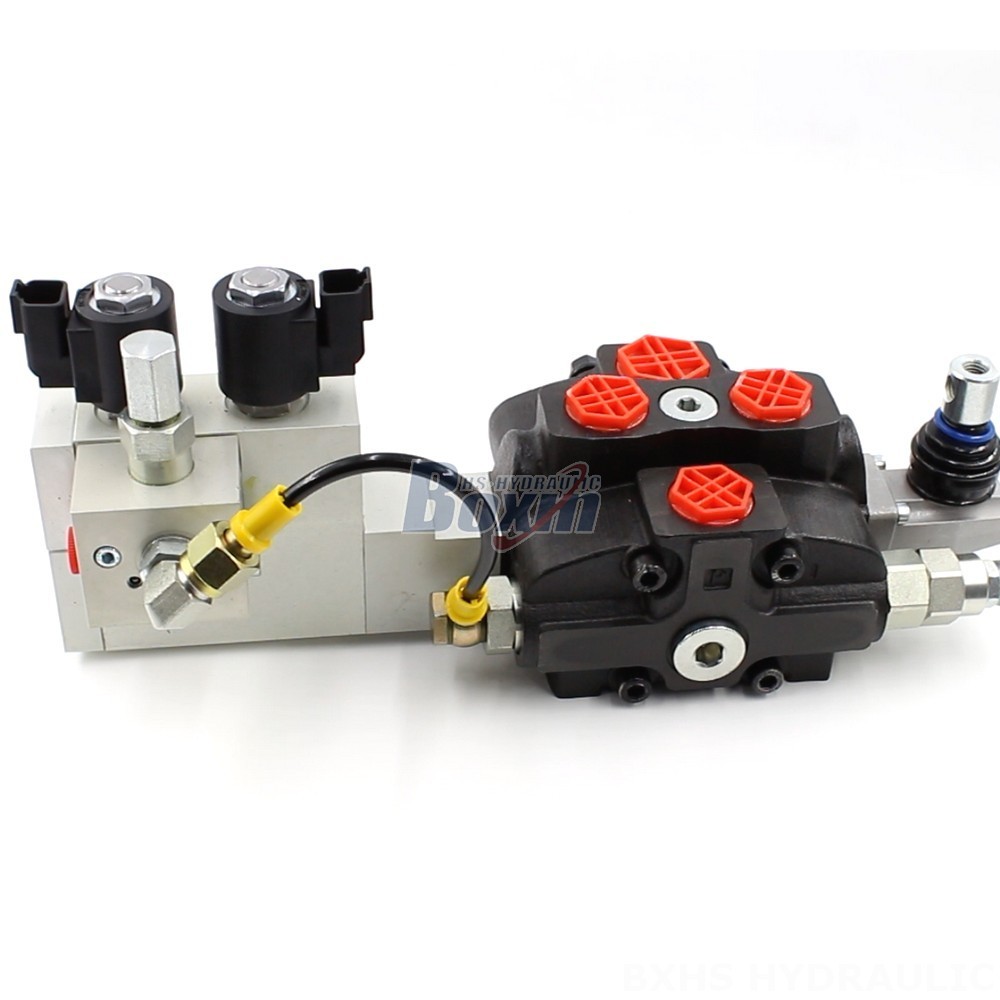

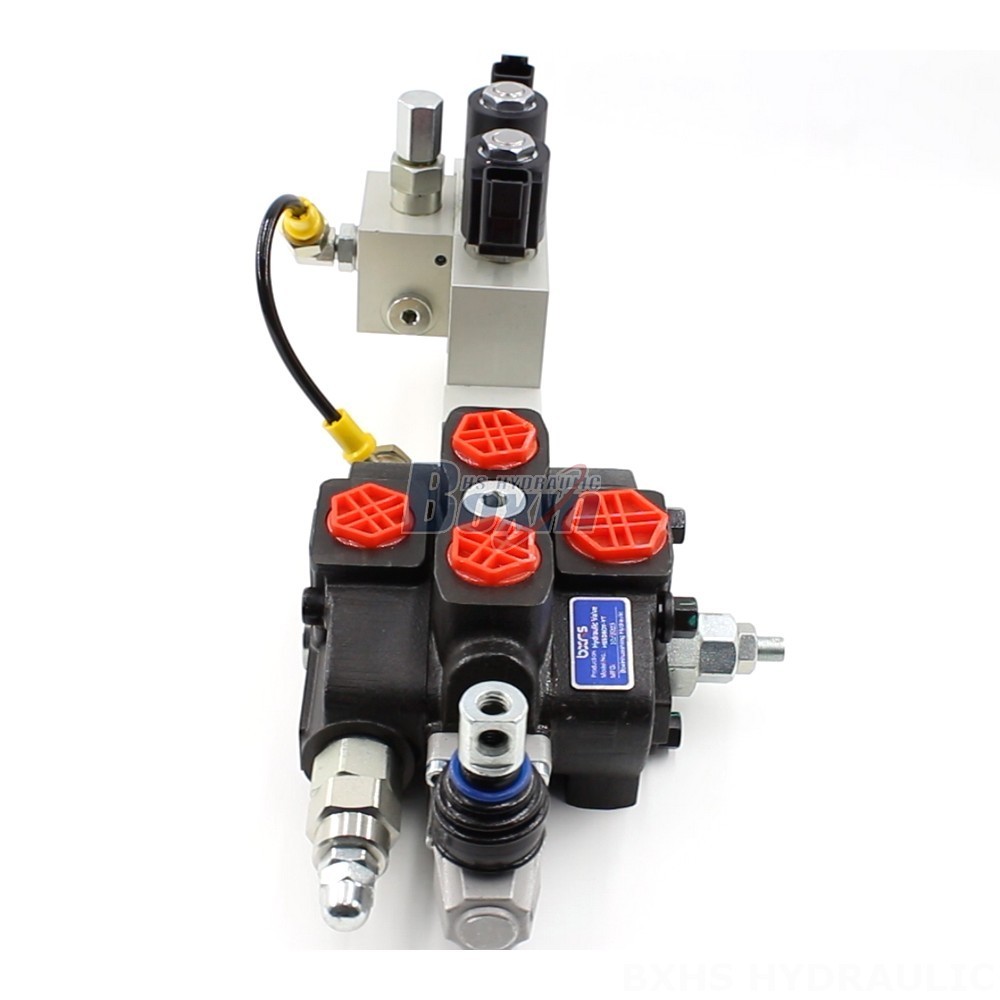

Introducing our Electro-hydraulic Sectional Directional Valve, the ultimate solution for precision control in your hydraulic applications. With its 1 section, sectional valve design, and exceptional performance parameters, this valve delivers unmatched precision and reliability.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |
**Key Features and Benefits:**
- **Electro-hydraulic control:** Ensures precise and responsive operation.
- **1 Section:** Allows for independent control of fluid flow in a single circuit.
- **Sectional valve:** Modular design enables easy configuration and customization.
- **High Rated Flow (90 L/min):** Handles demanding flow requirements effortlessly.
- **Max Pressure (350 bar):** Withstands high system pressures.
- **Wide Operating Viscosity Range (12 - 400 mm²/s):** Accommodates various fluid viscosities.
- **1 Spool:** Provides precise flow control with minimal leakage.
- **SD8 Series:** Part of our premium valve range, known for durability and performance.
**Applications:**
- Material Handling: Forklifts, telehandlers, stackers
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, compact wheel loaders
