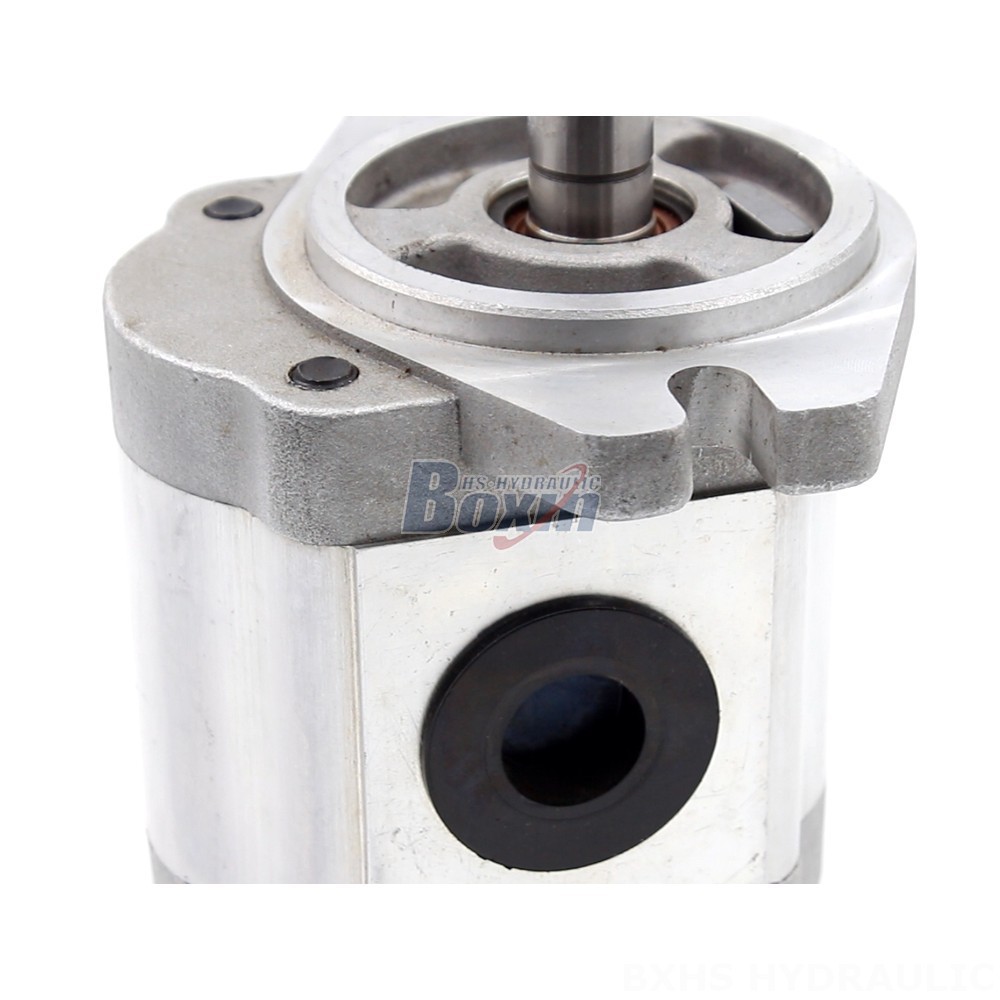

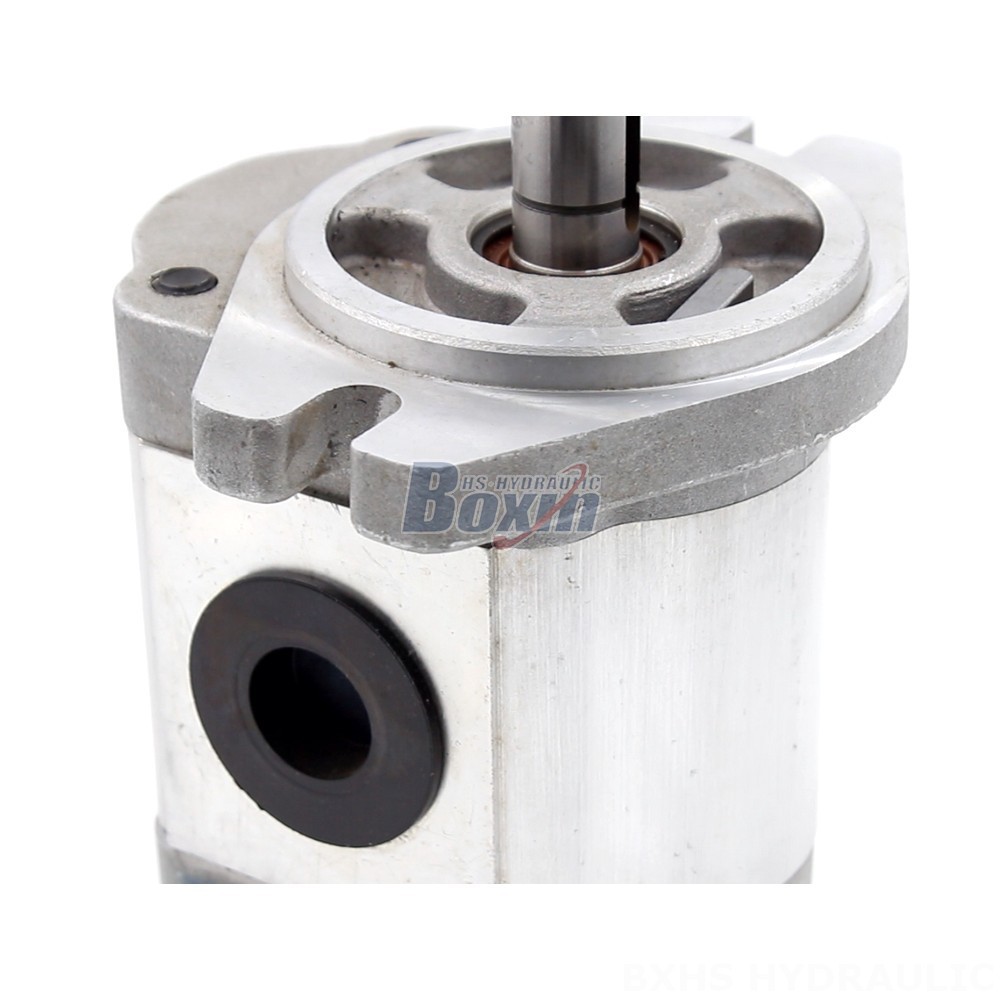

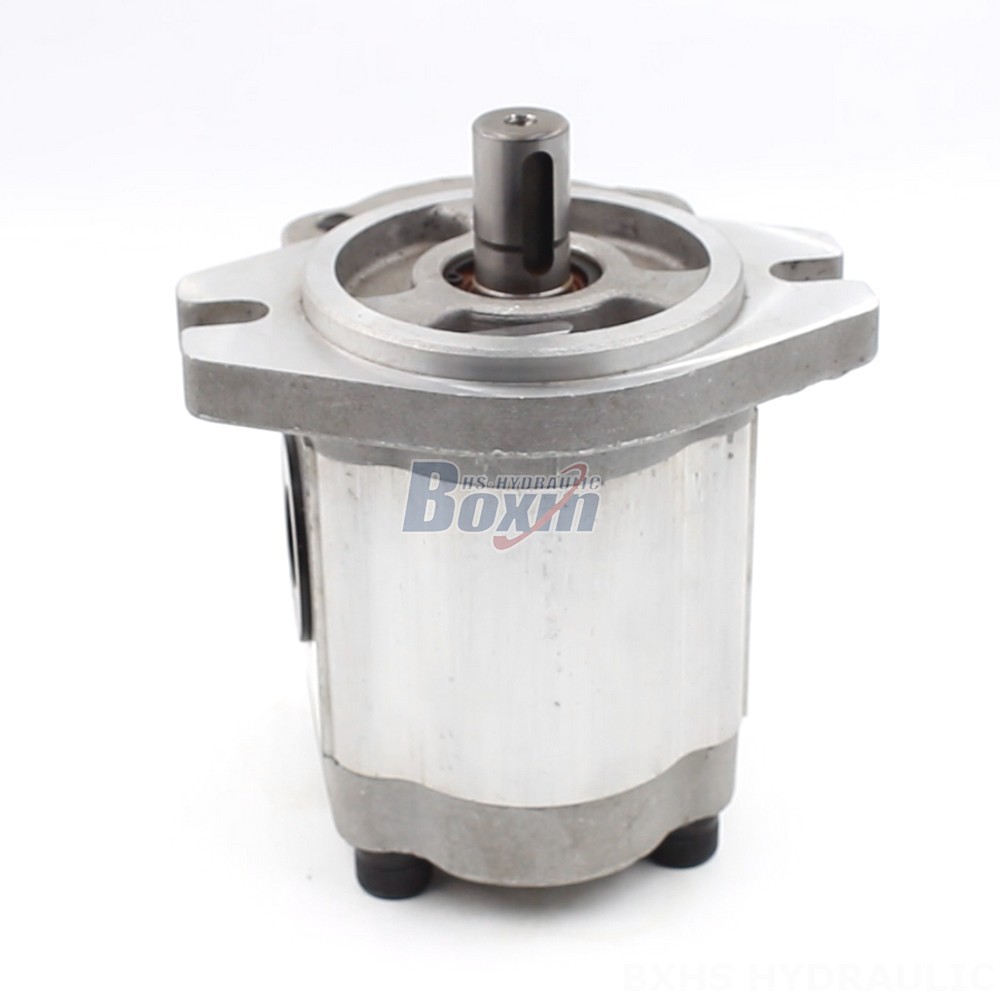

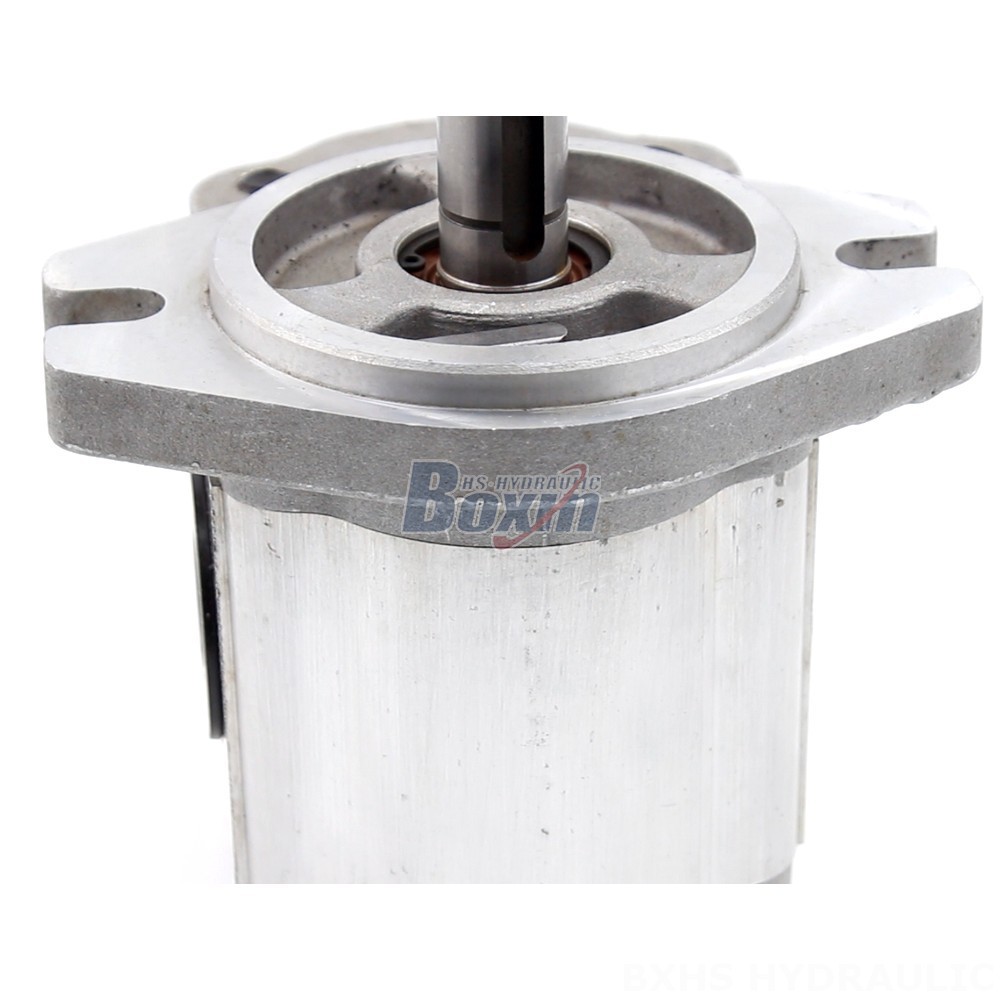

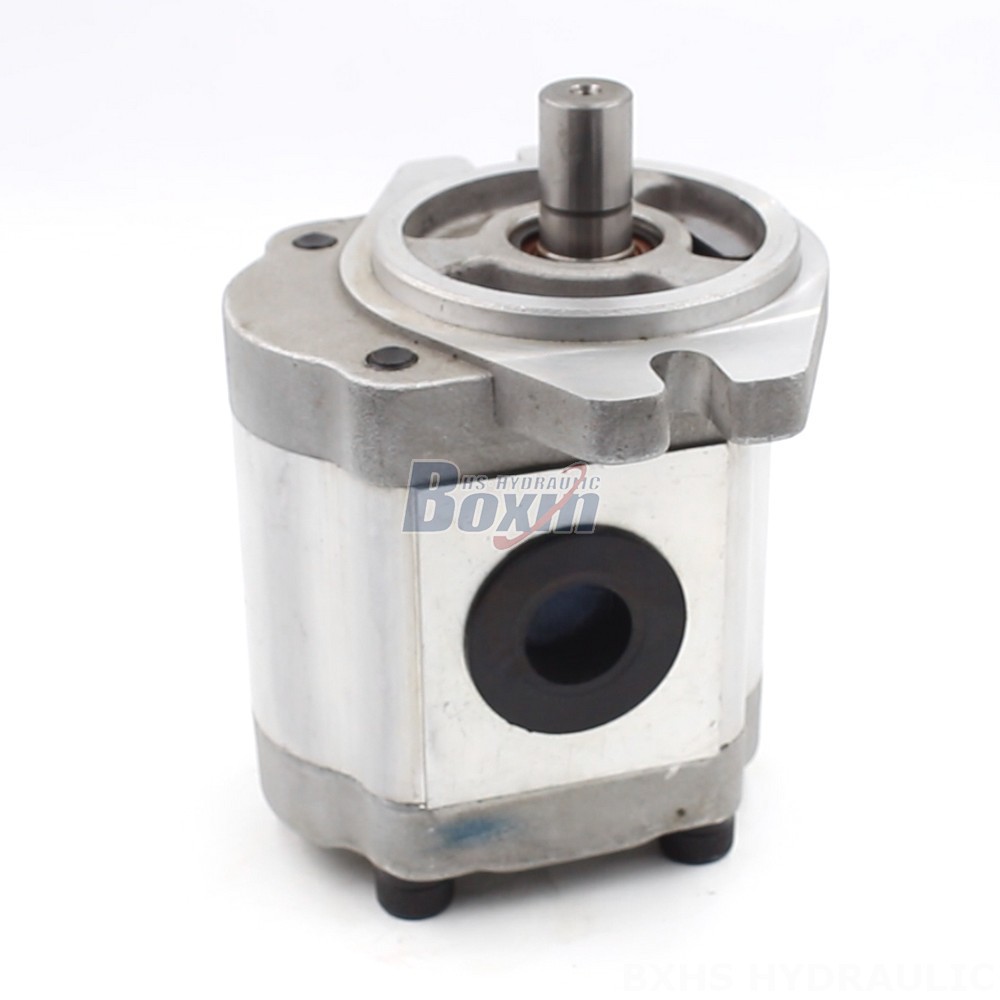

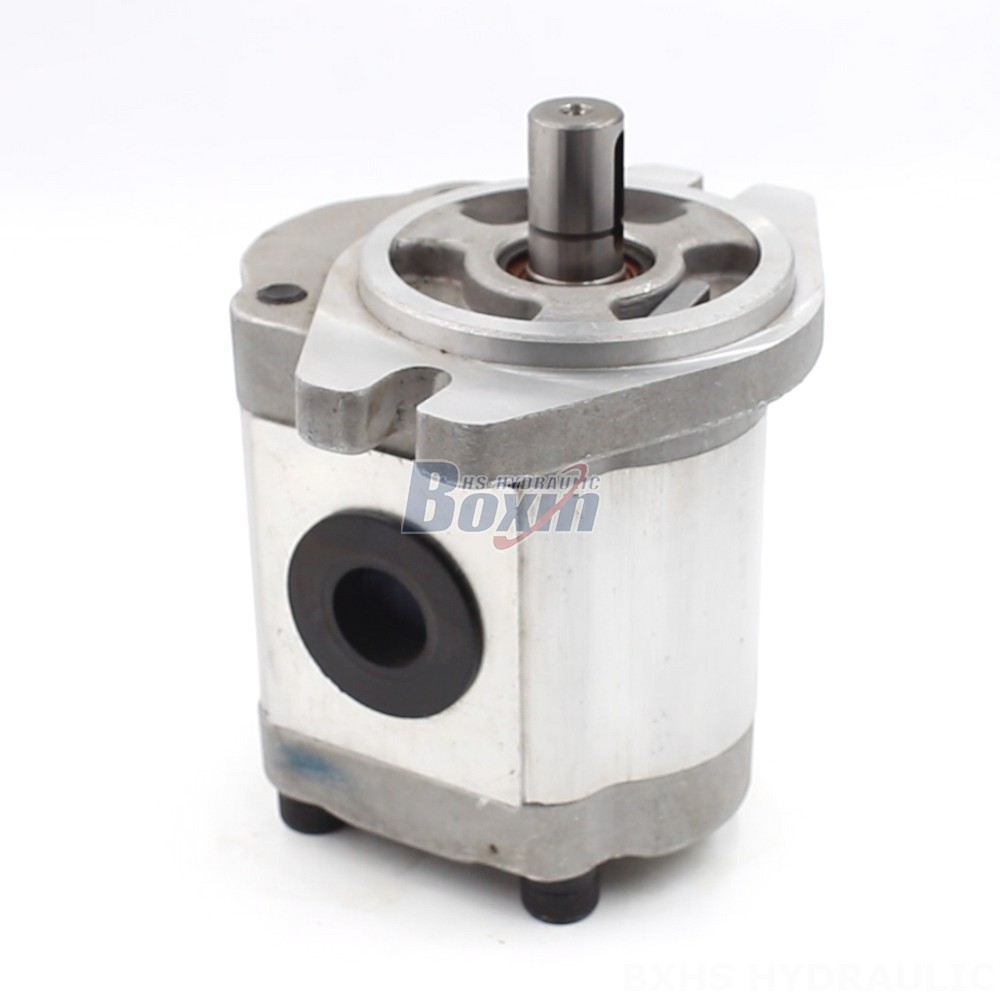

This durable 16 cc/rev hydraulic gear pump is designed for industrial applications requiring high pressure and reliable performance. With a displacement of 10 cc/rev, it boasts a rated pressure of 20 MPa and a rated speed of 2000 r/min, making it ideal for a range of heavy-duty machinery including forklifts, telehandlers, and excavators.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
The Durable 16 cc/rev Hydraulic Gear Pump (CBHS-FL3 Series) is engineered for demanding industrial applications. It features a 10 cc/rev displacement, rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. This internal gear pump boasts a robust aluminium construction and utilizes an A-Oval flange with a plain key shaft. The pump is suitable for diverse applications including material handling, construction, earth moving, agriculture, and industrial vehicles. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
