Introducing the SD5-G38 Hydraulic Monoblock Directional Control Valves, the ultimate solution for your hydraulic system needs. Offering exceptional performance and reliability, these valves are engineered to meet the demands of various industries, including material handling, construction, agriculture, and industrial vehicles.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

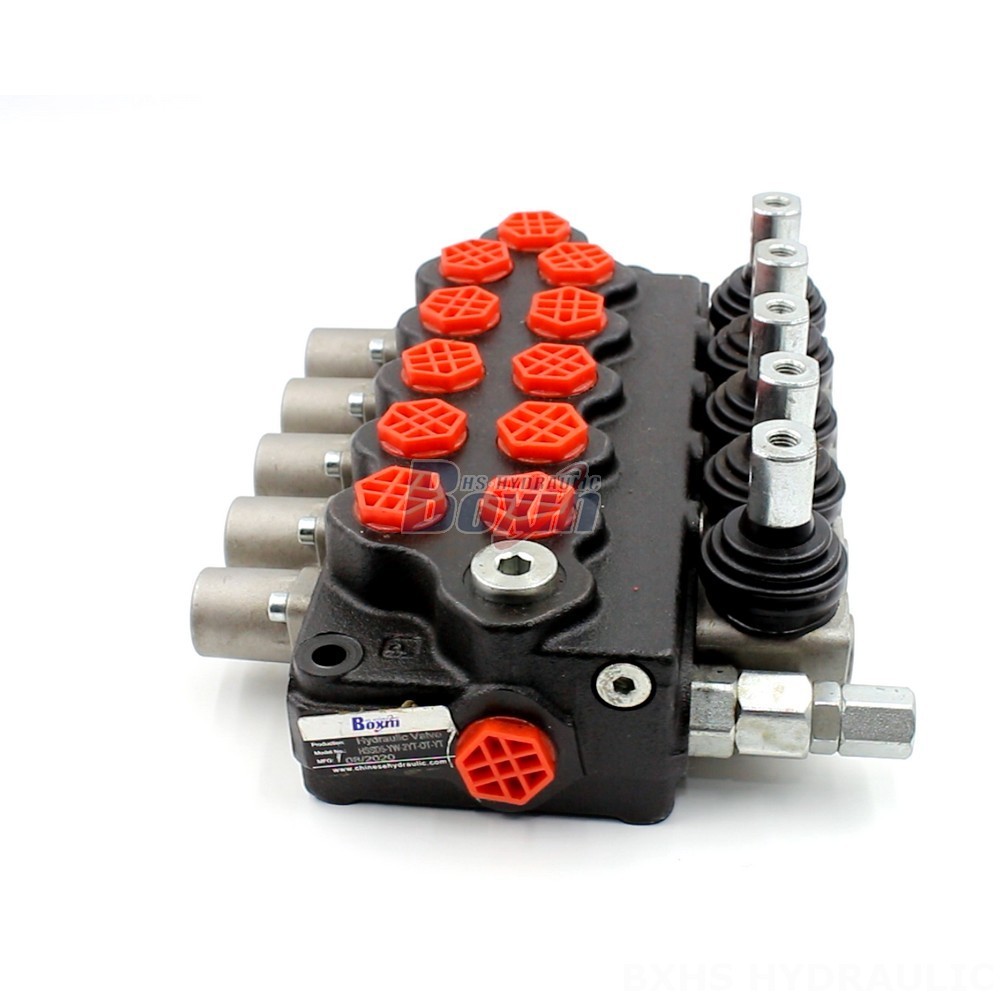

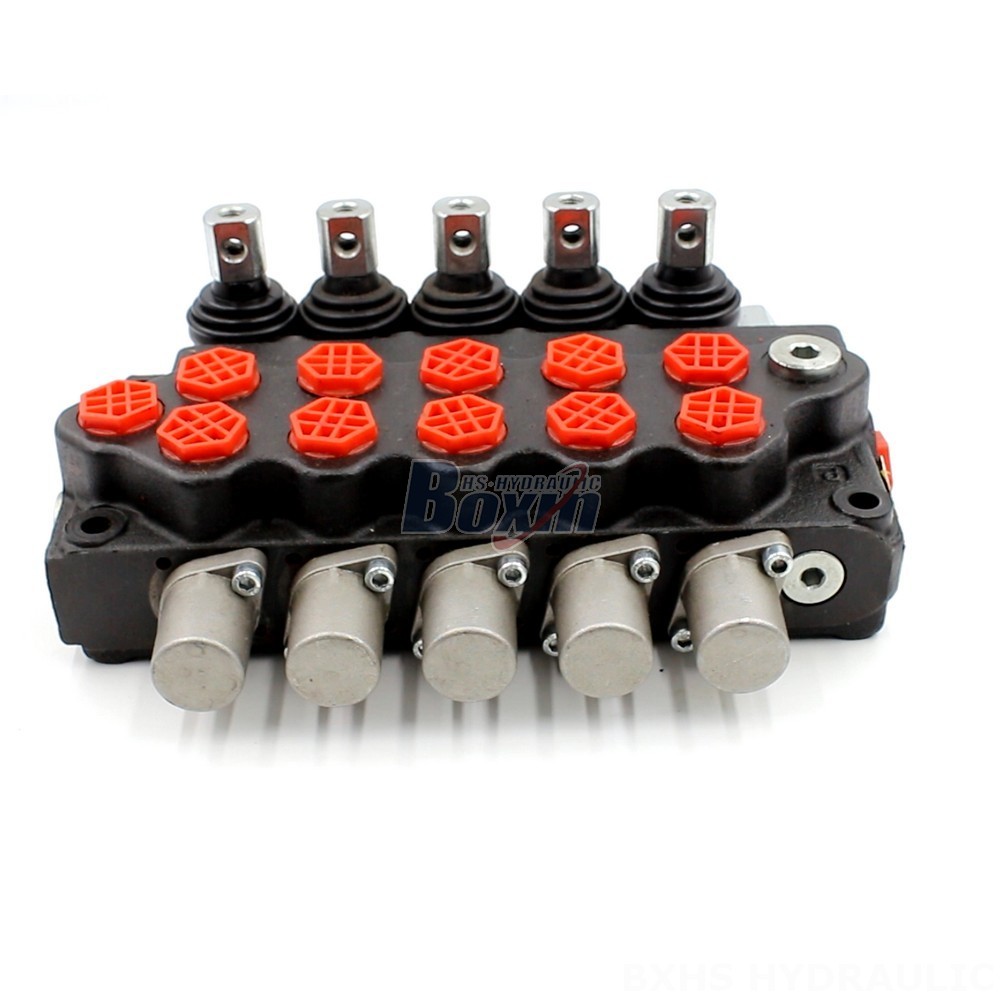

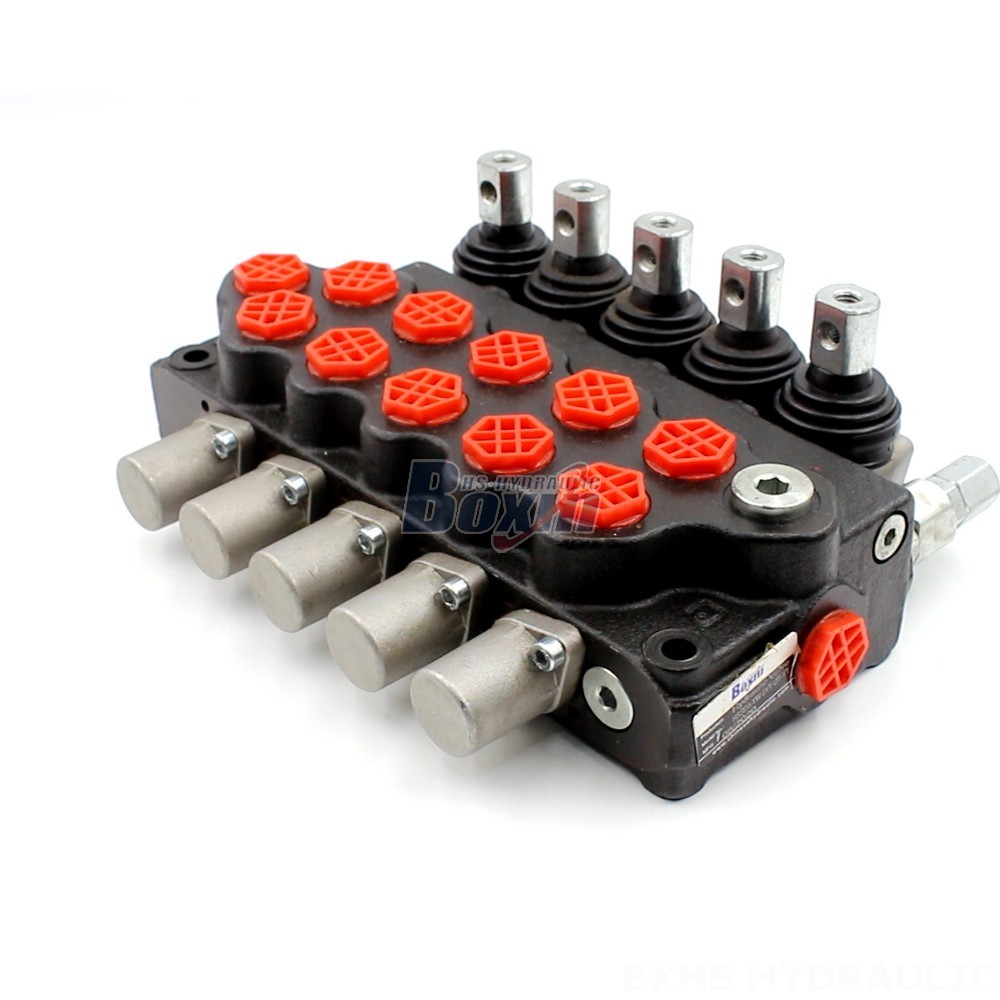

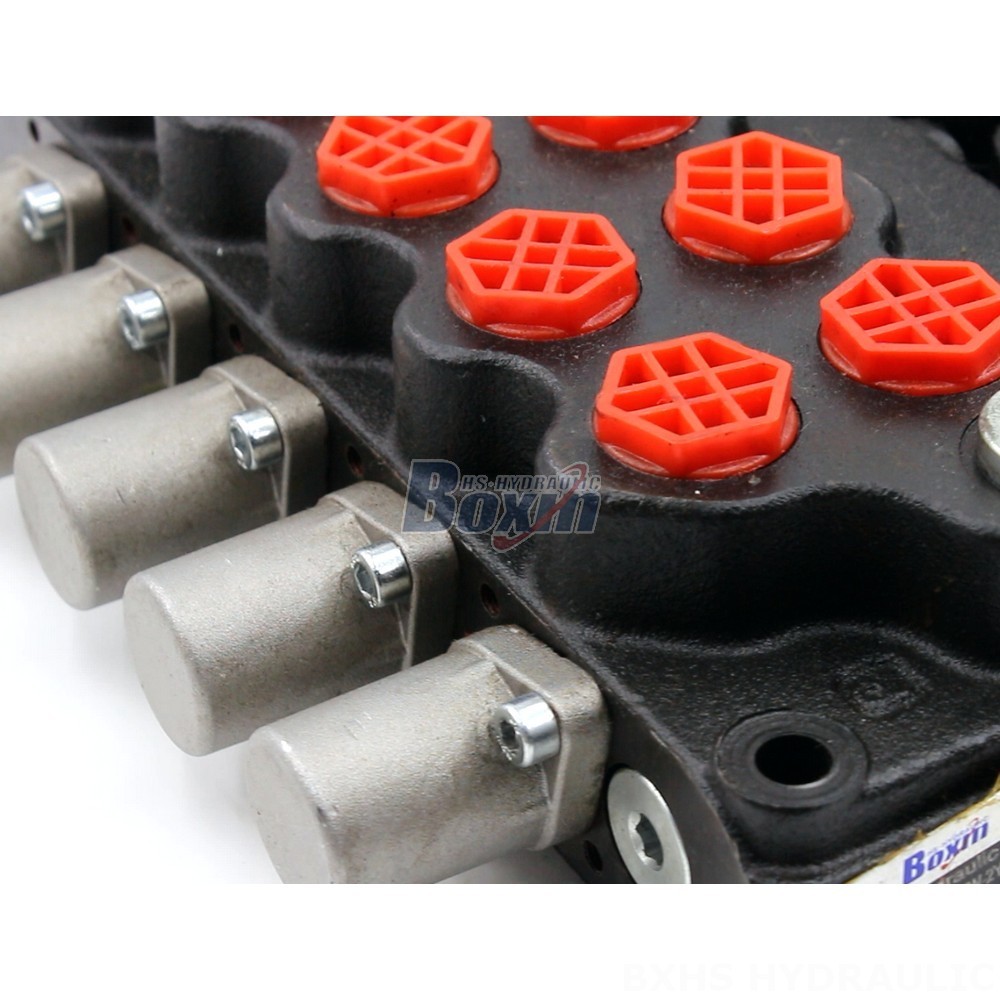

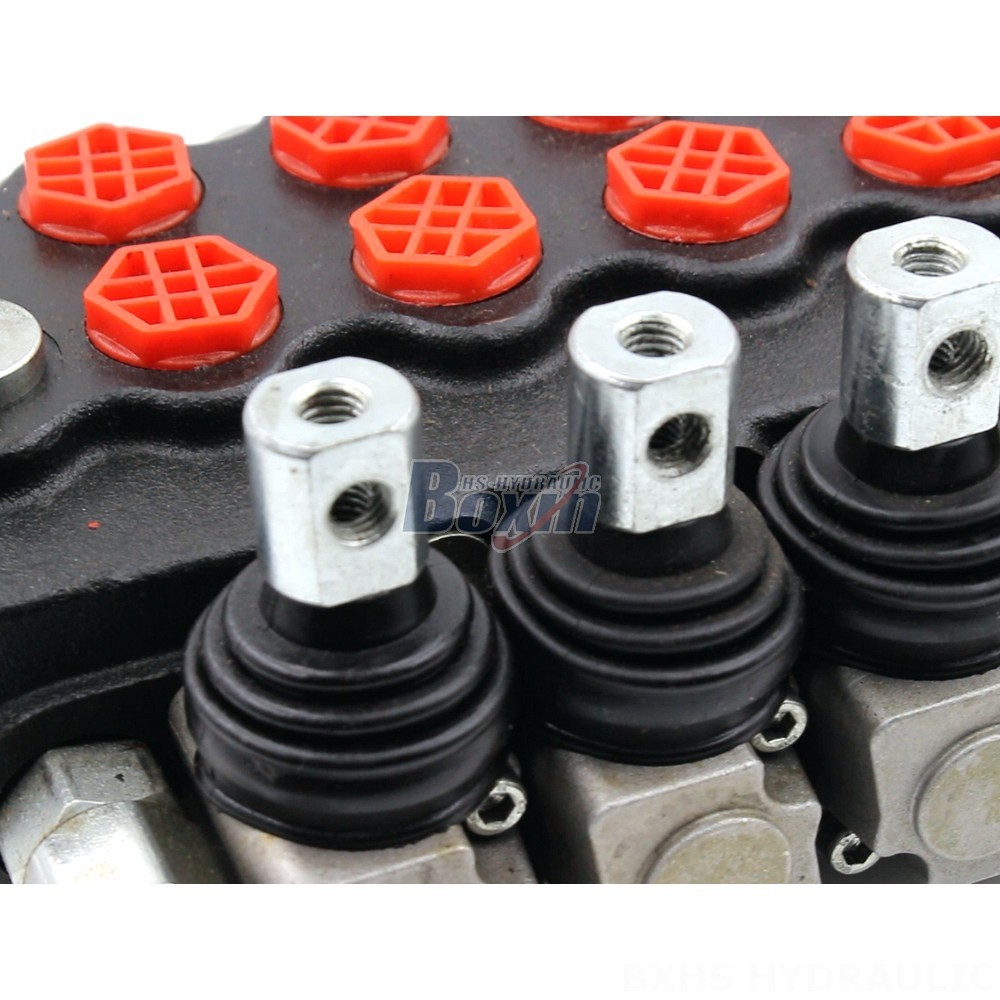

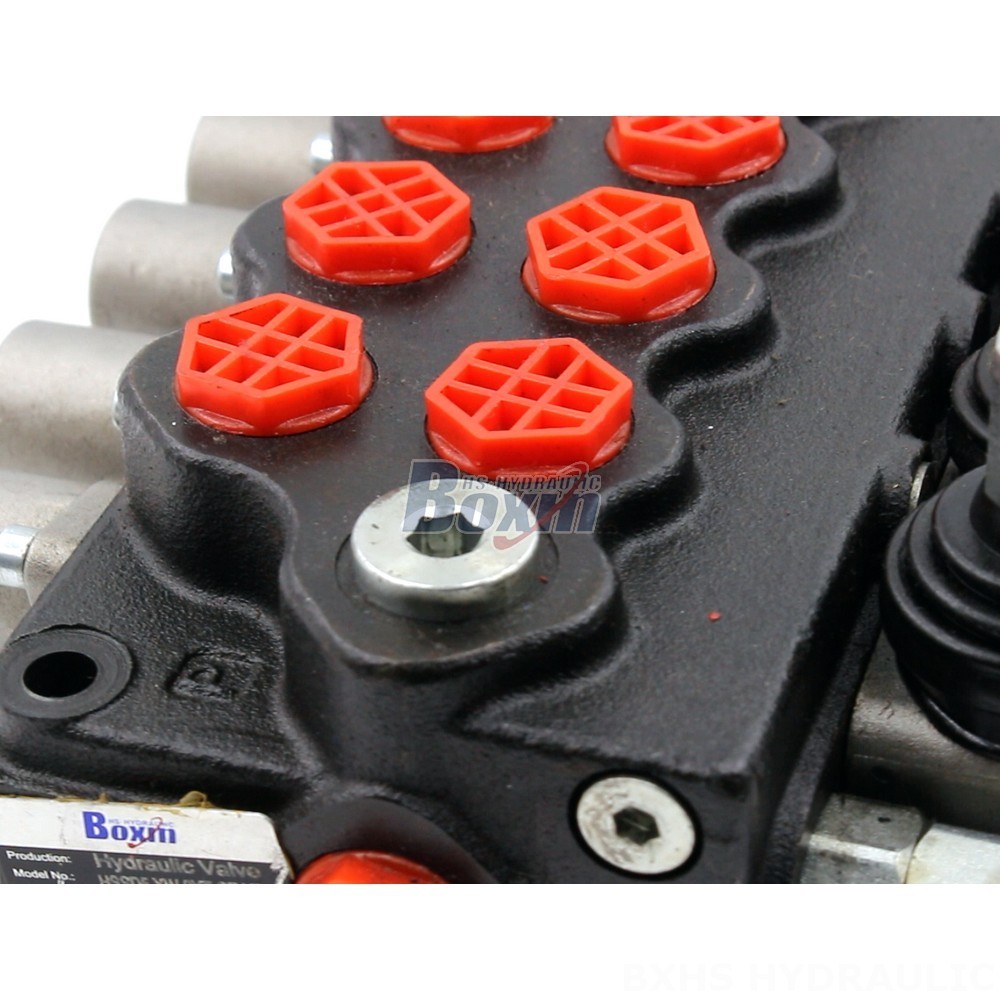

**SD5-G38 Hydraulic Monoblock Directional Control Valves**
**Key Features:**
* Manual control for precise operation
* 5-section design for versatility and efficiency
* Monoblock construction for durability and reduced leakage
* Rated flow of 40 L/min (10.5 US gpm) to handle high-flow applications
* Maximum pressure of 305 bar (4400 psi) ensures reliable performance under demanding conditions
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Suitable for ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F)
* Available with 5 spool options to meet specific application requirements
**Applications:**
* Telehandlers
* Forklifts
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Harvesters
**OEM, ODM, and Private Label Services:**
We offer flexible OEM, ODM, and private label services to cater to your unique requirements. Our experienced engineers can work closely with you to design and manufacture custom solutions that meet your exact specifications. Whether you need specific dimensions, configurations, or branding, we have the capabilities to deliver tailored products that meet your market needs.
