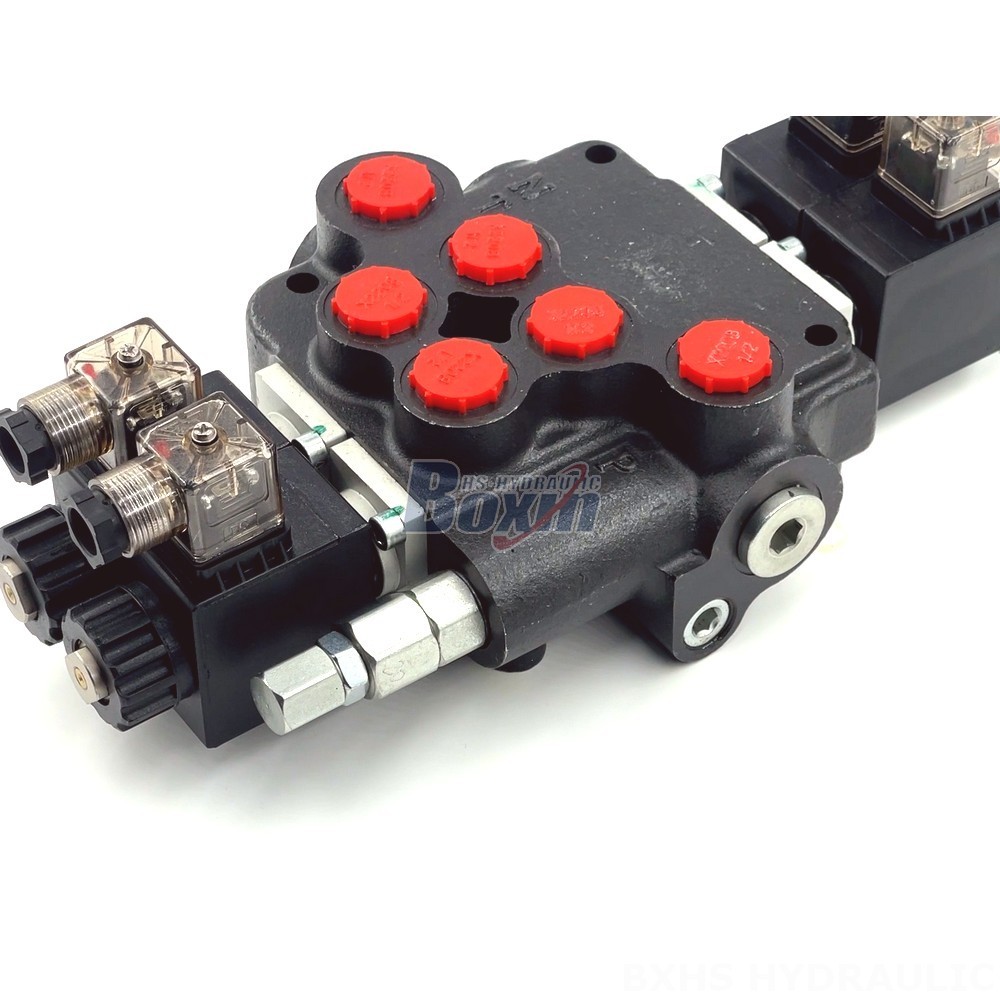

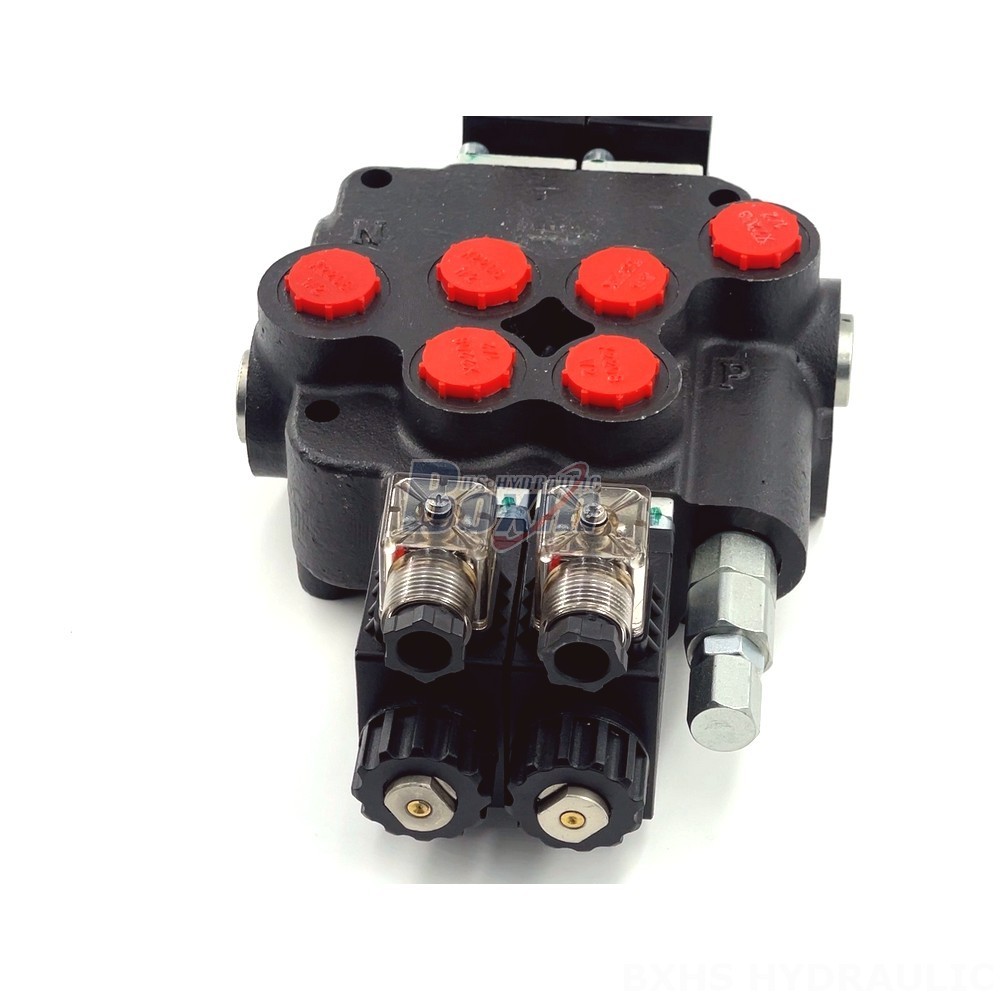

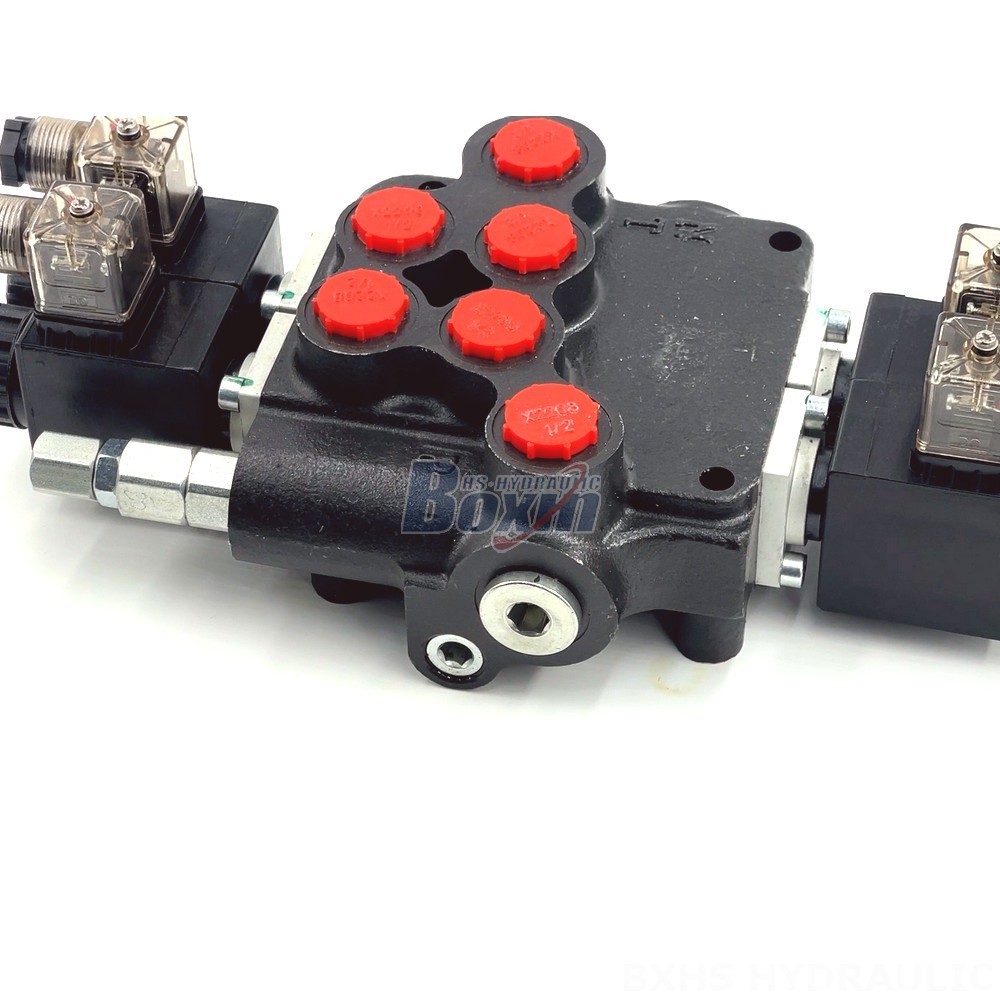

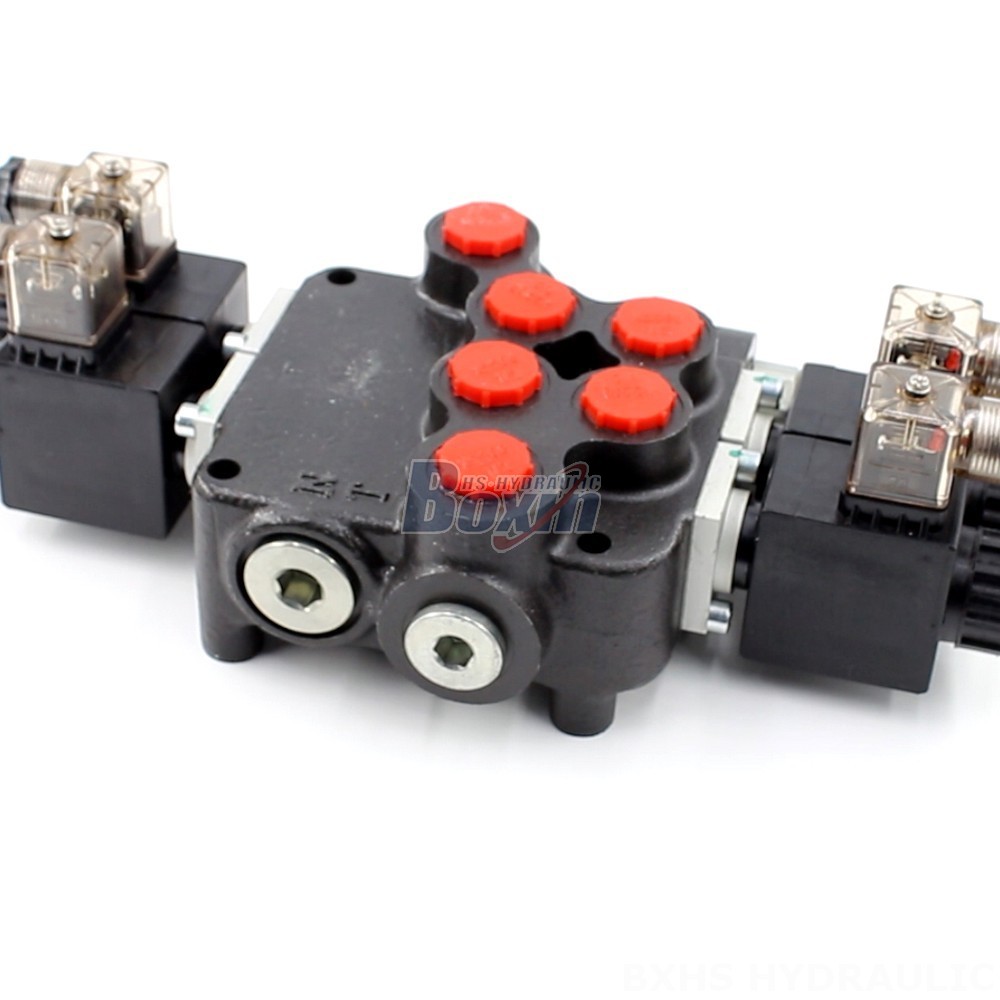

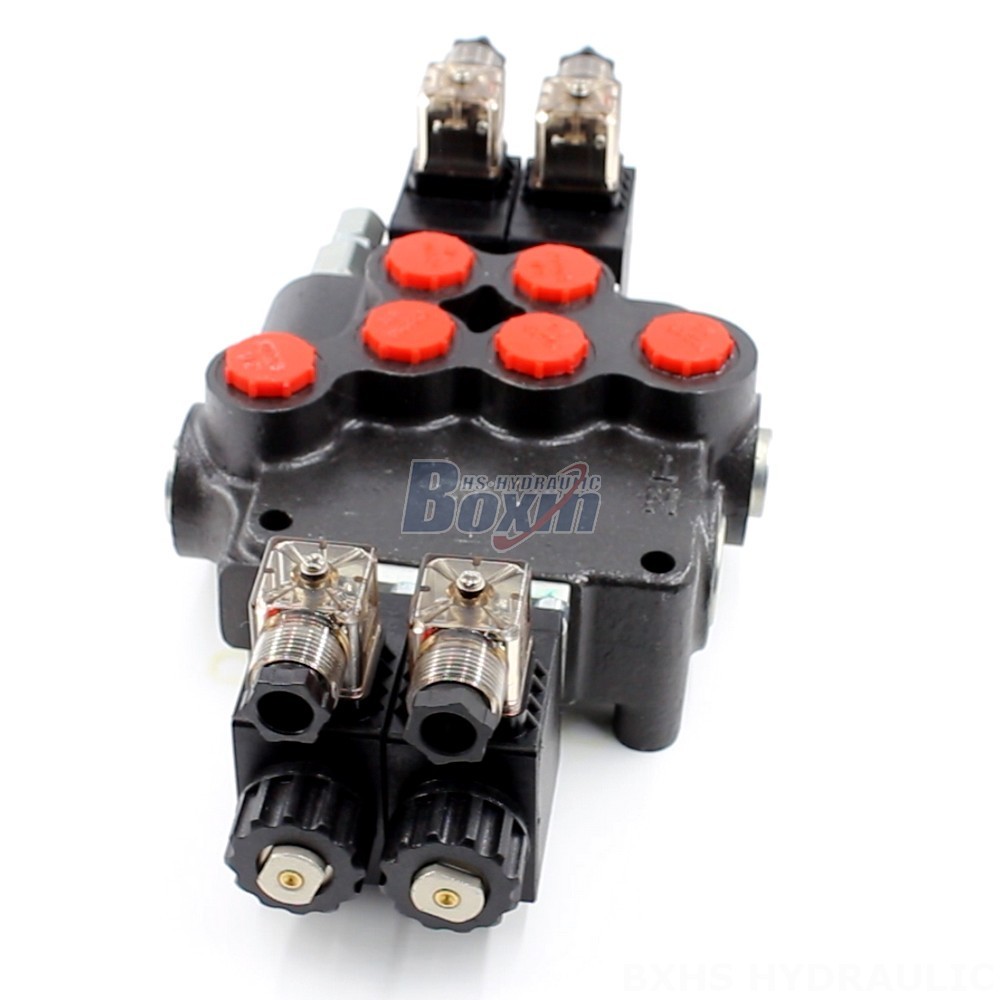

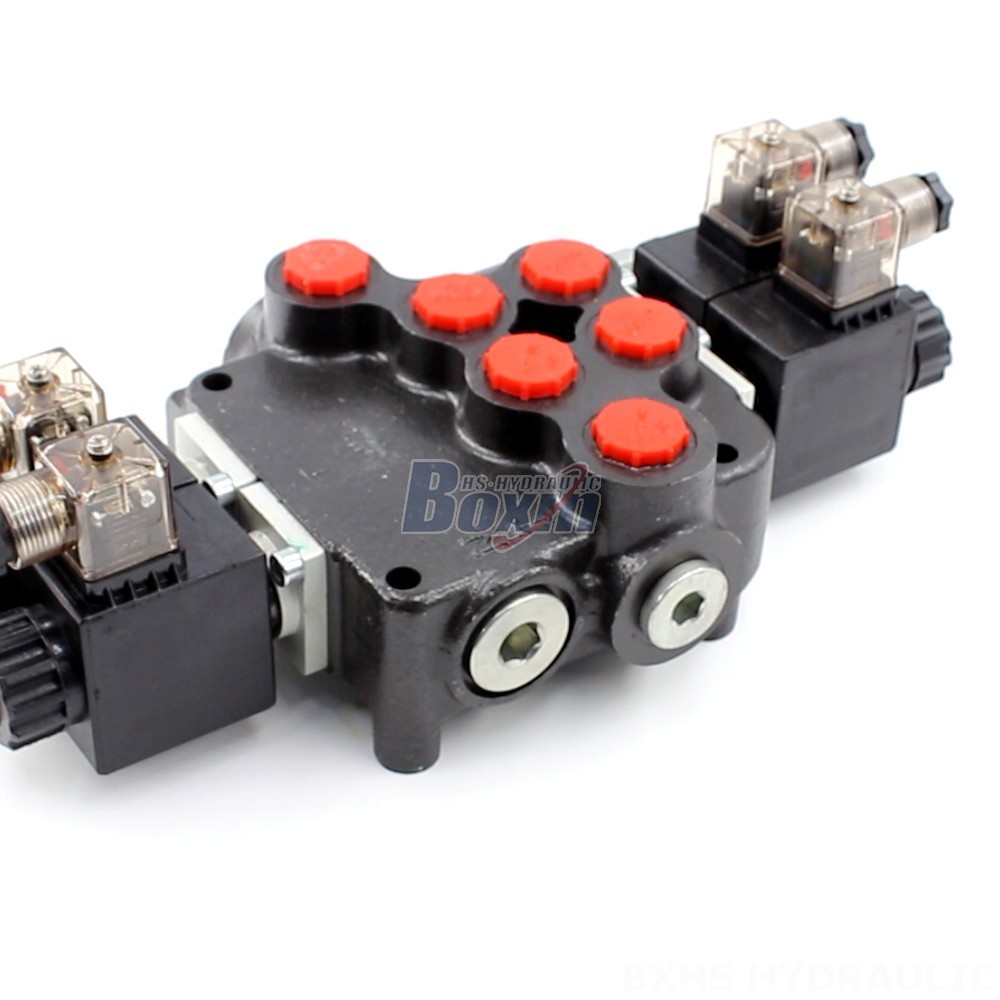

We are a hydraulic product manufacturer offering P80 Series 2 Spool Monoblock Directional Valves. These solenoid-controlled valves feature a rated flow of 80 L/min and a max pressure of 250 bar, ideal for material handling, construction, agriculture, and industrial vehicles. Seeking distributors, wholesalers, and traders globally.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80 Series 2 Spool Monoblock Directional Valves offer a reliable and efficient solution for various applications. This solenoid-controlled valve boasts a 2-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Operating within a temperature range of -40°C to +80°C, this valve is suitable for demanding environments. We specialize in manufacturing, OEM, private labeling, customization, and wholesale. We are actively searching for distributors, wholesalers, agents, and traders worldwide to expand our market reach. If you are interested in partnering with a leading hydraulic component manufacturer, we invite you to contact us.
