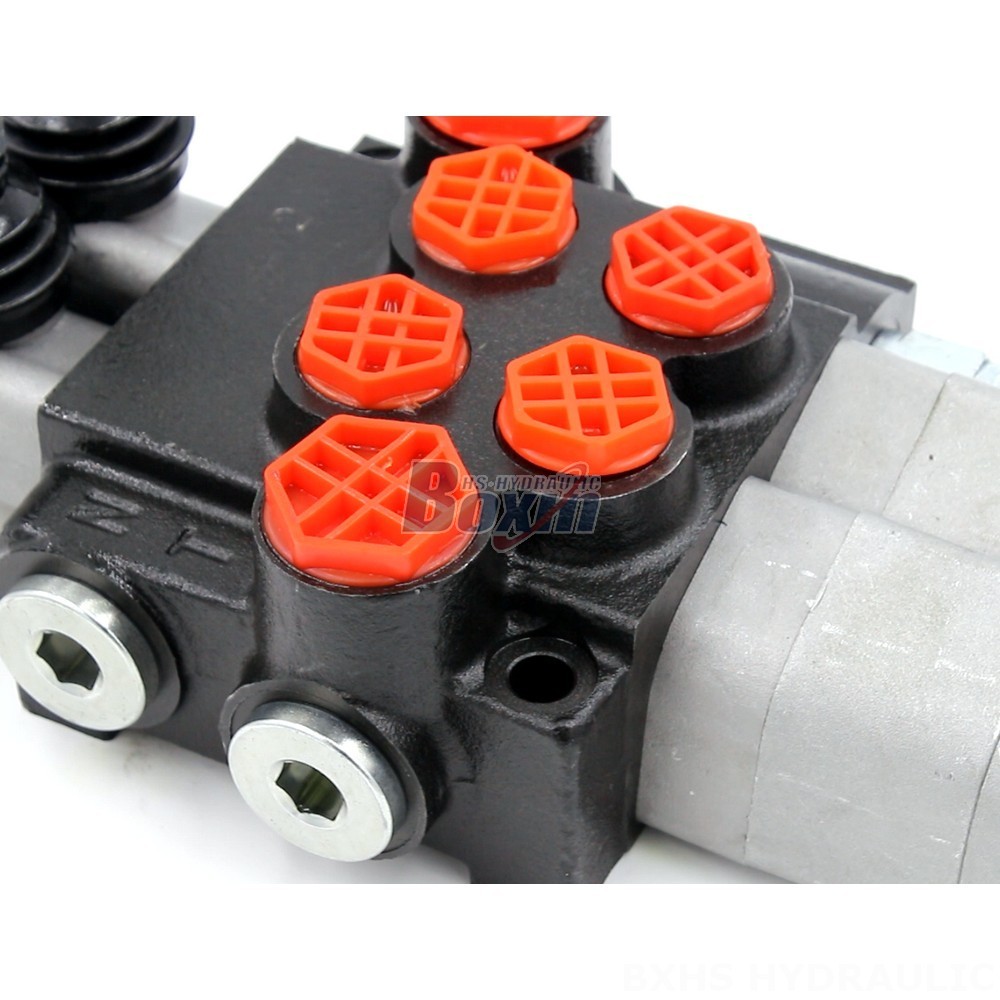

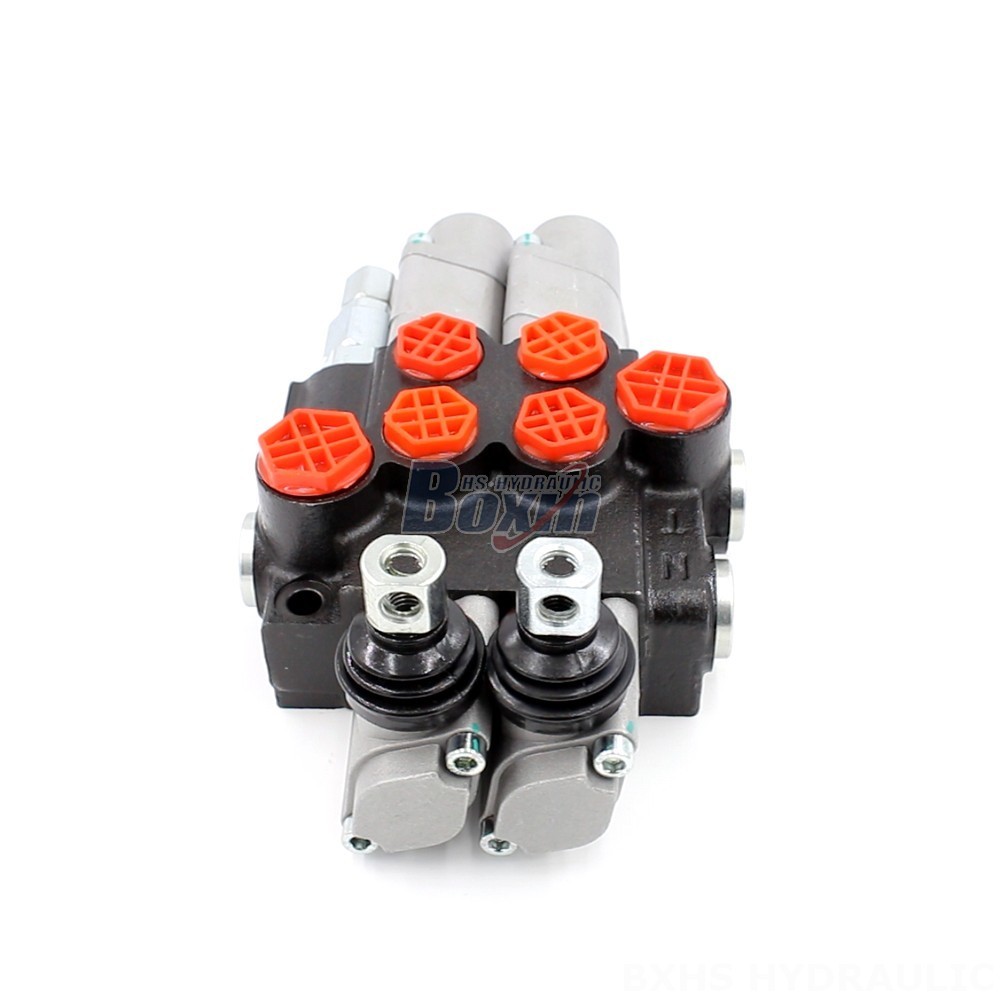

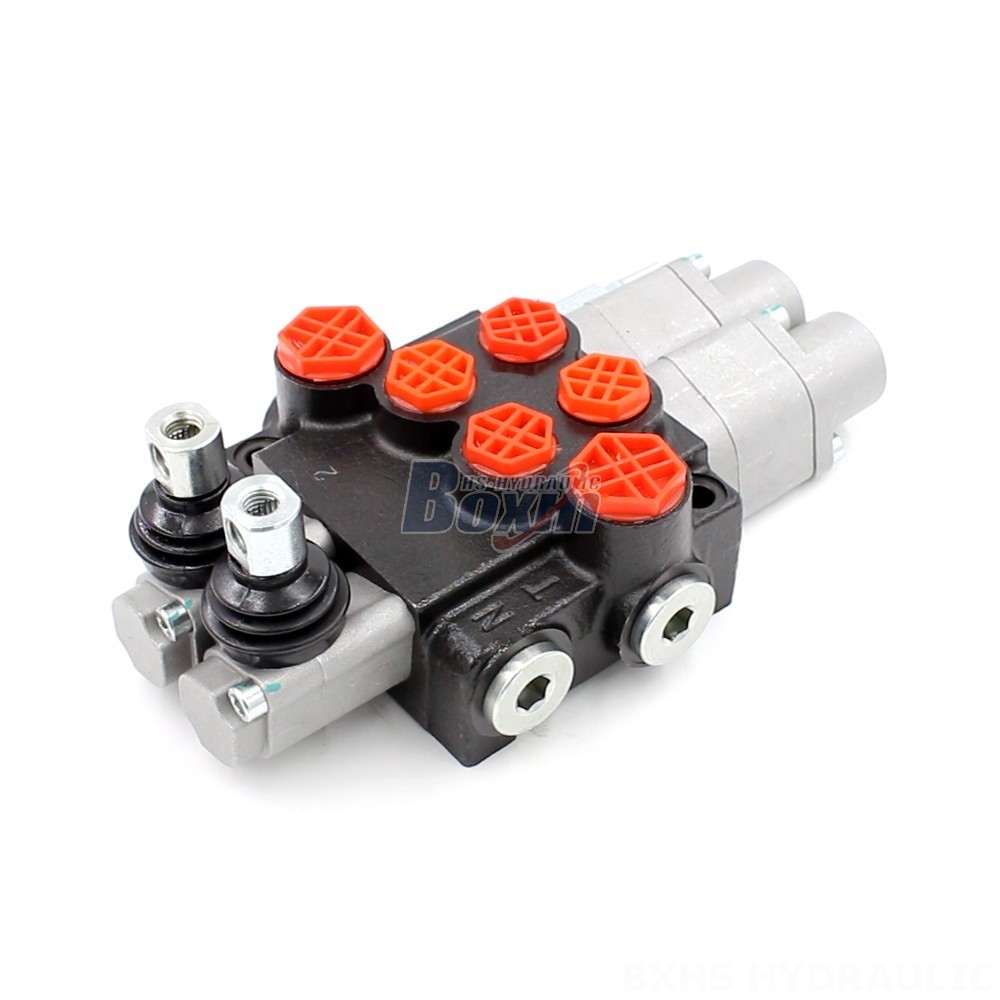

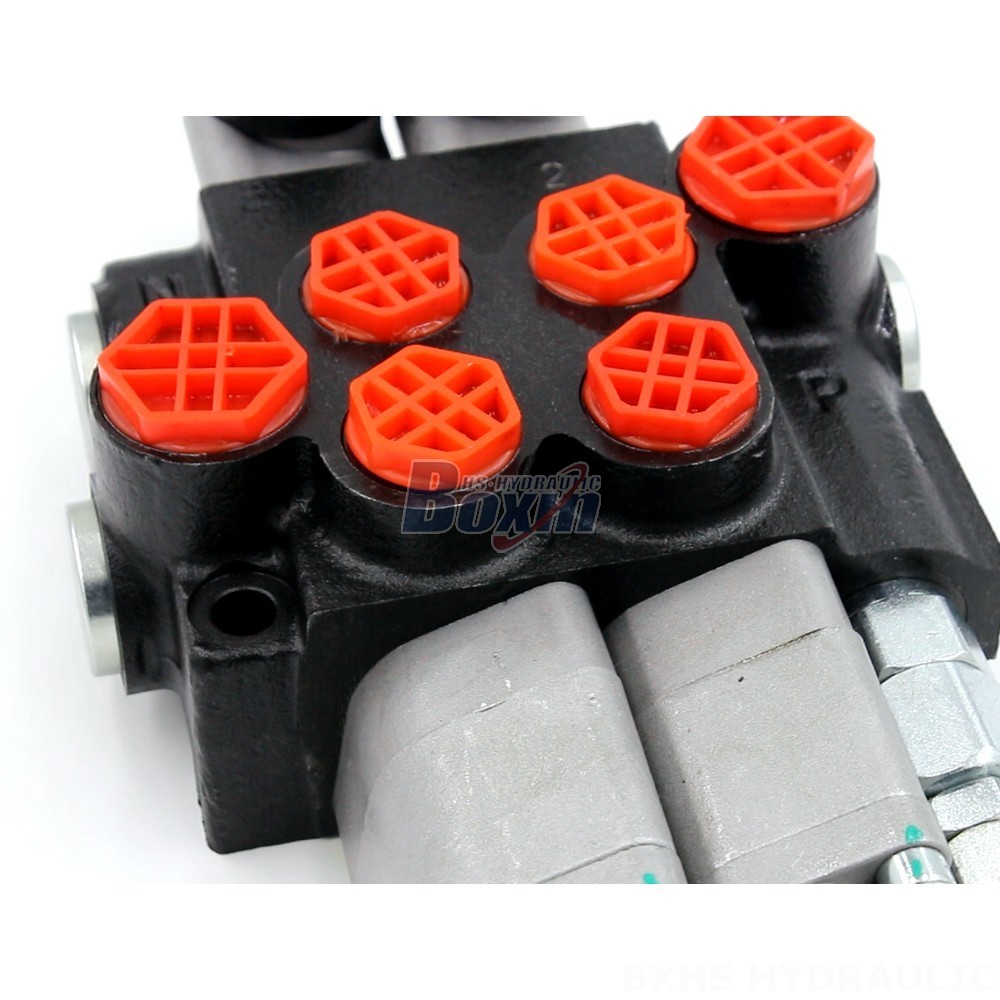

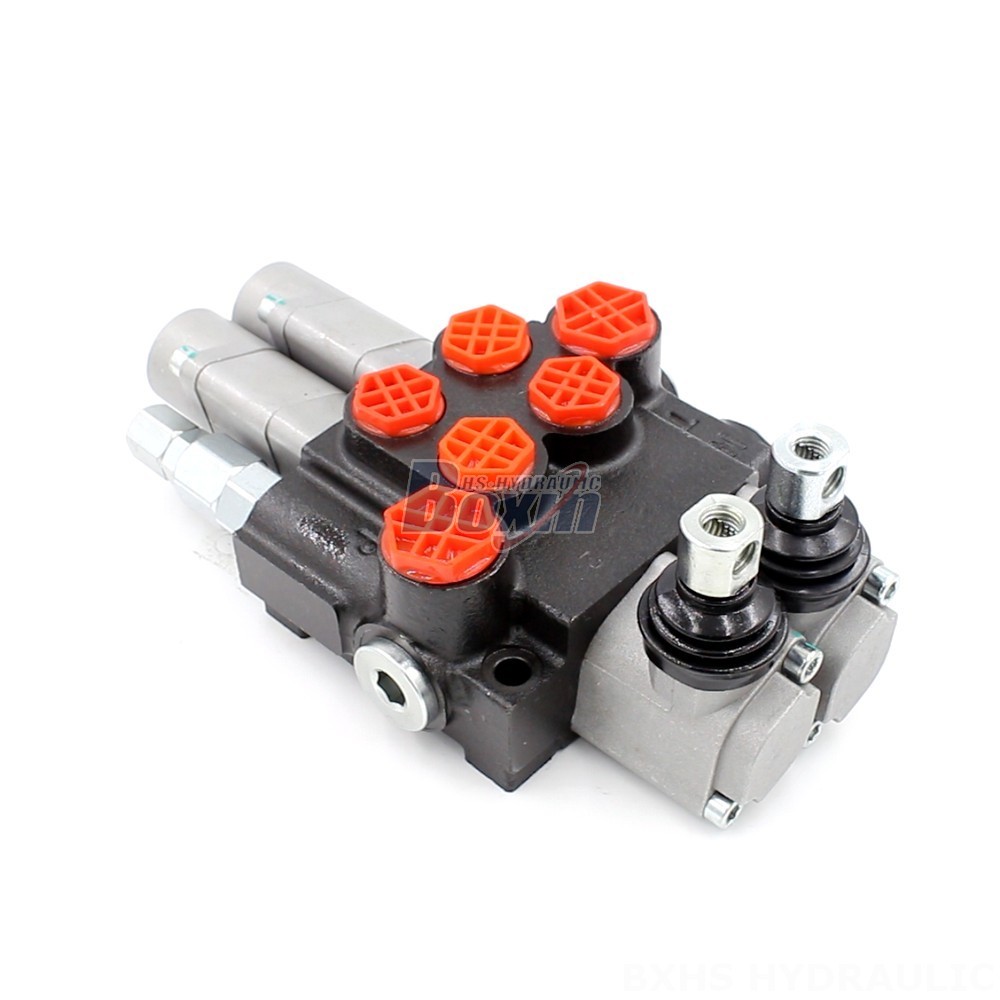

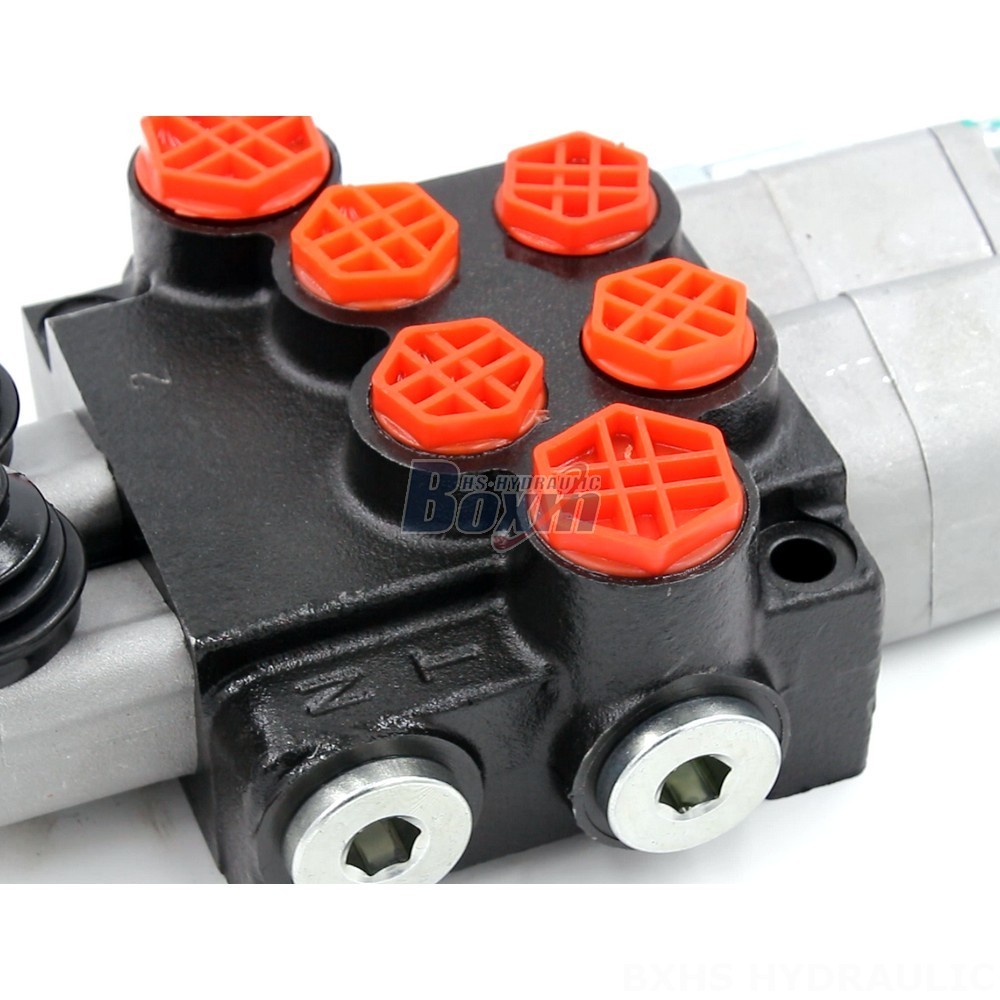

The P40-G12-G38-2QTW is a 2-section, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features manual control and is suitable for a wide range of applications in material handling, construction, and agriculture.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This high-performance hydraulic directional control valve from our P40 series is a reliable and efficient solution for various applications. It features a compact design with a 2-section, monoblock structure, delivering smooth and precise control. The valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations. It also offers a wide operating viscosity range and exceptional temperature resistance. With its manual control mechanism, it provides intuitive and easy operation. This valve is perfect for various applications, including material handling, construction, and agriculture. It is compatible with a range of machinery, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
