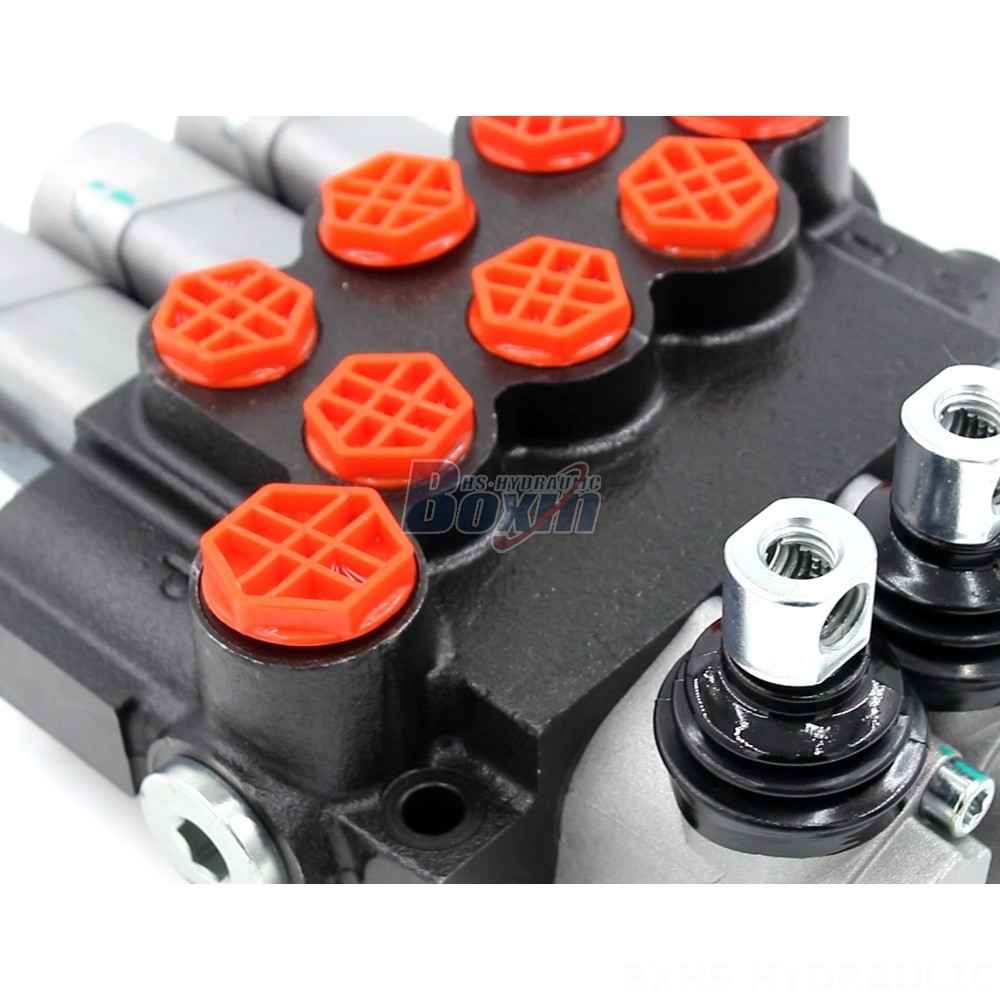

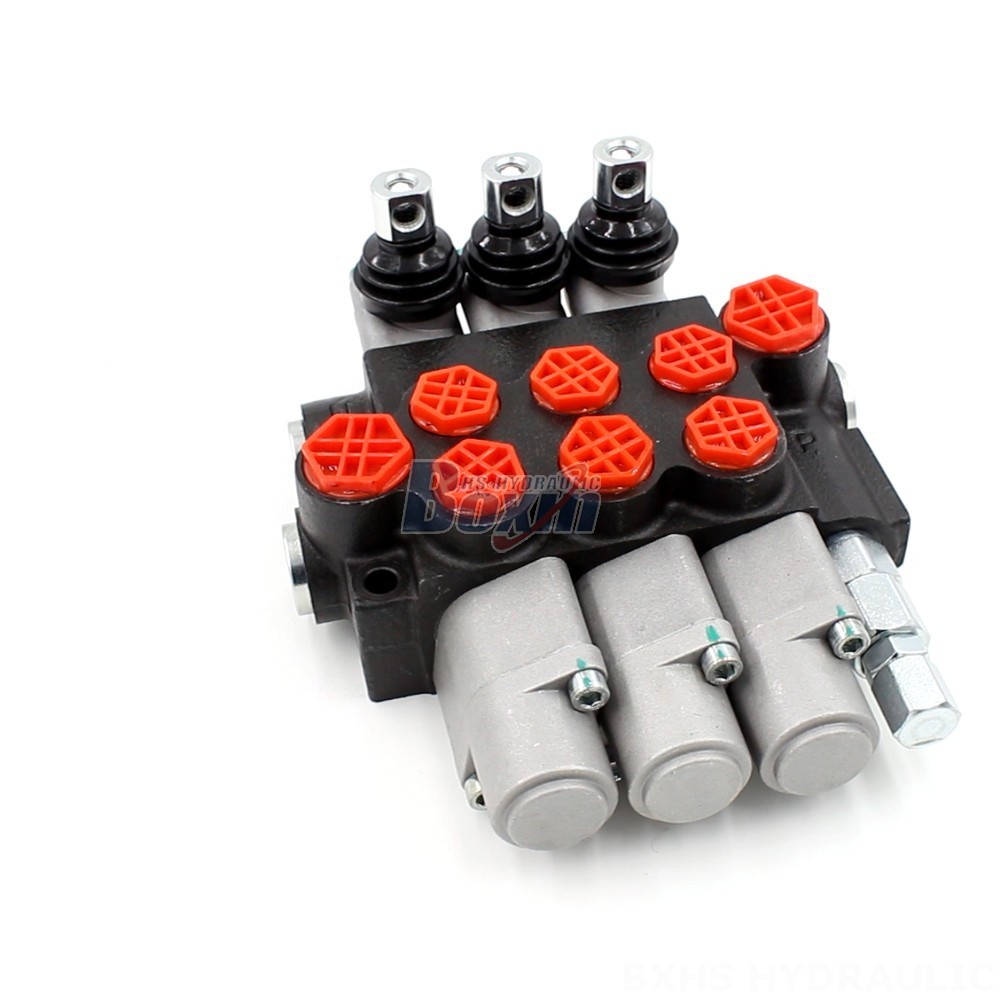

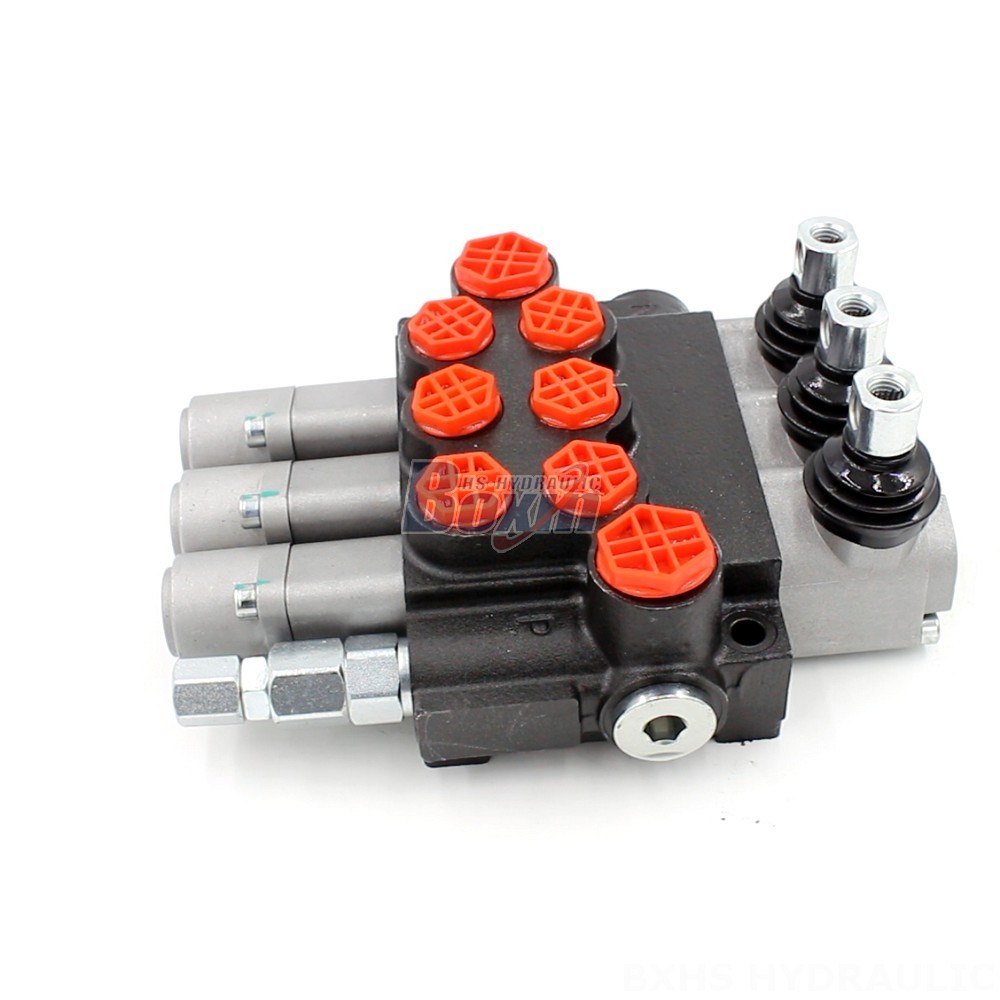

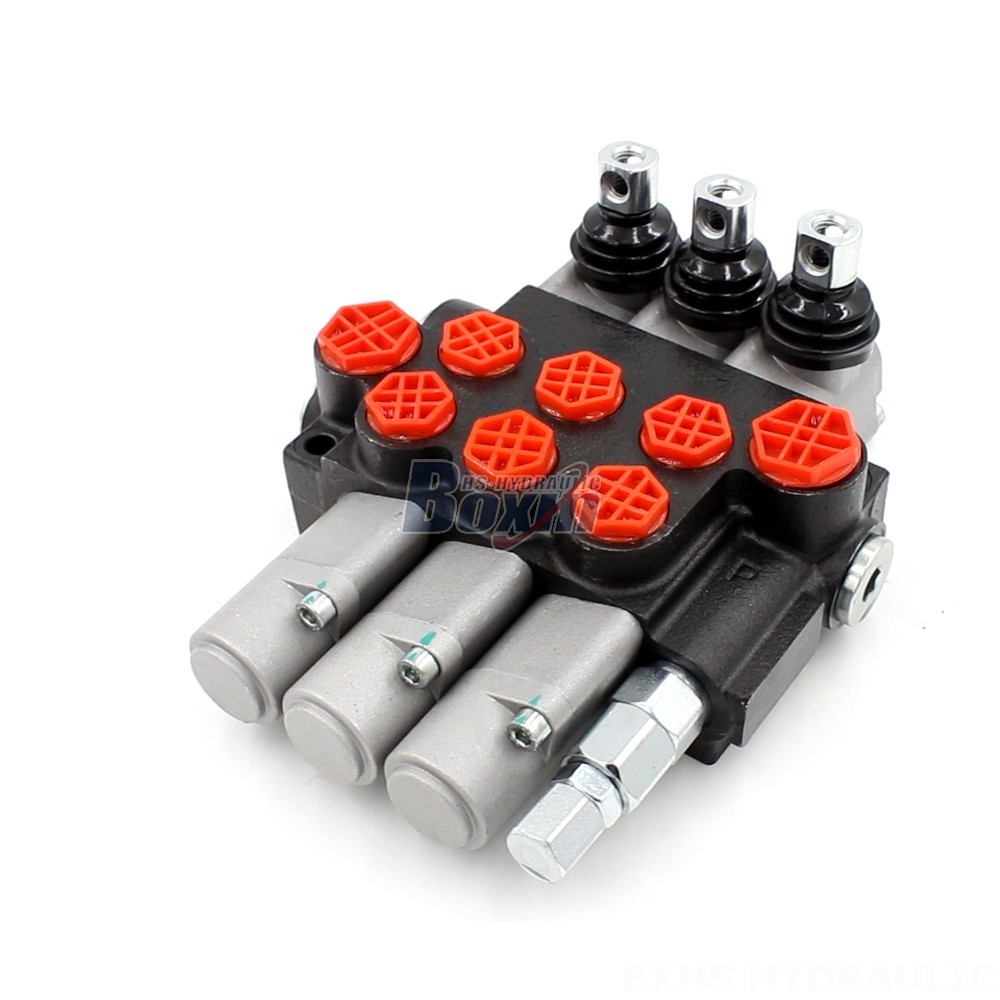

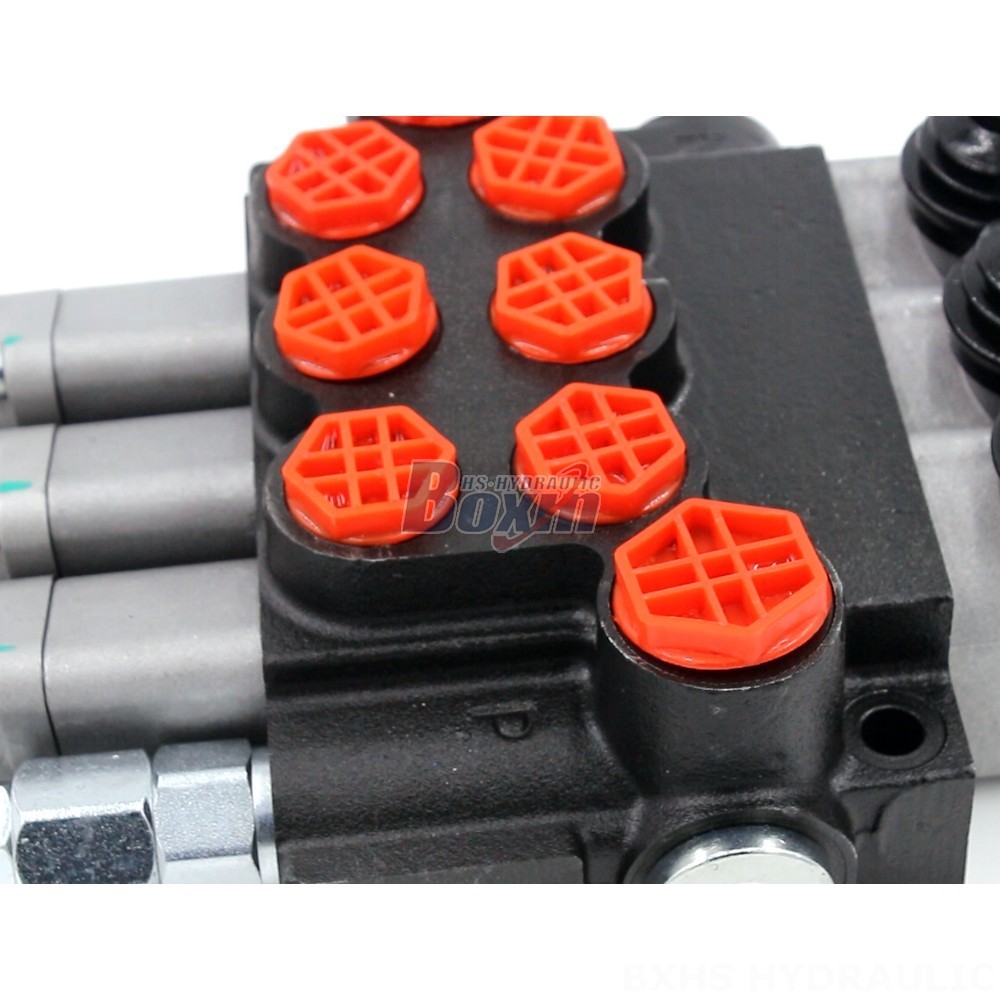

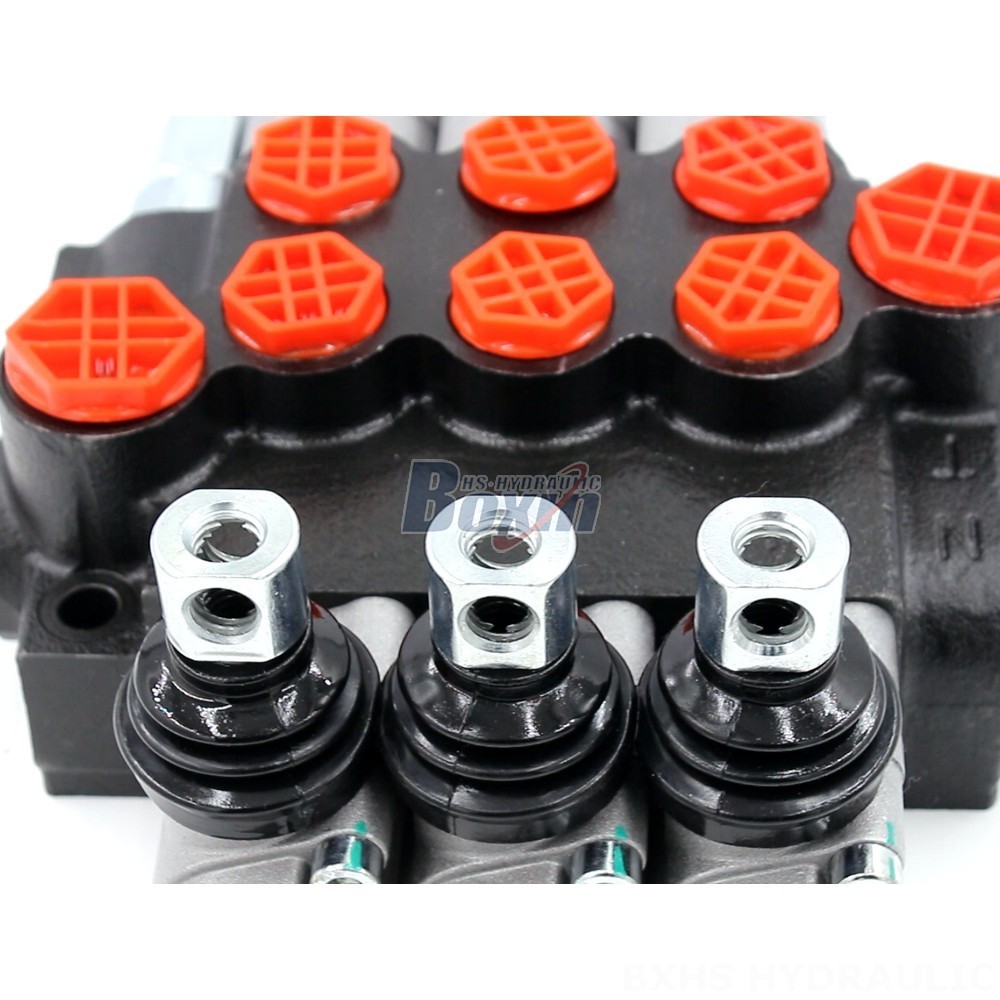

Introducing the P40-G38-G12-OT Directional Control Valve, manufactured and supplied directly from our factory. This 3-section monoblock valve is designed for use in a wide range of industrial applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is built to handle demanding hydraulic systems. It is manually controlled and features a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The P40-G38-G12-OT valve is part of our P40 Series and is commonly used in equipment such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G38-G12-OT Directional Control Valve**
**Factory Supply | Wholesale Prices**
**Product Specifications:**
- **Control Method:** Manual
- **Section:** 3 Section
- **Structure Type:** Monoblock valve
- **Rated Flow:** 40 L/min (10.5 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 3 Spool
- **Series:** P40 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- MIDI-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
**Benefits of Factory Supply:**
- Competitive wholesale prices
- Direct access to manufacturers for quality control
- Customization options to meet specific requirements
- Prompt delivery and technical support
Contact us today to discuss your hydraulic valve needs and request a quote.
