The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-performance valve designed for mobile hydraulic applications. It is a 3-section, 3-spool, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

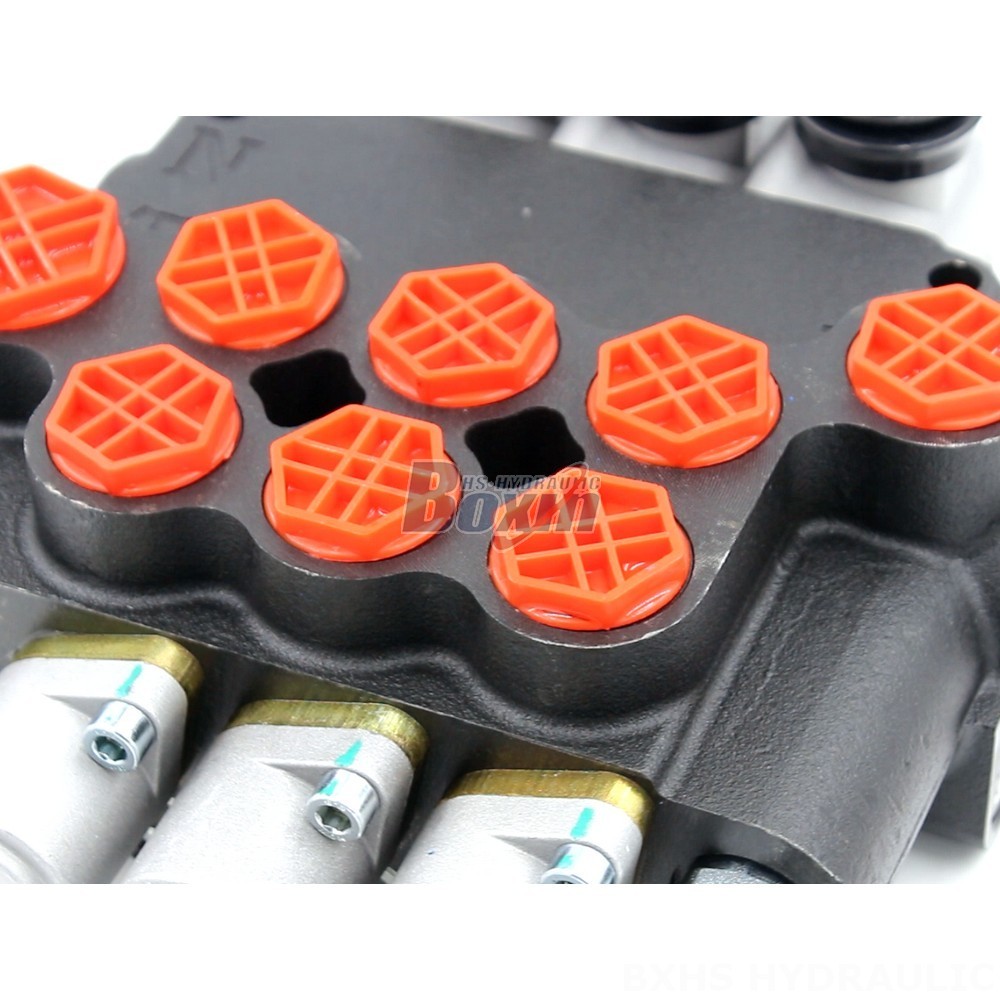

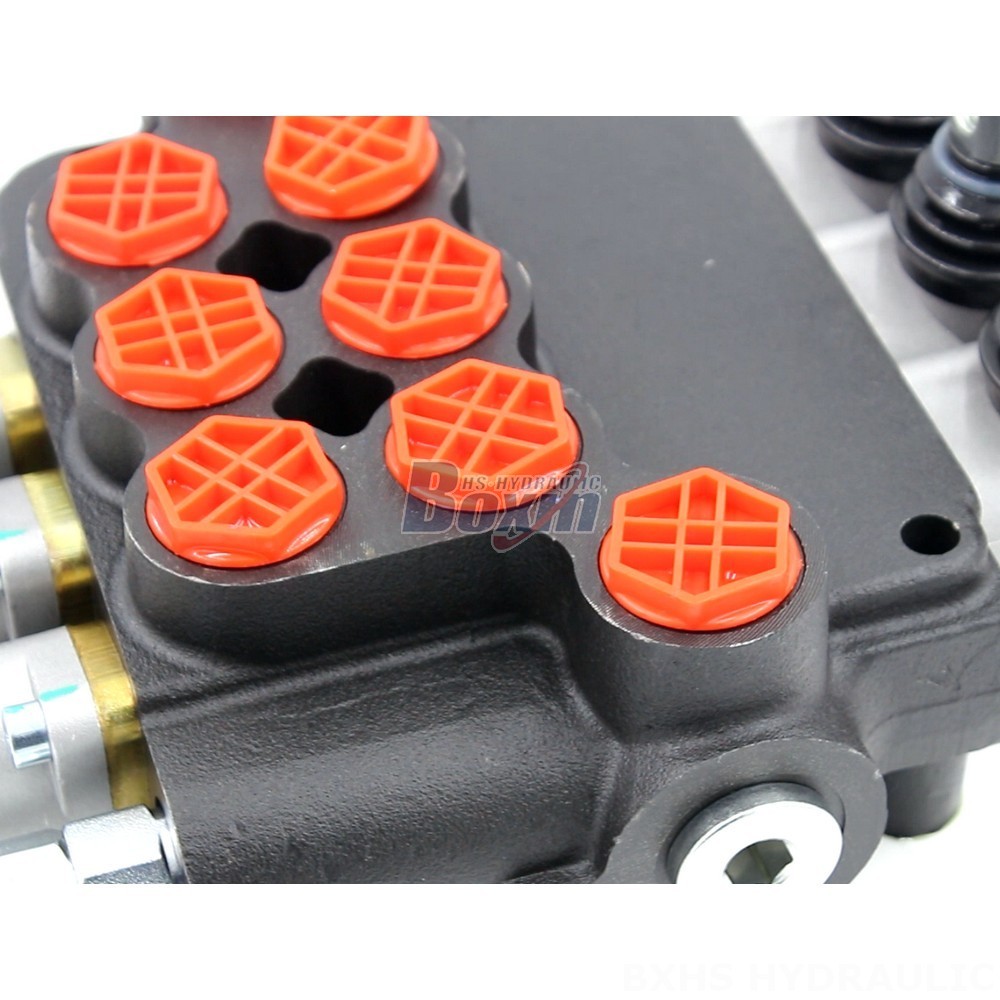

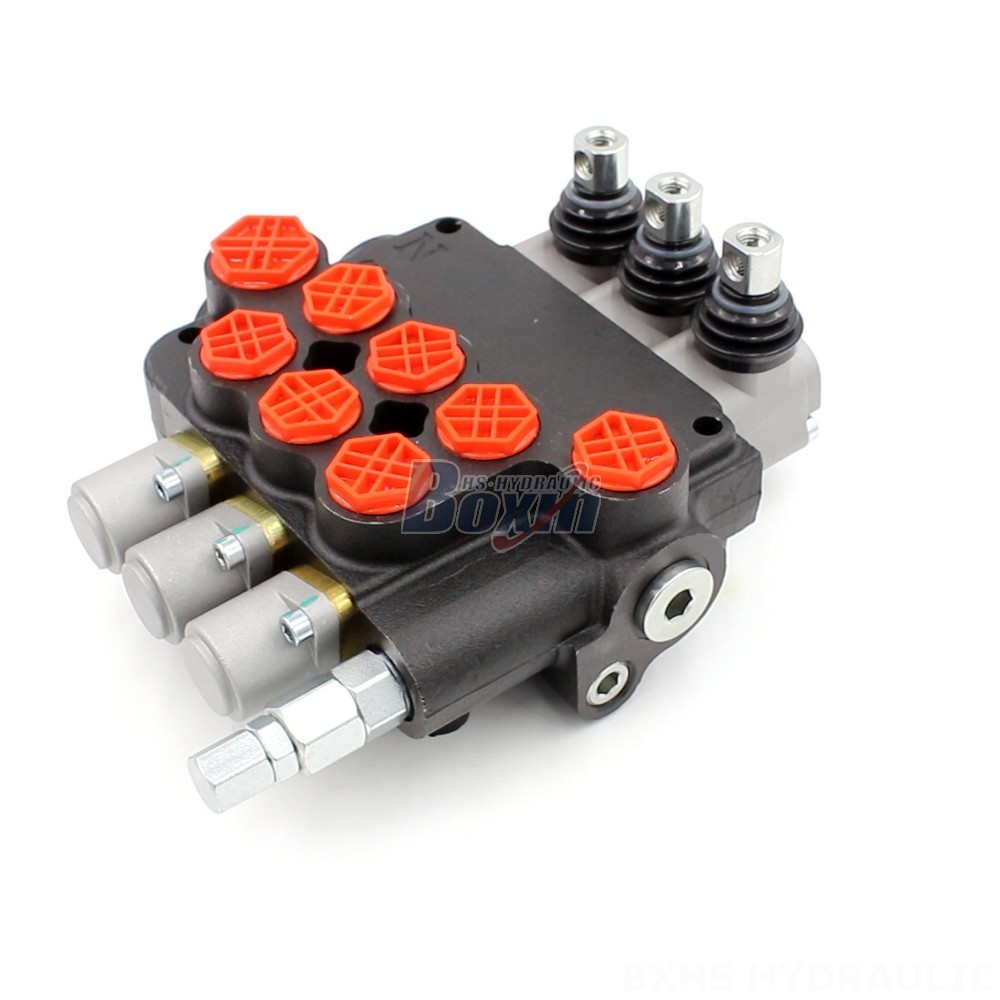

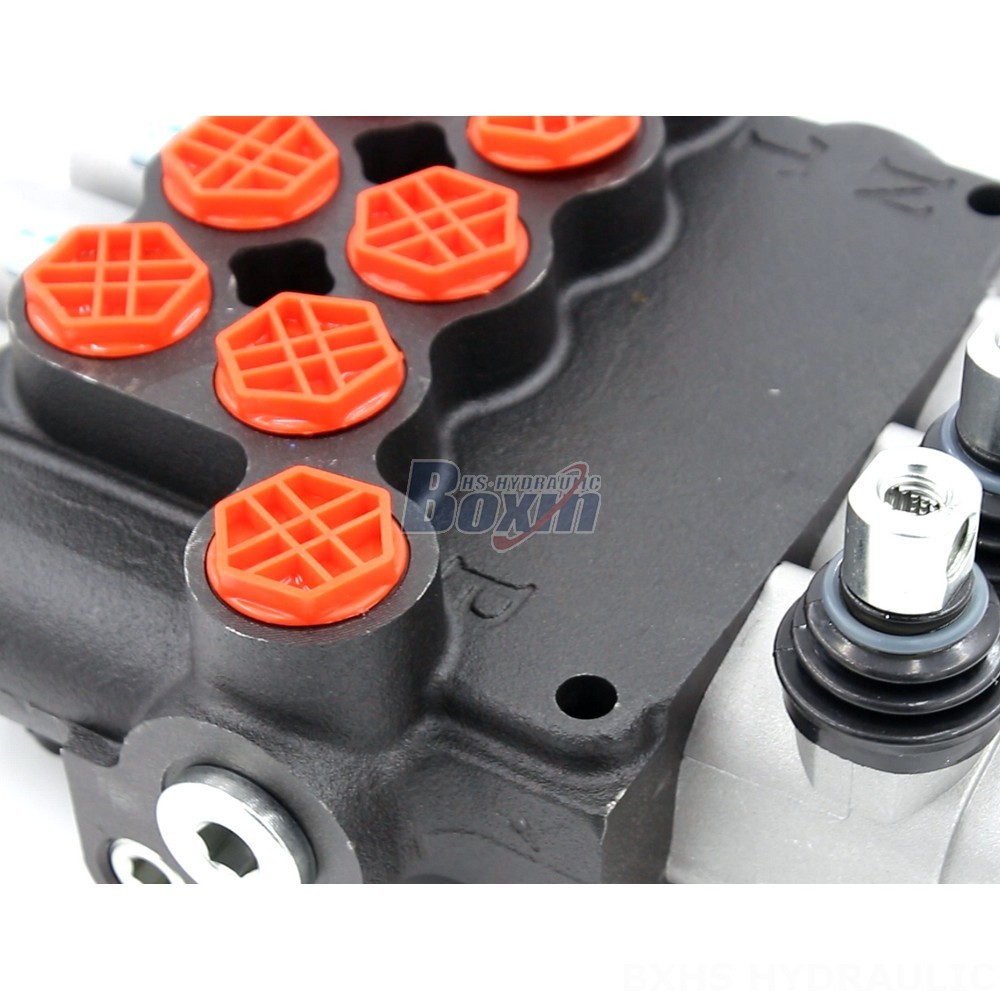

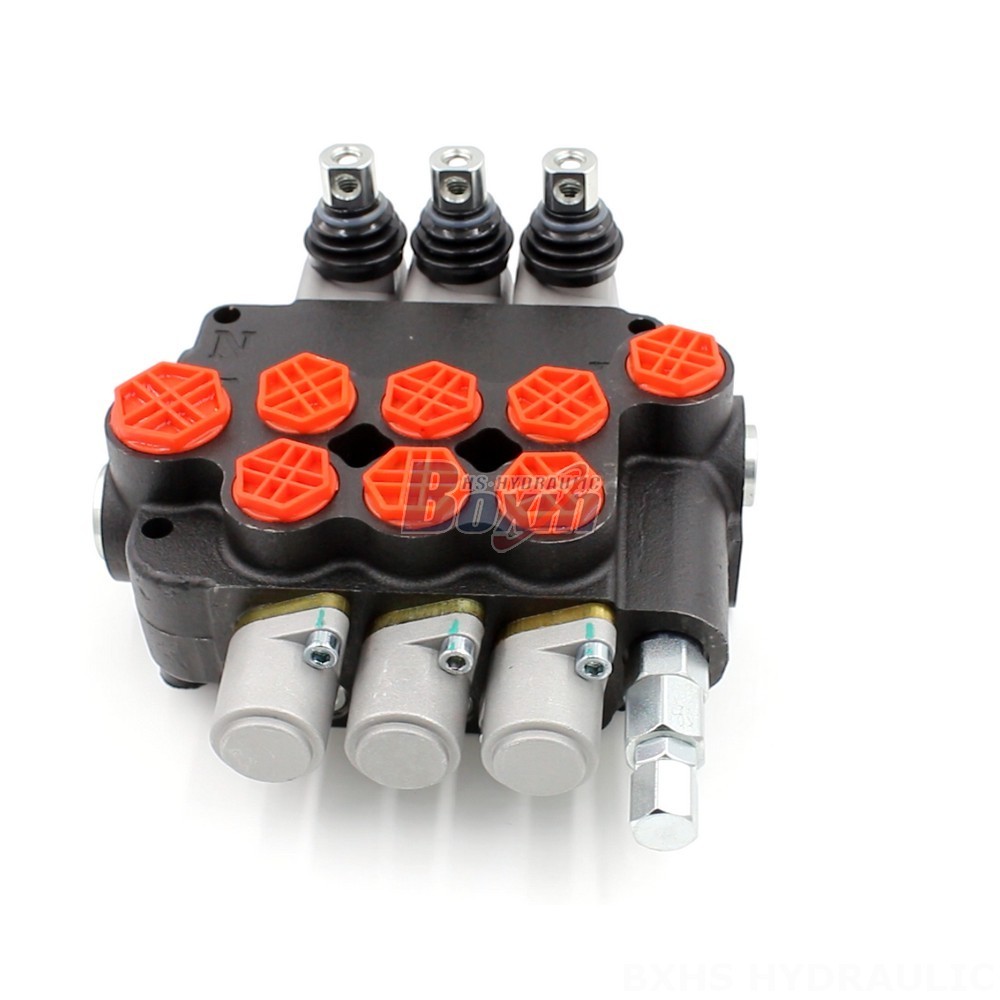

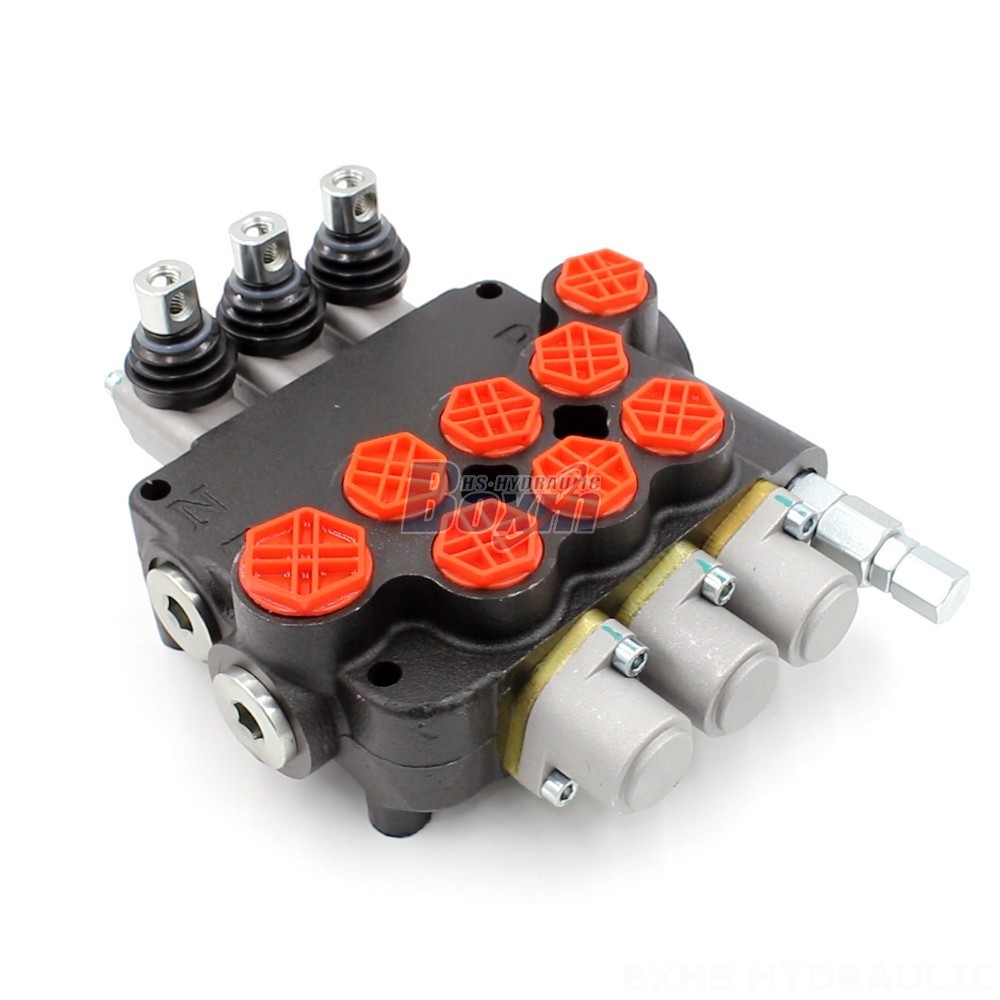

**P80-G12-G34-OT Hydraulic Directional Control Valve**
The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-quality valve manufactured by our company. We are a leading manufacturer of hydraulic products and have been in the industry for many years. Our valves are known for their quality, durability, and performance.
The P80-G12-G34-OT Hydraulic Directional Control Valve is a 3-section, 3-spool, monoblock valve. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P80-G12-G34-OT Hydraulic Directional Control Valve is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
We offer a variety of customization options for the P80-G12-G34-OT Hydraulic Directional Control Valve, including:
* Porting
* Mounting
* Spools
* Seals
We also offer a variety of testing and inspection services to ensure that our valves meet your specifications.
If you are looking for a high-quality, durable, and reliable hydraulic directional control valve, the P80-G12-G34-OT is the perfect choice. Contact us today for more information.
