The DCV60 2-Spool Electro-hydraulic Directional Valve is a high-performance valve designed for various industrial applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, it ensures efficient and precise control of hydraulic systems in demanding conditions.
| Série DCV60 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manuel, Solénoïde et manette, Manuel et manette, Moteur électrique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 60 L/min (15,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi), 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

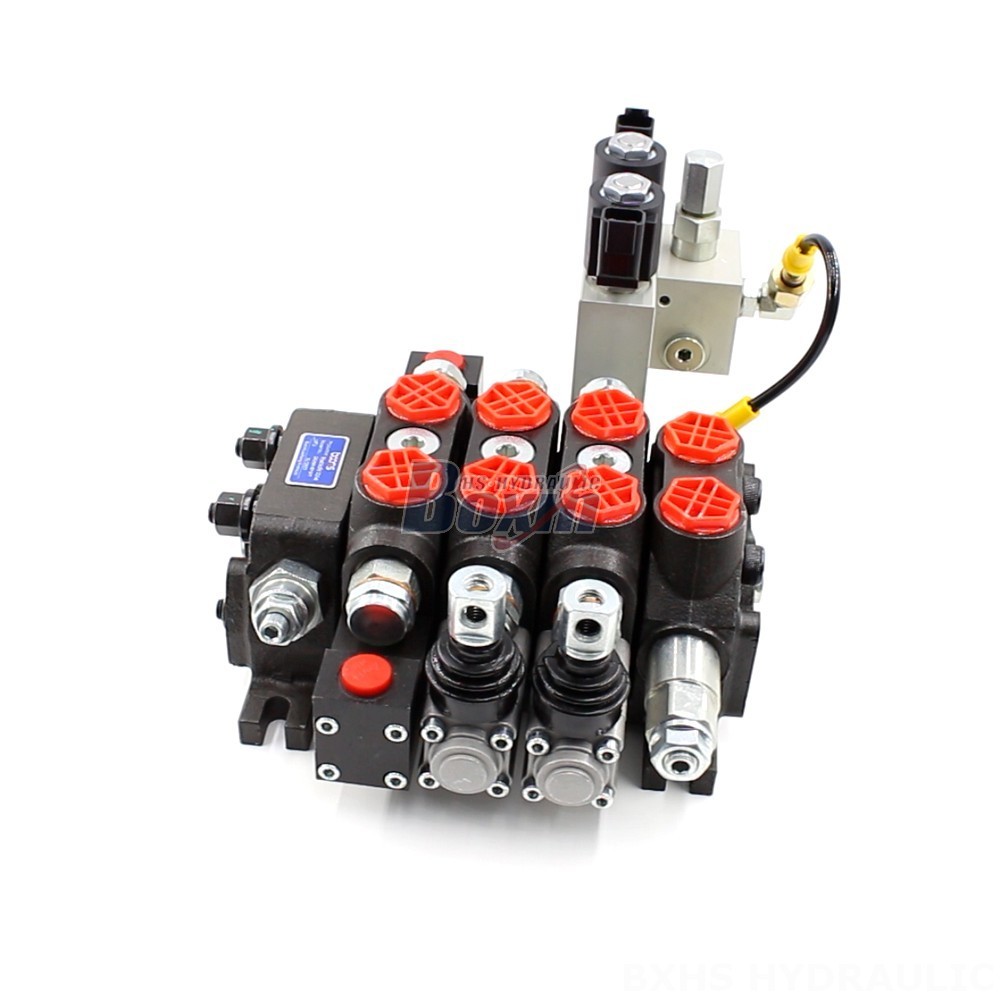

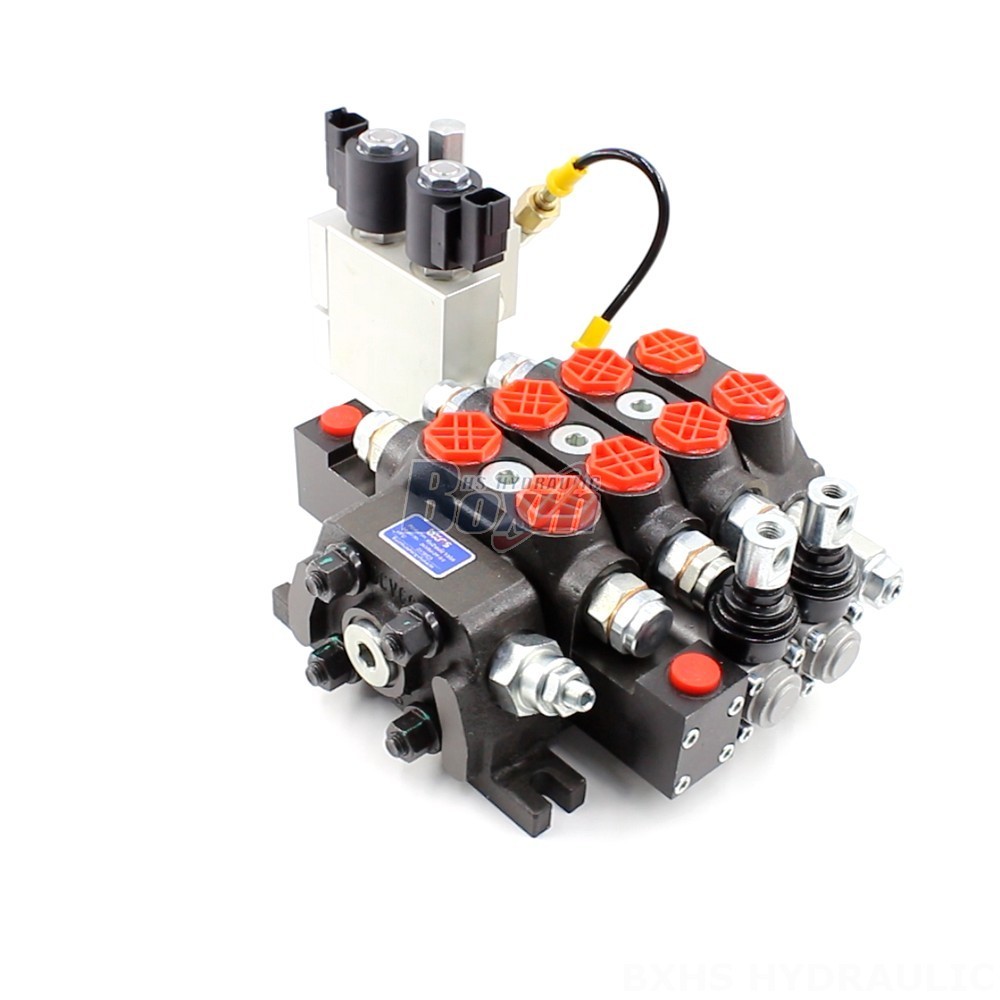

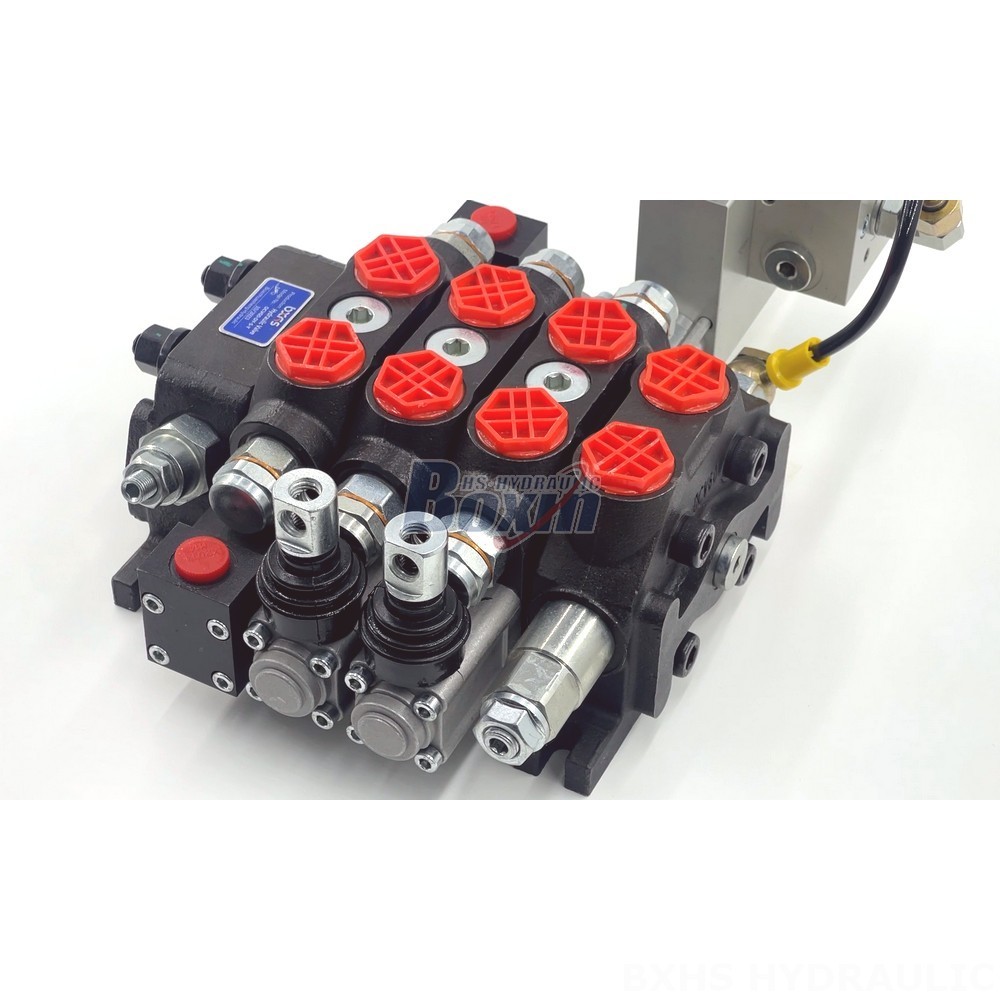

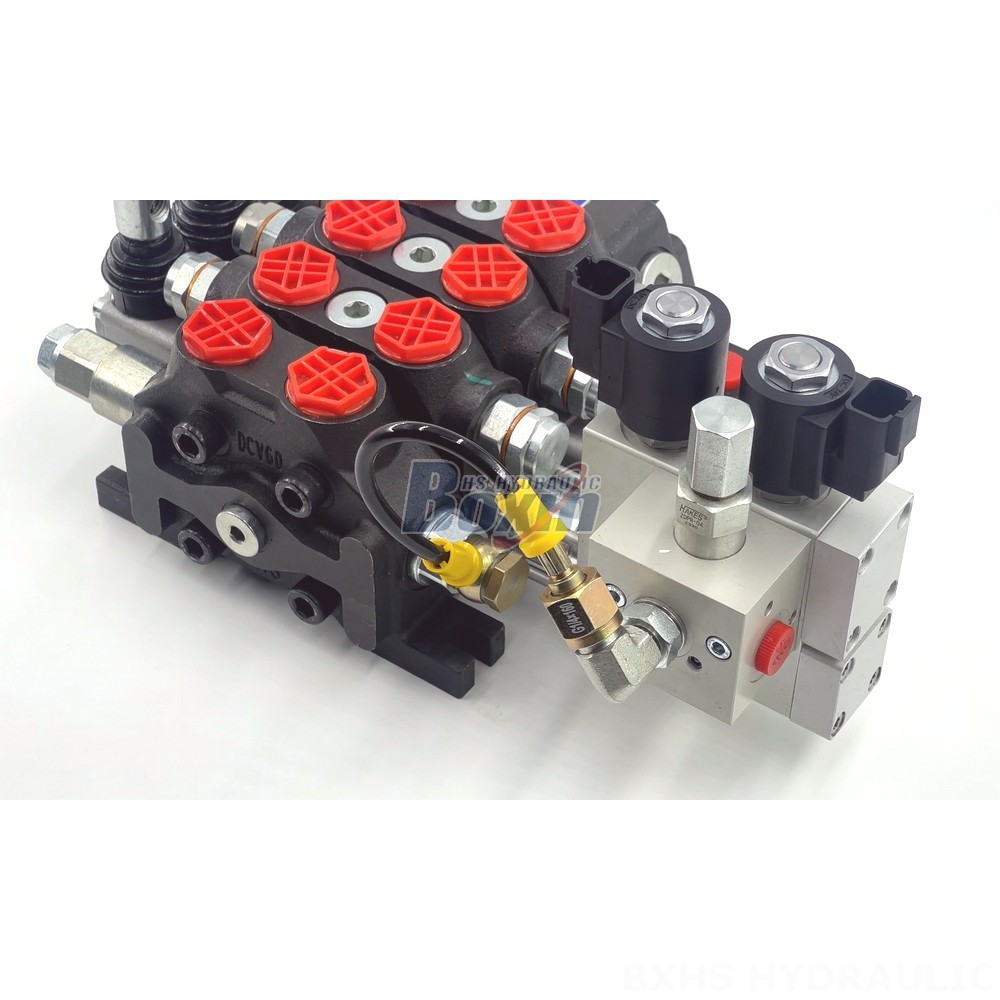

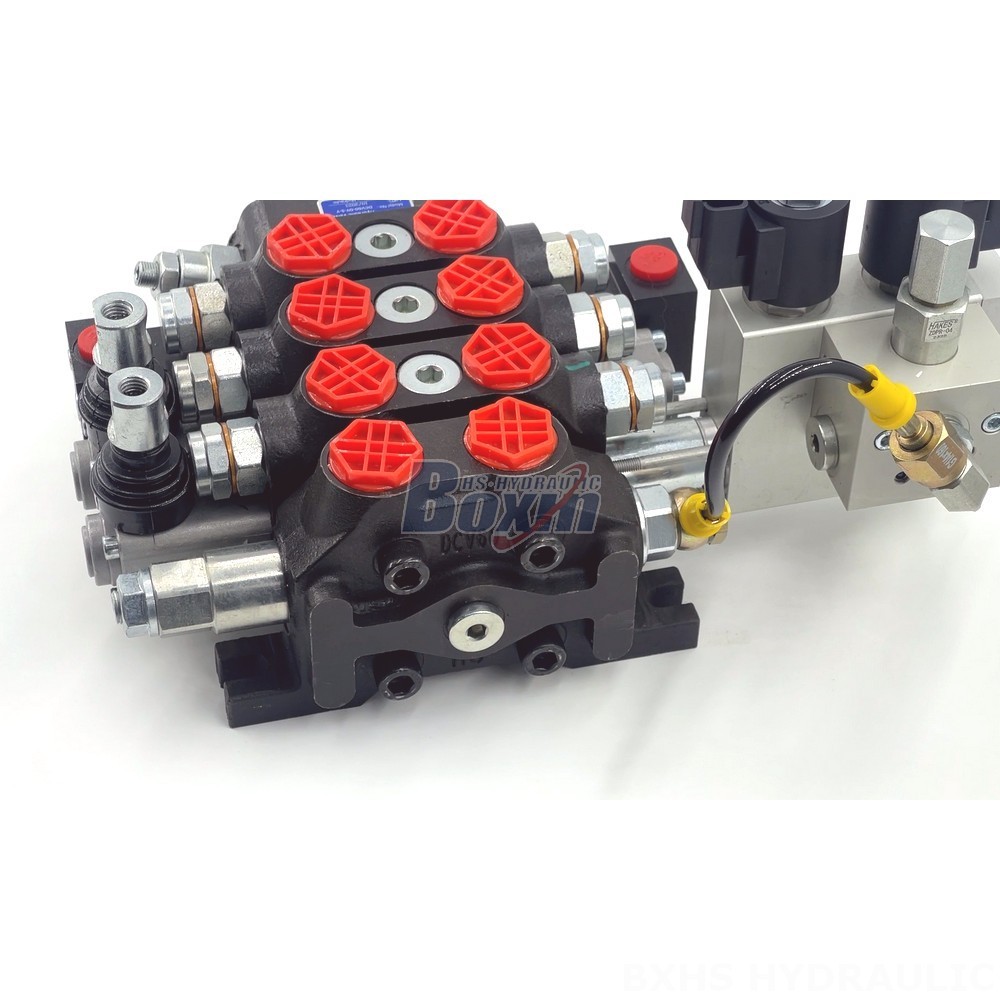

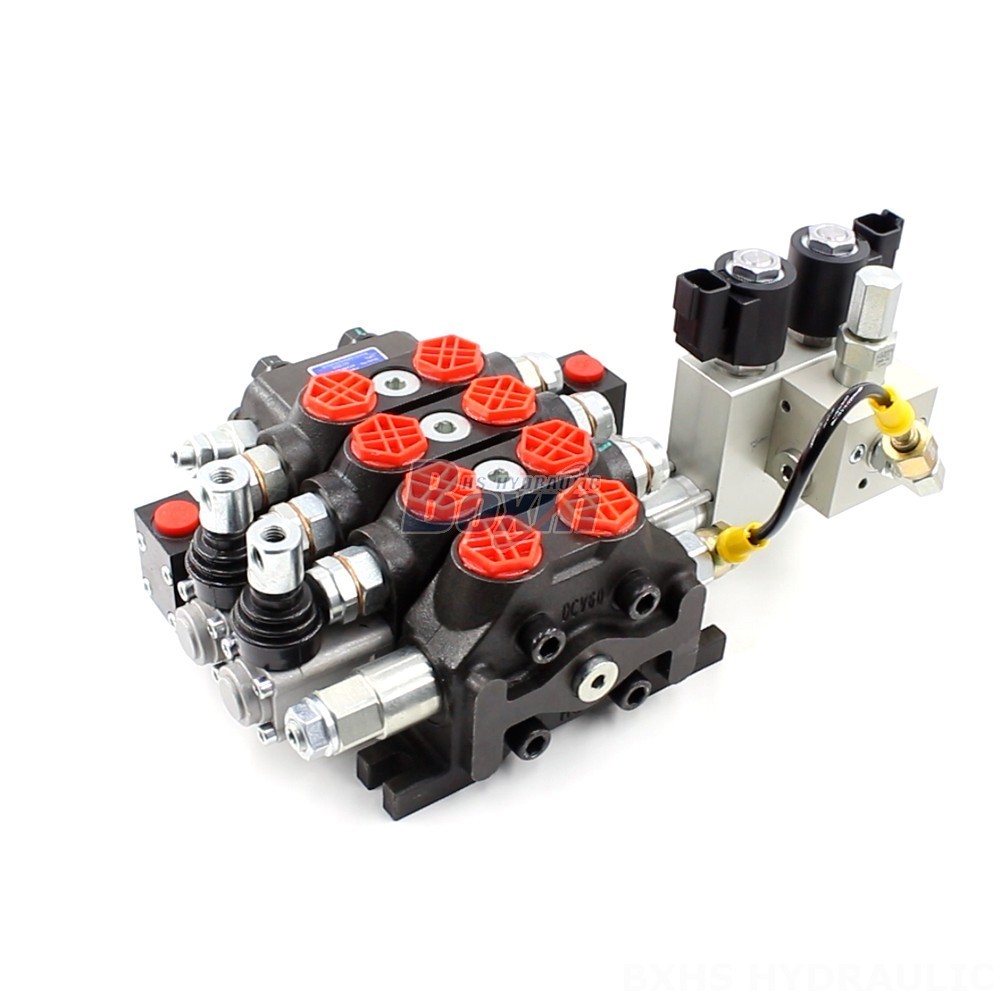

**DCV60 2-Spool Electro-hydraulic Directional Valve**
**Product Description:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is a compact and reliable valve that offers precise control of hydraulic systems. It features a sectional valve structure, allowing for easy customization and integration into various applications. The valve is designed to operate within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), ensuring optimal performance in diverse operating conditions.
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 2-spool design for versatile flow control
- Sectional valve structure for easy customization
- Rated flow of 60 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity and temperature ranges for adaptability
- Compact design for space optimization
- Suitable for various industrial applications, including material handling, construction, agriculture, and industrial vehicles
**Applications:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is widely used in hydraulic systems of:
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
