The DCV58 Solenoid 9 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control method, 9-section design, and robust construction, this valve offers precise flow control and reliability in harsh operating conditions.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |

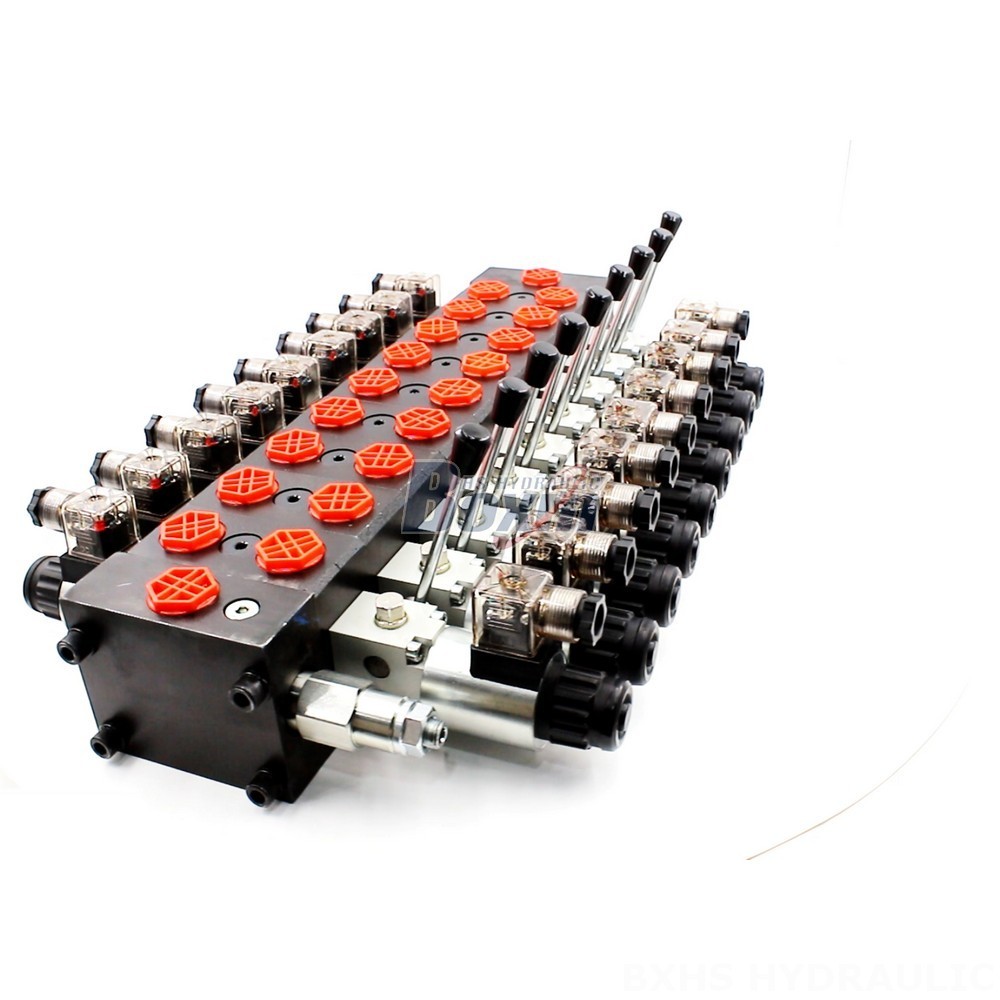

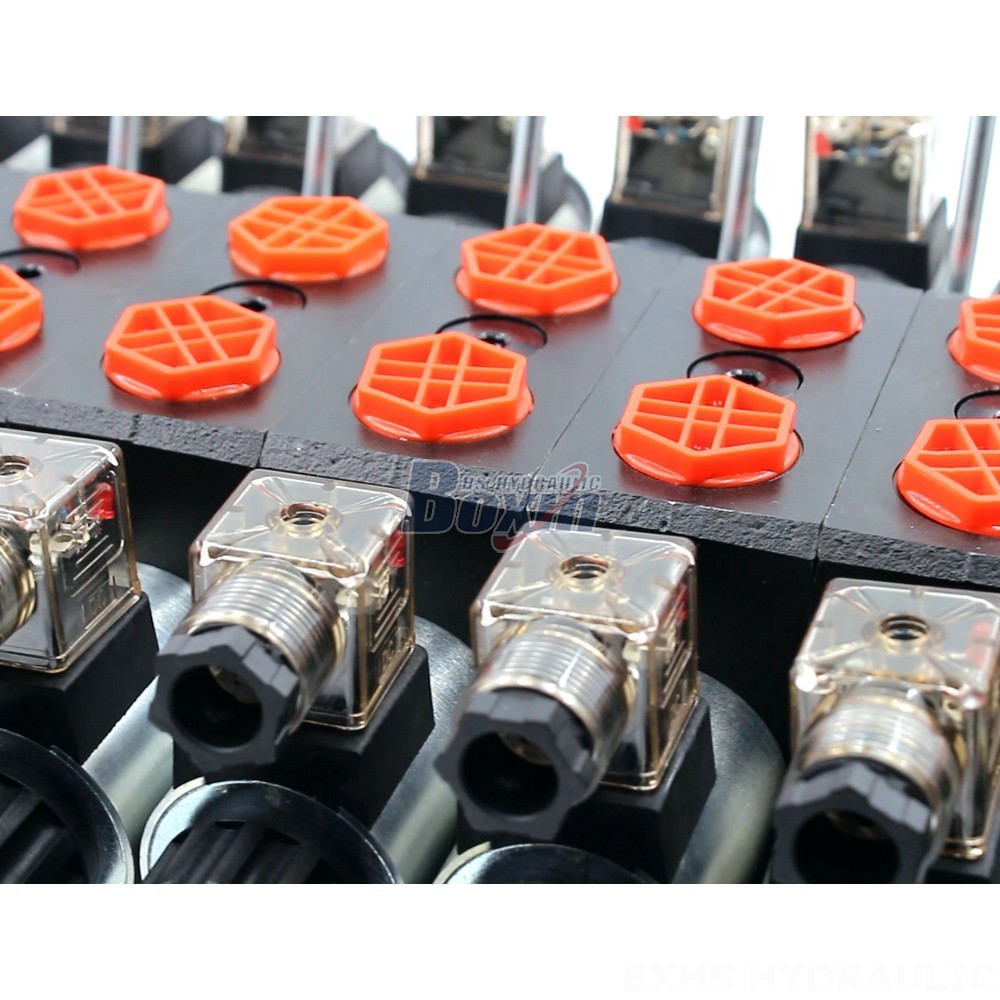

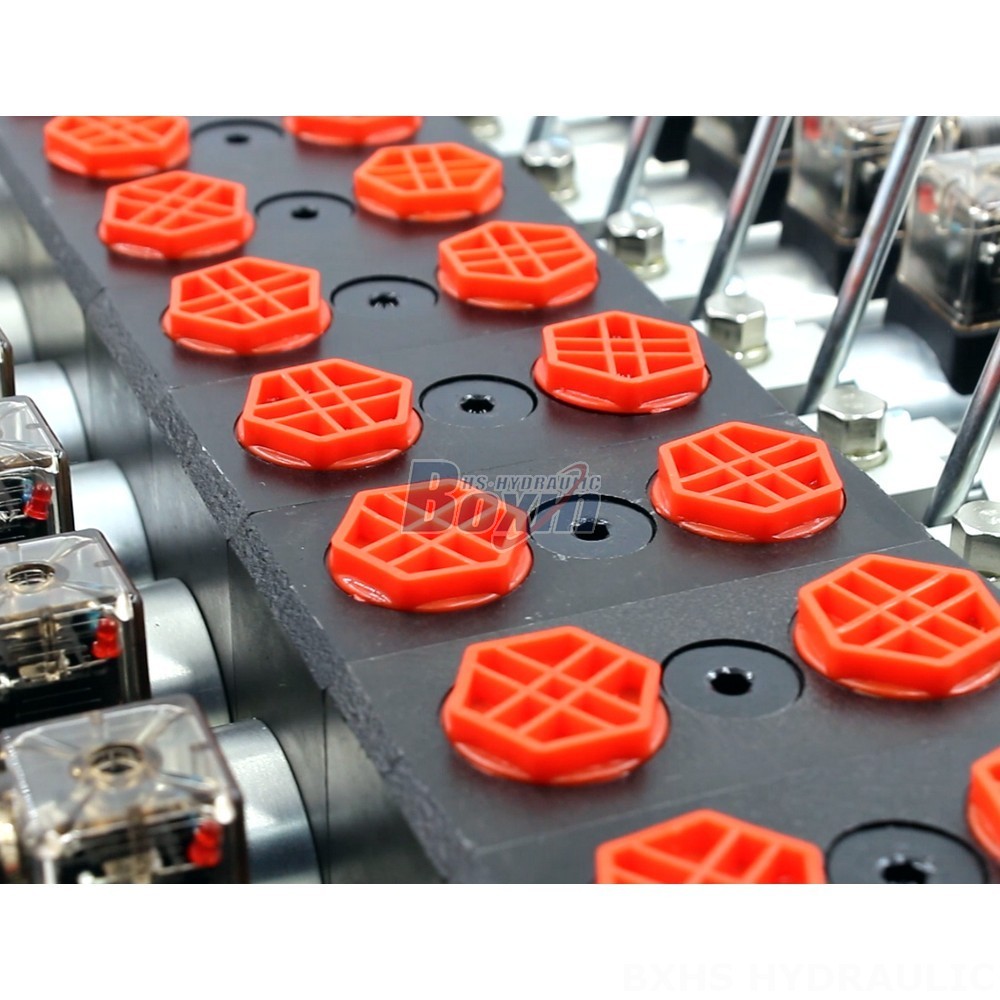

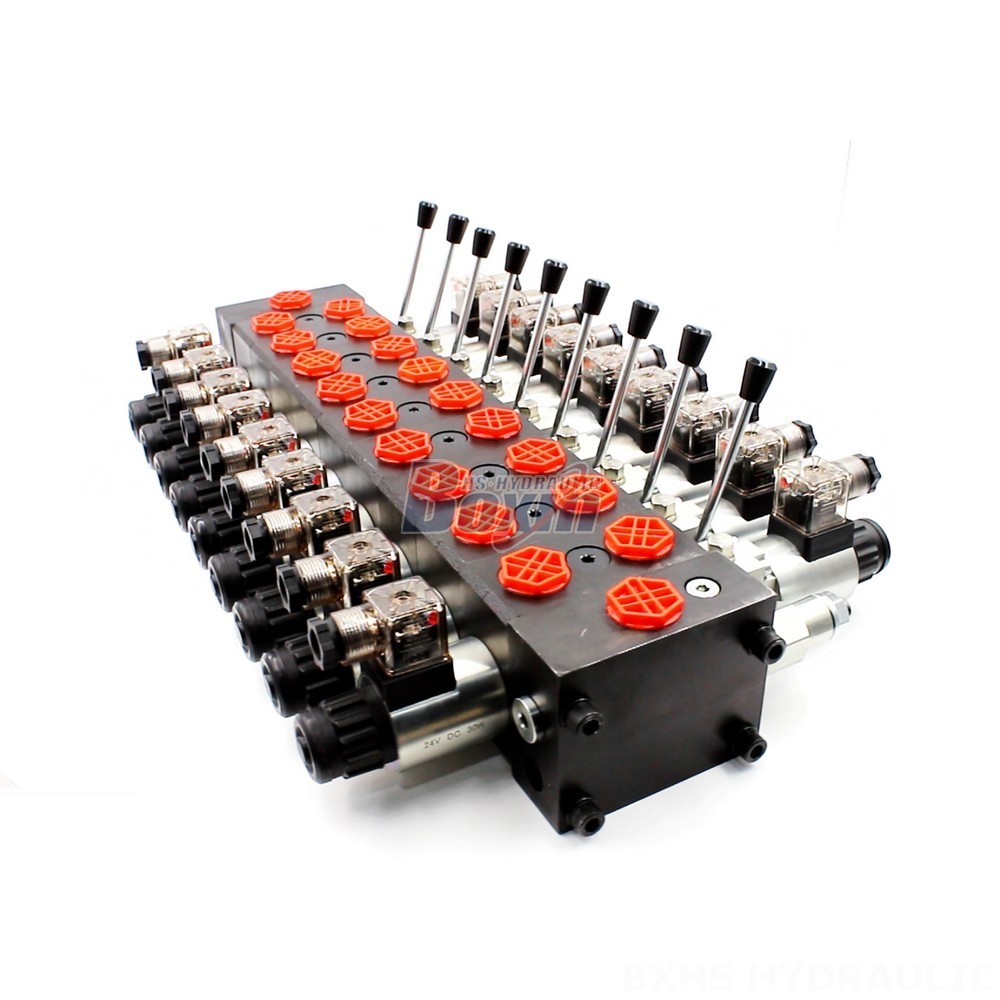

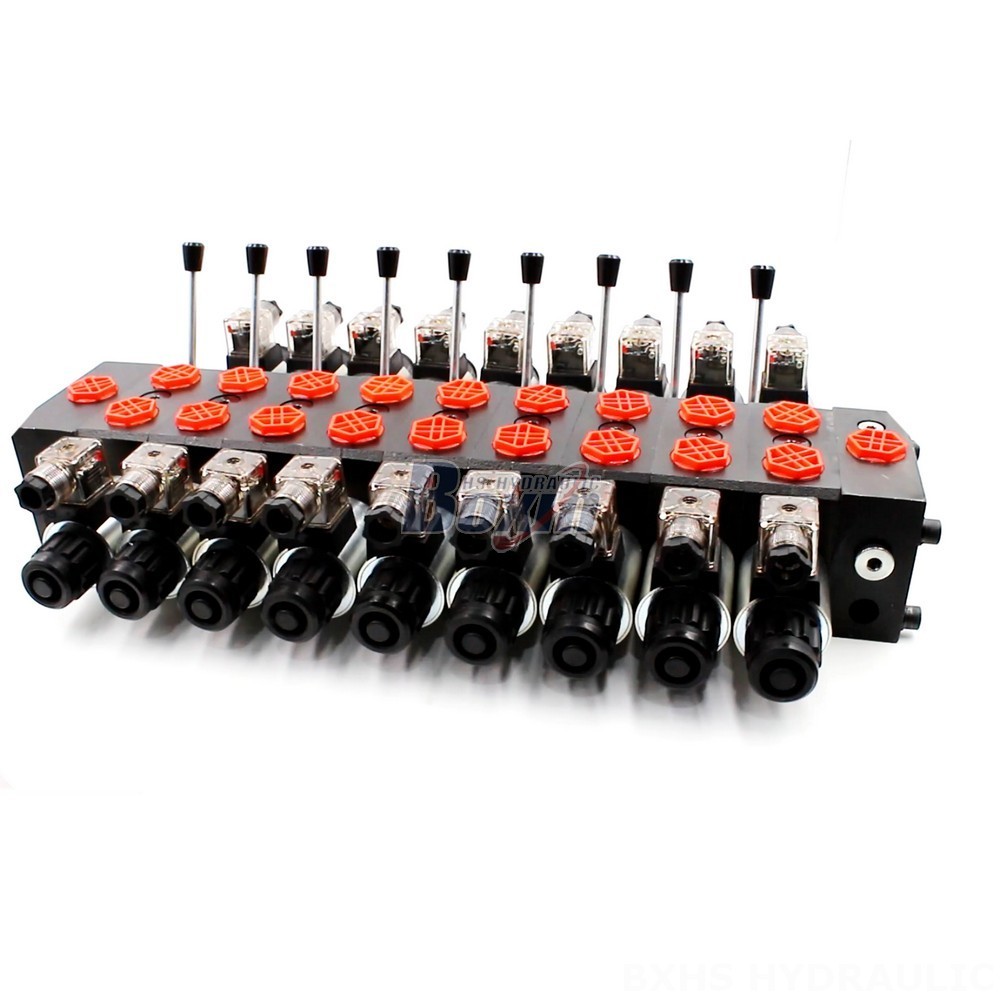

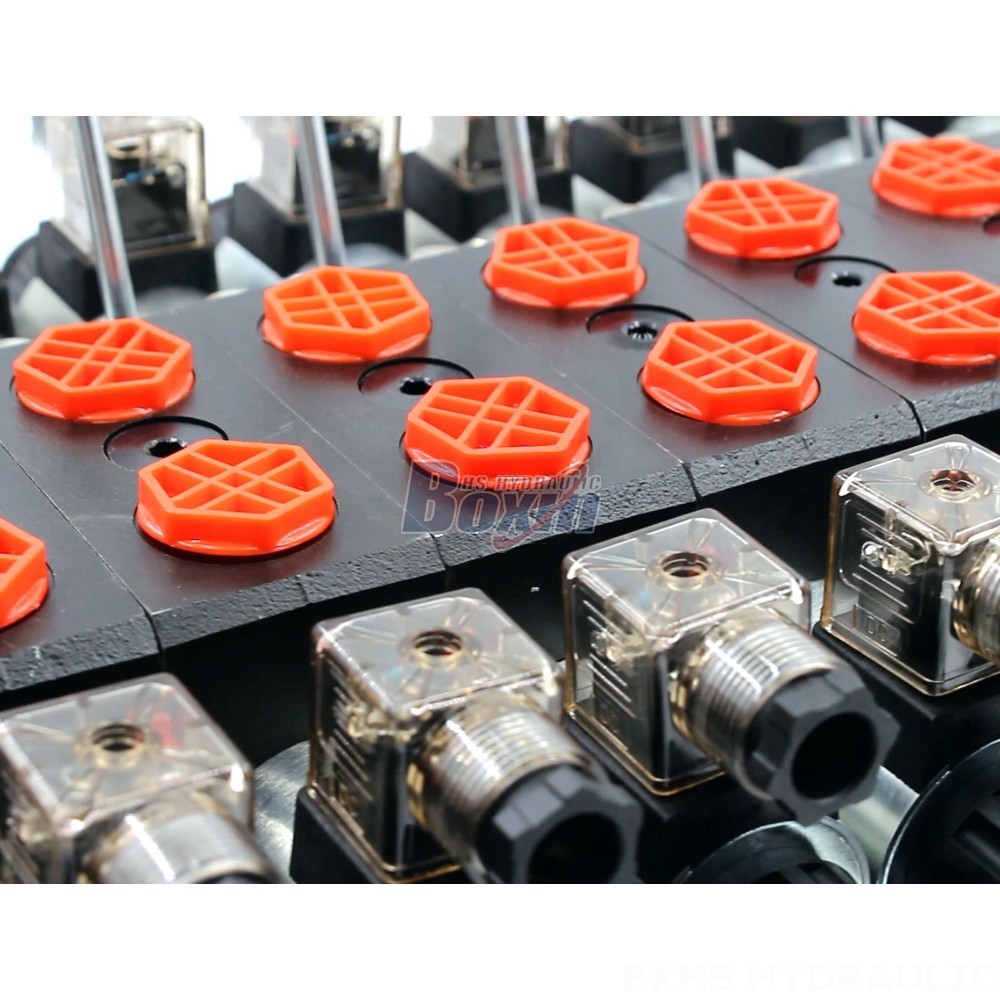

**DCV58 Solenoid 9 Spool Sectional Directional Valve**
**Control Method:** Solenoid
**Section:** 9 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 9 Spool
**Series:** DCV58 Series
**Application Area:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Model:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
